MRCOOL  |  SKU: *DIYM336HPC02C00

MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM336HPC02C00

$6,275.00 $8,472.00
Shipping calculated at checkout.


Care information

Care kits are available on our website! Grab yours now.

Delivery and Shipping

Delivery times may vary by location but our delivery shipping times are 3-7 days.

Selling fast! Grab yours now!

Specifications

Description

"Introducing the 4th Generation MRCOOL DIY Mini Split – your comprehensive solution for maintaining a comfortable environment in your home, office, or any space of your choice. With this package, you'll receive a 36K BTU Multi-Zone Condenser, complemented by two 9K and 18K BTU Ceiling Cassette Air Handlers, as well as a remote control, lineset, and communication wire for each air handler. The best part of this package is that it empowers you to carry out the installation yourself! The MRCOOL DIY Mini Split offers remarkable flexibility, enabling installation virtually anywhere, all without the need to hire an expensive HVAC technician or invest in specialized equipment.

Here's what's included in this Mini Split System:

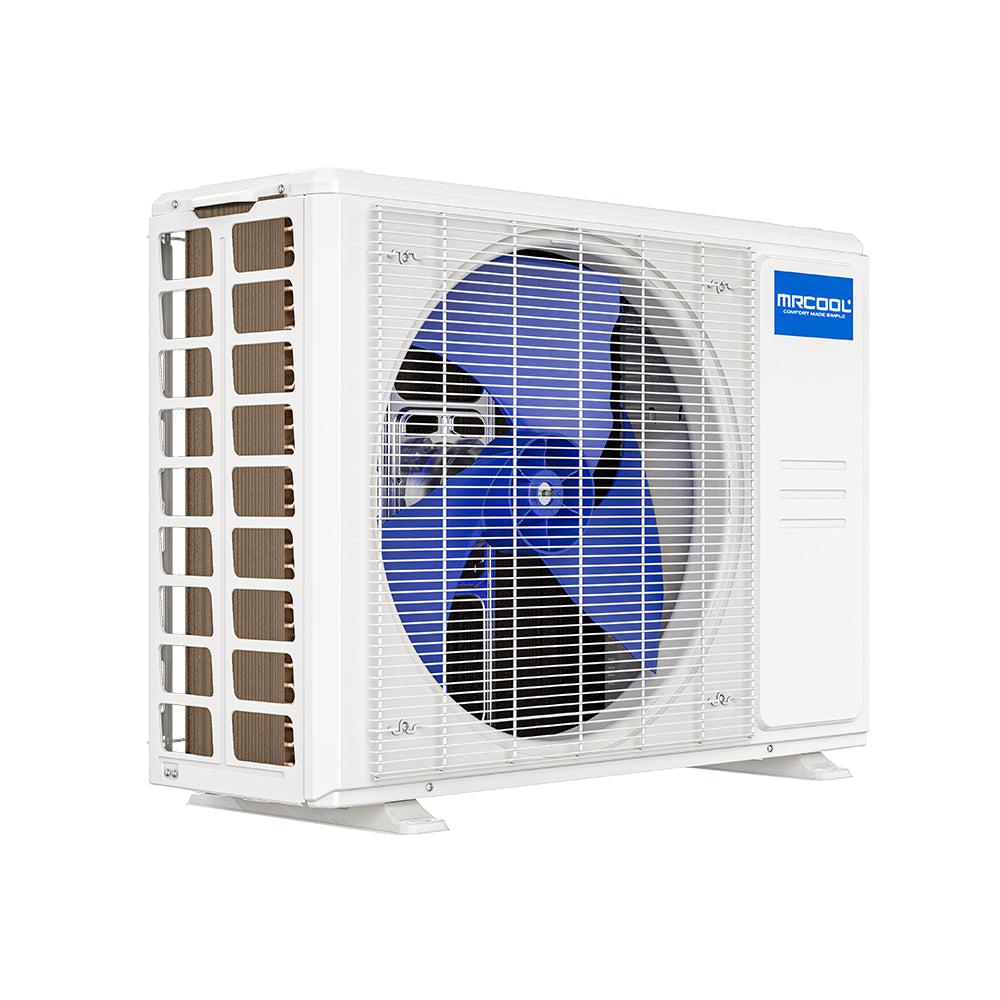

MRCOOL DIY Multi-Zone 4-Zone 36K BTU Condenser, part of the 4th Gen Series, known as DIY-MULTI4-36HP230C.

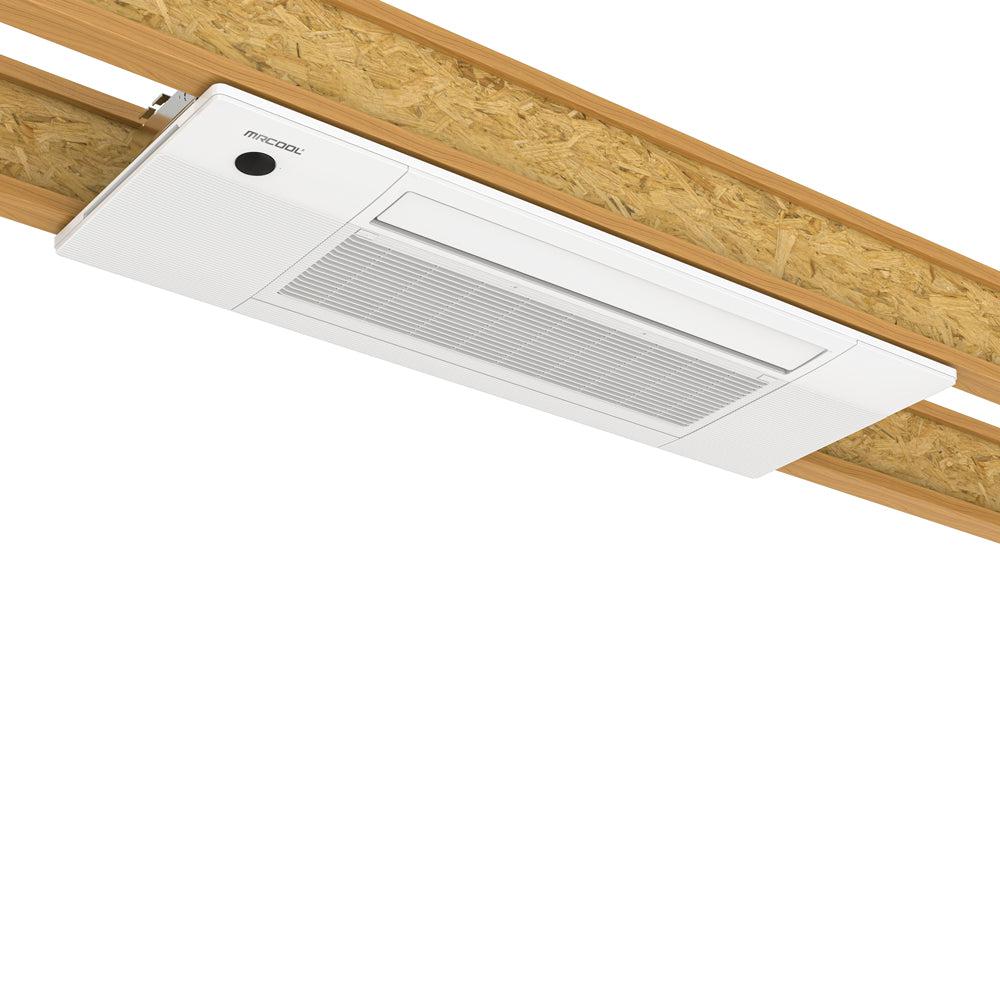

Two MRCOOL DIY Series 9K BTU Ceiling Cassette Air Handlers, each identified as DIYCASSETTE09HP-230C25.

One MRCOOL DIY Series 18K BTU Ceiling Cassette Air Handler, specified as DIYCASSETTE18HP-230C25.

Three MRCOOL 16ft 1/4 x 1/2 Pre-Charged Linesets for DIY 9K, 12K & 18K Indoor units, recognized under the DIY16-1412 label.

Important Note: When running all air handlers simultaneously, their combined BTU output will never exceed the 36K BTU rating of the Condenser.

Key Features:

Condenser 36K BTU:

Demonstrates remarkable energy efficiency with an impressive 21.5 SEER2 rating, making it eligible for substantial energy savings and potential tax rebates.
Ensures reliable performance in extreme temperature conditions, capable of effectively heating even when temperatures drop to -13°F.
Provides peace of mind with a 7-year compressor and 5-year parts warranty. For a lifetime warranty on the compressor, simply register it through the MRCOOL Care Program.
Air Handler 9K BTU:

Covers a substantial area ranging from 180 to 375 sq. ft.
Offers exceptional versatility with various operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Features a discreet low-profile design for inconspicuous heating and cooling.
Installation is hassle-free, accommodating various joist types with 16"" centers, including pre-manufactured I-joists.
Convenient access to the air filter is facilitated by the Elevation function, lowering the filter panel for easy maintenance.
Air Handler 18K BTU:

Covers a vast area between 375 to 750 sq. ft.
Demonstrates outstanding versatility with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Features a low-profile design for unobtrusive heating and cooling.
Installation is straightforward, fitting seamlessly between various joist types with 16"" centers, including pre-manufactured I-joists.
Easy access to the air filter is achieved by activating the Elevation function, lowering the filter panel for effortless maintenance.
Line Set:

Comes pre-charged with the precise amount of R-410A refrigerant, streamlining the installation process.
Empowers you to save significantly, as the installation can be easily carried out without the need for a certified technician, resulting in cost savings!
Experience the convenience and cost-effectiveness of the MRCOOL DIY Mini Split – your all-inclusive solution for achieving the perfect climate, while avoiding the expenses associated with professional installation.
