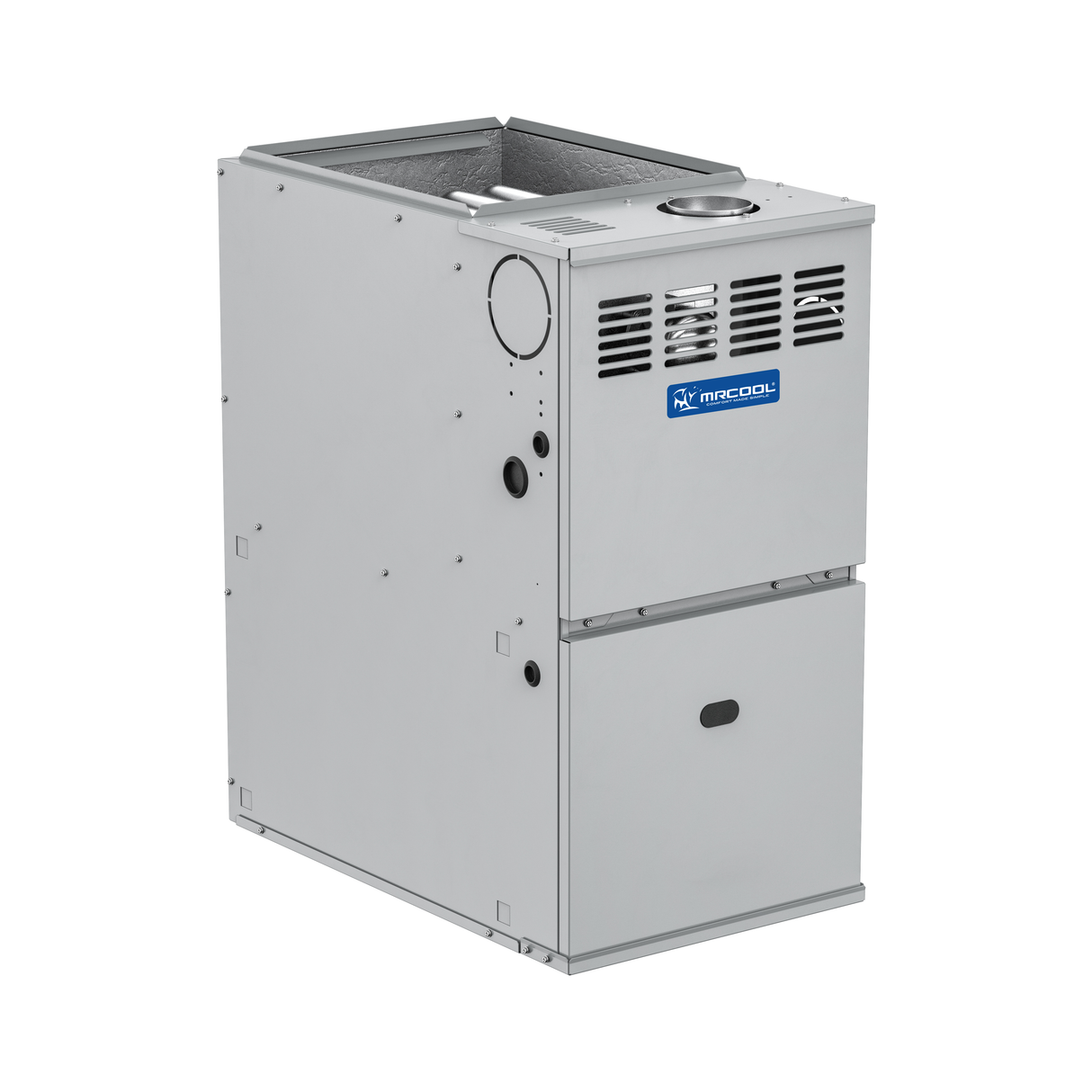

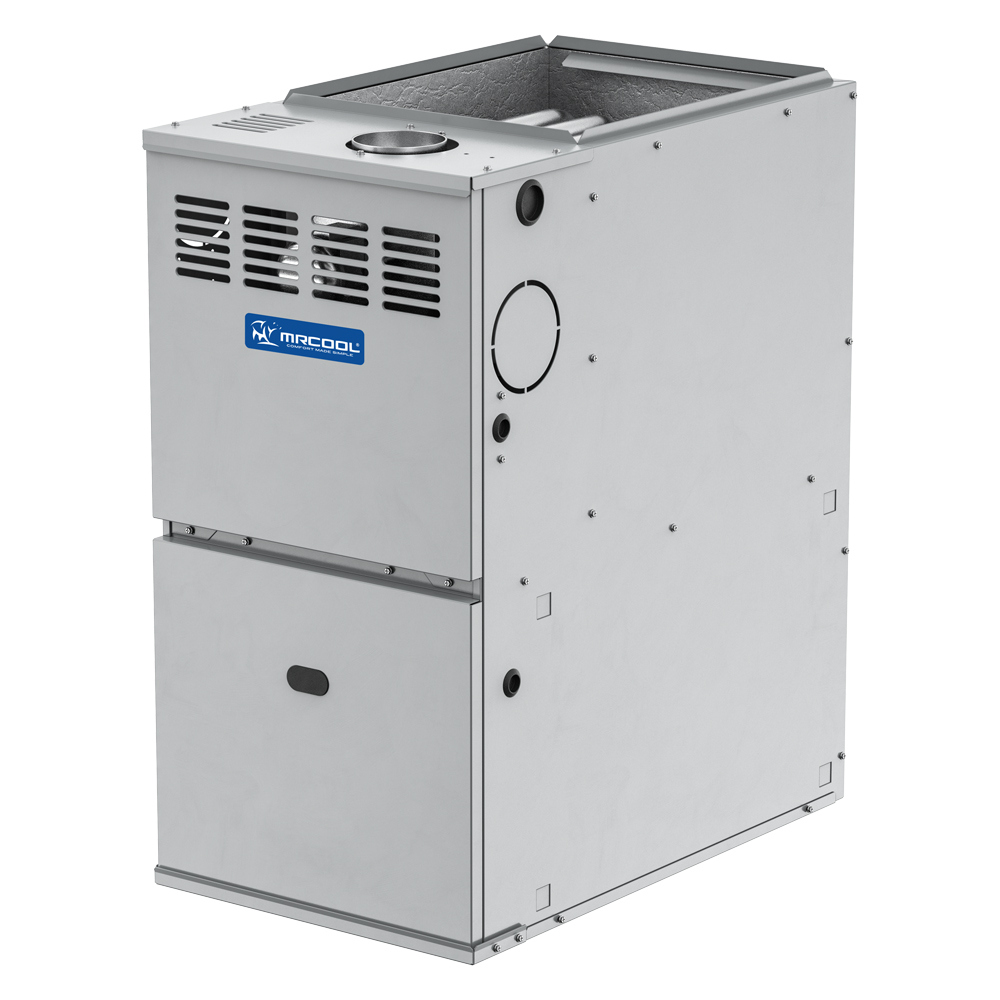

40k BTU 80% AFUE Variable Speed MRCOOL VersaPro Gas Furnace – Multiposition – 14.5" Cabinet
40k BTU 80% AFUE Variable Speed MRCOOL VersaPro Gas Furnace – Multiposition – 14.5" Cabinet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Care kits are available on our website! Grab yours now.
Delivery and Shipping
Delivery and Shipping
Delivery times may vary by location but our delivery shipping times are 3-7 days.
Specifications
Specifications
40k BTU 80% AFUE Variable Speed MRCOOL VersaPro Gas Furnace – Multi...
Description
Description
PRODUCT DESCRIPTION
Bring reliable warmth and long-term efficiency to your home with the 40k BTU 80% AFUE Variable Speed MRCOOL VersaPro Gas Furnace (Model MGA80SE040A3C)
Designed for small toR mid-sized homes (750–900 sq. ft.), this VersaPro natural gas furnace combines compact design with robust heating performance. Delivering an 80% AFUE efficiency rating, the unit efficiently converts natural gas into consistent, even heat — saving on energy costs while keeping your space perfectly comfortable.
Equipped with a high-efficiency ECM variable speed blower motor, this furnace ensures quieter operation, enhanced airflow control, and compatibility with up to 2-ton cooling systems. The multi-position cabinet supports upflow, downflow, and horizontal configurations, making it ideal for versatile installations in tight spaces or custom HVAC setups.
With durable construction, standard 24V thermostat compatibility, and dual-side gas connections, the MrCool VersaPro 40k BTU furnace is engineered for performance, convenience, and longevity.
🌟 Product Highlights
-
✅ 40,000 BTU heating output for spaces up to 900 sq. ft.
-
✅ 80% AFUE efficiency for cost-effective gas heating
-
✅ Variable-speed ECM blower motor for superior airflow control and quiet operation
-
✅ Multi-position installation: upflow, downflow, or horizontal
-
✅ Compact 14.5" cabinet – ideal for space-saving installs
-
✅ Standard 24V thermostat compatible
-
✅ Dual-side gas connections for flexible setup
-
✅ AHRI Certified & ETL Listed for performance and safety assurance
-
✅ 10-Year Parts Warranty and Lifetime Heat Exchanger Warranty with registration
- Two Stage
- Compatible with R454b Refrigerant
-
Filter Size:
Side Return: 16x25x1
Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25 - Optional LP Kit
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Model | MGA80SE040A3C |
| Brand | MRCOOL |
| Series | VersaPro |
| BTU Output | 40,000 BTU |
| AFUE Rating | 80% |
| Fuel Source | Natural Gas |
| Cooling Compatibility | Up to 2 Ton |
| Blower Motor | Variable-Speed ECM |
| Gas Valve | Single Stage |
| Voltage | 120V |
| Phase | 1-Phase |
| Installation Type | Upflow, Downflow, Horizontal |
| Exhaust Pipe | Metal |
| Vent Connection | 4 inches |
| Thermostat Compatibility | Standard 24V |
| Max Overcurrent Protection | 15 amps |
| Coverage Area | 750–900 sq. ft. |
| Dimensions (H × L × W) | 33.75" × 28.75" × 14.5" |
| Weight | 108 lbs |
| Certifications | AHRI Certified, ETL Listed |
| Warranty (Registered) | 10-Year Parts, Lifetime Heat Exchanger |
| Warranty (Unregistered) | 5-Year Parts, 20-Year Heat Exchanger |
Available from MRCOOL DIRECT, the USA’s most trusted MRCOOL dealer.
