MRCOOL® Hyper Heat 2nd Gen 30K BTU 2.5 Ton 16.8 SEER2 Central Ducted Heat Pump Condenser, CENTRAL-30-HP-C-230B00-O

Product Description

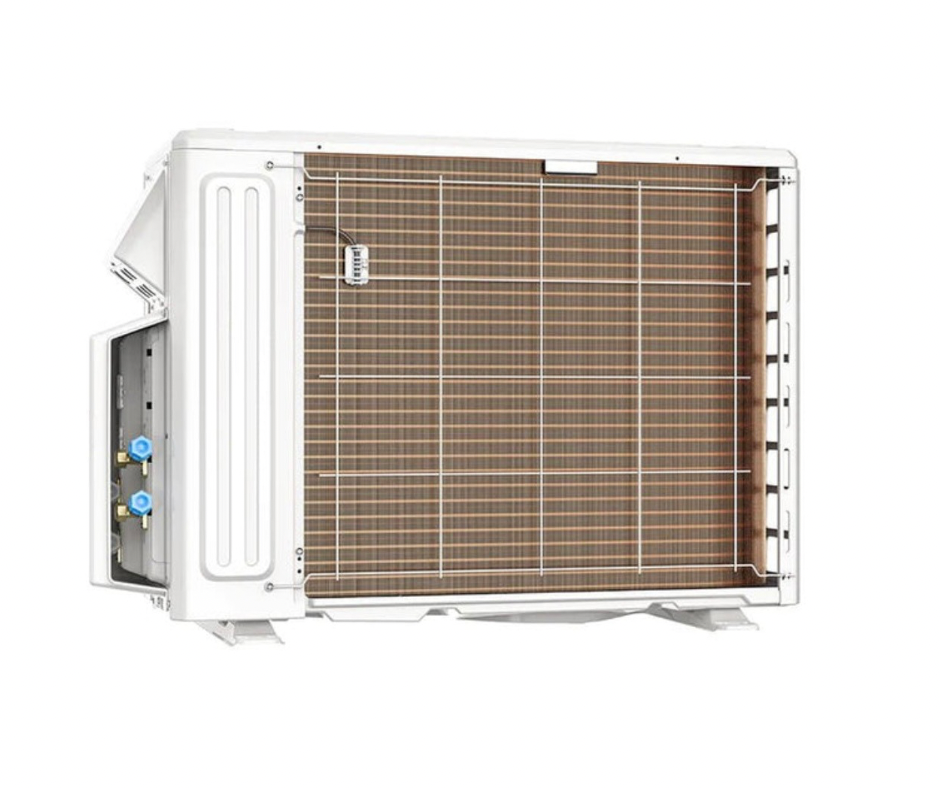

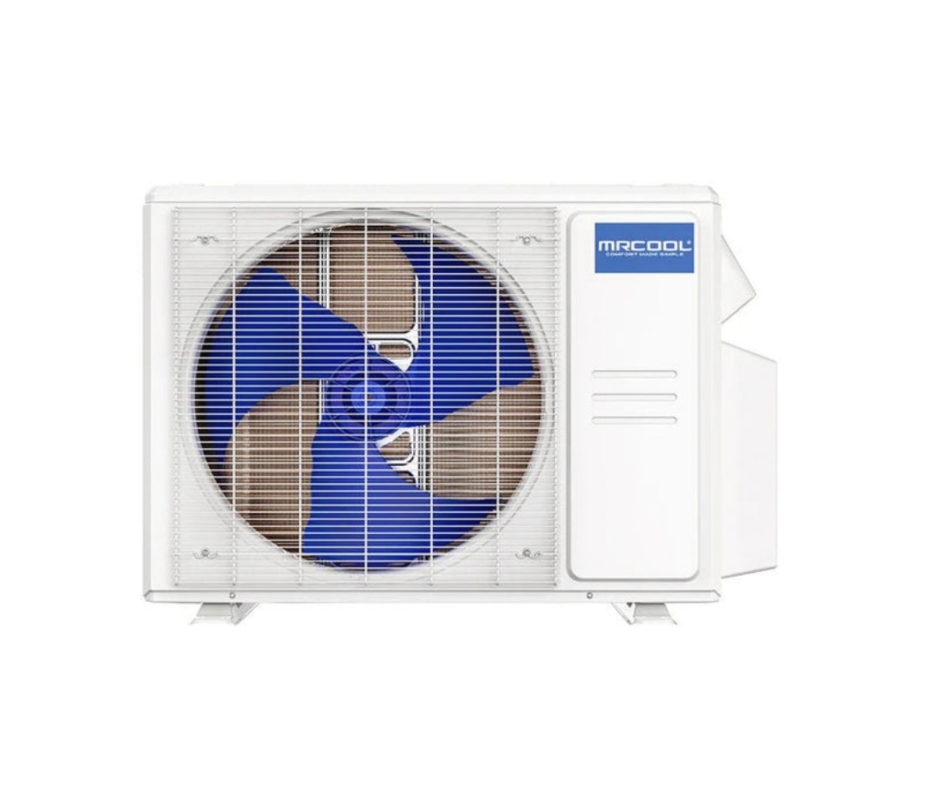

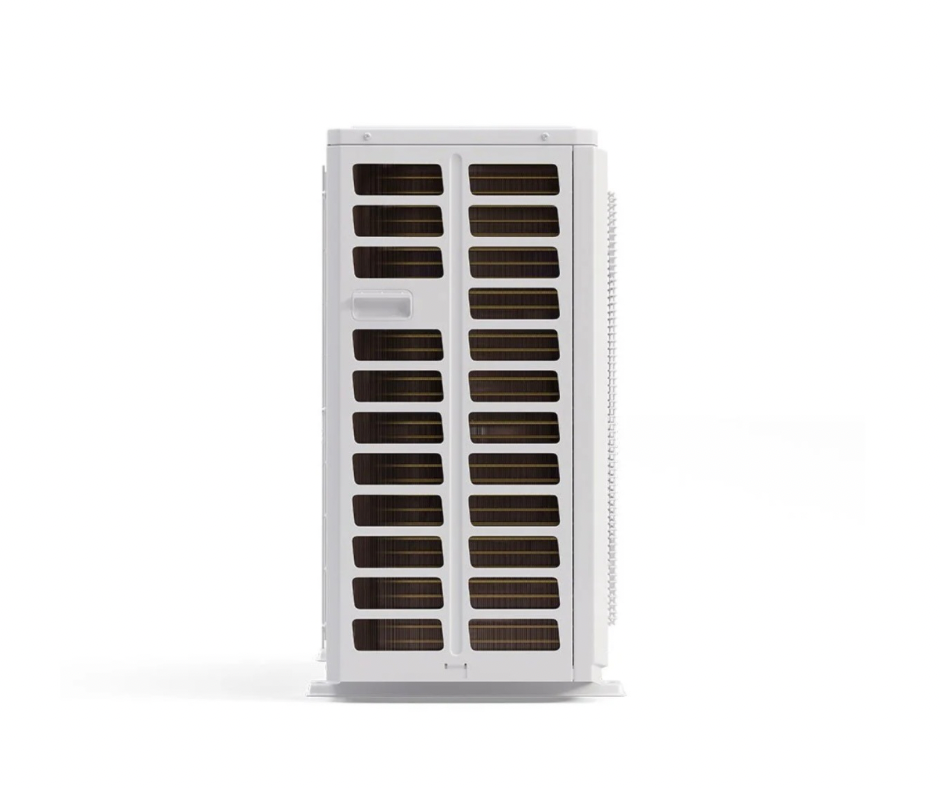

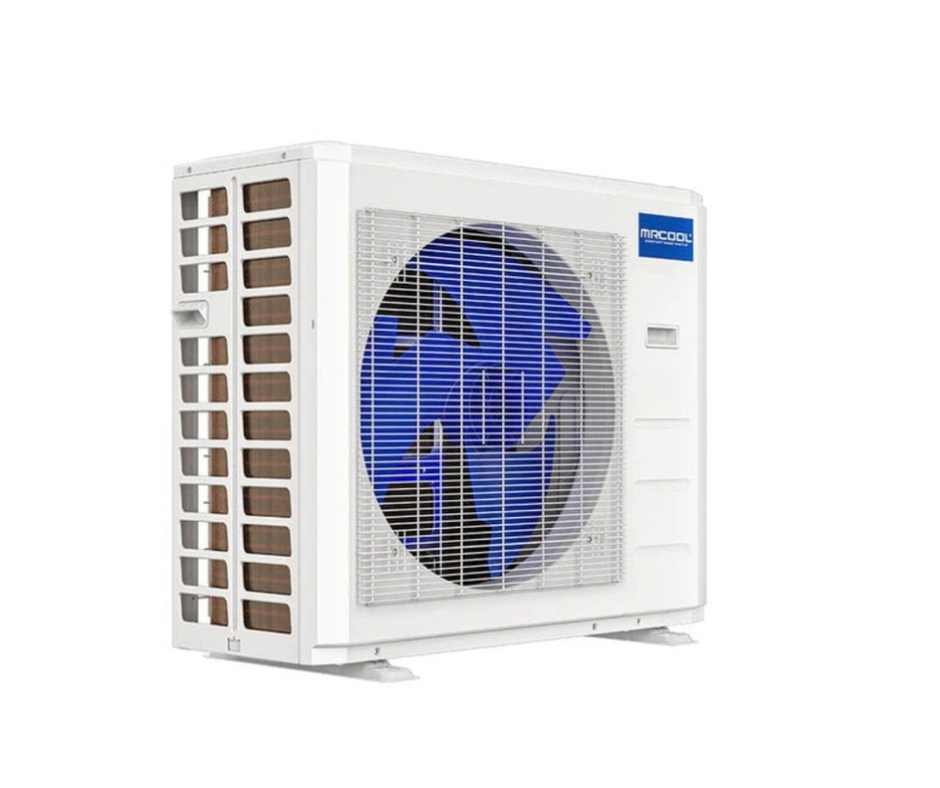

MRCOOL® Central Hyper Heat 30K 2.5-Ton Ducted Heat Pump Condenser (230V)

The MRCOOL® Central Hyper Heat 30K (2.5-Ton) Condenser is engineered for homeowners who need serious heating power in winter without sacrificing cooling efficiency in the summer. Built with DC inverter and variable-speed technology, this 2nd Generation Hyper Heat system delivers smooth, consistent comfort while keeping operating costs in check.

Rated at 16.8 SEER2 and delivering up to 34,000 BTU of heating output, this condenser is designed to perform reliably in cold climates where standard heat pumps fall short. It pairs seamlessly with the MRCOOL® VersaPro® 2.5-Ton Central Ducted Air Handler and can also be integrated into dual-fuel systems with gas or electric furnaces, giving installers and homeowners maximum system flexibility.

The system uses R-454B refrigerant, a next-generation, low-GWP solution that meets modern efficiency and environmental standards. The outdoor unit features a painted galvanized steel cabinet, quiet operation at just 60.5 dBA, and full WiFi and app-based smart control through the (sold separately) MRCOOL® Smart Thermostat.

Backed by an industry-leading 10-year warranty covering the compressor, parts, and labor, the MRCOOL Central Hyper Heat 30K condenser delivers long-term confidence along with powerful, energy-efficient comfort.



COMPATIBILITY & SYSTEM PAIRINGS

✔ MRCOOL® VersaPro® 2.5-Ton Central Ducted Air Handler

✔ Compatible with gas or electric furnaces (dual-fuel ready)

✔ Optional electric heat kits supported

✔ MRCOOL® Smart Thermostat (sold separately)

✔ WiFi & mobile app control



TECHNICAL SPECIFICATIONS

Series: Central Ducted Hyper Heat – 2nd Gen

Model: CENTRAL-30-HP-C-230B00-O

Unit Type: Split System Heat Pump

Equipment Type: Outdoor Condenser



Cooling Capacity: 30,000 BTU

Heating Capacity: 34,000 BTU

Tonnage: 2.5 Ton



SEER2: 16.8

EER2: 11.7

HSPF2 (Region 4): 10

HSPF2 (Region 5): 8.3



Voltage: 208/230V

Phase: 1

Frequency: 60 Hz

Max Breaker: 30A

Min Circuit Ampacity: 29.5A

Refrigerant Type: R-454B

Refrigerant Charge: 105.82 oz

Liquid Line: 3/8”

Suction Line: 3/4”

Sound Rating: 60.5 dBA

Certifications: ENERGY STAR®, AHRI, ETL

WiFi / App Control: Yes



Warranty:

• 10-Year Compressor

• 10-Year Parts

• 10-Year Labor





DIMENSIONS & WEIGHT

Net Dimensions:

• Width: 37.24”

• Depth: 16.14”

• Height: 31.89”

Net Weight: 164.02 lbs



Shipping Dimensions:

• Width: 42.91”

• Depth: 19.68”

• Height: 34.84”

Shipping Weight: 174.6 lbs

Note: These units are designed for use with No Vac Quick Connect Line Sets, which come pre-charged with R-454B refrigerant for a quicker and easier installation. Line sets are not included but can be purchased separately. If you prefer the traditional flare nut configuration, you're in luck—stub pipes and copper nuts are included





Frequently Asked Questions (FAQ)

Is this compatible with furnaces?

Yes. This condenser can be paired with a central air handler or installed in dual-fuel systems using gas or electric furnaces.

What makes Hyper Heat different?

Hyper Heat systems maintain strong heating output in cold climates where standard heat pumps lose capacity.

What refrigerant does it use?

The system uses R-454B, a modern low-GWP refrigerant.
