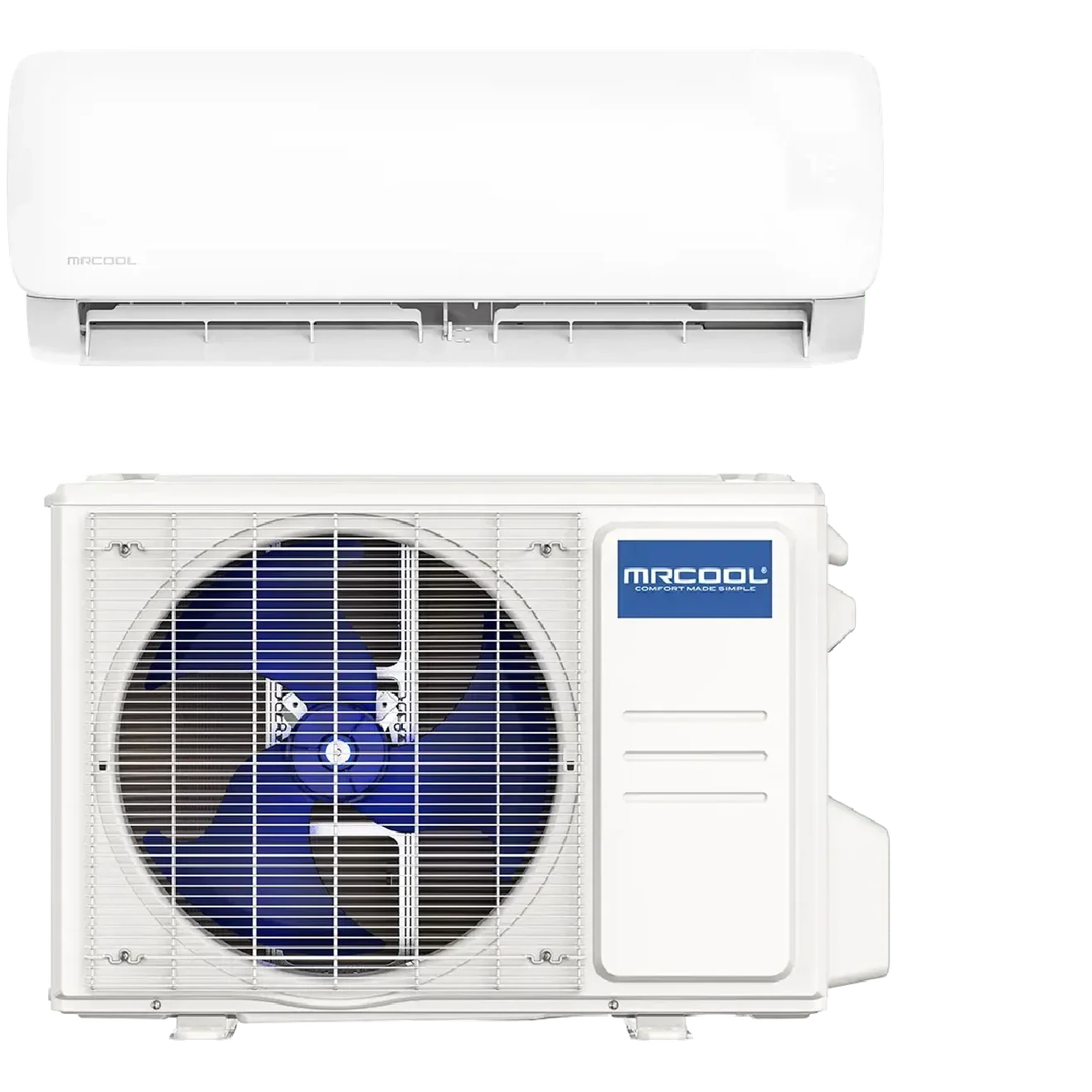

MRCOOL DIY 5th Gen EasyPro 12K BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable, EZPRO-12-HP-11516D-O
MRCOOL DIY 5th Gen EasyPro 12K BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable, EZPRO-12-HP-11516D-O
Available in stock (95)
12,000 BTU MRCOOL® Easy Pro® 5th Gen Mini-Split
The 5th Generation MRCOOL EasyPro 12,000 BTU complete system delivers dependable, energy-efficient heating and cooling for spaces up to 550 sq ft—engineered for straightforward DIY installation with included 16 ft pre-charged Fast Connection line set and DIYPRO cable.
This all-in-one package pairs a quiet, Wi-Fi-enabled indoor air handler with a durable outdoor condenser. Ideal for bedrooms, home offices, studios, or specialized environments like tech rooms, the EasyPro system provides smart controls, year-round comfort, and cost-effective performance.
Key Features & Benefits
- Streamlined DIY Setup: 16 ft pre-chargedFast Connection line set enables quick installation without vacuum pump or pro tools; DIYPRO cable included.
- Smart Home Compatibility: Built-in Wi-Fi supports the MRCOOL Smart HVAC Controller App and integrates with Amazon Alexa & Google Assistant.
- Adaptive Comfort: Remote with Follow Mesensor helps regulate temperature based on the remote’s location in the room.
- High-Efficiency Operation: SEER2 19.5and HSPF2-4 9.3 for efficient heating and cooling across seasons.
- Whisper-Quiet: Operates at just 54 dB(A), perfect for sleeping and working spaces.
- Low Ambient Cooling: Reliable cooling down to 5 °F, ideal for server rooms, garages, and greenhouses.
- Built for Durability: Gold Fin® coating resists corrosion for longevity in coastal or high-humidity climates.
- Enhanced IAQ: Active Clean Technology helps keep the indoor coil cleaner for fresher air and easier maintenance.
- Eco-Friendly & Certified: Uses R-454Brefrigerant; meets AHRI, NEEP ccASHP, and CEE Tier 1 – North standards.
- Warranty: 2-Year Parts / 1-Year Compressor (registration required).
Technical Specifications
- Capacity (Cooling): 12,000 BTU (1 Ton)
- Coverage Area: Up to 550 sq ft
- Efficiency: SEER2 19.5 / HSPF2-4 9.3
- Sound Level: 54 dB(A)
- Refrigerant: R-454B
- Line Set: 16 ft (Pre-Charged, Quick-Connect)
- Controls: Wi-Fi App + Alexa/Google Assistant
- Certifications: AHRI, NEEP ccASHP, CEE Tier 1 – North

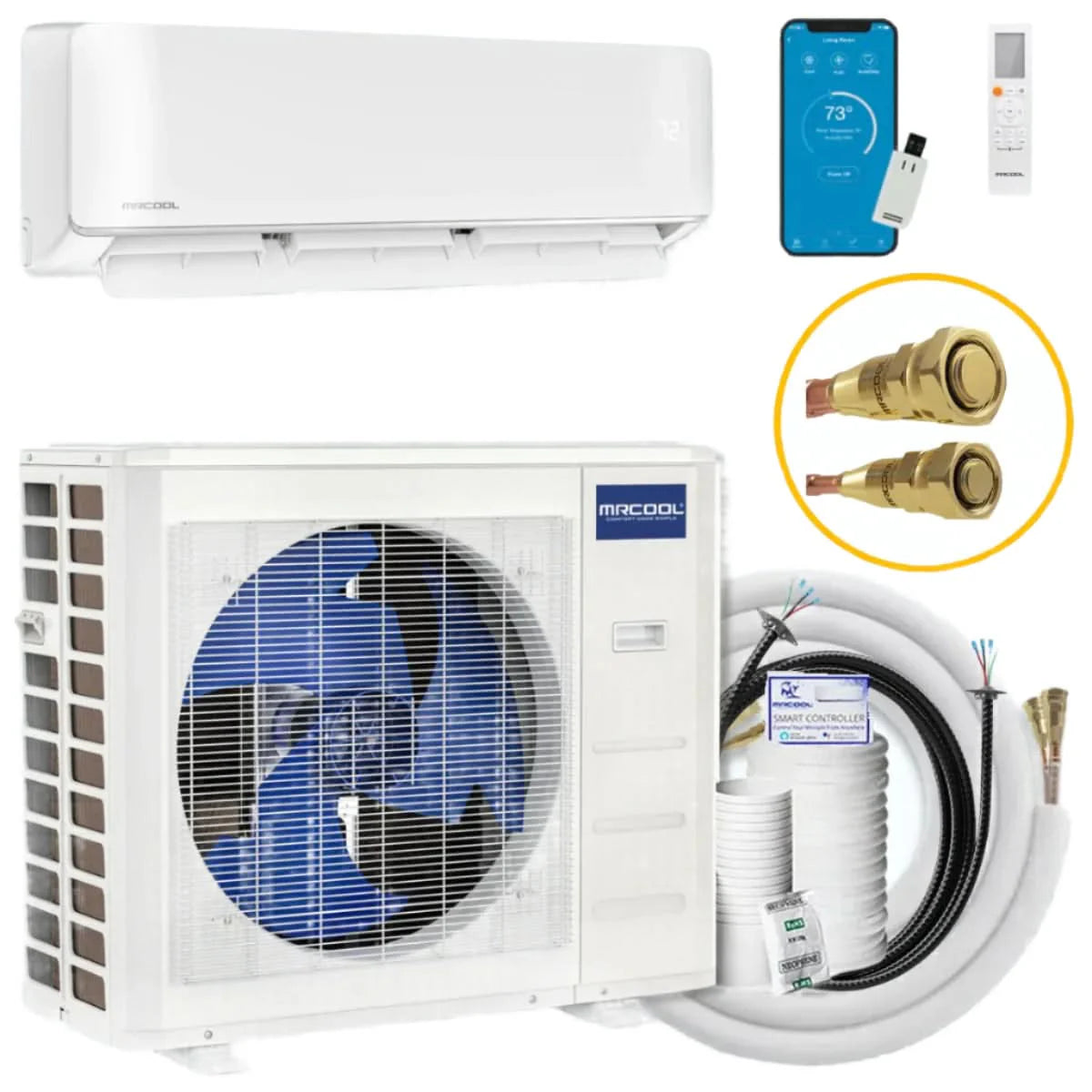

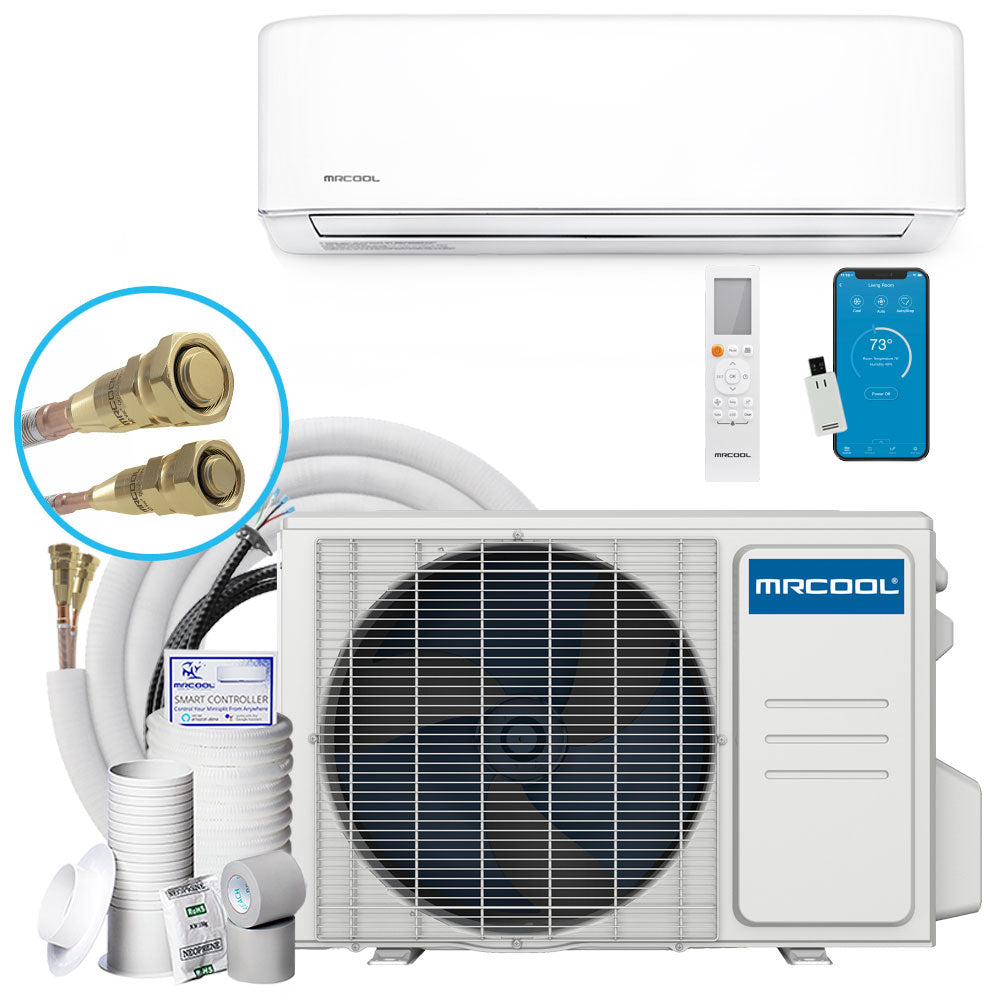

Whats Included

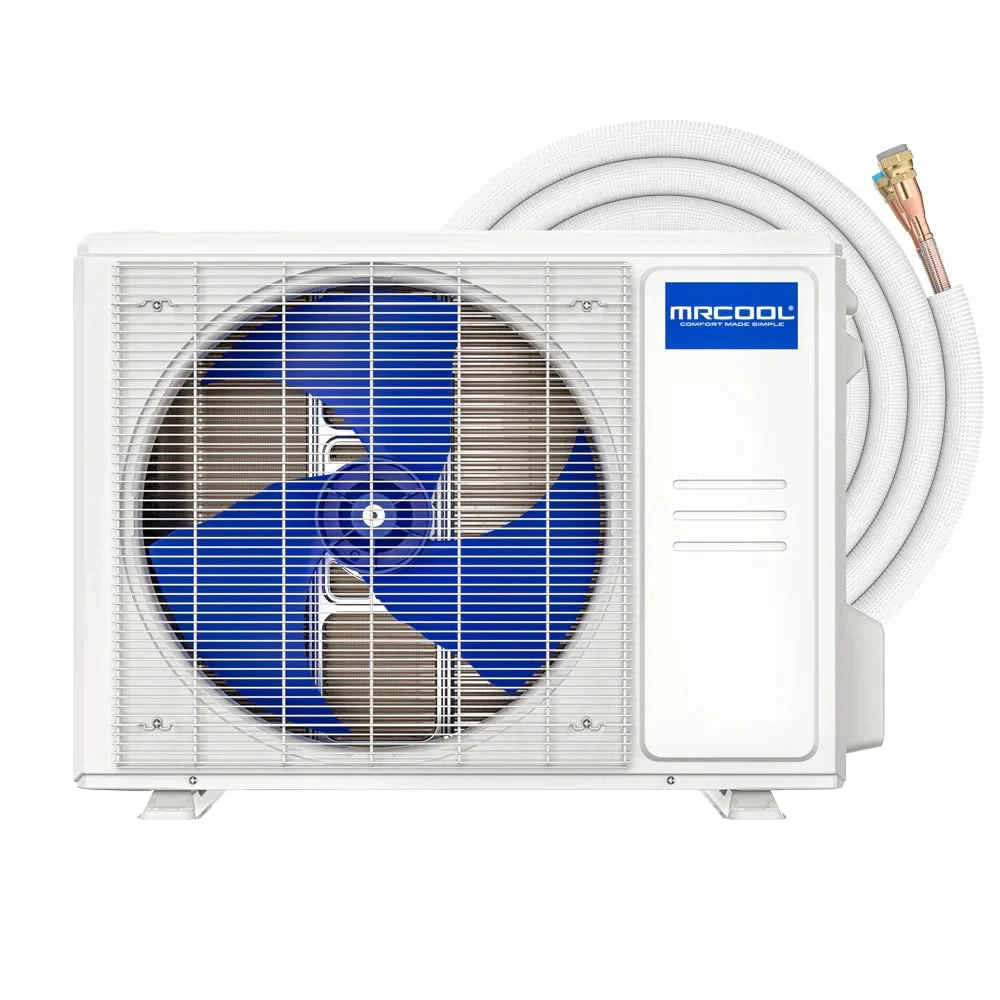

1 x MRCOOL DIY 12K Easy Pro 5th Gen Condenser - EZPRO-12-HP-C-11516D-O

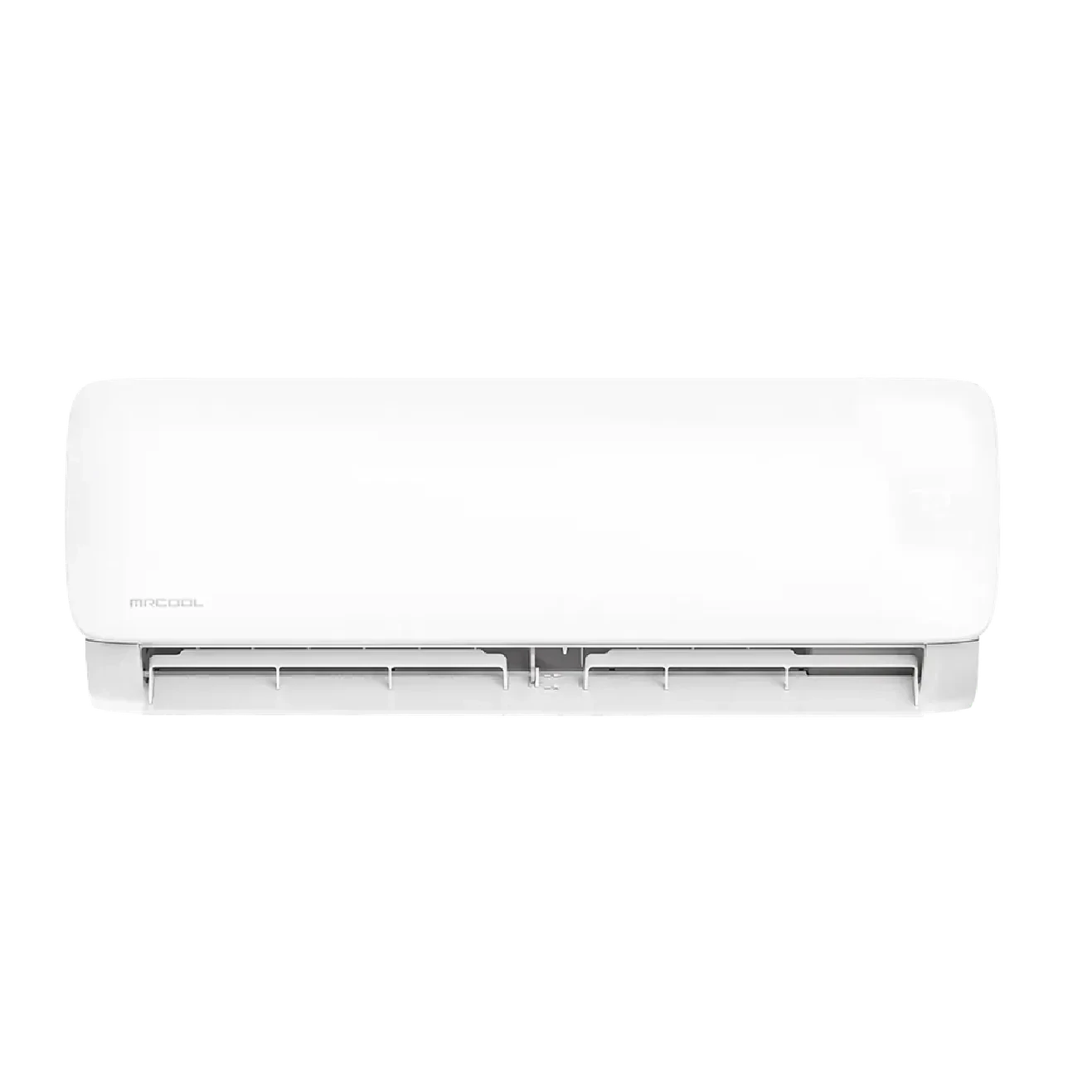

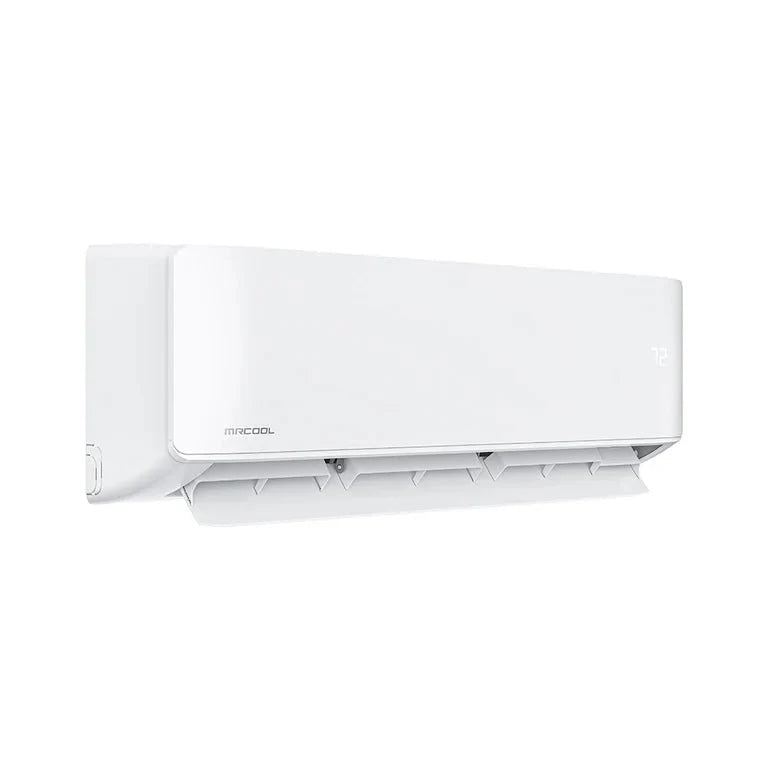

1 x MRCOOL DIY 12K Easy Pro 5th Gen Air Handler - EZPRO-12-HP-WMAH-115D-O
1 x 16 ft. 1/4 x 3/8 Line Set - DIY16-1438-O
1 x MRCOOL Remote Control - 17317000A63435
SPECIFICATIONS

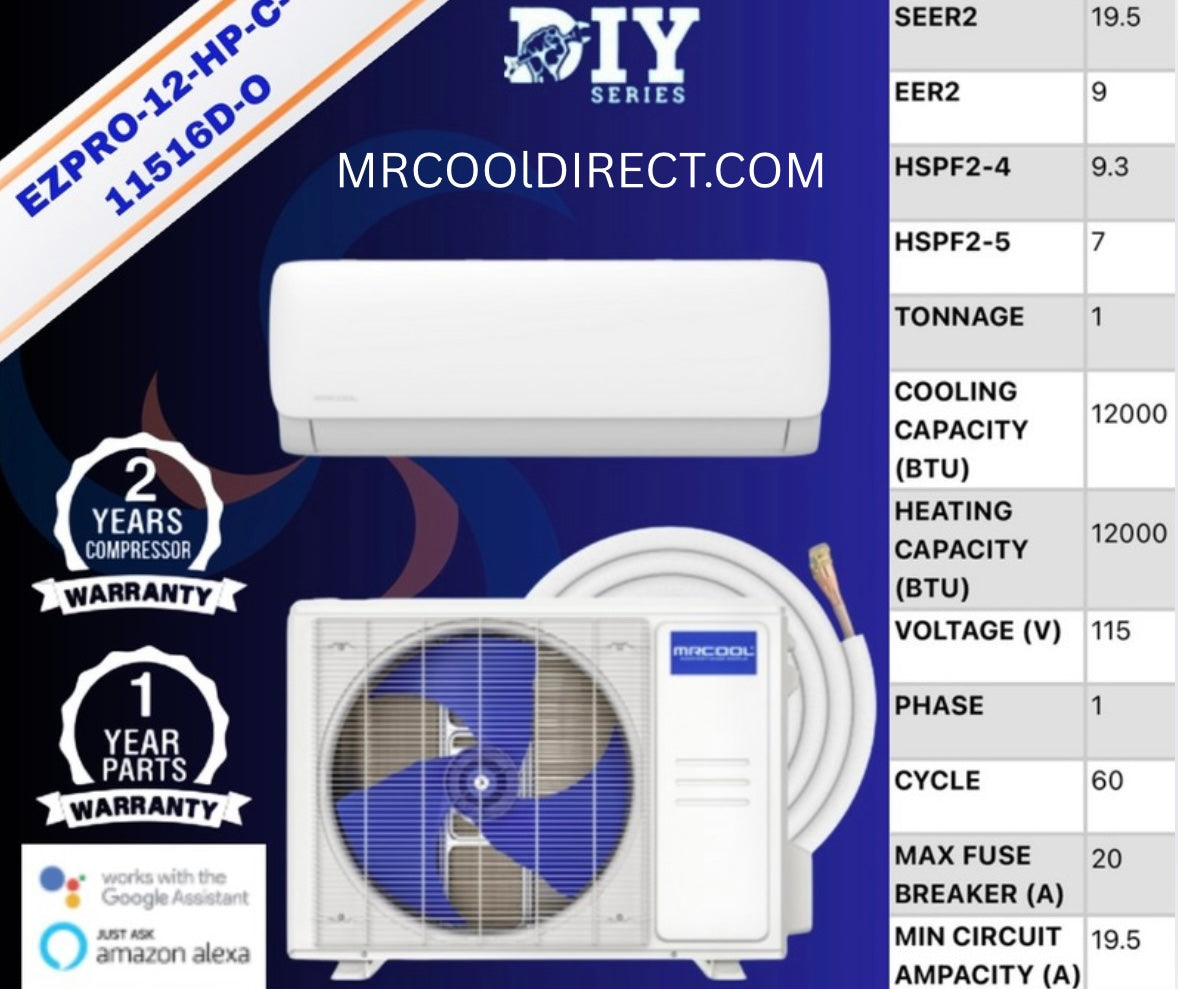

Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES | EasyPro 5th Gen |
| MODEL | EZPRO-12-HP-C-11516D-O |
| GTIN | 840255586733 |
| UPC | 840255586733 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION | EasyPro 5th Generation 12k BTU 115V Condenser |
| SEER2 | 19.5 |
| EER2 | 9 |
| HSPF2-4 | 9.3 |
| HSPF2-5 | 7 |
| TONNAGE | 1 |
| COOLING CAPACITY (BTU) | 12000 |
| HEATING CAPACITY (BTU) | 12000 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 19.5 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 21.52 |
| DECIBEL RATING HIGH (DBA) | 54 |
| INVERTER | DC |
| MIN AMBIENT COOL (F) | 5 |
| LINESET INCLUDED | Yes |
| LINE SET LENGTH | 16ft |
| MAX LINESET LENGTH (FT) | 82 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 10.63 |
| NET HEIGHT (IN) | 19.49 |
| NET WIDTH (IN) | 28.35 |
| NET WEIGHT (LBS) | 54.89 |
| GROSS DEPTH (IN) | 10.63 |
| GROSS HEIGHT (IN) | 21.26 |
| GROSS WIDTH (IN) | 32.87 |
| GROSS WEIGHT (LBS) | 67.24 |

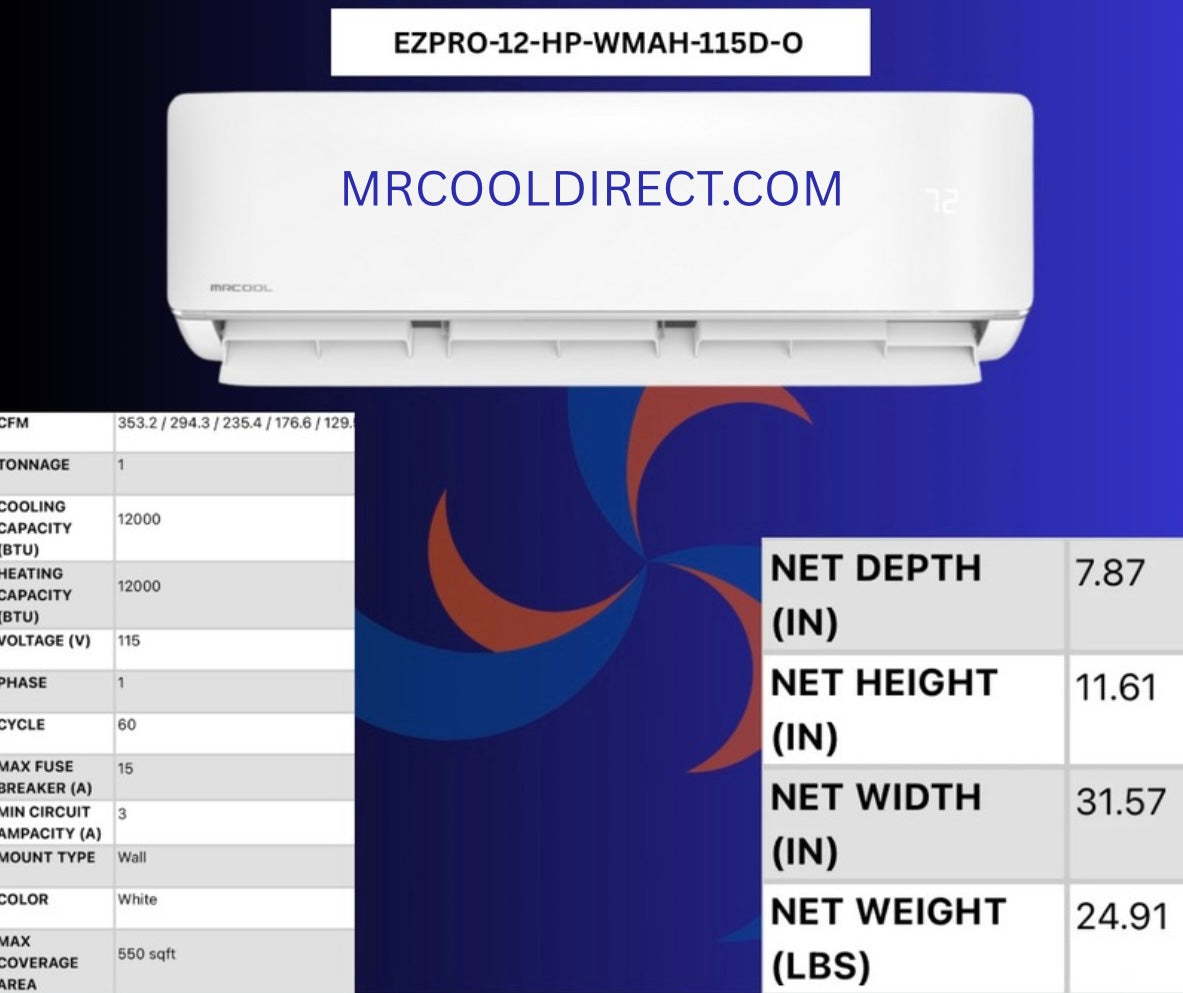

Air Handler Specifications:
| BRAND NAME | MRCOOL |
| SERIES | EasyPro 5th Gen |
| MODEL | EZPRO-12-HP-WMAH-115D-O |
| GTIN | 840255586771 |
| UPC | 840255586771 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION | EasyPro 5th Generation 12k BTU 115V Air Handler |
| CFM | 353.2 / 294.3 / 235.4 / 176.6 / 129.5 |
| TONNAGE | 1 |
| COOLING CAPACITY (BTU) | 12000 |
| HEATING CAPACITY (BTU) | 12000 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| MAX COVERAGE AREA | 550 sqft |
| DECIBEL RATING (DBA) | 35 |
| DECIBEL RATING LOW (DBA) | 17.5 |
| DECIBEL RATING HIGH (DBA) | 44.5 |
| NUMBER OF SPEEDS | 5 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| BLOWER MOTOR SPEEDS | 3 |
| BLOWER MOTOR RPM | 850/750/450 |
| FILTER TYPE | Reusable |
| FAN ONLY OPTION | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 7.87 |
| NET HEIGHT (IN) | 11.61 |
| NET WIDTH (IN) | 31.57 |
| NET WEIGHT (LBS) | 24.91 |
| GROSS DEPTH (IN) | 17.95 |
| GROSS HEIGHT (IN) | 14.17 |
| GROSS WIDTH (IN) | 36.02 |
| GROSS WEIGHT (LBS) | 35.71 |
