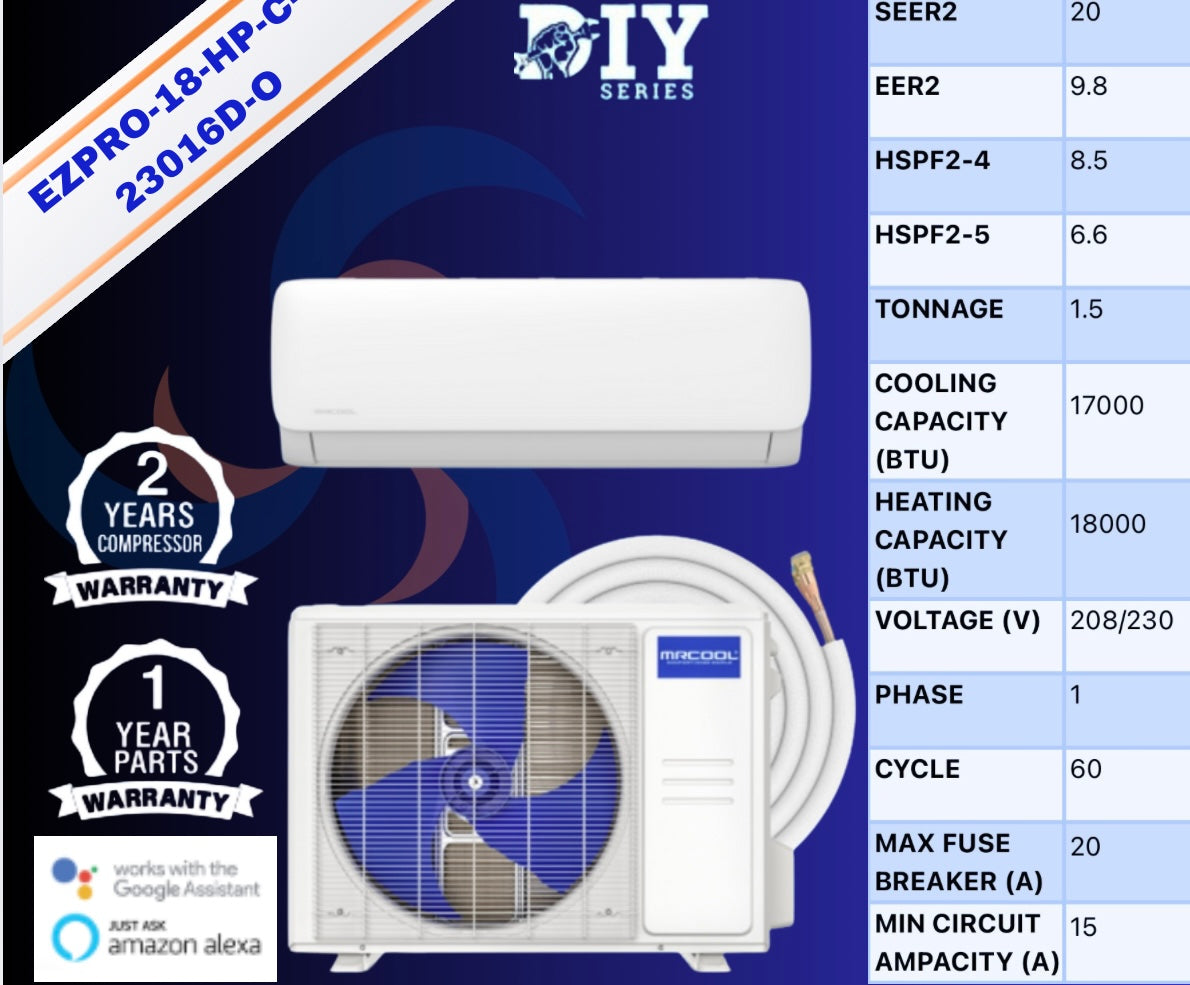

MRCOOL DIY® 5th Gen EasyPro 18,000 BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable, EZPRO-18-HP-23016D-O
MRCOOL DIY® 5th Gen EasyPro 18,000 BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable, EZPRO-18-HP-23016D-O
Available in stock (94)
MRCOOL® EZPRO® 18k BTU DIY Mini-Split Heat Pump System – 5th Generation (R-454B)
Get reliable, quiet comfort with advanced features—all in a system you can install yourself.
The Easiest Mini-Split You’ll Ever Install — Now with Eco-Friendly R-454B Refrigerant
Upgrade your comfort and efficiency with the latest MRCOOL® EZPRO® 18,000 BTU DIY Mini-Split Heat Pump, now featuring next-generation R-454B refrigerant for enhanced performance and environmental responsibility. This 5th Generation EZPRO model is one of the most advanced and user-friendly ductless mini-split systems on the market, combining ultra-efficient inverter technology, whisper-quiet operation, and smart home integration—all with a hassle-free DIY installation process.
Designed specifically for homeowners, landlords, and small business owners, the EZPRO system comes with a 16-foot pre-charged line set, Fast Connection® fittings, and no need for vacuum pumps or HVAC licenses. This means most users can install the system themselves in just a few hours—saving hundreds on labor costs while enjoying professional-grade results.
The system delivers powerful, year-round climate control for spaces up to 750 square feet, making it ideal for master bedrooms, finished basements, garages, workshops, home offices, and detached buildings. With reliable performance down to 5°F outdoor temperature, you can count on dependable heating even in colder regions.
As a factory-authorized MRCOOL retailer, MRCOOL DIY Direct proudly delivers genuine, warrantied equipment, expert customer support, and fast nationwide shipping from the most trusted name in DIY HVAC.
📦 What’s Included:
-
(1) 18,000 BTU Wall-Mounted Air Handler
-
(1) 18,000 BTU Outdoor Condenser (Pre-Charged with R-454B)
-
Installation Accessories & Manual
Get unmatched performance, unbeatable support, and true peace of mind from MRCOOL DIRECT.
Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES | EasyPro 5th Gen |
| MODEL | EZPRO-18-HP-C-23016D-O |
| GTIN | 840255586740 |
| UPC | 840255586740 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION | EasyPro 5th Generation 18k BTU 230V Condenser |
| SEER2 | 20 |
| EER2 | 9.8 |
| HSPF2-4 | 8.5 |
| HSPF2-5 | 6.6 |
| TONNAGE | 1.5 |
| COOLING CAPACITY (BTU) | 17000 |
| HEATING CAPACITY (BTU) | 18000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 15 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 34.92 |
| DECIBEL RATING HIGH (DBA) | 55 |
| INVERTER | DC |
| MIN AMBIENT COOL (F) | 5 |
| LINESET INCLUDED | Yes |
| LINE SET LENGTH | 16ft |
| MAX LINESET LENGTH (FT) | 98.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 1/2 |
| COMPRESSOR MOTOR TYPE | Rotary |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 11.93 |
| NET HEIGHT (IN) | 21.85 |
| NET WIDTH (IN) | 30.12 |
| NET WEIGHT (LBS) | 62.61 |
| GROSS DEPTH (IN) | 13.27 |
| GROSS HEIGHT (IN) | 24.02 |
| GROSS WIDTH (IN) | 34.92 |
| GROSS WEIGHT (LBS) | 82.23 |

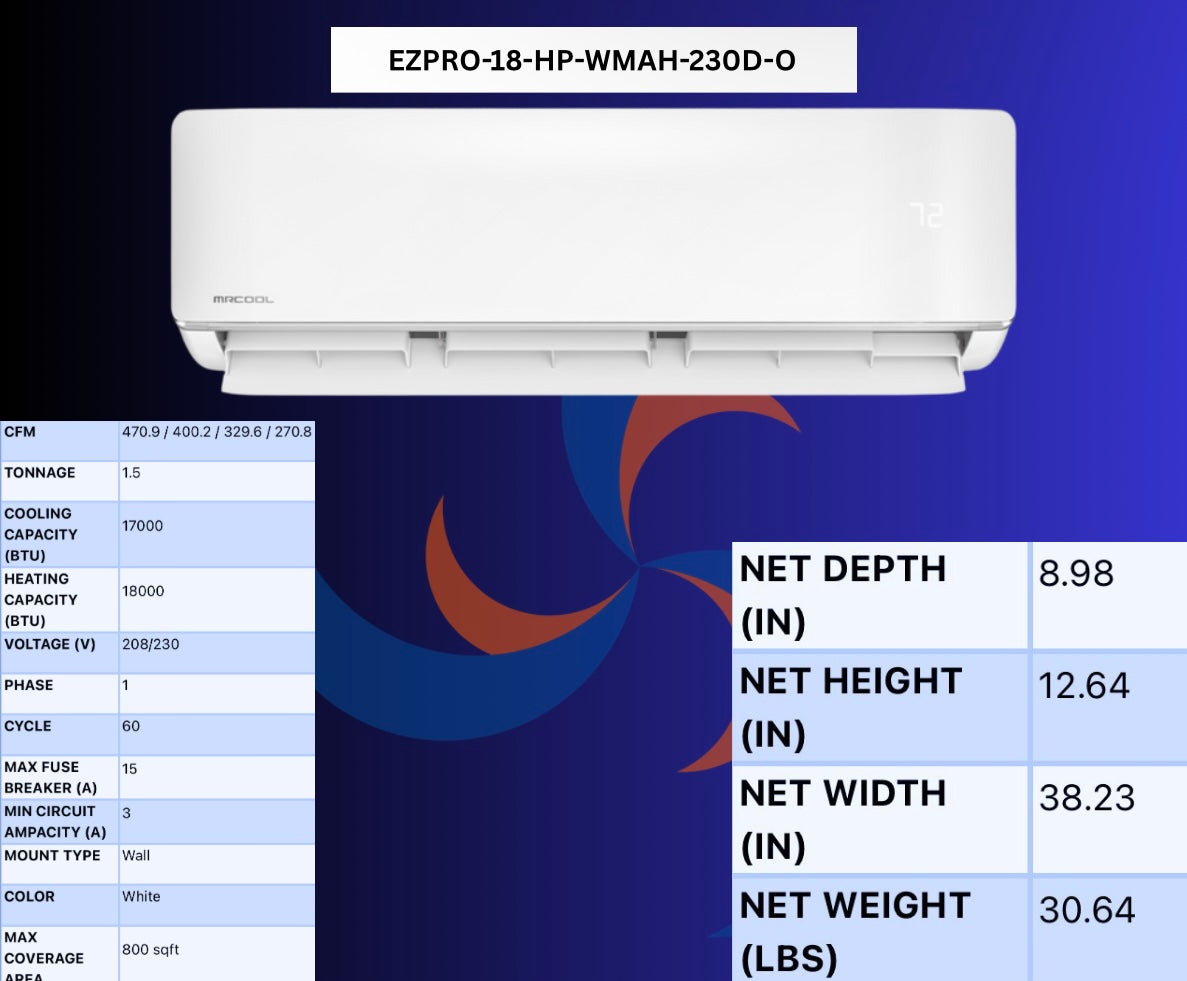

Air Handler Specifications:
| BRAND NAME | MRCOOL |
| SERIES | EasyPro 5th Gen |
| MODEL | EZPRO-18-HP-WMAH-230D-O |
| GTIN | 840255586788 |
| UPC | 840255586788 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION | EasyPro 5th Generation 18k BTU 230V Air Handler |
| CFM | 470.9 / 400.2 / 329.6 / 270.8 / / |
| TONNAGE | 1.5 |
| COOLING CAPACITY (BTU) | 17000 |
| HEATING CAPACITY (BTU) | 18000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| MAX COVERAGE AREA | 800 sqft |
| DECIBEL RATING (DBA) | 36 |
| DECIBEL RATING LOW (DBA) | 18.5 |
| DECIBEL RATING HIGH (DBA) | 46.5 |
| NUMBER OF SPEEDS | 5 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 1/2 |
| BLOWER MOTOR SPEEDS | 3 |
| BLOWER MOTOR RPM | 1200/1000/900 |
| FILTER TYPE | Reusable |
| FAN ONLY OPTION | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 8.98 |
| NET HEIGHT (IN) | 12.64 |
| NET WIDTH (IN) | 38.23 |
| NET WEIGHT (LBS) | 30.64 |
| GROSS DEPTH (IN) | 12.01 |
| GROSS HEIGHT (IN) | 15.94 |
| GROSS WIDTH (IN) | 41.14 |
| GROSS WEIGHT (LBS) | 44.97 |
