MRCOOL® DIY® Hybrid™ Ducted Air Handler DIY-24-HP-MUAH-230D25-O (Multi-Zone Ready, DIY Install)
MRCOOL® DIY® Hybrid™ Ducted Air Handler DIY-24-HP-MUAH-230D25-O (Multi-Zone Ready, DIY Install)
Available in stock (1004)

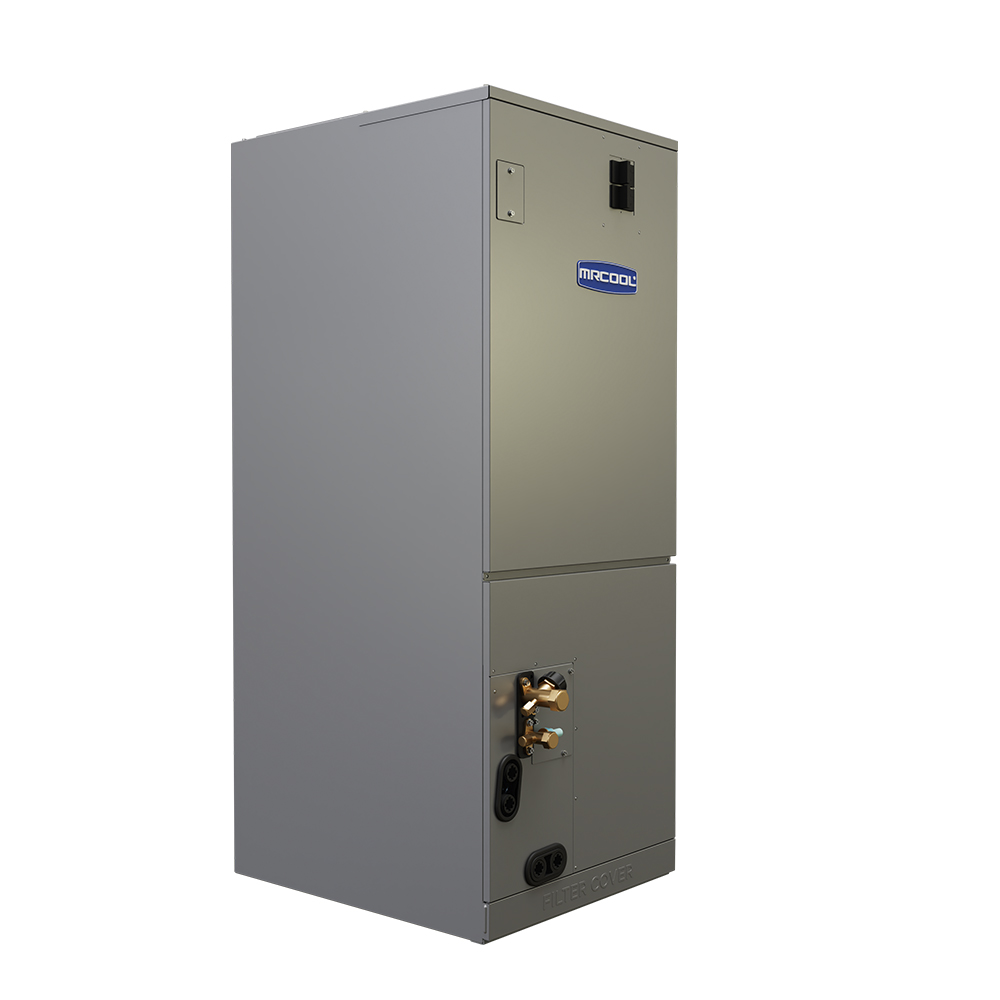

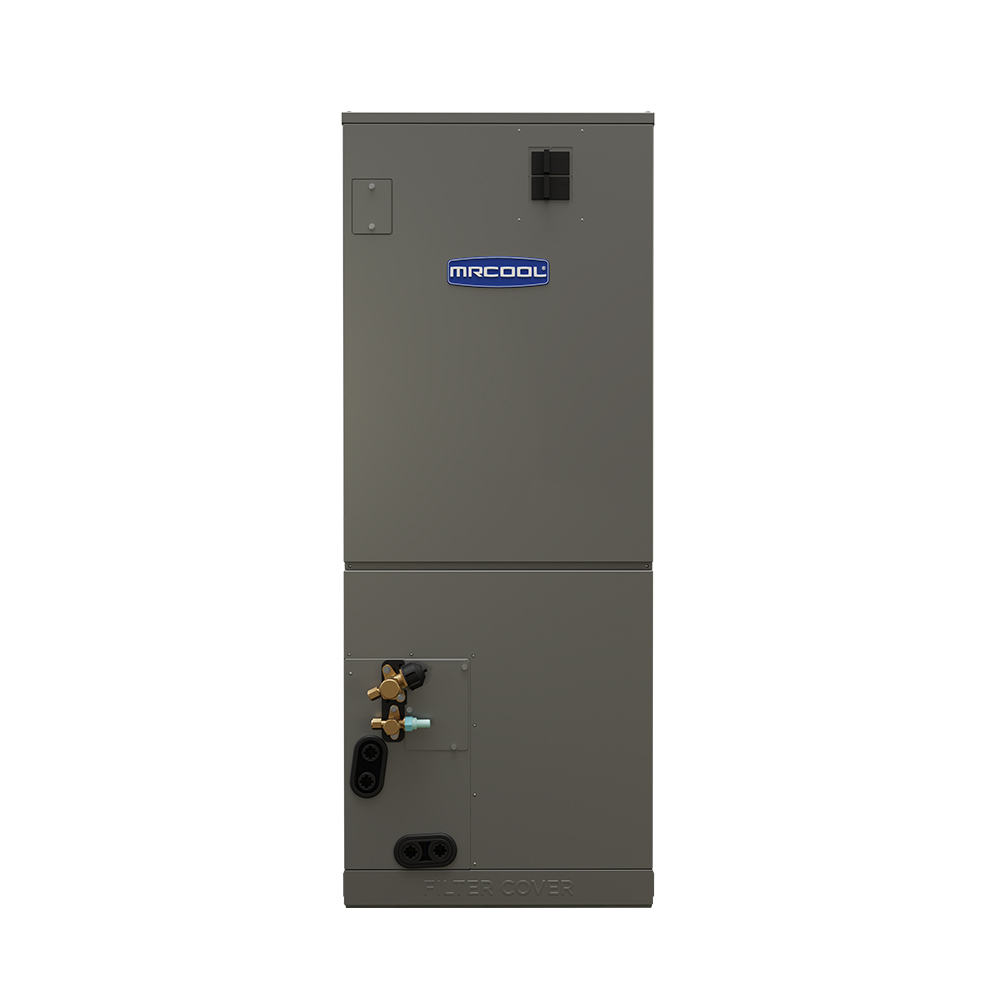

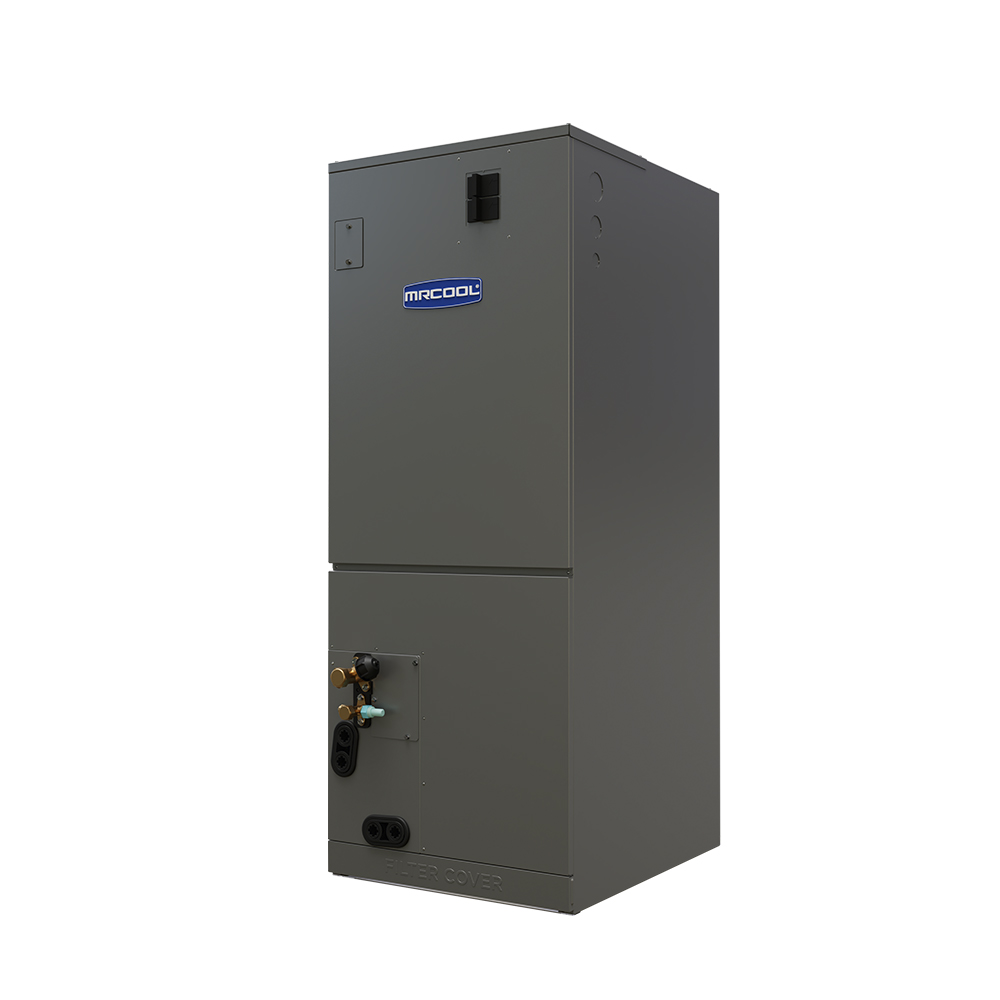

MRCOOL® DIY Hybrid™ Ducted Air Handler — Central Ducted Heat Pump, Multi-Zone Ready, DIY Install
The MRCOOL® DIY Hybrid™ Ducted Air Handler brings true central HVAC comfort to DIYers. Pair it with a compatible MRCOOL® DIY condenser for a central, ducted heat pump experience—and expand like a multi-zone mini split by adding wall or ceiling-mounted MRCOOL® air handlers to one outdoor condenser.
- Models: 24k (24,000 BTU, up to ~1,000sq. ft. Max coverage 1050)and 36k (36,000 BTU, up to ~1,550 sq. ft.) (This also depends on insulation, ceiling height, what state.)
- DIY-Friendly: Communicates via control wire; pairs with pre-charged MRCOOL® DIY condensers
- Multi-Zone Flexibility: Treat like a multi-zone when sizing your condenser—sum total BTUs of all indoor air handlers

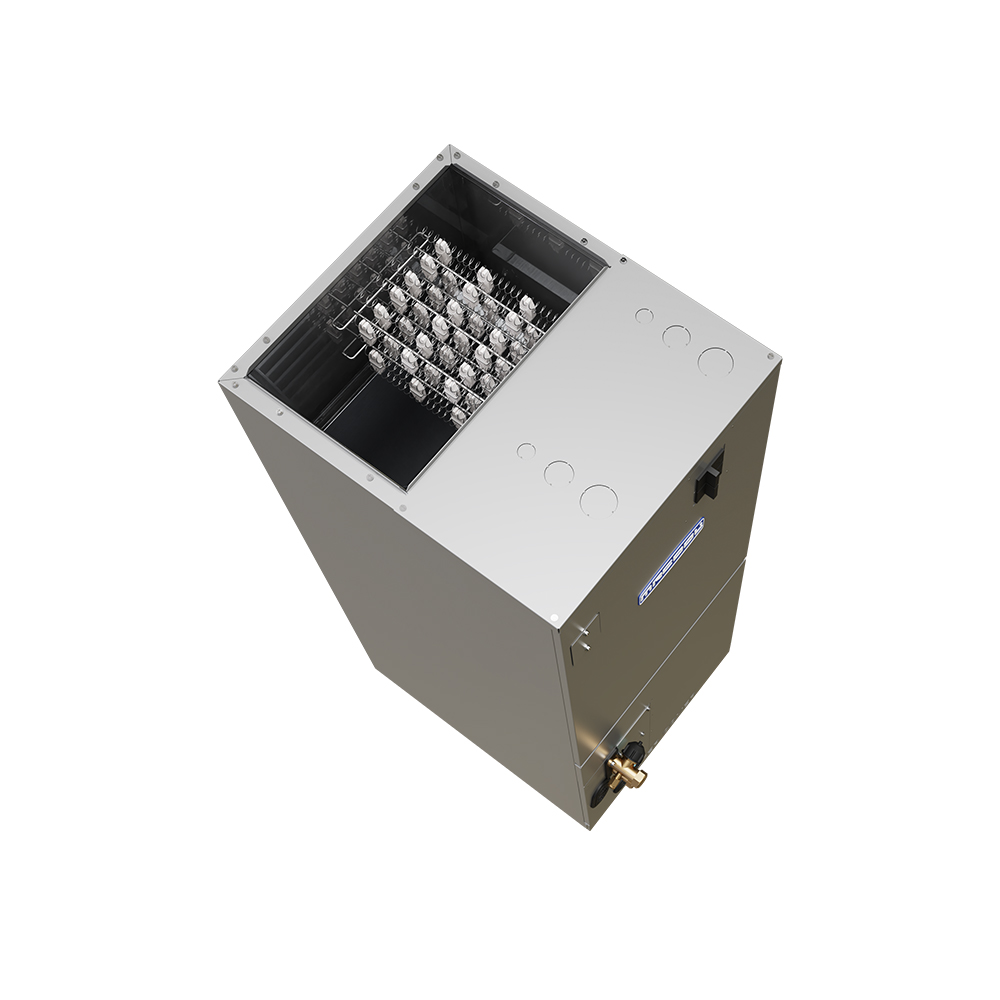

- Comfort Options: Supports optional emergency heat strips (heat kit)
- Smart Controls: Includes MRCOOL® Smart Wi-Fi Thermostat (touchscreen + MRCOOL® app)
- Durable Build: Painted galvanized steel cabinet; built-in self-diagnostics
- Install Positions: Upflow, downflow, horizontal (left/right) for maximum layout flexibility
- Eco-Forward Refrigerant: Uses R-454B (high performance with reduced environmental impact)
- Warranty: 5-Year Parts
- Fast Nationwide Shipping
works with (Sold Separately)
DIY-MULTI4-27HP230D-O MRCOOL® 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v
DIY-MULTI5-36HP230D-O MRCOOL® 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v
DIY-MULTI5-36HP230D-O MRCOOL® 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v
DIY-MULTI6-48HP230D-O MRCOOL® 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
DIY-MULTI6-55HP230D-O MRCOOL® 55k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
DIY-24-HP-C-230D25-O MRCOOL® 24k DIY 5th Generation Mini-Split Condenser 230v
What Heat Kits fit (Sold Separately)
MVPHK05 5kW. VersaPro, Hyper Heat 2nd Gen 454B and DIY Hybrid Air Handler Heat Kit
MVPHK08 VersaPro, Hyper Heat 2nd Gen 454B and DIY Hybrid Air Handler Heat Kit
MVPHK10 VersaPro, Hyper Heat 2nd Gen 454B and DIY Hybrid Air Handler Heat Kit
MVPHK15 VersaPro, Hyper Heat 2nd Gen 454B and DIY Hybrid Air Handler Heat Kit
How the MRCOOL® DIY Hybrid™ Ducted System Works
Use this ducted air handler in place of a wall or ceiling cassette to create a central ducted zone. Then, add additional MRCOOL® mini split air handlers (wall or ceiling) to the same outdoor condenser. For sizing, add up the BTUs of each indoor unit (this ducted air handler plus any additional air handlers) to choose the right condenser capacity just like a multi-zone mini split.
- Choose 24k (~1,000 sq. ft.) or 36k (~1,550 sq. ft.) for the ducted zone you want to condition.
- Sum all indoor unit BTUs (ducted + any wall/ceiling handlers) to select your outdoor DIY condenser size.
Top Features & Benefits
- Central Ducted Comfort: Even, whole-home airflow through existing or new ductwork.
- DIY-Ready Integration: Pairs with MRCOOL® DIY outdoor units via control wiring for simplified setup.
- Emergency Heat Option: Add an optional heat kit for colder snaps and peace of mind.
- Self-Diagnostics: Onboard error code panel streamlines troubleshooting and reduces downtime.
- Flexible Orientation: Upflow, downflow, or horizontal—fits a wide range of installations.
- Smart Wi-Fi Thermostat: Control schedules, modes, and temps from the touchscreen or MRCOOL® app.
- R-454B Refrigerant: Efficient, lower environmental impact compared to legacy refrigerants.
- Rugged Cabinet: Painted galvanized steel resists wear for long-term reliability.
What’s Included
- MRCOOL® DIY Hybrid™ Ducted Air Handler (selected size)
- Built-in self-diagnostic display panel
- MRCOOL® Smart Wi-Fi Thermostat
- Owner’s/Installation documentation
Popular Add-Ons & Accessories
- Emergency Heat Kit (heat strips) for auxiliary heating
- Additional MRCOOL® indoor air handlers (wall or ceiling) for multi-zone expansion
- MRCOOL® DIY outdoor condenser (sized to total indoor BTUs)

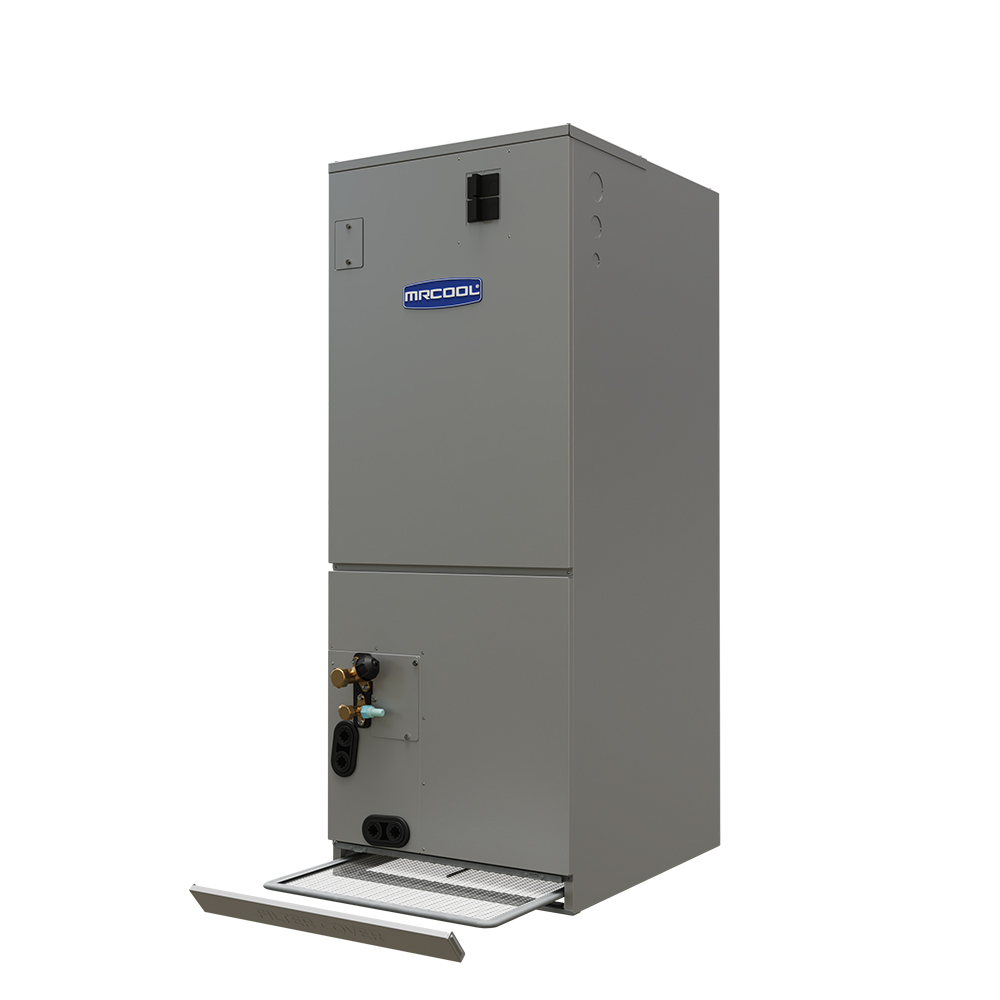

- Ducting, plenums, returns, filters, supply registers (as needed)
DIY-Friendly Installation Overview
- Plan Ducting & Orientation: Choose upflow, downflow, or horizontal to fit your space.
- Mount the Air Handler: Secure the galvanized cabinet and connect supply/return ducts.
- Control Wiring: Connect to your compatible MRCOOL® DIY condenser per manual.
- Thermostat Setup: Install the MRCOOL® Smart Wi-Fi Thermostat and pair with the MRCOOL® app.
- Test & Commission: Use the self-diagnostic display to verify codes and performance.
Always follow the official MRCOOL® installation manual and local codes. Professional assistance may be required for electrical, duct, or code-specific tasks
Why Homeowners Choose the MRCOOL® DIY Hybrid™ Ducted Air Handler
This air handler is the ideal bridge between a central ducted heat pump and the flexibility of multi-zone mini splits. Replace an aging furnace/air handler with a modern, ducted MRCOOL® DIY solution, then add wall or ceiling mini split air handlers for rooms that need targeted comfort—all served by a single outdoor condenser. It’s an energy-smart, scalable approach to whole-home heating and cooling.
Frequently Asked Questions — MRCOOL® DIY Hybrid™ 36K Ducted Air Handler
Can I use this air handler with a MRCOOL® DIY condenser?
Yes. The MRCOOL® DIY Hybrid™ Ducted Air Handler is engineered to pair directly with compatible MRCOOL® DIY outdoor heat pump condensers through simple control wiring—no HVAC license, vacuum pump, or refrigerant charging required. This plug-and-play communication makes installation truly DIY while maintaining high performance and warranty protection.
How do I size the outdoor condenser for this system?
Sizing works like a multi-zone mini split. Add the BTU value of this ducted unit (36,000 BTU) plus any additional indoor heads you plan to install.
Choose a MRCOOL® DIY condenser that meets or slightly exceeds that combined capacity.
Example:
- 36k ducted air handler + two 9k wall units = 54k total capacity → choose a condenser that supports 54k BTU.
Proper sizing prevents low airflow, poor humidity control, compressor strain, and premature system failure.
What size spaces do the 24k and 36k Hybrid air handlers typically cover?
- 24K (2-Ton) — ideal for up to ~1,050 sq. ft.
- 36K (3-Ton) — ideal for up to ~1,550 sq. ft.
Coverage depends on:
- Outdoor climate
- Insulation quality
- Number and size of windows
- Ceiling height
- Room layout and duct restrictions
Homes with poor insulation or extreme climates may require the larger option or an auxiliary heat kit.
Does the MRCOOL® Hybrid air handler support auxiliary or emergency heat?
Yes. You can install an optional electric heat kit (5kW–20kW) for auxiliary heating when temperatures drop below optimal heat pump performance.
The air handler automatically engages the heat strip when needed, providing reliable backup during freezing weather or winter storms.
Which refrigerant does this system use?
It uses R-454B, a next-generation refrigerant with a significantly reduced environmental impact compared to legacy R-410A.
R-454B provides higher performance, improved efficiency, and supports future refrigerant mandates—making it a smart long-term HVAC investment.
Can I install this air handler in multiple orientations?
Absolutely. The unit supports upflow, downflow, and horizontal (left or right) installation.
This allows you to place it in basements, closets, attics, mechanical rooms, or crawlspaces without major ductwork redesign.
Is Wi-Fi or smart control included?
Yes. The Hybrid system can be paired with the MRCOOL® Smart Wi-Fi Thermostat to adjust temperature, fan speed, and settings through a touchscreen or the MRCOOL app on iOS and Android.
You can control your home from anywhere—vacation homes, rentals, or your daily commute.
How far can I run the refrigerant line set?
This model supports a maximum line set length of up to 246 ft, giving you excellent flexibility for remodels, multi-story homes, and long mechanical runs without losing performance.
Is this unit AHRI certified?
Yes. The MRCOOL® DIY Hybrid™ series is AHRI certified, which verifies tested efficiency, real performance, and ensures eligibility for energy rebates in some regions.
Does installing it myself void the warranty?
No—MRCOOL® designed this product specifically for DIY installation, and it maintains warranty coverage when installed according to the manual.
Just avoid cutting, opening, or charging refrigerant lines. That is already factory-sealed and pre-charged through the MRCOOL QuickConnect® system.
Is this a good replacement for a traditional central HVAC system?
Yes. The Hybrid air handler is an excellent upgrade for outdated furnaces or air handlers:
- Lower monthly energy bills
- No gas lines or combustion
- Quiet operation
- Smart thermostat control
- Multi-zone expansion possible
Unlike traditional systems, it offers heat pump efficiency, easy service diagnostics, and modern refrigerant technology.
