MRCOOL® 27k 5th Gen 4-Zone DIY® Multi-Zone Bundle (12k + 12k) Air Handlers, (16ft + 16ft) Pre Charged R-454B Line Sets, 230V) — DIYM227HPW04D00

Product Description

Model: DIYM227HPW04D00



Short Description

The MRCOOL DIYM227HPW04D00 bundle combines the 27k DIY-MULTI4-27HP230D-O 4-zone condenser with two 12k DIY 5th Gen wall-mount air handlers and two 16 ft pre-charged QuickConnect® R-454B line sets. This factory-matched DIY mini split system is perfect for two rooms up to ~550 sq. ft. each, with expansion room for up to four indoor units total. Get high-efficiency heating and cooling, smart controls, and true DIY installation



Long Product Description

Overview: 27k Multi-Zone DIY System with (2) 12k Zones

The MRCOOL® DIYM227HPW04D00 bundle is a 5th Generation multi-zone kit built around the proven DIY-MULTI4-27HP230D-O 27k BTU condenser and two 12k DIY wall-mount air handlers (DIY-12-HP-WMAH-230D25-O).



This setup is ideal when you want to:

• Heat and cool two medium-sized rooms up to ~550 sq. ft. each, and
• Keep the option open to add up to two more indoor units later on the same outdoor condenser.



This complete DIY bundle includes:

• (1) DIY-MULTI4-27HP230D-O – 27k BTU, 4-Zone Multi-Zone Outdoor Condenser (230V, R-454B)
• (2) DIY-12-HP-WMAH-230D25-O – 12k BTU 5th Gen DIY Wall-Mount Air Handlers
• (2) DIY16-1438-O – 16 ft Pre-Charged R-454B QuickConnect® Line Sets (1/4” x 3/8”)

With efficiency up to 23 SEER2 and 9.5 HSPF2-4, this MRCOOL DIY multi-zone mini split gives you efficient comfort and serious utility-bill savings compared to old-school systems.





True DIY Install with Pre-Charged QuickConnect® Line Sets

The entire MRCOOL® DIY line is built so homeowners don’t have to call a contractor, and DIYM227HPW04D00 is no exception:

• (2) DIY16-1438-O 16 ft QuickConnect® line sets included – each line set is factory pre-charged with R-454B refrigerant.
• No vacuum pump, no gauges, no refrigerant handling. Just connect the QuickConnect® fittings per MRCOOL’s installation instructions.
• DIYPRO® cable (where applicable) eliminates traditional electrical conduit and adds protection against weather, pets, and yard tools.



If you can mount a TV and follow a step-by-step guide, you’re in MRCOOL DIY territory.





Two 12k Zones for Real-World Spaces

This bundle gives you two balanced 12k BTU zones using the DIY-12-HP-WMAH-230D25-O wall-mount air handlers:

Each 12k indoor unit is ideal for:

• Bedrooms and primary suites
• Home offices or bonus rooms
• Medium living rooms or dens
• Finished basements, shops, or studio spaces

Rated for up to ~550 sq. ft. per zone, you get strong coverage for two rooms while still having two extra ports on the 27k condenser if you want to add more MRCOOL DIY indoor units later.

Smart, Quiet, and Fully Zoned Control

Every 12k DIY 5th Gen wall mount in this DIYM227HPW04D00 bundle comes fully loaded:

• SmartHVAC® app for iOS and Android
• Alexa & Google Assistant voice control
• Follow Me® function so the system conditions the air around the remote
• Modes for Heat, Cool, Dry, Fan, Auto, Sleep, Quiet



The DIY-MULTI4-27HP230D-O condenser uses a DC inverter compressor to ramp up and down smoothly, improving comfort, cutting energy use, and keeping noise levels low indoors and outside.

R-454B 5th Gen Efficiency & Future-Ready Design

This 5th Generation MRCOOL® DIY system uses R-454B, the next-generation low-GWP refrigerant:

• High-efficiency: 23 SEER2, 12 EER2, 9.5 HSPF2-4
• Designed to support up to 4 indoor units on a single outdoor condenser
• Strong heating and cooling performance in a wide range of climates

The result: a future-ready DIY multi-zone mini split that keeps your home comfortable and your power bill in check.



Why Buy This Bundle from the USA’s #1 Most Trusted MRCOOL Dealer

When you order DIYM227HPW04D00 from MRCOOL Direct – the USA’s #1 most trusted MRCOOL dealer, you get:

• A factory-matched bundle with all compatible components under one model
• Fast, knowledgeable help with room sizing, layout, and electrical questions
• Support from people who live and breathe MRCOOL DIY systems
• Peace of mind that you’re getting genuine new 5th Gen R-454B product



If you’re not sure whether two 12k zones is right for your home, call us before you buy and we’ll walk through your floorplan and suggest the right DIY bundle.



Key Specifications

System Type

• Brand: MRCOOL®
• Series: DIY 5th Gen Multi-Zone Mini-Splits
• Bundle Model: DIYM227HPW04D00
• Outdoor Condenser: DIY-MULTI4-27HP230D-O
• Indoor Units:

• (2) DIY-12-HP-WMAH-230D25-O – 12k BTU Wall-Mount Air Handlers
• Refrigerant: R-454B



Performance

• Total Capacity: 27,000 BTU (2.25 tons)
• Condenser Cooling Capacity: 26,000 BTU
• Condenser Heating Capacity: 26,000 BTU
• Efficiency Ratings:

• SEER2: 23
• EER2: 12
• HSPF2-4: 9.5
• HSPF2-5: 7
• Zones Supported by Condenser: Up to 4 (2 used in this bundle)

Coverage

• Each 12k Zone: up to ~550 sq. ft.
• Typical Total Coverage (with 2 zones active): ~900–1,100 sq. ft., depending on insulation, layout, and climate.



Electrical

• Voltage: 208/230V, 1-Phase, 60 Hz
• Outdoor Condenser (DIY-MULTI4-27HP230D-O):

• Max Fuse / Breaker: 25A
• Minimum Circuit Ampacity (MCA): 23A
• Indoor Units: powered and controlled from condenser (control/power wiring; follow MRCOOL® manual and local codes)

Line Sets (Included)

• (2) DIY16-1438-O – 16 ft R-454B Pre-Charged QuickConnect® Line Sets

• Line Set Length: 16 ft each
• Liquid Line: 1/4”
• Suction Line: 3/8”
• Pre-charged for DIY 6k, 9k & 12k indoor units
•




12k Indoor Air Handlers (each DIY-12-HP-WMAH-230D25-O)

• Capacity: 12,000 BTU
• Mount Type: Wall-Mount Ductless Air Handler
• Max Coverage: ~550 sq. ft.
• Voltage: 208/230V, 1-Phase, 60 Hz
• Filter Type: Reusable
• Modes: Cool, Heat, Dry, Fan, Auto, Sleep, Quiet
• Smart Control: WiFi + SmartHVAC App + Alexa + Google Assistant

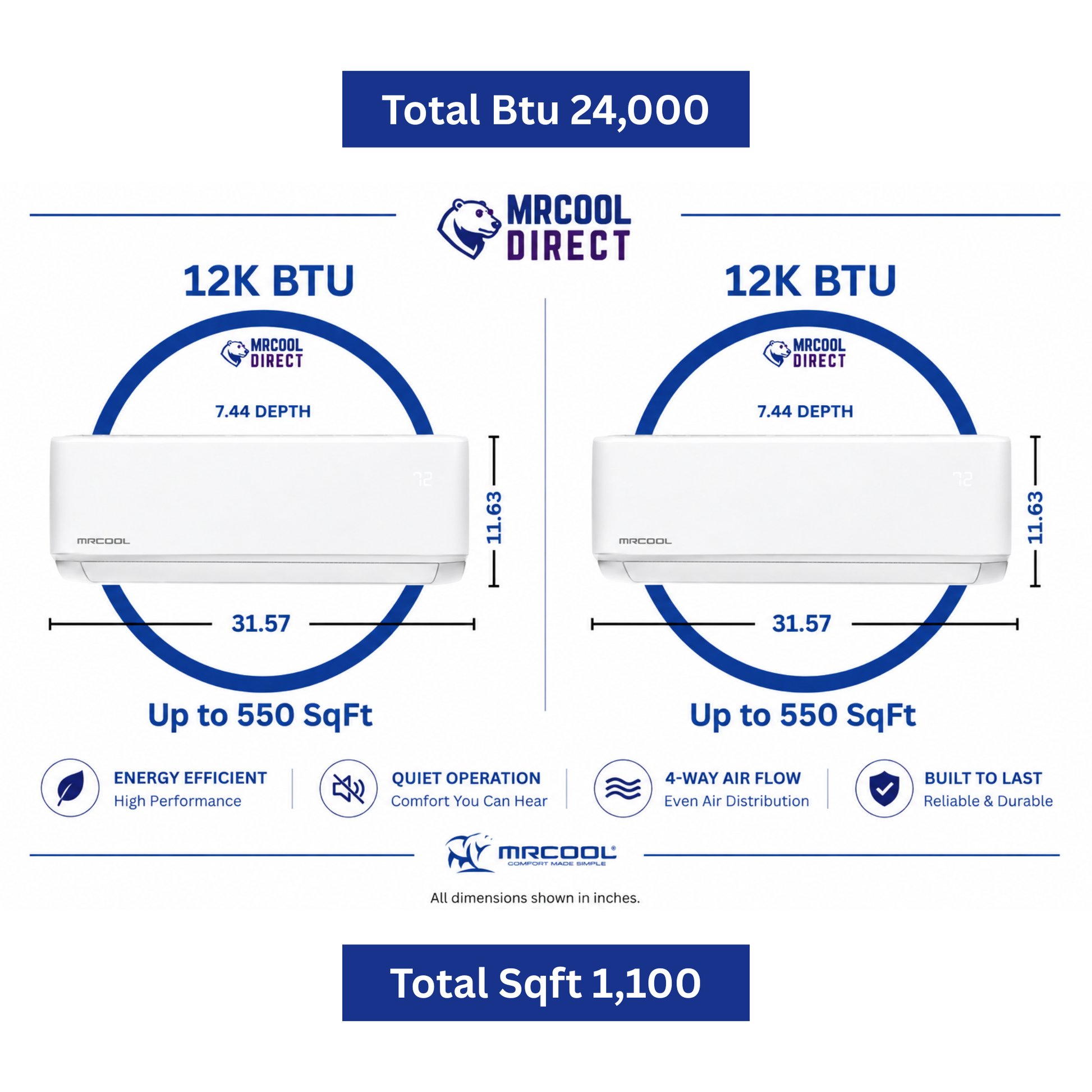

• Net Dimensions (each): 7.44” D x 11.63” H x 31.57” W
• Net Weight: 24.47 lbs



Outdoor Condenser (DIY-MULTI4-27HP230D-O)

• Net Dimensions: 16.14” D x 31.89” H x 37.24” W
• Net Weight: 140.21 lbs
• Compressor Type: Rotary, DC Inverter
• Zone Capacity: Up to 4 indoor units



Certifications

• UL Listed
• ETL Listed
• AHRI Certified
• ENERGY STAR® (for qualifying series units)
• Proposition 65 Compliant



What’s Included (Bundle Contents)

IN THIS COMPLETE DIY BUNDLE – MRCOOL DIYM227HPW04D00:

• (1) DIY-MULTI4-27HP230D-O – 27k BTU 4-Zone Multi-Zone Outdoor Condenser (230V, R-454B)
• (2) DIY-12-HP-WMAH-230D25-O – 12k BTU DIY 5th Gen Wall-Mount Air Handlers (each up to ~550 sq. ft.)
• (2) DIY16-1438-O – 16 ft R-454B Pre-Charged QuickConnect® Line Sets (1/4” x 3/8”)
• (2) Wireless remotes – one for each indoor unit
• DIYPRO® cable and mounting hardware as supplied by MRCOOL®
• MRCOOL® installation manuals & warranty registration information



 Frequently Asked Questions (FAQ)

Q: How many rooms can this system handle out of the box?

A: DIYM227HPW04D00 is designed for two 12k zones—perfect for two rooms up to ~550 sq. ft. each. The 27k condenser can support up to four indoor units total, so you can add more MRCOOL DIY air handlers later.



Q: What size breaker does the outdoor unit need?

A: The DIY-MULTI4-27HP230D-O condenser calls for a maximum 25A fuse/breaker and 23A MCA. Always confirm wire size and breaker selection with a licensed electrician and your local electrical code.



Q: Are the line sets included and pre-charged?

A: Yes. This bundle includes (2) DIY16-1438-O 16 ft line sets, each factory pre-charged with R-454B and using QuickConnect® fittings for true DIY installation—no vacuuming or refrigerant handling required.



Q: What kind of spaces is this bundle best for?

A: This setup is ideal for two medium-sized spaces like bedrooms, offices, living rooms, bonus rooms, studios, or finished basements where you want independent temperature control in each zone.



Q: Can I control everything from my phone?

A: Yes. The system supports the SmartHVAC® app, plus Amazon Alexa and Google Assistant, so you can adjust temperature, modes, and schedules from your phone or with your voice.



Q: Who can help me confirm if DIYM227HPW04D00 is the right bundle?

A: MRCOOL Direct is the USA’s #1 most trusted MRCOOL dealer. Call us and we’ll help verify your room sizes, layout, and electrical so you pick the right DIY bundle the first time.
