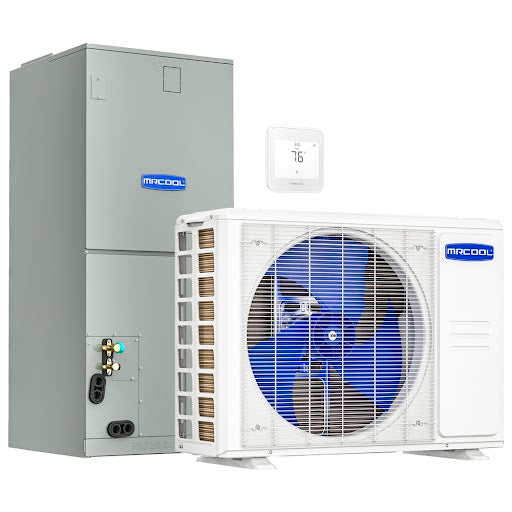

MRCOOL® VersaPro 2nd Gen 60K BTU 5 Ton 15.2 SEER2 Central Ducted Heat Pump Split System MVP-60-HP-230A00-O
MRCOOL® VersaPro 2nd Gen 60K BTU 5 Ton 15.2 SEER2 Central Ducted Heat Pump Split System MVP-60-HP-230A00-O
Available in stock (1000)
MRCOOL VersaPro® 2nd Gen 60K BTU 5 Ton 15.2 SEER2 Central Ducted Heat Pump Split System (Line set NOT included)
Premium Whole-Home Comfort with the Latest in HVAC Innovation
Upgrade your home’s heating and cooling with the MRCOOL® VersaPro® 2nd Gen 60K BTU 5 Ton Central Ducted Heat Pump Split System—a high-efficiency, DIY-capable solution designed for year-round comfort and energy savings. With advanced DC inverter technology and eco-friendly R-454B refrigerant, this system efficiently conditions spaces up to 2,500 sq. ft., making it an ideal upgrade for older HVAC systems or new installations requiring reliable performance.
Key Features & Benefits
✅ DIY Installation with No-Vac® Quick Connect® Line Sets – Hassle-free setup with pre-charged line sets, eliminating the need for refrigerant handling. (Line sets sold separately.)
✅ Smart Climate Control – Includes a wireless remote and a wall-mounted MRCOOL® Smart Thermostat for precise, customizable temperature control.
✅ High-Efficiency Performance – Boasts a 15.2 SEER2 and 8.4 HSPF4 rating, delivering optimal energy savings and consistent comfort.
✅ Whole-Home Coverage – Effectively conditions spaces up to 2,500 sq. ft., making it perfect for large homes, commercial spaces, and multi-room applications.
✅ Flexible Installation Options – Supports upflow, downflow, and horizontal (left or right) configurations, adapting to various ductwork layouts with ease.
✅ Ultra-Quiet & Smart Operation – DC inverter technology ensures whisper-quiet efficiency, while SmartHVAC app compatibility enables remote control and monitoring from anywhere.
✅ Eco-Friendly Refrigerant – Now featuring R-454B refrigerant, an environmentally sustainable alternative that enhances efficiency while reducing environmental impact.
✅ Compact & Durable Design – Built with a painted galvanized steel cabinet and a space-saving side-discharge configuration for versatile installation.
✅ Advanced Self-Diagnostics – Integrated troubleshooting system simplifies maintenance by providing quick issue identification.
✅ Optional Heating Upgrade – Compatible with an optional heat kit for enhanced warmth in extreme cold conditions.
✅ Comprehensive 10-Year Warranty – Enjoy peace of mind with a 10-year parts and compressor warranty, ensuring long-term reliability.
Hassle-Free Installation with No-Vac® Quick Connect® Line Sets
SPECIFICATIONS & DIMENSIONS
| Dimensions & Weight | |
|---|---|
| Condenser Dimensions | 38.58" W x 16.34" D x 38.39" H |
| Air Handler Dimensions | 21.02" W x 24.49" D x 52.99" H |
| Condenser Weight | 192.20 lbs |
| Air Handler Weight | 162.92 lbs |
| Capacity & Performance | |
| Tonnage | 5 |
| Cooling Capacity | 58,000 BTU |
| Operating Temperature (Cooling) | -22°F to 122°F |
| SEER2 | 15.2 |
| EER2 | 8.6 |
| Heating Capacity | 54,000 BTU |
| Operating Temperature (Heating) | -22°F to 75°F |
| HSPF2-4 | 8.4 |
| HSPF2-5 | 6.8 |
| Coverage Area | 2,001 - 2,500 square feet |
| Outdoor Noise Level | 65 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) | 56 / 52 / 49 / 34.5 dB(A) |
| Electrical Requirements | |
| Condenser | Voltage: 208-230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 40A Min Circuit Ampacity: 39A |
| Air Handler | Voltage: 115/208/230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 15A Min Circuit Ampacity: 14.5/11A |
| Refrigerant & Piping | |
| Refrigerant Type | R454B |
| Refrigerant Volume | 134.04 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Max Line Set Length | 246 ft |
| Features | |
| Compatible Heat Kits | 10kW, 15kW, 20kW |
| Filter Type | Replaceable |
| Filter Size | 23" x 20" x 1" |
| Adjustable Thermostat | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Remote Control Included | No |
| Certifications & Warranty | |
| Certifications | ETL Certified, AHRI Certified |
| Warranty | 10 Years Compressor, 10 Years Parts |
All MRCOOL VersaPro® 2nd Gen condensers are compatible with No-Vac® Quick Connect® Line Sets and coupler kits, making installation fast and easy.
Note: Line sets are not included but are available for separate purchase to meet your specific installation needs.
Quantity 1x: 5 Ton/60k BTU MRCOOL® VersaPro® 2nd Generation Central Ducted Heat Pump Condenser
Quantity 1x: 5 Ton/60k BTU MRCOOL® VersaPro® 2nd Generation Central Ducted Air Handler
