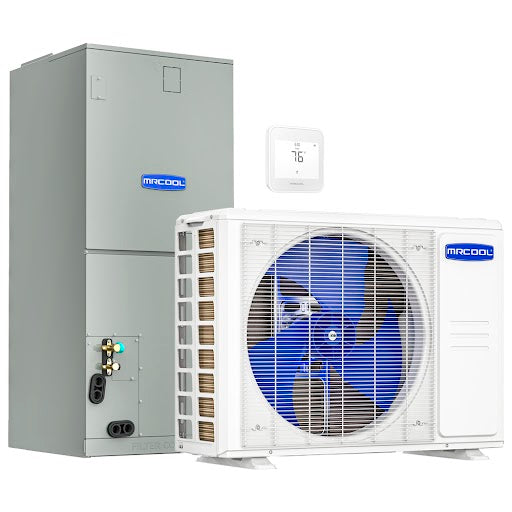

MRCOOL VersaPro 2nd Gen 60K BTU 5 Ton 15.2 SEER2 Central Ducted Heat Pump Split System MVP-60-HP-230A00-O
MRCOOL VersaPro 2nd Gen 60K BTU 5 Ton 15.2 SEER2 Central Ducted Heat Pump Split System MVP-60-HP-230A00-O is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Care kits are available on our website! Grab yours now.
Delivery and Shipping
Delivery and Shipping
Delivery times may vary by location but our delivery shipping times are 3-7 days.
Specifications
Specifications
Specifications
Specifications
| 5 Ton MRCOOL® VersaPro® 2nd Generation Central Ducted Heat Pump Condenser | |
| SEER2 | 15.2 |
| EER2 | 8.6 |
| HSPF-4 | 8.4 |
| HSPF-5 | 6.8 |
| CFM | 3037.1 |
| TONNAGE | 5 |
| COOLING CAPACITY (BTU) | 54000 |
| HEATING CAPACITY (BTU) | 54000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 40 |
| MIN CIRCUIT AMPACITY (A) | 39 |
| COLOR | gray |
| REFRIGERANT TYPE | R454B |
| REFRIGERANT VOLUME (OZ) | 134.04 |
| DECIBEL RATING (DBA) | 65 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 10 Years |
| BASE COMPRESSOR WARRANTY | 10 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| NET DEPTH (IN) | 16.34 |
| NET HEIGHT (IN) | 38.39 |
| NET WIDTH (IN) | 38.58 |
| NET WEIGHT (LBS) | 192.9 |
| GROSS DEPTH (IN) | 19.68 |
| GROSS HEIGHT (IN) | 42.52 |
| GROSS WIDTH (IN) | 45.08 |
| GROSS WEIGHT (LBS) | 224.21 |
| 5 Ton MRCOOL® VersaPro® 2nd Generation Central Ducted Air Handler | |
| CFM | 1807.00/1583.33/1359.67/1136.00 |
| TONNAGE | 5 |
| COOLING CAPACITY (BTU) | 54000 |
| HEATING CAPACITY (BTU) | 54000 |
| VOLTAGE (V) | 115/208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 14.5/11.0 |
| COLOR | gray |
| DECIBEL RATING LOW (DBA) | 34.5 |
| DECIBEL RATING HIGH (DBA) | 56 |
| NUMBER OF SPEEDS | 4 |
| MAX LINESET LENGTH (FT) | 246 ft |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| FILTER TYPE | Replaceable |
| FILTER SIZE | 23x20x1 |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | Yes |
| AUXILIARY HEATER SIZES | 10kW/15kW/20kW |
| ADJUSTABLE THERMOSTAT | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 10 Years |
| BASE COMPRESSOR WARRANTY | 10 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| NET DEPTH (IN) | 24.49 |
| NET HEIGHT (IN) | 52.99 |
| NET WIDTH (IN) | 21.02 |
| NET WEIGHT (LBS) | 162.92 |
| GROSS DEPTH (IN) | 26.77 |
| GROSS HEIGHT (IN) | 56.5 |
| GROSS WIDTH (IN) | 27.95 |
| GROSS WEIGHT (LBS) | 190.92 |
MRCOOL VersaPro 2nd Gen 60K BTU 5 Ton 15.2 SEER2 Central Ducted Hea...
Description
Description
PRODUCT DESCRIPTION
MRCOOL VersaPro® 2nd Gen 60K BTU 5 Ton 15.2 SEER2 Central Ducted Heat Pump Split System (Line set NOT included)
Premium Whole-Home Comfort with the Latest in HVAC Innovation
Upgrade your home’s heating and cooling with the MRCOOL® VersaPro® 2nd Gen 60K BTU 5 Ton Central Ducted Heat Pump Split System—a high-efficiency, DIY-capable solution designed for year-round comfort and energy savings. With advanced DC inverter technology and eco-friendly R-454B refrigerant, this system efficiently conditions spaces up to 2,500 sq. ft., making it an ideal upgrade for older HVAC systems or new installations requiring reliable performance.
Key Features & Benefits
✅ DIY Installation with No-Vac® Quick Connect® Line Sets – Hassle-free setup with pre-charged line sets, eliminating the need for refrigerant handling. (Line sets sold separately.)
✅ Smart Climate Control – Includes a wireless remote and a wall-mounted MRCOOL® Smart Thermostat for precise, customizable temperature control.
✅ High-Efficiency Performance – Boasts a 15.2 SEER2 and 8.4 HSPF4 rating, delivering optimal energy savings and consistent comfort.
✅ Whole-Home Coverage – Effectively conditions spaces up to 2,500 sq. ft., making it perfect for large homes, commercial spaces, and multi-room applications.
✅ Flexible Installation Options – Supports upflow, downflow, and horizontal (left or right) configurations, adapting to various ductwork layouts with ease.
✅ Ultra-Quiet & Smart Operation – DC inverter technology ensures whisper-quiet efficiency, while SmartHVAC app compatibility enables remote control and monitoring from anywhere.
✅ Eco-Friendly Refrigerant – Now featuring R-454B refrigerant, an environmentally sustainable alternative that enhances efficiency while reducing environmental impact.
✅ Compact & Durable Design – Built with a painted galvanized steel cabinet and a space-saving side-discharge configuration for versatile installation.
✅ Advanced Self-Diagnostics – Integrated troubleshooting system simplifies maintenance by providing quick issue identification.
✅ Optional Heating Upgrade – Compatible with an optional heat kit for enhanced warmth in extreme cold conditions.
✅ Comprehensive 10-Year Warranty – Enjoy peace of mind with a 10-year parts and compressor warranty, ensuring long-term reliability.
Hassle-Free Installation with No-Vac® Quick Connect® Line Sets
SPECIFICATIONS & DIMENSIONS
| Dimensions & Weight | |
|---|---|
| Condenser Dimensions | 38.58" W x 16.34" D x 38.39" H |
| Air Handler Dimensions | 21.02" W x 24.49" D x 52.99" H |
| Condenser Weight | 192.20 lbs |
| Air Handler Weight | 162.92 lbs |
| Capacity & Performance | |
| Tonnage | 5 |
| Cooling Capacity | 58,000 BTU |
| Operating Temperature (Cooling) | -22°F to 122°F |
| SEER2 | 15.2 |
| EER2 | 8.6 |
| Heating Capacity | 54,000 BTU |
| Operating Temperature (Heating) | -22°F to 75°F |
| HSPF2-4 | 8.4 |
| HSPF2-5 | 6.8 |
| Coverage Area | 2,001 - 2,500 square feet |
| Outdoor Noise Level | 65 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) | 56 / 52 / 49 / 34.5 dB(A) |
| Electrical Requirements | |
| Condenser | Voltage: 208-230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 40A Min Circuit Ampacity: 39A |
| Air Handler | Voltage: 115/208/230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 15A Min Circuit Ampacity: 14.5/11A |
| Refrigerant & Piping | |
| Refrigerant Type | R454B |
| Refrigerant Volume | 134.04 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Max Line Set Length | 246 ft |
| Features | |
| Compatible Heat Kits | 10kW, 15kW, 20kW |
| Filter Type | Replaceable |
| Filter Size | 23" x 20" x 1" |
| Adjustable Thermostat | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Remote Control Included | No |
| Certifications & Warranty | |
| Certifications | ETL Certified, AHRI Certified |
| Warranty | 10 Years Compressor, 10 Years Parts |
All MRCOOL VersaPro® 2nd Gen condensers are compatible with No-Vac® Quick Connect® Line Sets and coupler kits, making installation fast and easy.
Note: Line sets are not included but are available for separate purchase to meet your specific installation needs.
Quantity 1x: 5 Ton/60k BTU MRCOOL® VersaPro® 2nd Generation Central Ducted Heat Pump Condenser
Quantity 1x: 5 Ton/60k BTU MRCOOL® VersaPro® 2nd Generation Central Ducted Air Handler
