MRCOOL DIRECT  |  SKU: A-09-HP-WMAH-230D-O

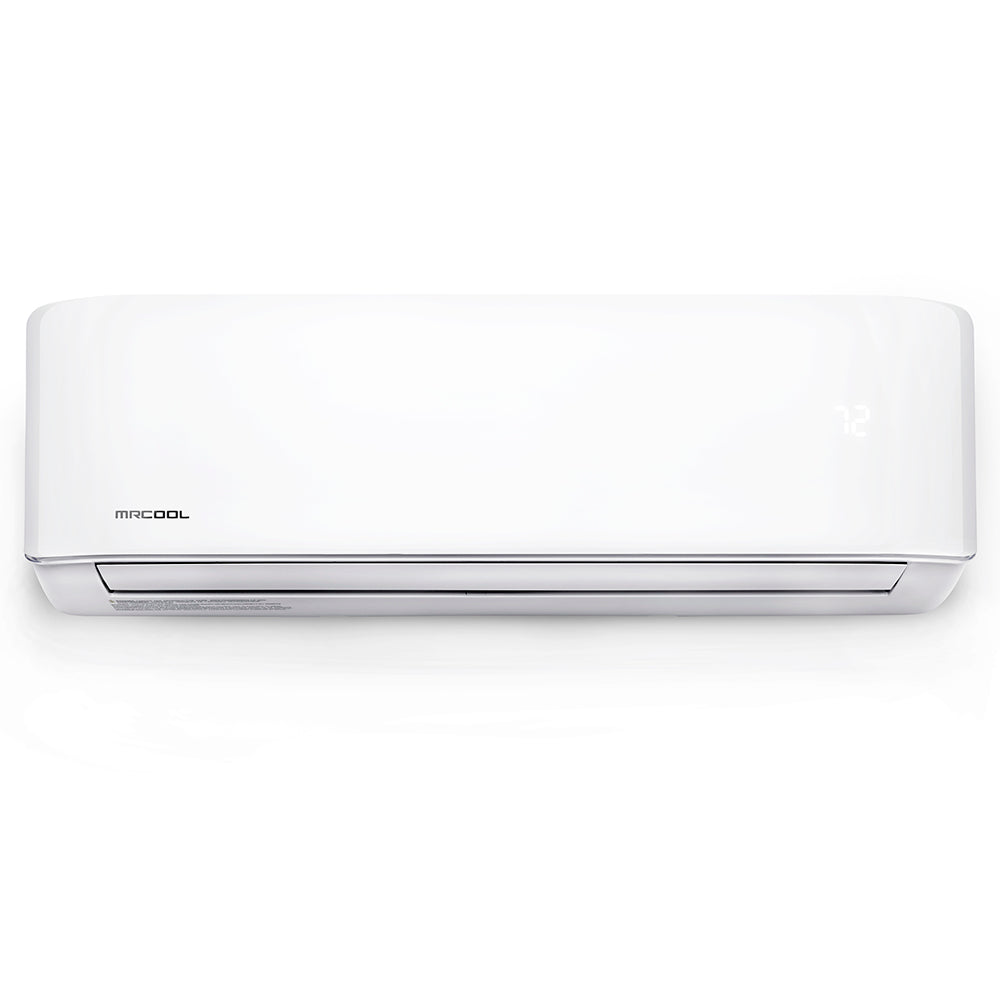

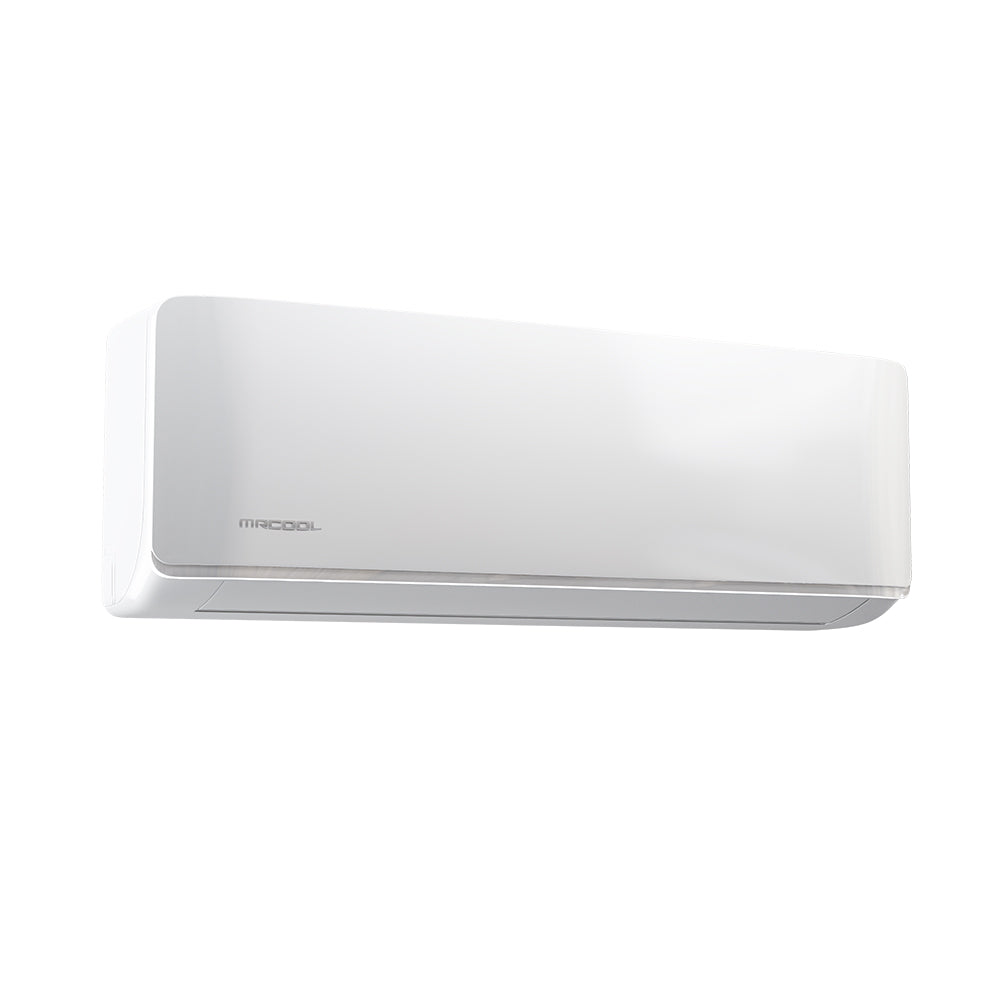

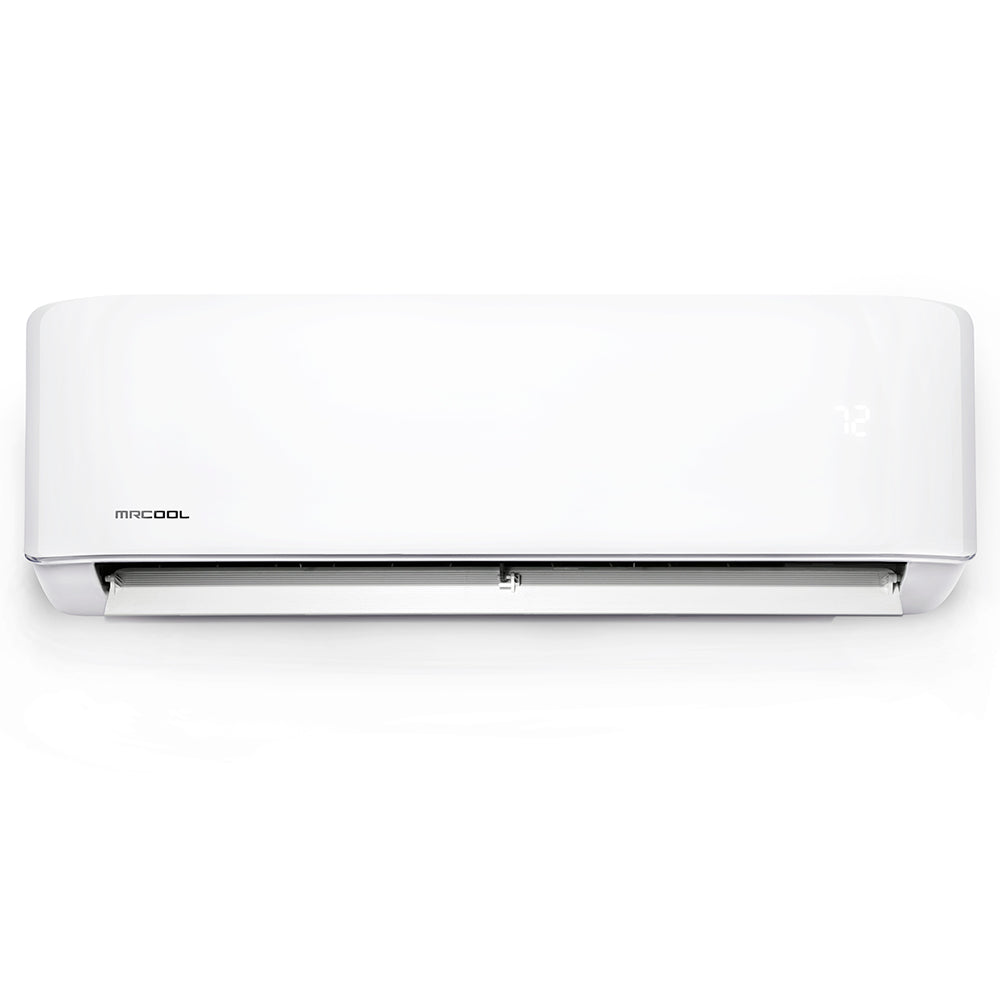

MRCOOL® Advantage 9k BTU 230V Air Handler – 5th Generation

$24900 $33000
Shipping calculated at checkout.

Care information

Care kits are available on our website! Grab yours now.

Delivery and Shipping

Delivery times may vary by location but our delivery shipping times are 3-7 days.

Selling fast! Grab yours now!

Specifications

<div style="overflow-x: auto;">
<table style="border-top: 1px solid; width: 100%; max-width: 100%;">
<tbody>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Name</strong></td>
<td style="padding:8px; vertical-align: top;">Advantage 5th Generation 9k BTU 230V Air Handler</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>CFM</strong></td>
<td style="padding:8px; vertical-align: top;">312.0 / 264.9 / 194.2 / 153.0 / 105.9</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>TONNAGE</strong></td>
<td style="padding:8px; vertical-align: top;">0.75</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>VOLTAGE (V)</strong></td>
<td style="padding:8px; vertical-align: top;">208-230</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>PHASE</strong></td>
<td style="padding:8px; vertical-align: top;">1</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>CYCLE</strong></td>
<td style="padding:8px; vertical-align: top;">60</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>MAX FUSE BREAKER (A)</strong></td>
<td style="padding:8px; vertical-align: top;">15</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>MIN CIRCUIT AMPACITY (A)</strong></td>
<td style="padding:8px; vertical-align: top;">3</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>MOUNT TYPE</strong></td>
<td style="padding:8px; vertical-align: top;">Wall</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>COLOR</strong></td>
<td style="padding:8px; vertical-align: top;">White</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>DECIBEL RATING (DBA)</strong></td>
<td style="padding:8px; vertical-align: top;">31.5</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>DECIBEL RATING LOW (DBA)</strong></td>
<td style="padding:8px; vertical-align: top;">18.5</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>DECIBEL RATING HIGH (DBA)</strong></td>
<td style="padding:8px; vertical-align: top;">40.5</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>NUMBER OF SPEEDS</strong></td>
<td style="padding:8px; vertical-align: top;">5</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>MAX LINESET LENGTH (FT)</strong></td>
<td style="padding:8px; vertical-align: top;">82</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>LIQUID LINE SIZE</strong></td>
<td style="padding:8px; vertical-align: top;">1/4</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>SUCTION LINE SIZE</strong></td>
<td style="padding:8px; vertical-align: top;">3/8</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>FILTER TYPE</strong></td>
<td style="padding:8px; vertical-align: top;">Reusable</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>OVERLOAD PROTECTION</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>APP COMPATIBILITY</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>WORKS WITH IOS</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>WORKS WITH ANDROID</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>REMOTE CONTROL INCLUDED</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>UL LISTED</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>CSA LISTED</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>ETL LISTED</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>AHRI CERTIFIED</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>REGISTERED WARRANTY</strong></td>
<td style="padding:8px; vertical-align: top;">Extended Limited Lifetime*</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>BASE PARTS WARRANTY</strong></td>
<td style="padding:8px; vertical-align: top;">1 Year</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>BASE COMPRESSOR WARRANTY</strong></td>
<td style="padding:8px; vertical-align: top;">2 Years</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>HAS BATTERIES</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>CONTAINS CHEMICALS</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>CONTAINS COMPRESSED GAS</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>PROPOSITION 65 WARNING</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>NET DEPTH (IN)</strong></td>
<td style="padding:8px; vertical-align: top;">7.36</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>NET HEIGHT (IN)</strong></td>
<td style="padding:8px; vertical-align: top;">11.42</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>NET WIDTH (IN)</strong></td>
<td style="padding:8px; vertical-align: top;">28.43</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>NET WEIGHT (LBS)</strong></td>
<td style="padding:8px; vertical-align: top;">16.98</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>GROSS DEPTH (IN)</strong></td>
<td style="padding:8px; vertical-align: top;">10.63</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>GROSS HEIGHT (IN)</strong></td>
<td style="padding:8px; vertical-align: top;">14.76</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>GROSS WIDTH (IN)</strong></td>
<td style="padding:8px; vertical-align: top;">31.1</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>GROSS WEIGHT (LBS)</strong></td>
<td style="padding:8px; vertical-align: top;">22.27</td>
</tr>
</tbody>
</table>
</div>

Specifications
Name Advantage 5th Generation 9k BTU 230V Air Handler
CFM 312.0 / 264.9 / 194.2 / 153.0 / 105.9
TONNAGE 0.75
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
DECIBEL RATING (DBA) 31.5
DECIBEL RATING LOW (DBA) 18.5
DECIBEL RATING HIGH (DBA) 40.5
NUMBER OF SPEEDS 5
MAX LINESET LENGTH (FT) 82
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
FILTER TYPE Reusable
OVERLOAD PROTECTION Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 7.36
NET HEIGHT (IN) 11.42
NET WIDTH (IN) 28.43
NET WEIGHT (LBS) 16.98
GROSS DEPTH (IN) 10.63
GROSS HEIGHT (IN) 14.76
GROSS WIDTH (IN) 31.1
GROSS WEIGHT (LBS) 22.27

Description

The MRCOOL® Advantage 9,000 BTU 230V Air Handler – 5th Generation offers dependable, energy-efficient heating and cooling for small spaces—without the need for ductwork. Built for professional installation and designed with modern features, this air handler combines performance, convenience, and eco-conscious innovation in a compact wall-mounted unit.

Now equipped with R-454B refrigerant, this 5th Gen model improves system efficiency while lowering environmental impact thanks to its reduced Global Warming Potential (GWP). Whether you're expanding your HVAC system or replacing a zone unit, this air handler provides reliable climate control with whisper-quiet operation and smart connectivity.

Key Features

  • Requires Professional Installation – Compatible with MRCOOL® Advantage Series Condensers (sold separately)

  • R-454B Refrigerant – Next-generation refrigerant with a lower GWP and improved energy performance

  • Gold Fin® Corrosion-Resistant Coating – Helps protect components from salt air and humidity, ideal for coastal regions

  • Smart Wi-Fi Control – Use the MRCOOL® SmartHVAC app, Amazon Alexa, or Google Assistant to control the unit remotely

  • Follow Me® Function – Automatically adjusts temperature based on the location of the remote for personalized comfort

  • Quiet Operation – Designed to minimize noise while maintaining steady airflow and temperature control

  • Built-in Features – Includes timer mode, refrigerant leakage detection, and sleep mode for added convenience and energy savings

  • Certified for Quality and Efficiency – AHRI Certified, NEEP ccASHP Listed, and CEE Tier 1 Compliant (North)

Technical Specifications

  • Cooling Capacity: 9,000 BTU

  • Voltage: 230V

  • Refrigerant Type: R-454B

  • Mounting Type: Wall-mounted

  • Control Options: Wireless remote, smartphone app, voice assistant integration

  • Certifications: AHRI, NEEP ccASHP, CEE Tier 1 (North)

Warranty Coverage

  • 2-Year Parts Warranty

  • 1-Year Compressor Warranty

  • 1-Year Remote Control Warranty

  • Optional Limited Lifetime Warranty available through the MRCOOL® Care Program

With its smart features, modern efficiency standards, and reliable performance, the MRCOOL® Advantage 9k BTU 230V Air Handler – 5th Generation is a flexible solution for anyone building or expanding a ductless mini-split system. Just pair it with a compatible condenser and let a pro handle the install.
