CoolGuard® Tranquil T Condensate Pump- Optical Sensor, 24 ft Lift, 100–240V- Model TMT24WS100

Product Description

CoolGuard® Tranquil T Condensate Pump – Quiet, Smart & Reliable Condensate Removal

Keep your HVAC system protected from damaging condensate buildup with the CoolGuard® Tranquil T Condensate Pump (Model TMT24WS100). Designed with advanced moisture management technology, this compact pump automatically removes condensation from air handlers, mini split systems, fan coils, evaporator coils, and heat pumps before water can damage sensitive internal components.

Unlike traditional condensate pumps, the Tranquil T features an automatic optical-level sensor switch, providing dependable operation without a mechanical float. Three built-in LED status lights allow you to instantly monitor pump operation, while the optional dual alarm outputs provide added protection by alerting you if abnormal operating conditions occur.

Designed for both residential and light commercial HVAC systems, the CoolGuard Tranquil T operates on 100–240V, making it compatible with installations throughout North America and many international applications.

With a 24-foot maximum lift, quiet operation below 30 dBA, four 1-inch inlet openings, a removable 3/8-inch barbed check valve, and a 6-foot power cord, the Tranquil T delivers reliable condensate removal even during heavy cooling seasons.

Whether you’re replacing an existing condensate pump or installing a new HVAC system, the CoolGuard Tranquil T helps keep your equipment dry, efficient, and protected.



Key Features

• Automatic optical-level sensor
• Universal 100–240V operation
• Maximum lift: 24 feet
• Quiet operation under 30 dBA

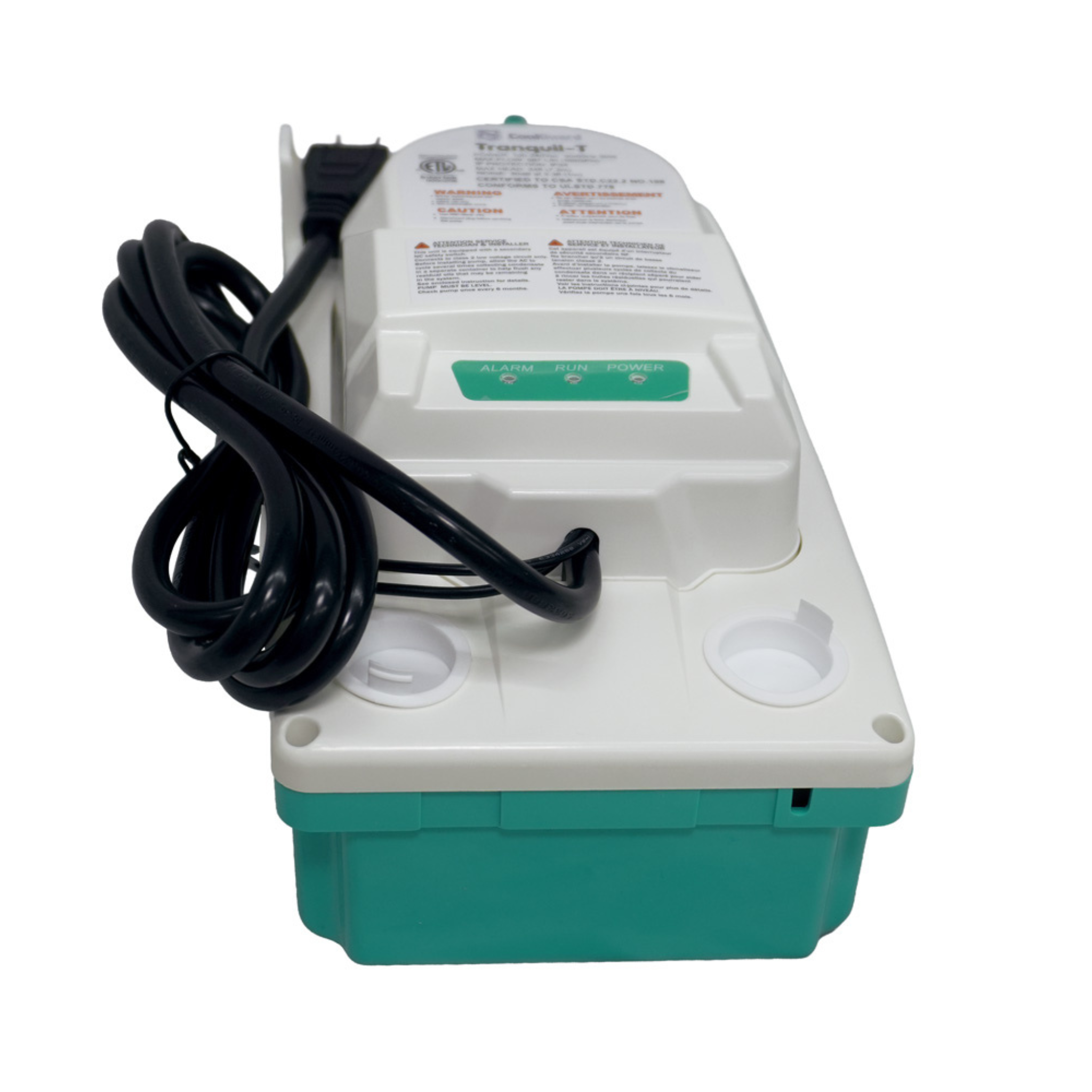

• Three LED status indicators
• Optional dual alarm outputs
• Four 1-inch inlet openings
• Removable 3/8-inch barbed check valve
• 6-foot power cord included
• Compact, high-performance design
• ETL Listed
• UL Listed
• CSA Listed
• Reliable automatic condensate removal



Technical Specifications

Specification	Value
Brand	CoolGuard
Model	TMT24WS100
Voltage	100–240V
Phase	Single Phase
Frequency	50/60 Hz
Maximum Lift	24 ft
Sound Level	Less than 30 dBA
Inlets	Four 1-inch
Check Valve	3/8” Barbed (Removable)
Power Cord	6 ft
Width	5.7 in
Depth	11 in
Height	5 in
Weight	2.93 lbs
Color	Cyan / White
UL Listed	Yes
CSA Listed	Yes
ETL Listed	Yes



Perfect For

• Mini Split Systems
• Ductless Mini Splits
• Air Handlers
• Fan Coils
• Heat Pumps
• Evaporator Coils
• HVAC Replacement Pumps
• Residential HVAC
• Commercial HVAC



Benefits

✅ Optical sensor technology

✅ Extremely quiet operation

✅ Universal voltage

✅ Dual alarm capability

✅ LED status indicators

✅ High lift capacity

✅ Compact design

✅ Easy installation

✅ Professional-grade reliability



What’s Included

• CoolGuard Tranquil T Condensate Pump
• 6-foot Power Cord
• Removable 3/8-inch Barbed Check Valve
• Installation Instructions



Frequently Asked Questions about the CoolGuard® Tranquil T Condensate Pump – Quiet, Smart & Reliable Condensate Removal.

What makes the Tranquil T different from standard condensate pumps?

The CoolGuard Tranquil T uses an automatic optical-level sensor instead of a traditional mechanical float switch for dependable condensate detection and pump operation.



What is the maximum pumping height?

The Tranquil T can pump condensate up to 24 feet vertically.



What voltage does this pump operate on?

The pump accepts 100–240V power, making it suitable for a wide range of HVAC installations.



How quiet is the pump?

It operates at less than 30 dBA, making it ideal for residential applications where low noise is important.



What do the LED lights indicate?

The three LED indicators display the pump’s operating status, allowing quick visual confirmation that the system is functioning correctly.



Does the pump include an alarm?

Yes. The Tranquil T supports an optional dual alarm system that can notify you of abnormal operating conditions.



What HVAC equipment can this pump be used with?

It is compatible with many mini split systems, air handlers, fan coils, evaporator coils, and heat pump systems that require condensate removal.



Why is a condensate pump important?

A condensate pump safely removes water produced during the cooling process, helping prevent water damage, corrosion, mold growth, and equipment failure when gravity drainage isn’t available.
