MRCOOL® Hyper Heat 18K Single Zone DIY Mini Split Bundle (230V) — MRD-DIYHH18-WM18-25

Product Description

Model: MRD-DIYHH18-WM18-25

Introducing what’s  New 2025 This is the first official MRCOOL 5th Gen DIY Hyper Heat 18K Mini split system available direct to consumer, engineered specifically for installs down to -22°F.

The MRCOOL DIYHH-18 Hyper Heat 18K bundle combines the DIYHH-18 condenser and the DIY-18-HP-WMAH-230D25-O wall mount air handler into a complete single zone system designed specifically for true homeowner installation. HVAC buyers search for diyhh-18, diy hyper heat 18k, mr cool  18k outside unit, and 5th gen diy condenser because this system is the first DIY Hyper Heat solution capable of maintaining real -22°F heating performance without professional tools, gauges, vacuum pumps, or refrigerant handling. This bundle delivers genuine contractor-grade results with factory-sealed QuickConnect® R-454B line sets, inverter technology, and seamless smart control.

WORKS WITH:
✔ DIY-18-HP-WMAH-230D25-O Wall Mount Air Handler
✔ DIYCASSETTE18HP-230D25-O OuttaSight® Ceiling Cassette

Long Description

The MRCOOL DIYHH-18 Hyper Heat 18K bundle delivers powerful year-round comfort with true DIY installation. This 5th Generation system includes the DIYHH-18 condenser and the DIY-18-HP-WMAH-230D25-O wall mount air handler, providing a complete single zone solution that heats and cools spaces up to 800 sq. ft. Built specifically for harsh climate performance, the Hyper Heat inverter maintains dependable output down to -22°F and prevents the temperature swings associated with conventional single-stage systems.

Unlike standard mini split packages, this system uses factory-sealed QuickConnect® technology. The 25 ft line set arrives vacuumed, fully charged with R-454B refrigerant, and completely sealed—no vacuum pump, nitrogen, refrigerant gauges, recovery equipment, licensed installers, or EPA certification required. The included DIYPRO® cable eliminates the need for electrical conduit and protects against moisture, animals, yard equipment, and environmental wear.

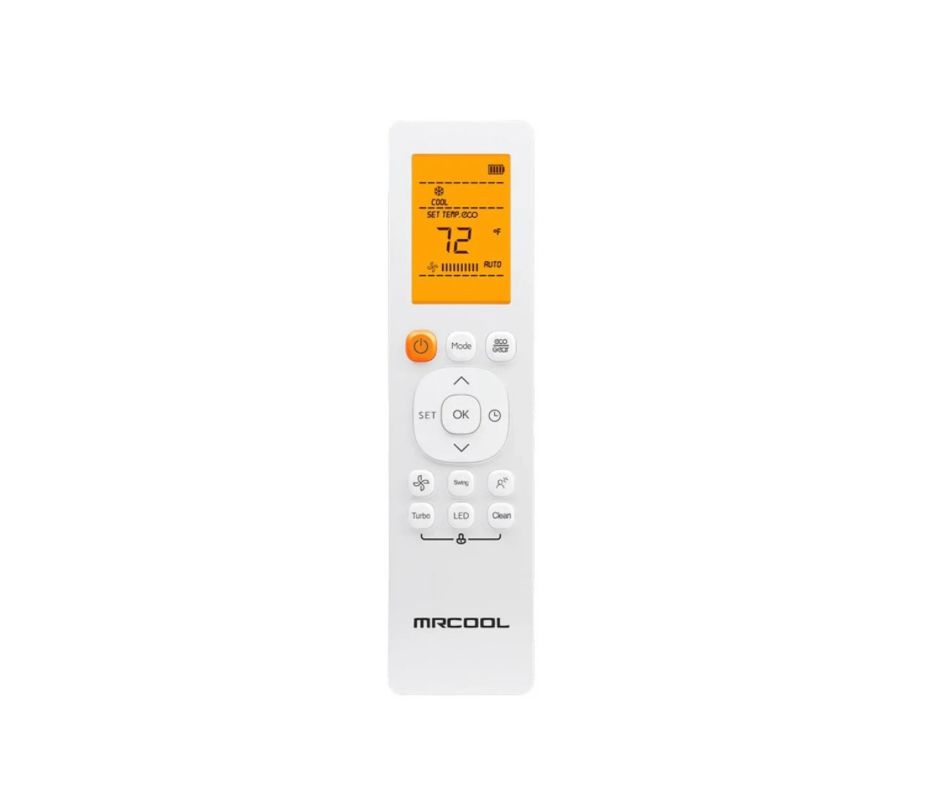

Both the condenser and air handler are engineered for long-term performance. The Gold Fin® anti-corrosion coating resists coastal salt exposure and seasonal moisture. The inverter compressor quietly modulates output for comfort and efficiency, while the electronic expansion valve ensures stability and fast response. Users can control the system through the SmartHVAC™ app, voice assistants like Alexa or Google Assistant, or the included wireless remote.

With MRCOOL Care enrollment, customers can access a limited lifetime unit replacement program. Standard coverage includes a 7-year compressor warranty and 5-year parts warranty when properly registered. The DIYHH-18 bundle is ideal for bedrooms, living areas, basements, garages, workshops, home offices, and rental properties where professional installation is costly or impractical.

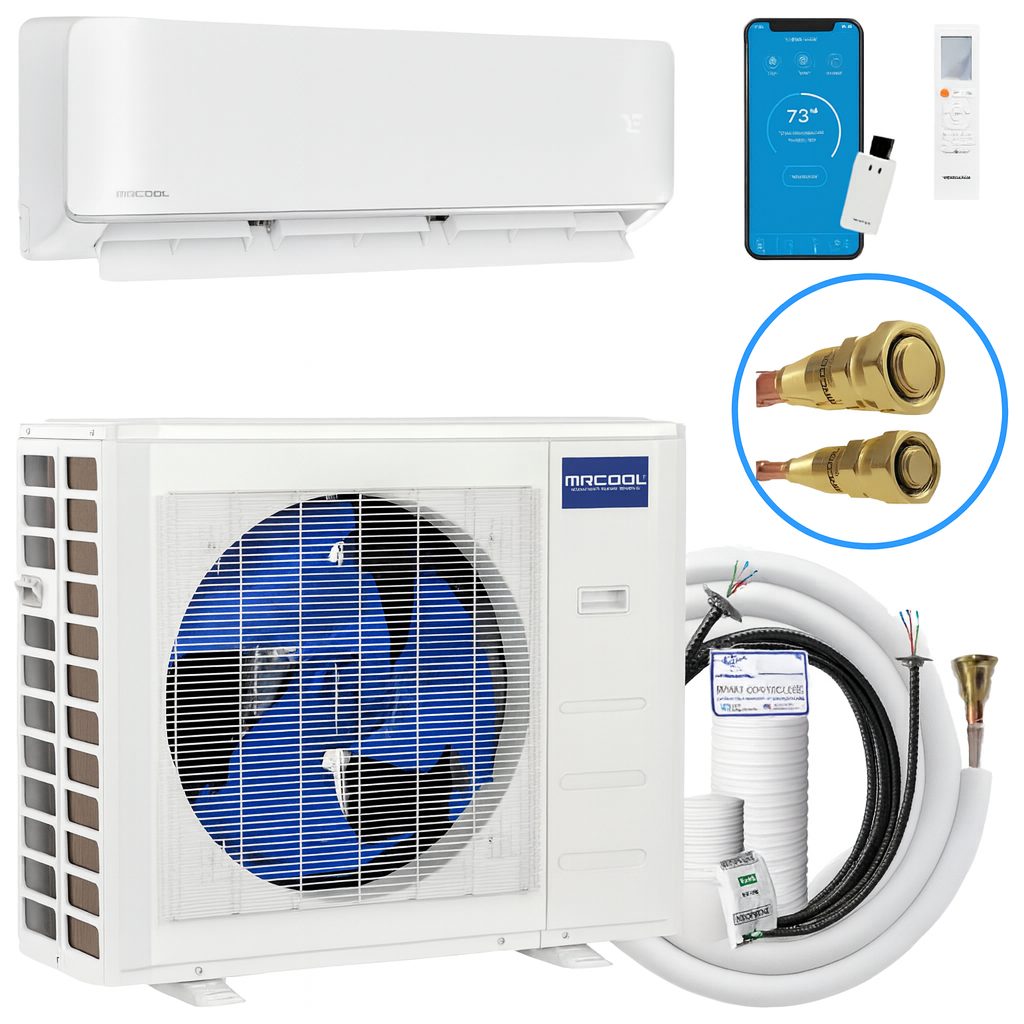

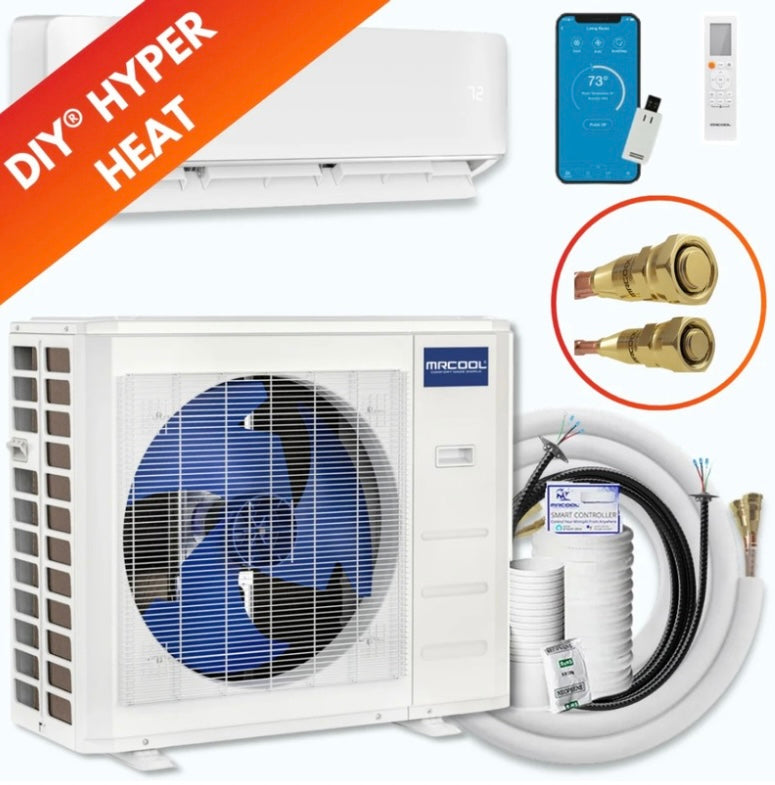

INCLUDES IN THIS COMPLETE DIY BUNDLE:

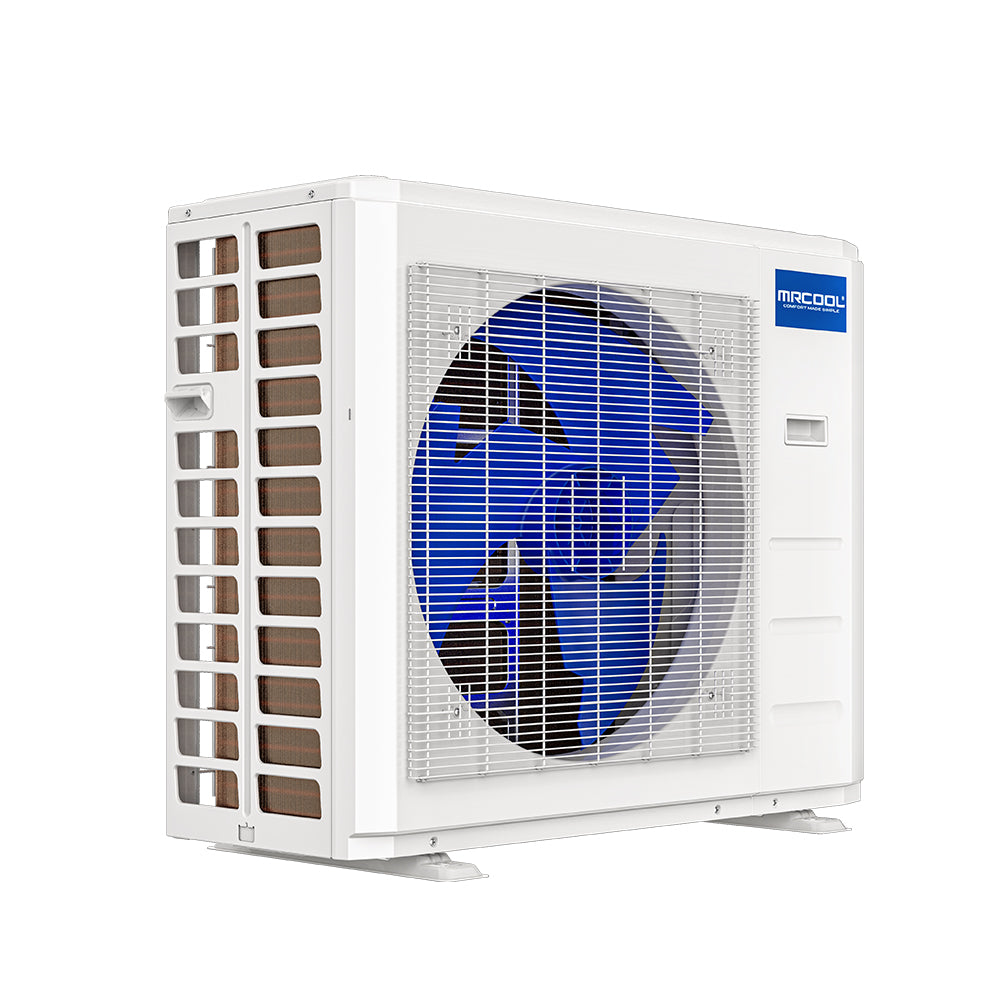

✔ DIYHH-18-HP-C-230D25-O – Hyper Heat 18K Outdoor Condenser (R-454B)

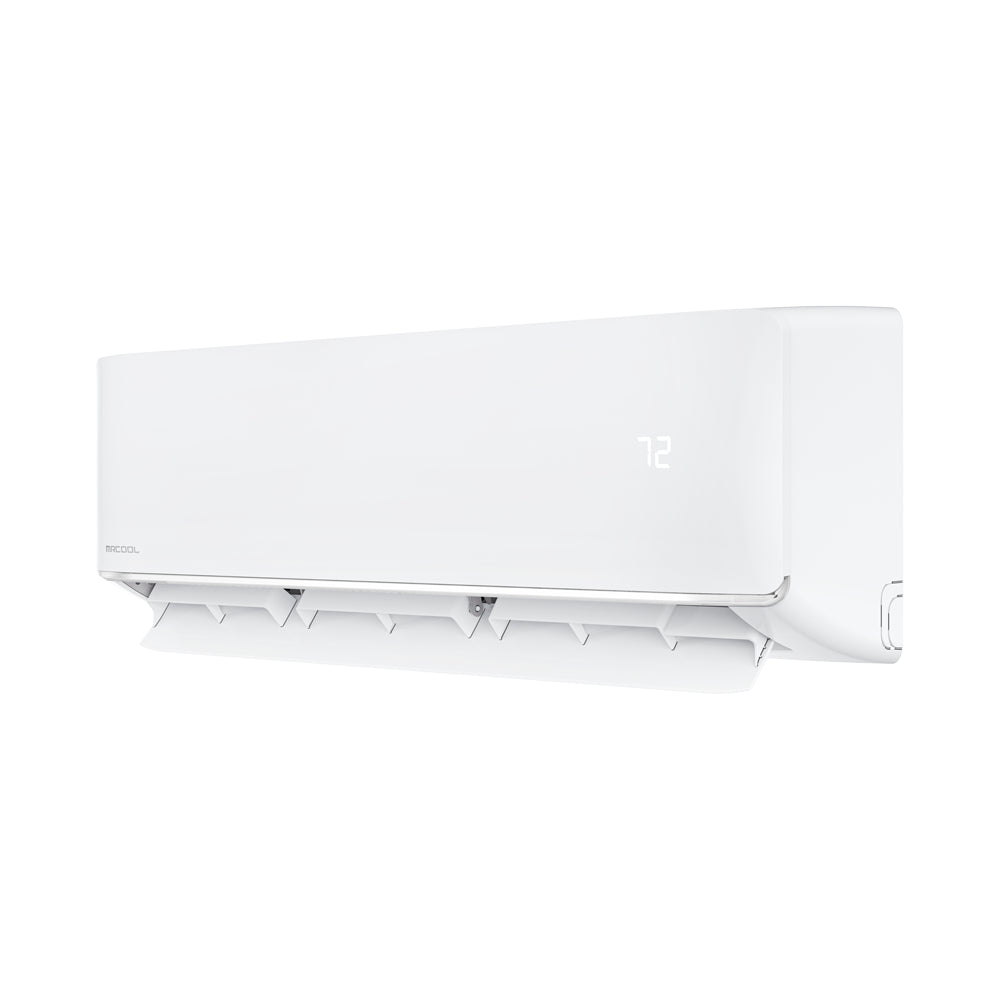

✔ DIY-18-HP-WMAH-230D25-O – 18K Wall-Mounted Air Handler

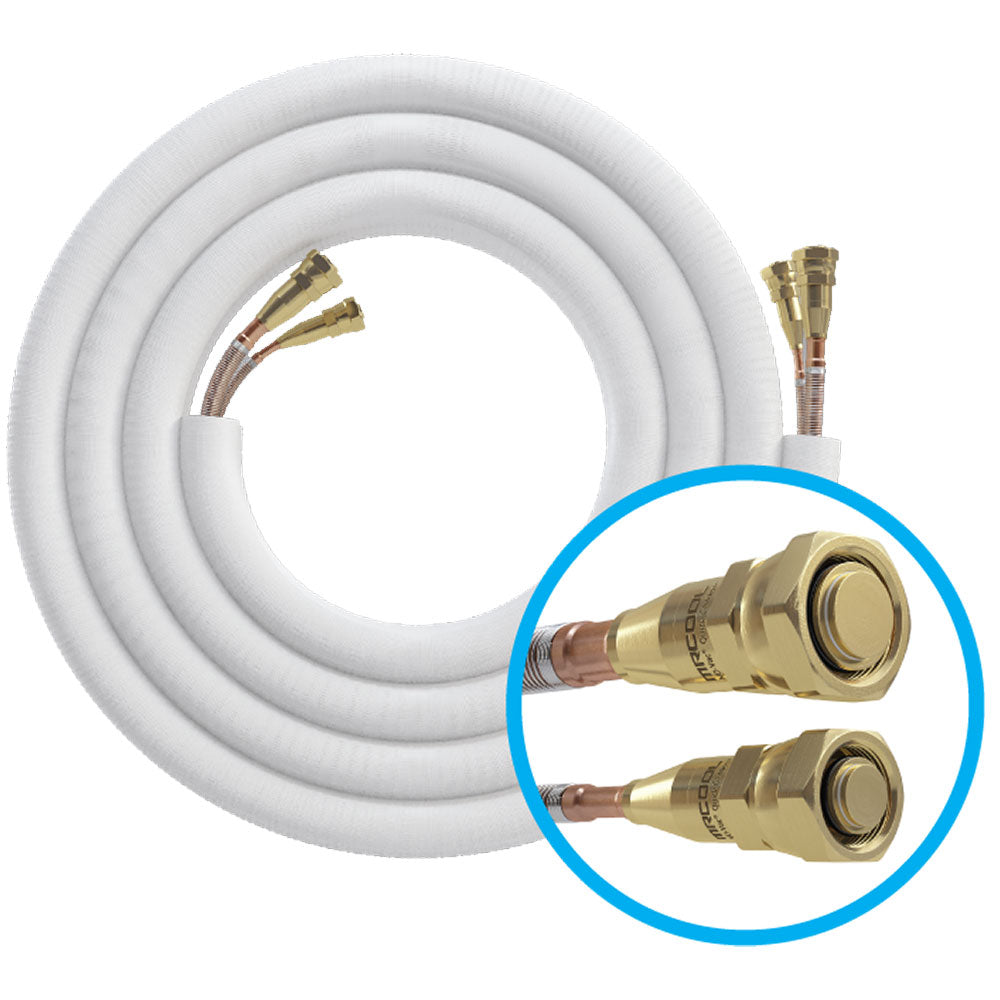

✔ DIY25-1412 – 25ft Pre-Charged QuickConnect® Line Set

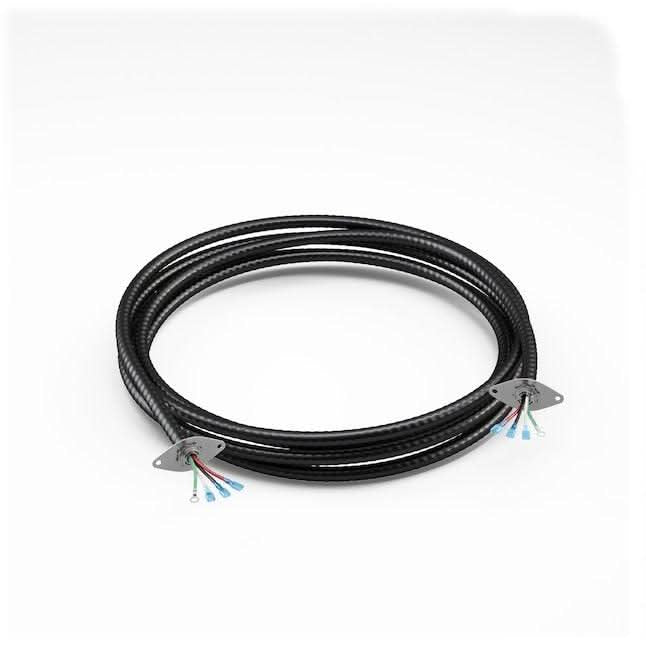

✔ DIYPRO® Communication Cable



BULLET FEATURES

• Hyper Heat heating down to -22°F
• 21.2 SEER2 cooling / 11 HSPF2 heating
• R-454B low-GWP refrigerant
• 25 ft factory-charged QuickConnect® line set
• DIYPRO® cable – no conduit required
• SmartHVAC™ app, Alexa & Google Assistant
• Energy Star & AHRI Certified
• Gold Fin® outdoor corrosion protection
• Quiet inverter rotary compressor
• Eligible for MRCOOL Care lifetime replacement

Condenser Specifications —

DIYHH-18-HP-C-230D25-O

Brand: MRCOOL

Series DIY Hyper Heat (5th Gen)

UPC: 840255588096

Unit Type: Mini-Split Heat Pump

Equipment Type: Outdoor Condenser

Works With: DIYCASSETTE18HP-230D25-O, DIY-18-HP-WMAH-230D25-O

Performance

• Tonnage: 1.5 Ton
• Cooling/Heating BTU: 18,000
• SEER2: 21.2
• EER2: 12.5
• HSPF2-4: 11
• HSPF2-5: 8.5
• CFM: 1765.8
• Min Ambient Cool: -22°F
• Min Ambient Heat: -22°F
• Inverter: Yes

Electrical

• Voltage: 208/230V
• Phase: 1
• Cycle: 60Hz
• Max Fuse Breaker: 25A
• Min Circuit Ampacity: 19A

Refrigeration

• Refrigerant: R-454B
• Volume: 52.21 oz
• Line Set Included: Yes
• Line Set Length: 25 ft
• Max Line Set Length: 75 ft
• Liquid Line: 1/4 in
• Suction Line: 1/2 in
• Metering Device: EEV
• Compressor Type: Rotary

Noise

• Condenser dB: 58 dBA

Certifications

• Energy Star:
• AHRI Certified:
• Prop 65:

Warranty

• 7-Year Compressor (registered)
• 5-Year Parts (registered)

Dimensions

• Net: 35.04” W × 26.5” H × 13.46” D — 99.87 lbs
• Gross: 40.55” W × 29.53” H × 18.11” D — 120.15 lbs

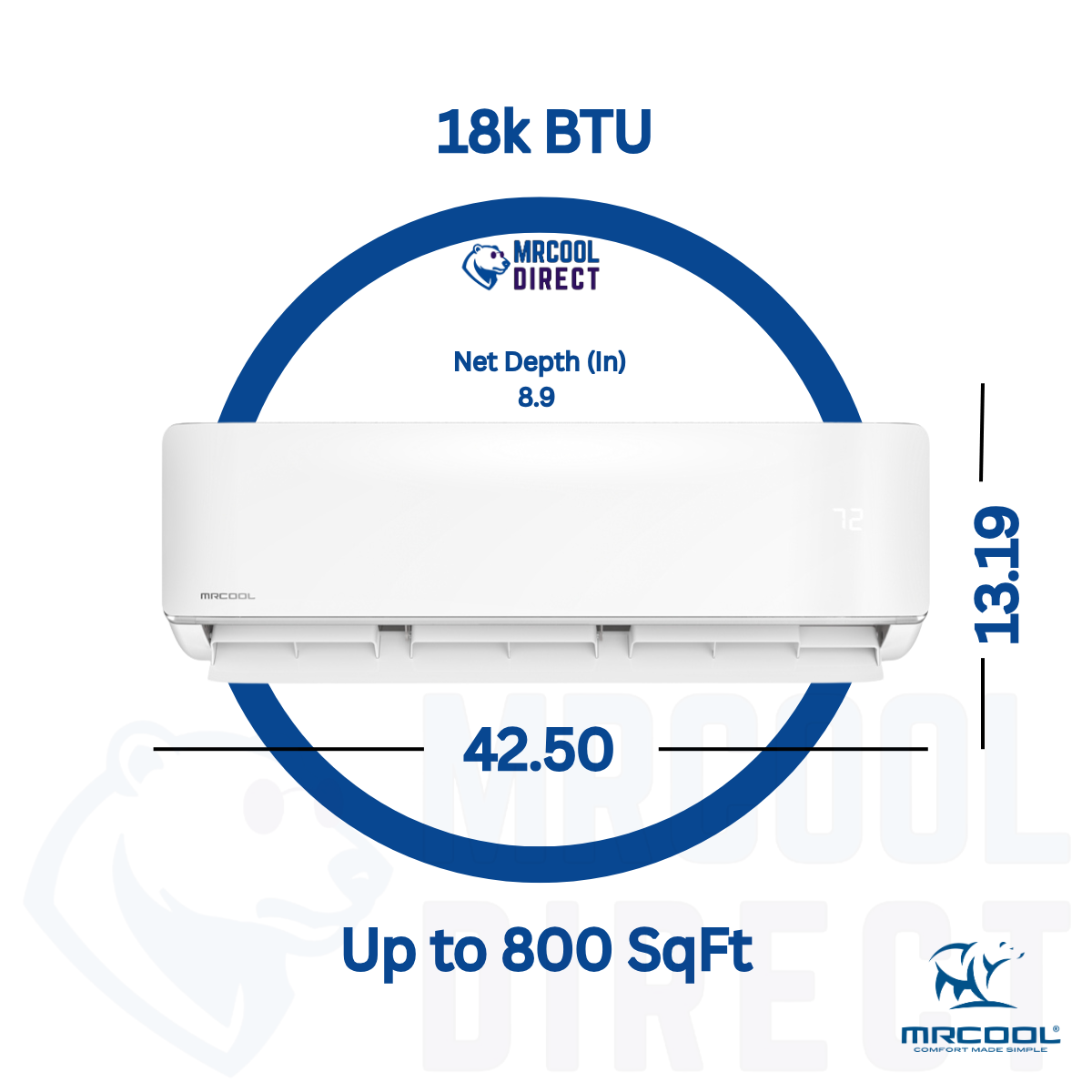

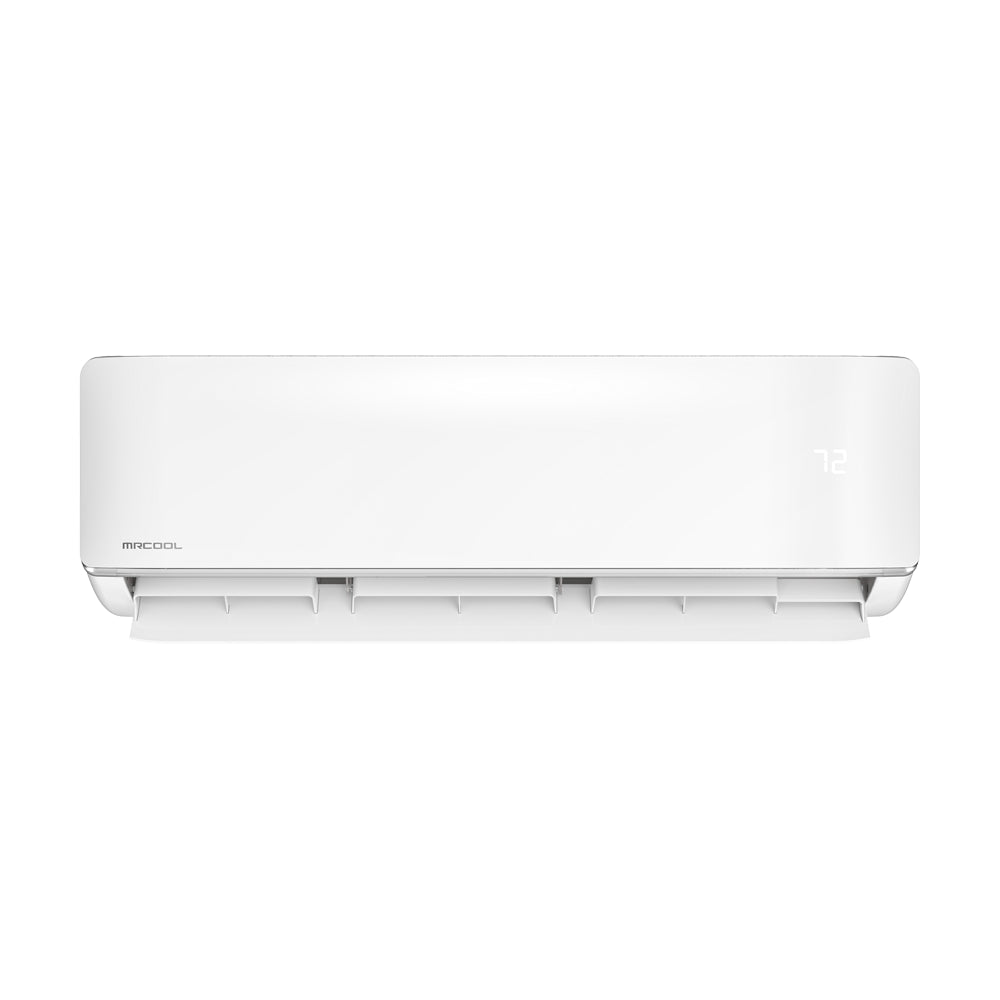

 Wall Mount Air Handler —

DIY-18-HP-WMAH-230D25-O

Brand: MRCOOL

Series: DIY 5th Gen Single-Zone

UPC: 840255587044

Mount Type: Wall

Max Coverage: 800 sq. ft.

Performance

• Tonnage: 1.5 Ton
• Voltage: 208/230V
• Phase: 1
• Cycle: 60Hz
• Max Fuse Breaker: 15

Comfort + Features

• Speed Settings: 5
• Quiet Mode:
• Fan-Only:
• Auto Cool:
• Oscillation:
• Filter: Reusable

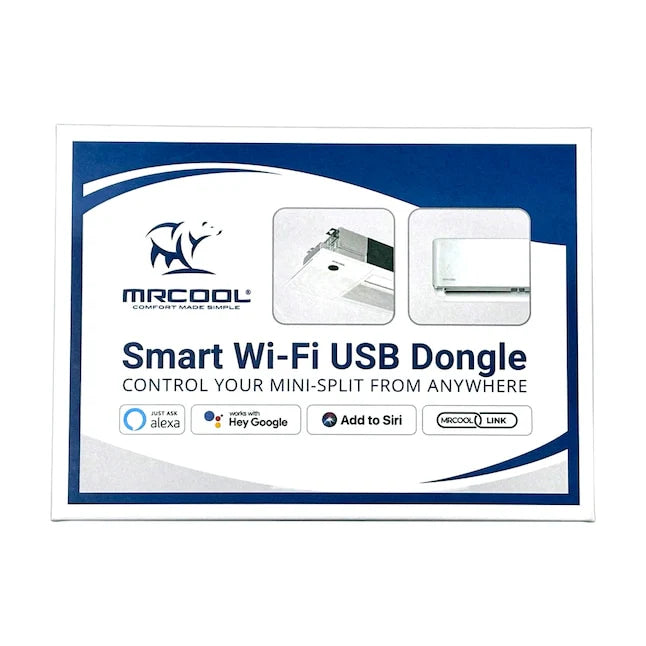

Smart Controls

• Wi-Fi Compatible:
• App: MRCOOL SmartHVAC
• iOS + Android Support
• Alexa + Google Assistant Compatible

Noise

• Low: 19 dBA
• High: 54.5 dBA

Certifications

• Energy Star:
• AHRI Certified:
• UL / ETL Listed:

Warranty

• Extended Limited Lifetime (registered)*
• Base Parts: 5 Years
• Base Compressor: 7 Years

Dimensions

• Net: 42.52” W × 13.19” H × 8.9” D — 35.49 lbs
• Gross: 46.73” W × 14.29” H × 17.68” D — 49.6 lbs

 What Makes 5th Gen Better than 4th Gen?

• R-454B Low-GWP Refrigerant — future-proof vs older R-410A.
• Higher SEER2 Efficiency — lower energy bills & better comfort.
• Improved Cold-Climate Heating — true heat performance down to -22°F.
• Upgraded Reliability & Components — fewer service issues.

Cold-Climate Beast

Unlike “budget” mini splits that fail in freezing temps, MRCOOL Hyper Heat maintains strong output even in sub-zero weather.

Perfect for: Bedrooms • Offices • Old homes • Barndominiums • Garages • Tiny homes • Apartments • New builds



 Frequently Asked Questions

Can I install it myself?

Yes — the DIY system is designed for homeowners and includes Quick Connect® pre-charged line sets.

No HVAC gauges, pumps, or refrigerant handling required.

 A licensed electrician is recommended for electrical hookup.

Is it Wi-Fi compatible?

Yes. Control your system with the MRCOOL SmartHVAC app, Amazon Alexa, or Google Assistant.

Does it heat and cool?

Absolutely. It’s a true heat pump system — full heating AND cooling year-round.

What BTU size do I need?

General guideline (sq. ft):

• 6k = 100–200
• 9k = 150–400
• 12k = 351–550
• 18k = 501–800
• 24k = 751–1,050
• 36k = 1,001–1,550
  Insulation, ceiling height, sun exposure, and appliances can affect sizing.

What is the warranty?

• 7-Year Compressor Replacement Warranty
• 5-Year Parts Warranty
• Registered Warranty  Extended Limited Lifetime.
