MRCOOL® DIY® 5th Gen Hybrid Multi-Zone 55,000 BTU 22 SEER2 Ducted & Ceiling Cassette Heat Pump System (36K Air Handler + 18K OuttaSight)- DIYM55K-HYB-36D-18C

Product Description

The MRCOOL® DIY Hybrid™ 55,000 BTU Multi-Zone Heat Pump System is a powerful, professionally balanced comfort solution designed for homeowners who want central-style ducted performance combined with modern ceiling cassette efficiency — without professional HVAC installation costs.



This custom-built hybrid bundle pairs the MRCOOL® DIY 5th Generation 55K Multi-Zone Condenser with a 36,000 BTU DIY Hybrid™ Ducted Air Handler and an 18,000 BTU OuttaSight® One-Way Ceiling Cassette, creating a versatile system capable of conditioning multiple areas with precision zoning and superior efficiency.



At the heart of the system is MRCOOL®’s DIY® Quick-Connect® technology, allowing homeowners to install the system without vacuum pumps, gauges, or licensed refrigerant handling. All compatible line sets arrive factory-sealed and pre-charged with R-454B refrigerant, dramatically simplifying installation while meeting modern environmental standards.



This hybrid configuration is ideal for homeowners who want:

• Ducted airflow for larger open areas

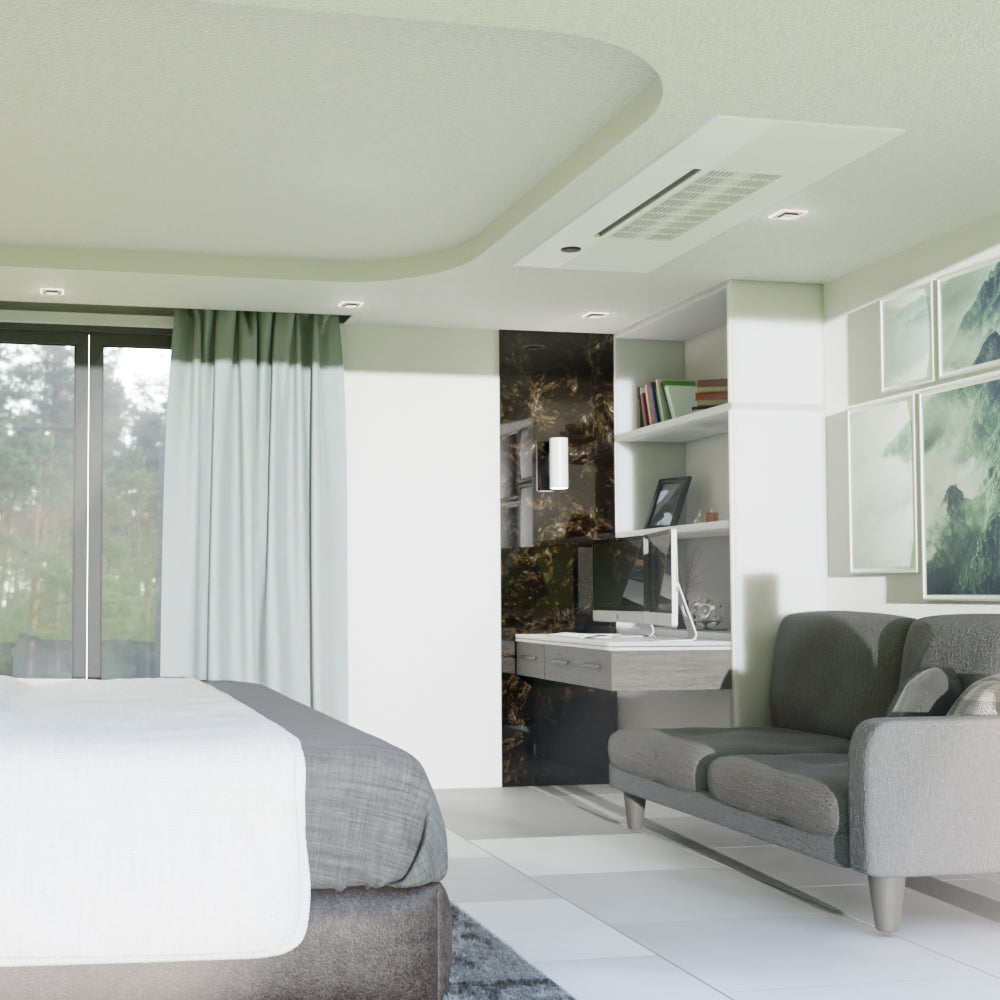

• Discreet ceiling-mounted comfort for bedrooms, offices, or bonus rooms
• One outdoor condenser instead of multiple units
• True DIY installation with smart home integration



With DC inverter technology, whisper-quiet operation, Gold Fin® corrosion resistance, and full MRCOOL® Smart HVAC Controller® app support, this system delivers reliable year-round comfort, reduced energy bills, and long-term durability.



KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 55,000 BTU total system capacity
• Hybrid ducted + ceiling cassette configuration
• (1) 36K DIY Hybrid™ Ducted Air Handler
• (1) 18K OuttaSight® One-Way Ceiling Cassette
• Up to 22 SEER2 ultra-high efficiency
• DC inverter variable-speed compressor
• DIY® Quick-Connect® pre-charged system
• R-454B eco-friendly refrigerant
• Multi-position air handler (upflow, downflow, horizontal)
• Fits between 16” ceiling joists
• Quiet operation as low as 26 dB
• SmartHVAC App control
• Amazon Alexa® & Google Assistant® compatibility
• AHRI & ENERGY STAR® Certified



ELECTRICAL REQUIREMENTS

Outdoor Condenser – DIY-MULTI6-55HP230D-O

• Voltage: 208 / 230V
• Phase: Single Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 43A
• Maximum Breaker Size: 45A
• Dedicated Circuit Required: Yes

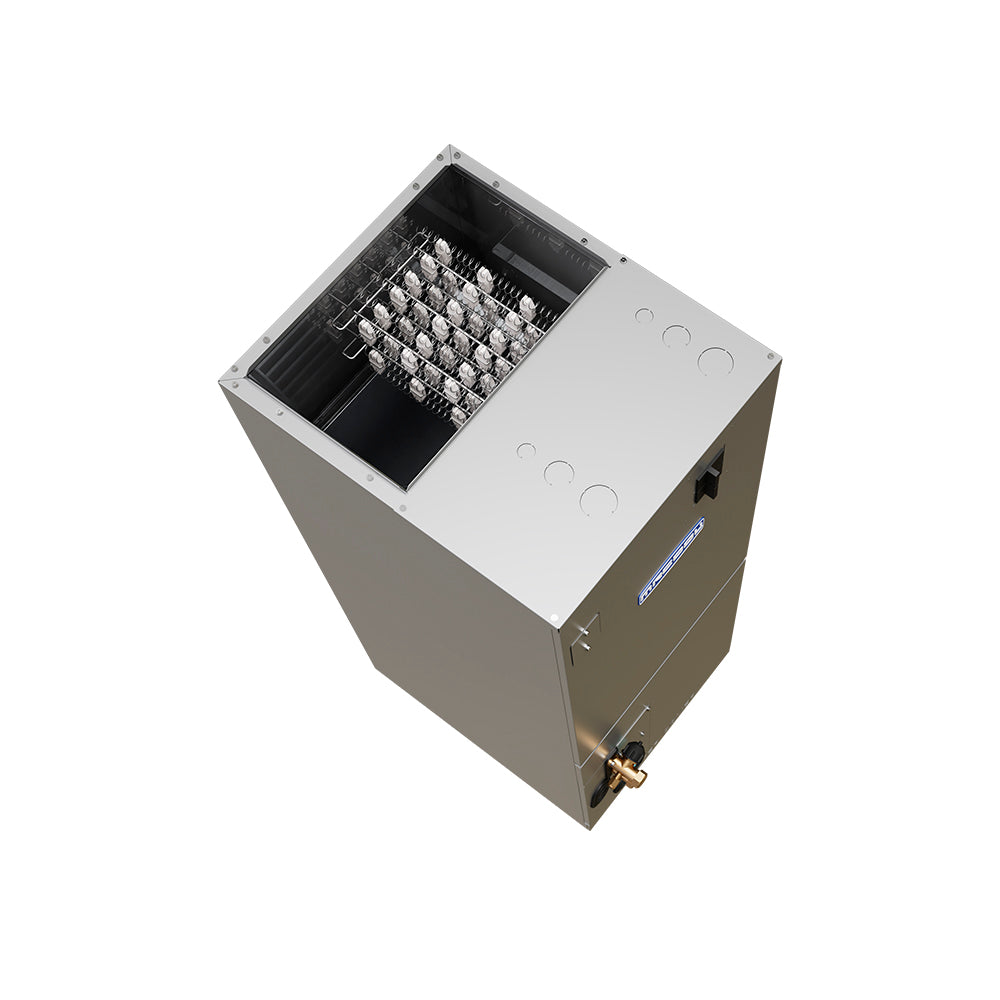

Compatible Heat Kits
MVPHK05

MVPHK08
MVPHK10
MVPHK15
MVPHK20



Indoor Units

• Separate low-amp indoor circuits required per installation manual



DIMENSIONS & WEIGHT

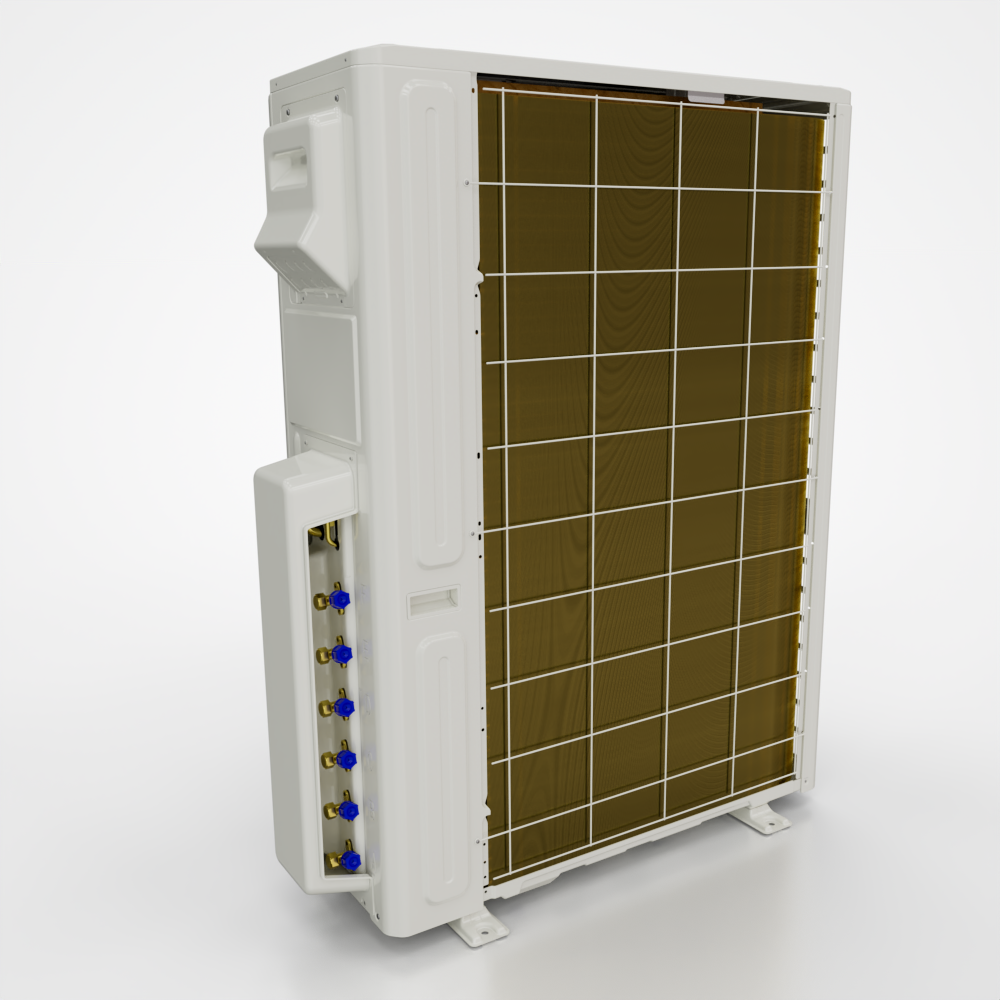

Outdoor Condenser

• Width: 37.48 in
• Height: 52.48 in
• Depth: 16.34 in
• Weight: 245.81 lbs

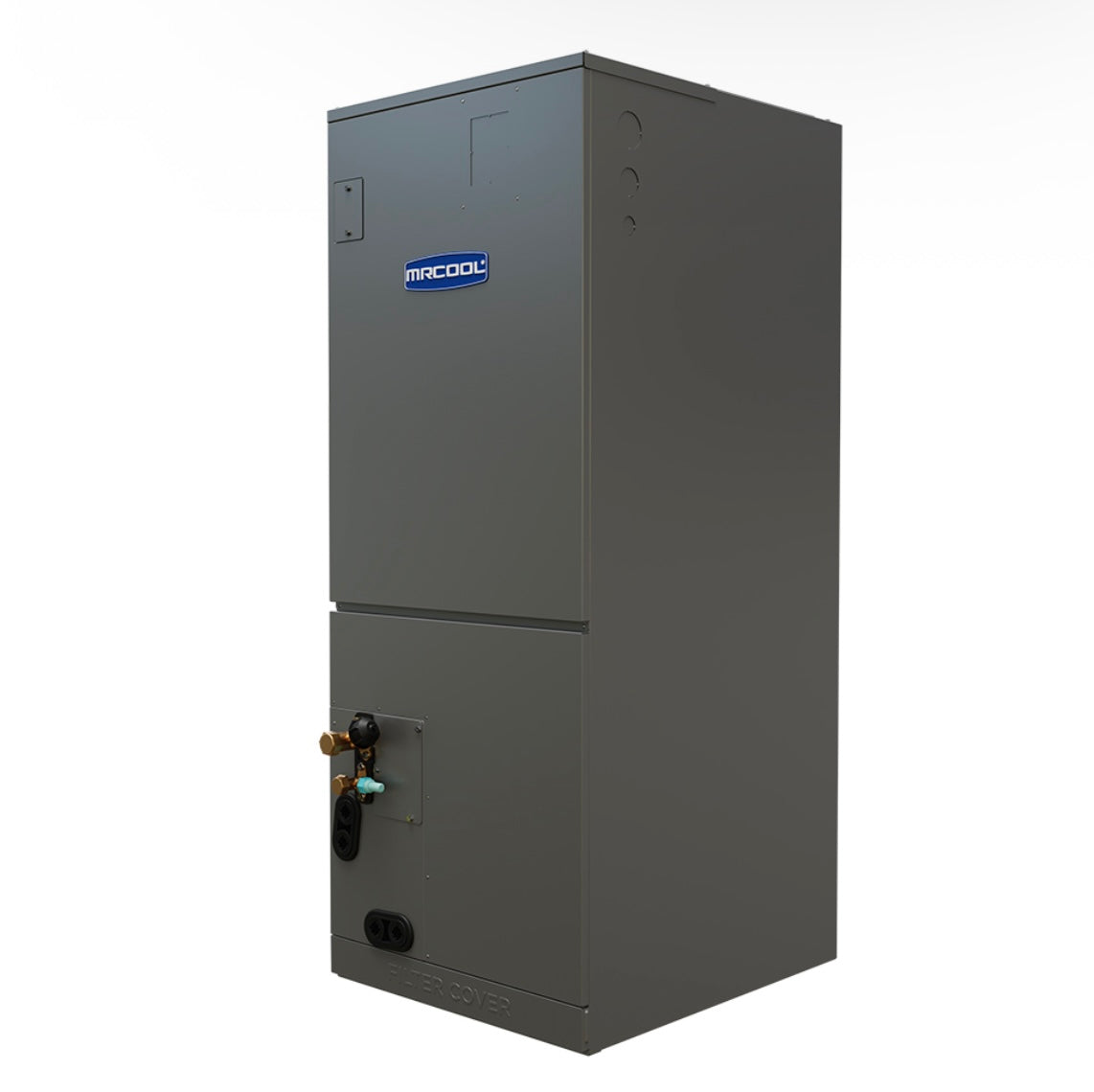

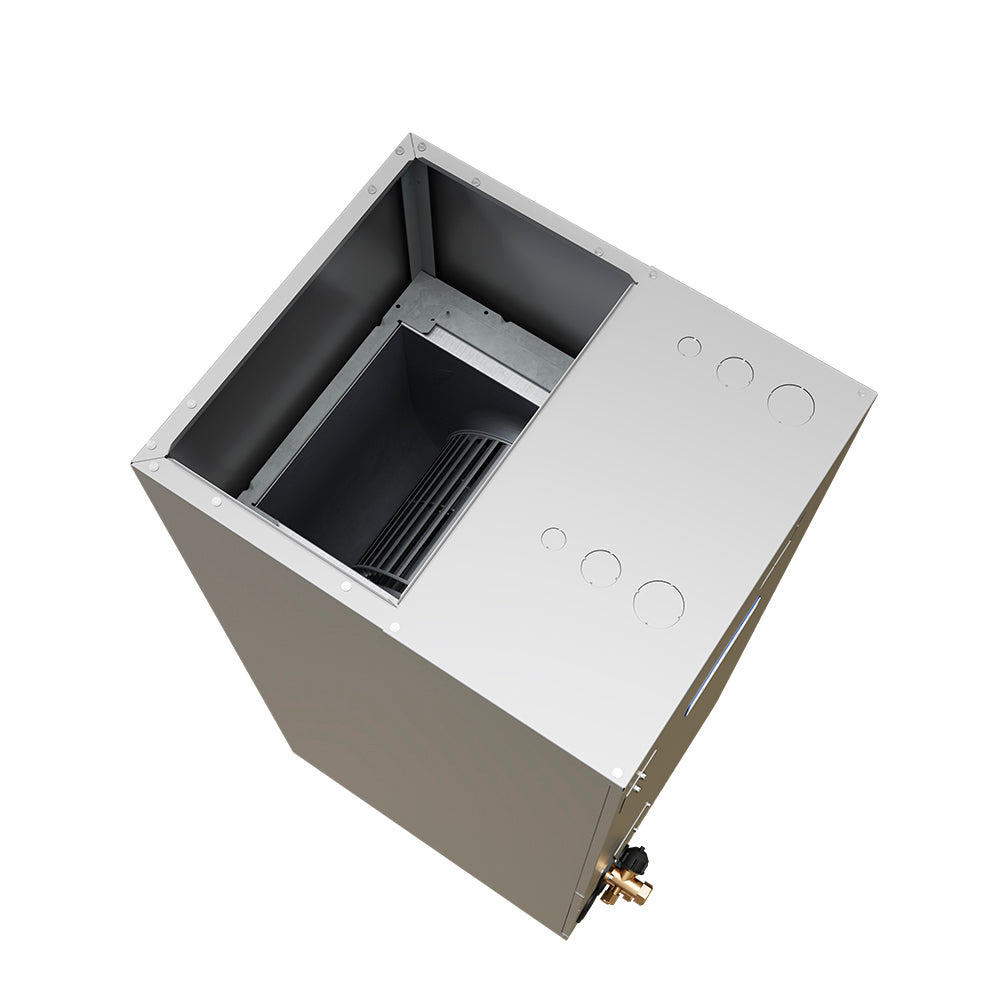

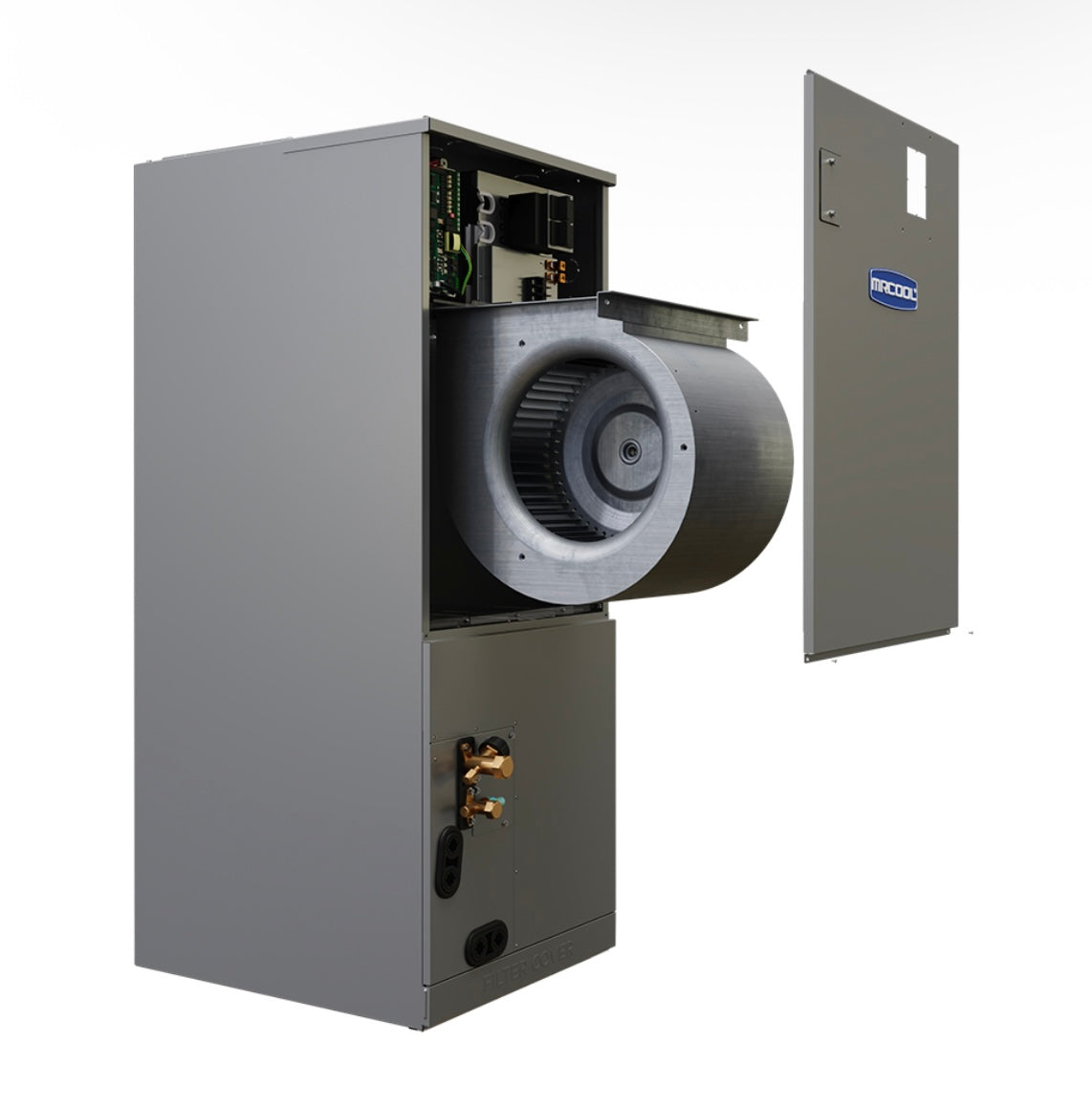

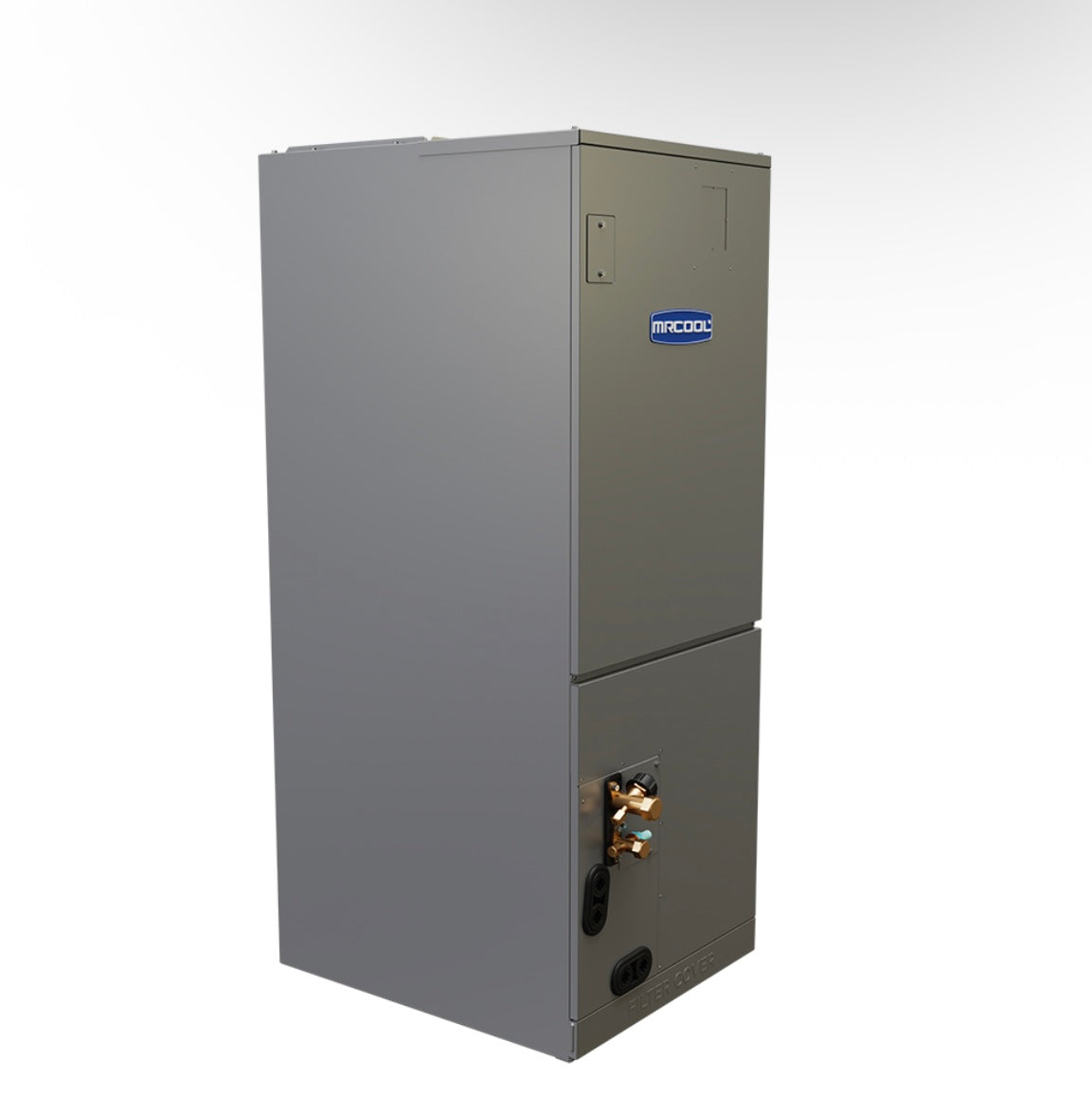

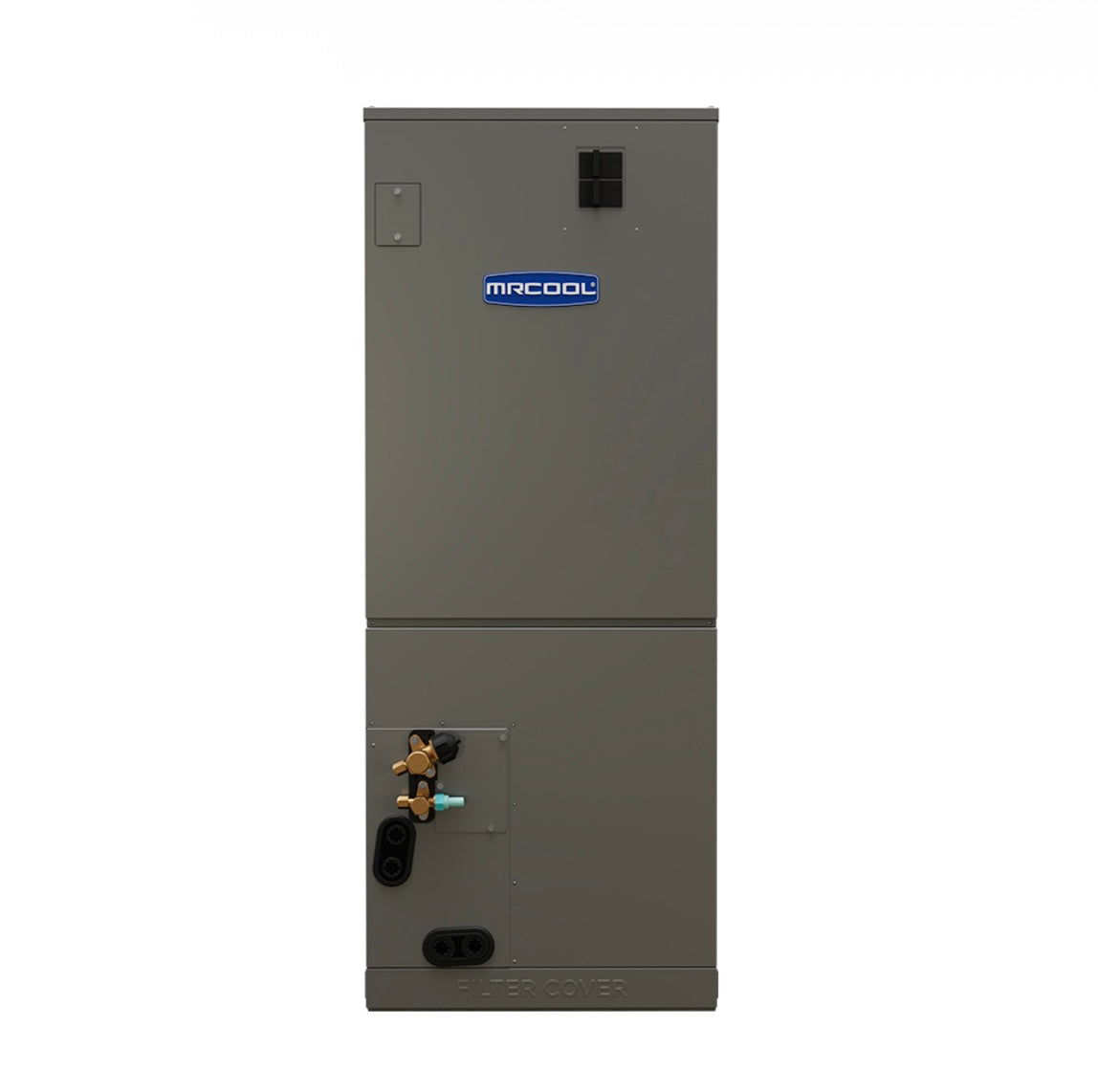

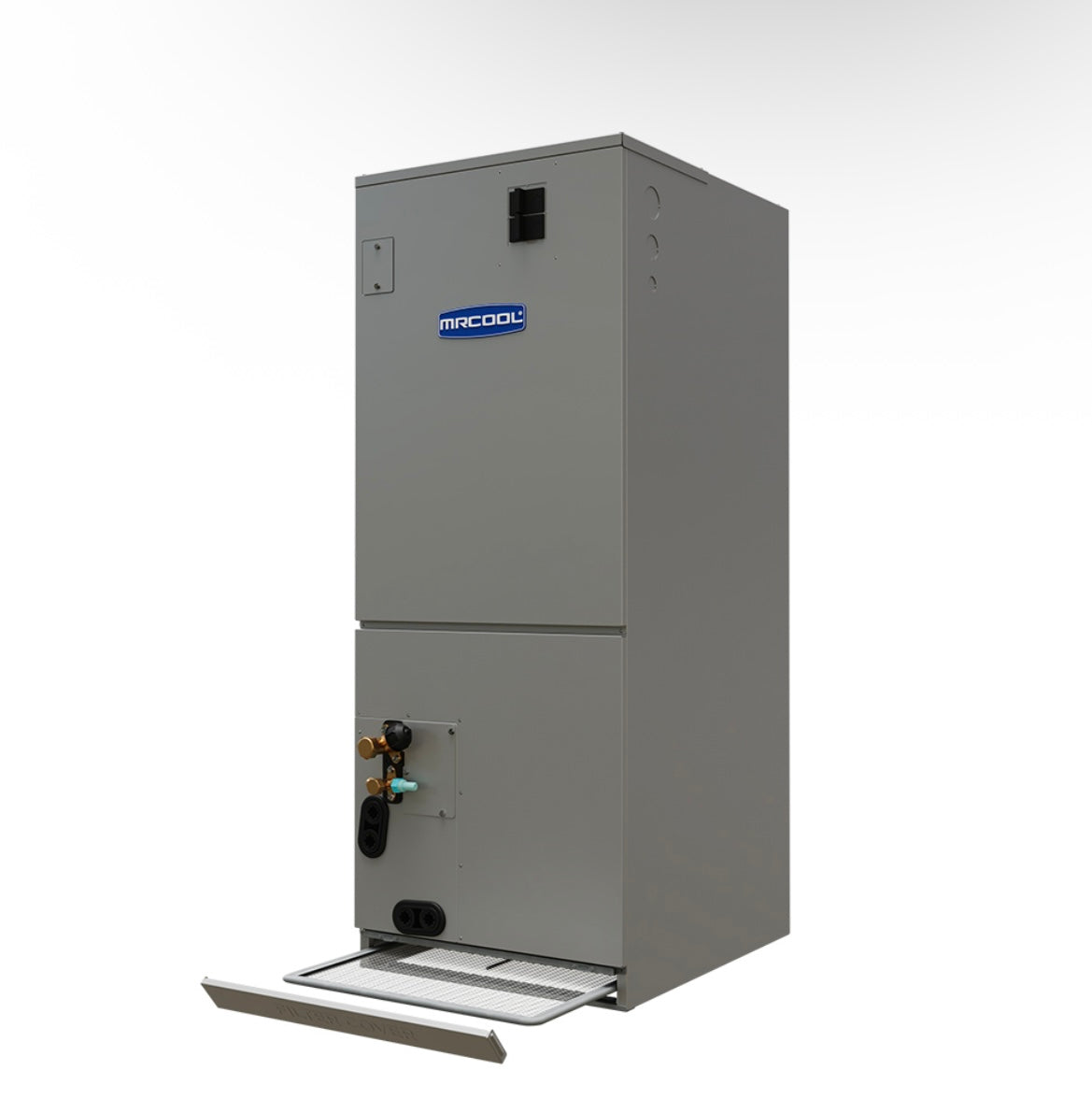

36K DIY Hybrid™ Air Handler

• Width: 21.02 in
• Height: 49.02 in
• Depth: 21.02 in
• Weight: 128.31 lbs

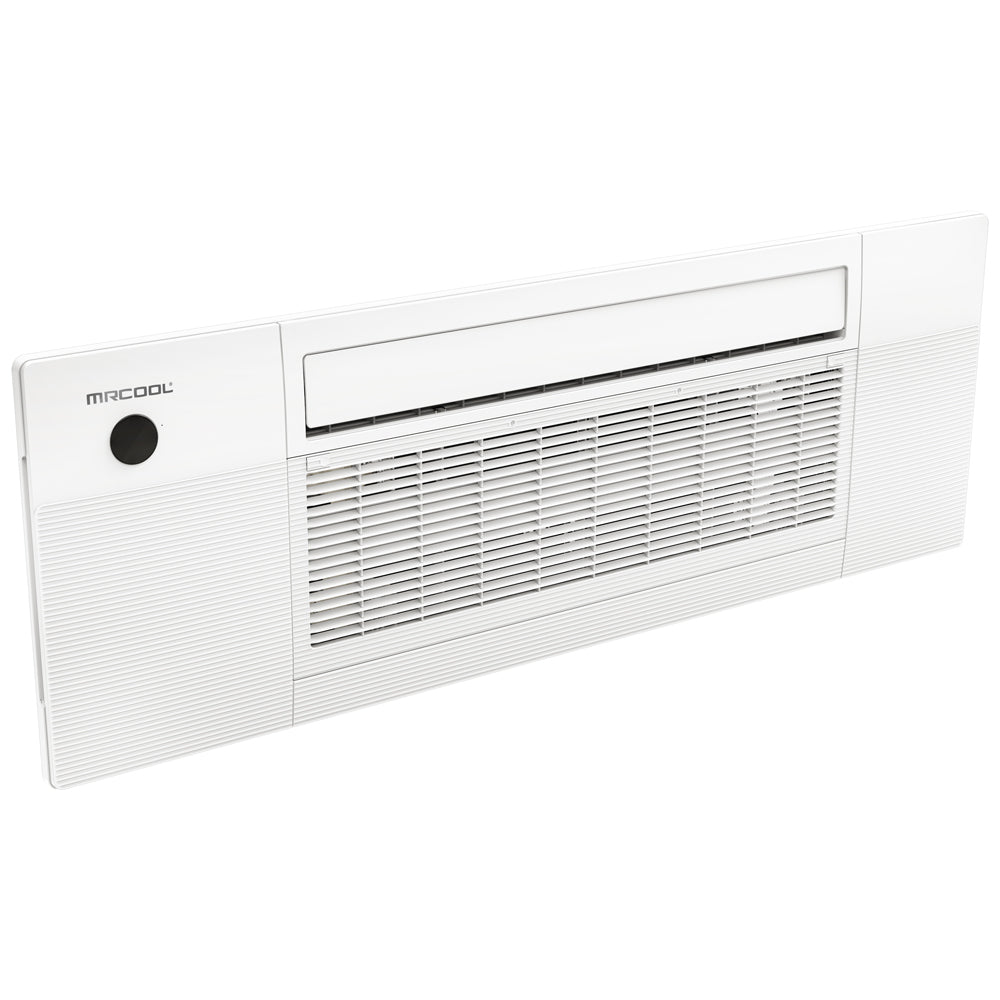

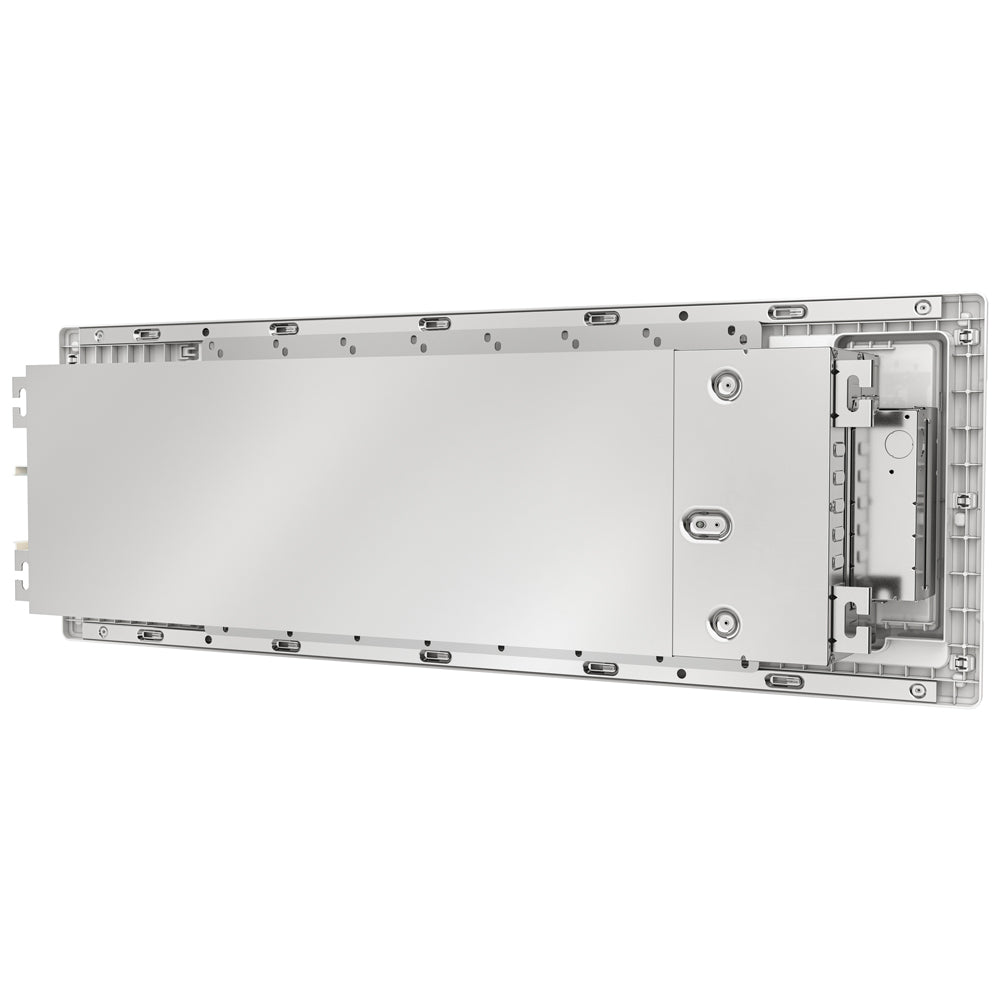

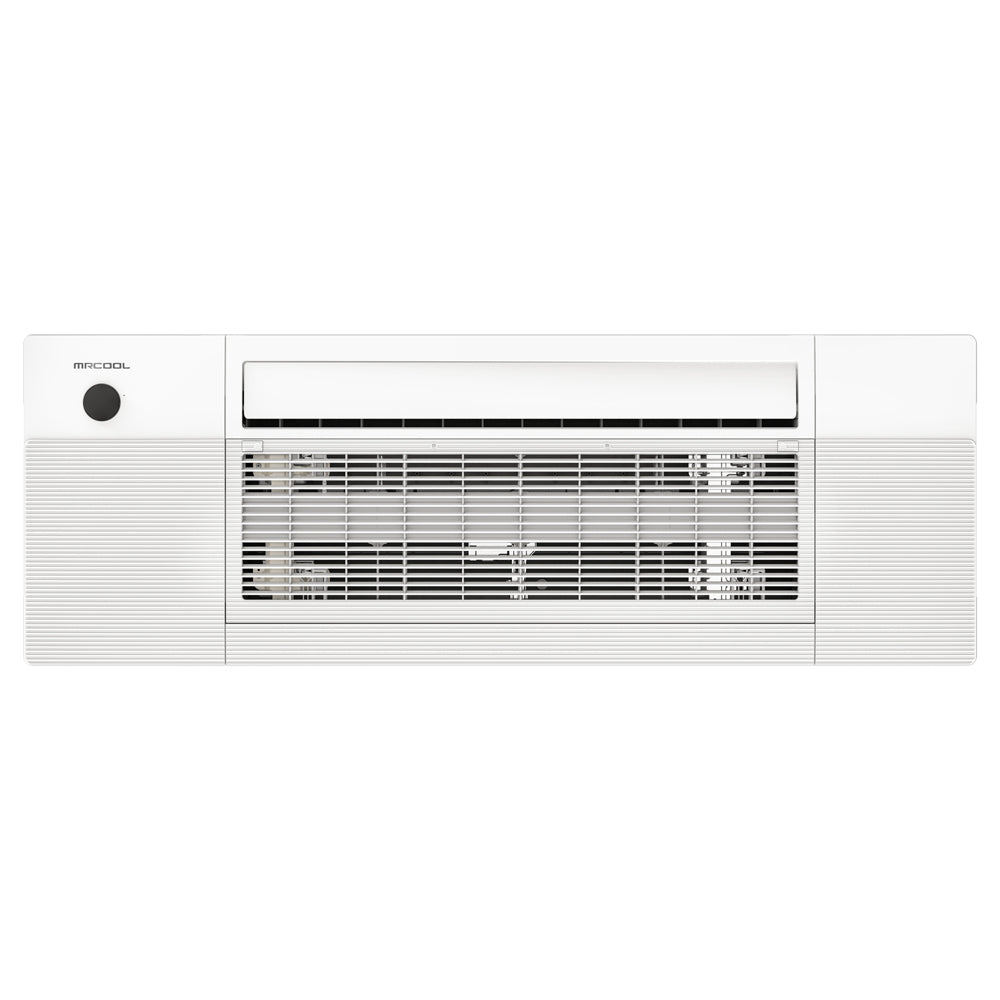

18K OuttaSight® Ceiling Cassette

• Width: 50.31 in
• Height: 8.98 in
• Depth: 13.19 in
• Weight: 45 lbs

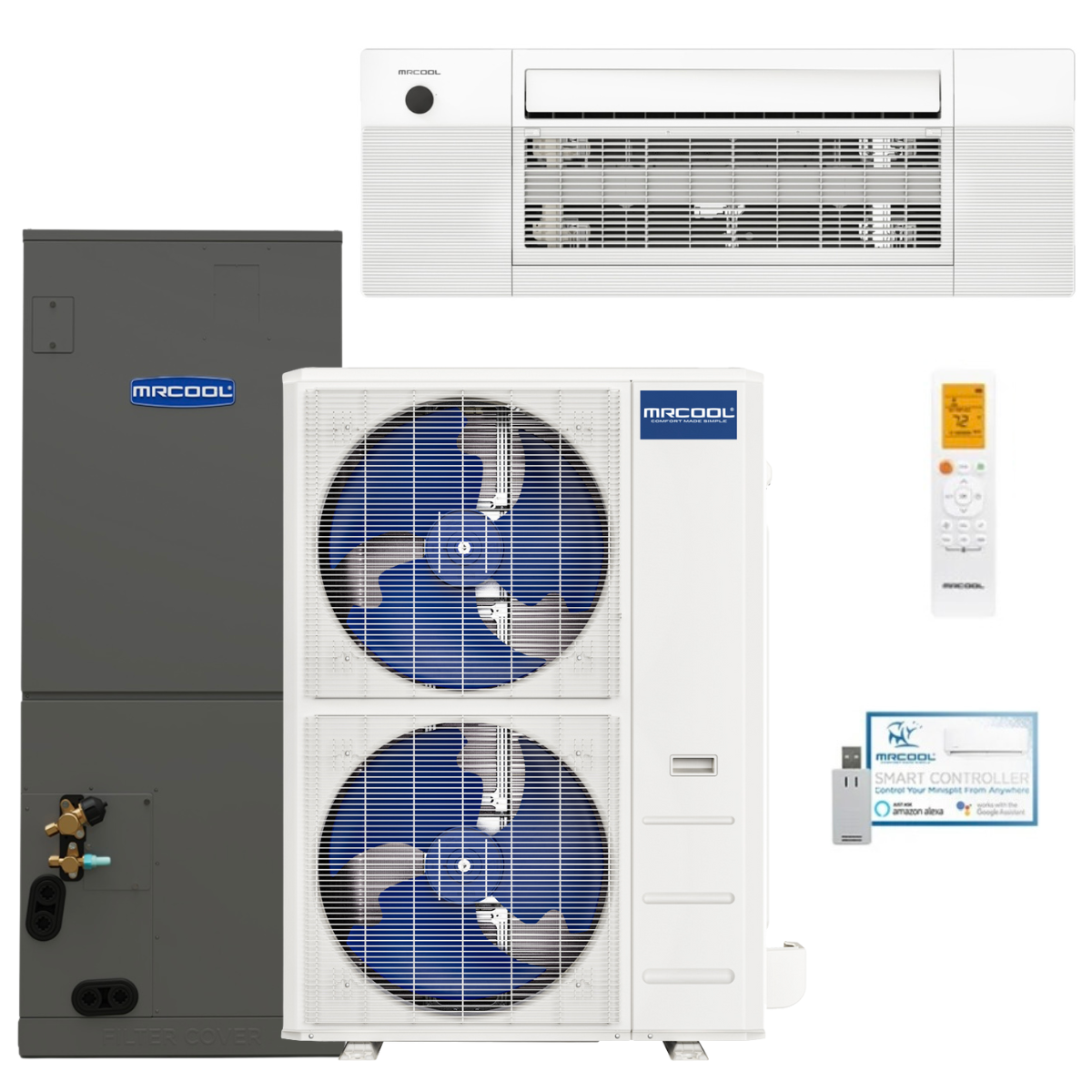

WHAT’S INCLUDED IN THIS CUSTOM BUNDLE

• MRCOOL® DIY® 55K 5th Gen Multi-Zone Outdoor Condenser
• MRCOOL® DIY Hybrid™ 36K Multi-Position Ducted Air Handler
• MRCOOL® DIY® 18K OuttaSight® One-Way Ceiling Cassette
• Smart Wi-Fi Thermostat (for ducted system)
•  Wireless remote for ceiling cassette
•  Installation manuals & mounting hardware

⚠️ Line sets sold separately to match your exact layout and Heat Kits.



 WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (With MRCOOL® Care Program registration)



FREQUENTLY ASKED QUESTIONS

Is professional HVAC installation required?

No. This system is designed for true DIY installation using MRCOOL® Quick-Connect® technology.



Can the ducted air handler and ceiling cassette run independently?

Yes. Each zone operates independently for precise temperature control.



What size home is this system ideal for?

Up to approximately 2,200–2,400 sq. ft., depending on layout and insulation.



Does it support smart home control?

Yes. Works with Alexa®, Google Assistant®, and the MRCOOL® SmartHVAC App.



Why choose a hybrid system instead of all ducted or all ductless?

Hybrid systems provide maximum flexibility, better airflow balance, and cleaner aesthetics.
