MRCOOL® DIY® Hybrid 36,000 BTU Multi-Zone Heat Pump System with 24K Ducted Air Handler + 6K Wall Mount – 21.8 SEER2, DIYM536HP-HYB24D06W

Product Description

The MRCOOL® DIY Hybrid 36K Multi-Zone Heat Pump System is a powerful, flexible comfort solution designed for homeowners who want whole-home efficiency with true DIY installation. This professionally balanced hybrid system combines a 24,000 BTU ducted air handler with a 6,000 BTU wall-mounted unit, allowing you to condition multiple spaces with precision and efficiency—without hiring an HVAC contractor.



Powered by the MRCOOL® DIY® 5th Generation 36,000 BTU Multi-Zone condenser, this system uses DC inverter technology and R-454B refrigerant to deliver quiet performance, lower energy bills, and year-round comfort. MRCOOL’s patented DIY® QuickConnect® technology eliminates the need for vacuum pumps, refrigerant handling, or special tools, making installation faster, safer, and more affordable.



This hybrid configuration is ideal for homes that need ducted comfort in main living areas combined with targeted comfort in bedrooms, offices, or additions. With smart controls, zoning flexibility, and high efficiency, this system delivers professional-grade results—without professional labor costs.



KEY FEATURES & PERFORMANCE

• 36,000 BTU total system capacity

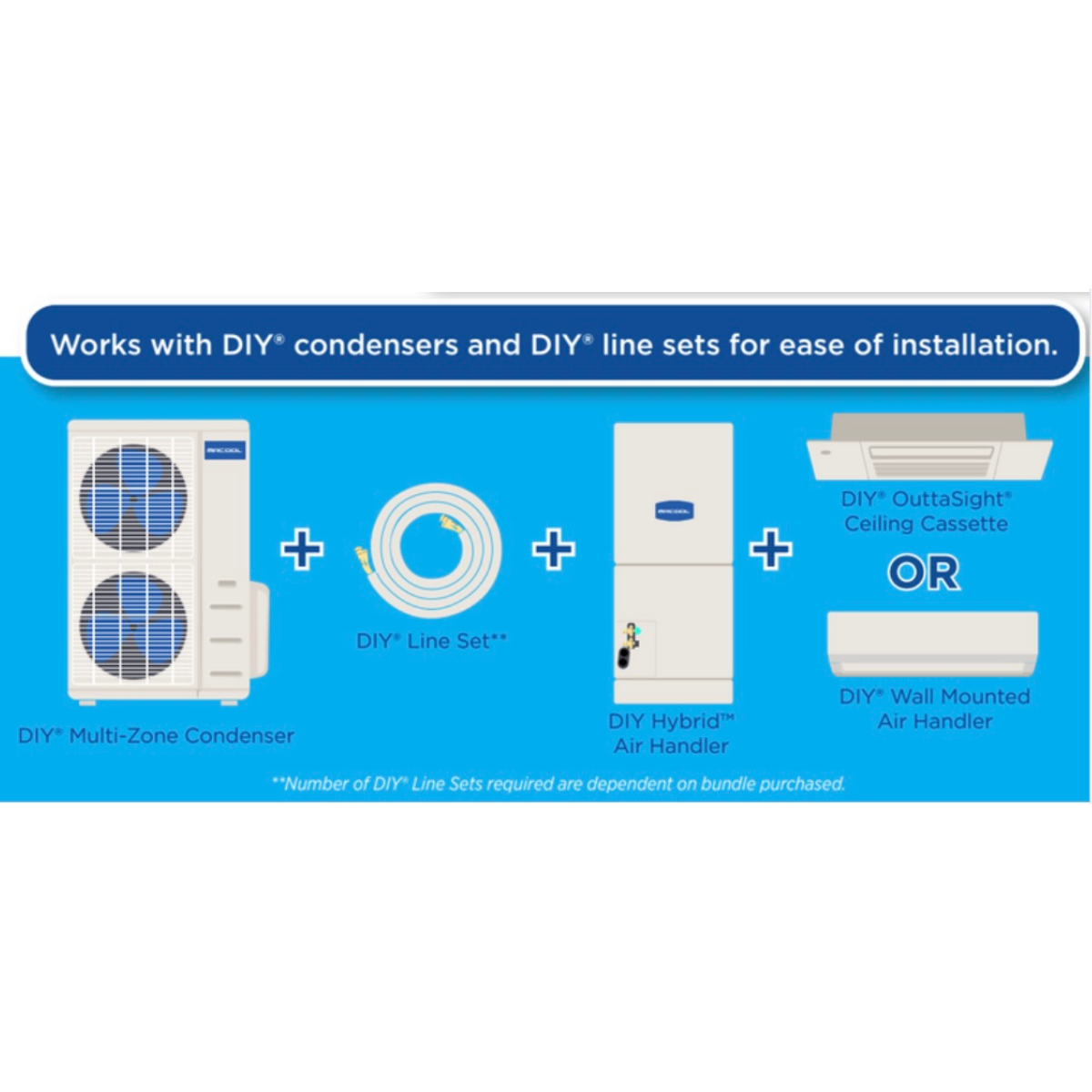

• Hybrid system: ducted + ductless zoning

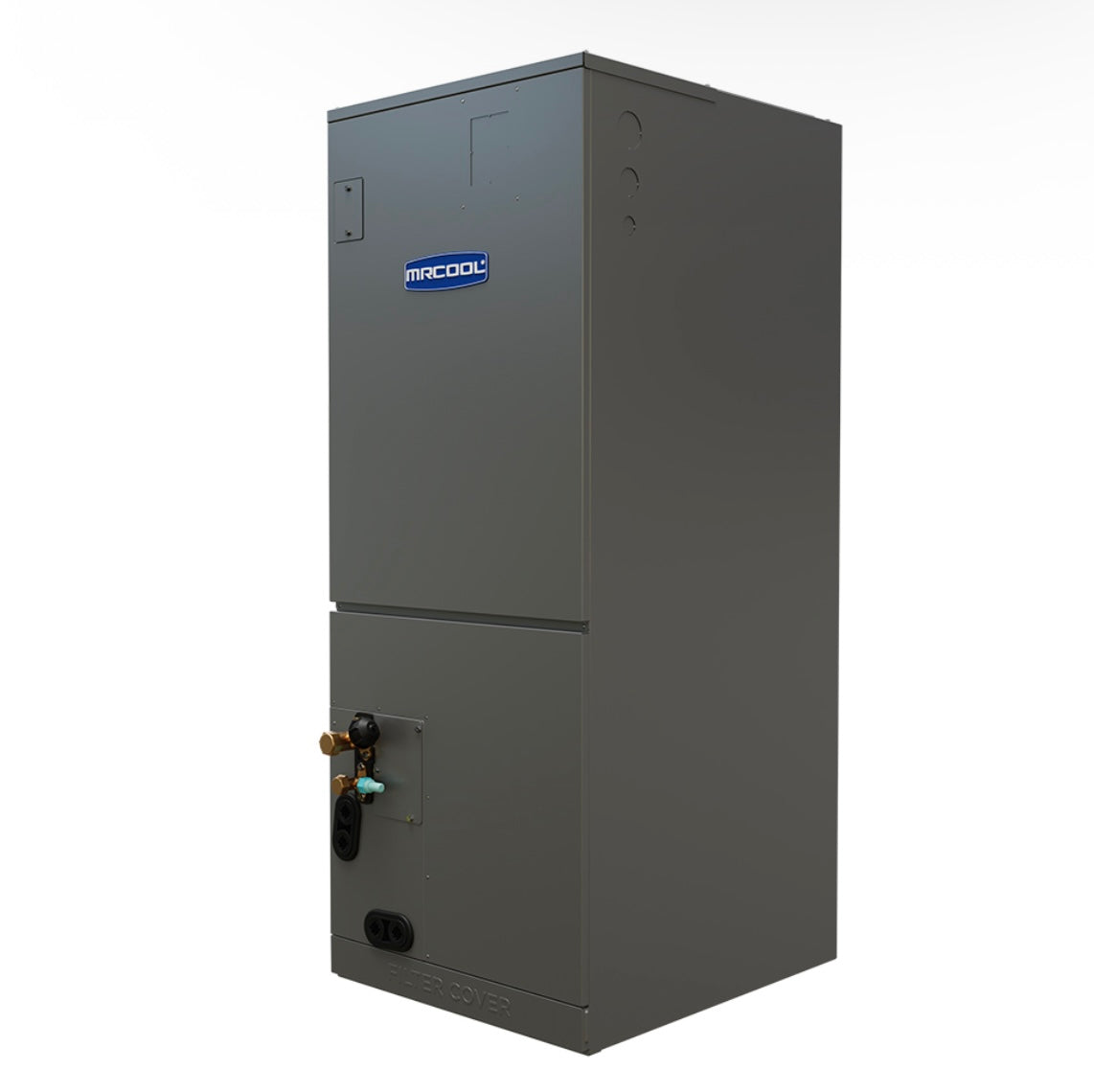

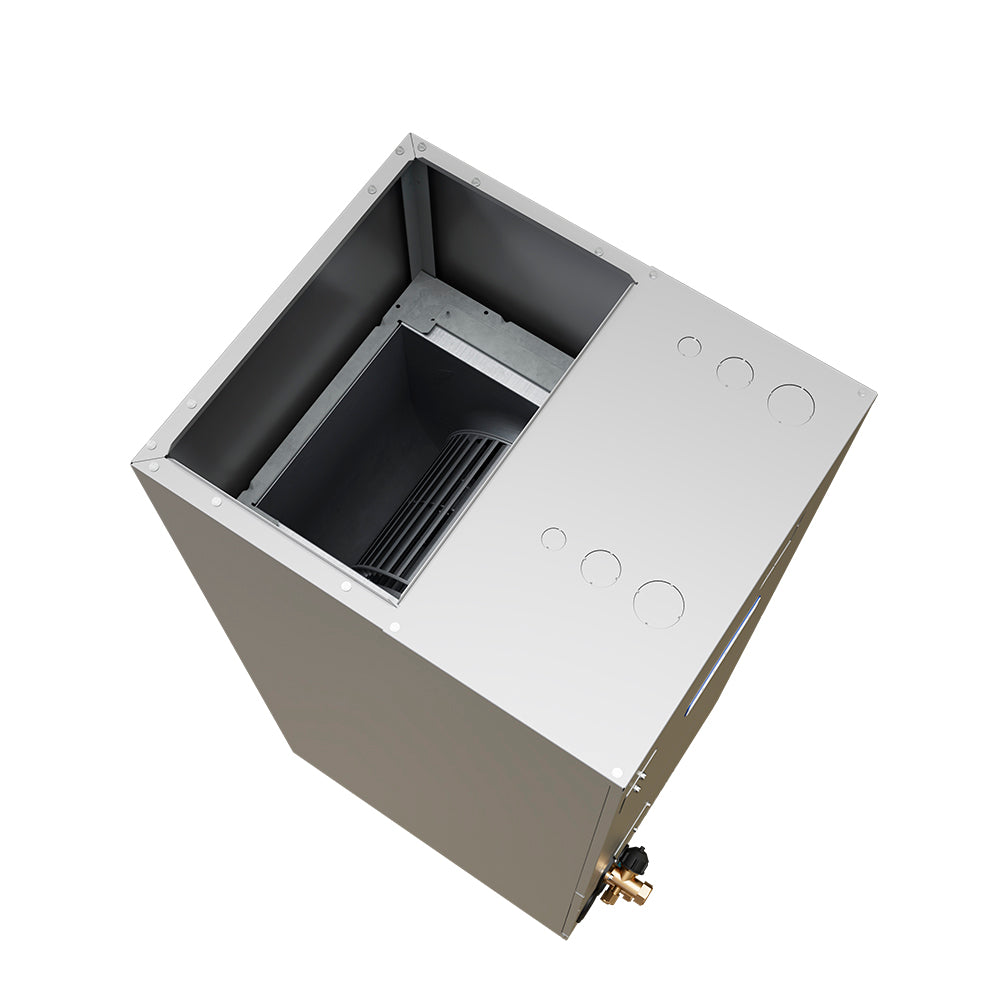

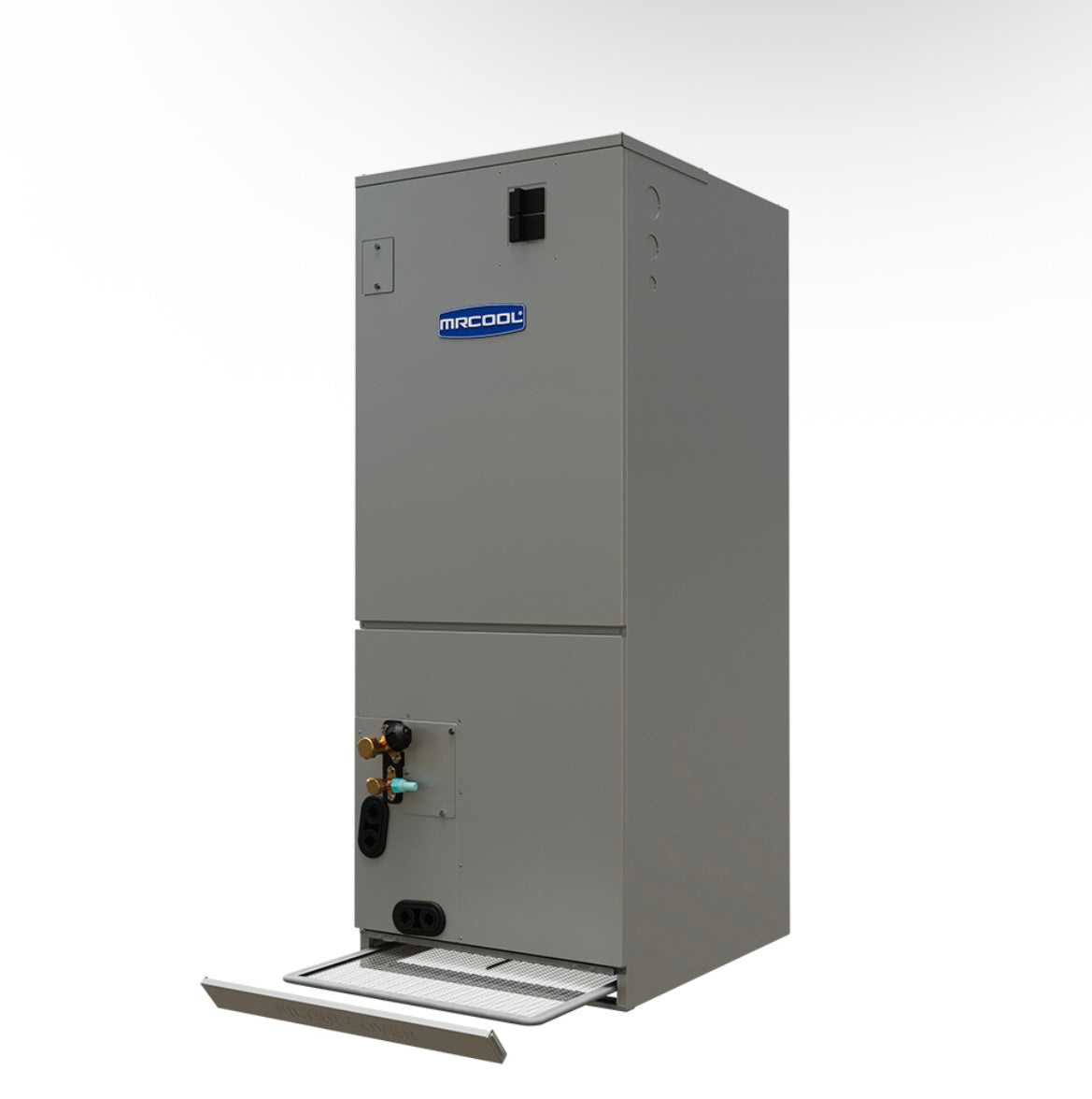

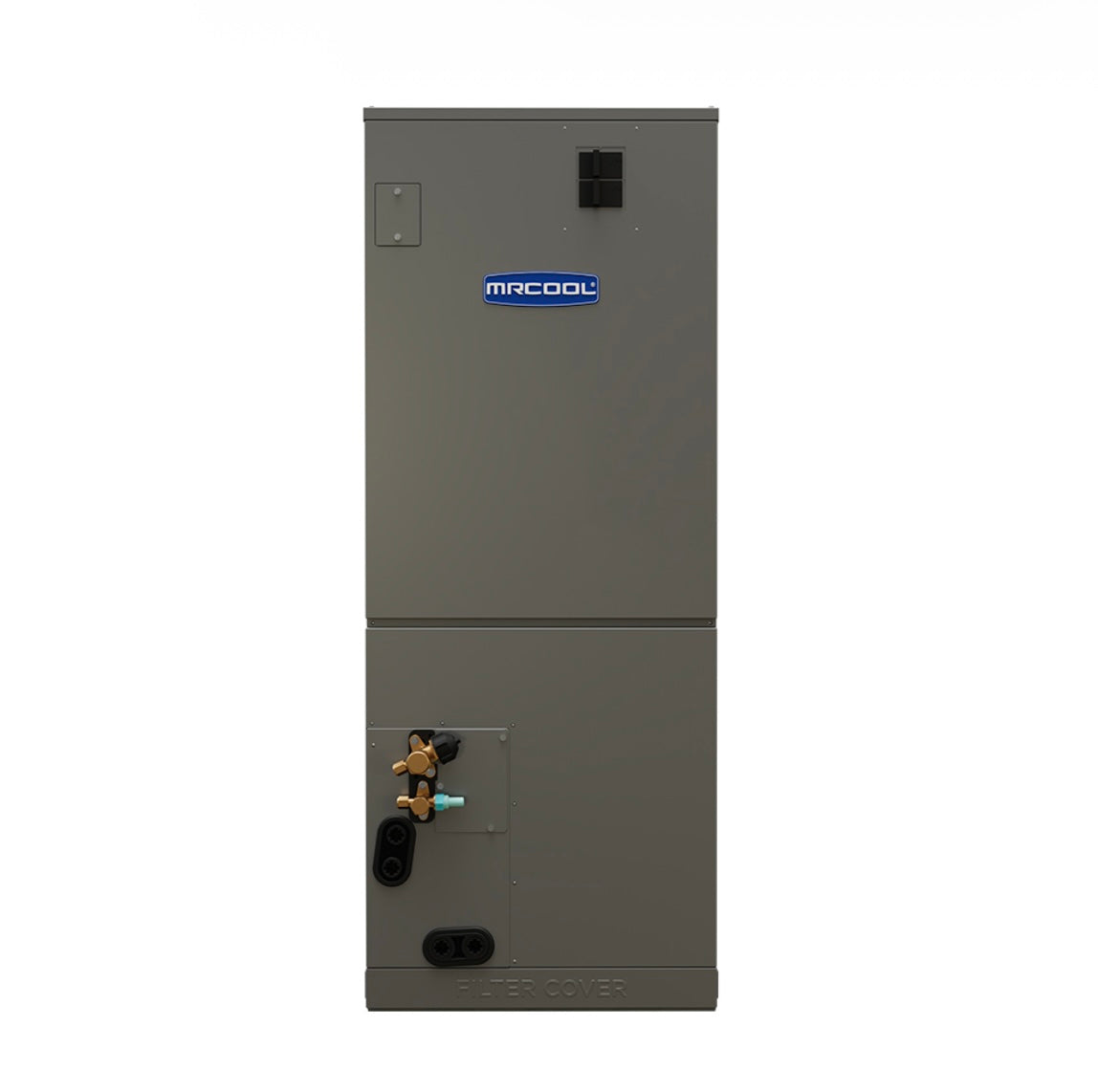

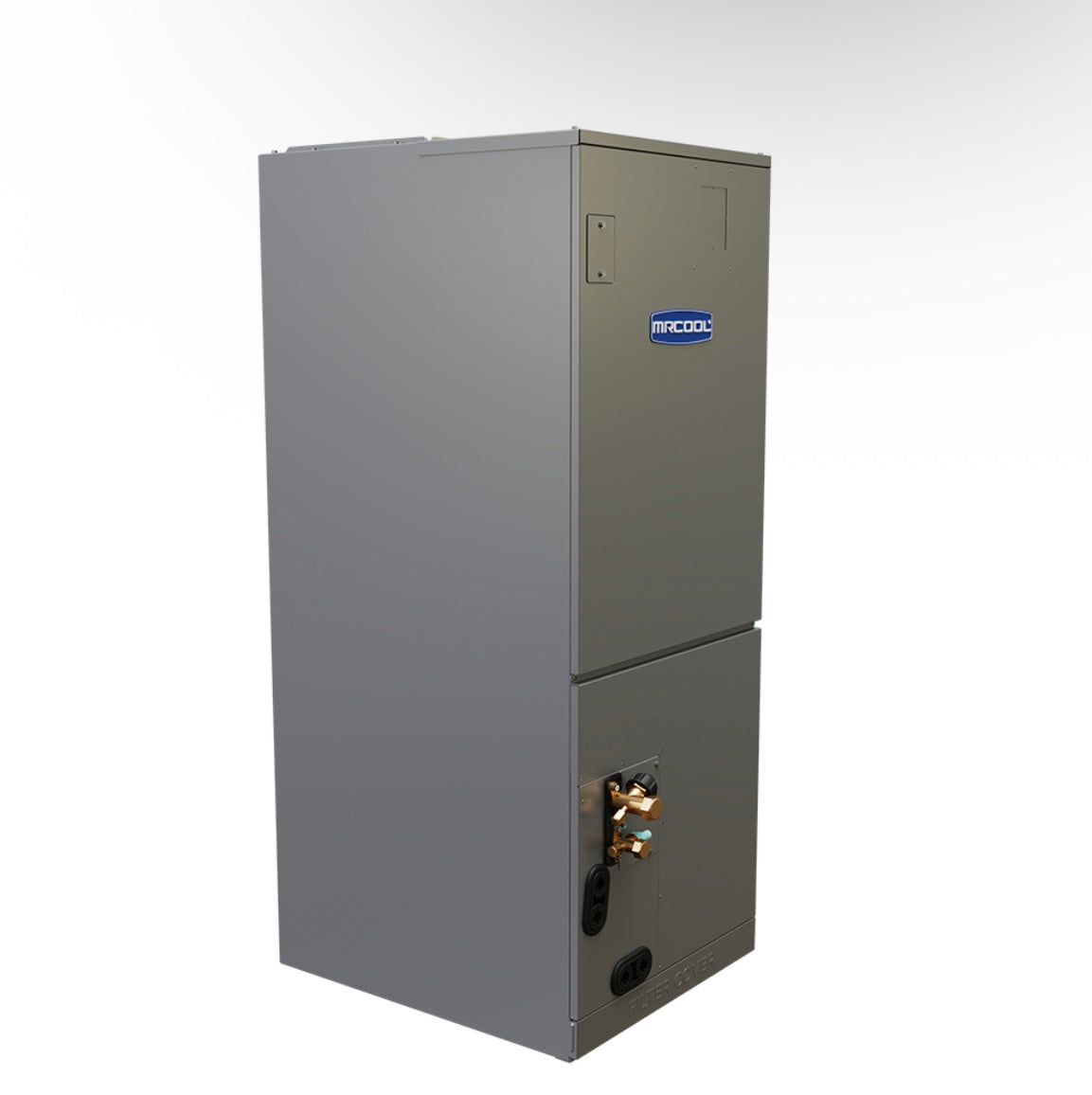

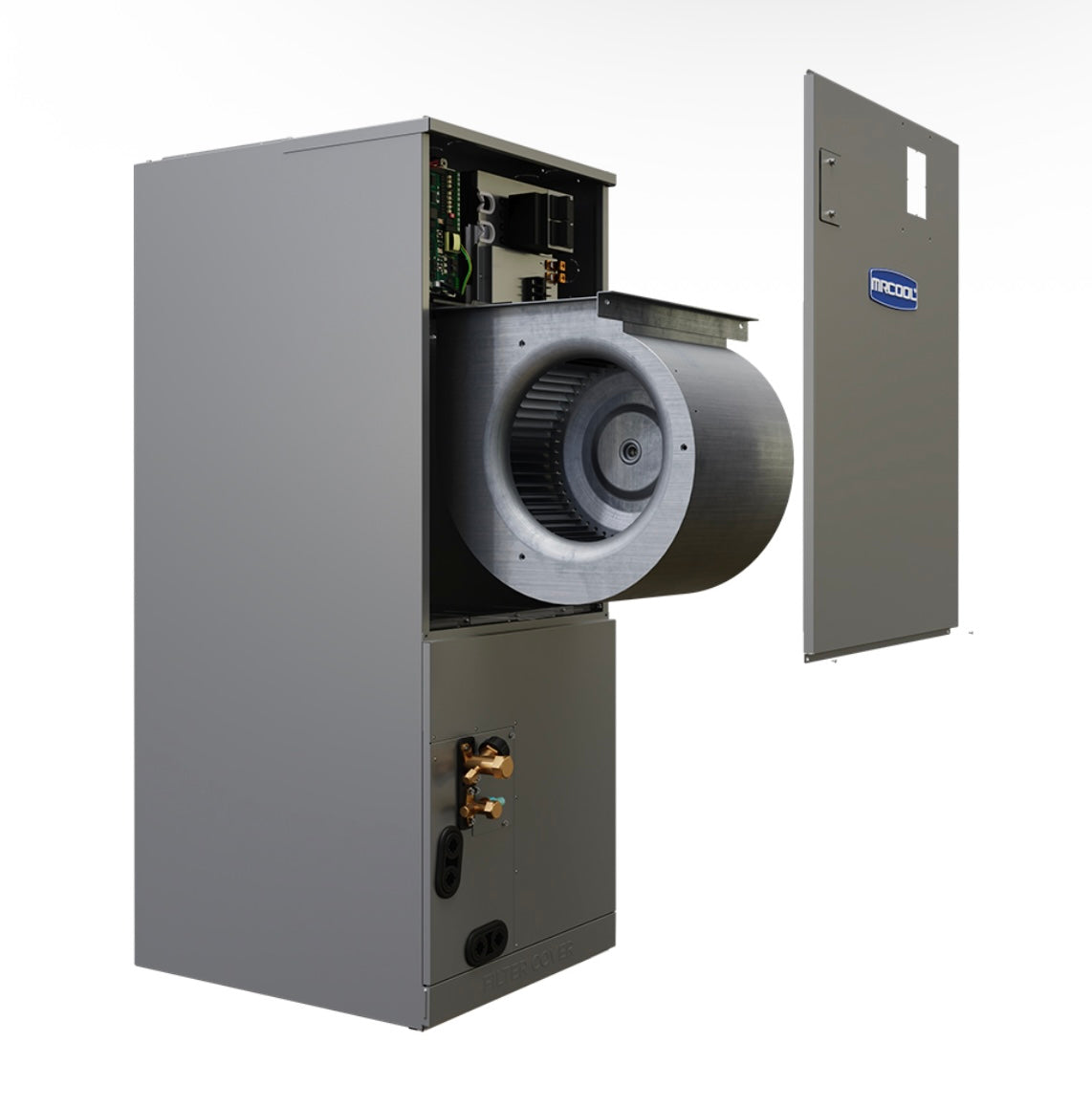

• (1) 24K DIY Hybrid ducted air handler

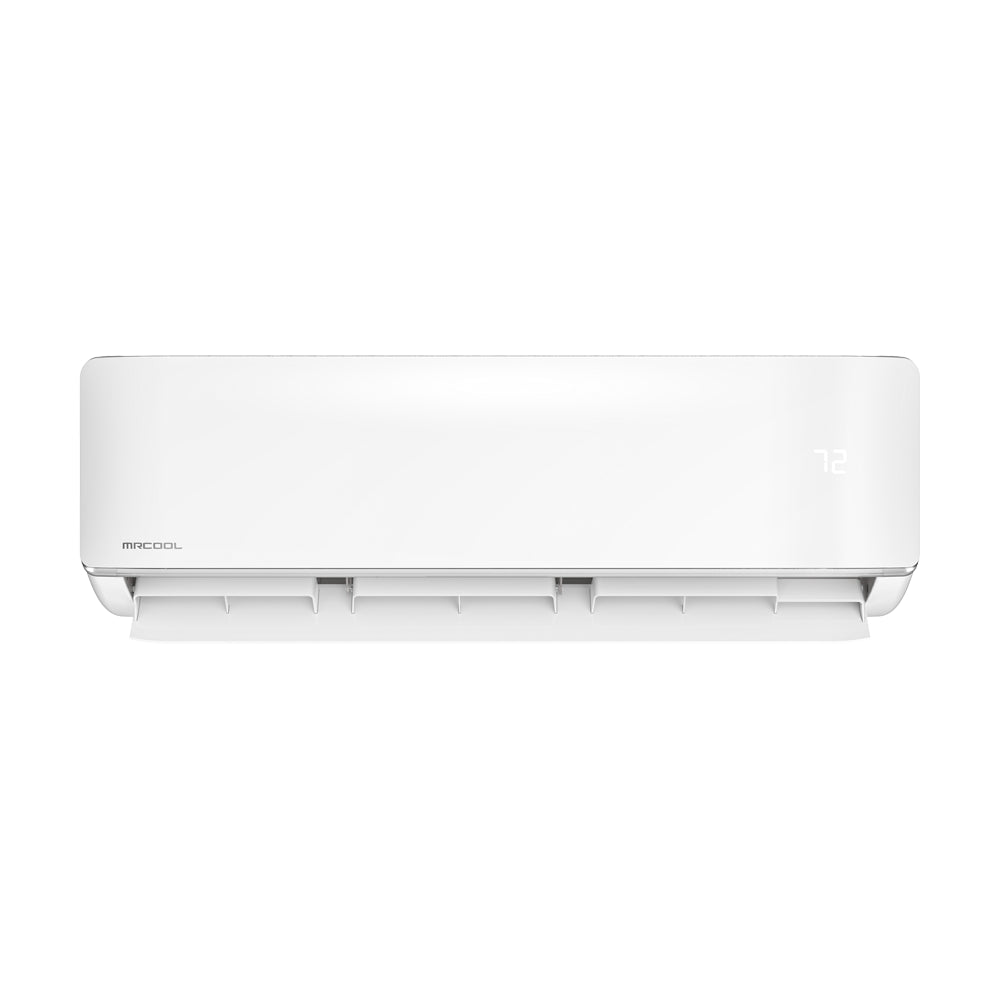

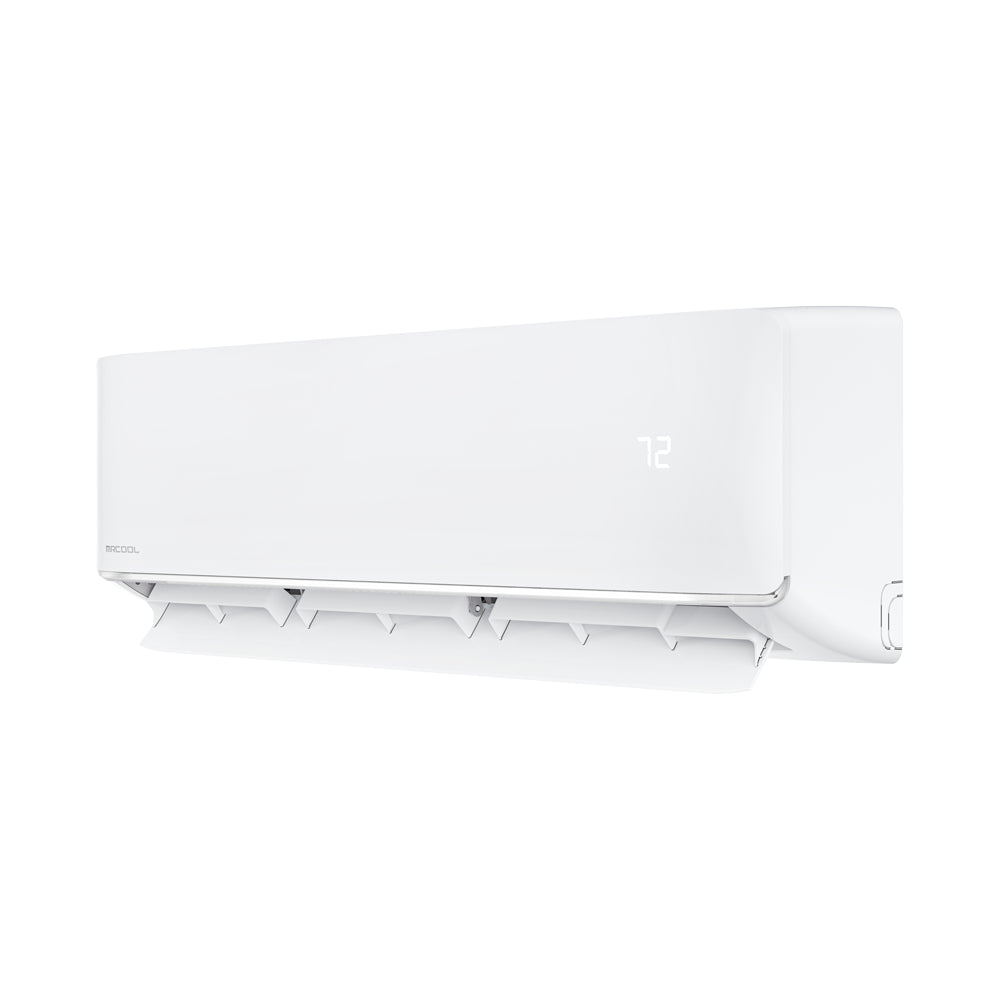

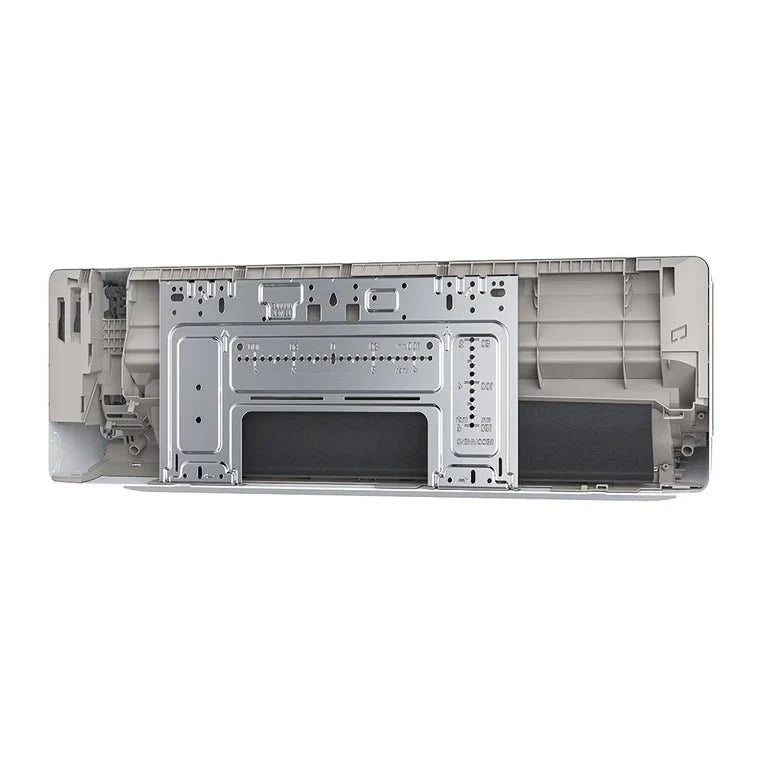

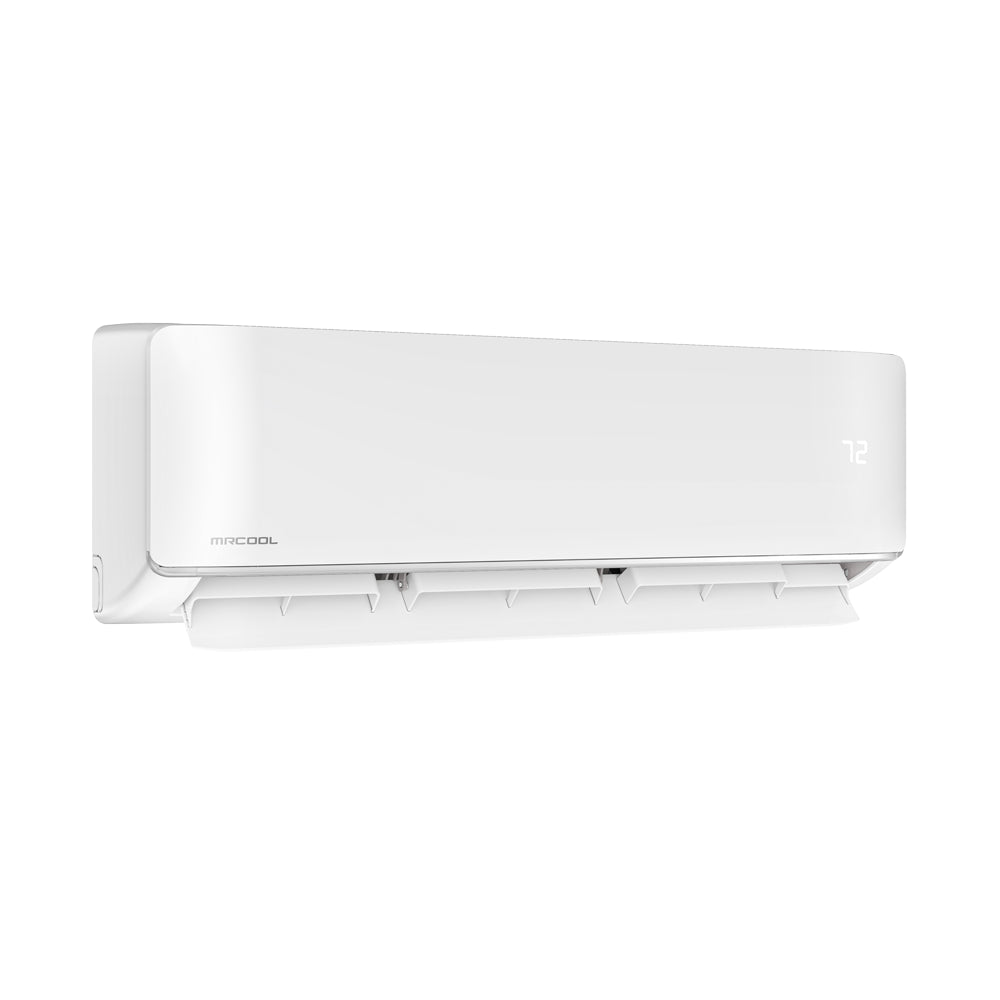

• (1) 6K wall-mounted indoor unit

• Up to 21.8 SEER2 efficiency

• DC inverter variable-speed compressor

• R-454B low-GWP refrigerant

• DIY® QuickConnect® pre-charged line set compatibility

• DIYPRO® cable (no conduit required)

• Ultra-quiet operation

• Smart HVAC app control

• Amazon Alexa® & Google Home® compatible

• AHRI Certified & ENERGY STAR® rated



ELECTRICAL REQUIREMENTS

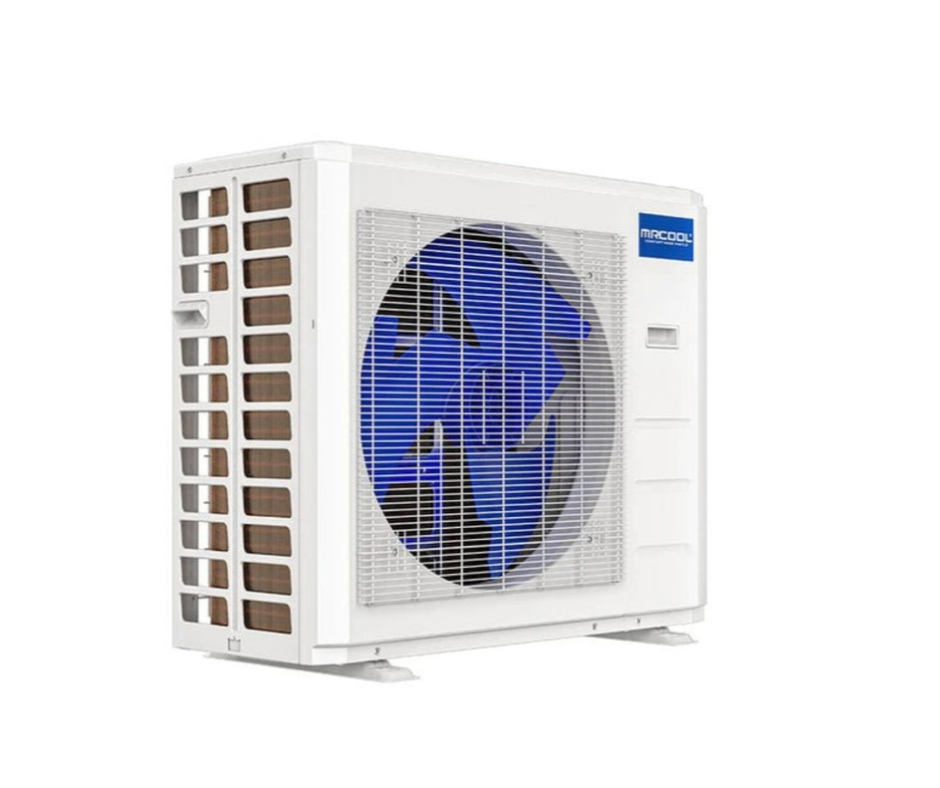

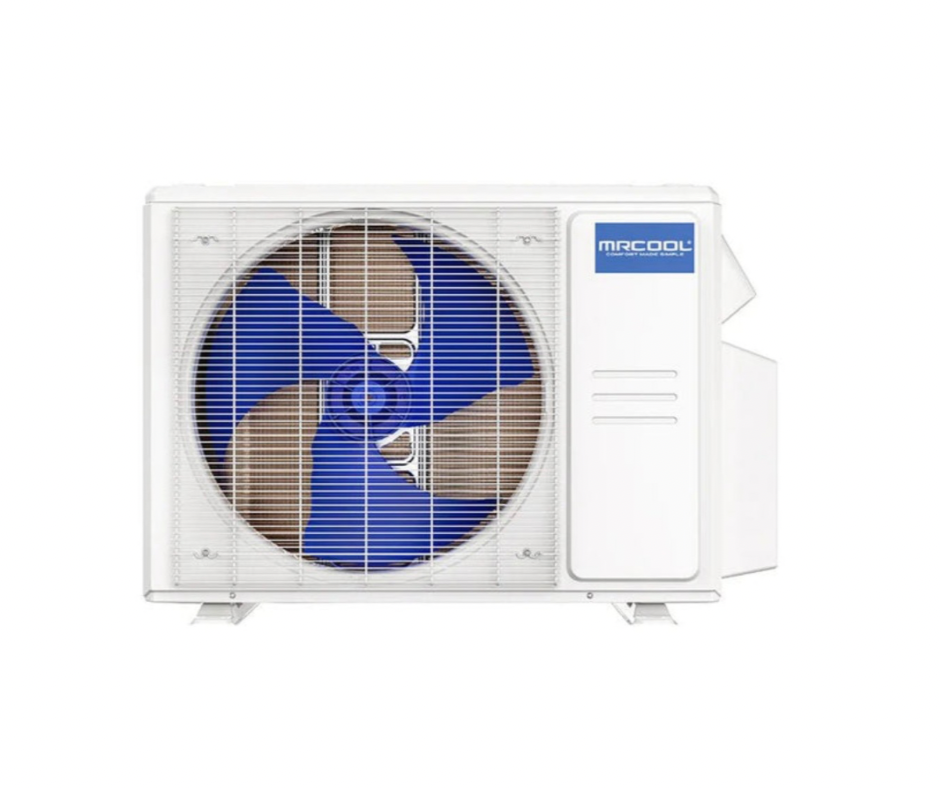

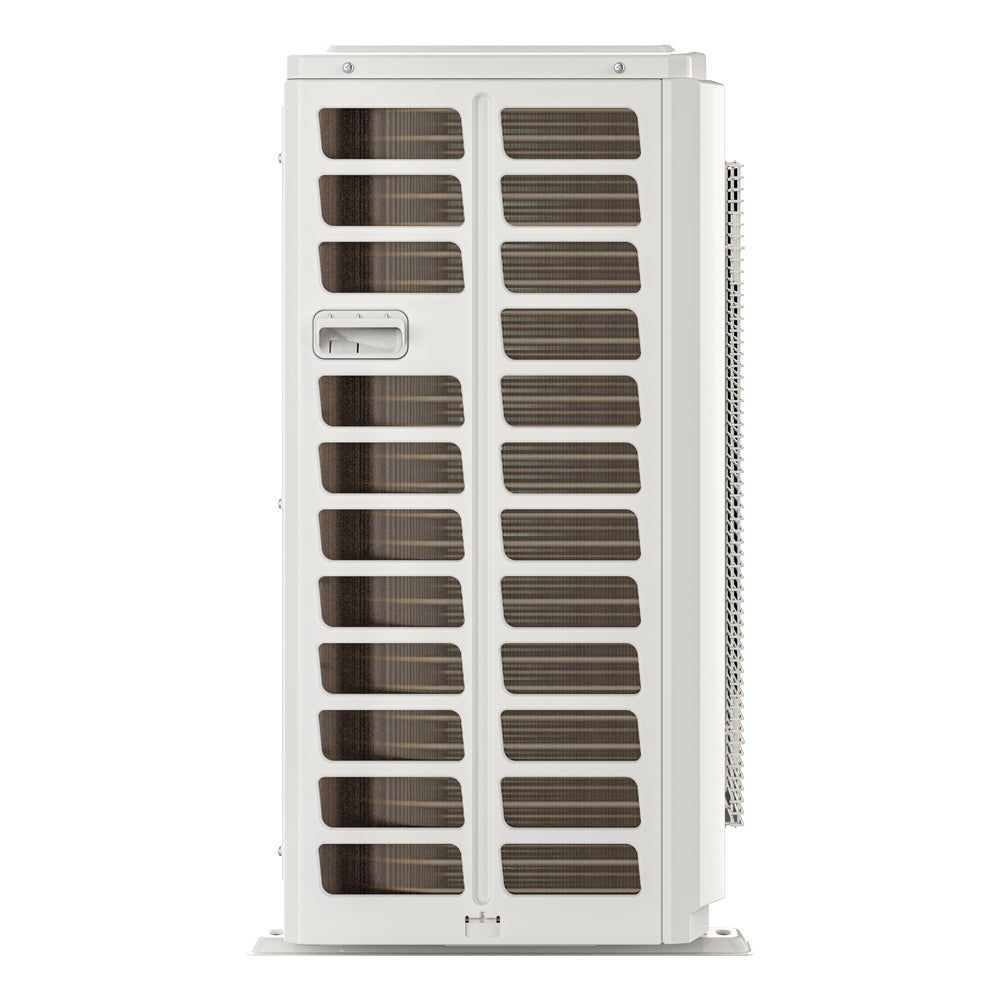

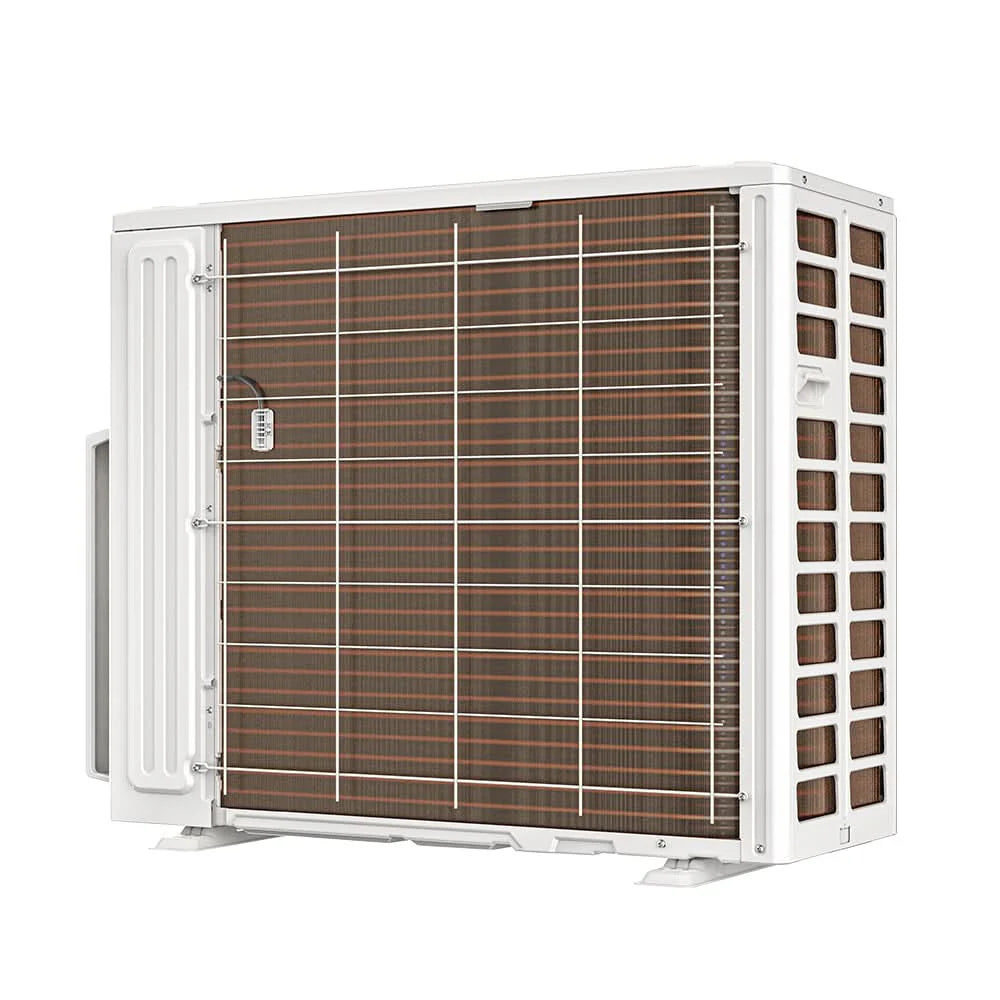

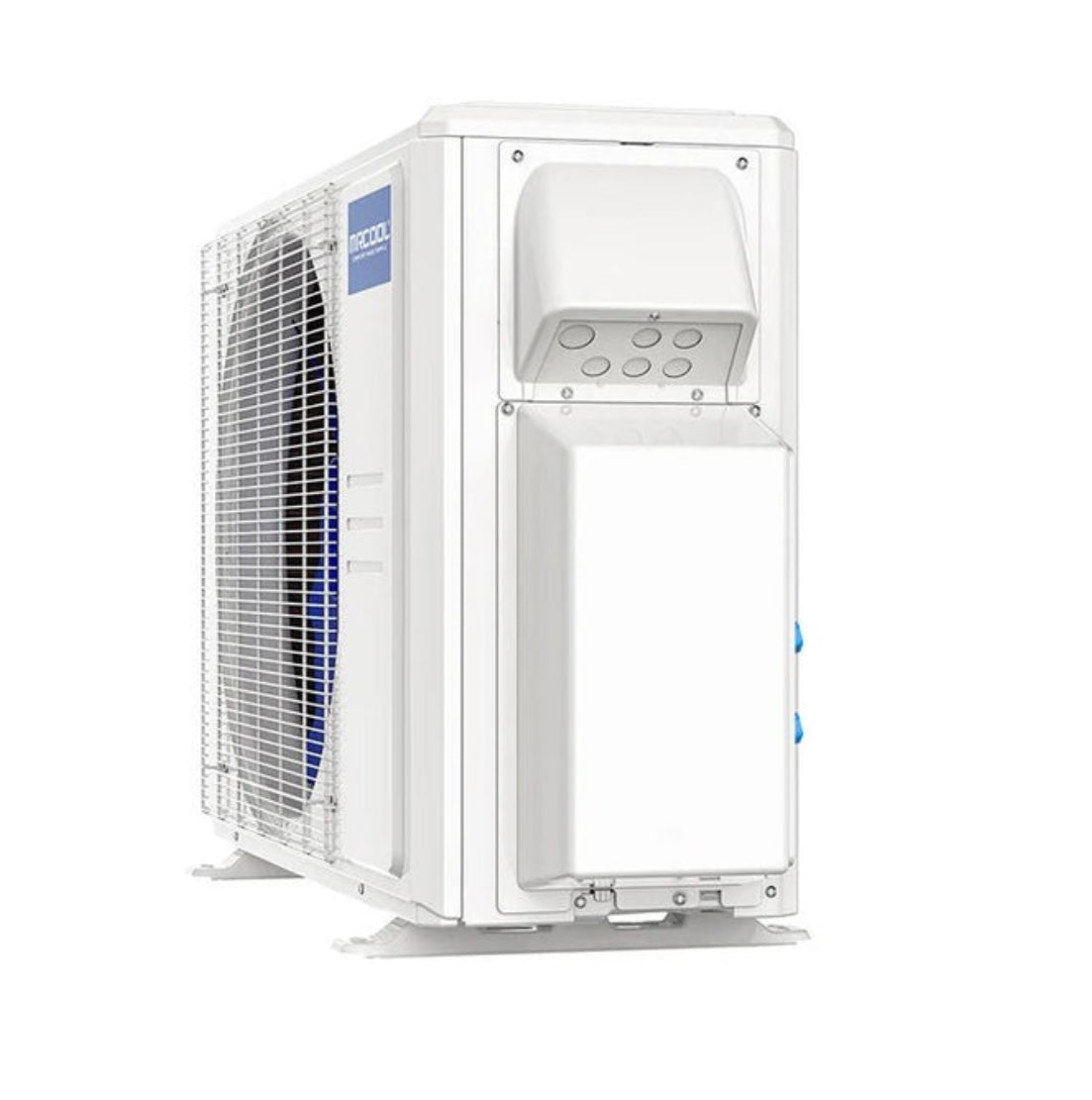

Outdoor Condenser – DIY-MULTI5-36HP230D-O

• Voltage: 208 / 230V
• Phase: Single Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 30A
• Maximum Breaker Size: 35A
• Dedicated Circuit Required: Yes

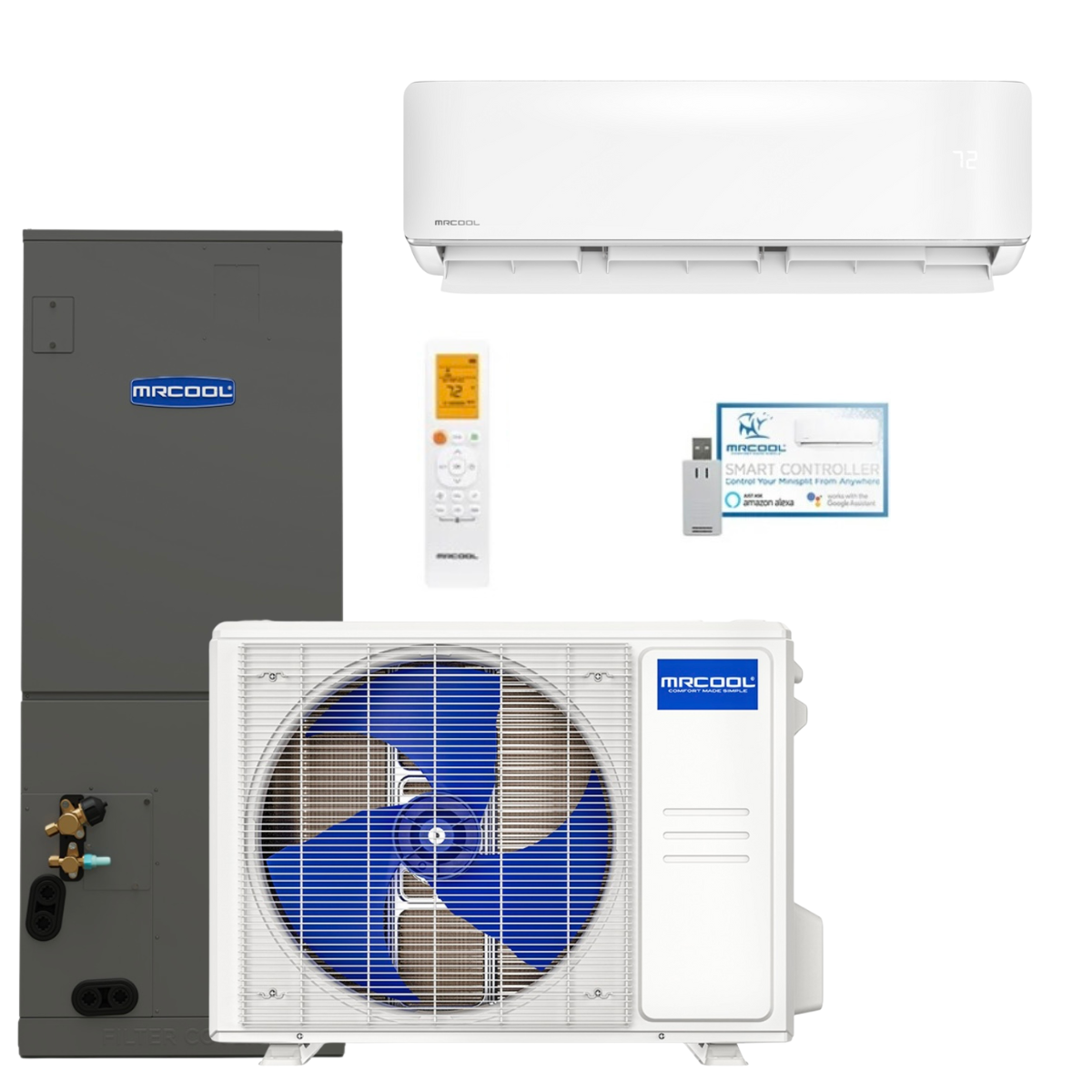

WHAT’S INCLUDED

✔ MRCOOL® DIY® 36K Multi-Zone Outdoor Condenser

✔ MRCOOL® 24K DIY Hybrid Ducted Air Handler

✔ MRCOOL® 6K Wall-Mounted Indoor Unit

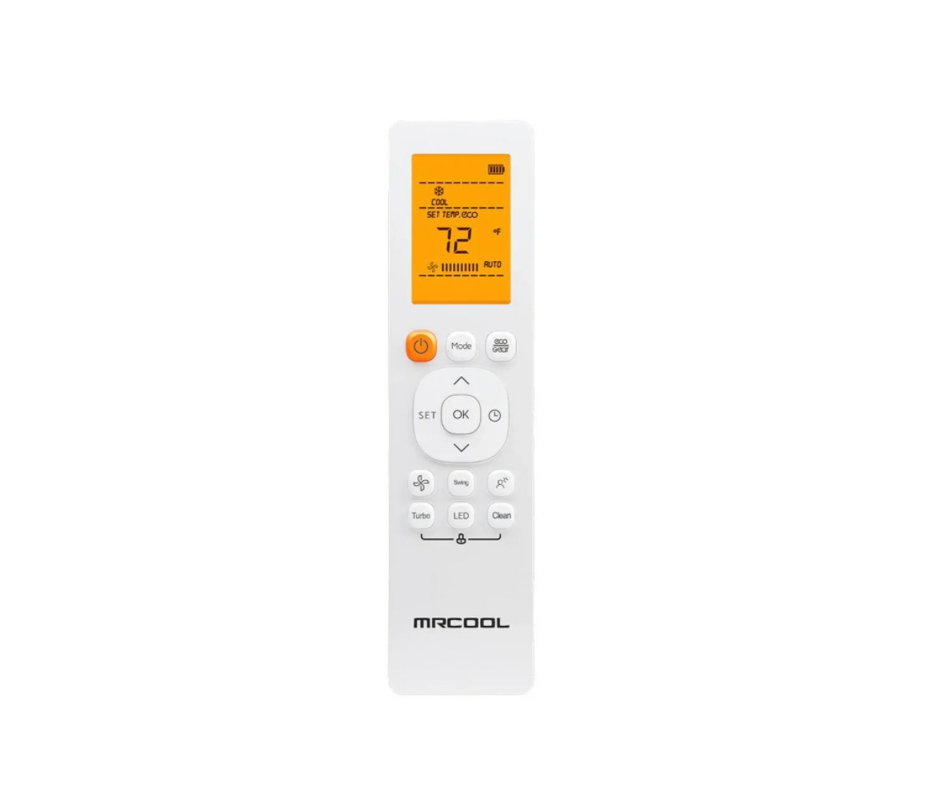

✔ Wireless remotes (for wall unit)

✔ Smart thermostat (for ducted system)

✔ Installation manuals & mounting hardware



Line sets and Heat Kit sold separately

Compatible Heat kits

MVPHK05

MVPHK08
MVPHK10
MVPHK15



FREQUENTLY ASKED QUESTIONS (FAQ)

Can the ducted and wall unit run independently?

Yes. Each zone operates independently with its own temperature control.



Is professional HVAC installation required?

No. This system is designed for true DIY installation.

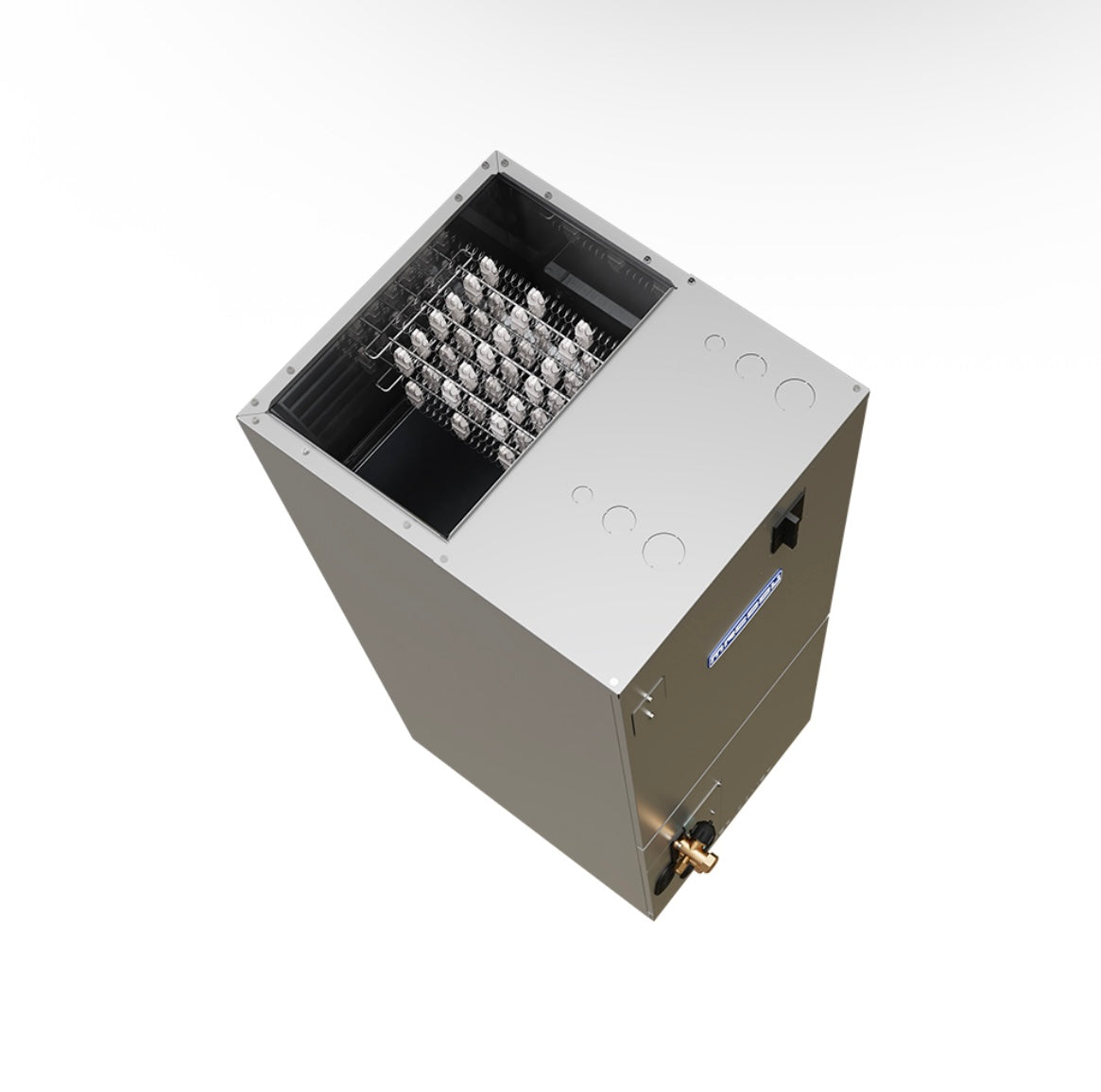

Can I add auxiliary heat to the ducted air handler?

Yes. Optional electric heat kits are available.



Does it support smart home control?

Yes. Works with Alexa®, Google Home®, and the MRCOOL® Smart HVAC App.
