MRCOOL® DIY® Hybrid 48,000 BTU Multi-Zone Heat Pump System with (36K Ducted Air Handler + 12K Ceiling Cassette) – 21.8 SEER2, Model-DIYM648HP-HYB36D12C

 Product Description

The MRCOOL® DIY Hybrid 48K Multi-Zone Heat Pump System is designed for homeowners who want whole-home comfort with flexible zoning, without the cost or delays of professional HVAC installation.

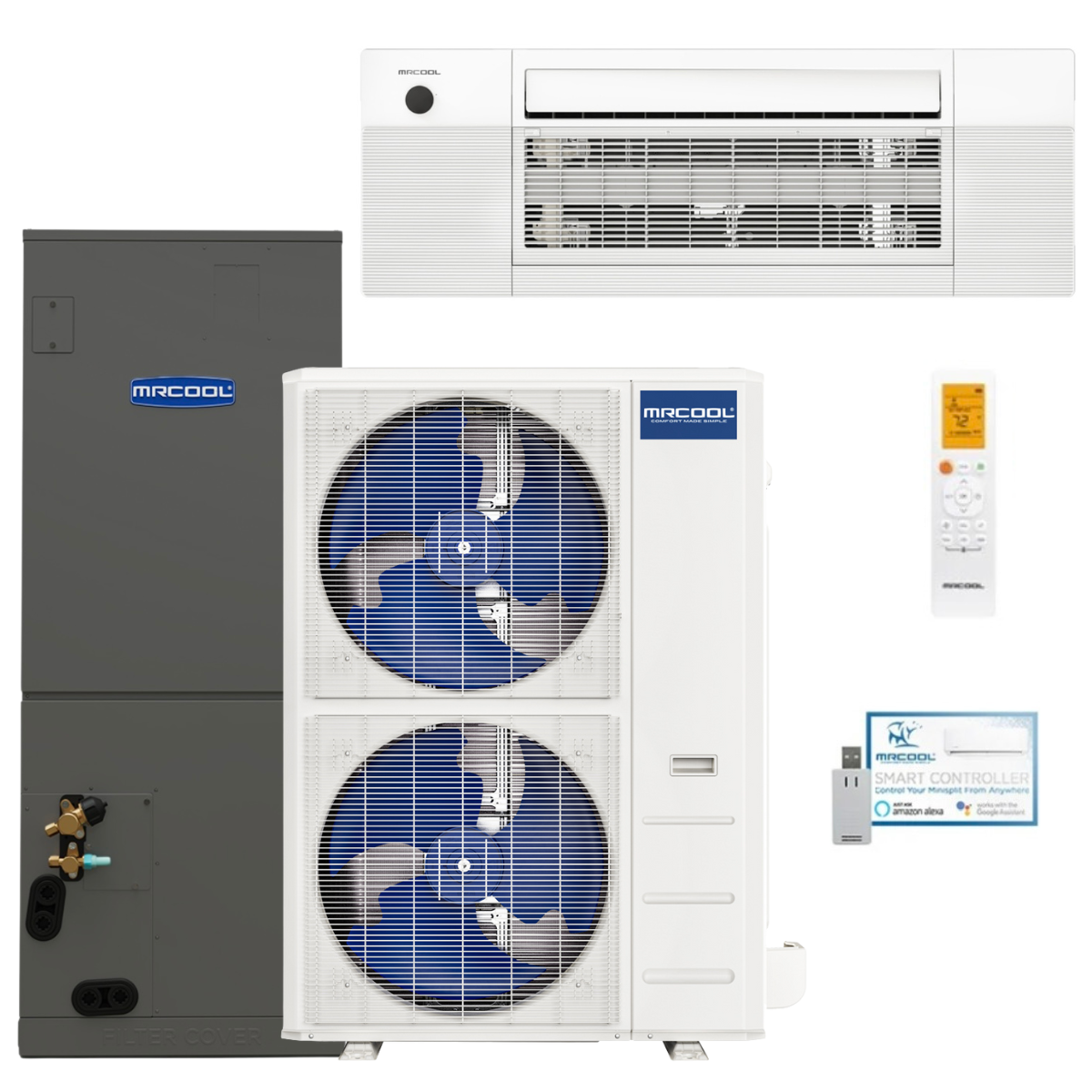

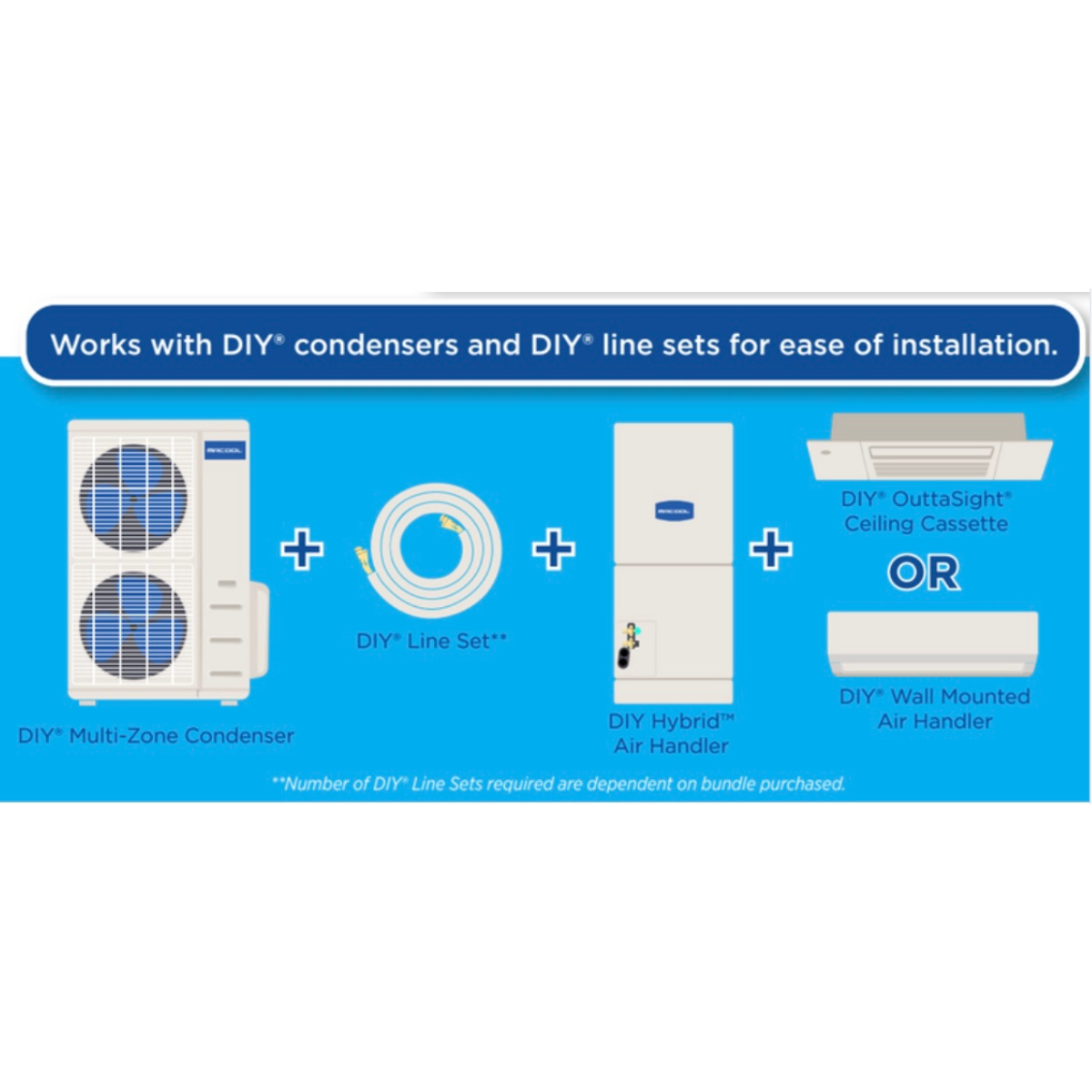

This custom-built hybrid system pairs the MRCOOL® DIY® 5th Generation 48,000 BTU multi-zone condenser with a 36,000 BTU DIY Hybrid ducted air handler and a 12,000 BTU one-way ceiling cassette, delivering powerful, balanced heating and cooling where traditional wall-mounted units aren’t ideal.

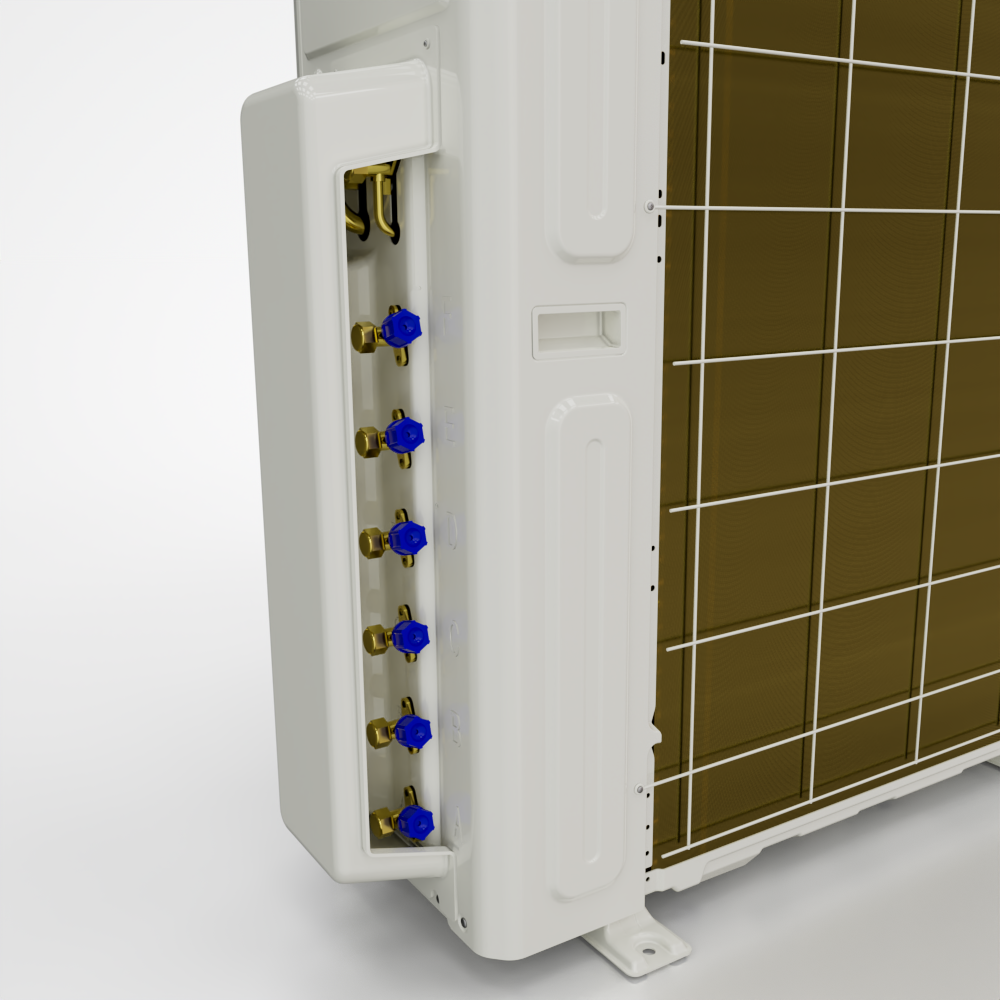

By combining central ducted airflow with a low-profile ceiling cassette, this system is perfect for living rooms, hallways, basements, offices, additions, and open-concept layouts. Thanks to MRCOOL®’s patented DIY® QuickConnect® technology, installation requires no vacuum pump, no gauges, and no licensed HVAC technician.

KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 48,000 BTU total system capacity

• Hybrid zoning: ducted + ceiling cassette

• (1) 36K DIY Hybrid ducted air handler

• (1) 12K one-way ceiling cassette

• Up to 21.8 SEER2 high-efficiency performance

• DC inverter variable-speed compressor

• R-454B eco-friendly refrigerant

• DIY® QuickConnect® pre-charged line-set compatibility

• DIYPRO® cable (no conduit required)

• Quiet indoor operation

• Smart HVAC Controller® App

• Amazon Alexa® & Google Home® compatibility

• ENERGY STAR® & AHRI certified



ELECTRICAL REQUIREMENTS

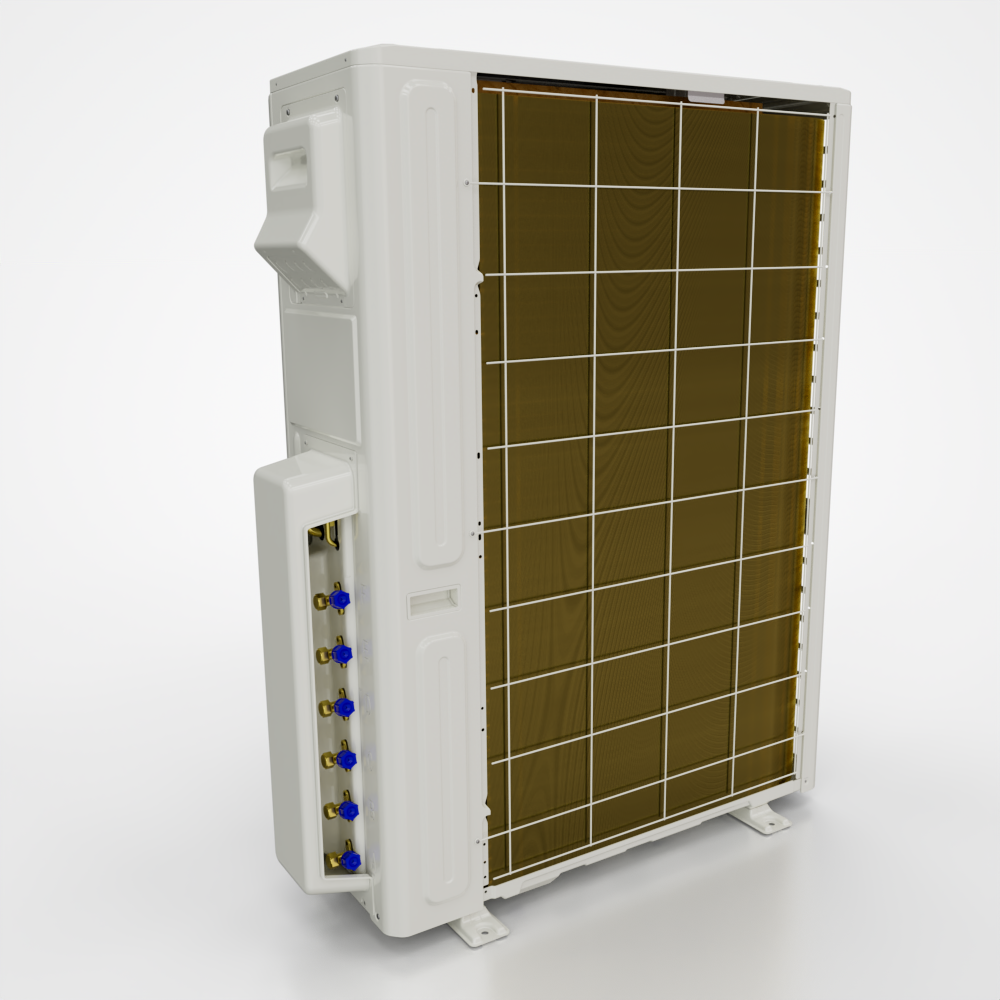

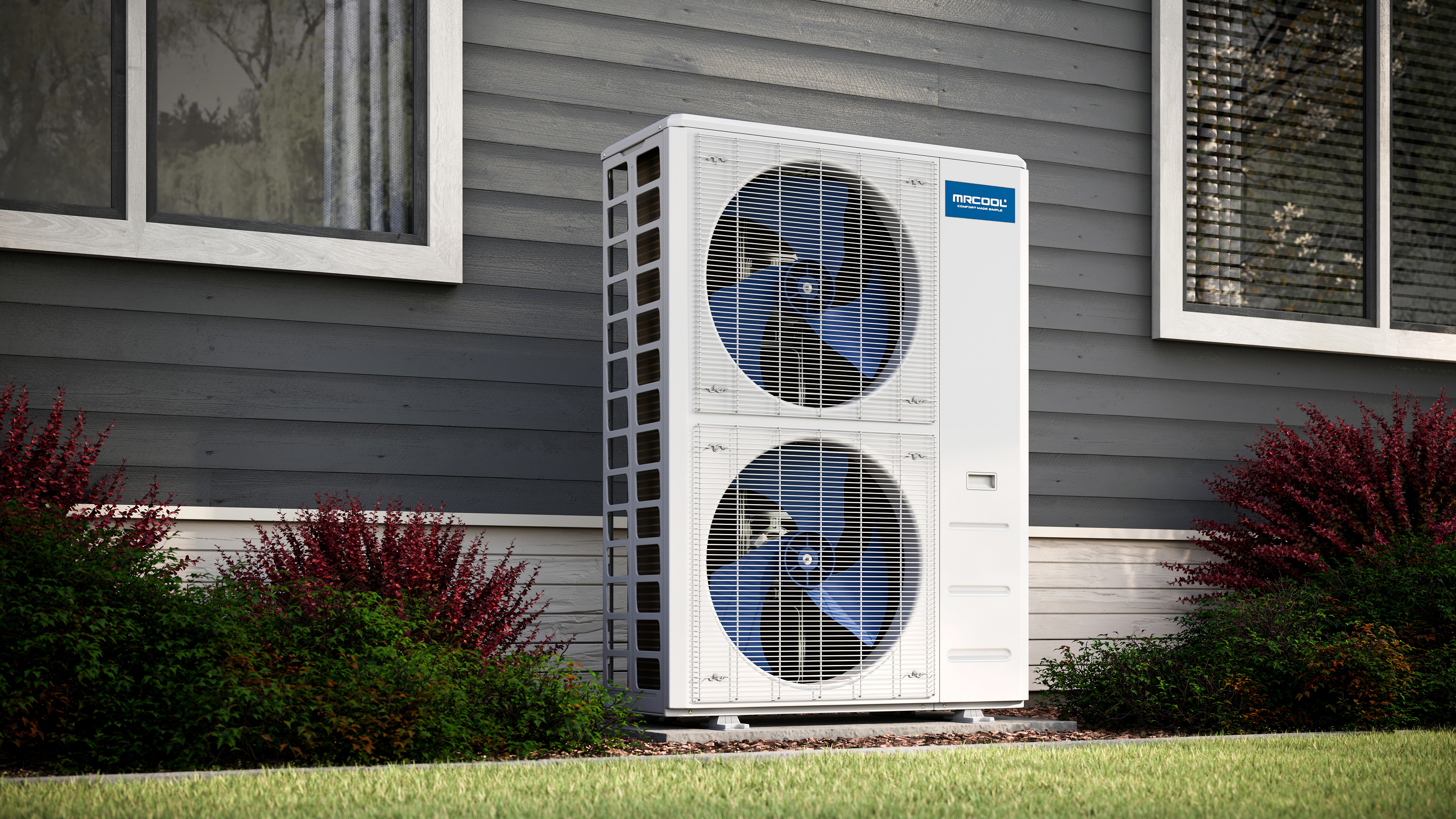

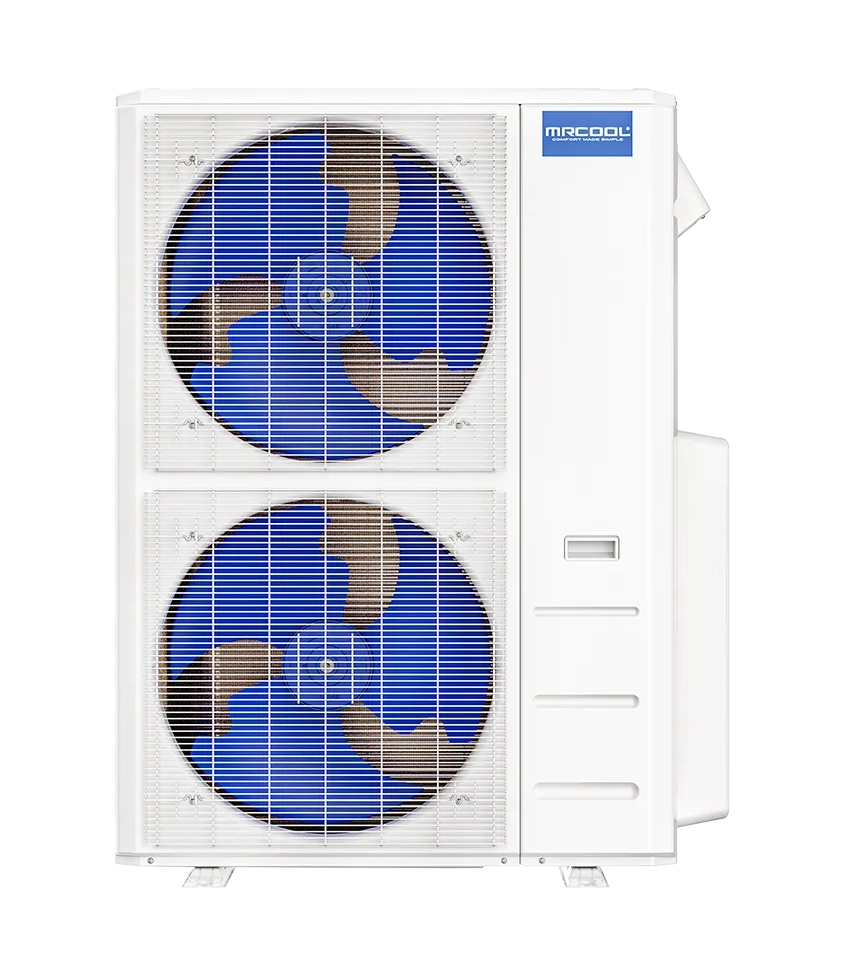

Outdoor Condenser — DIY-MULTI6-48HP230D-O

• Voltage: 208 / 230V
• Phase: Single Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 40 Amps
• Maximum Breaker Size: 45 Amps
• Dedicated Circuit Required: Yes



SYSTEM COMPONENT DETAILS

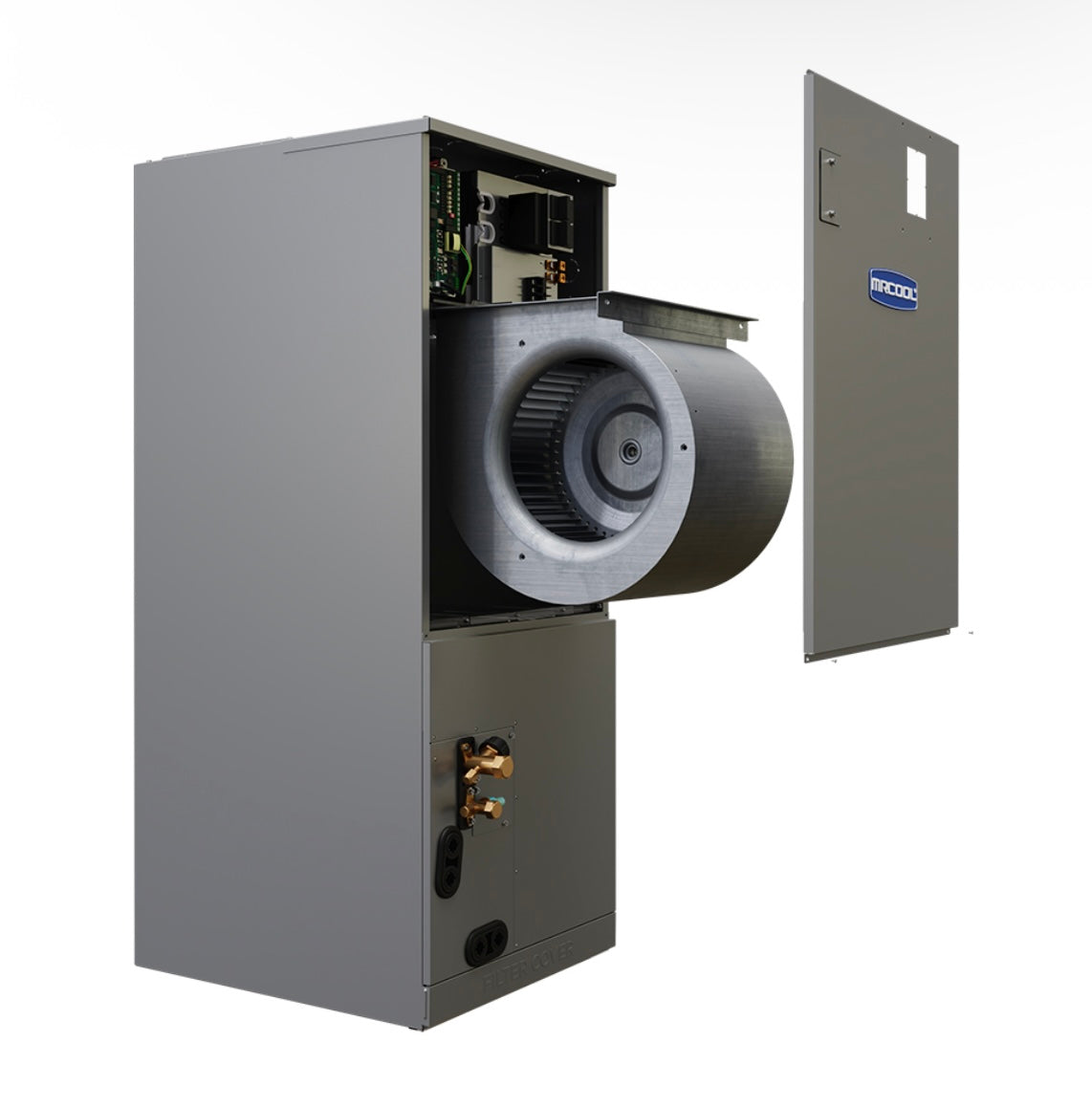

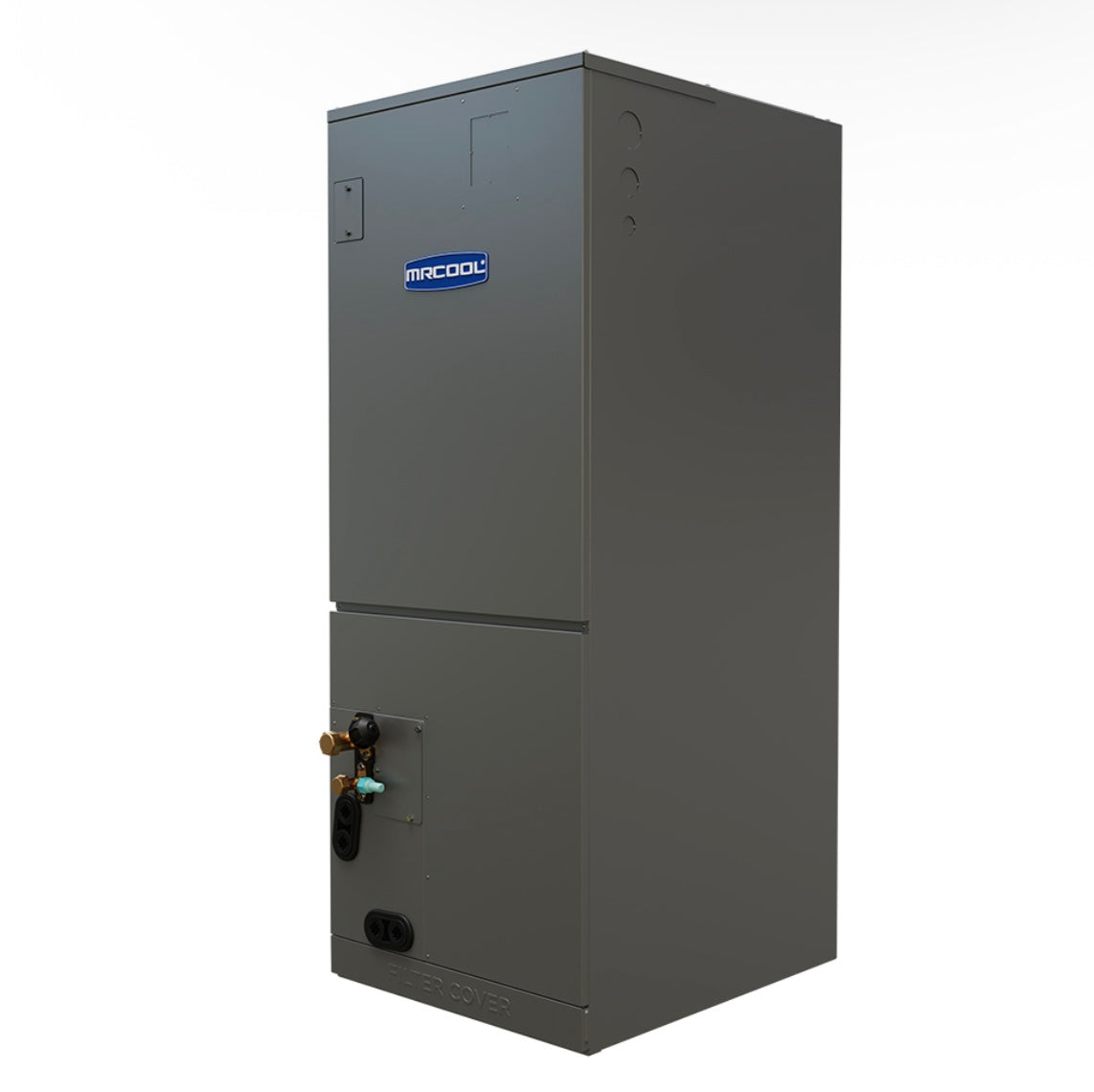

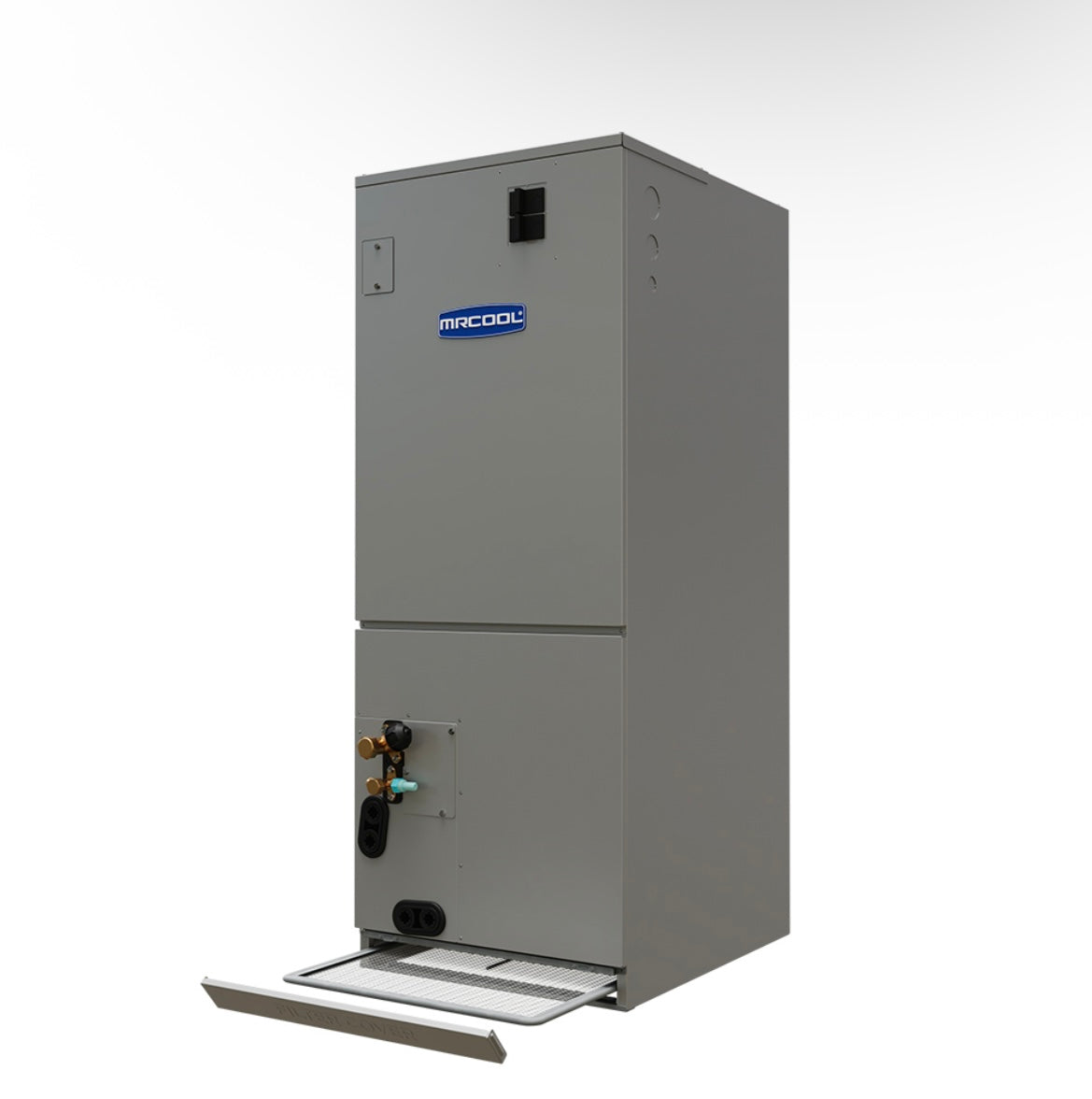

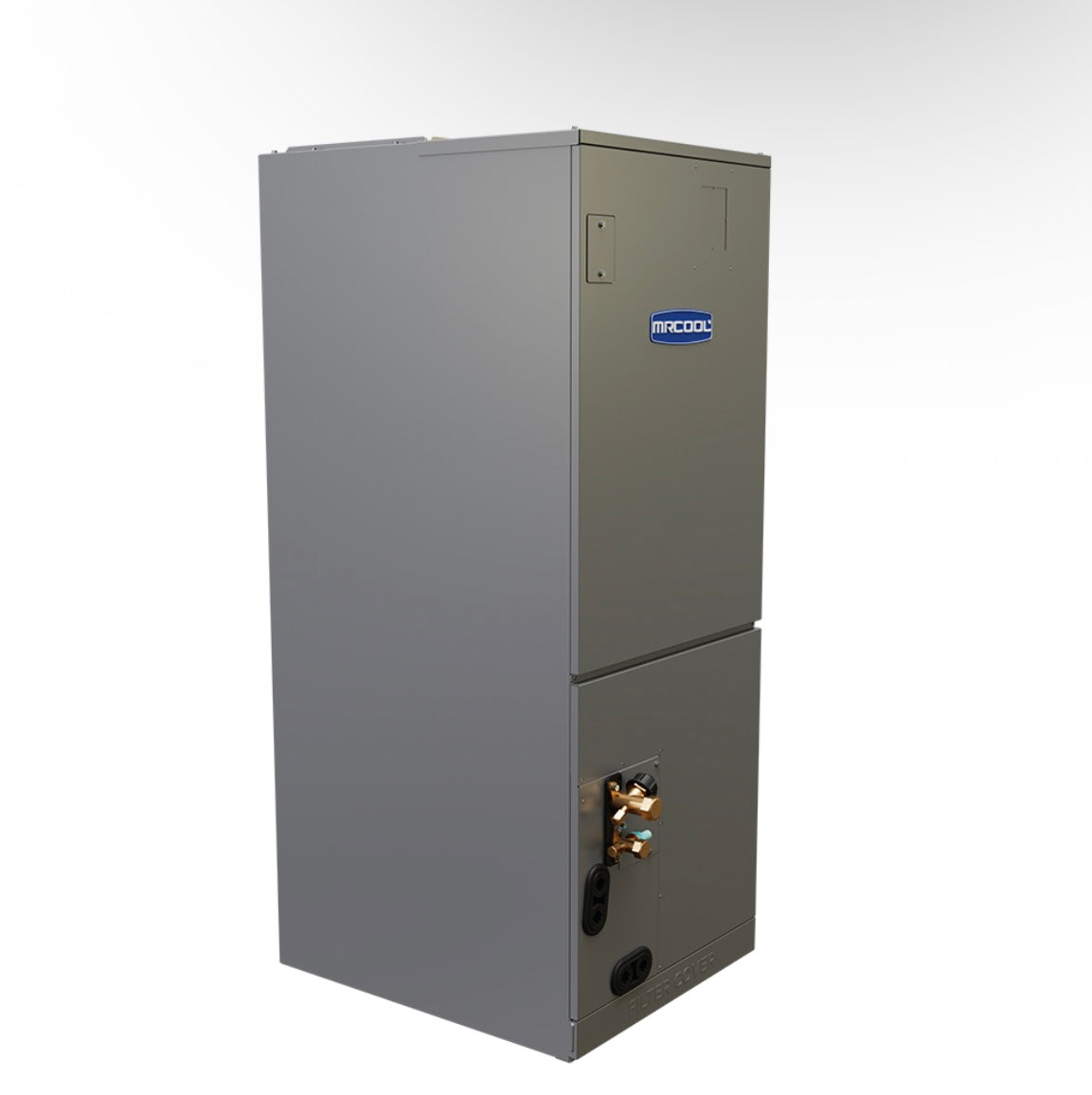

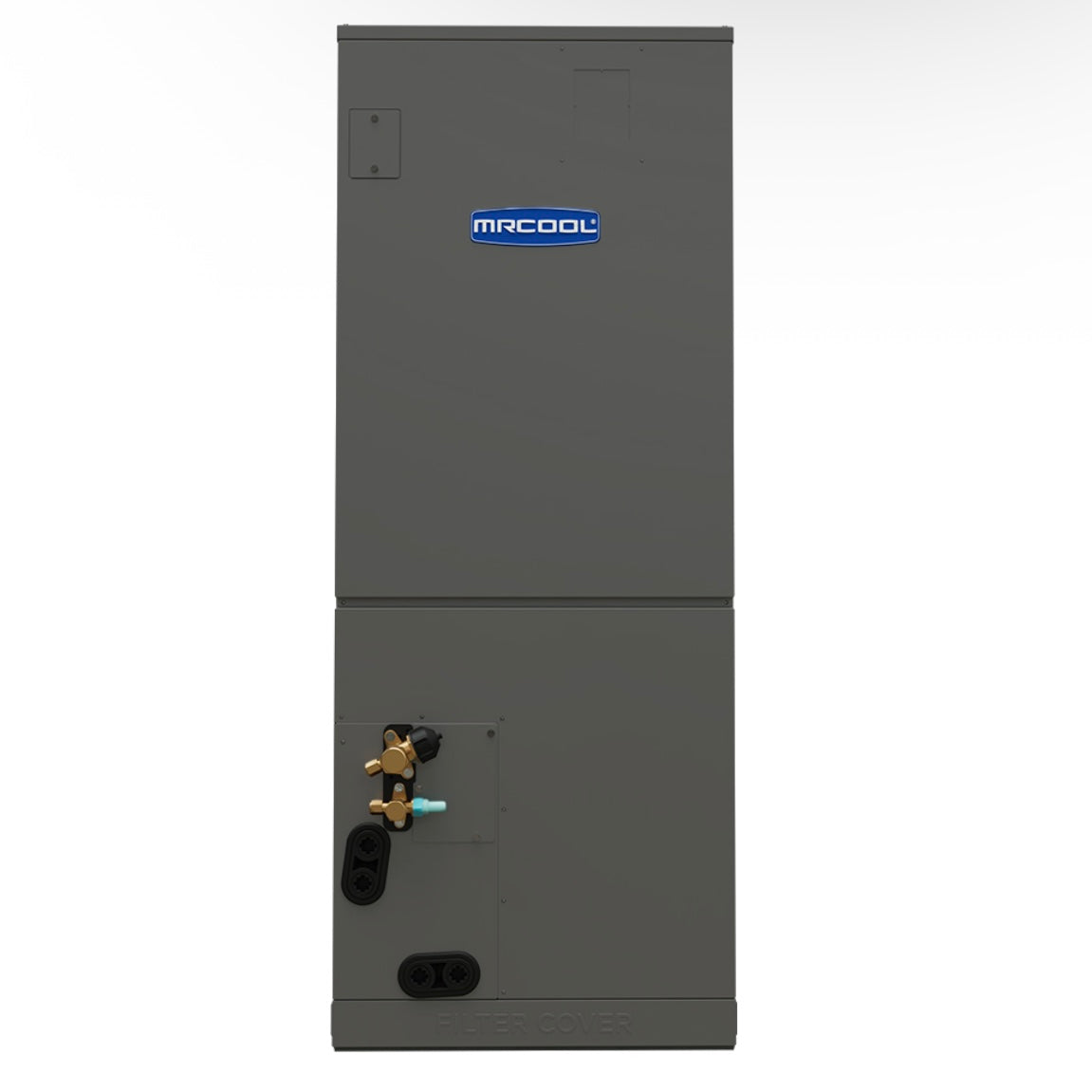

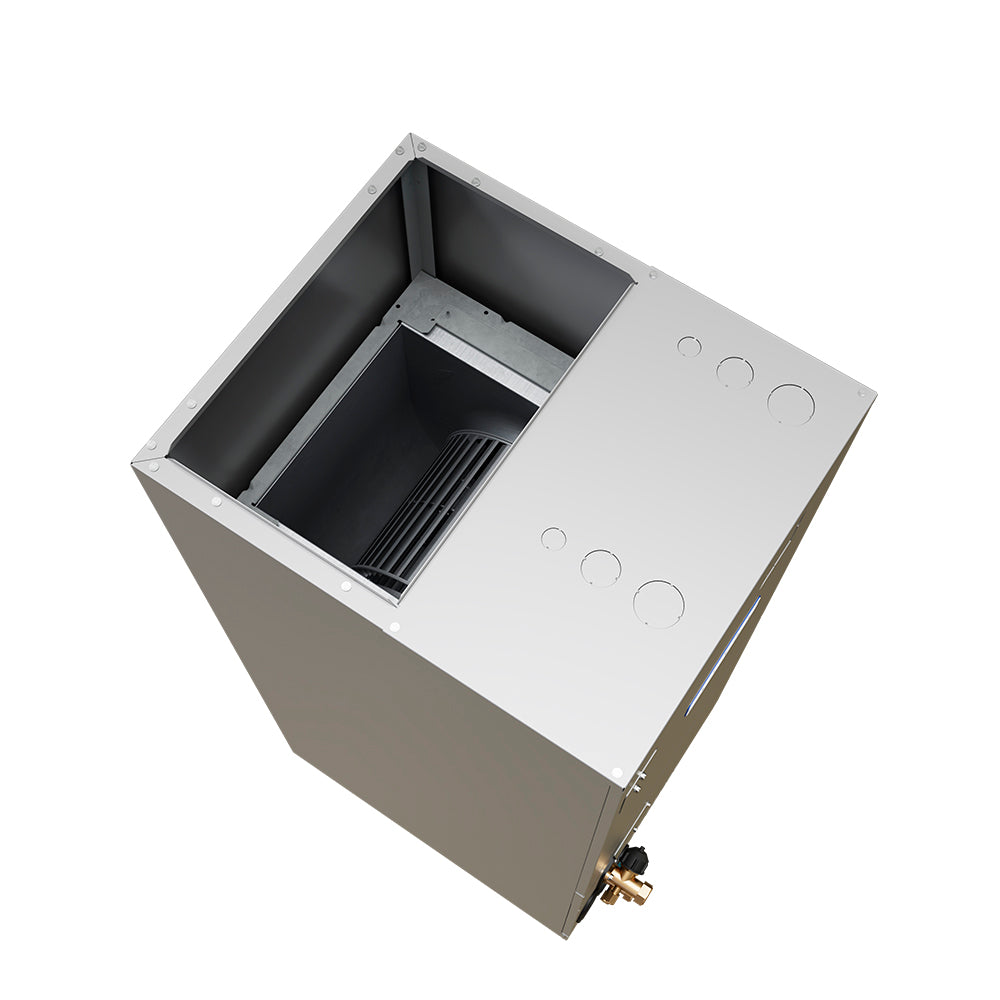

36K DIY Hybrid Ducted Air Handler

• Coverage: up to 1,550 sq ft
• Multi-position installation (upflow / downflow / horizontal)

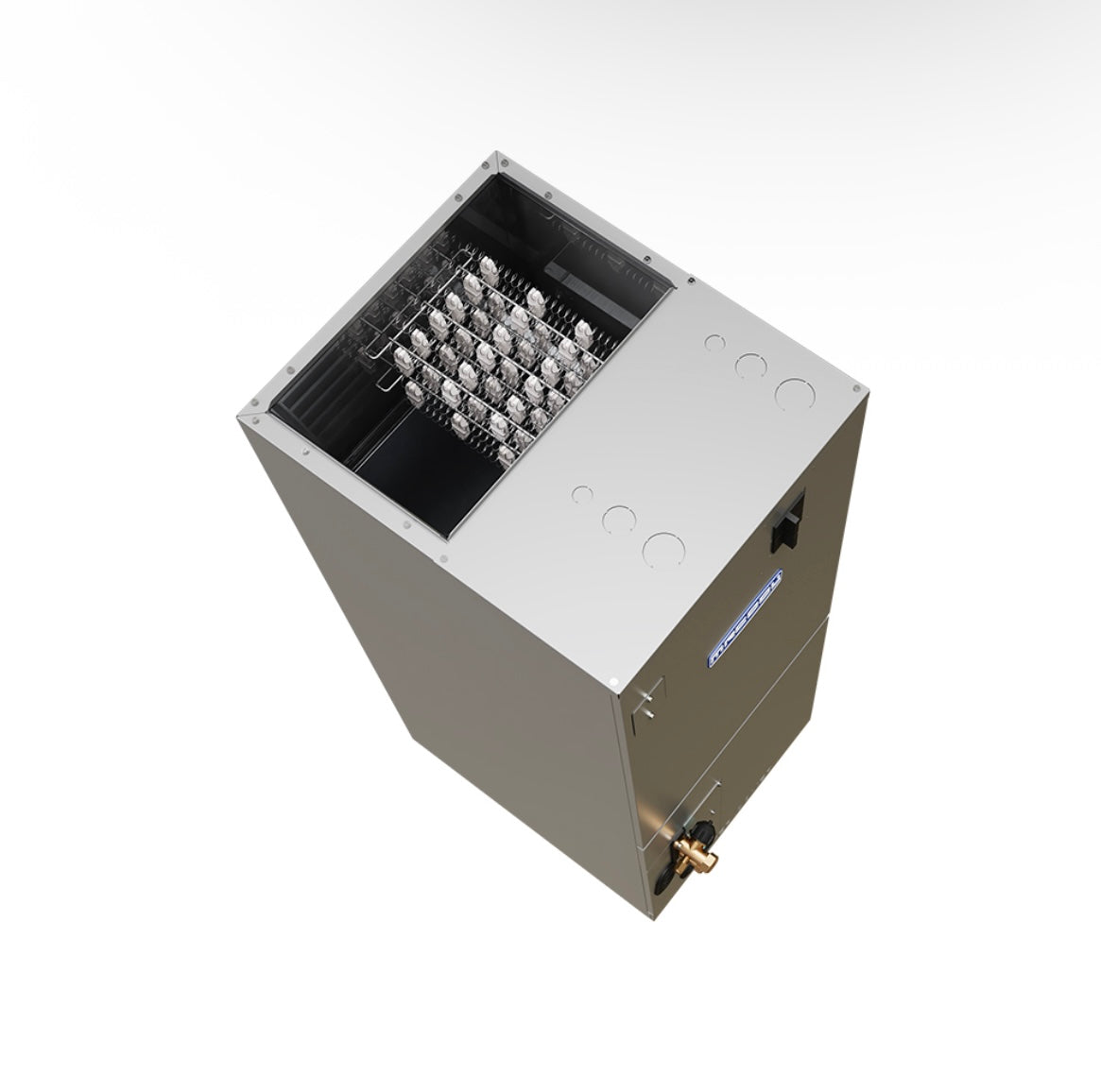

• Optional auxiliary electric heat kits available

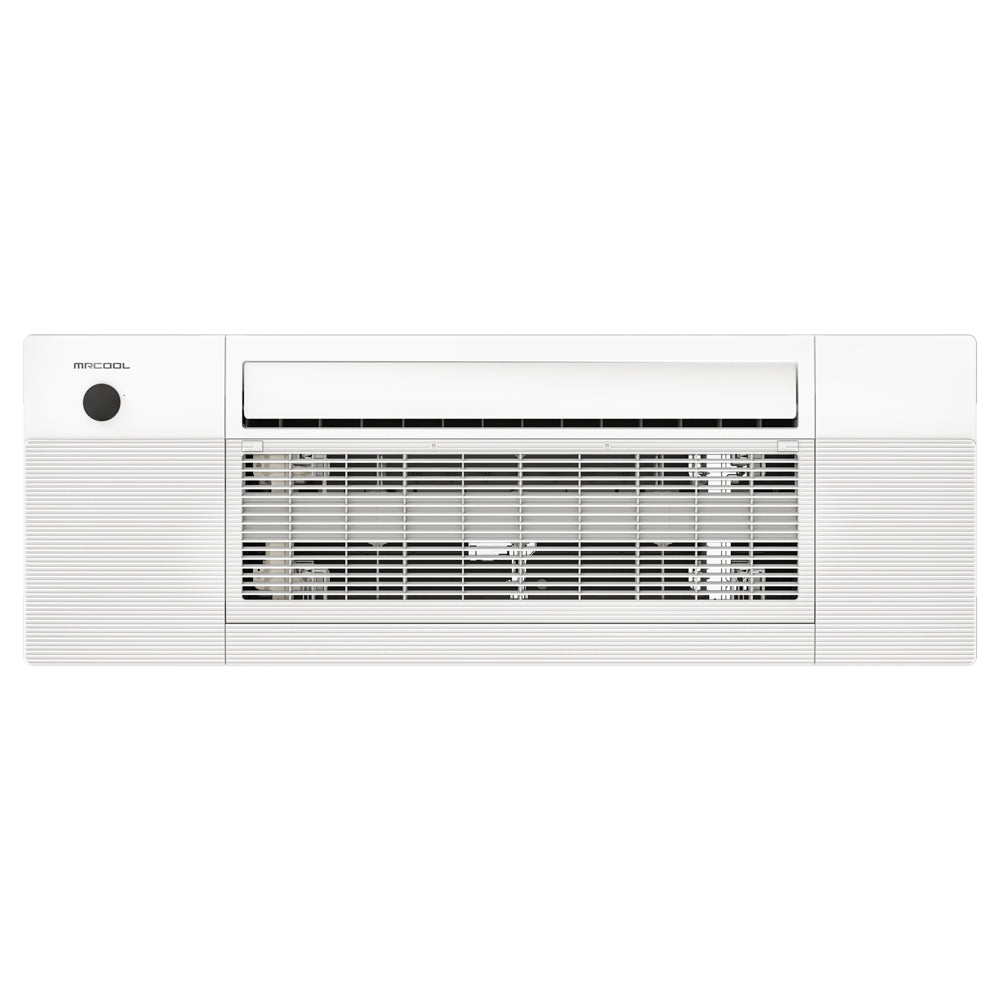

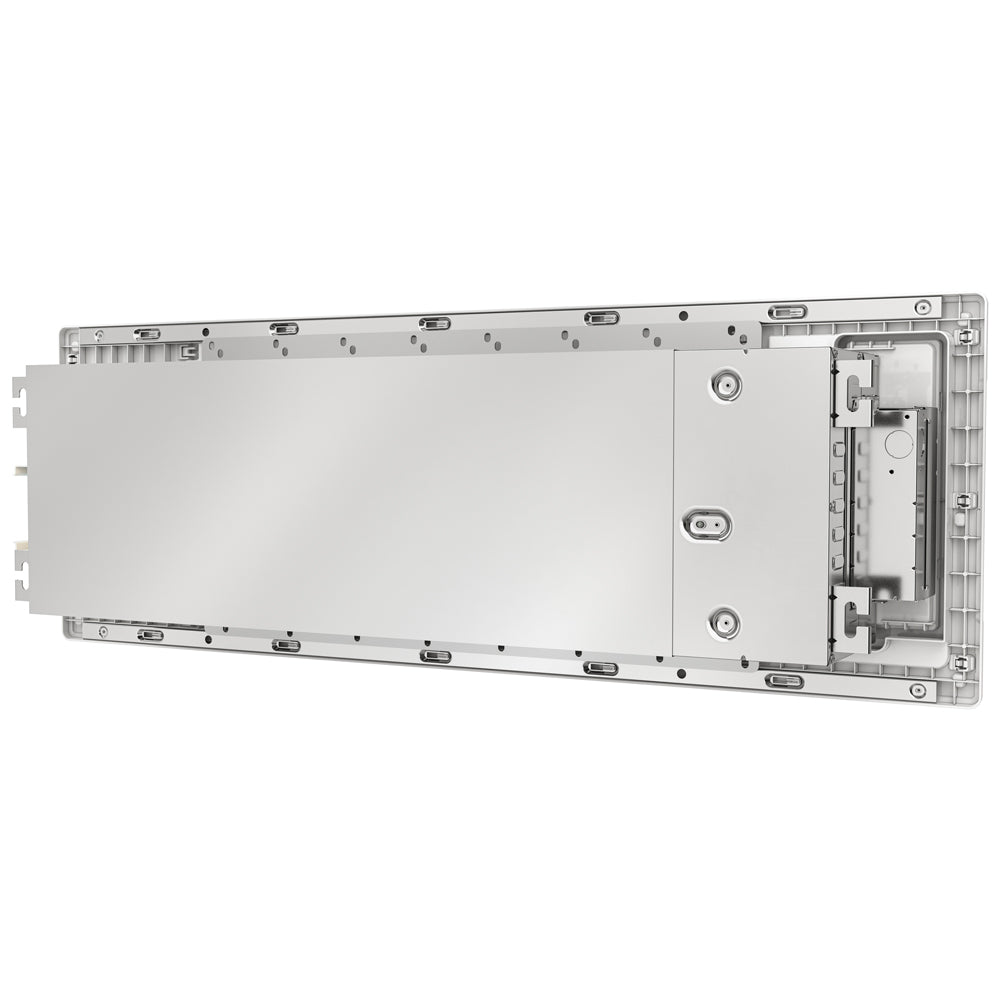

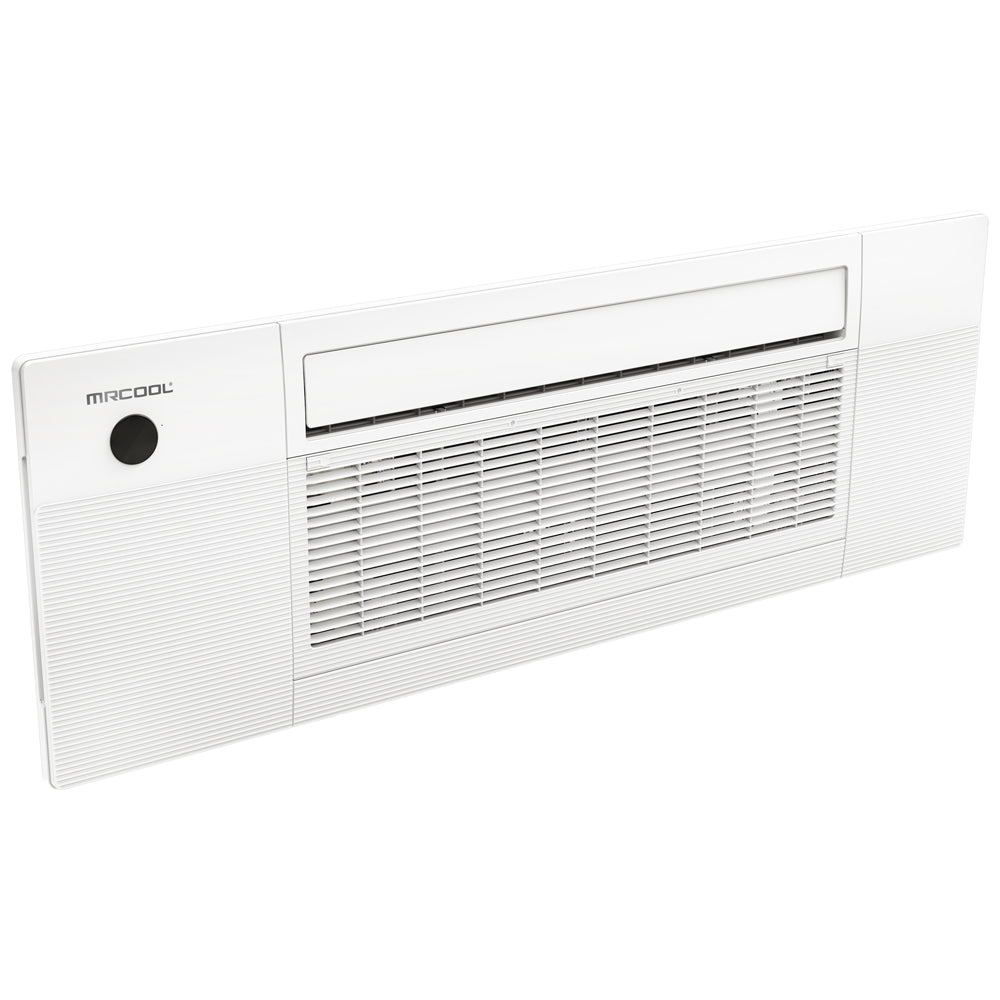

12K One-Way Ceiling Cassette

• Coverage: up to 550 sq ft
• Fits between standard 16” ceiling joists

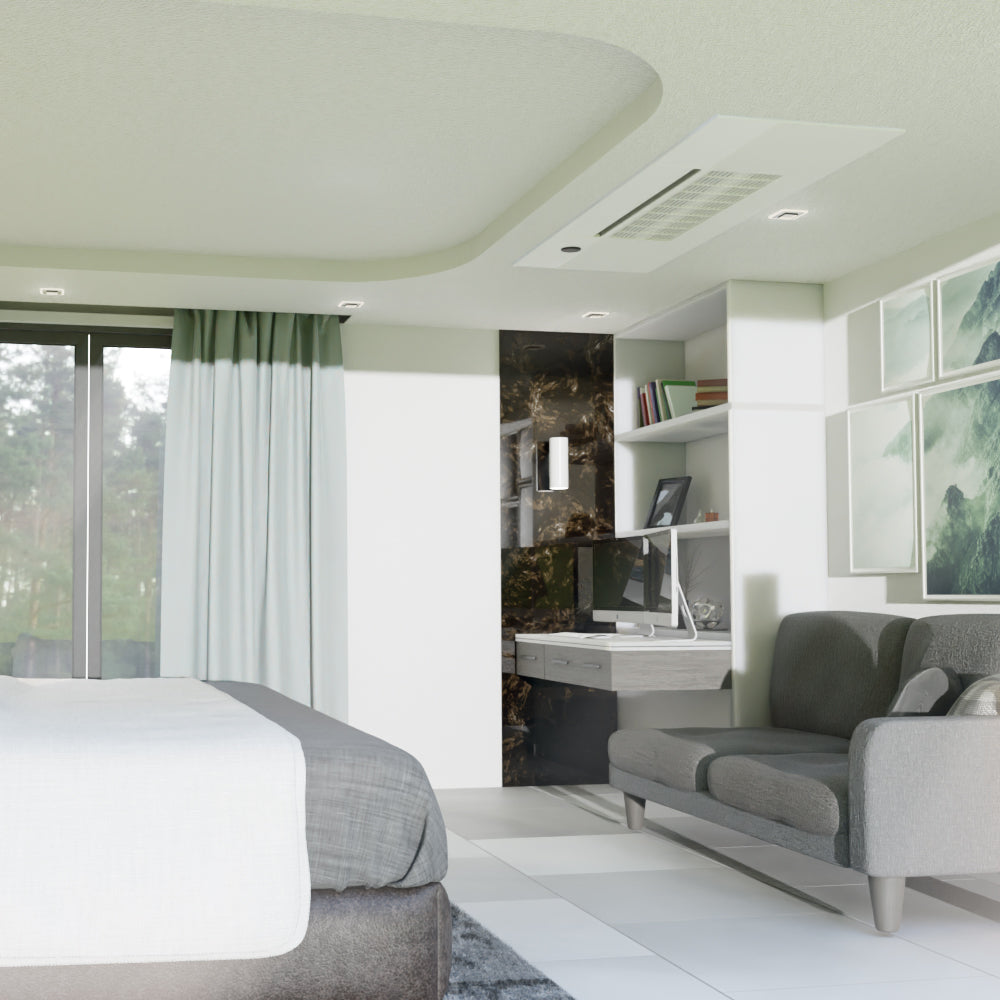

• Flush, modern ceiling appearance
• Whisper-quiet operation with advanced filtration



WHAT’S INCLUDED IN THIS  BUNDLE

✔ MRCOOL® DIY® 48,000 BTU Multi-Zone Outdoor Condenser

✔ MRCOOL® 36K DIY Hybrid Ducted Air Handler

✔ MRCOOL® 12K One-Way Ceiling Cassette Indoor Unit

✔ Wireless remote for ceiling cassette

✔ Smart Wi-Fi thermostat for ducted system

✔ Installation manuals & mounting hardware



Line sets and Heat Kits sold separately

Compatible Heat kits

MVPHK05

MVPHK08
MVPHK10
MVPHK15
MVPHK20



FREQUENTLY ASKED QUESTIONS (FAQ)

Can each zone be controlled independently?

Yes. The ducted system and ceiling cassette operate as separate zones.



Is this system truly DIY?

Yes. No refrigerant handling, vacuuming, or licensed installer required.



Can I add auxiliary heat to the ducted air handler?

Yes. Optional electric heat kits are available.

Compatible Heat kits

MVPHK05

MVPHK08
MVPHK10
MVPHK15
MVPHK20



Does it support smart home integration?

Yes. Compatible with Alexa®, Google Home®, and the MRCOOL® Smart HVAC App.
