MRCOOL® DIY® MRCOOL DIY Hybrid 48,000 BTU Multi-Zone Heat Pump System with (36K Ducted Air Handler + 6K Ceiling Cassette)– 21.8 SEER2, model- DIYM648HP-HYB36D06C

 Product Description

The MRCOOL® DIY Hybrid 48K Multi-Zone Heat Pump System delivers professional-level comfort with true DIY convenience—combining ducted whole-home airflow with a low-profile ceiling cassette for targeted zoning where traditional wall units aren’t ideal.



This custom hybrid system is powered by the MRCOOL® DIY® 5th Generation 48,000 BTU multi-zone condenser and paired with a 36,000 BTU DIY Hybrid ducted air handler and a 6,000 BTU one-way ceiling cassette. The result is a balanced, high-efficiency solution ideal for living areas, hallways, basements, offices, bedrooms, and modern open-concept spaces.



Thanks to MRCOOL®’s patented DIY® QuickConnect® technology, installation requires no vacuum pump, no gauges, and no licensed HVAC technician. The system uses R-454B refrigerant, a next-generation, environmentally responsible refrigerant designed to deliver excellent efficiency with lower global warming potential.



KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 48,000 BTU total system capacity

• Hybrid zoning: ducted + ceiling cassette

• (1) 36K DIY Hybrid ducted air handler

• (1) 6K low-profile one-way ceiling cassette

• Up to 21.8 SEER2 high-efficiency performance

• DC inverter variable-speed compressor

• R-454B eco-friendly refrigerant

• DIY® QuickConnect® pre-charged line-set compatibility

• DIYPRO® cable (no electrical conduit required)

• Whisper-quiet indoor operation

• Smart HVAC Controller® App

• Amazon Alexa® & Google Home® compatibility

• ENERGY STAR® & AHRI certified



ELECTRICAL REQUIREMENTS

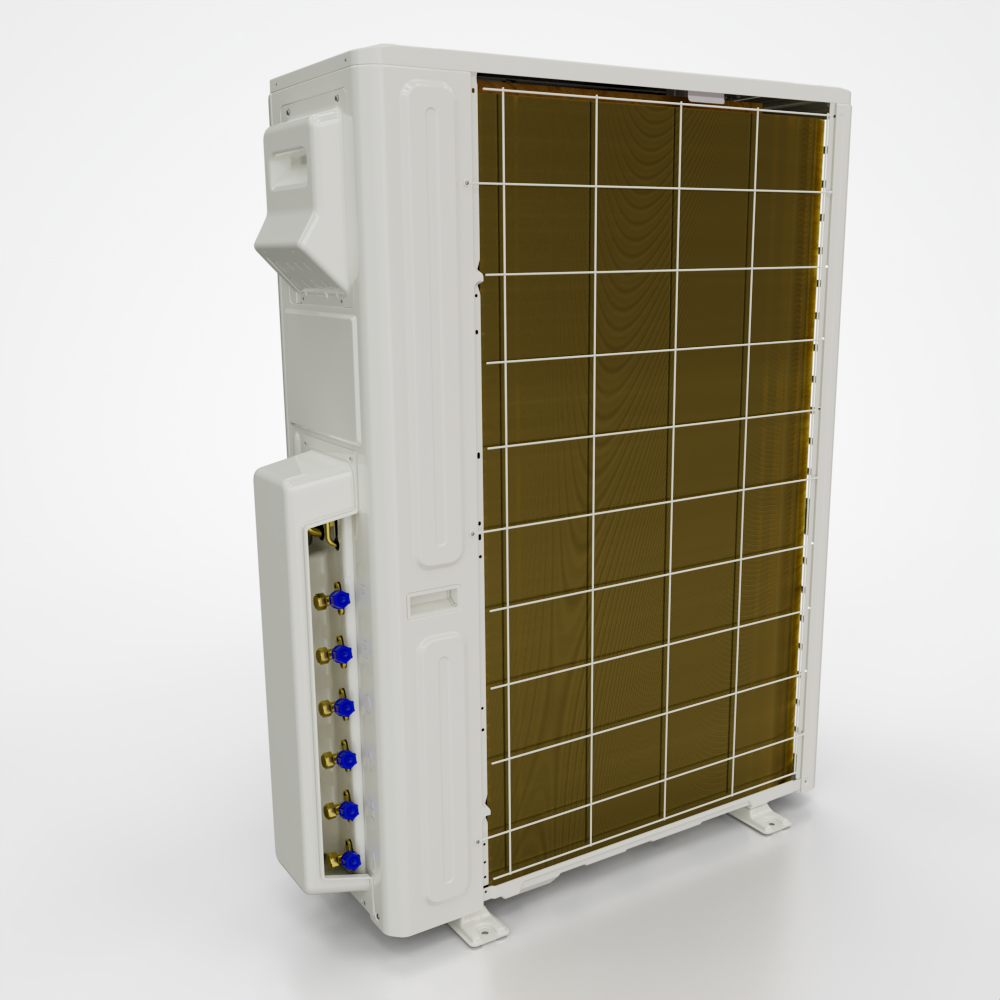

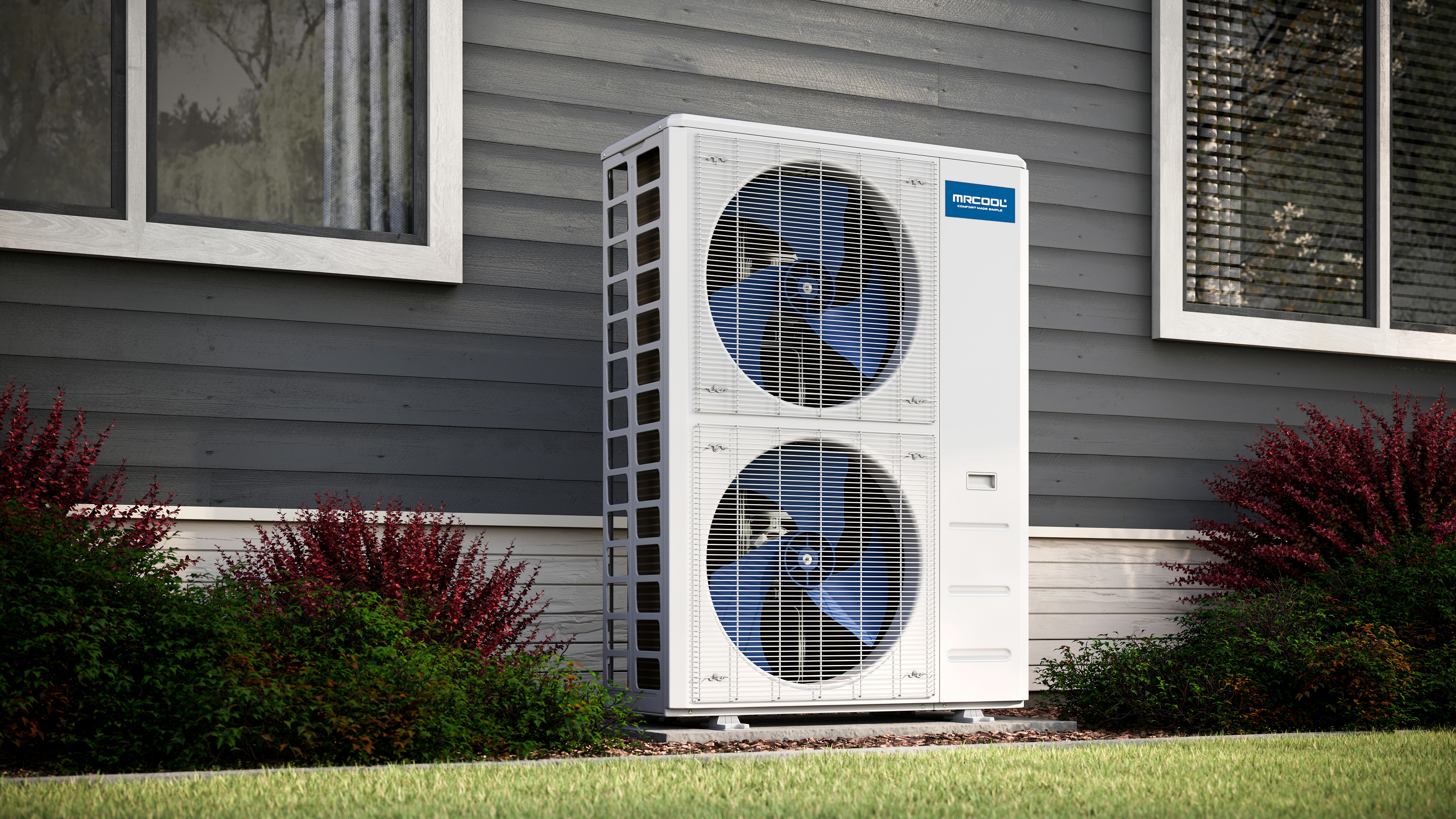

Outdoor Condenser — DIY-MULTI6-48HP230D-O

• Voltage: 208 / 230V
• Phase: Single Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 40 Amps
• Maximum Breaker Size: 45 Amps
• Dedicated Circuit Required: Yes



 SYSTEM CONFIGURATION DETAILS

36K DIY Hybrid Ducted Air Handler

• Coverage: up to 1,550 sq ft
• Multi-position installation (upflow / downflow / horizontal)
• Optional auxiliary electric heat kits available

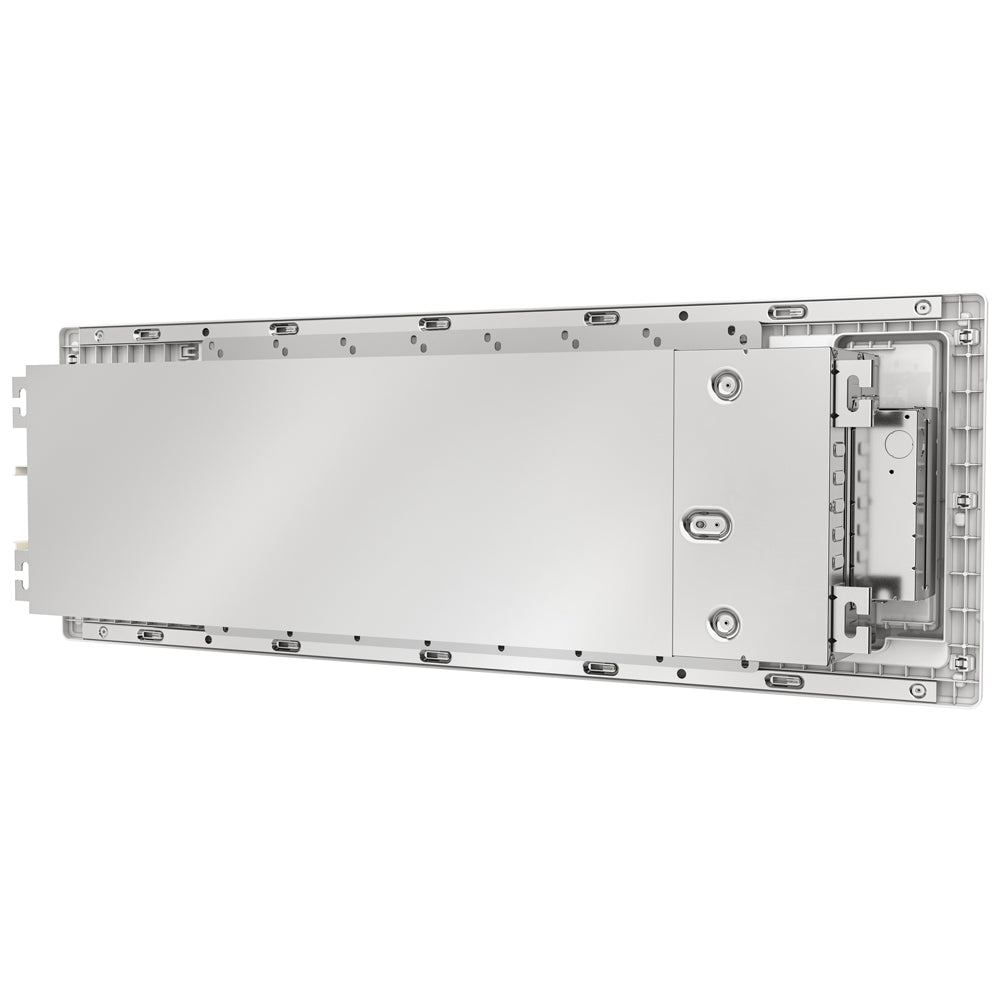

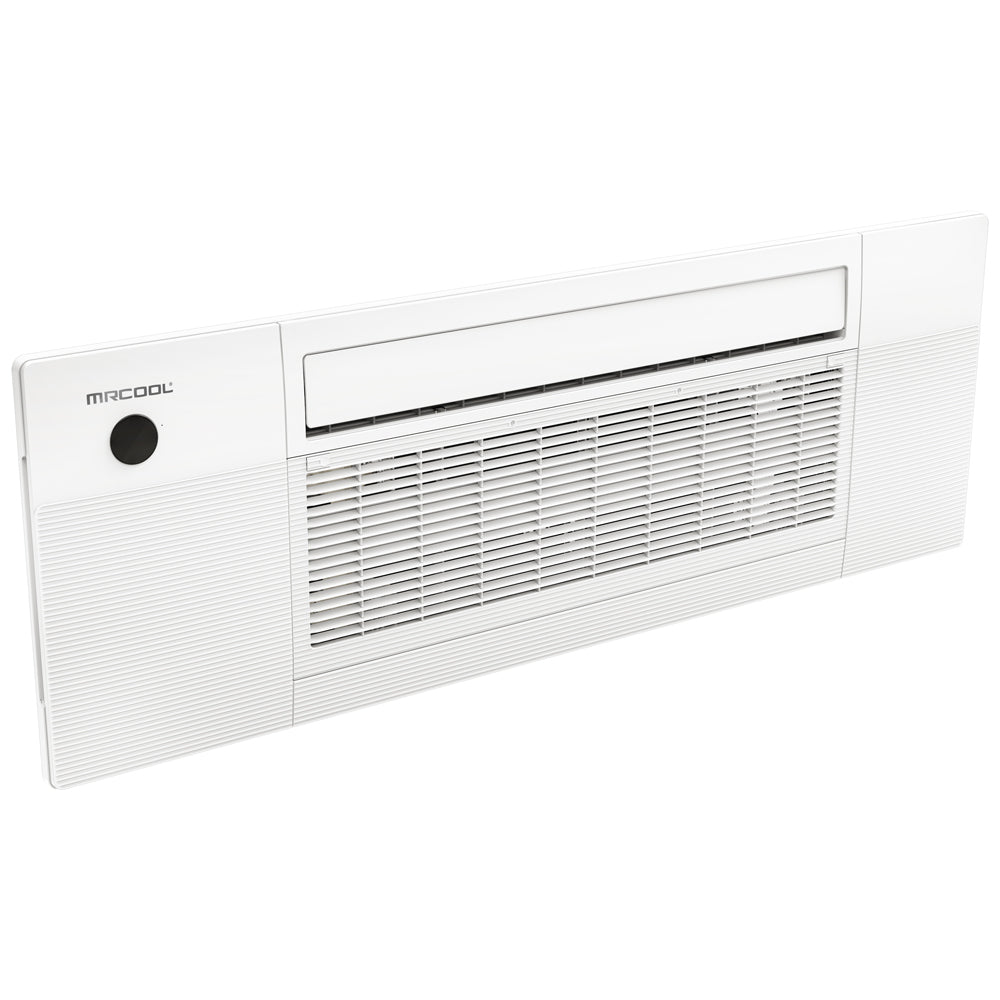

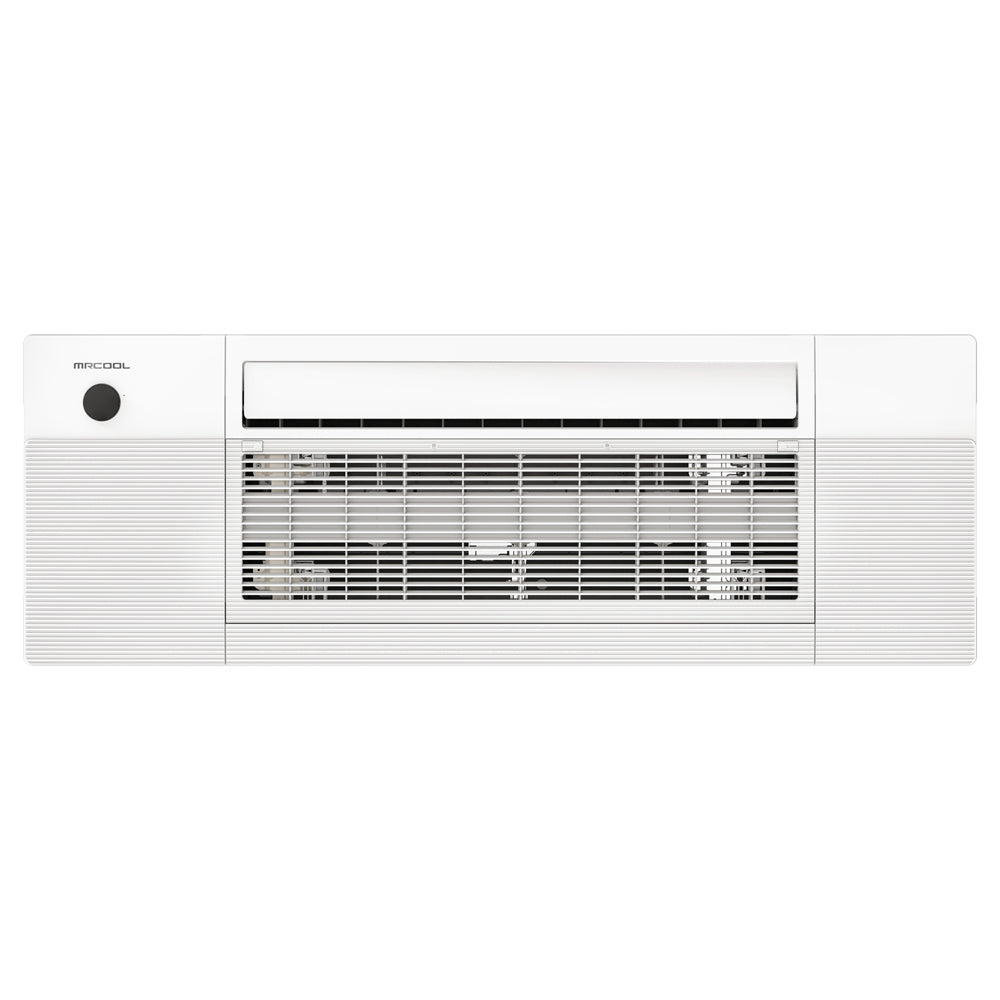

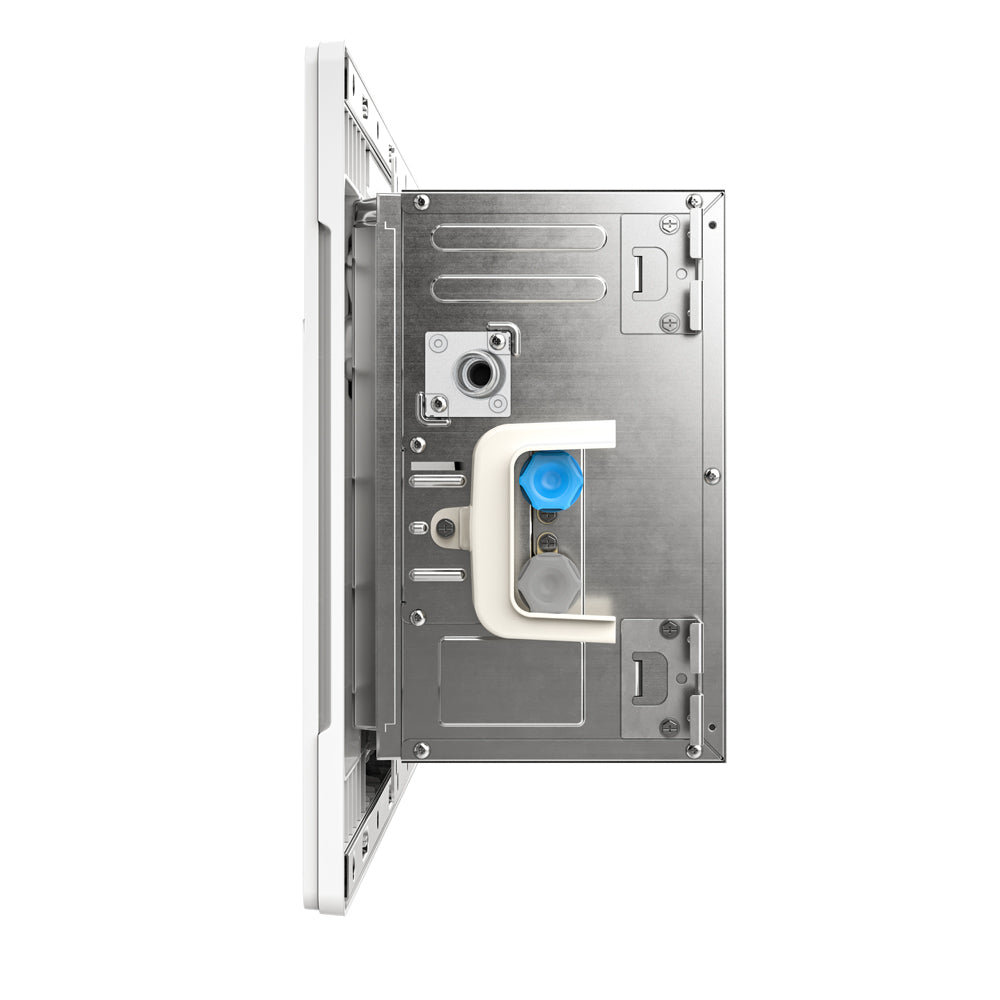

6K One-Way Ceiling Cassette

• Coverage: up to 250 sq ft
• Fits between standard 16” ceiling joists
• Flush, modern appearance
• Ultra-quiet operation with advanced filtration



WHAT’S INCLUDED IN THIS CUSTOM BUNDLE

✔ MRCOOL® DIY® 48,000 BTU Multi-Zone Outdoor Condenser

✔ MRCOOL® 36K DIY Hybrid Ducted Air Handler

✔ MRCOOL® 6K One-Way Ceiling Cassette Indoor Unit

✔ Wireless remote for ceiling cassette

✔ Smart Wi-Fi thermostat for ducted system

✔ Installation manuals & mounting hardware



Line sets and HEAT KITS sold separately

Compatible Heat kits

MVPHK05

MVPHK08
MVPHK10
MVPHK15
MVPHK20



FREQUENTLY ASKED QUESTIONS (FAQ)

Can the ducted system and ceiling cassette be controlled independently?

Yes. Each zone operates separately for precise temperature control.



Is this system truly DIY?

Yes. No refrigerant handling, vacuuming, or licensed installer required.



Can I add auxiliary heat to the ducted air handler?

Yes. Optional heat kits are available for colder climates.



Compatible Heat kits

MVPHK05

MVPHK08
MVPHK10
MVPHK15
MVPHK20



Is this system compatible with smart homes?

Yes. Fully compatible with Alexa®, Google Home®, and the MRCOOL® Smart HVAC App.
