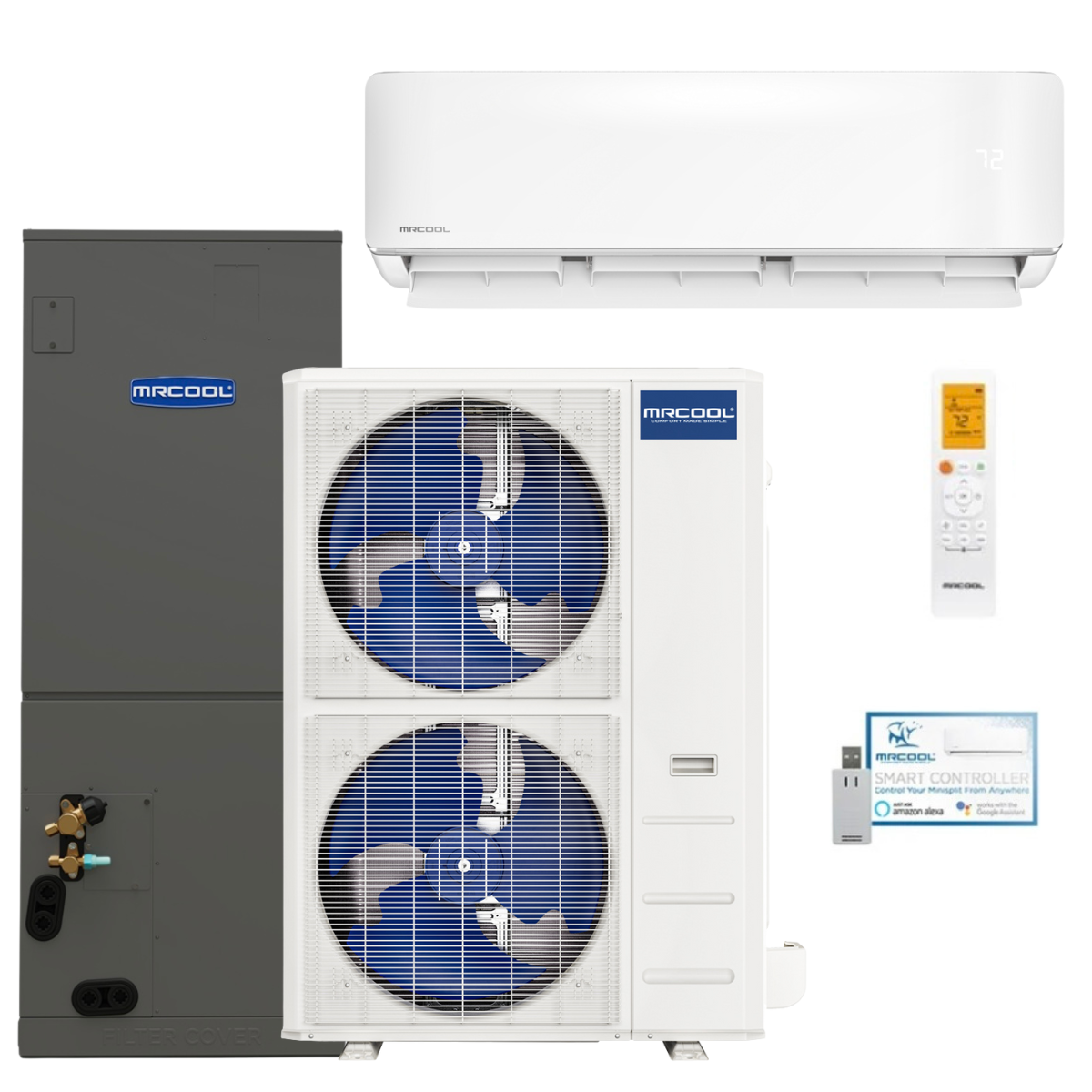

MRCOOL® DIY® Hybrid 48,000 BTU Multi-Zone Heat Pump System (18K Wall Mount + 24K Ducted Air Handler) – 21.8 SEER2 – Model DIYM448HPHY1824

Product Description

The MRCOOL® DIY Hybrid 48,000 BTU Multi-Zone Heat Pump System is a powerful, flexible HVAC solution designed for homeowners who want central-ducted comfort AND ductless zoning—without paying for professional installation.



This hybrid system is powered by the MRCOOL® DIY® 5th Generation 48K multi-zone condenser and pairs an 18,000 BTU wall-mounted air handler with a 24,000 BTU ducted DIY Hybrid™ air handler. This combination is ideal for homes that need open-room ductless control alongside hidden, ducted comfort for bedrooms, hallways, or larger shared spaces.

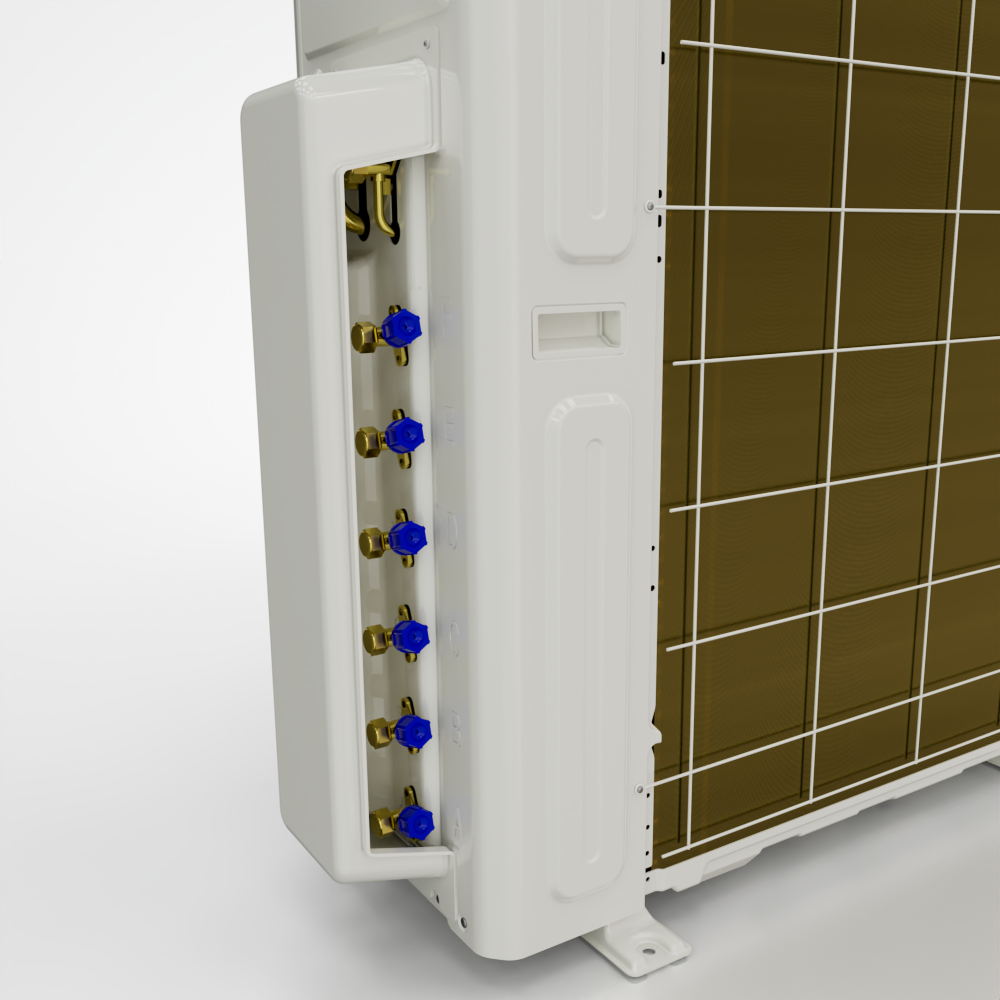

Thanks to MRCOOL®’s patented DIY® QuickConnect® technology, installation requires no vacuum pumps, gauges, or licensed HVAC contractor. The system arrives pre-charged with R-454B refrigerant, offering improved efficiency and lower environmental impact compared to older refrigerants.



With DC inverter technology, quiet operation, and full smart-home compatibility, this hybrid system delivers precise temperature control, lower energy bills, and true DIY convenience—making it one of the most versatile HVAC solutions MRCOOL has ever released.



KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 48,000 BTU total system capacity
• Hybrid ducted + ductless configuration
• (1) 18K wall-mounted air handler
• (1) 24K ducted DIY Hybrid™ air handler
• 21.8 SEER2 high-efficiency rating
• DC inverter variable-speed compressor
• DIY® QuickConnect® pre-charged line sets
• R-454B eco-friendly refrigerant
• Multi-position ducted air handler (upflow, downflow, horizontal)
• Gold Fin® corrosion-resistant coils
• MRCOOL® Smart HVAC Controller® App
• Alexa®, Google Home®, and Wi-Fi compatible
• ENERGY STAR® & AHRI certified



ELECTRICAL REQUIREMENTS & BREAKER INFO

Outdoor Condenser – DIY-MULTI6-48HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 40 Amps
• Maximum Breaker Size: 45 Amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

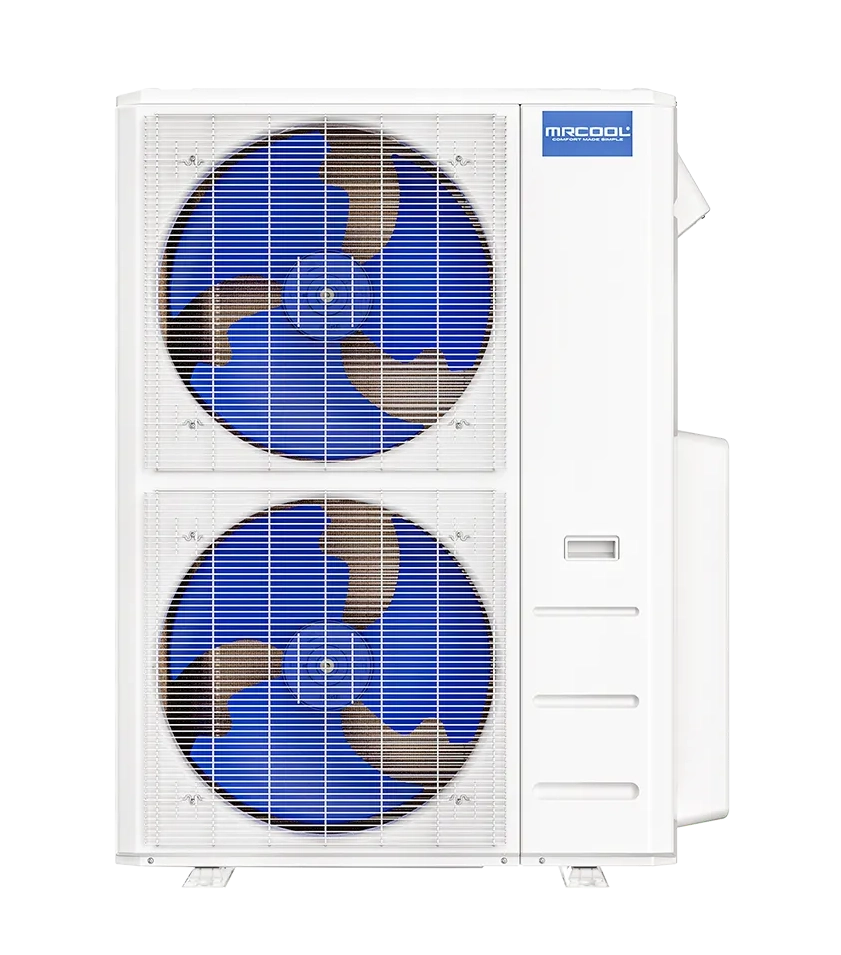

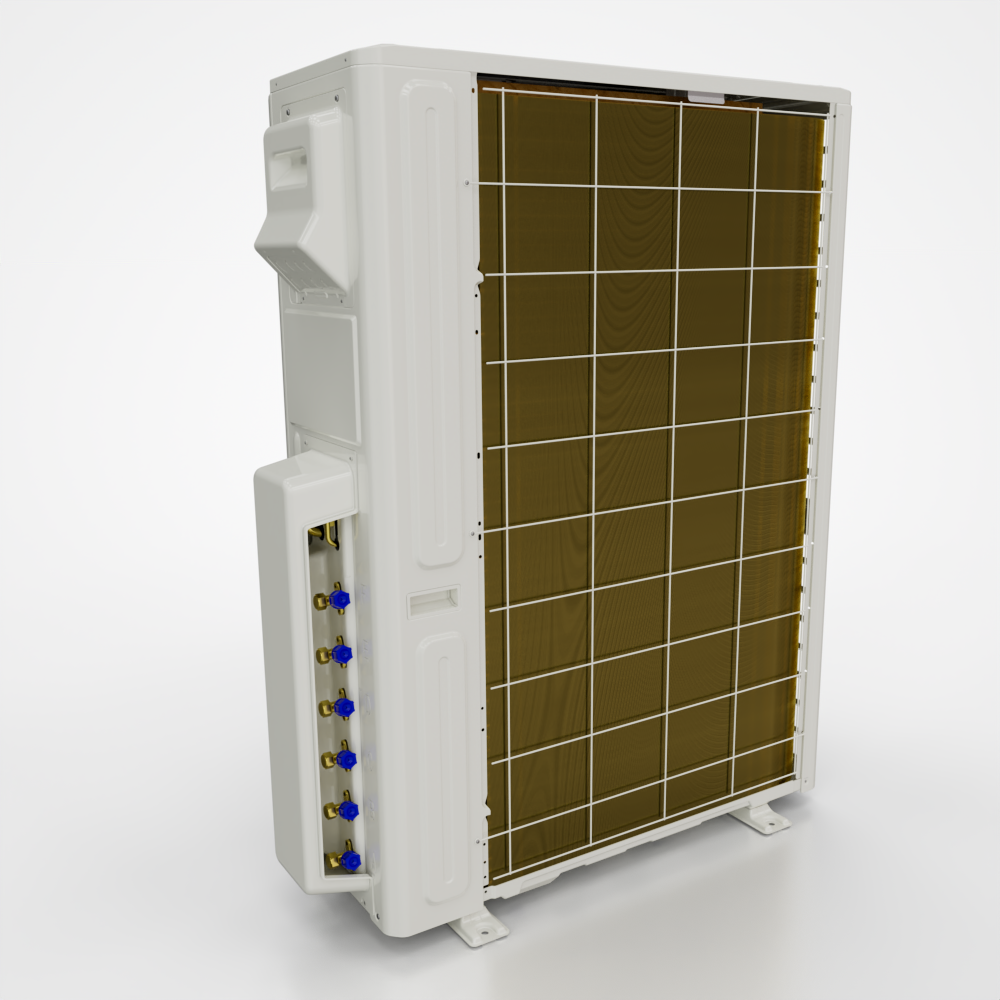

Outdoor Condenser

• Width: 37.48 in
• Height: 52.48 in
• Depth: 16.34 in
• Weight: ~224 lbs

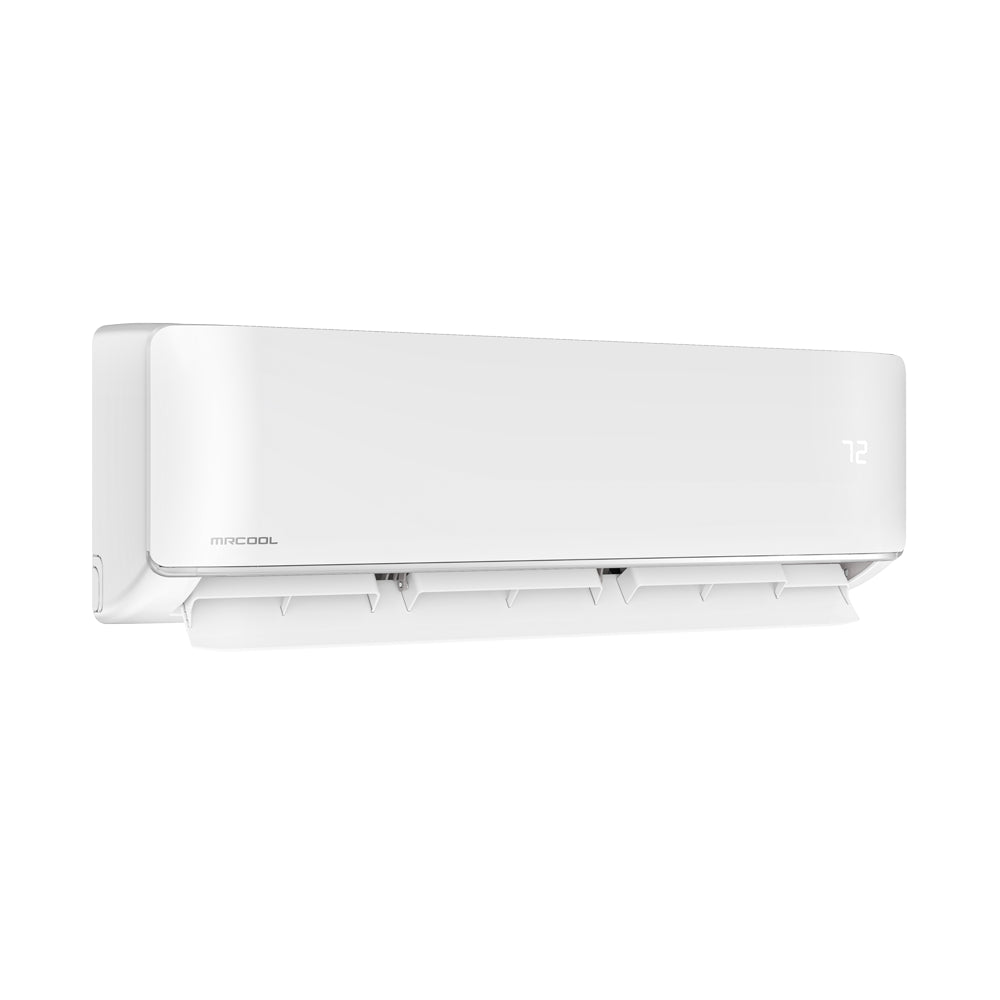

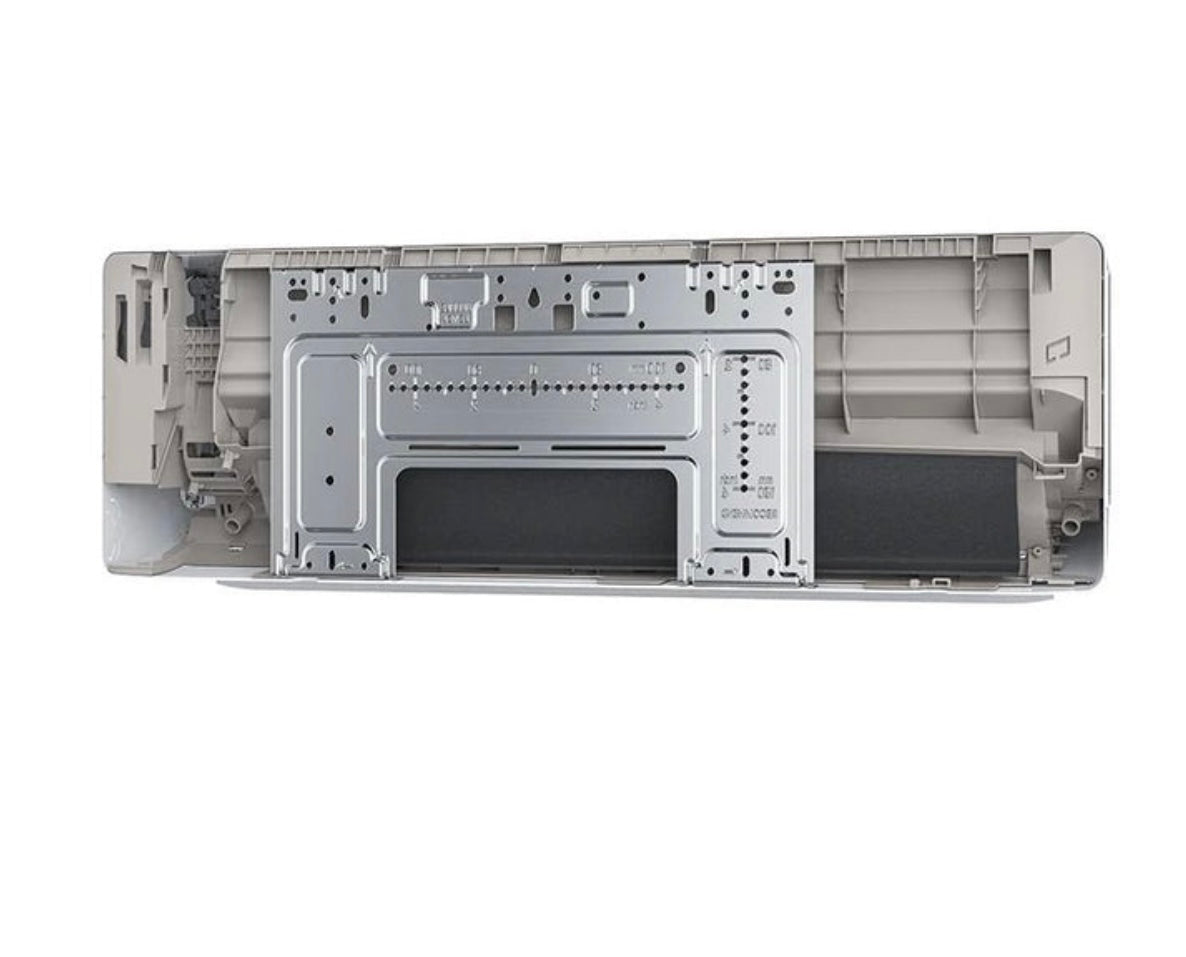

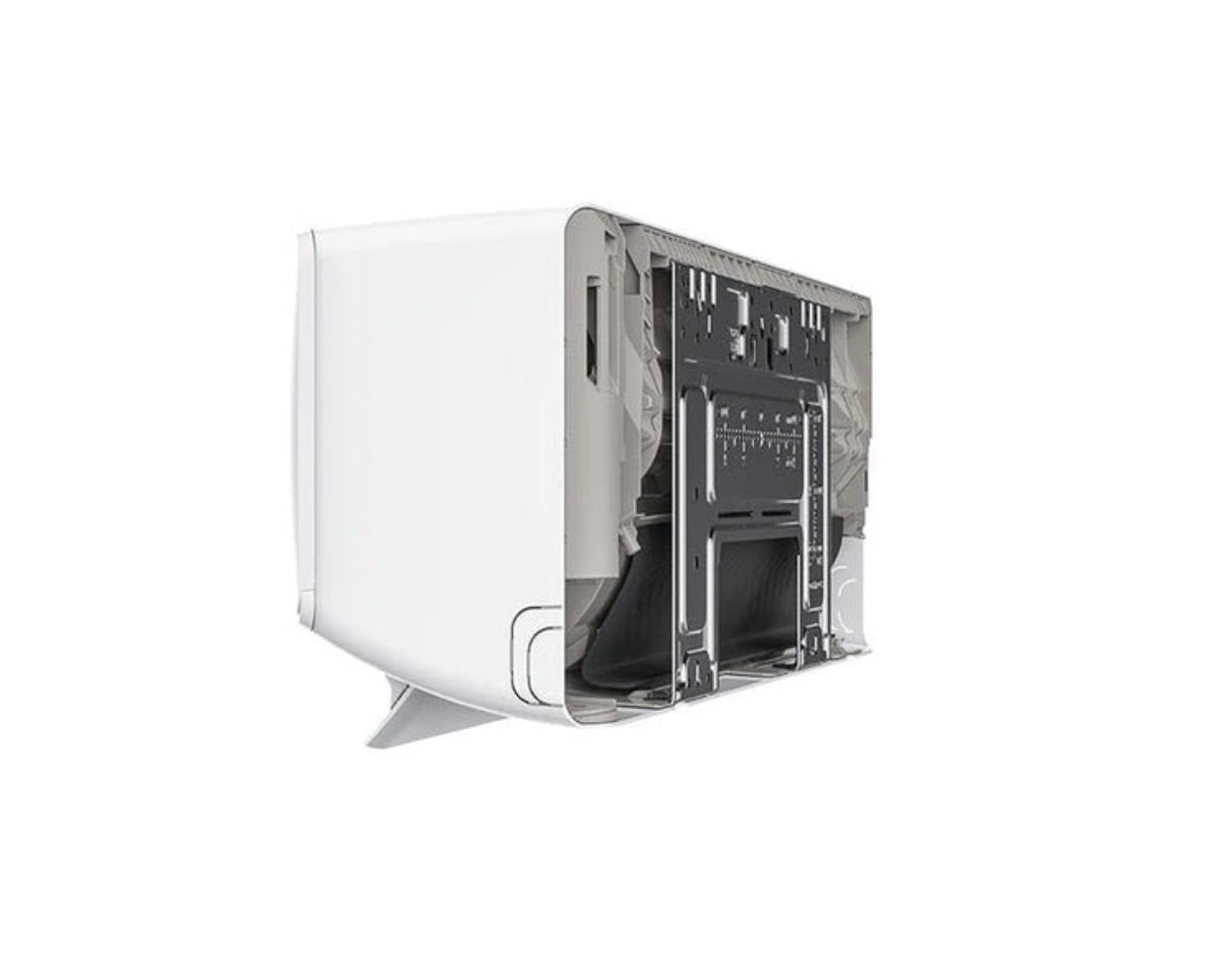

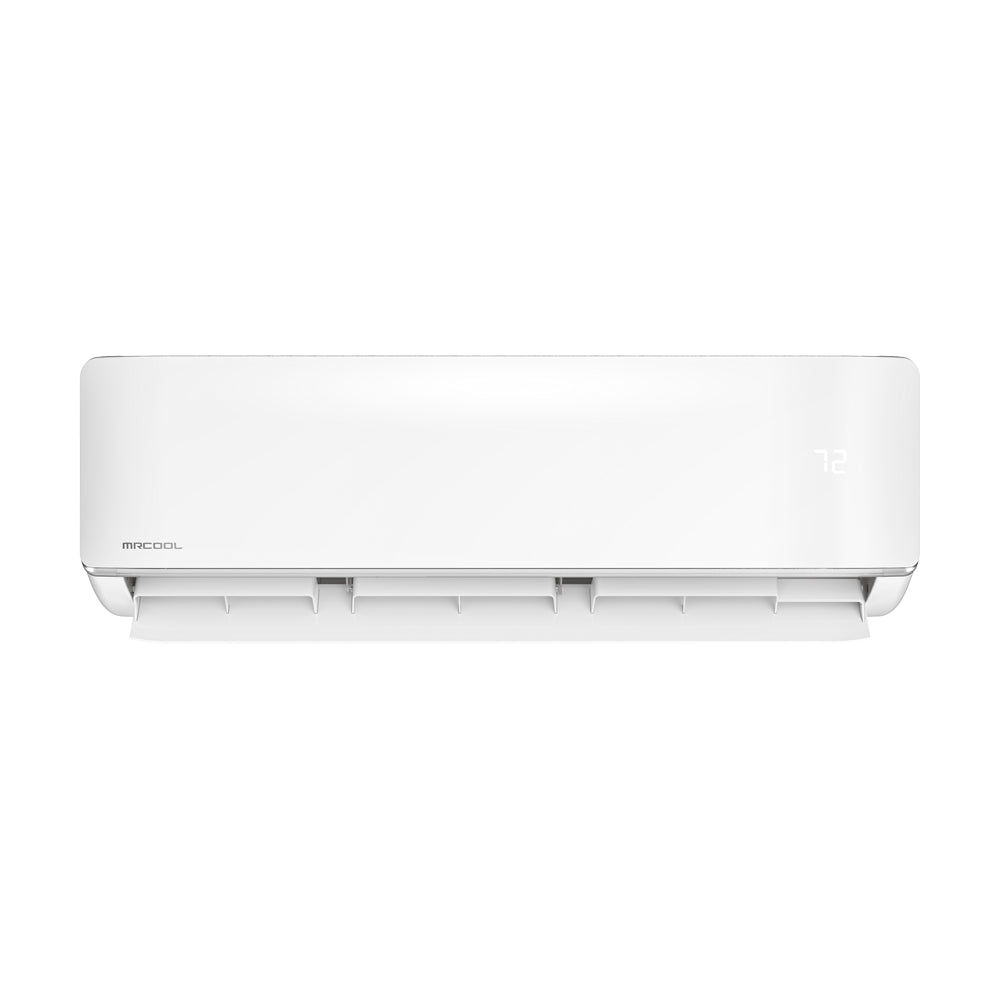

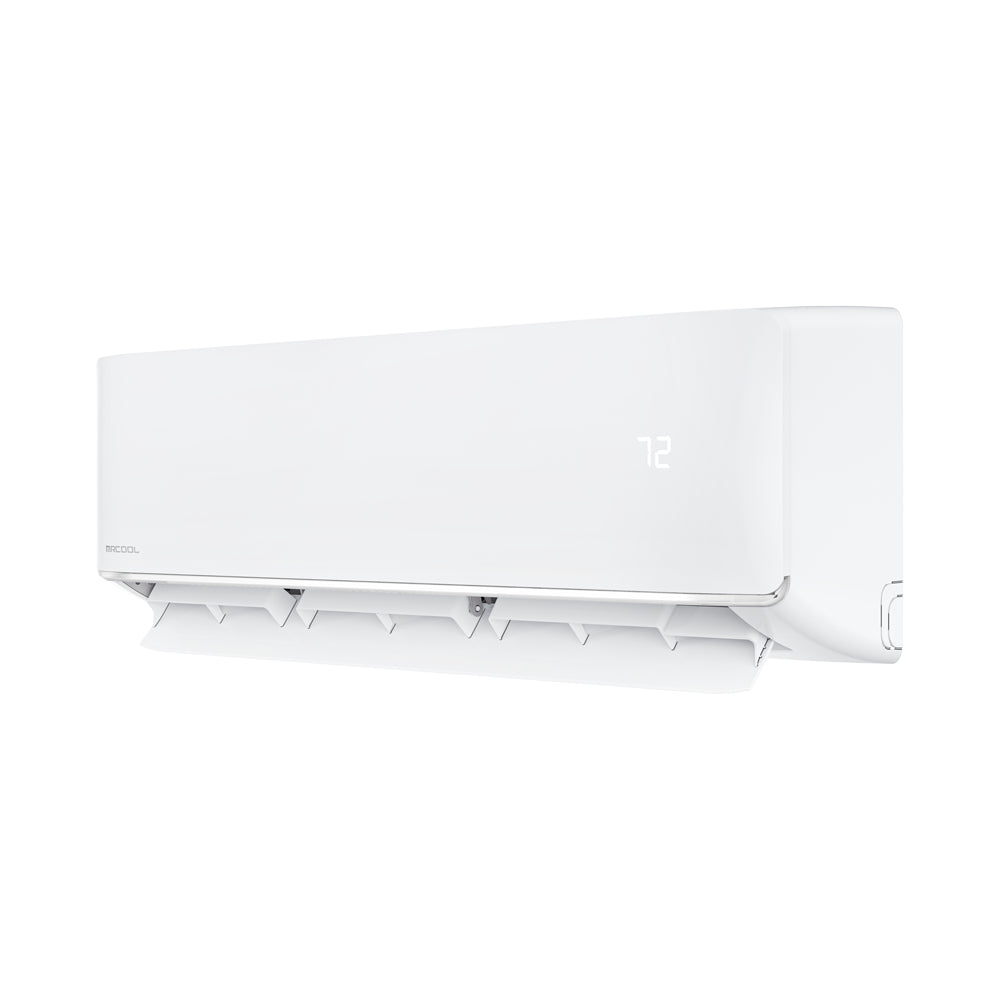

18K Wall-Mounted Air Handler

• Width: 41.34 in
• Height: 12.52 in
• Depth: 9.06 in
• Weight: ~35 lbs

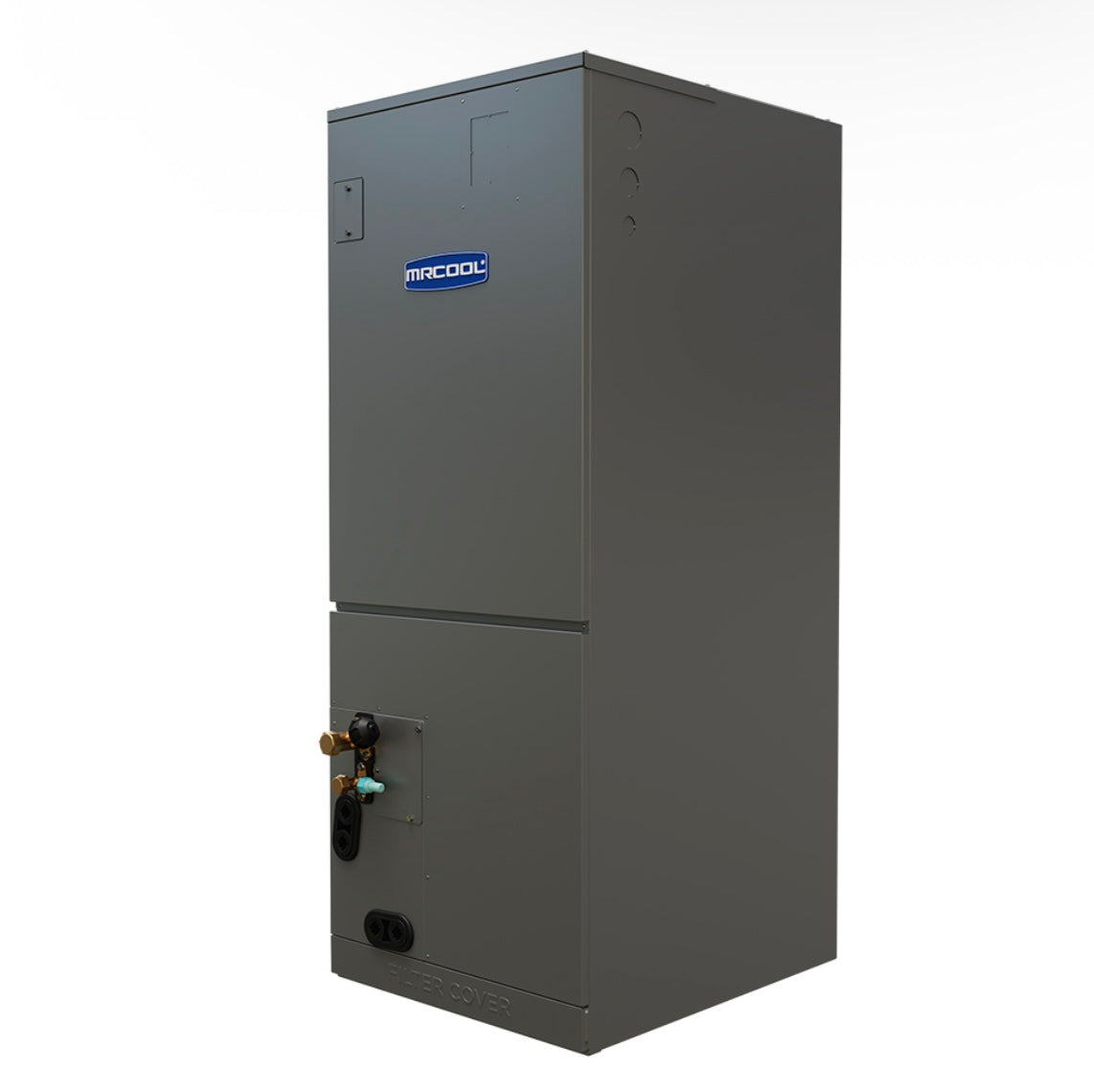

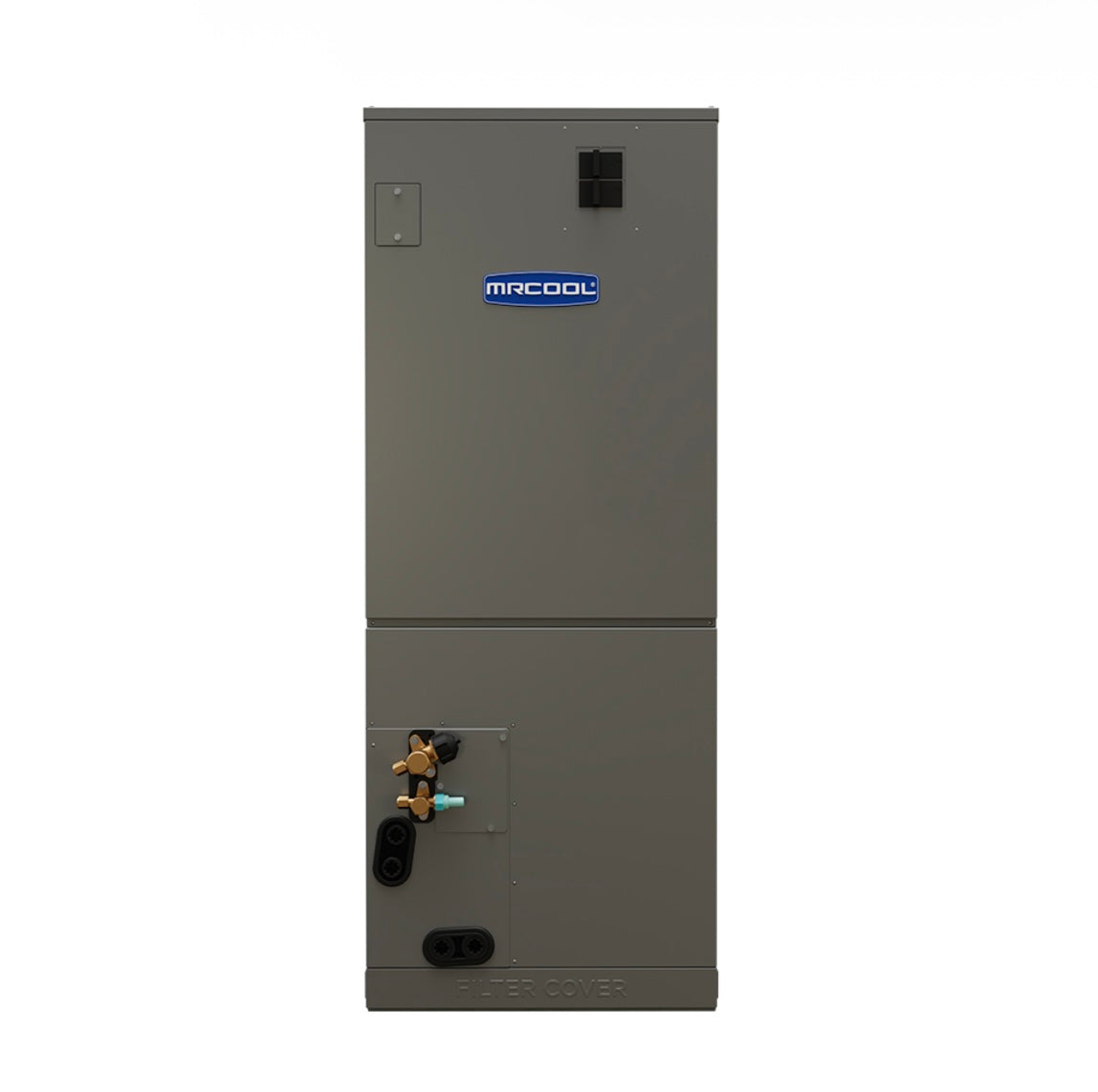

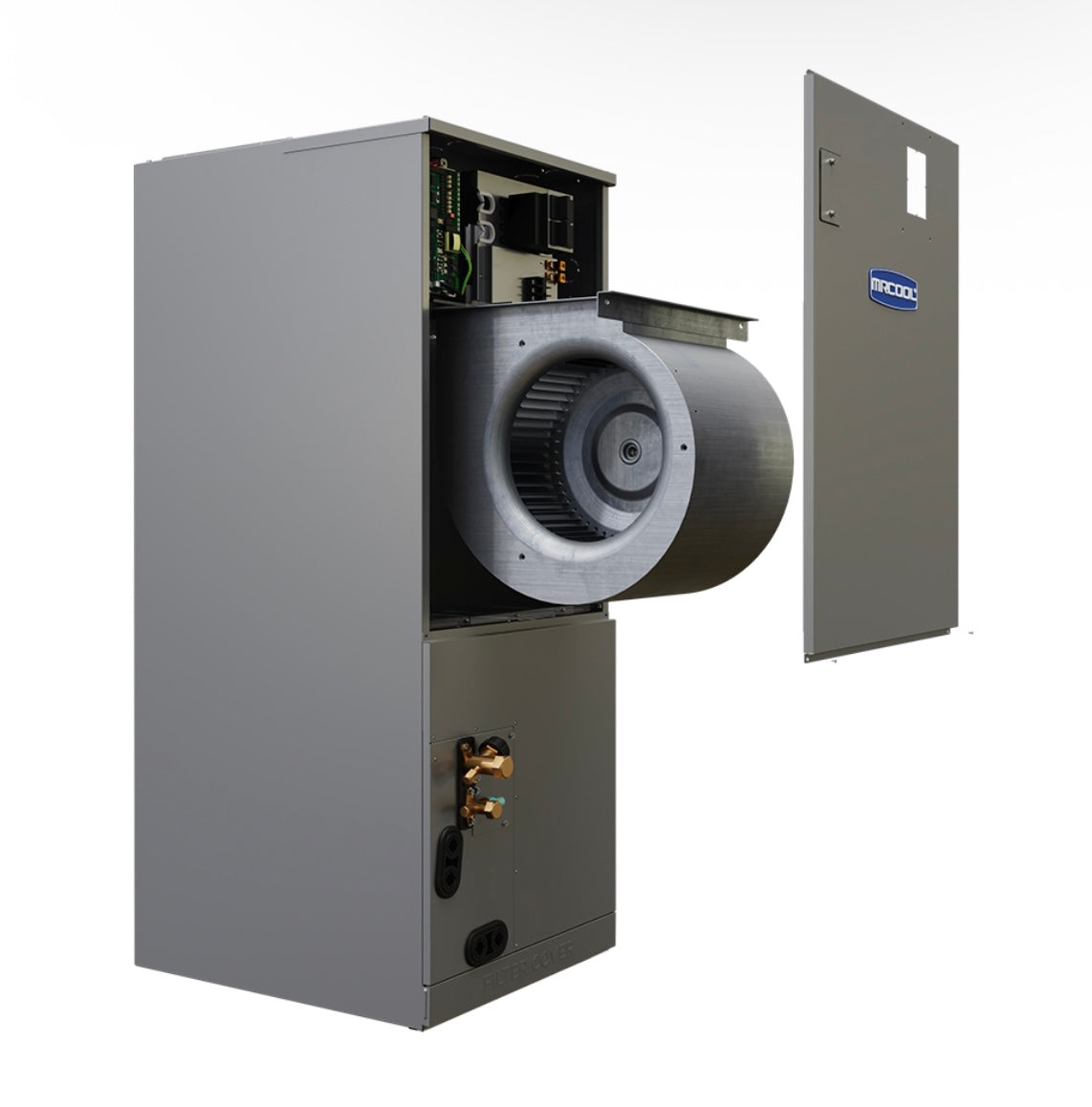

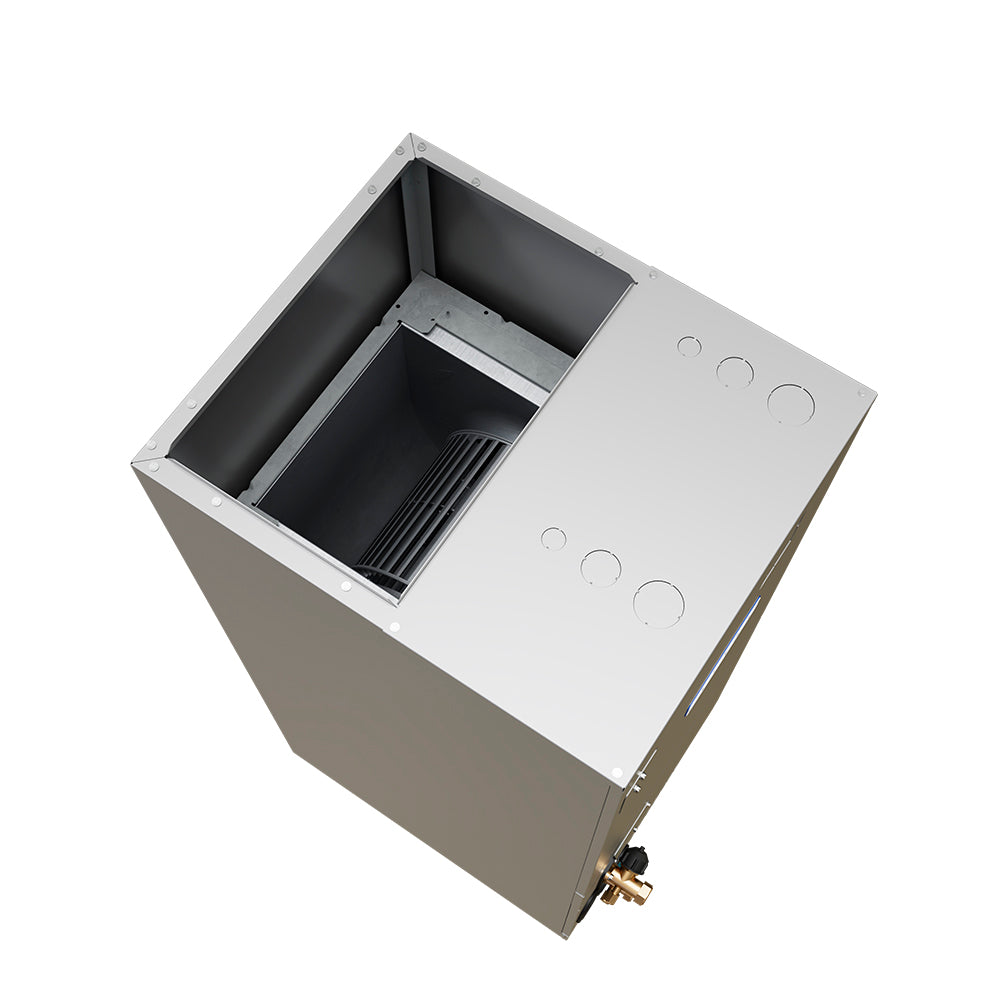

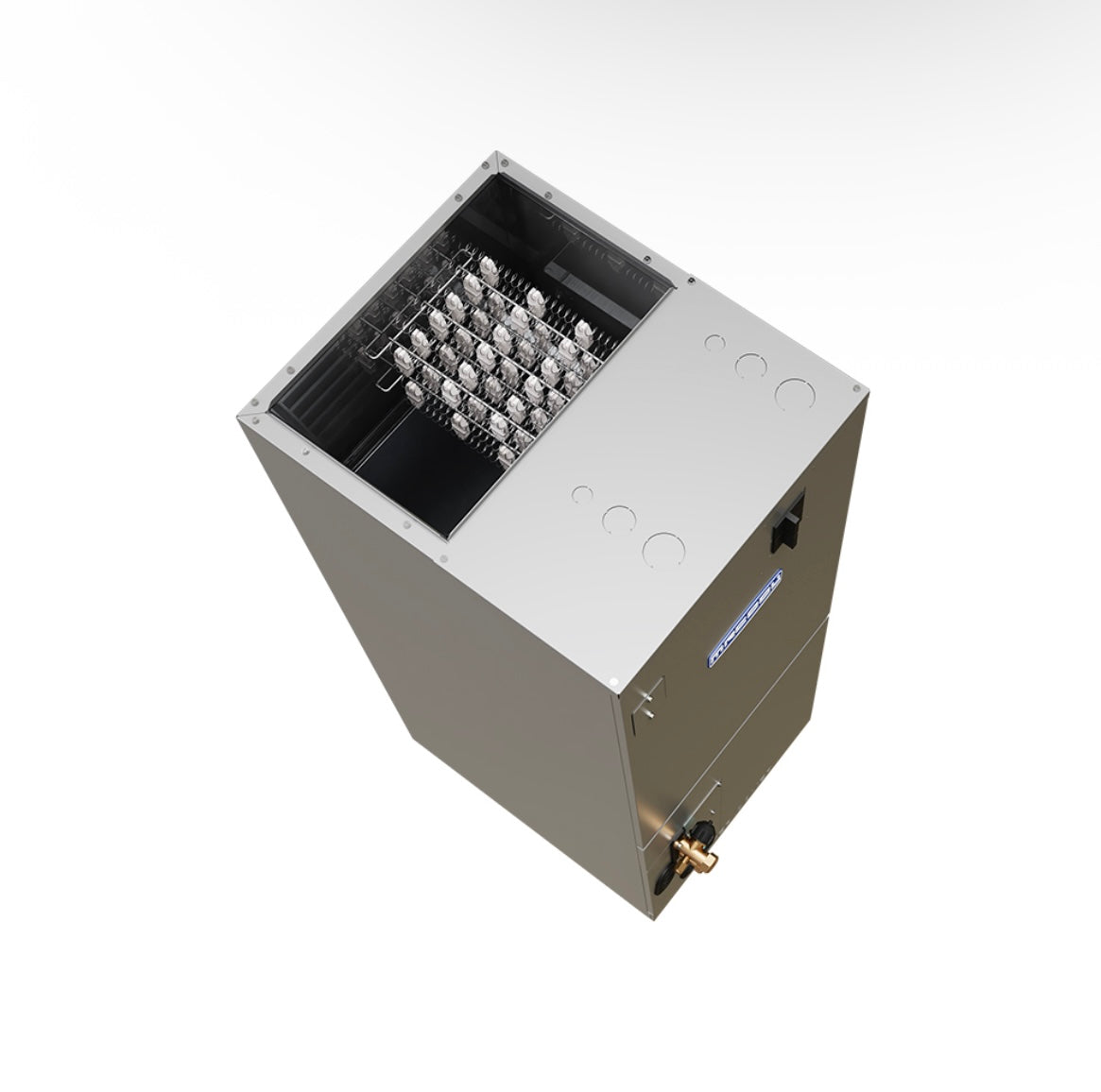

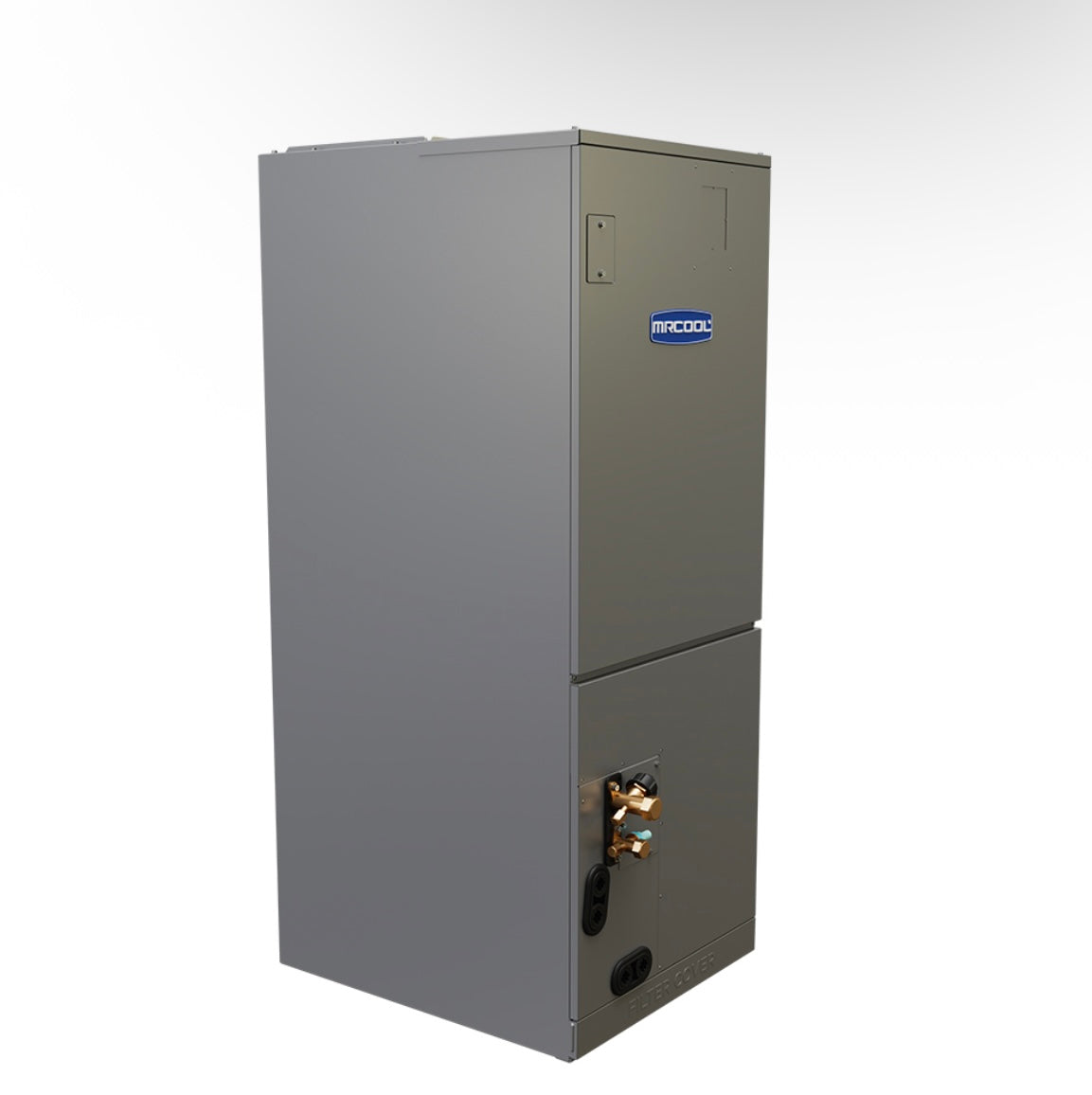

24K DIY Hybrid™ Ducted Air Handler

• Width: 17.52 in
• Height: 45 in
• Depth: 21.02 in
• Weight: ~105 lbs



WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (with MRCOOL® Care Program registration)



WHAT’S INCLUDED IN THIS BUNDLE

✔ MRCOOL® DIY® 48K Multi-Zone Outdoor Condenser

✔ MRCOOL® 18K Wall-Mounted Indoor Air Handler

✔ MRCOOL® 24K DIY Hybrid™ Ducted Air Handler

✔ MRCOOL® Smart Wi-Fi Thermostat

✔ Wireless remote for wall unit

✔ Installation manuals & mounting hardware



Line sets and Heat Kits sold separately

Compatible Heat kits

MVPHK05

MVPHK08
MVPHK10
MVPHK15

FREQUENTLY ASKED QUESTIONS (FAQ)

Can ducted and ductless units run together?

Yes. Each zone operates independently.



Is professional HVAC installation required?

No. This system is designed for true DIY installation.



Does this system support smart homes?

Yes. Works with Alexa®, Google Home®, and MRCOOL® Smart HVAC App.



Can I add electric heat kits?

Yes. Optional heat kits are available for the ducted air handler.
