MRCOOL® Hyper Heat 2nd Gen 24K BTU 2 Ton 18.3 SEER2 Central Ducted Heat Pump Split System, CENTRAL-24-HP-230B00-O
MRCOOL® Hyper Heat 2nd Gen 24K BTU 2 Ton 18.3 SEER2 Central Ducted Heat Pump Split System, CENTRAL-24-HP-230B00-O
Available in stock (89)
PRODUCT DESCRIPTION
Model: CENTRAL-24-HP-230B00-0
MRCOOL® Hyper Heat 2nd Gen 24K BTU 2 Ton 18.3 SEER2 Central Ducted Heat Pump Split System
Efficient Year-Round Comfort with Smart Technology & Sustainable R-454B Refrigerant
Upgrade your home's heating and cooling with the MRCOOL® Hyper Heat 2nd Gen 24K BTU 2 Ton Central Ducted Heat Pump Split System. Designed for exceptional performance in extreme temperatures, this system provides efficient and reliable climate control all year long. Whether you’re battling scorching summers or freezing winters, this high-efficiency SEER2-rated unit (up to 18.3 SEER2 & 10 HSPF2-4) ensures superior comfort while lowering energy costs.
Powered by the latest R-454B refrigerant, this eco-friendly system reduces environmental impact without compromising performance. Seamlessly integrate with the MRCOOL® VersaPro® Central Ducted Air Handler and control everything effortlessly with the MRCOOL® Smart Thermostat or SmartHVAC App.
Key Features & Benefits
Year-Round Performance & Energy Efficiency
✔ 18.3 SEER2 & 10 HSPF2-4 for optimized heating and cooling performance
✔ Operates efficiently in extreme cold and heat for reliable year-round comfort
✔ Smart Energy Management reduces utility costs with precise climate control
Smart & Easy Installation
✔ Works with No Vac® Quick Connect® Line Setsfor a fast, hassle-free installation (line sets sold separately)
✔ Includes stub pipes and copper nuts for traditional flare nut configuration
✔ Compact air handler design with multiple mounting options for flexible installation
Eco-Friendly & Long-Lasting Durability
✔ Uses R-454B refrigerant, a sustainable, next-generation cooling solution
✔ Painted galvanized steel exterior on both condenser and air handler for maximum durability
✔ Self-diagnostics panel ensures quick troubleshooting and easy maintenance
Smart Control & Convenience
✔ MRCOOL® Smart Thermostat included for precise, automated temperature control
✔ SmartHVAC App compatibility allows remote monitoring & adjustments
✔ Supports voice control via Alexa, Google Assistant, & Siri
Optional Upgrades & Customization
✔ Compatible with an optional heat kit for additional warmth in colder climates
✔ Versatile installation configurations – supports upflow, downflow, horizontal left/right setups
✔ Industry-leading 10-year warranty on compressor, parts, and labor for peace of mind.

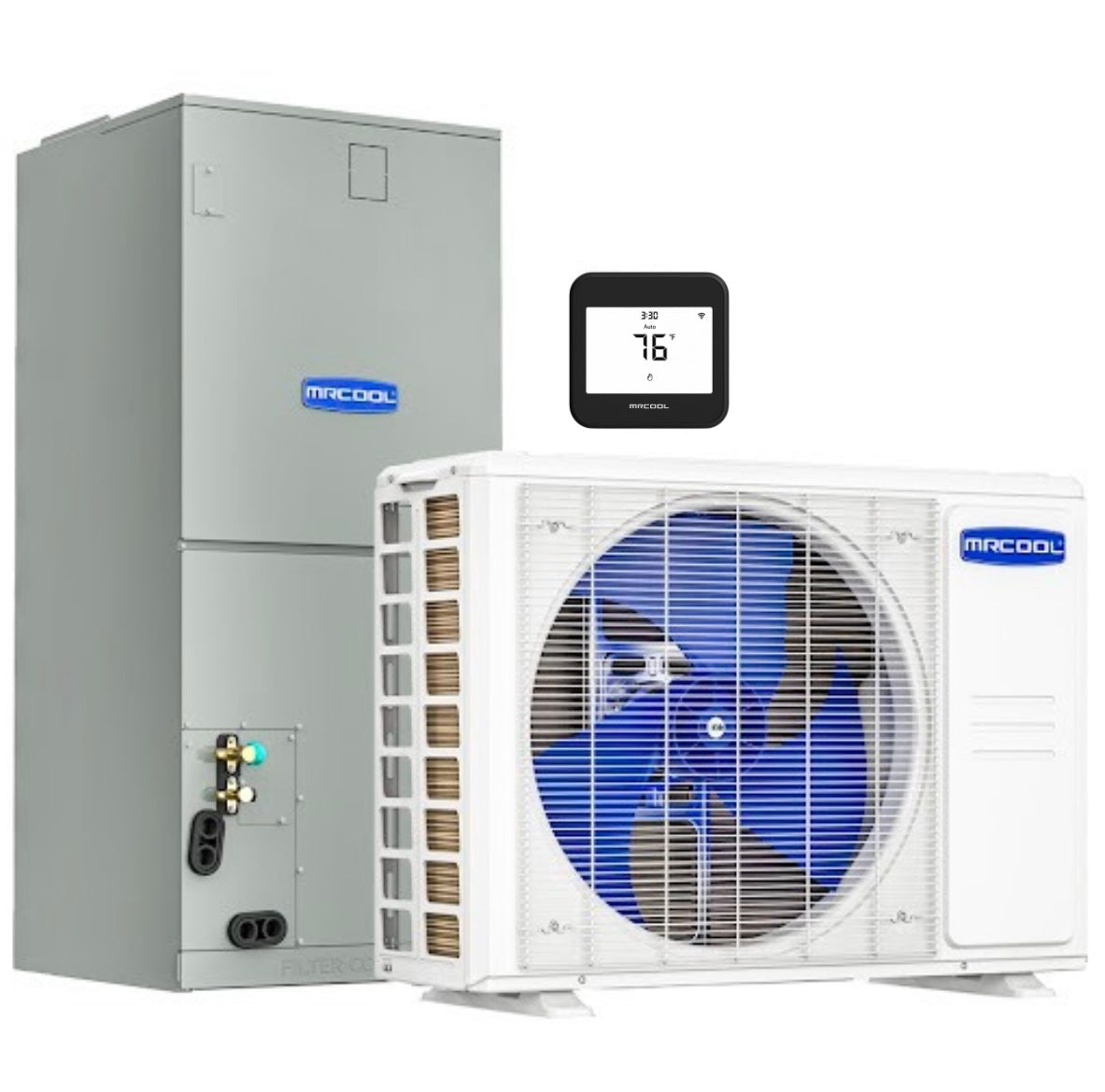

What’s Included?

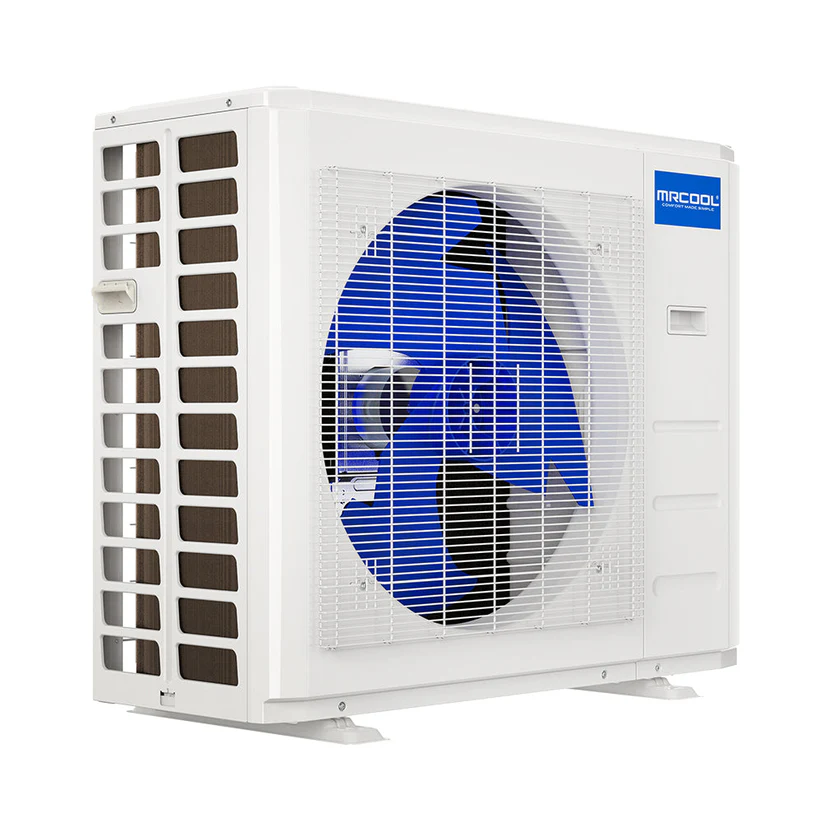

✔ MRCOOL® Hyper Heat 24K BTU 2 Ton Condenser(CENTRAL-24-HP-230B00-O)

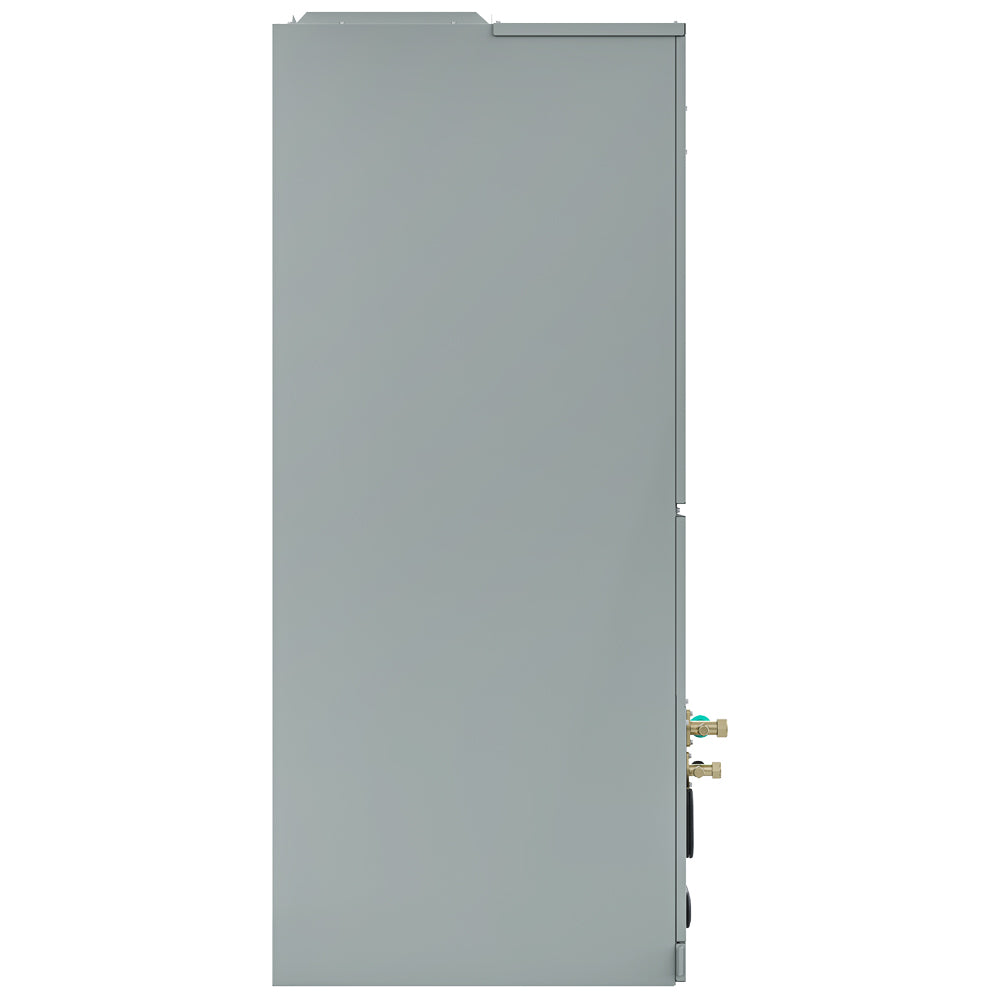

✔ MRCOOL® VersaPro® 2 Ton Central Ducted Air Handler
✔ MRCOOL® Smart Thermostat
Important Note: This system is designed for ducted HVAC setups only. Line sets are not included but can be purchased separately.
SPECIFICATION & DIMENSION
| Category | Specification |
|---|---|

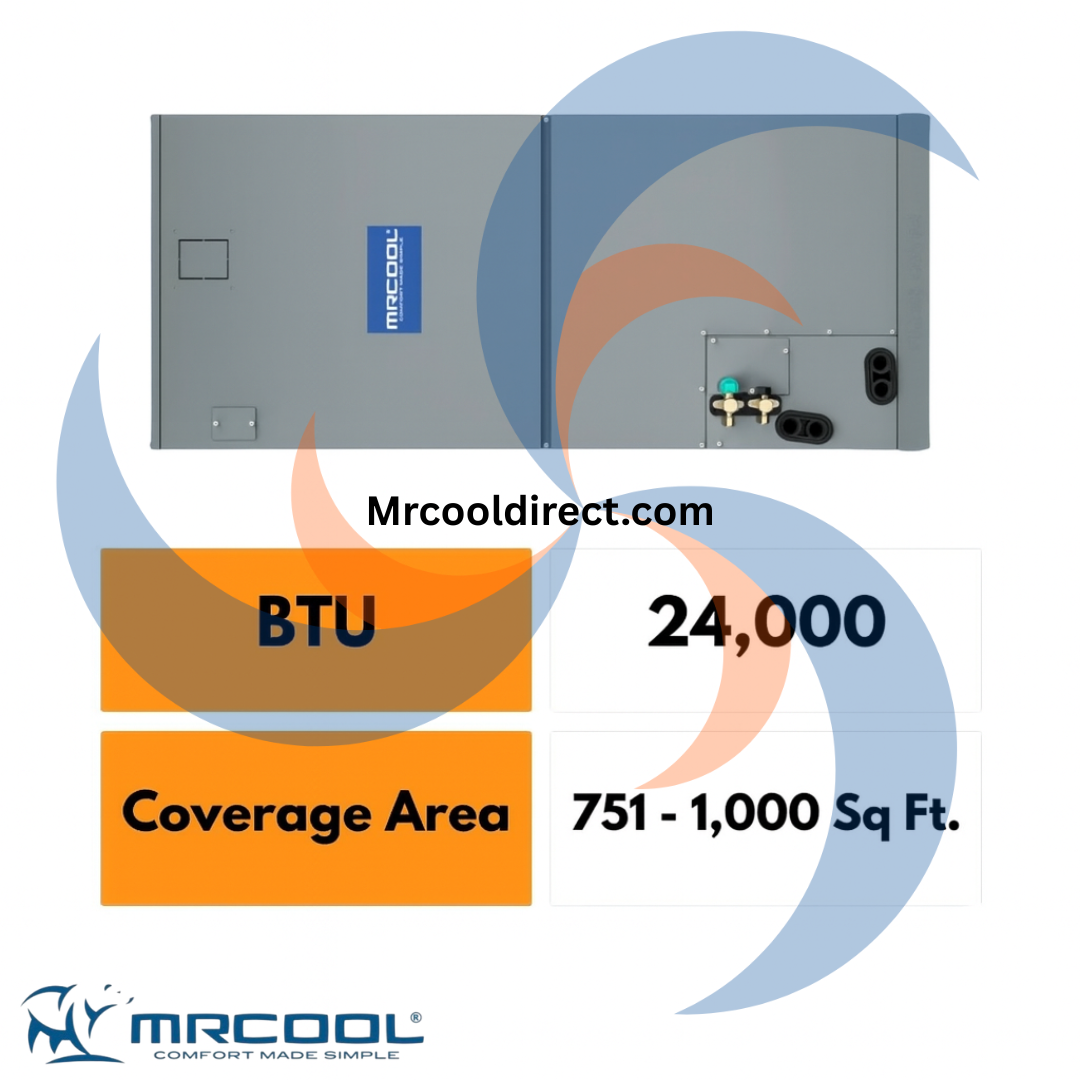

| Cooling Capacity (Btu/h) | 23,000 |
| SEER2 | 18.3 |
| EER2 | 11.7 |
| Heating Capacity (Btu/h) | 24,000 |
| HSPF2-4 | 10.0 |
| HSPF2-5 | 8.0 |
| Indoor Noise Level (Hi/Mi/Lo) | 44 / 42 / 28 dB(A) |
| Outdoor Noise Level | 60 dB(A) |

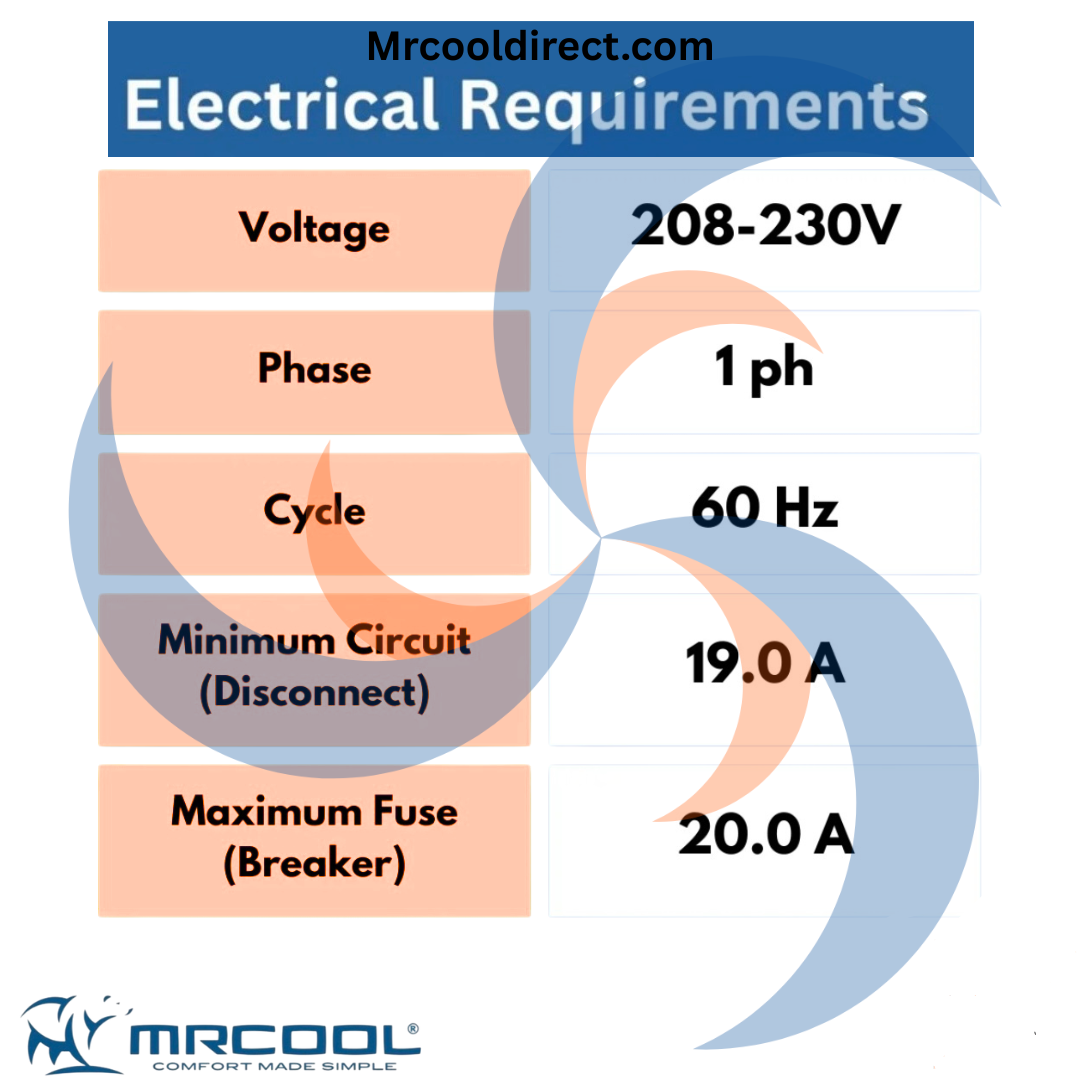

| Power Supply (Indoor) | 208/230V ~ 60Hz, 1ph |
| Power Supply (Outdoor) | 208/230V ~ 60Hz, 1ph |
| Min Circuit Ampacity (Indoor) | 5.5 / 4.0 A |
| Max Fuse (Indoor) | 15 A |
| Min Circuit Ampacity (Outdoor) | 19.0 A |
| Max Fuse (Outdoor) | 20.0 A |
| Indoor Unit Dimensions (WxDxH) | 21.02 x 17.52 x 45.00 in |
| Indoor Packing Dimensions (WxDxH) | 26.57 x 20.87 x 48.62 in |
| Indoor Net/Gross Weight | 105.6 / 127.43 lbs |
| Outdoor Unit Dimensions (WxDxH) | 35.04 x 13.46 x 26.50 in |
| Outdoor Packing Dimensions (WxDxH) | 39.17 x 15.67 x 29.13 in |
| Outdoor Net/Gross Weight | 102.29 / 109.13 lbs |
| Indoor Airflow (CFM Hi/Mi/Lo) | 823 / 758 / 694 / 629 |
| Outdoor Airflow (CFM) | 1765.7 |
| Refrigerant Type | R-454B |
| Refrigerant Charge | 74.08 oz |
| Piping Size (Liquid/Gas) | 3/8" - 3/4" |
Thermostat Description and Specifications
Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat. This device offers personalized heating and cooling options alongside a straightforward DIY installation process. Effortlessly customize settings to enhance your comfort while reducing energy consumption. Enjoy a variety of modes, including vacation mode, to ensure home safety during your absence without increasing energy bills.
Control your thermostat through multiple avenues, such as the intuitive touch-screen display, voice commands via Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app includes useful features like an air filter cleaning monitor and a timeline of recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings. With unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even if the internet is down, you can still maintain control using the thermostat directly. Backed by a 3-year warranty, the MRCOOL Smart Thermostat combines cutting-edge technology, comfort, and efficiency.
- Presets for Home, Away, and Sleep - Ensure ideal temperatures that match your specific needs and preferences
- Smart Schedules - Aligned with your routine for maximum comfort and efficiency.
- Smart Energy Management - Optimize your energy usage
- One App for All HVAC Systems - Manage your systems conveniently
- Global Control - Access and control remotely from anywhere
- Location-Based Automation - Adjusts settings based on your proximity to home
- Vacation Mode - Keeps your home safe without inflating energy bills
- DIY-Friendly Installation - Easy to set up on your own
- Compatibility - Works with Alexa, Google Assistant, Siri, and MRCOOL® Link
- Hassle-Free Registration - Quick and easy registration process
- Track and Optimize Energy Usage - Monitor and fine-tune your energy consumption
- Important Note: Made for Ducted Systems only.
Why Choose MRCOOL Direct?
At MRCOOL Direct, we offer nationwide delivery, expert support, and the best selection of MRCOOL® Hyper Heat systems. Whether you're upgrading your home’s HVAC or installing a new energy-efficient solution, this system is built for long-lasting performance, smart convenience, and cost savings.
Shop and purchase with confidence & enjoy year-round comfort with MRCOOL Direct!
