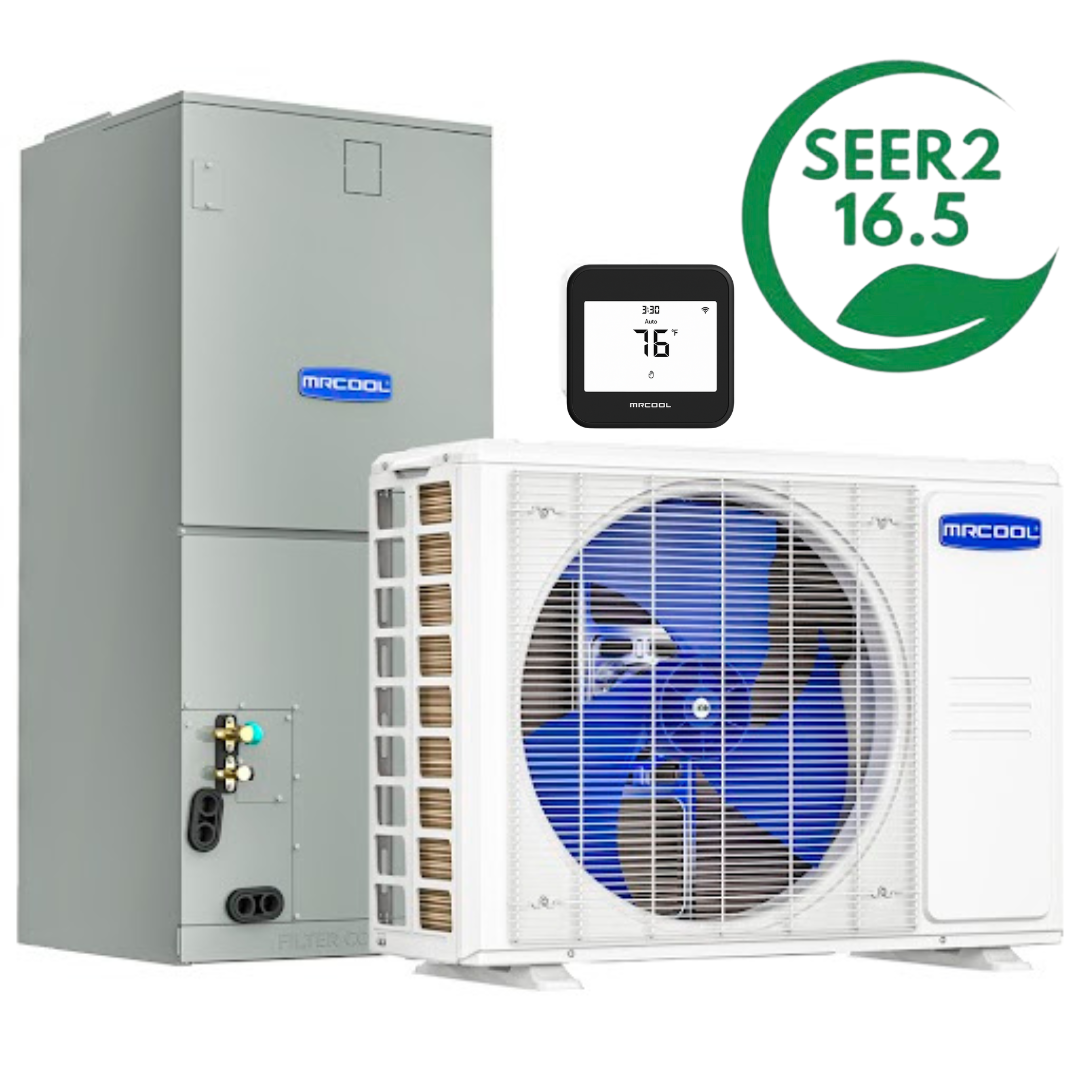

Stay comfortable through every season with the MRCOOL® Hyper Heat 2nd Gen 48K BTU Central Ducted System, engineered to deliver reliable performance even in extreme temperatures. Featuring an impressive SEER2 rating of up to 16.5 and an HSPF2-4 rating of 9.5, this high-efficiency heat pump split system is perfect for homes looking to upgrade to smarter, more sustainable HVAC technology.
Powered by MRCOOL's advanced inverter technology and the latest environmentally friendly R-454B refrigerant, this 4-ton Hyper Heat unit ensures maximum comfort with minimal impact. Compatible with the VersaPro™ Central Ducted Air Handler, this system offers unmatched flexibility, whether you're doing a new install or replacing an outdated system.
🌟 Key Features & Benefits:
-
Year-Round Comfort: Delivers strong heating and cooling in both sub-zero winters and scorching summers.
-
Energy Efficient: Achieve lower utility bills with up to 16.5 SEER2 cooling efficiency and 9.5 HSPF2-4 heating performance.
-
Smart Thermostat Control: Easily manage your indoor climate with the included MRCOOL® Smart Thermostat or the SmartHVAC App, compatible with Alexa, Google Assistant, and Siri.
-
Quick & Easy Installation: Designed to work with No-Vac® Quick Connect® Line Sets—pre-charged with R-454B refrigerant for faster setup. Copper stub pipes and flare fittings included for traditional installs.
-
Versatile Configuration: Compatible with upflow, downflow, and horizontal applications when paired with the VersaPro air handler.
-
Eco-Friendly Refrigerant: Uses R-454B, a more sustainable choice with lower global warming potential.
-
Durable Build: Heavy-duty painted galvanized steel cabinet resists corrosion and harsh weather.
-
Hassle-Free Maintenance: Slide-out blower, compact air handler design, and self-diagnostics panel simplify service and upkeep.
-
Peace of Mind Warranty: Covered by an industry-leading 10-year parts, compressor, and labor warranty (labor coverage activates automatically upon installation).
🔧 Technical Specs:
-

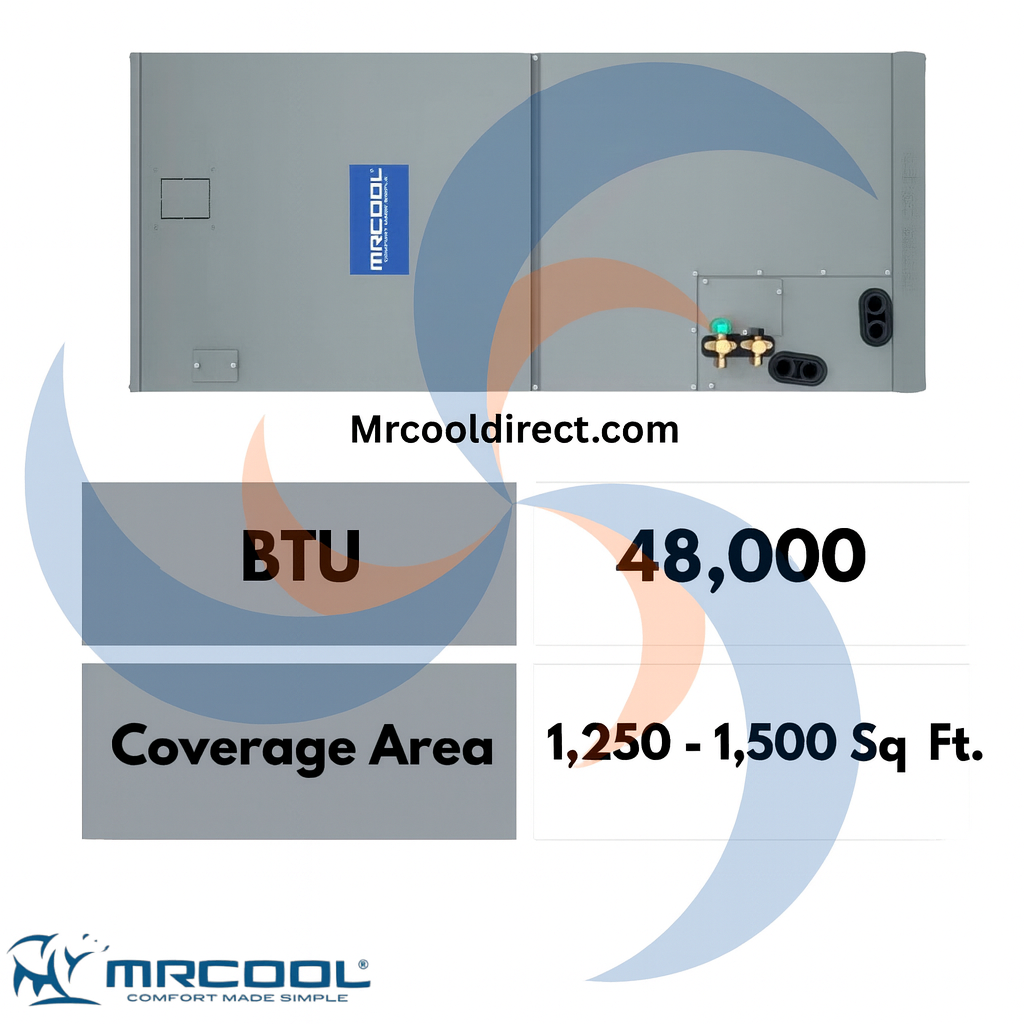

Capacity: 48,000 BTU (4 Ton)
-
SEER2: Up to 16.5
-
HSPF2-4: Up to 9.5
-
Refrigerant: R-454B
-
Voltage: 208/230V, 1-Phase, 60Hz
-
Compatible Line Set: No-Vac® Quick Connect® (sold separately)
📦 What’s Included:
-

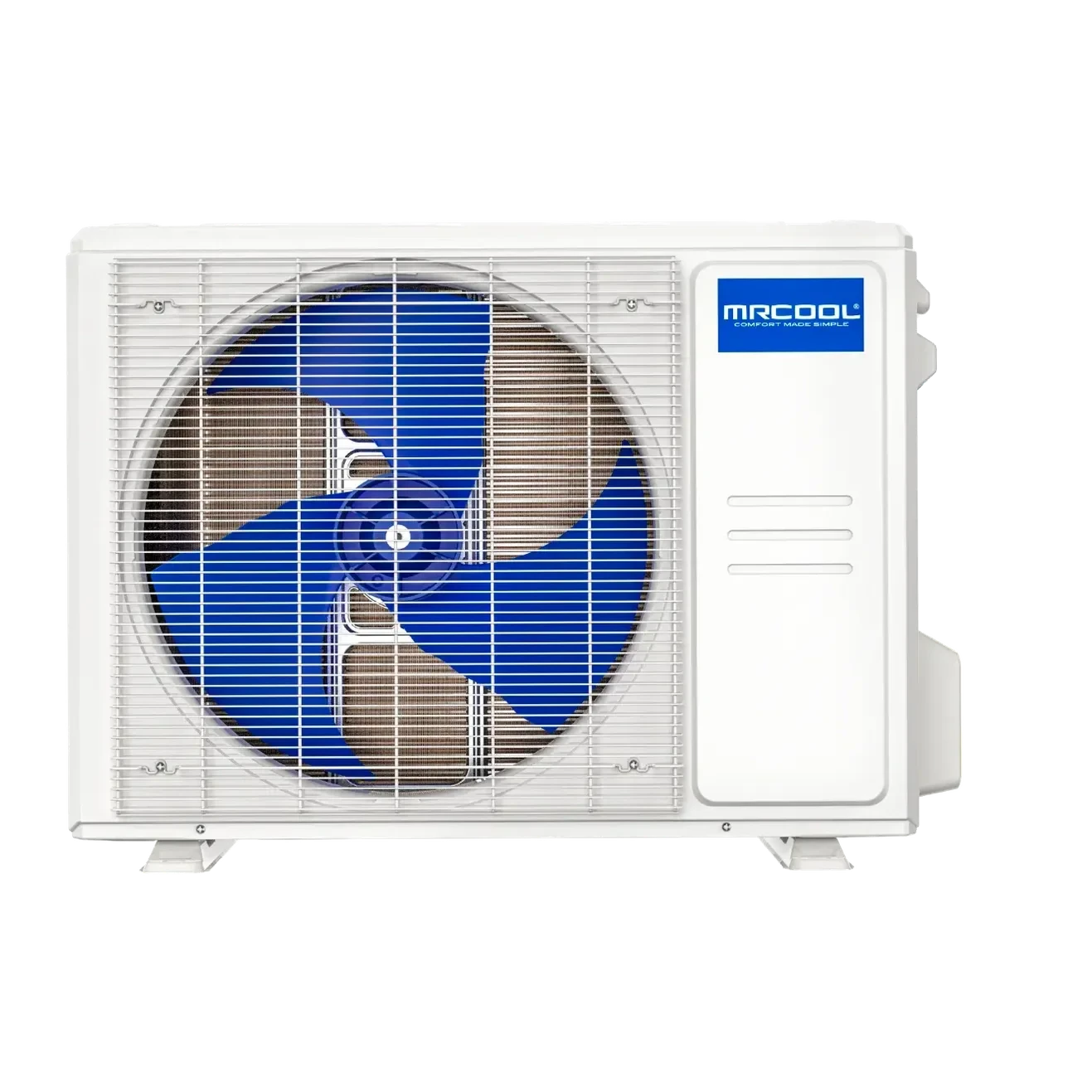

48K BTU MRCOOL® Hyper Heat 2nd Gen Outdoor Condenser (CENTRAL-48-HP-230B00-O)
-
Stub pipes and flare nut fittings
-
MRCOOL® Smart Thermostat
-
10-Year Warranty (parts, compressor, and labor)
Note: Air handler, line sets, and heat kits are sold separately. For best results, pair with the MRCOOL® VersaPro™ 48K Central Ducted Air Handler.
SPECIFICATION & DIMENSIONS
| Category |
Specification |
| Cooling Capacity (Btu/h) |
48,000 |
| SEER2 |
16.5 |
| EER2 |
10.5 |
| Heating Capacity (Btu/h) |
50,000 |
| HSPF2-4 |
9.5 |
| HSPF2-5 |
8.0 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) |
52 / 50 / 34 dB(A) |
| Outdoor Noise Level |
65.0 dB(A) |

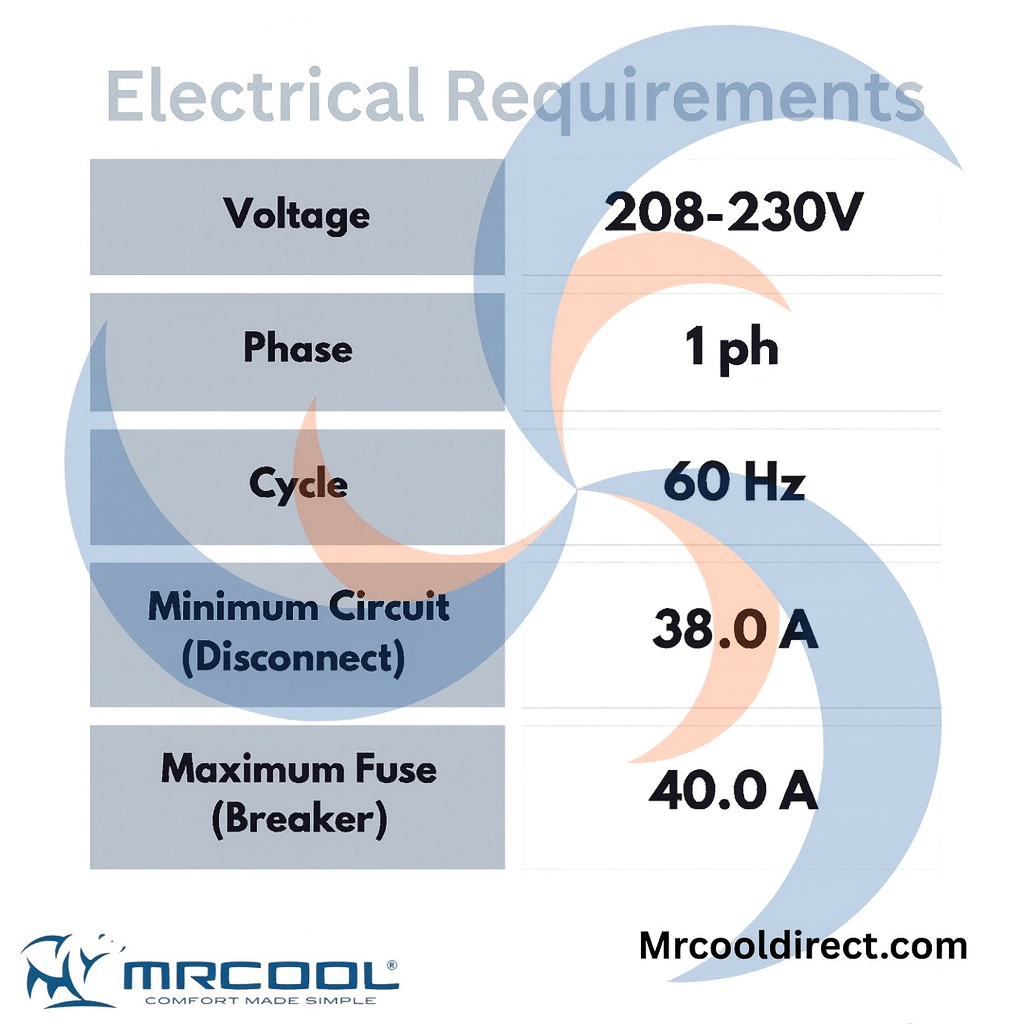

| Power Supply (Indoor) |
208/230V ~ 60Hz, 1ph |
| Power Supply (Outdoor) |
208/230V ~ 60Hz, 1ph |
| Min Circuit Ampacity (Indoor) |
14.5 / 11.0 A |
| Max Fuse (Indoor) |
15 A |
| Min Circuit Ampacity (Outdoor) |
38.0 A |
| Max Fuse (Outdoor) |
40.0 A |
| Indoor Unit Dimensions (WxDxH) |
21.02 x 24.49 x 52.99 in |
| Indoor Packing Dimensions (WxDxH) |
27.95 x 26.77 x 56.50 in |
| Indoor Net/Gross Weight |
162.92 / 190.92 lbs |
| Outdoor Unit Dimensions (WxDxH) |
38.58 x 16.34 x 38.39 in |
| Outdoor Packing Dimensions (WxDxH) |
45.08 x 19.68 x 42.52 in |
| Outdoor Net/Gross Weight |
201.06 / 232.36 lbs |
| Indoor Airflow (CFM Turbo/Hi/Mi/Lo) |
1601 / 1471 / 1283 / 1094 |
| Outdoor Airflow (CFM) |
3037.1 |
| Refrigerant Type |
R-454B |
| Refrigerant Charge |
134.04 oz |
| Piping Size (Liquid/Gas) |
3/8" - 3/4" |
Thermostat Description and Specifications
Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat. This device offers personalized heating and cooling options alongside a straightforward DIY installation process. Effortlessly customize settings to enhance your comfort while reducing energy consumption. Enjoy a variety of modes, including vacation mode, to ensure home safety during your absence without increasing energy bills.
Control your thermostat through multiple avenues, such as the intuitive touch-screen display, voice commands via Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app includes useful features like an air filter cleaning monitor and a timeline of recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings. With unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even if the internet is down, you can still maintain control using the thermostat directly. Backed by a 3-year warranty, the MRCOOL Smart Thermostat combines cutting-edge technology, comfort, and efficiency.
-
Presets for Home, Away, and Sleep - Ensure ideal temperatures that match your specific needs and preferences
-
Smart Schedules - Aligned with your routine for maximum comfort and efficiency.
-
Smart Energy Management - Optimize your energy usage
-
One App for All HVAC Systems - Manage your systems conveniently
-
Global Control - Access and control remotely from anywhere
-
Location-Based Automation - Adjusts settings based on your proximity to home
-
Vacation Mode - Keeps your home safe without inflating energy bills
-
DIY-Friendly Installation - Easy to set up on your own
-
Compatibility - Works with Alexa, Google Assistant, Siri, and MRCOOL® Link
-
Hassle-Free Registration - Quick and easy registration process
-
Track and Optimize Energy Usage - Monitor and fine-tune your energy consumption
- Important Note: Made for Ducted Systems only
| Dimensions |
3.9"W x 1"D x 3.9"H |
| Equipment Type |
Thermostat |
| Supported Systems |
Dual Fuel System
Heat Pumps
Conventional Heating
Conventional Cooling
Conventional Heating & Cooling
Find more info in the Product Brochure |
| Compatible With |
Works with Alexa, Google Assistant, Siri, and MRCOOL® Link |
| Color |
White |
| Voltage |
24 |
| Weight |
0.4 LBS |
| Registered Warranty |
3 Years Base Parts |
