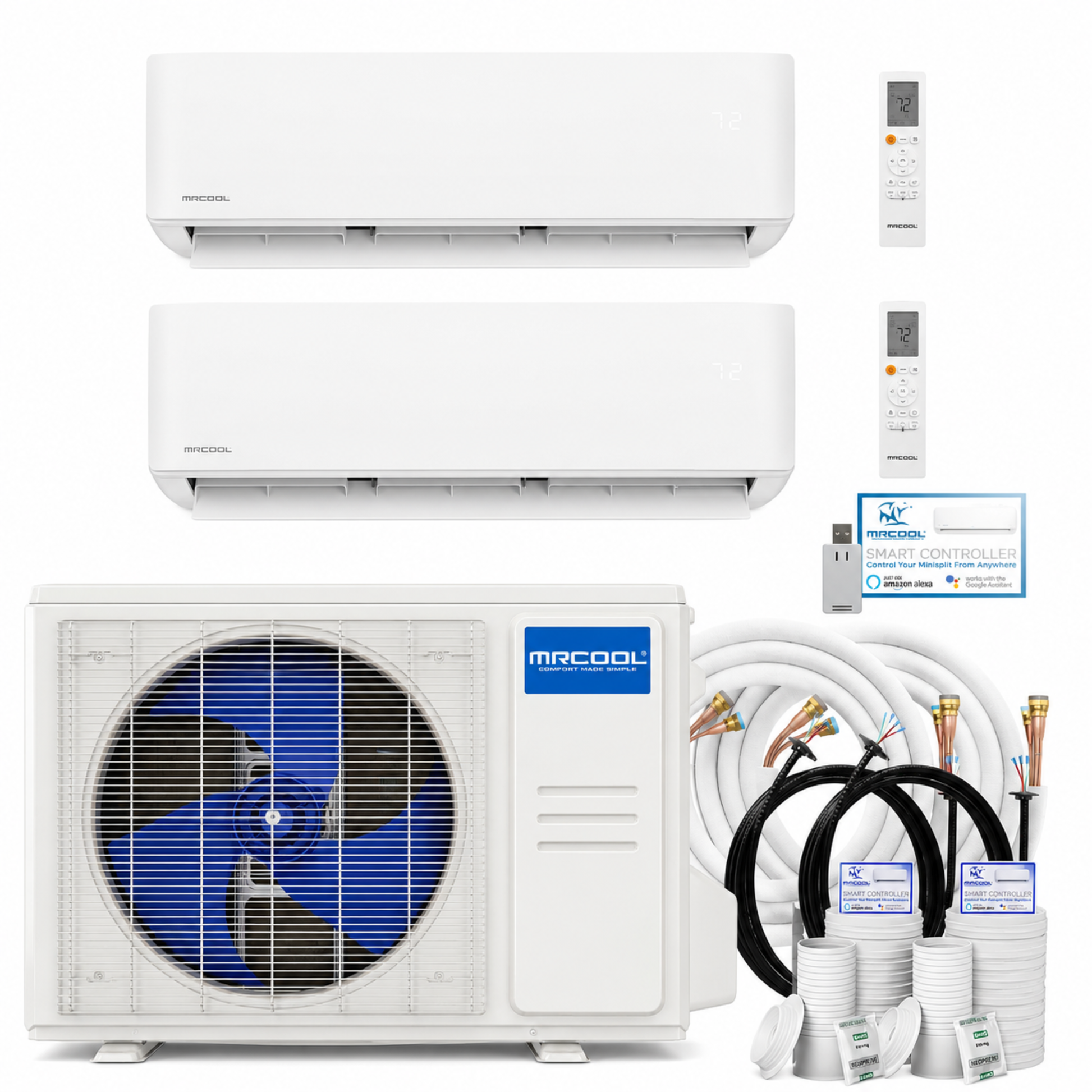

MRCOOL® DIY® 5th Gen 2-Zone 18,000 BTU Ductless Mini Split Air Conditioner & Heat Pump with (16ft + 16ft) Pre-Charged Line Sets (6K+12K) wall mount air-handlers — DIYM218HPW02D00
MRCOOL® DIY® 5th Gen 2-Zone 18,000 BTU Ductless Mini Split Air Conditioner & Heat Pump with (16ft + 16ft) Pre-Charged Line Sets (6K+12K) wall mount air-handlers — DIYM218HPW02D00
Regular price
$3,155.00
Sale price
$3,155.00
Regular price
$3,470.50
Shipping calculated at checkout.
Available in stock (20)
Description DIYM218HPW02D00

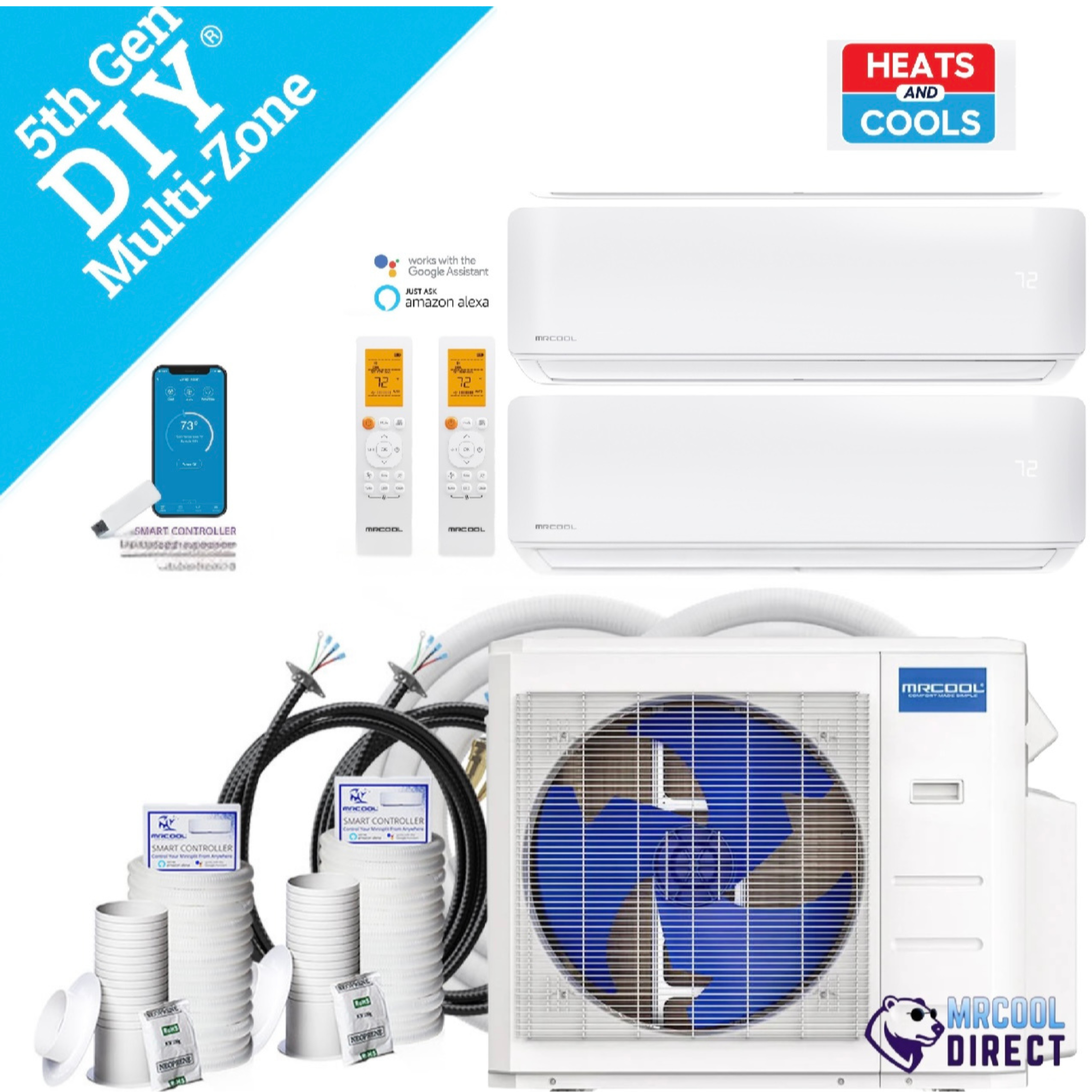

Take control of your comfort with the MRCOOL® DIY® 5th Gen Multi-Zone Mini Split System - the easiest and most affordable way to get powerful, energy-saving heating and cooling without hiring a pro.
- Two Rooms, Perfect Comfort: Heat or cool two spaces that are 200 sq. ft. and 550 sq. ft. each with independent temperature control for personalized comfort.
- Truly DIY-Friendly: Forget expensive installs - no HVAC license or special tools required. If you can use basic hand tools, you can do this.

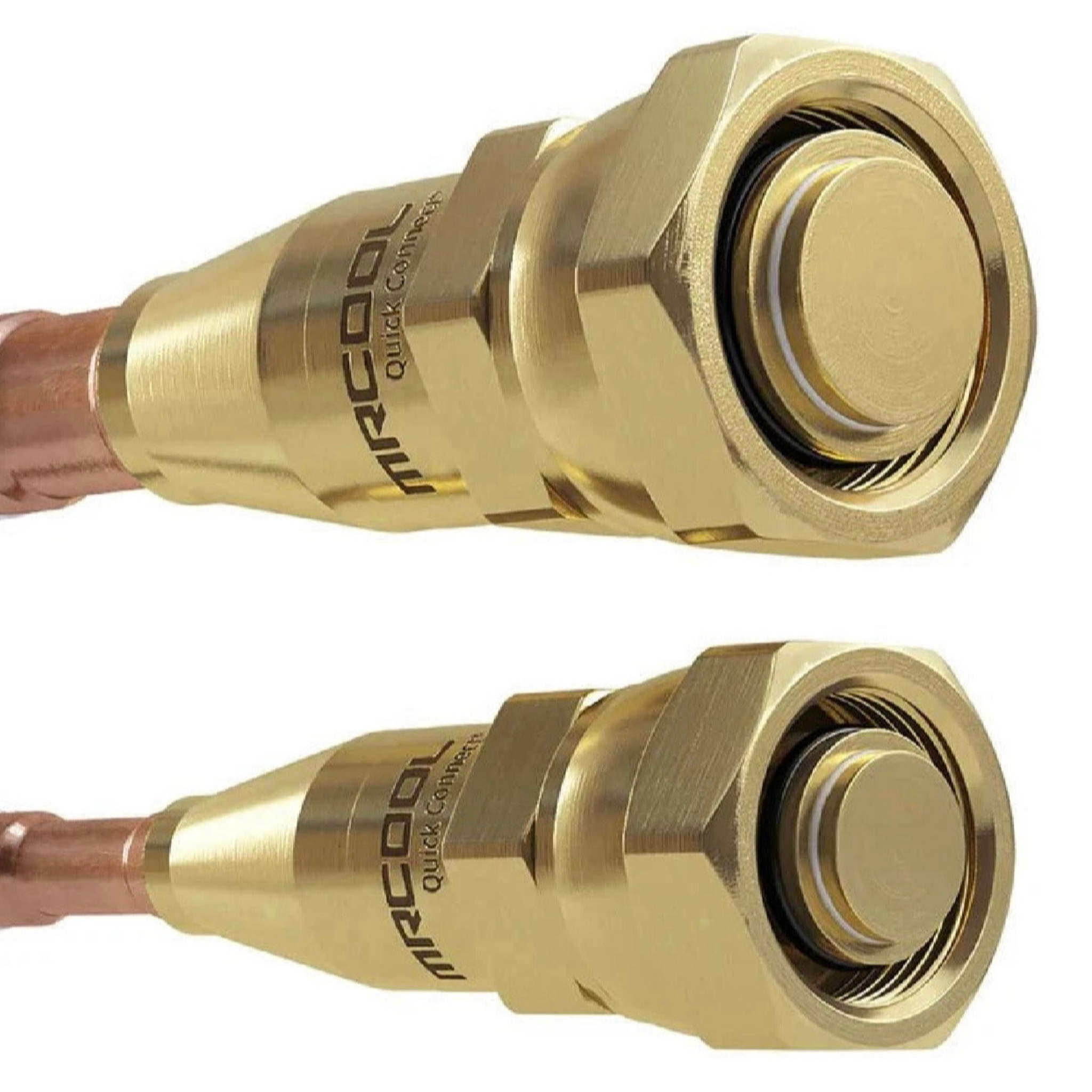

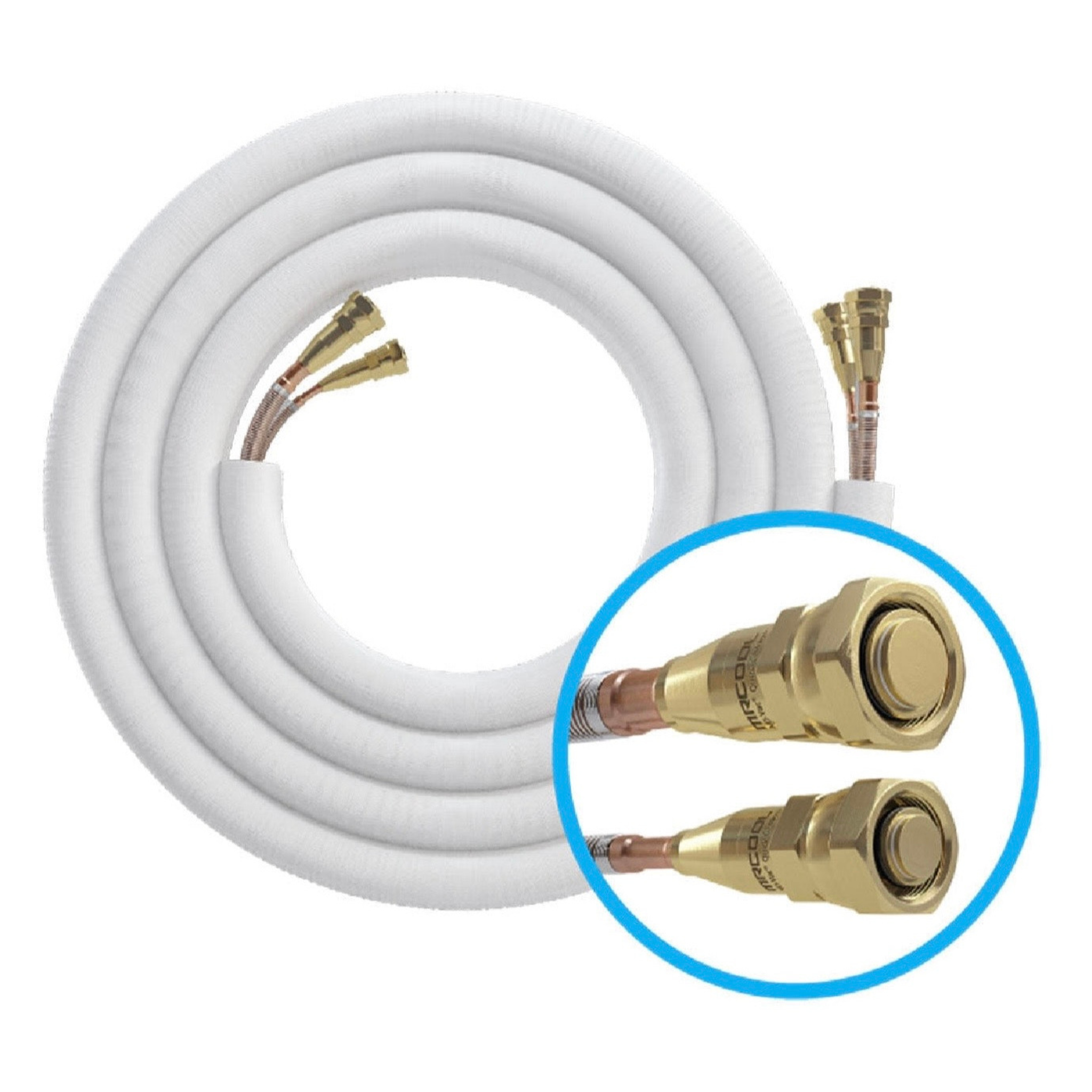

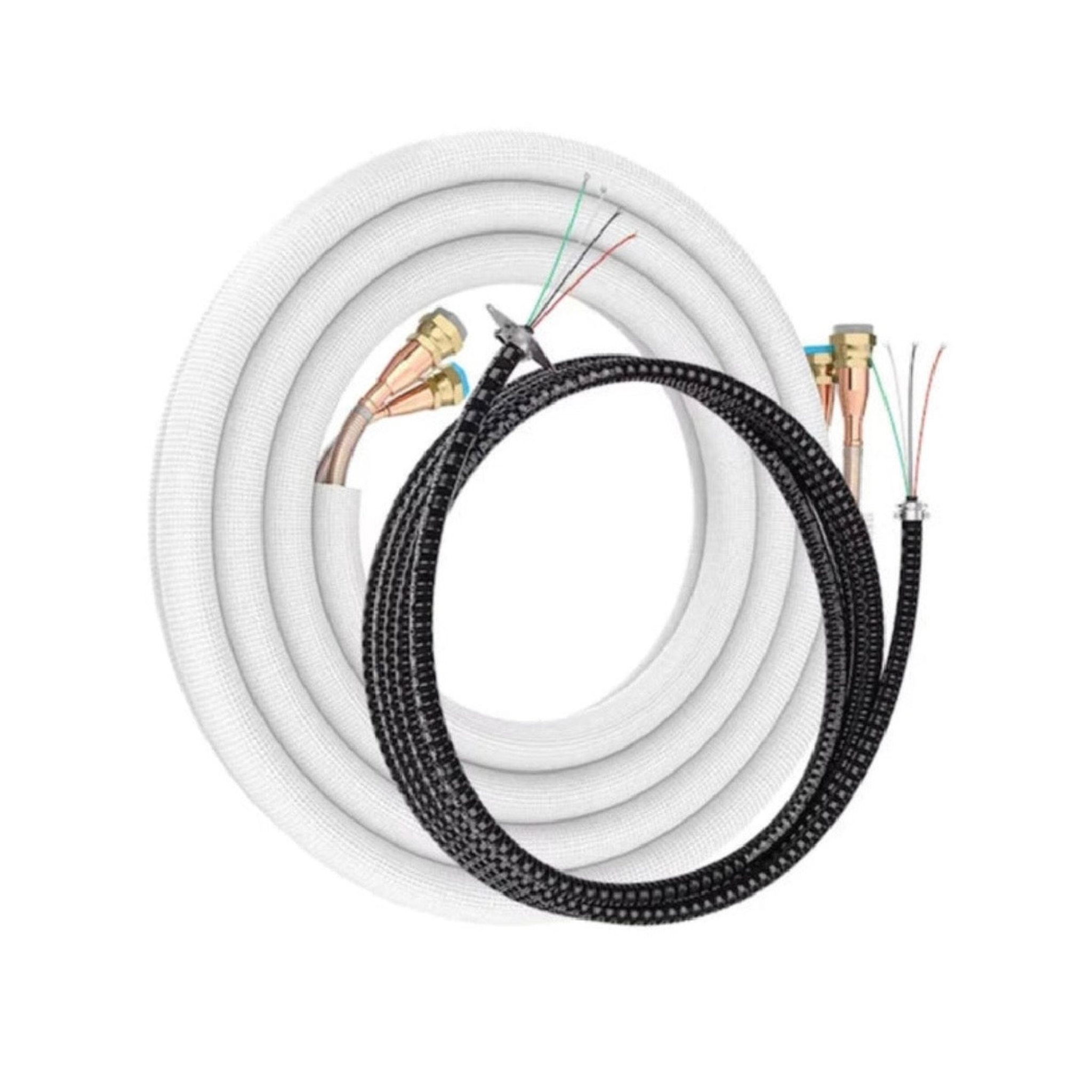

- No Hassle Setup: Comes with 2x 16ft pre-charged DIY® Quick Connect® line sets, so there’s no messy refrigerant handling or vacuuming. Just connect and enjoy.
- Year-Round Savings: Boasting up to 23.9 SEER2 cooling efficiency and 10 HSPF2-4 heating performance, this system delivers serious energy savings.
- Built for Every Season: Stay cozy even in the dead of winter - reliable heating works all the way down to -13°F. 100% at 5 degrees
- Strong Warranty Protection: Includes 7-Year Compressor Replacement and 5-Year Parts Coverage.
Whether it’s hot summer days or freezing winter nights, the MRCOOL® DIY® Mini Split keeps your home comfortable and your energy bills low. Smart. Simple. Affordable.
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump |
|---|---|
| Zones | 2 |
| Capacity | Total: 18,000 BTU Zone 1: 6,000 BTU Zone 2: 12,000 BTU |
| Coverage Area | Total: 650 sq. ft. Zone 1: 200 sq. ft. Zone 2: 550 sq. ft. |
| Refrigerant | R-454B |
| Line Sets Included | 2 x 16ft Pre-Charged Line Sets |
| Warranty | 7 Years Compressor 5 Years Parts |

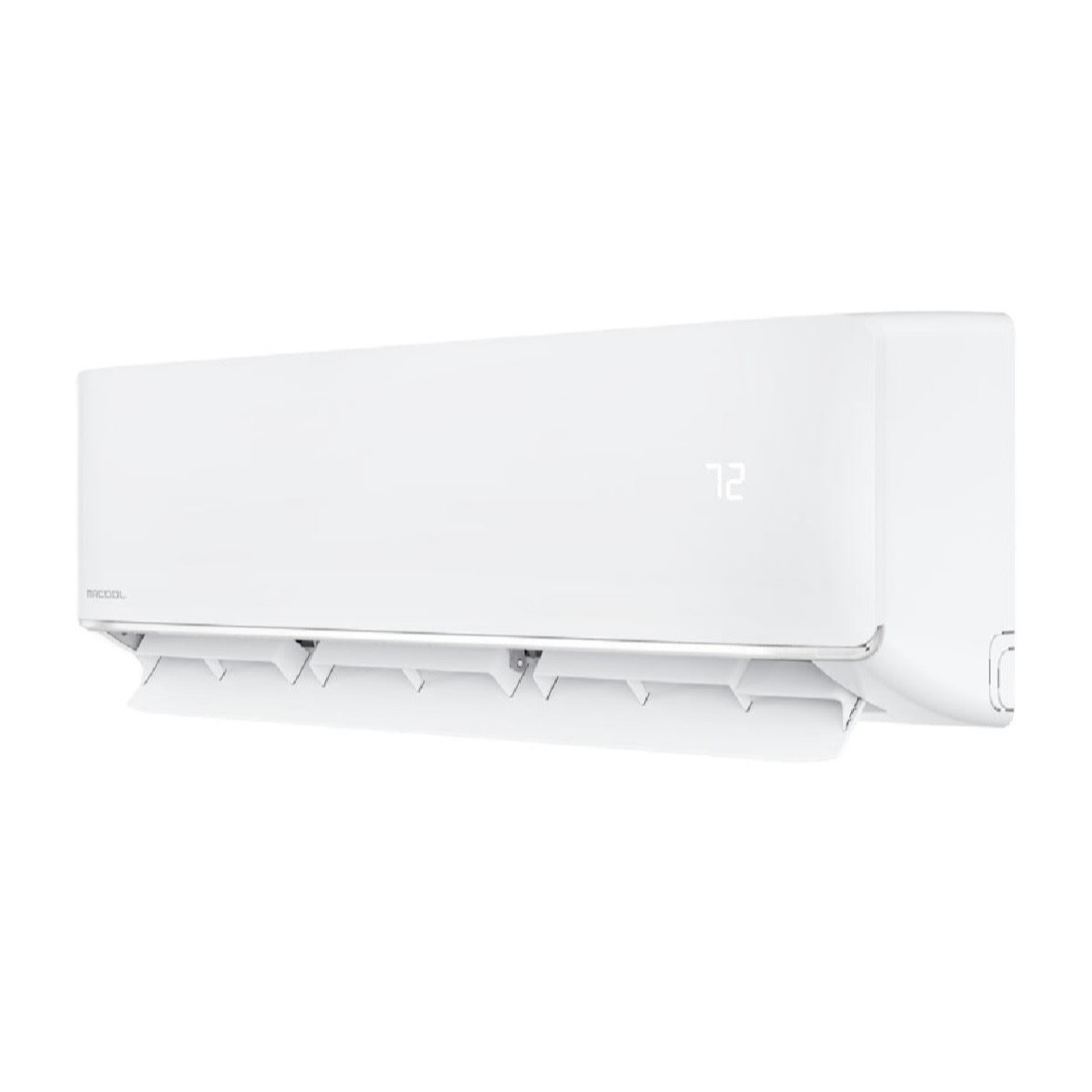

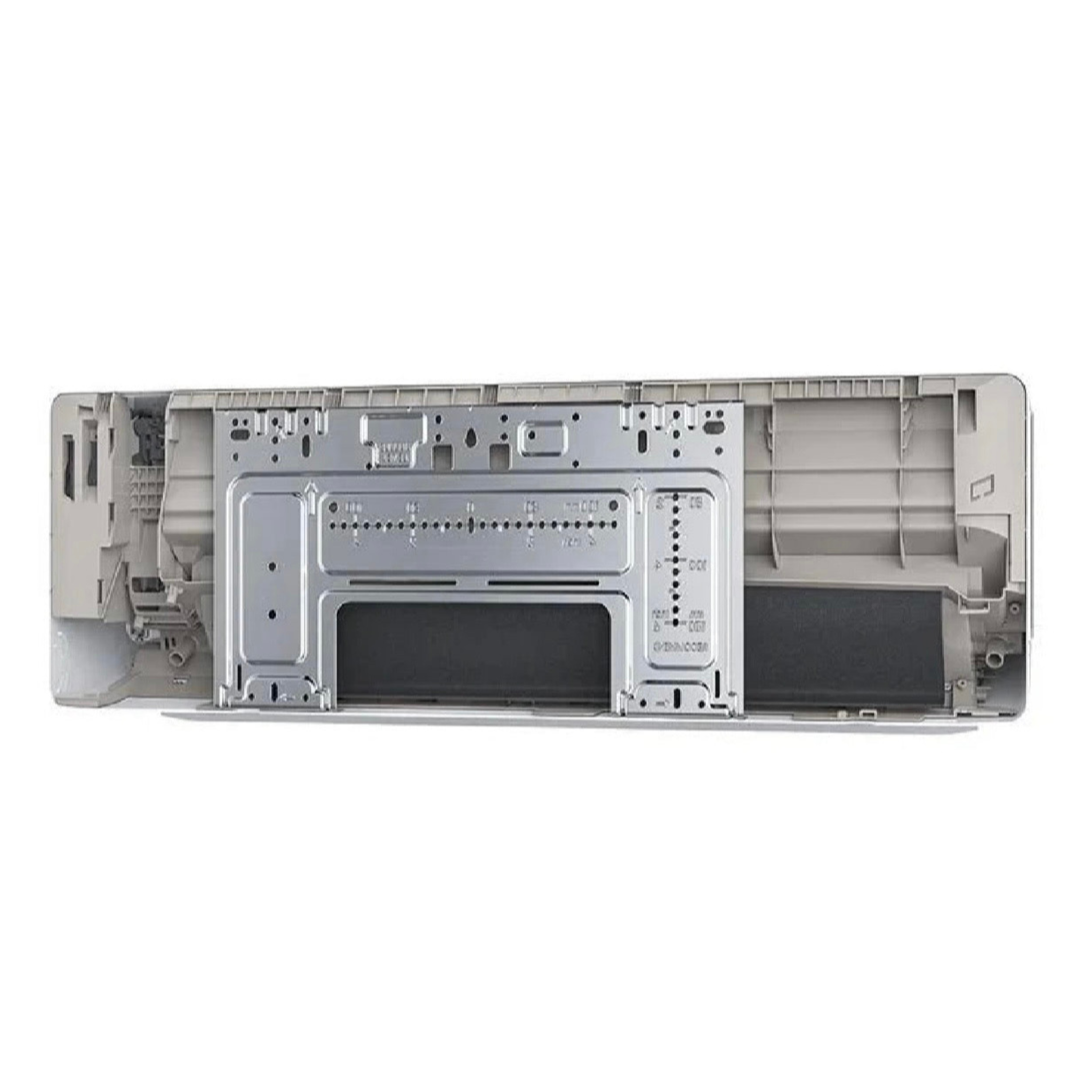

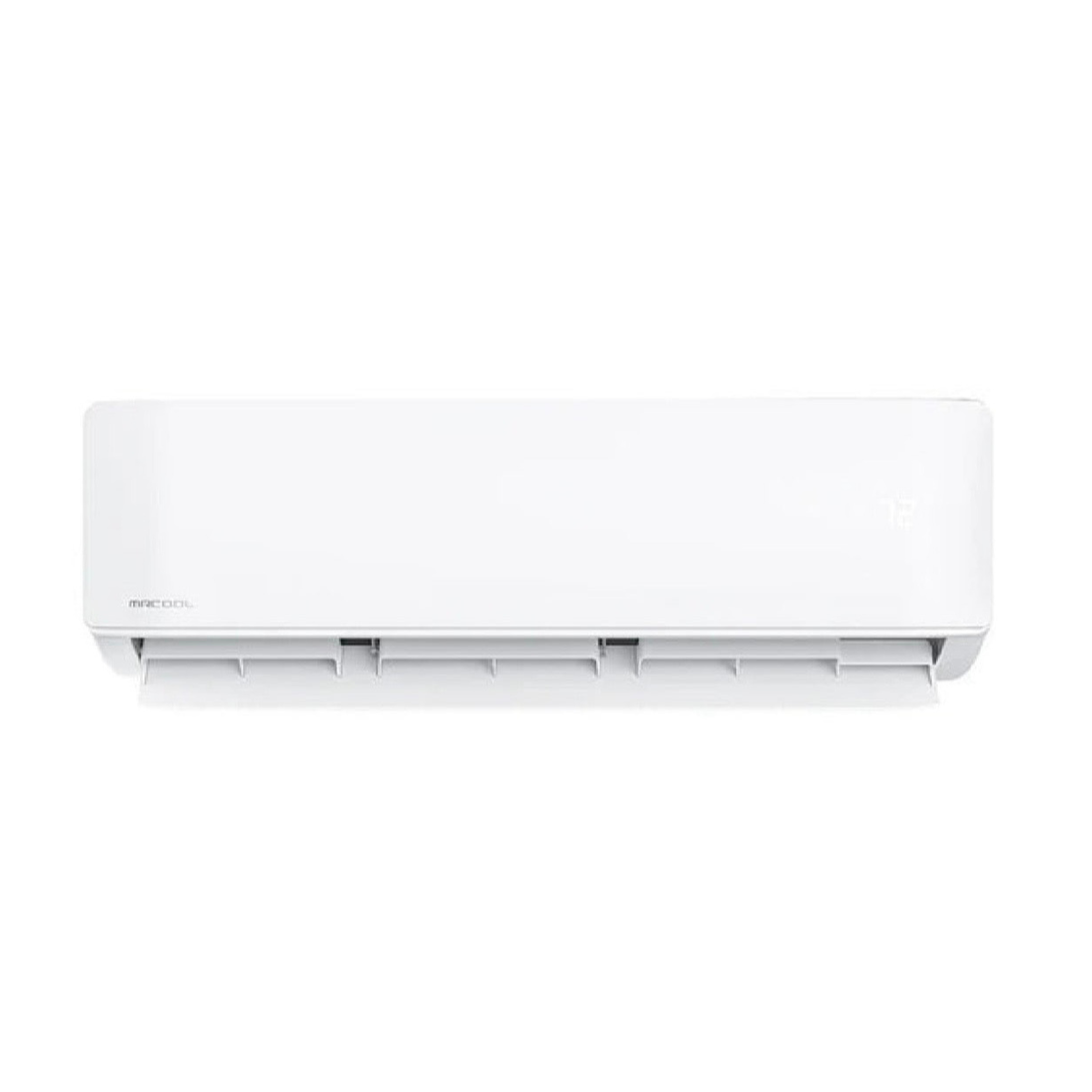

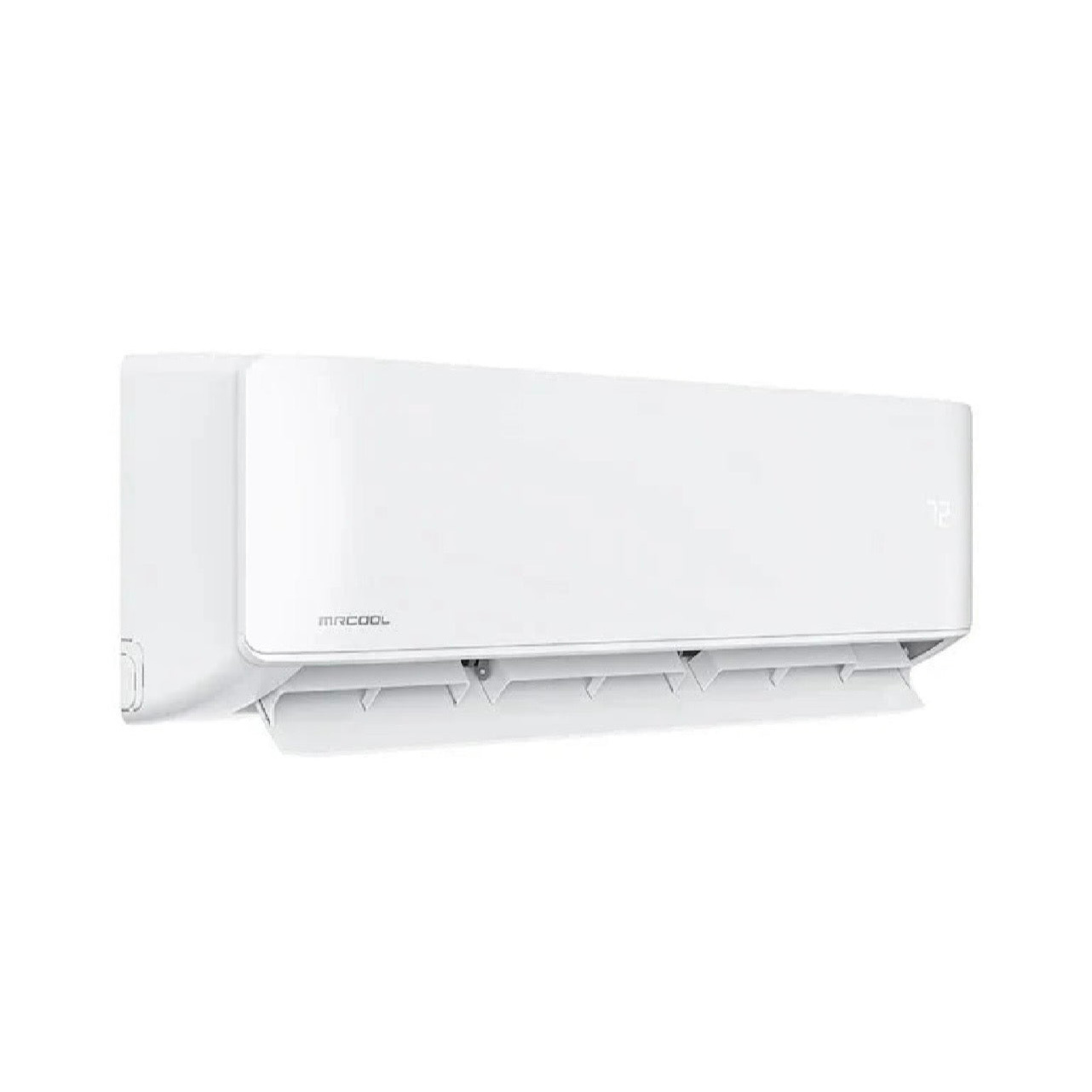

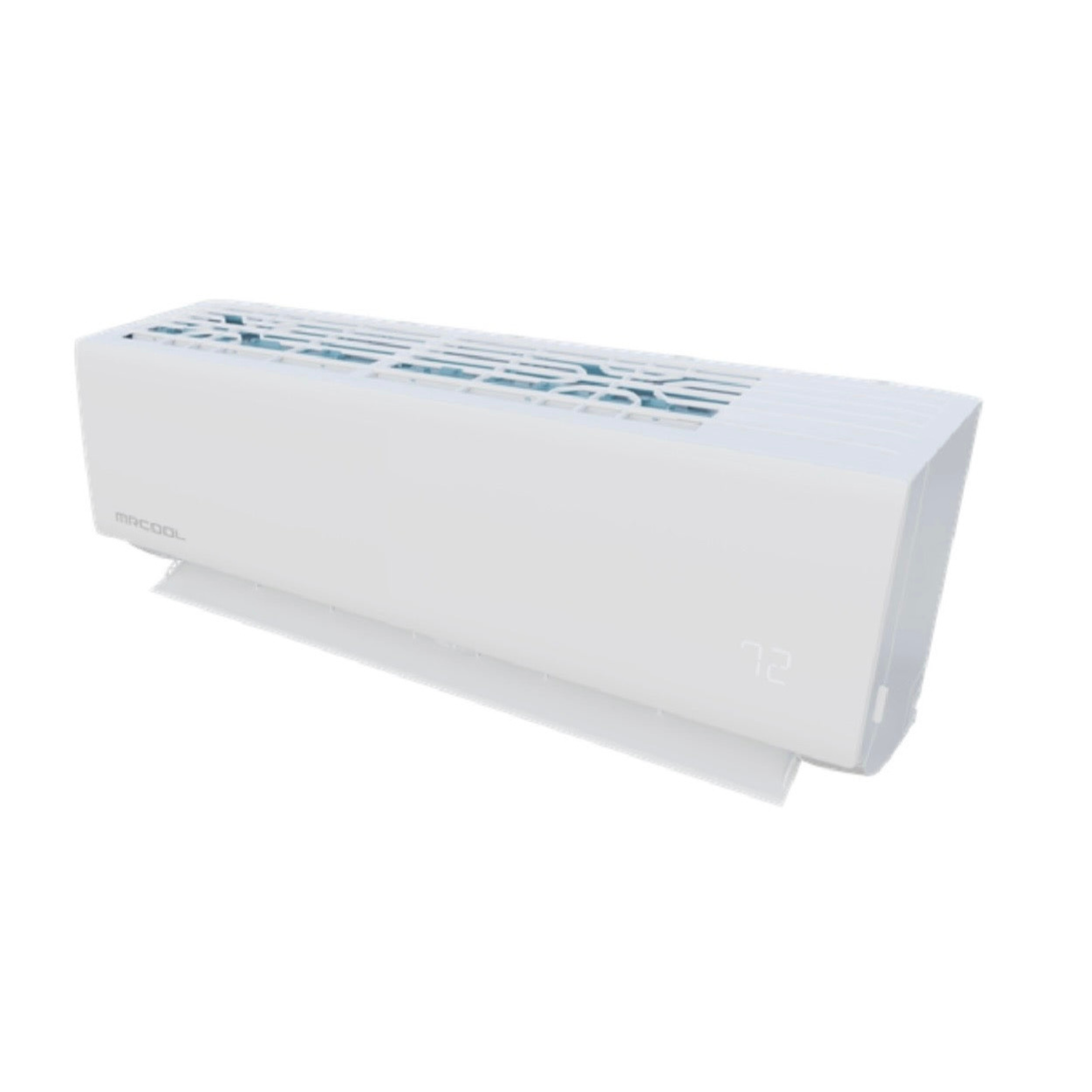

| INDOOR UNIT (6K) x 1 | |
|---|---|
| Model | DIY-06-HP-WMAH-230D25-O |
| Dimensions | 31.57" W x 7.44" D x 11.69" H |
| Mounting Type | Wall |
| Cooling Capacity | 6,000 BTU |
| Heating Capacity | 6,000 BTU |
| Coverage Area | 100 to 200 sq. ft. |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Modes | Auto Mode: Automatically selects heating or cooling based on the room's temperature. Cool Mode: Lowers the room temperature to your desired setting. Heat Mode: Raises the room temperature to your desired setting. Fan-Only Mode: Circulates air without heating or cooling. Dry Mode (Dehumidification): Reduces humidity levels in the room. Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings. |
| Weight | 24.47 lbs |

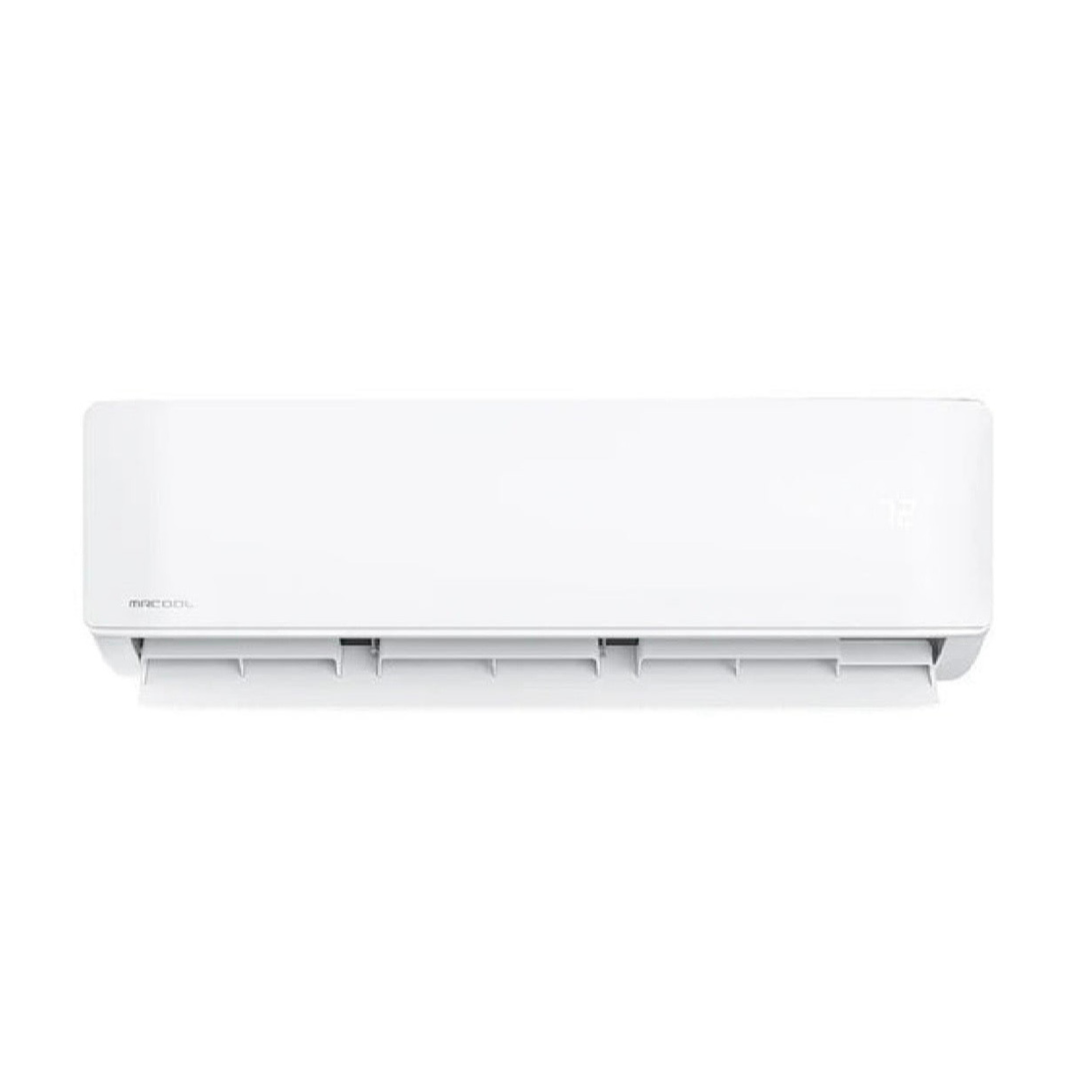

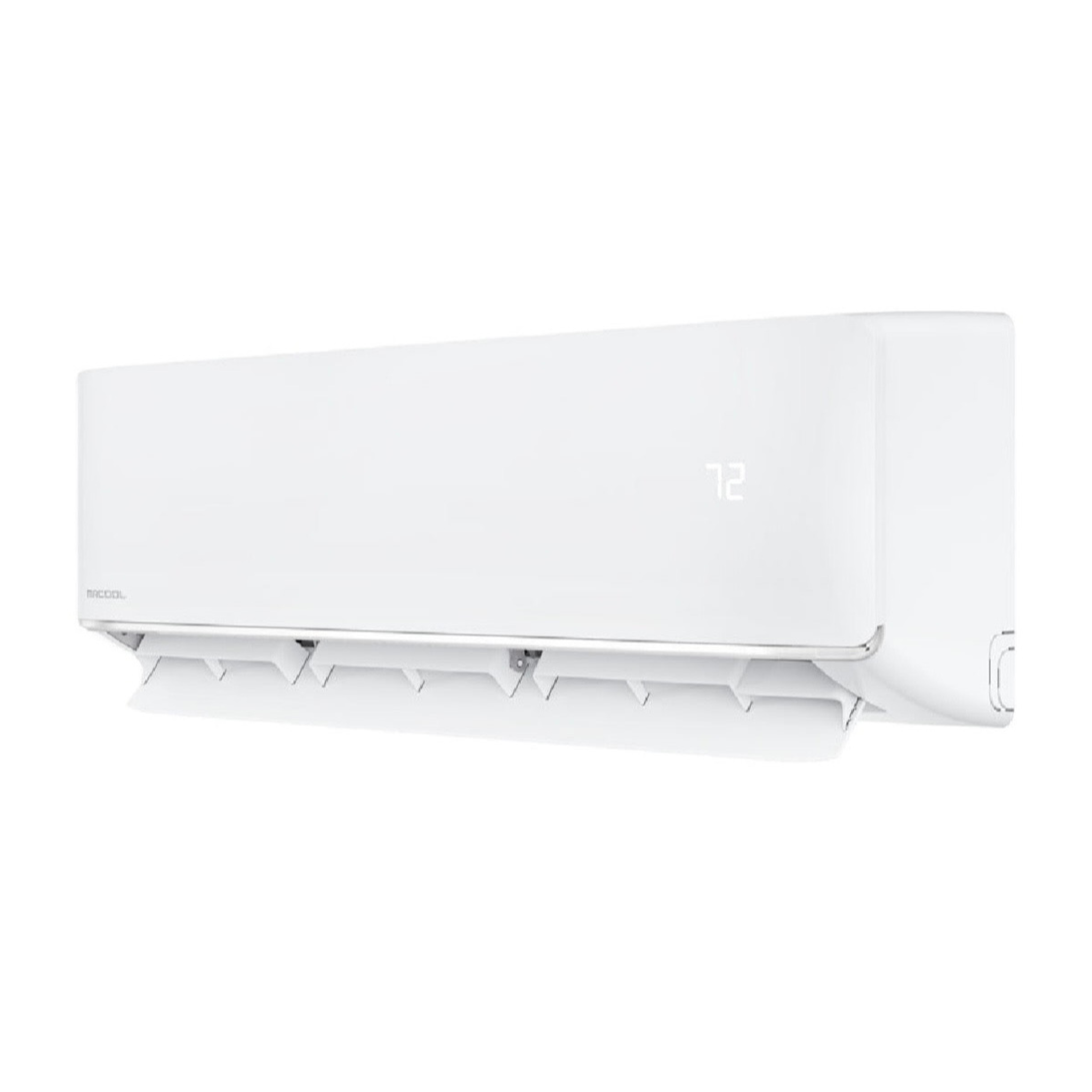

| INDOOR UNIT (12K) x 1 | |
|---|---|
| Model | DIY-12-HP-WMAH-230D25-O |
| Dimensions | 31.57" W x 7.44" D x 11.69" H |
| Mounting Type | Wall |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Coverage Area | 351 to 550 sq. ft. |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Modes | Auto Mode: Automatically selects heating or cooling based on the room's temperature. Cool Mode: Lowers the room temperature to your desired setting. Heat Mode: Raises the room temperature to your desired setting. Fan-Only Mode: Circulates air without heating or cooling. Dry Mode (Dehumidification): Reduces humidity levels in the room. Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings. |
| Weight | 24.47 lbs |

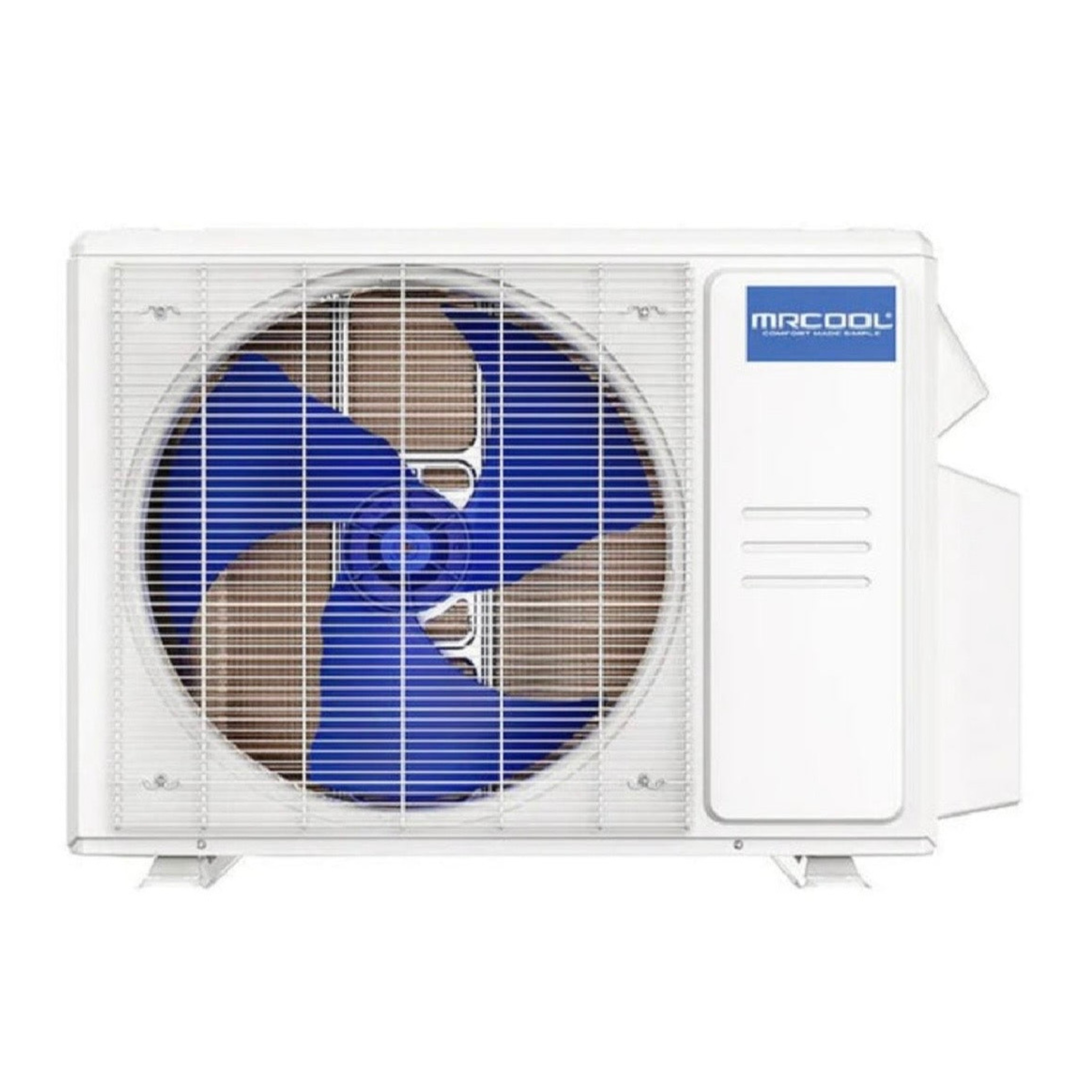

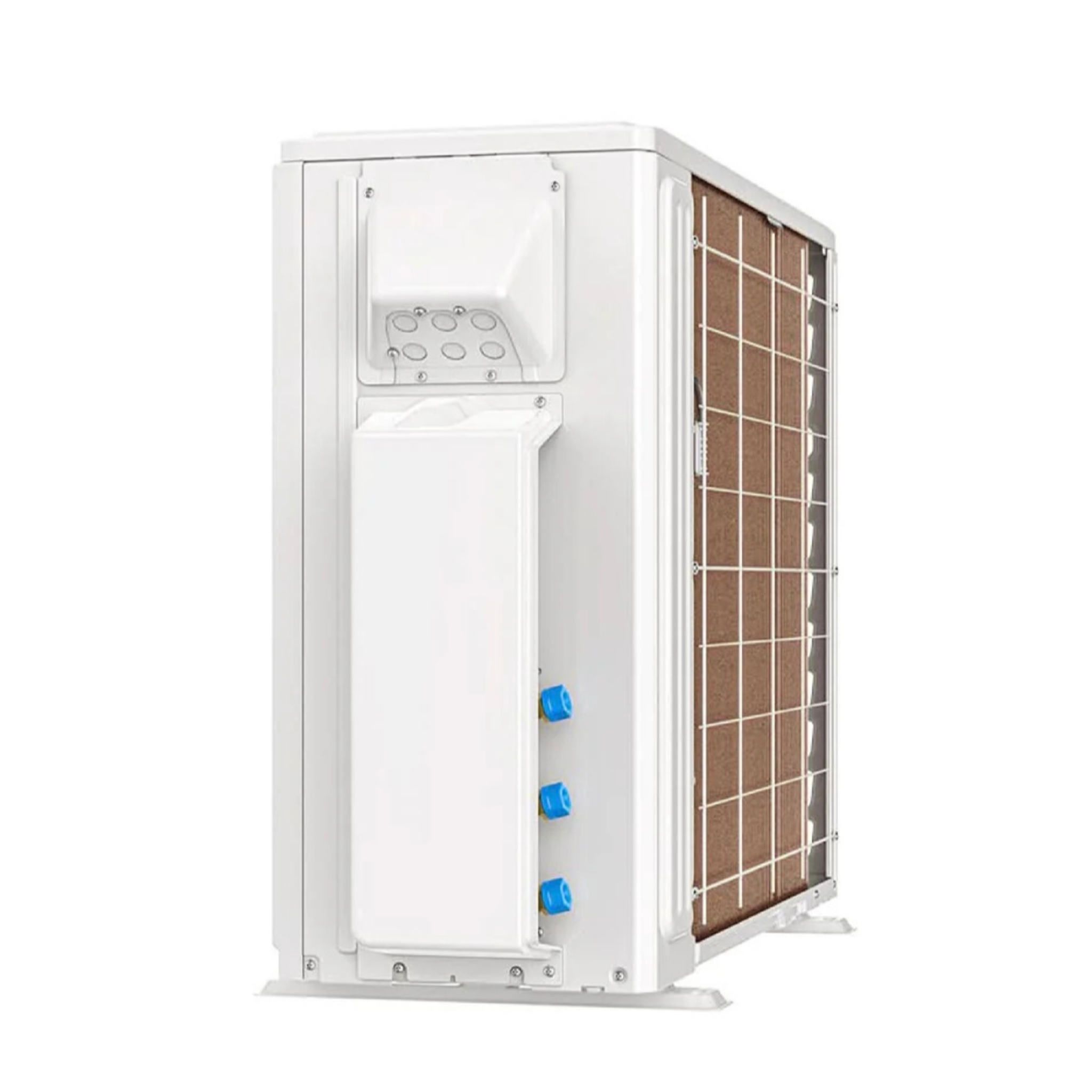

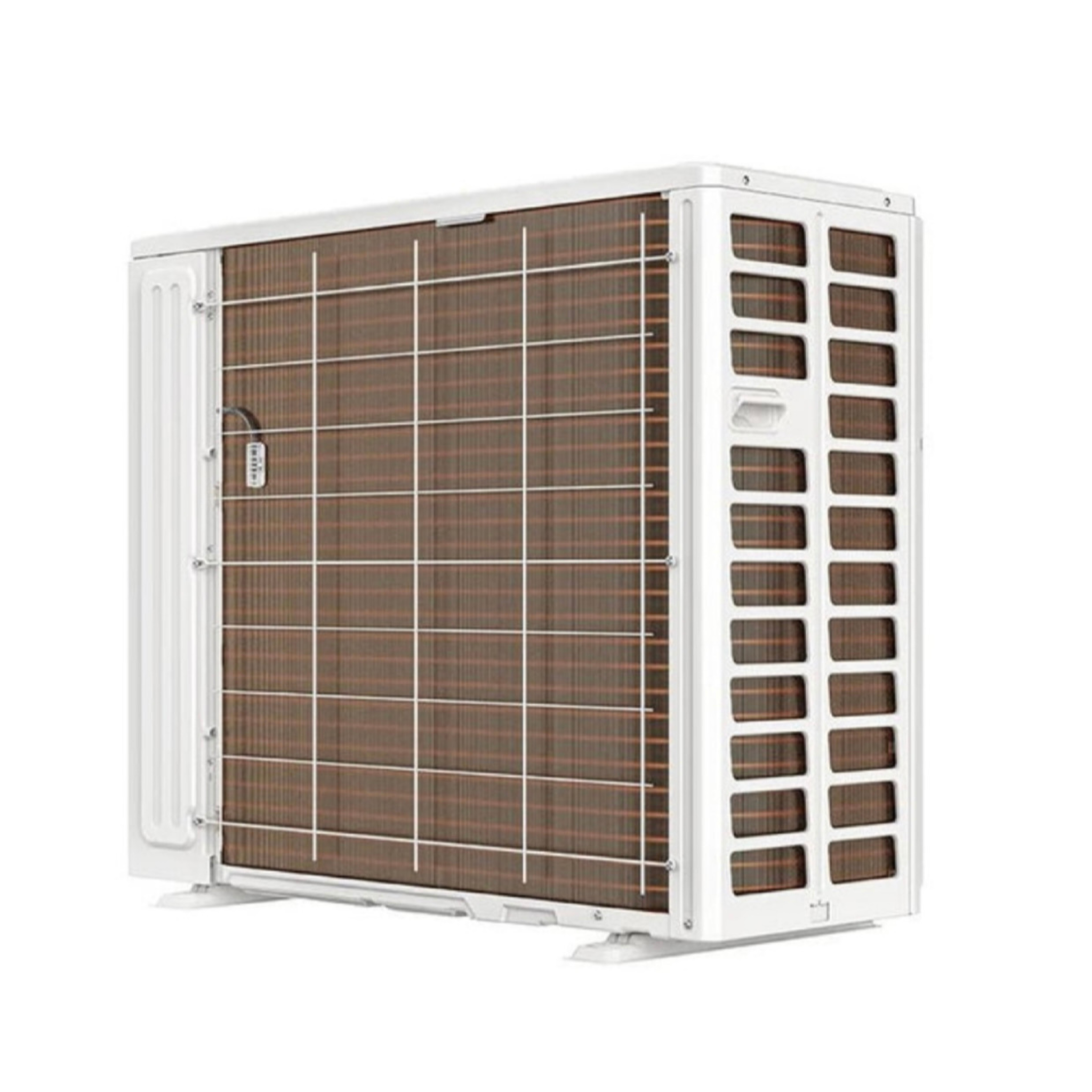

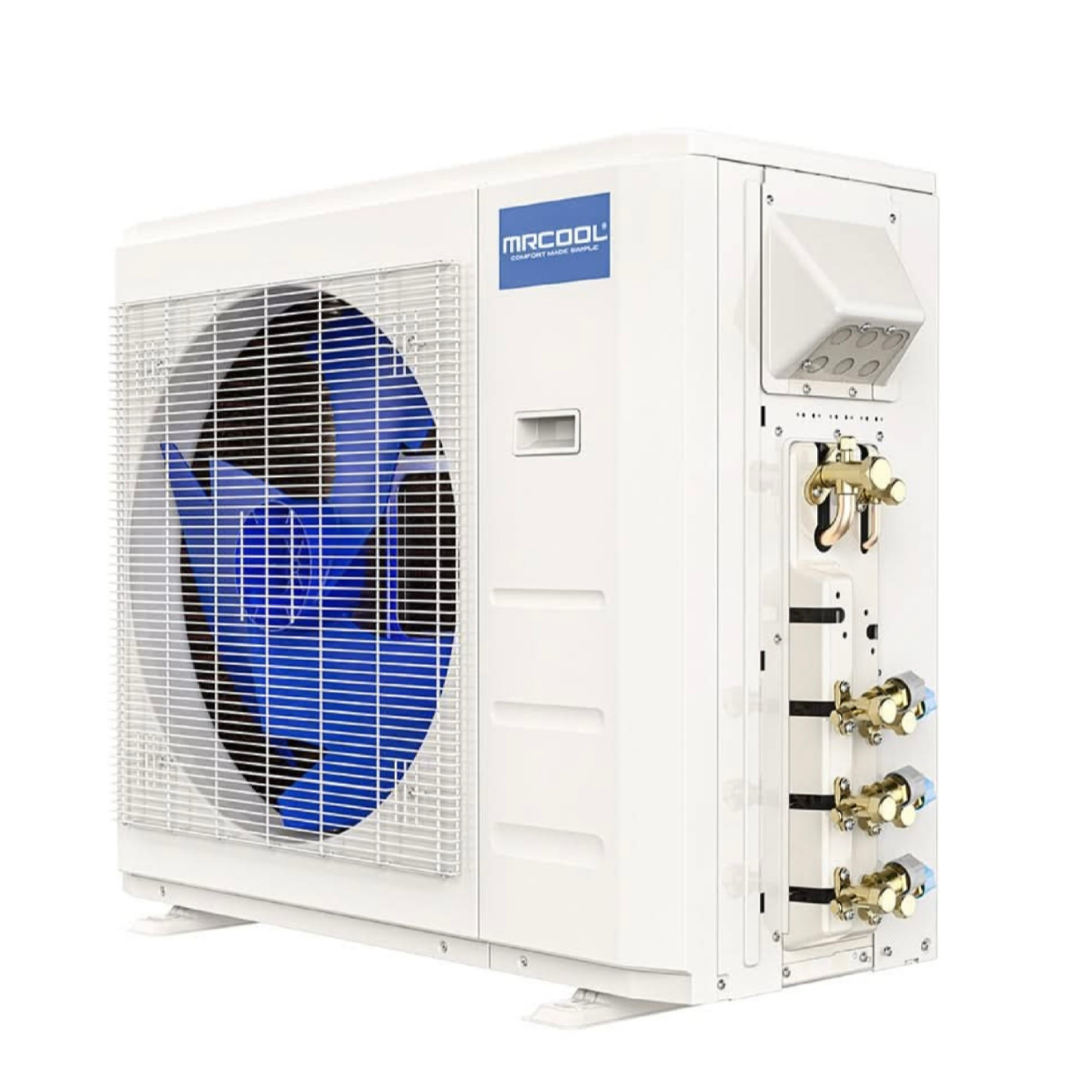

| OUTDOOR UNIT (18K) x 1 | |
|---|---|
| Model | DIY-MULTI3-18HP230D-O |
| Dimensions | 35.04" W x 13.46" D x 26.50" H |
| Cooling Capacity | 18,000 BTU |

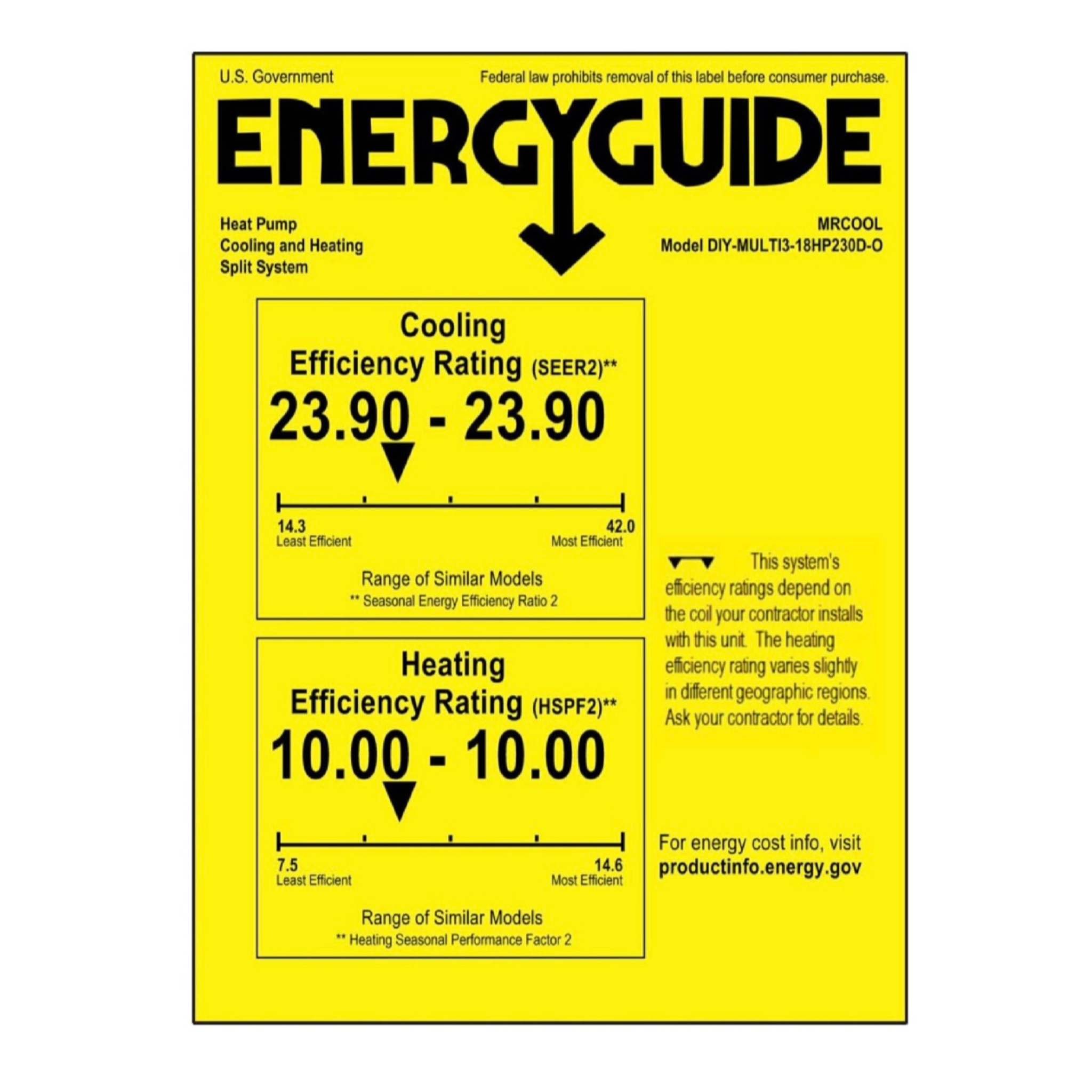

| SEER2 | 23.9 |
| EER2 | 13.0 |
| Heating Capacity | 18,000 BTU |
| HSPF2-4 | 10.0 |
| HSPF2-5 | 7.8 |
| Outdoor Noise Level | 60.0 dB(A) |
| Outdoor Operating Temperature | Cooling: -13°F – 122°F Heating: -13°F – 75°F |
| Voltage | 208–230V |
| Phase | 1 |
| Cycle | 60Hz |
| Min Circuit Ampacity | 16.0A |
| Max Fuse Breaker | 20.0A |
| Weight | 101.63 lbs |
| Certifications | ENERGY STAR Certified AHRI Certified UL Listed ETL Listed |
