MRCOOL® DIY® 5th Gen 2-Zone 18,000 BTU Ductless Mini Split Air Conditioner & Heat Pump with Pre-Charged (25ft+25ft) Line Sets (9K+9K) Air Handler — DIYM218HPW03D06
MRCOOL® DIY® 5th Gen 2-Zone 18,000 BTU Ductless Mini Split Air Conditioner & Heat Pump with Pre-Charged (25ft+25ft) Line Sets (9K+9K) Air Handler — DIYM218HPW03D06
Available in stock (25)
Product Description

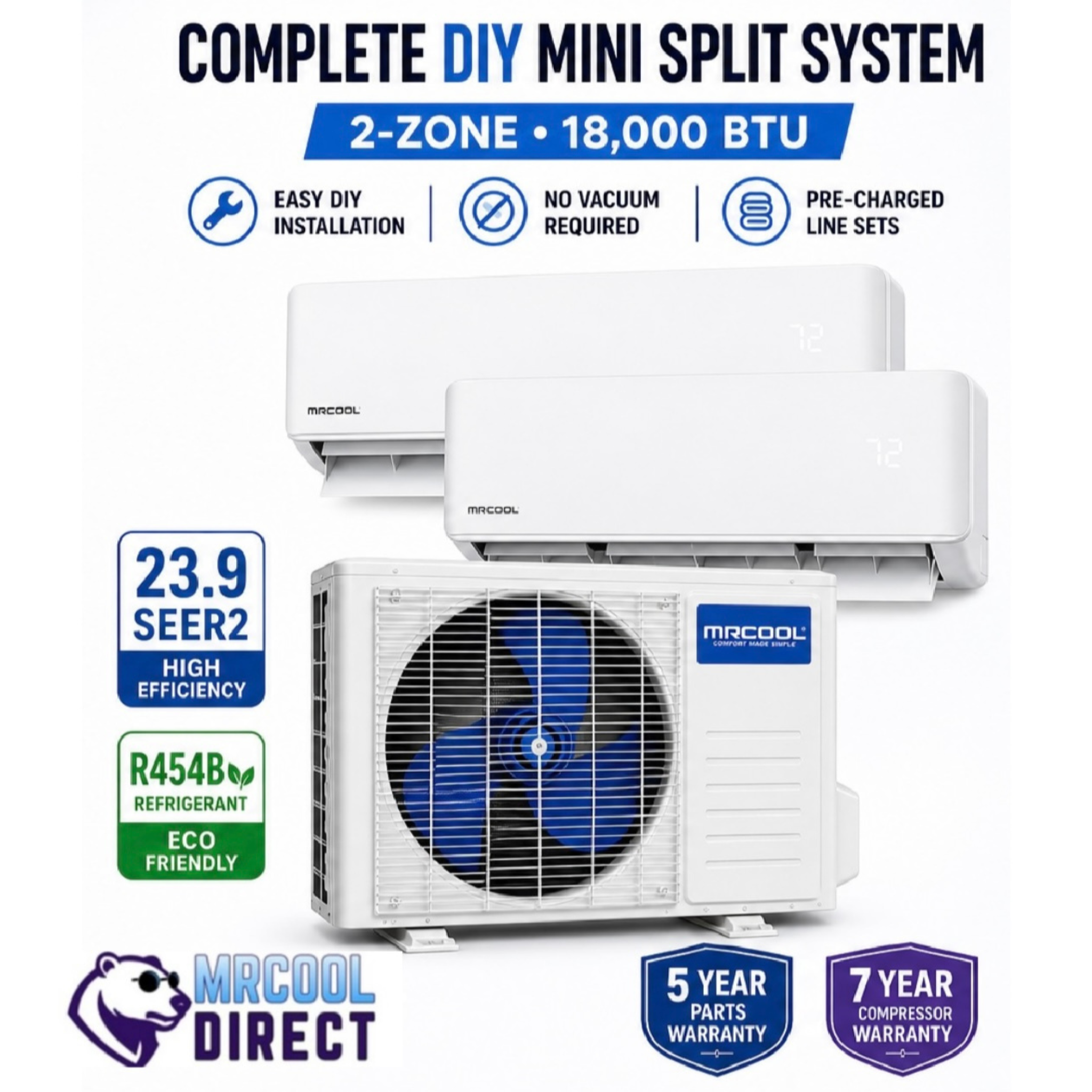

MRCOOL® DIY® 5th Gen 18,000 BTU 2-Zone Mini Split System – 23.9 SEER2 – Dual 9K Air Handlers – R-454B
Product Overview
The MRCOOL® DIY® 5th Generation Multi-Zone Mini Split System is one of the easiest and most energy-efficient ways to heat and cool multiple rooms without expensive HVAC installation costs. Designed specifically for homeowners, this high-performance 18,000 BTU 2-zone ductless mini split system delivers year-round comfort, smart home convenience, and powerful energy savings — all while being truly DIY-friendly.
This complete MRCOOL® multi-zone system includes one 18,000 BTU outdoor condenser and two 9,000 BTU wall-mounted air handlers, making it ideal for cooling and heating two separate rooms up to 400 square feet each. Whether you’re upgrading bedrooms, home offices, garages, additions, apartments, workshops, tiny homes, or older homes without ductwork, this system gives you independent temperature control in each room for personalized comfort.
Unlike traditional HVAC systems that require professional installation, vacuum pumps, refrigerant charging, and costly labor, the MRCOOL® DIY® system uses patented QuickConnect® pre-charged line sets that come ready to install right out of the box. No special HVAC tools or refrigerant handling is required.
Built around the newest MRCOOL® DIY® 5th Gen technology platform, this system now uses eco-friendly R-454B refrigerant for improved environmental performance while maintaining powerful heating and cooling efficiency. With up to 23.9 SEER2 efficiency ratings and inverter-driven compressor technology, this system helps reduce energy usage while keeping temperatures consistent year-round.
The system also comes equipped with smart WiFi control compatibility through the MRCOOL® SmartHVAC app, Amazon Alexa, and Google Assistant, allowing you to control your comfort from virtually anywhere.
If you want professional-level comfort without paying professional installation prices, the MRCOOL® DIY® 5th Gen system is one of the best ductless mini split solutions available today.

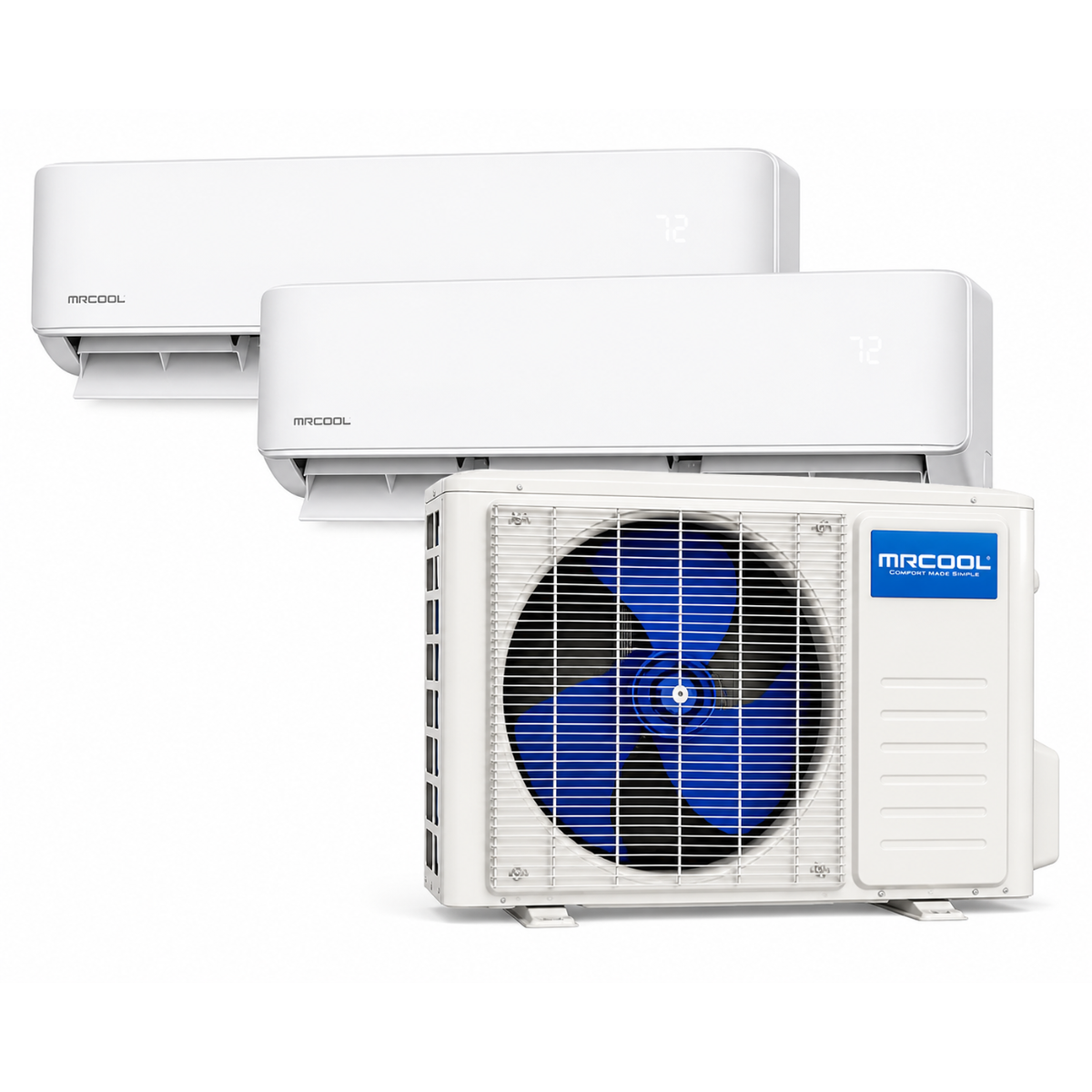

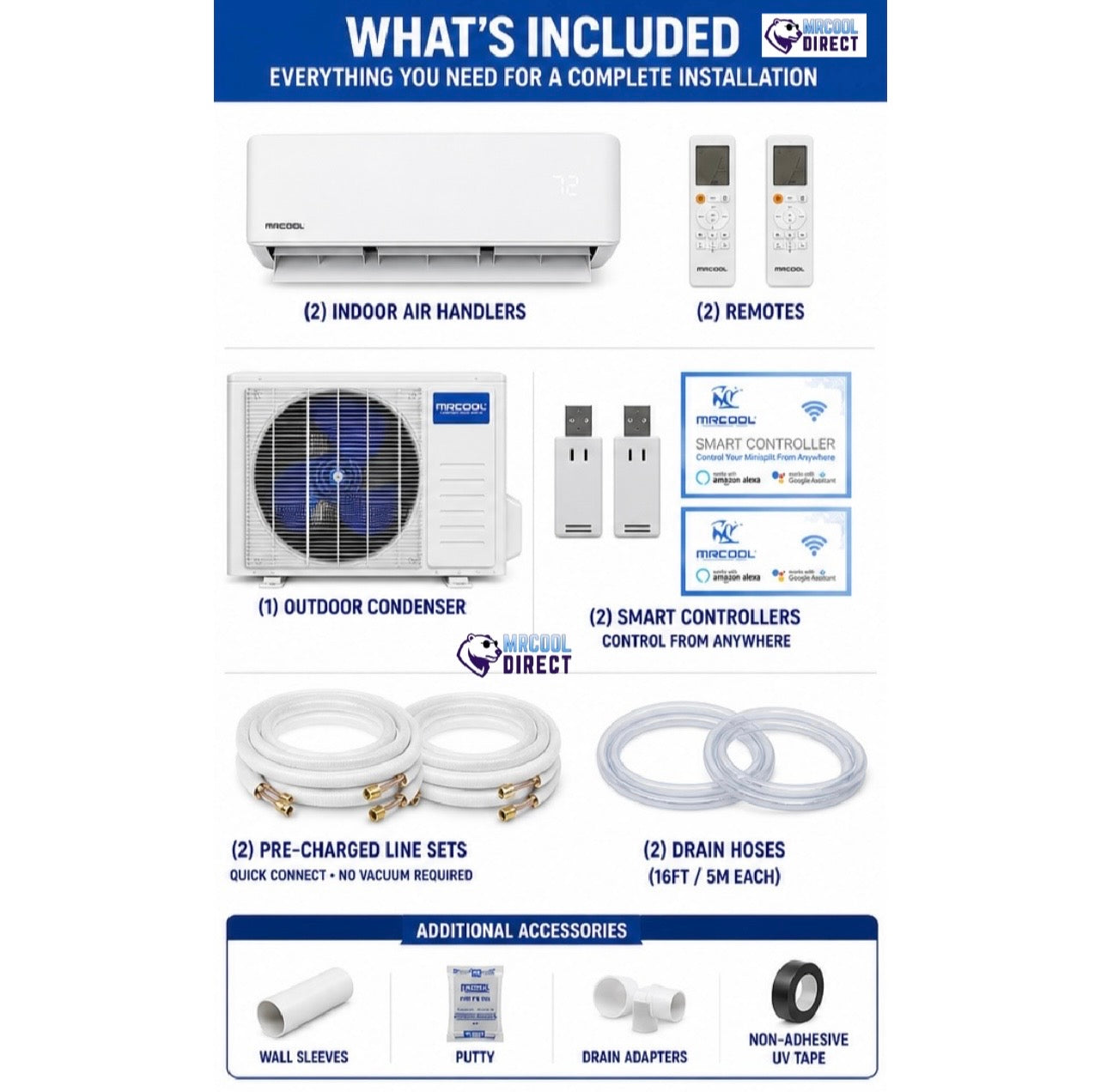

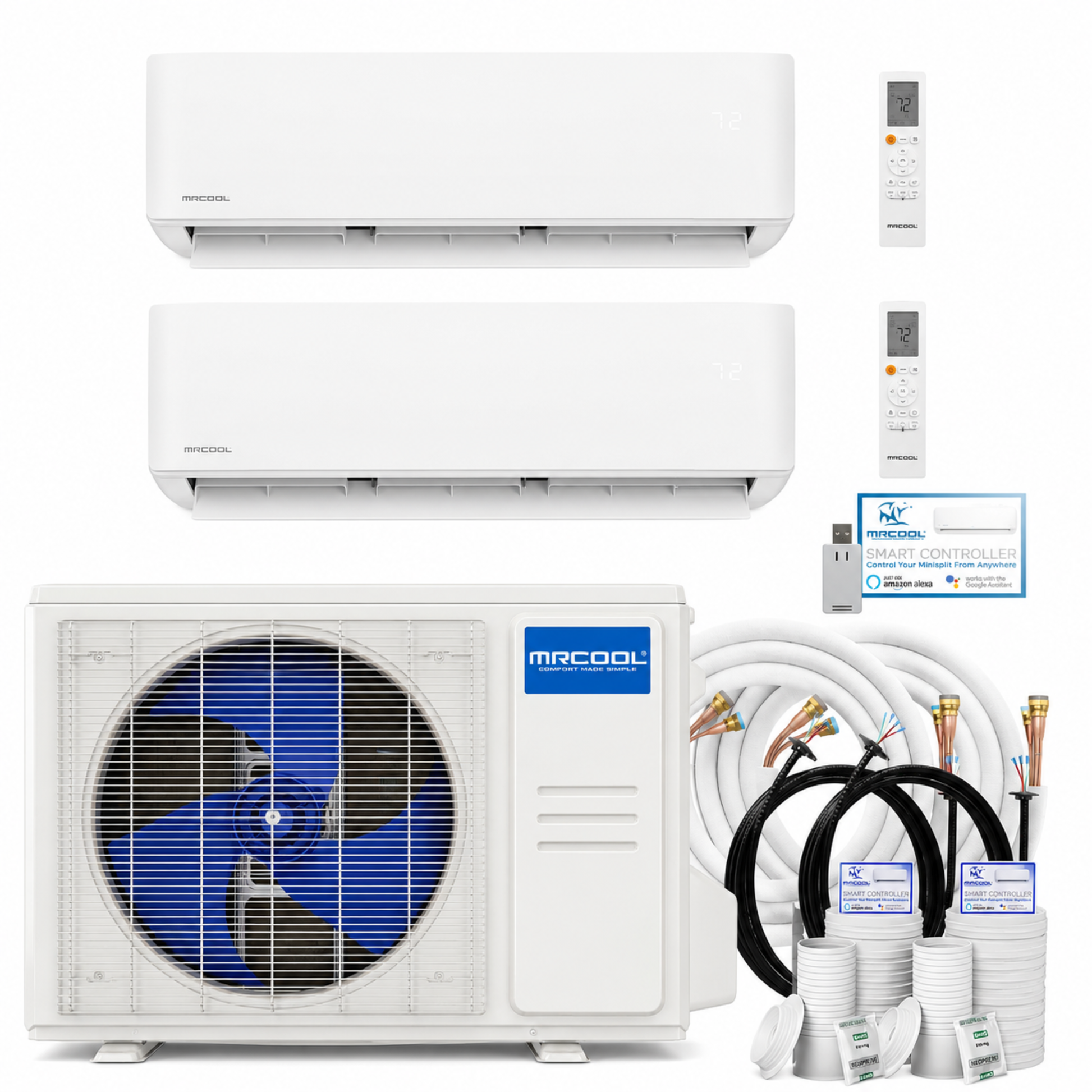

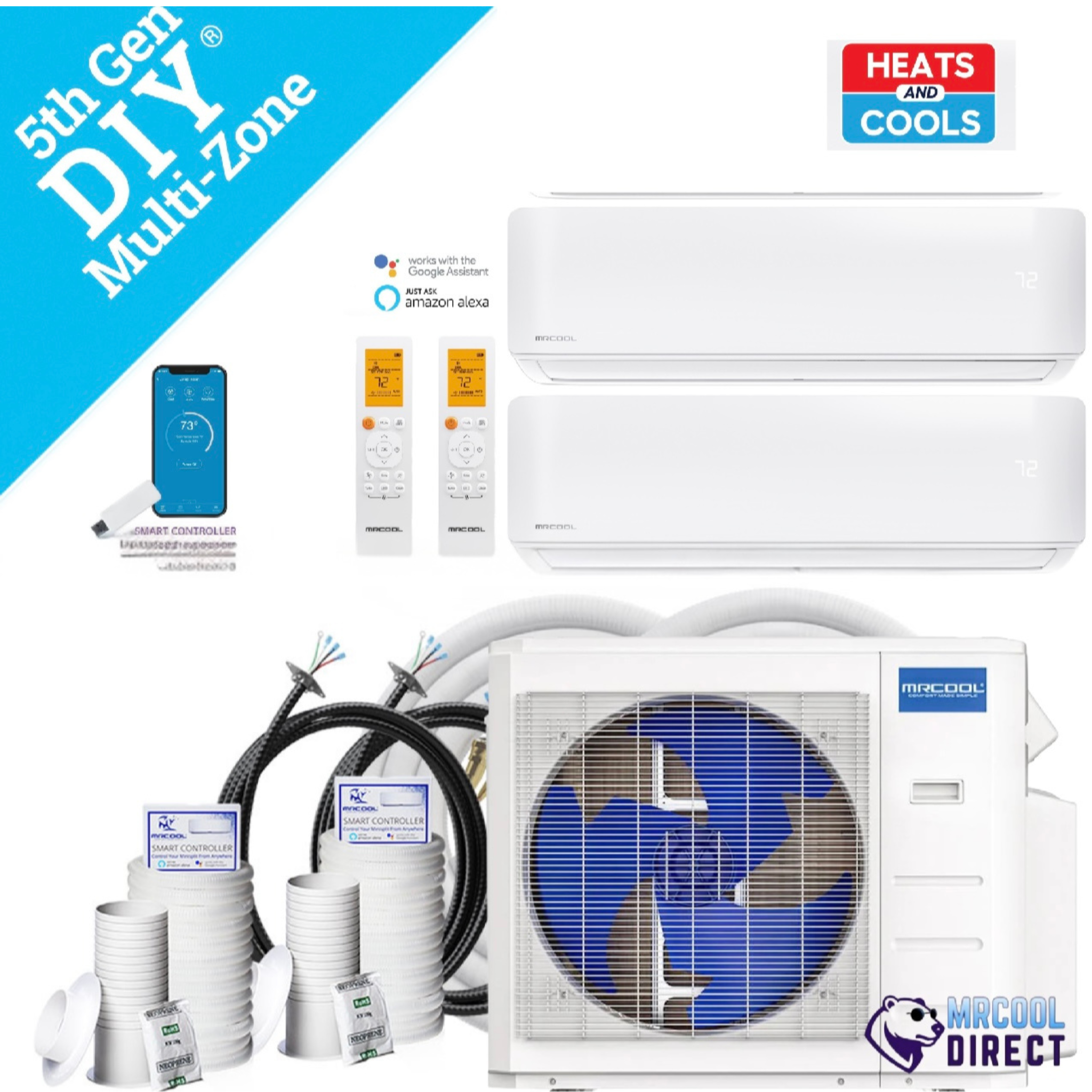

What’s Included

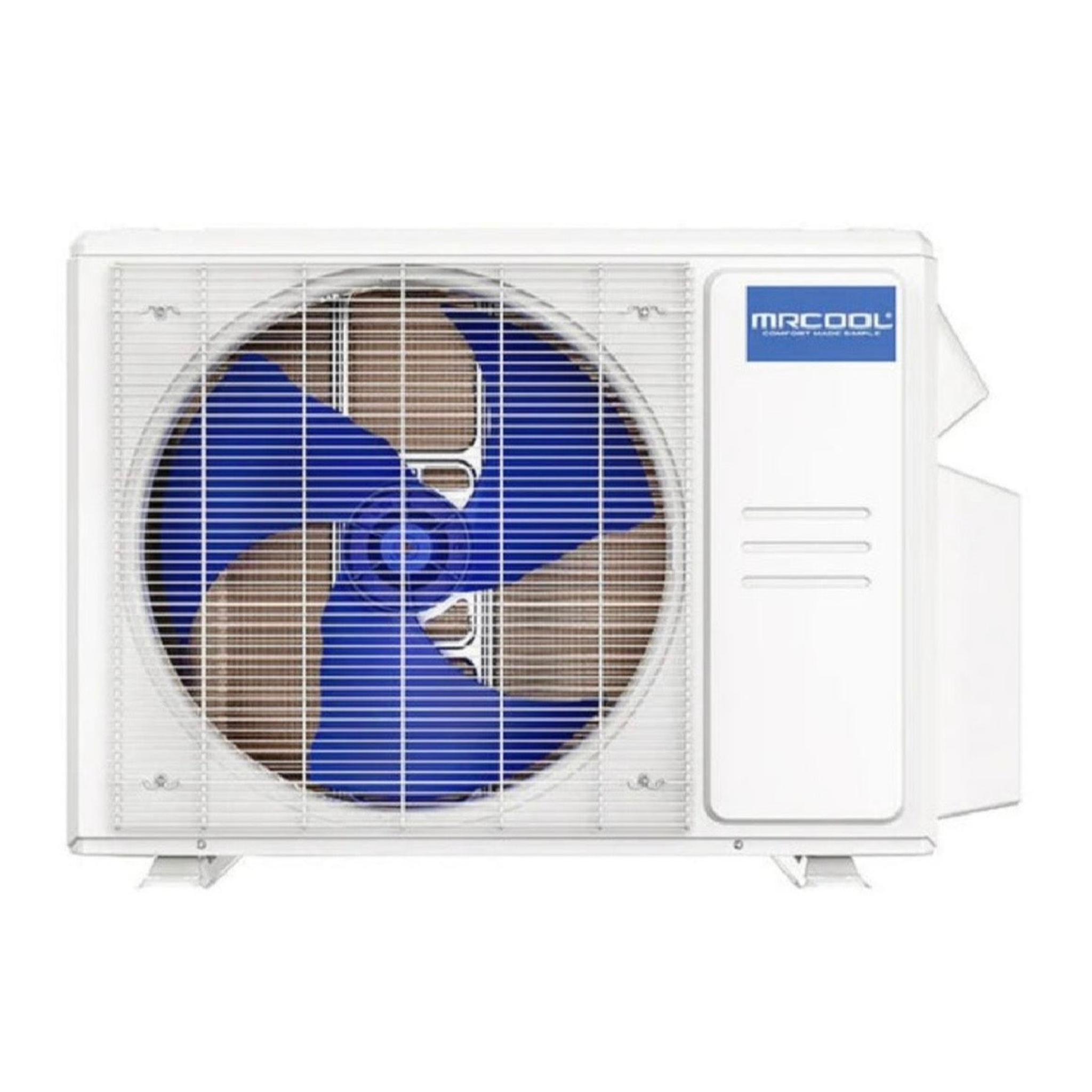

Outdoor Condenser
- MRCOOL® DIY-MULTI3-18HP230D-O
- 18,000 BTU Multi-Zone Condenser
- 208/230V
Indoor Air Handlers
- (2) MRCOOL® DIY-09-HP-WMAH-230D25-O
- 9,000 BTU Wall Mounted Air Handlers
- Up to 400 sq. ft. coverage each
Installation Components
- (2) 25ft Pre-Charged QuickConnect® Line Sets DIY25-1438
- DIYPRO® communication cable
- (2) Wireless remote controls
- (2) WiFi adapters
- (2) Wall sleeves
- Mounting hardware & installation accessories
📌 Smartphone not included
Why Homeowners Choose MRCOOL® DIY®
True DIY Installation
No vacuum pump. No gauges. No refrigerant handling. No expensive HVAC labor costs.
The included QuickConnect® pre-charged line sets make installation dramatically easier than traditional mini split systems.
Independent Room Control
Each room gets its own air handler and separate temperature control, improving comfort and reducing wasted energy.
High-Efficiency Heating & Cooling
With up to 23.9 SEER2 efficiency and inverter technology, this system helps lower monthly utility bills while maintaining consistent indoor temperatures.
Reliable Cold Weather Heating
Designed for year-round comfort with low ambient heating performance down to -13°F outdoor temperatures.
Smart Home Ready
Built-in WiFi compatibility works with:
- MRCOOL® SmartHVAC App
- Amazon Alexa
- Google Assistant
Eco-Friendly R-454B Refrigerant
Uses next-generation refrigerant with lower environmental impact and compliance with new HVAC efficiency standards.
Quiet Operation
Indoor air handlers operate quietly, making them perfect for bedrooms, offices, and living spaces.
System Specifications
System Overview
- System Type: Ductless Mini Split Heat Pump
- Zones: 2
- Total Capacity: 18,000 BTU
- Zone Capacity: 9,000 BTU + 9,000 BTU
- Coverage Area: Up to 800 sq. ft.
- Refrigerant Type: R-454B
- Installation Type: DIY QuickConnect®
- Voltage: 208/230V Single Phase

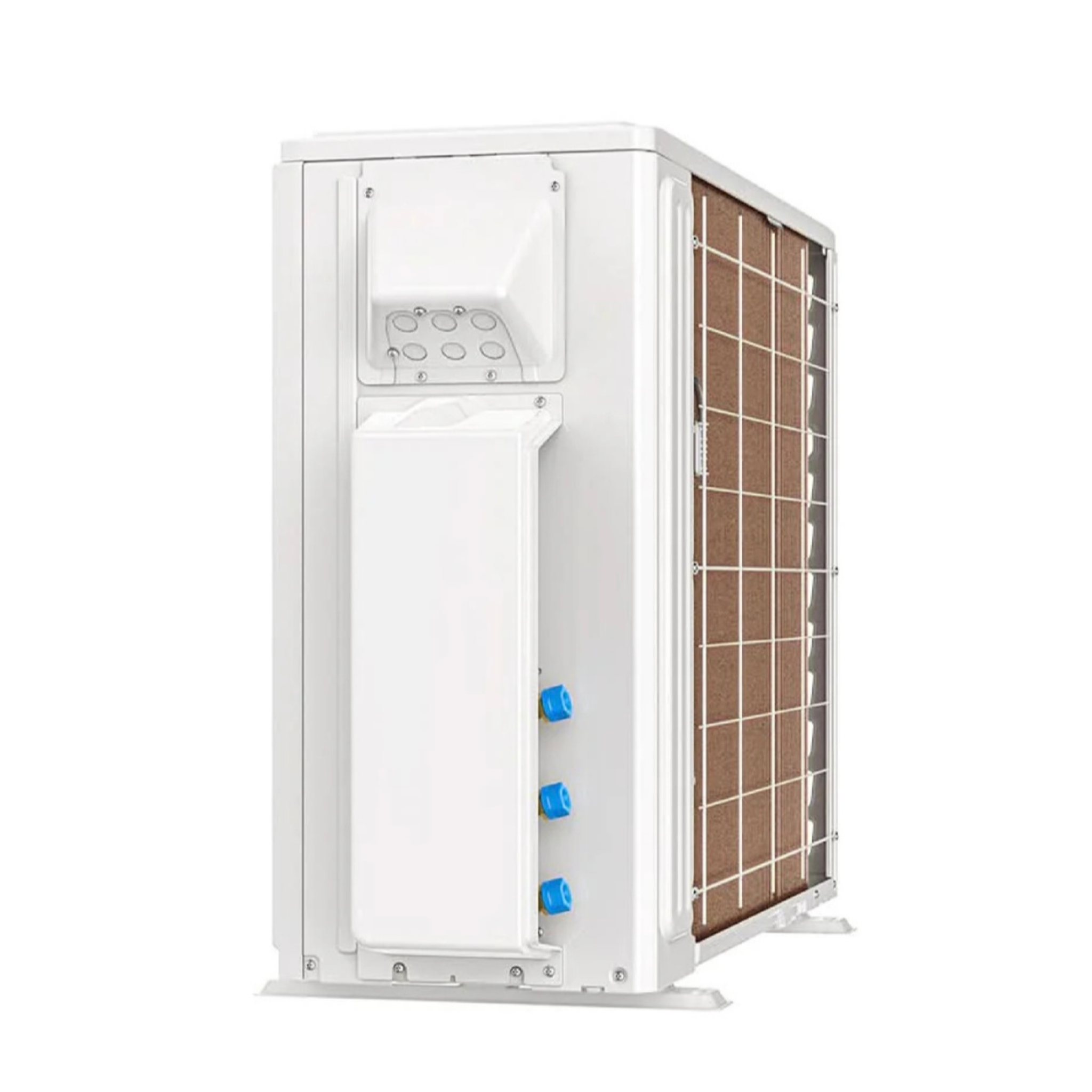

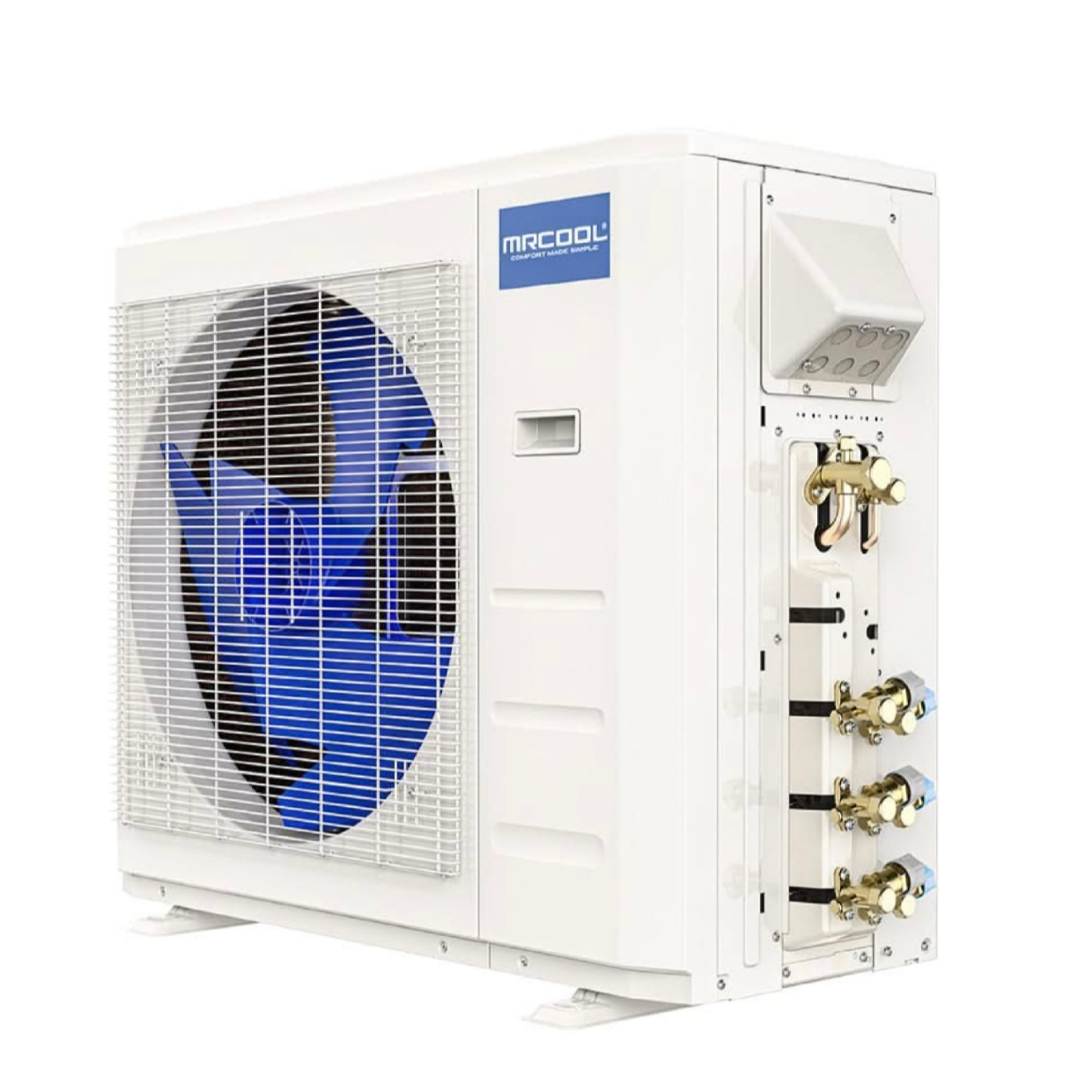

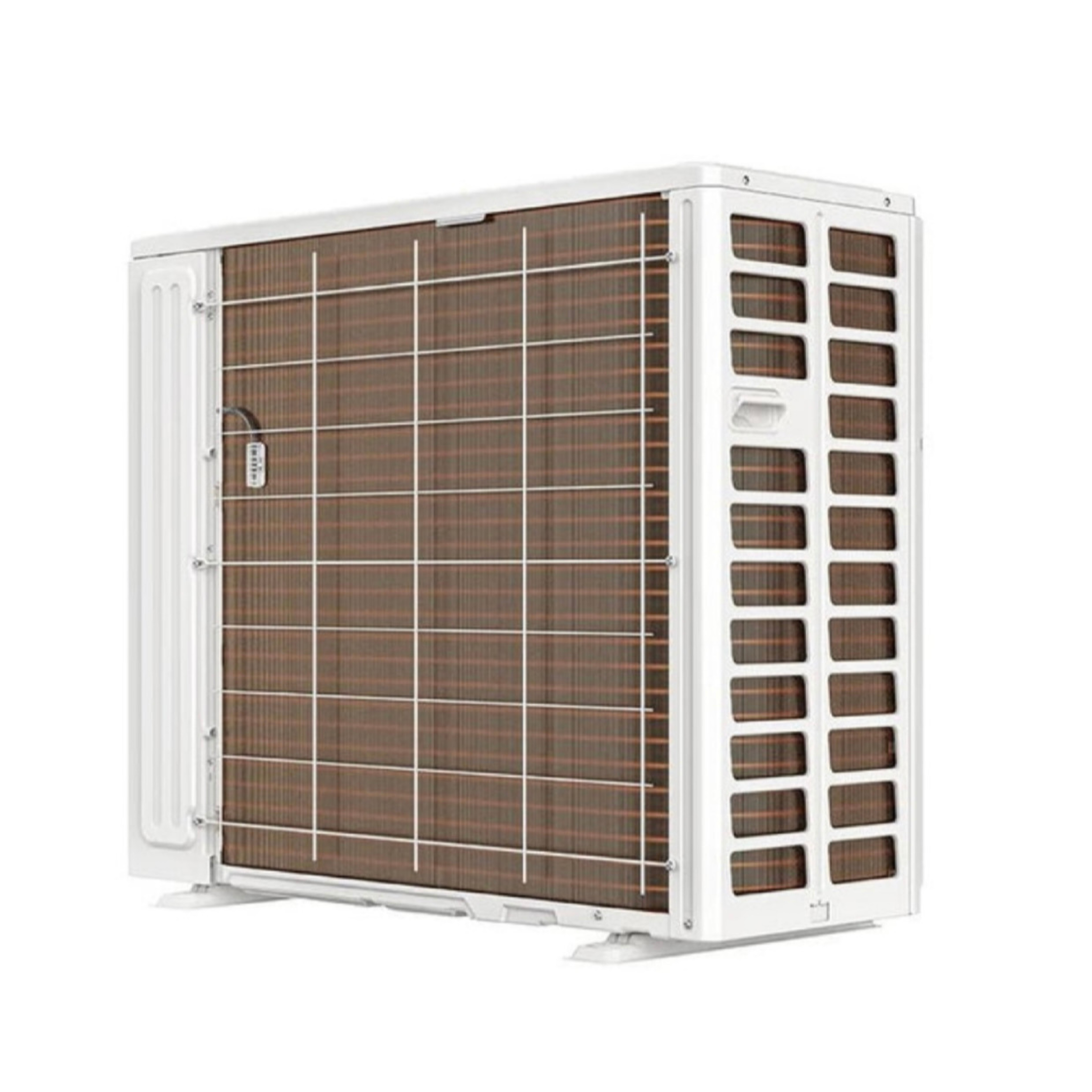

Outdoor Condenser Specifications
MRCOOL® DIY-MULTI3-18HP230D-O
- Cooling Capacity: 18,000 BTU
- Heating Capacity: 18,000 BTU

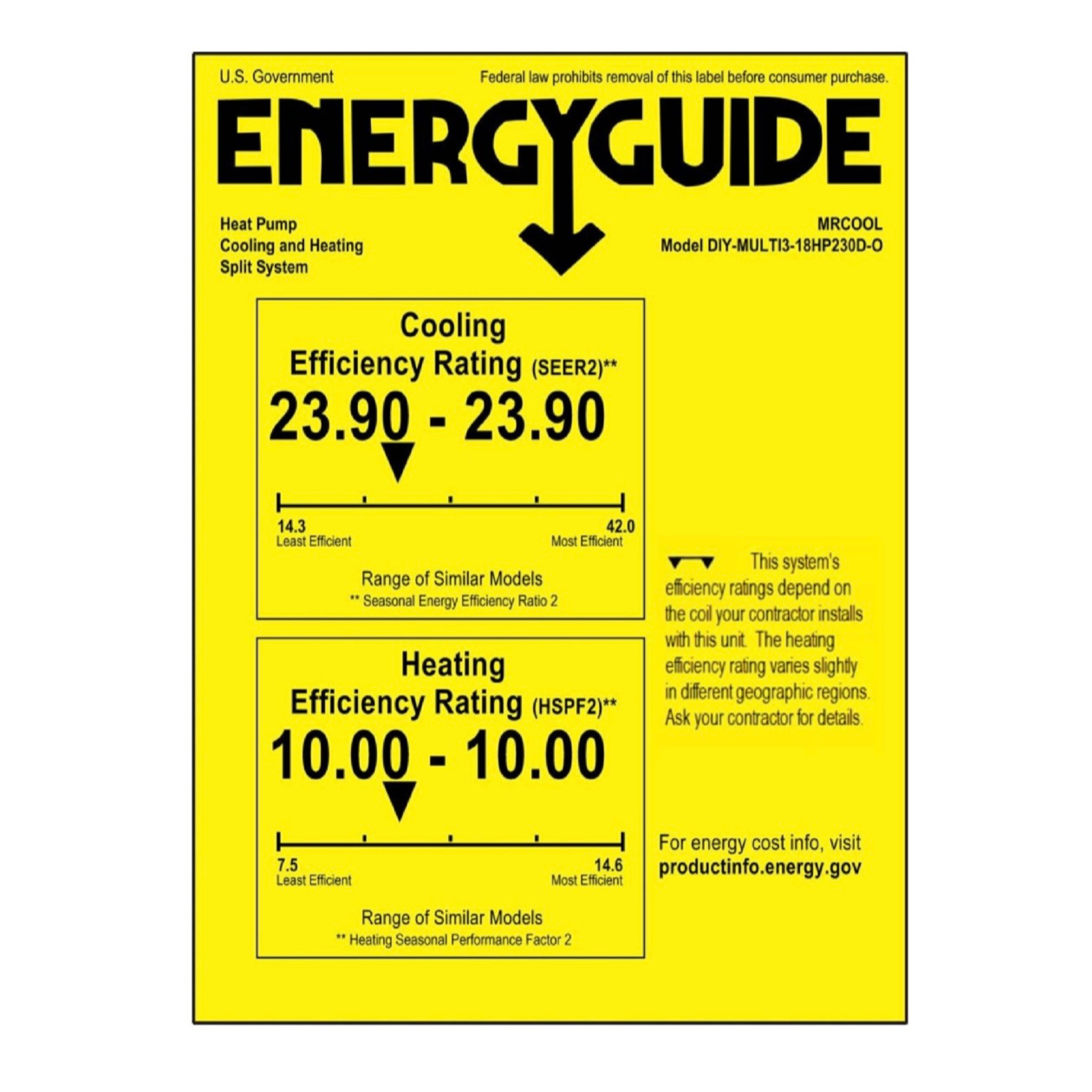

- Cooling Efficiency: 23.9 SEER2
- EER2: 13.0
- Heating Efficiency: 10.0 HSPF2-4
- Outdoor Sound Level: 60 dB(A)
- Cooling Operating Range: -13°F to 122°F
- Heating Operating Range: -13°F to 75°F
- Minimum Circuit Ampacity: 16A
- Maximum Breaker Size: 20A
- Dimensions: 35.04” W x 13.46” D x 26.50” H
- Weight: 101.63 lbs

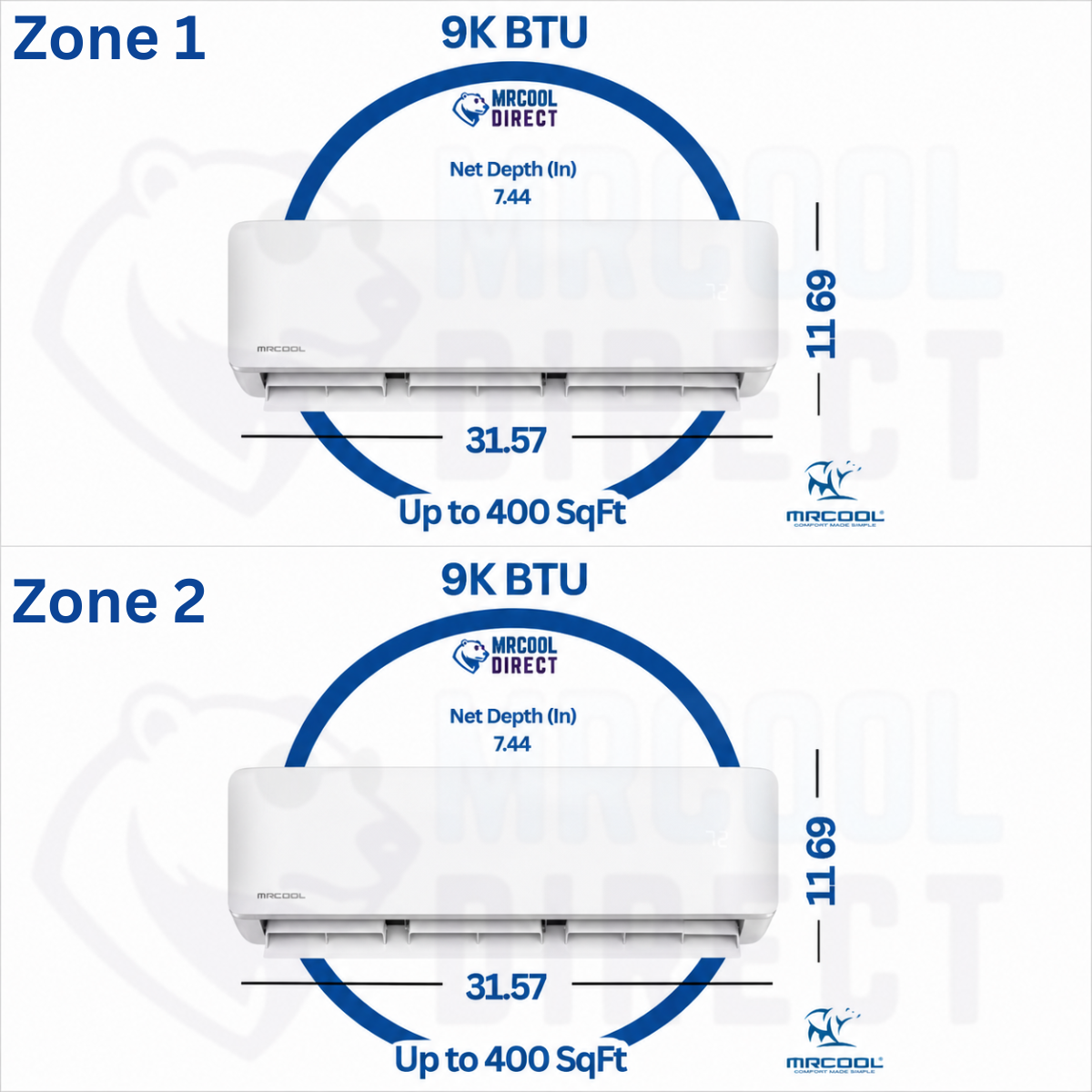

Indoor Air Handler Specifications
MRCOOL® DIY-09-HP-WMAH-230D25-O
- Cooling Capacity: 9,000 BTU
- Heating Capacity: 9,000 BTU
- Coverage Area: Up to 400 sq. ft.
- Mount Type: Wall Mounted
- Liquid Line Size: 1/4”
- Suction Line Size: 3/8”
- Dimensions: 31.57” W x 7.44” D x 11.69” H
- Weight: 24.47 lbs
Frequently Asked Questions on the MRCOOL® DIY® 5th Gen 18,000 BTU 2-Zone Mini Split System – 23.9 SEER2 – Bundle DIYM218HPW03D06 Dual 9K Air Handlers – Dual Pre-Charged line set, R-454B
What’s new with the MRCOOL® DIY® 5th Gen systems?
The 5th Generation MRCOOL® DIY® systems include several major upgrades over previous generations, including:
- New eco-friendly R-454B refrigerant
- Higher energy efficiency ratings
- Improved cold weather performance
- Enhanced reliability and durability
- Updated inverter technology
Can I install this system myself?
Yes. This is a true DIY® mini split system designed specifically for homeowners. The pre-charged QuickConnect® line sets eliminate the need for HVAC gauges or refrigerant charging.
A licensed electrician is recommended for the final electrical connection.
Does this system heat as well as cool?
Yes. This is a heat pump system that provides both air conditioning and heating for year-round comfort.
Will this work in cold weather?
Yes. The MRCOOL® DIY® 5th Gen system is designed for low ambient heating and can continue heating in outdoor temperatures down to -13°F.
Is WiFi included?
Yes. The system supports WiFi connectivity through the MRCOOL® SmartHVAC app and works with Amazon Alexa and Google Assistant. As long as you have WiFi.
What rooms is this system best for?
Perfect applications include:
- Bedrooms
- Home offices
- Garages
- Workshops
- Tiny homes
- Barndominiums
- Apartments
- Older homes without ductwork
- New additions
- Basement finishing projects
Warranty Coverage
The MRCOOL® DIY® 5th Generation system includes:
- 7-Year Compressor Replacement Warranty
- 5-Year Parts Warranty
- Eligible for MRCOOL® Care registration
Warranty registration and annual MRCOOL® Care enrollment.
