MRCOOL Control Board Sub-Assembly for DIY-24-HP-C-230B Condenser OEM Replacement Part

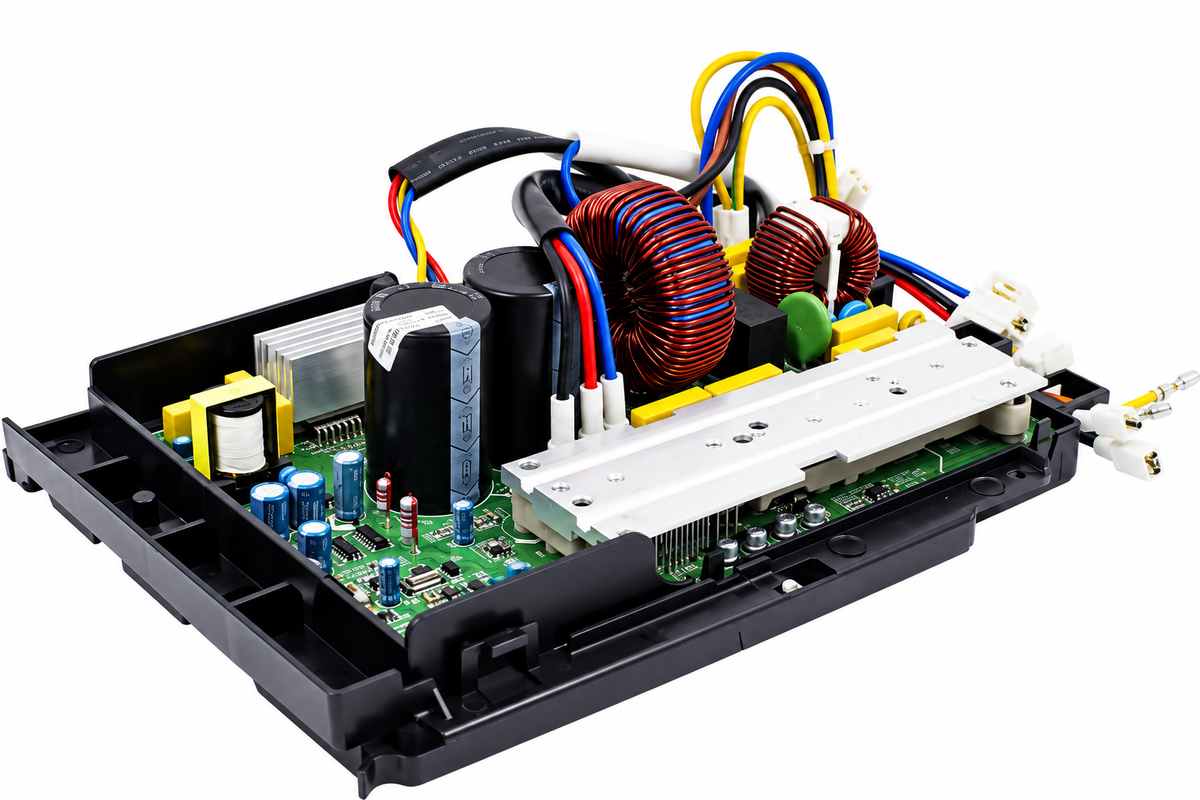

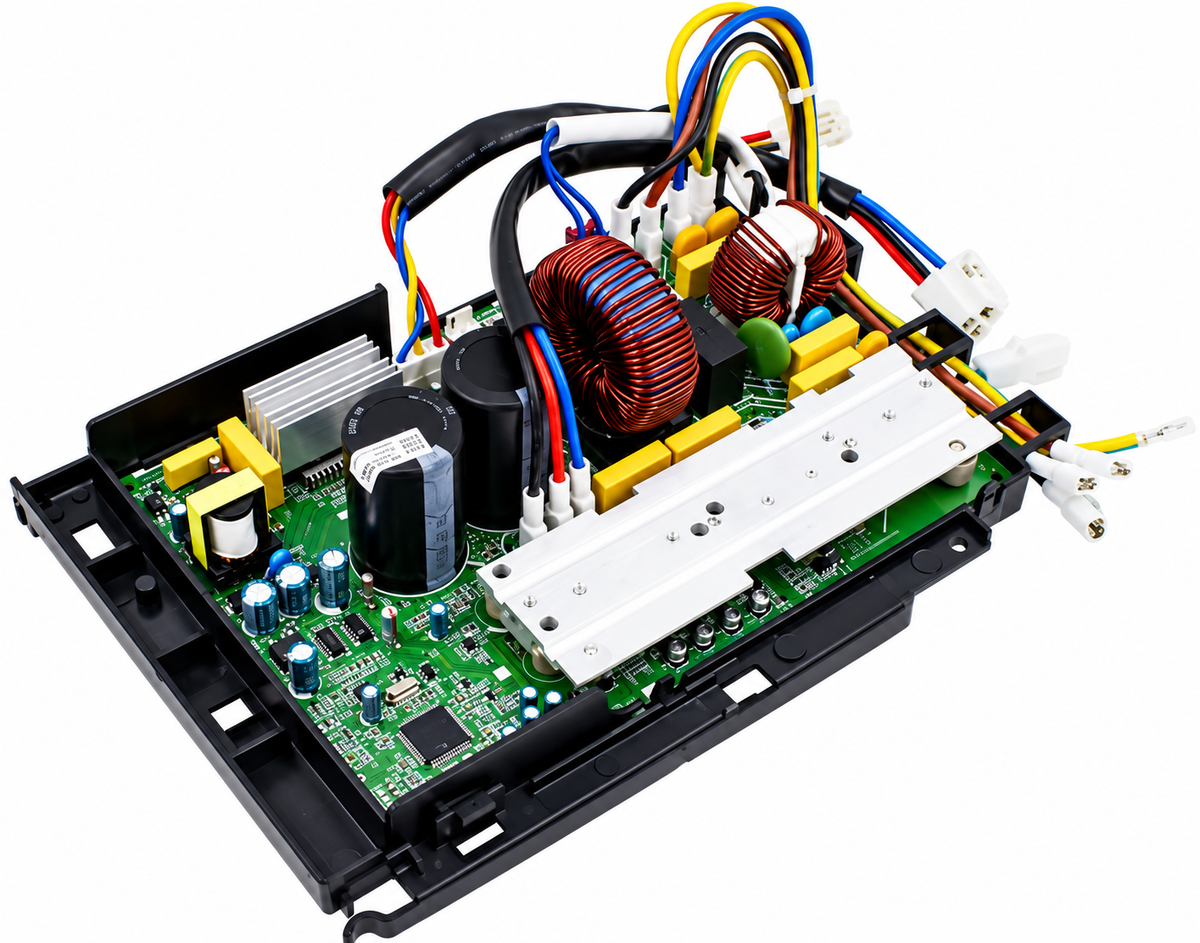

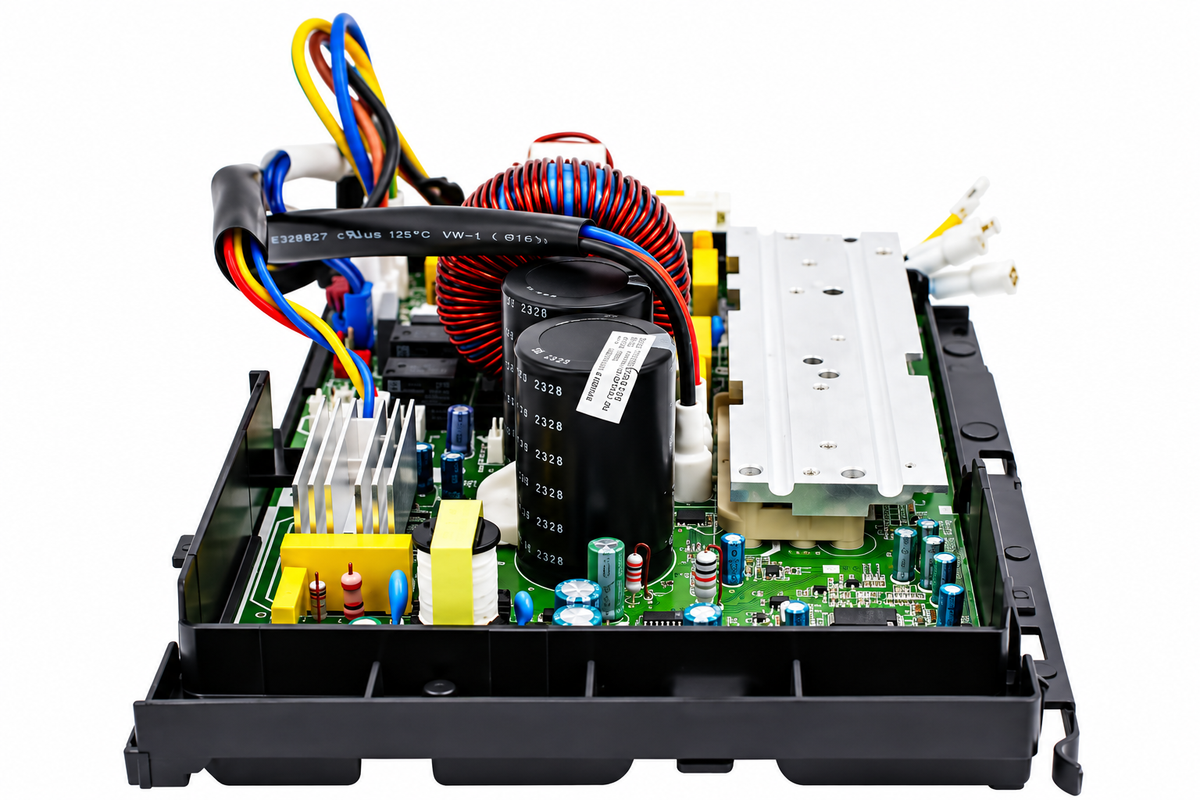

MRCOOL Control Board Sub-Assembly for DIY-24-HP-C-230B Condenser

Restore proper operation to your MRCOOL® DIY ductless mini split heat pump with a replacement Control Board Sub-Assembly designed for the MRCOOL DIY-24-HP-C-230B outdoor condenser.

The control board is an essential component of your heat pump’s electrical control system, helping manage communication and system operation. A damaged or malfunctioning control board can cause operating problems, system errors, or prevent the condenser from functioning correctly.

This replacement component is intended for the specified MRCOOL 24,000 BTU DIY heat pump condenser.

Key Product Features

• MRCOOL Replacement Component: Designed for the MRCOOL DIY-24-HP-C-230B outdoor condenser.
• Model-Specific Compatibility: Intended for the specified 24,000 BTU MRCOOL DIY ductless heat pump system.
• Restores System Functionality: Replacing a confirmed defective control board may resolve certain electrical control and operating issues.
• Electrical Control Component: Supports the condenser’s control functions and system operation.
• Replacement Solution: Helps extend the useful life of compatible equipment without replacing the entire outdoor condenser.

Product Specifications

Specification	Details
Brand	MRCOOL®
Product Type	Control Board Sub-Assembly
Compatible Model	DIY-24-HP-C-230B
System Capacity	24,000 BTU
Equipment Type	Ductless Mini Split Heat Pump
Installation Location	Outdoor Condenser
Application	Replacement Electrical Control Component
Compatibility	Model-Specific — Verify Before Ordering

Important Compatibility Information

This control board is intended for the MRCOOL DIY-24-HP-C-230B condenser.

MRCOOL manufactures multiple generations of DIY mini split systems, and replacement control boards are not necessarily interchangeable between models.

Before ordering, verify the complete model number located on your outdoor condenser’s equipment identification label.

For additional assistance identifying the correct replacement component, contact MRCOOL DIRECT before placing your order.

Professional Installation Recommended

Control board replacement involves electrical components and potentially hazardous voltage.

Installation and troubleshooting should be performed by a qualified HVAC technician or electrical professional following manufacturer service procedures.

Replacing a control board without first diagnosing the system may not resolve the underlying equipment problem.

Important Return and Refund Policy On PARTS.

ALL PARTS SALES ARE FINAL — NO RETURNS OR REFUNDS.

Please verify that this is the correct replacement part for your MRCOOL system before purchasing.

Customers are responsible for confirming model compatibility before ordering. If you are unsure whether this control board is correct for your equipment, please contact MRCOOL DIRECT before completing your purchase.
