MRCOOL® DIY® 5th Gen 27K Multi 2-Zone Mini Split System (6K + 18K) Air Handlers, (16ft + 16ft) Pre-Charged R-454B Line Sets, (230v)-DIYM227HPW01D00
MRCOOL® DIY® 5th Gen 27K Multi 2-Zone Mini Split System (6K + 18K) Air Handlers, (16ft + 16ft) Pre-Charged R-454B Line Sets, (230v)-DIYM227HPW01D00
Available in stock (18)
Product Description
MRCOOL® DIY® 5th Gen 27,000 BTU 2-Zone Mini Split System – 23 SEER2 – 6K + 18K Air Handlers – DIYM227HPW01D00
Product Overview
The MRCOOL® DIYM227HPW01D00 is a high-efficiency 27,000 BTU 2-zone ductless mini split system built for homeowners who want powerful comfort in two different spaces without paying expensive professional HVAC installation costs. This MRCOOL® DIY® 5th Generation Multi-Zone bundle gives you smart heating, cooling, dehumidification, and independent room control from one outdoor condenser.

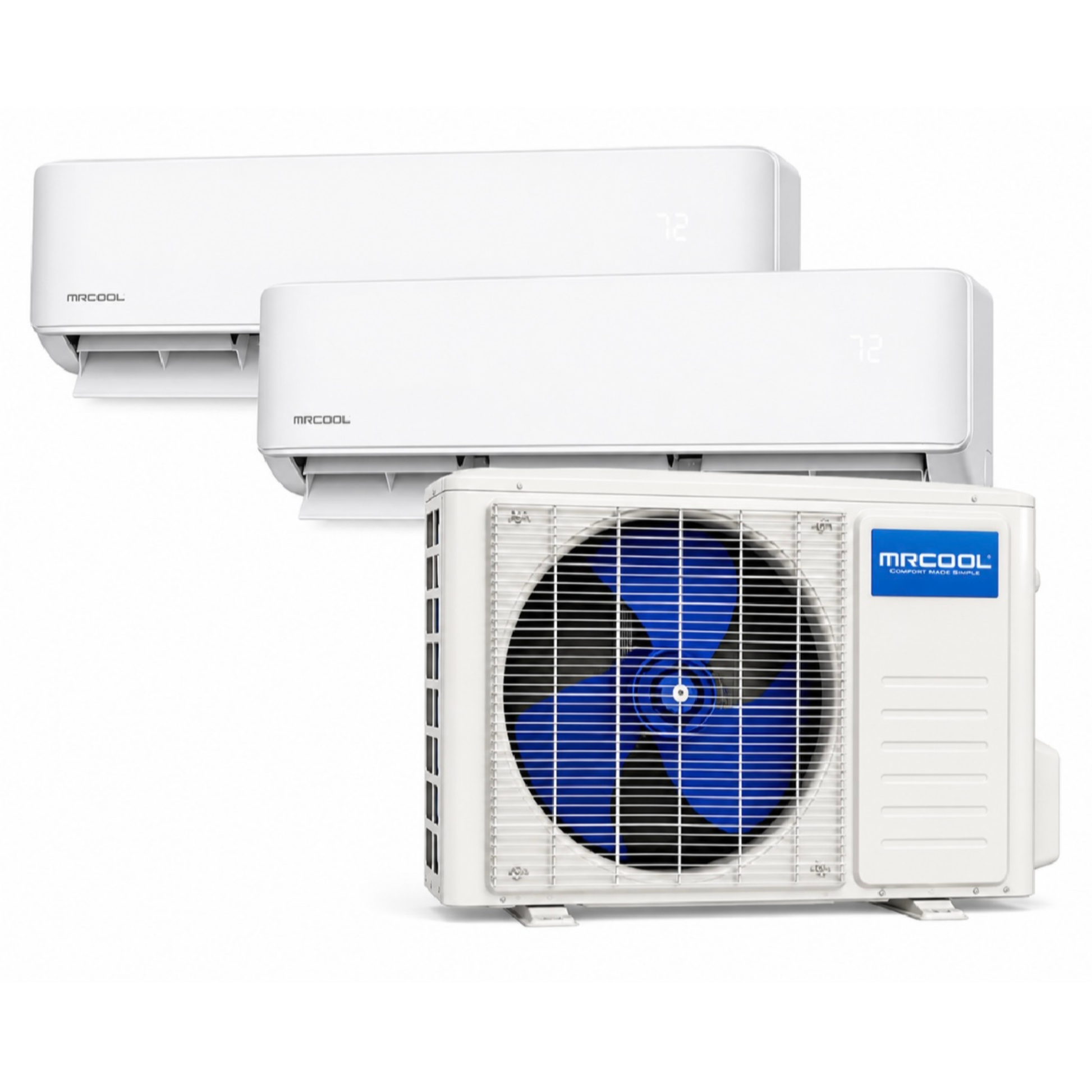

This bundle pairs the MRCOOL® DIY-MULTI4-27HP230D-O 27K class 4-zone condenser with one 6,000 BTU wall-mounted air handler and one 18,000 BTU wall-mounted air handler. That makes it a strong choice when you need to condition one smaller room and one larger space at the same time. The 6K air handler is ideal for small bedrooms, offices, nurseries, guest rooms, or spaces up to 200 square feet, while the 18K air handler is built for larger rooms up to 800 square feet, including living rooms, master bedrooms, garages, workshops, finished basements, bonus rooms, apartments, ADUs, and open areas.
The biggest advantage is simple: this is a true DIY® mini split system. The included 16 ft MRCOOL® DIY® QuickConnect® pre-charged line sets come factory sealed with R-454B refrigerant already inside. That means no vacuum pump, no gauges, no refrigerant charging, and no complicated HVAC tools for the line set connection. You mount the equipment, connect the pre-charged lines, and have a licensed electrician complete the electrical hookup.
With up to 23 SEER2 cooling efficiency, 9.5 HSPF2-4 heating performance, and inverter-driven compressor technology, this system is designed to deliver steady comfort while helping reduce energy waste compared to window units, electric baseboard heat, and older central HVAC systems.
This system also gives you smart control through the MRCOOL® SmartHVAC app, Amazon Alexa, and Google Assistant. Use the included remotes, control each room from your phone, set schedules, adjust modes, or change temperatures with your voice.
Only 2 of the 4 available condenser zones are used in this bundle, so you also have room to expand later with additional compatible indoor units if your home needs more coverage in the future.
If you want quiet, ductless, energy-efficient heating and cooling for two different room sizes, the MRCOOL® DIYM227HPW01D00 is a smart solution that delivers professional-grade comfort with true homeowner-friendly installation.
What’s Included In This Bundle
Outdoor Condenser

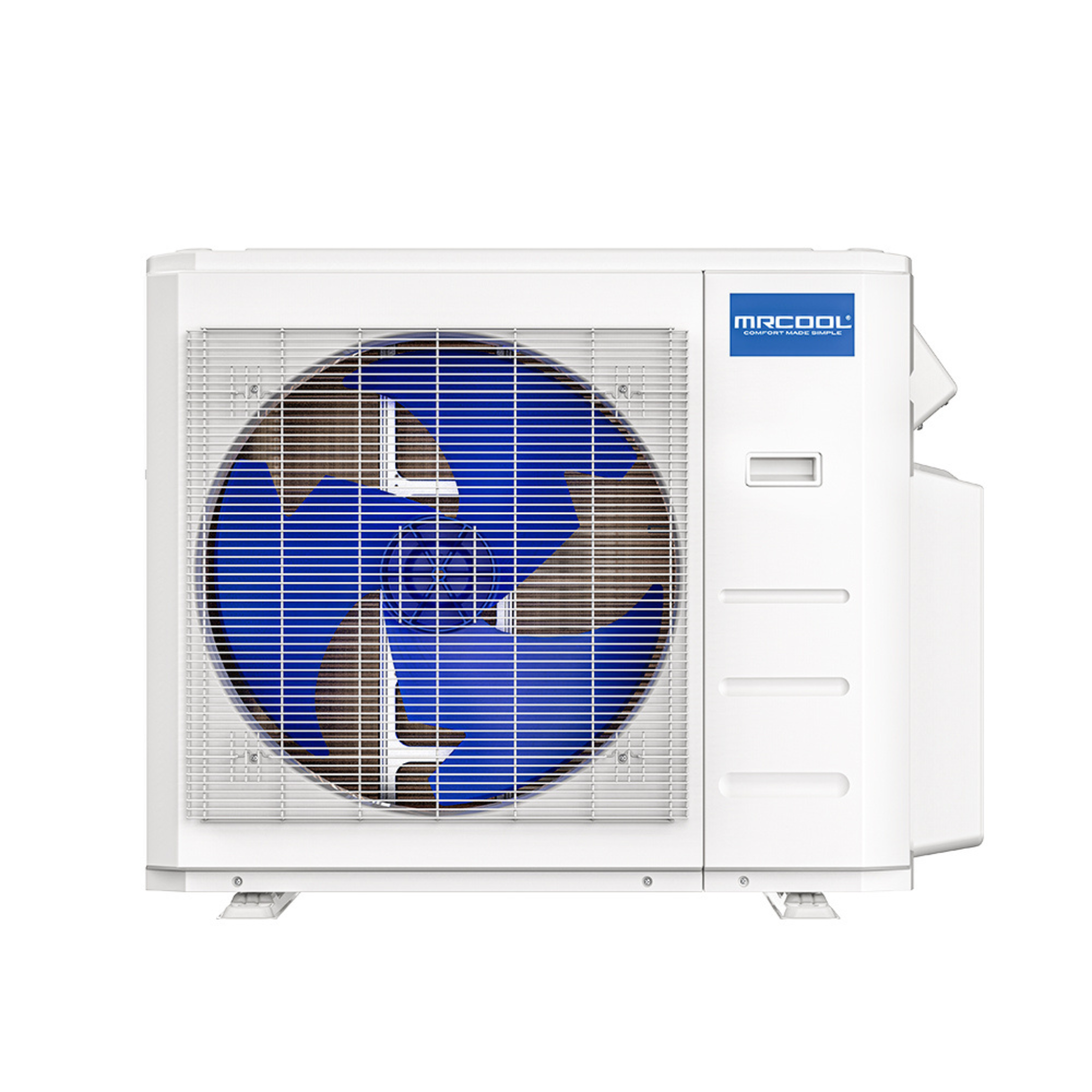

- MRCOOL® DIY-MULTI4-27HP230D-O
- 27,000 BTU class DIY® 5th Gen Multi-Zone Condenser
- Supports up to 4 indoor zones
- 208/230V
Indoor Air Handlers
-
MRCOOL® DIY-06-HP-WMAH-230D25-O
- 6,000 BTU Wall Mounted Air Handler
- Covers up to 200 sq. ft.
-
MRCOOL® DIY-18-HP-WMAH-230D25-O
- 18,000 BTU Wall Mounted Air Handler
- Covers up to 800 sq. ft.
Included Installation Components
- (2) 16 ft DIY® QuickConnect® Pre-Charged Line Sets
- DIYPRO® communication cable DIY16-1438, DIY16-1412
- Wireless remotes
- SmartHVAC WiFi/app capability
- Mounting hardware
- Installation manuals
📌 Smartphone not included
Best Uses For This 2-Zone System
This MRCOOL® DIY® 27K 2-zone bundle is ideal for homes or buildings that need comfort in one small room and one larger room.
Perfect for:
- Small bedroom + living room
- Office + garage
- Nursery + master bedroom
- Guest room + bonus room
- Workshop + apartment space
- Finished basement + upstairs room
- ADU or in-law suite
- Airbnb or rental unit
- Older homes without ductwork
- New additions and remodels
Why Homeowners Choose MRCOOL® DIY®
True DIY® Installation
The MRCOOL® DIY® system is made for homeowner installation. The QuickConnect® line sets are pre-charged and factory sealed, so there is no vacuum pump, refrigerant handling, or HVAC charging required for the line set connection.
Independent Room Comfort
Each air handler has its own temperature control, giving you comfort where you need it without wasting energy conditioning unused rooms.
Expandable 4-Zone Condenser
This bundle uses 2 zones, but the condenser supports up to 4 indoor units total. You can add more compatible zones later if your comfort needs grow.
High-Efficiency Heating & Cooling
With up to 23 SEER2 efficiency and inverter compressor technology, this system adjusts output based on demand to help lower energy use and maintain more even temperatures.
Built For Cold Weather
The system is designed for low ambient heating and can operate in outdoor heating temperatures down to -13°F, with strong heating performance around 5°F.
Smart Home Ready
Control your system using:
- MRCOOL® SmartHVAC App
- Amazon Alexa
- Google Assistant
- Included handheld remotes
R-454B Refrigerant
Uses next-generation R-454B refrigerant, designed to meet newer HVAC environmental standards while delivering reliable performance.
Quiet Comfort
Indoor air handlers are designed for quiet operation, making this system a great fit for bedrooms, offices, living areas, and rental spaces.
System Specifications
System Overview
- Model Number: DIYM227HPW01D00
- System Type: Ductless Mini Split Air Conditioner & Heat Pump
- Zones Included: 2
- Zones Supported By Condenser: Up to 4
- Total Indoor Capacity: 24,000 BTU
- Outdoor Condenser Class: 27,000 BTU
- Zone Configuration: 6K + 18K
- Estimated Total Coverage: Up to 1,000 sq. ft.
- Zone 1 Coverage: Up to 200 sq. ft.
- Zone 2 Coverage: Up to 800 sq. ft.
- Refrigerant: R-454B
- Line Sets Included: (2) 16 ft Pre-Charged QuickConnect® Line Sets
- Voltage: 208/230V
- Phase: 1
- Cycle: 60Hz
- Installation Type: DIY® QuickConnect®
Outdoor Condenser Specifications
MRCOOL® DIY-MULTI4-27HP230D-O
- Cooling Capacity: 26,000 BTU
- Heating Capacity: 26,000 BTU
- SEER2: 23
- EER2: 12
- HSPF2-4: 9.5
- HSPF2-5: 7
- Tonnage: 2.25 Ton
- Compressor Type: DC Inverter Rotary
- Outdoor Sound Level: 61 dB(A)
- Cooling Operating Range: -13°F to 122°F
- Heating Operating Range: -13°F to 75°F
- Minimum Circuit Ampacity: 23A
- Maximum Fuse Breaker: 25A
- Maximum Total Line Length: 221.4 ft
- Liquid Line Size: 1/4”
- Suction Line Size: 3/8”
- Net Dimensions: 37.24” W x 31.89” H x 16.14” D
- Net Weight: 140.21 lbs

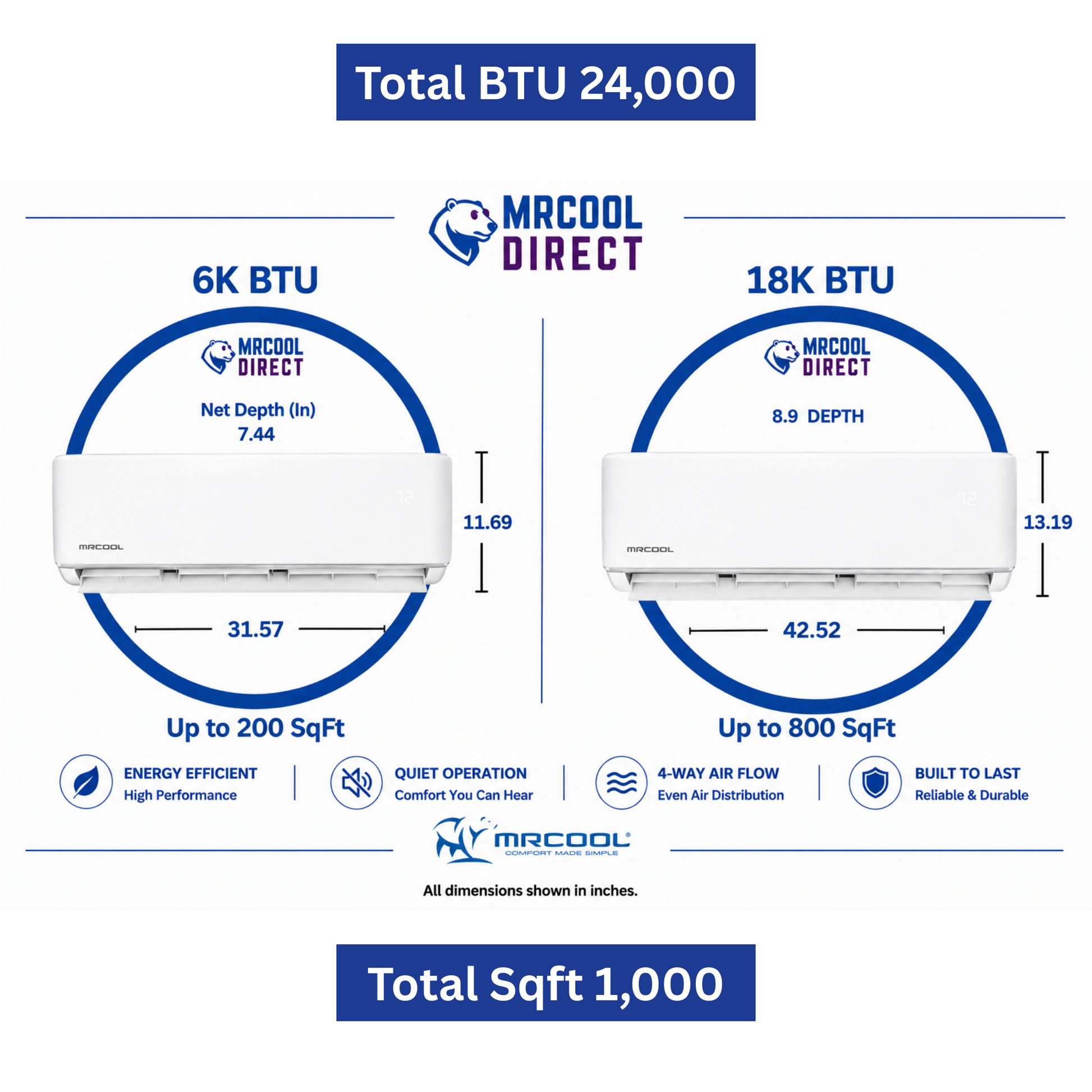

Indoor Air Handler Specifications
MRCOOL® DIY-06-HP-WMAH-230D25-O
- Cooling Capacity: 6,000 BTU
- Heating Capacity: 6,000 BTU
- Room Size: Up to 200 sq. ft.
- Mount Type: Wall Mount
- Voltage: 208/230V
- Control Options: Remote, SmartHVAC app, Alexa, Google Assistant
- Filter: Reusable
- Liquid Line Size: 1/4”
- Suction Line Size: 3/8”
- Net Dimensions: 31.57” W x 11.69” H x 7.44” D
- Net Weight: 24.47 lbs
Operating Modes
- Cool
- Heat
- Auto
- Dry / Dehumidification
- Fan
- Sleep
MRCOOL® DIY-18-HP-WMAH-230D25-O
- Cooling Capacity: 18,000 BTU
- Heating Capacity: 18,000 BTU
- Room Size: Up to 800 sq. ft.
- Mount Type: Wall Mount
- Voltage: 208/230V
- Tonnage: 1.5 Ton
- Indoor Sound Range: 19–54.5 dB(A)
- Liquid Line Size: 1/4”
- Suction Line Size: 1/2”
- Net Dimensions: 42.52” W x 13.19” H x 8.9” D
- Net Weight: 35.49 lbs
Operating Modes
- Cool
- Heat
- Auto
- Dry / Dehumidification
- Fan
- Sleep
Frequently Asked Questions for the MRCOOL® DIY® 5th Gen 27,000 BTU 2-Zone Mini Split System – 23 SEER2 – 6K + 18K Air Handlers – DIYM227HPW01D00
Can I install this MRCOOL® DIY® system myself?
Yes. This system is designed for homeowner installation using factory-sealed QuickConnect® pre-charged line sets. No vacuum pump, gauges, or refrigerant handling is required for the line set installation.
A licensed electrician should complete the electrical connection to meet local code.
How many rooms can this system heat and cool?
This bundle includes 2 indoor air handlers for 2 separate zones. The outdoor condenser supports up to 4 zones total, so additional compatible indoor units may be added later.
What room sizes does this bundle cover?
The 6K air handler is best for smaller spaces up to 200 sq. ft. The 18K air handler is best for larger spaces up to 800 sq. ft. Actual sizing can vary based on insulation, ceiling height, windows, sun exposure, climate, and room layout.
Are the line sets pre-charged?
Yes. This bundle includes two 16 ft DIY® QuickConnect® pre-charged line sets.
Does this system heat and cool?
Yes. This is a ductless heat pump system, so it provides both air conditioning and heating.
Is this system good for cold weather?
Yes. The MRCOOL® DIY® 5th Gen system is designed for low ambient heating and can operate in heating mode down to -13°F outdoor temperature.
Can I control it from my phone?
Yes. The system works with the MRCOOL® SmartHVAC app and is compatible with Amazon Alexa and Google Assistant.
What warranty comes with this system?
This MRCOOL® DIY® 5th Gen system includes:
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- Eligible for the care kit program
Why Buy From MRCOOL Direct?
MRCOOL Direct is a trusted authorized MRCOOL dealer focused on helping homeowners get the right system, the right accessories, and real support before and after the sale.
When you buy from MRCOOL Direct, you get:
- Genuine MRCOOL® equipment
- Warranty-safe authorized dealer purchase
- Factory-fresh systems
- Nationwide shipping
- Help with sizing and layout
- Line set and accessory guidance
- Friendly support from real HVAC people
- No third-party marketplace confusion
- Better buying confidence from a MRCOOL-focused dealer
Need help confirming room sizes, breaker sizing, or line set options?
Call MRCOOL Direct:
615-553-8118
