MRCOOL® DIY® 5th Gen Multi-Zone 4-Zone 27,000 BTU 23 SEER2 (6K + 6K + 6K + 9K) 4x 25ft line sets- Ductless Mini-Split Air Conditioner & Heat Pump — Model DIYM427HPW01D88

Product Description

Model: DIYM427HPW01D88



The MRCOOL® DIYM427HPW01D88 is a highly efficient 4-zone ductless mini-split system designed for homeowners who want precise room-by-room comfort, lower energy costs, and a true DIY installation without compromising reliability or performance.

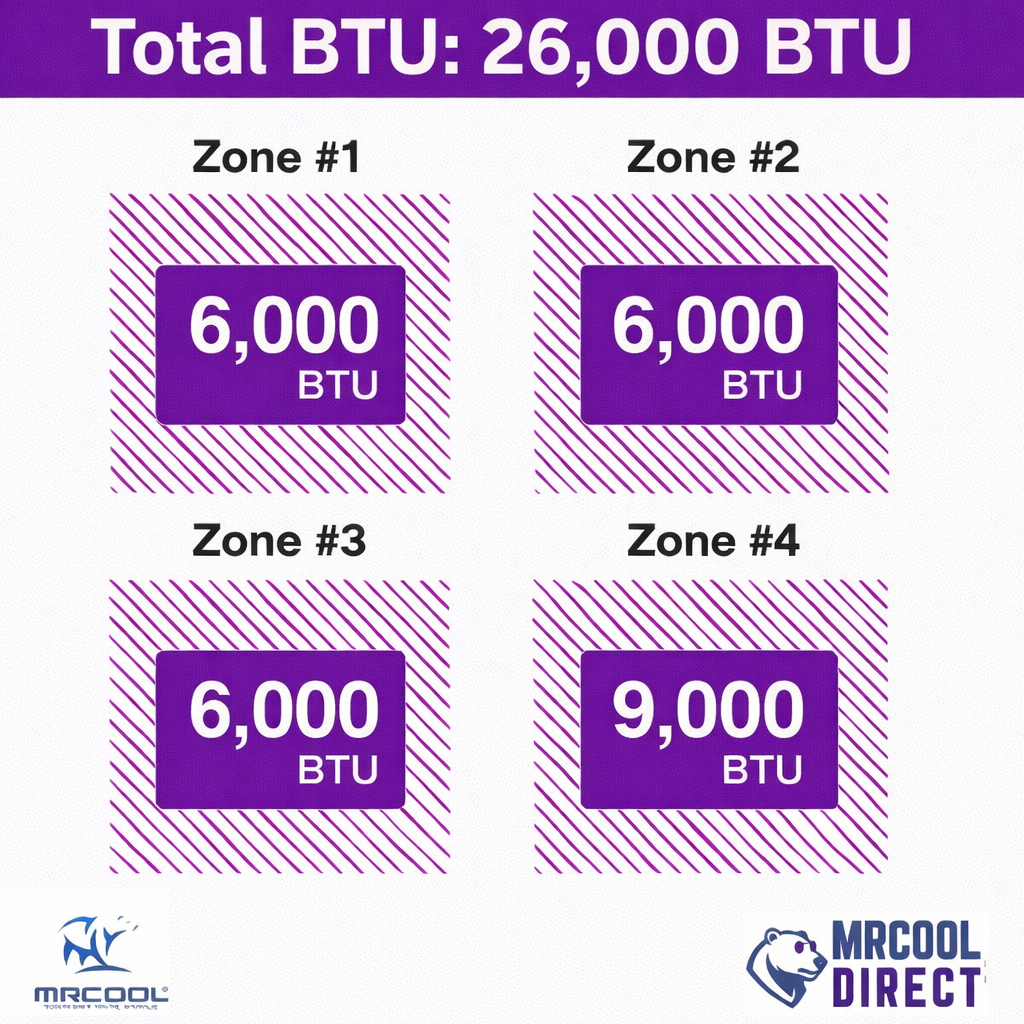

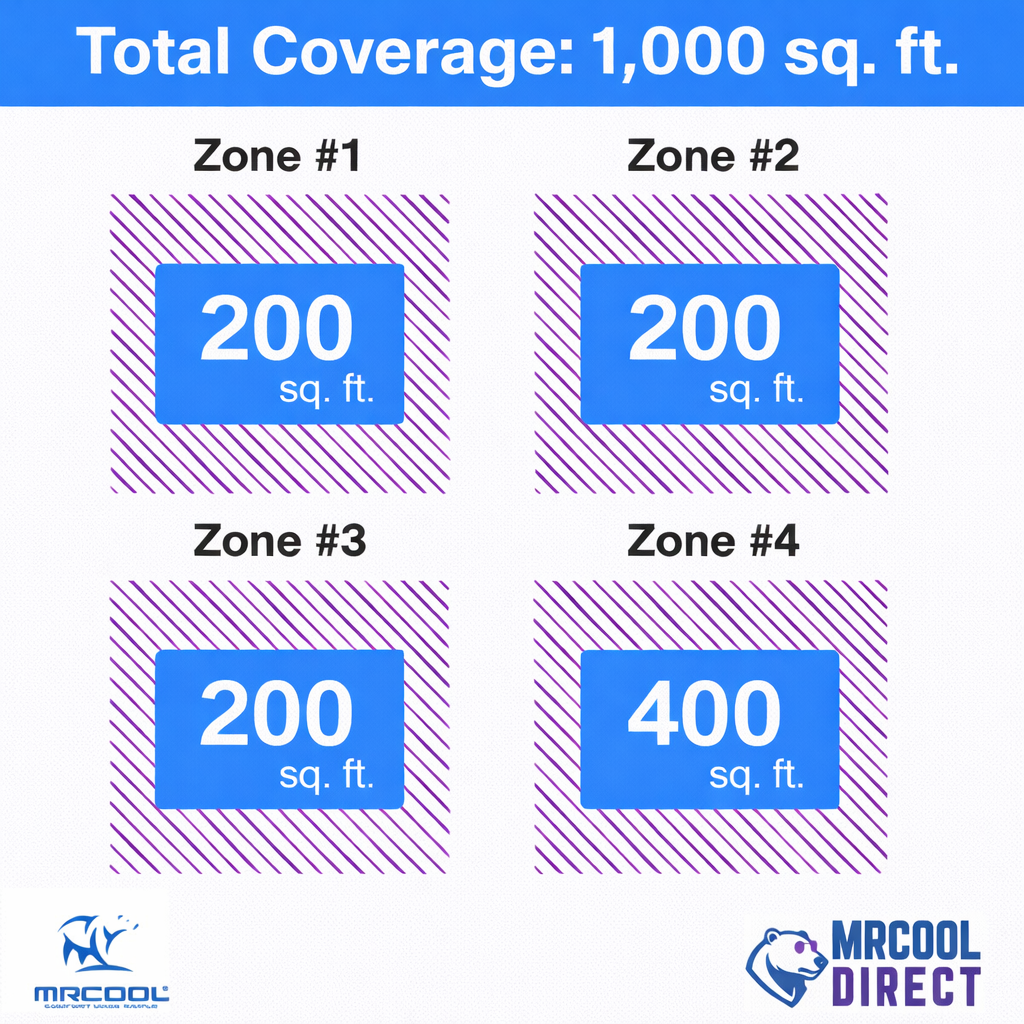

This bundle pairs the MRCOOL® DIY® 27,000 BTU 5th Generation multi-zone condenser with three 6,000 BTU indoor air handlers and one 9,000 BTU indoor air handler, making it an excellent solution for homes with multiple bedrooms, offices, or mixed-size spaces that need balanced airflow and independent temperature control.

What sets this system apart is MRCOOL®’s patented DIY® QuickConnect® pre-charged line sets, which arrive factory-sealed with R-454B refrigerant. This eliminates vacuuming, gauges, and refrigerant handling, allowing installation without HVAC licensing. Combined with the DIYPRO® cable, installation is cleaner, faster, and far more cost-effective than traditional systems.

With 23 SEER2 efficiency, DC inverter technology, and full MRCOOL® Smart HVAC Controller® support, this system delivers quiet operation, smart scheduling, and long-term energy savings—perfect for homeowners who want comfort they can control from anywhere.



 KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 27,000 BTU total system capacity
• 4 independently controlled comfort zones
• 23 SEER2 high-efficiency rating
• DC inverter compressor technology
• DIY® QuickConnect® pre-charged line sets
• No vacuum pump or refrigerant tools required
• DIYPRO® cable (no conduit needed)
• Gold Fin® corrosion-resistant coating
• Follow Me® temperature sensing
• MRCOOL® Smart HVAC Controller® App
• Amazon Alexa® & Google Home® compatible
• Ultra-quiet indoor operation
• ENERGY STAR® & AHRI certified



 ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

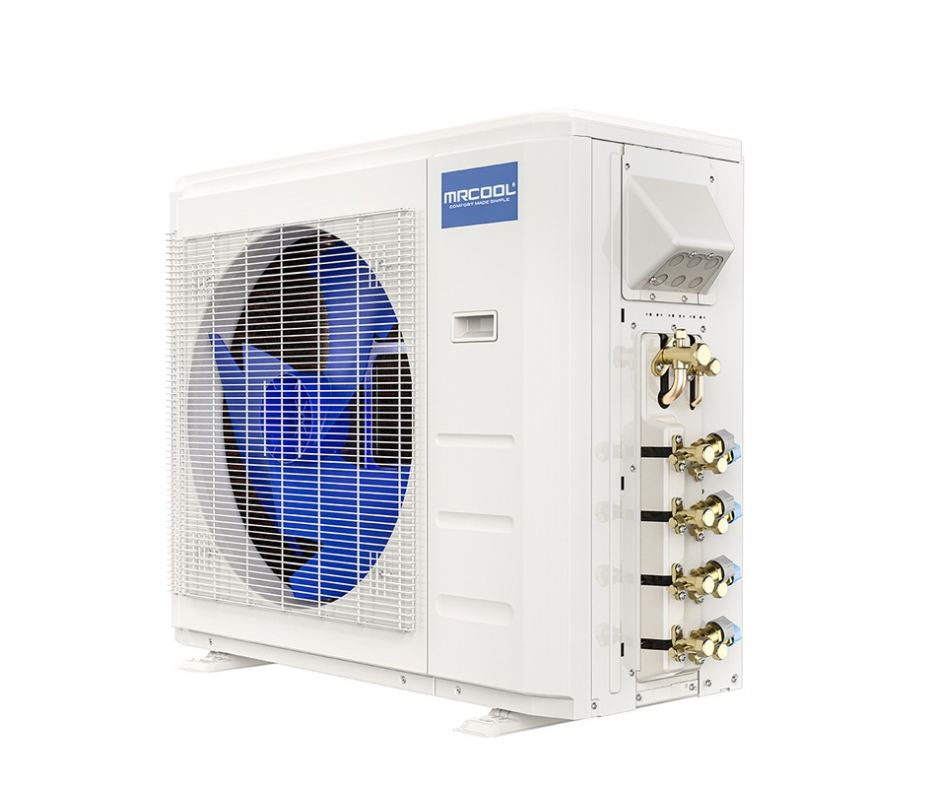

Outdoor Condenser — DIY-MULTI4-27HP230D-O

• Voltage: 208 / 230V
• Phase: Single-phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 20 amps
• Maximum Breaker Size: 25 amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

Outdoor Condenser

• Width: ~33 in
• Height: ~31 in
• Depth: ~16 in
• Weight: ~150 lbs

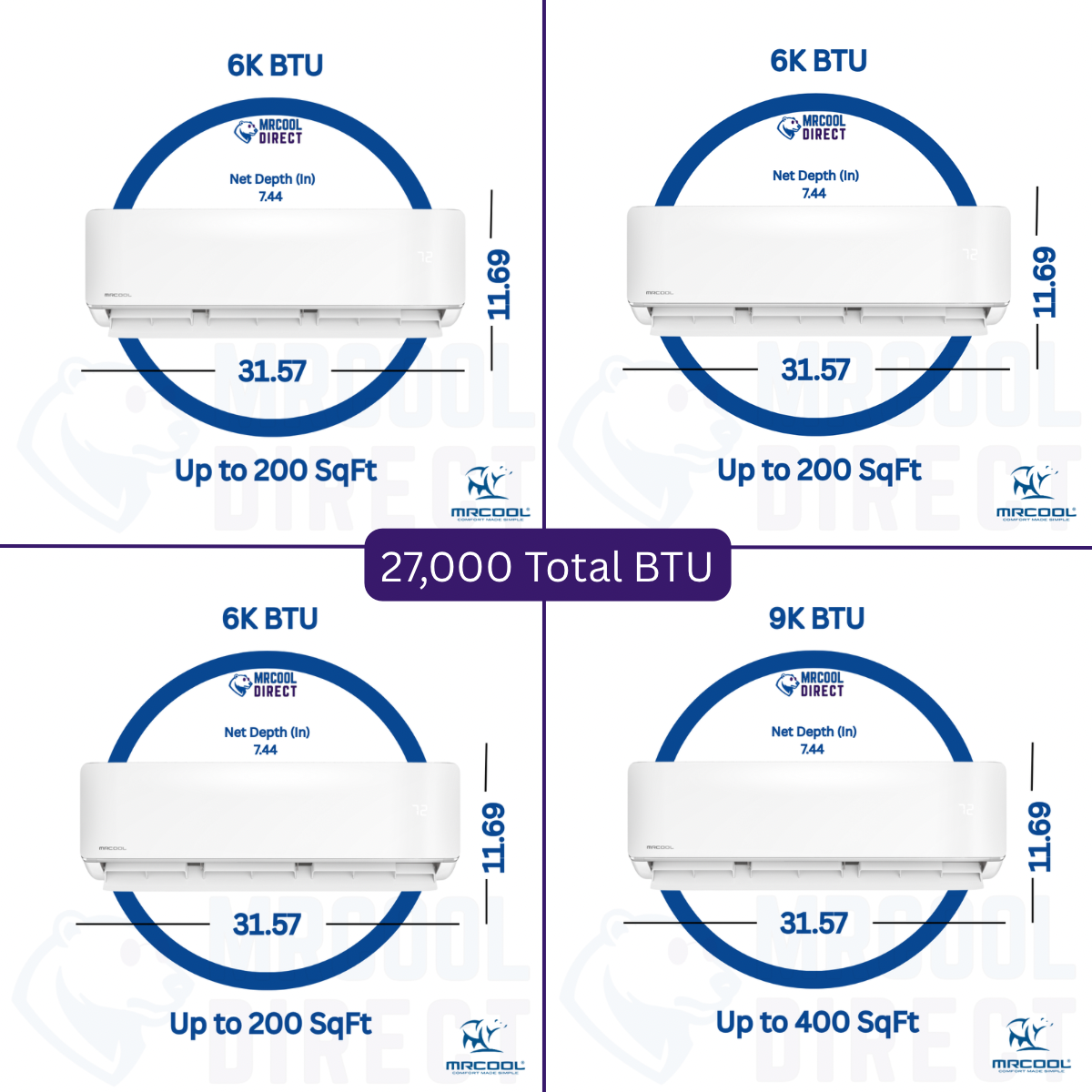

6K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~25 lbs

9K Indoor Air Handler

• Width: ~33 in
• Height: ~12 in
• Depth: ~8 in
• Weight: ~27 lbs

WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (with MRCOOL® Care Program registration)



WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 27K BTU 4-Zone Outdoor Condenser
• ✔ (3) 6K BTU Wall-Mounted Indoor Air Handlers
• ✔ (1) 9K BTU Wall-Mounted Indoor Air Handler
• ✔ (4) 25-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each indoor unit
• ✔ Installation manuals & mounting hardware

Smart phone not included.



FREQUENTLY ASKED QUESTIONS

Is this system truly DIY?

Yes. No vacuuming, gauges, or refrigerant handling required.



Can each zone run independently?

Yes. Every indoor unit has its own temperature control.



Is this system efficient for daily use?

Absolutely. The 23 SEER2 rating delivers long-term energy savings.



Does it support smart home control?

Yes. Works with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
