MRCOOL® DIY® 5th Gen Multi-Zone 3-Zone 36,000 BTU 23 SEER2 (6K + 6K + 18K)- 3x 16ft line sets- Ductless Mini-Split Air Conditioner & Heat Pump- DIYM336HPW01D00

Product Description

Model: DIYM336HPW01D00



The MRCOOL® DIYM336HPW01D00 is a powerful, high-efficiency 3-zone ductless mini-split system engineered for homeowners who need true room-by-room control, dependable year-round performance, and a DIY-friendly installation process—without sacrificing professional-grade quality.

This system is built around the MRCOOL® DIY® 5th Generation 36,000 BTU multi-zone condenser, paired with two 6,000 BTU indoor air handlers for smaller rooms and one 18,000 BTU indoor air handler for a larger living space. This configuration is ideal for bedrooms, home offices, guest rooms, dens, and main living areas, allowing each zone to operate independently for maximum comfort and efficiency.

Installation is simplified using MRCOOL®’s patented DIY® QuickConnect® technology. The included three 16-ft pre-charged QuickConnect® line sets arrive factory-sealed with R-454B refrigerant, eliminating the need for vacuum pumps, gauges, or licensed refrigerant handling. Combined with the DIYPRO® cable, which removes the need for electrical conduit, this system delivers one of the fastest and cleanest multi-zone DIY installs on the market.

With DC inverter technology, Gold Fin® corrosion-resistant coils, Follow Me® temperature sensing, and full MRCOOL® Smart HVAC Controller® integration, this system delivers quiet operation, lower utility bills, and long-term reliability—all backed by industry-leading warranties.



 KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 36,000 BTU total system capacity

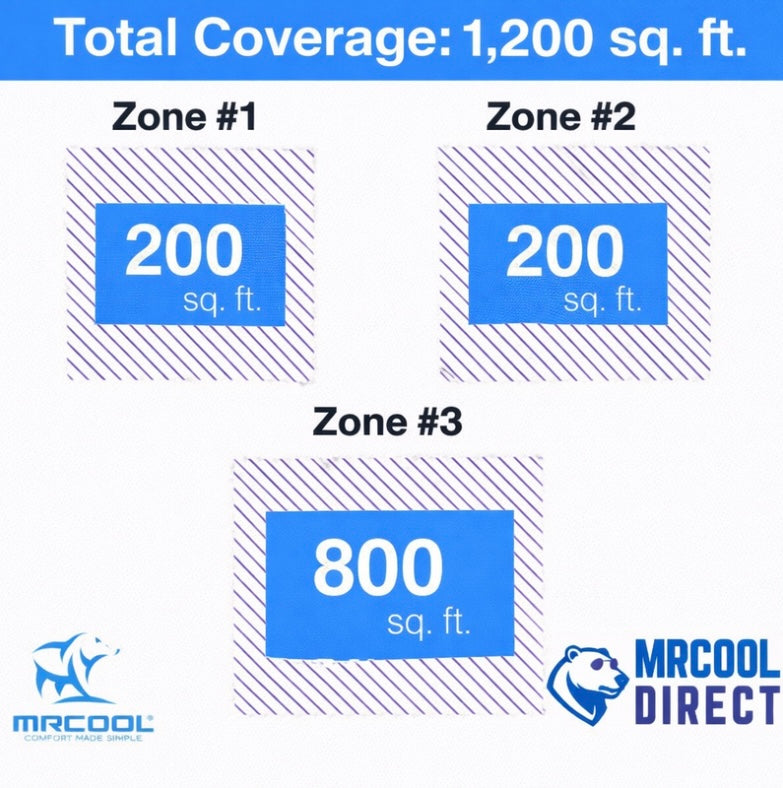

• 3 independently controlled comfort zones

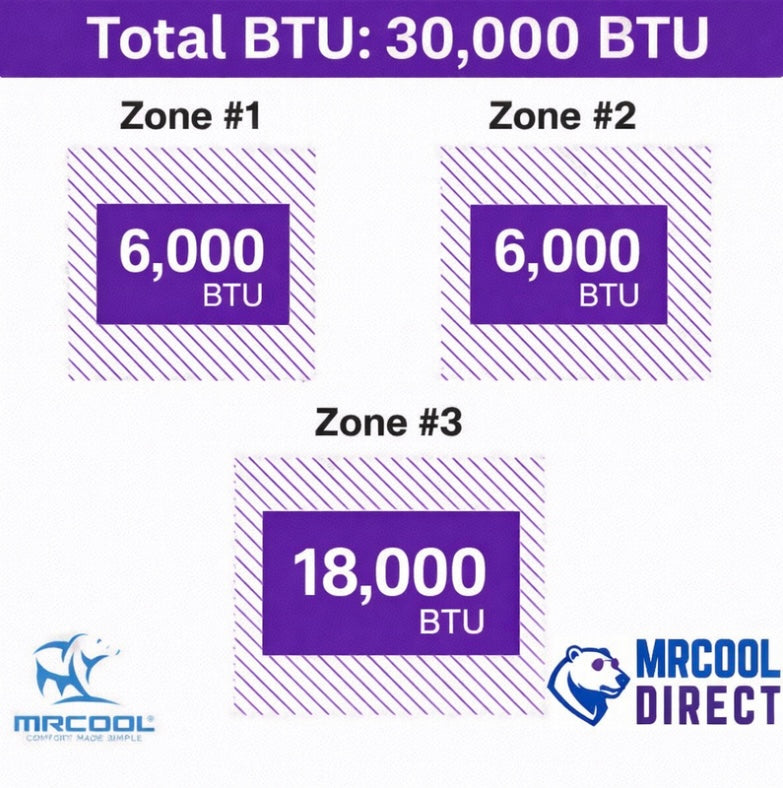

• (2) 6K + (1) 18K BTU wall-mounted air handlers
• 23 SEER2 high-efficiency rating
• DC inverter variable-speed compressor
• DIY® QuickConnect® pre-charged line sets
• 16-ft line-set reach (upgradeable if needed)
• DIYPRO® cable (no conduit required)
• Gold Fin® anti-corrosion protection
• Follow Me® remote-based temperature sensing
• MRCOOL® Smart HVAC Controller® App
• Alexa® & Google Home® compatibility
• ENERGY STAR® & AHRI certified



 ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

Outdoor Condenser — DIY-MULTI5-36HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 30.5 Amps
• Maximum Breaker Size: 35 Amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

Outdoor Condenser

• Width: 37.24 in
• Height: 31.89 in
• Depth: 16.14 in
• Net Weight: ~169 lbs

6K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Net Weight: ~24.5 lbs

18K Indoor Air Handler

• Width: 42.52 in
• Height: 13.19 in
• Depth: 8.9 in
• Net Weight: ~35.5 lbs

 WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (with MRCOOL® Care Program registration)



 WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 36,000 BTU Multi-Zone Outdoor Condenser
• ✔ (2) 6,000 BTU Wall-Mounted Indoor Air Handlers
• ✔ (1) 18,000 BTU Wall-Mounted Indoor Air Handler
• ✔ (3) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8 & 1/4 × 1/2 as required)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each indoor unit
• ✔ Mounting hardware & installation manuals

Smart phone not included.



 FREQUENTLY ASKED QUESTIONS (FAQ)

Can I upgrade the line-set length later?

Yes. Longer QuickConnect® line sets are available separately if additional reach is required.



Does each room operate independently?

Yes. Each indoor unit has its own thermostat and control.



Is professional HVAC installation required?

No. This system is designed specifically for DIY installation.



Does this work with smart home systems?

Yes. Fully compatible with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
