MRCOOL® DIY® 5th Gen Multi-Zone 3-Zone 36,000 BTU 23 SEER2 (6K + 6K + 18K)- 3x 25ft line sets Ductless Mini-Split Air Conditioner & Heat Pump — DIYM336HPW01D37

Product Description

Model: DIYM336HPW01D37

The MRCOOL® DIYM336HPW01D37 is a high-efficiency 3-zone ductless mini-split system designed for homeowners who want true room-by-room comfort control, lower energy costs, and a professional-grade system that can be installed without hiring an HVAC contractor.

This bundle is powered by the MRCOOL® DIY® 5th Generation 36,000 BTU multi-zone condenser, paired with two 6,000 BTU indoor air handlers for smaller spaces and one 18,000 BTU indoor air handler for larger living areas. The layout is ideal for bedrooms, home offices, guest rooms, bonus rooms, and main living spaces, delivering independent temperature control in every zone.

Installation is made dramatically easier thanks to MRCOOL® DIY® QuickConnect® technology. The included three 25-ft pre-charged QuickConnect® line sets arrive factory-sealed with R-454B refrigerant, eliminating vacuum pumps, gauges, and EPA handling. Combined with the DIYPRO® cable, which removes the need for electrical conduit, this system is one of the most DIY-friendly multi-zone HVAC solutions available today.

With DC inverter technology, Gold Fin® corrosion-resistant coils, Follow Me® temperature sensing, and full MRCOOL® Smart HVAC Controller® App integration, this system delivers quiet operation, precise comfort, and long-term durability—all backed by industry-leading warranties.



KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 36,000 BTU total system capacity
• 3 independently controlled comfort zones
• (2) 6K + (1) 18K BTU wall-mounted air handlers
• 23 SEER2 energy-efficient performance
• DC inverter variable-speed compressor
• DIY® QuickConnect® pre-charged line sets
• 25-ft line-set reach included
• DIYPRO® cable (no conduit required)
• Gold Fin® anti-corrosion protection
• Follow Me® remote-based temperature sensing
• MRCOOL® Smart HVAC Controller® App
• Alexa® & Google Home® compatibility
• ENERGY STAR® & AHRI certified



ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

Outdoor Condenser — DIY-MULTI5-36HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 30.5 Amps
• Maximum Breaker Size: 35 Amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

Outdoor Condenser

• Width: 37.24 in
• Height: 31.89 in
• Depth: 16.14 in
• Net Weight: ~169 lbs

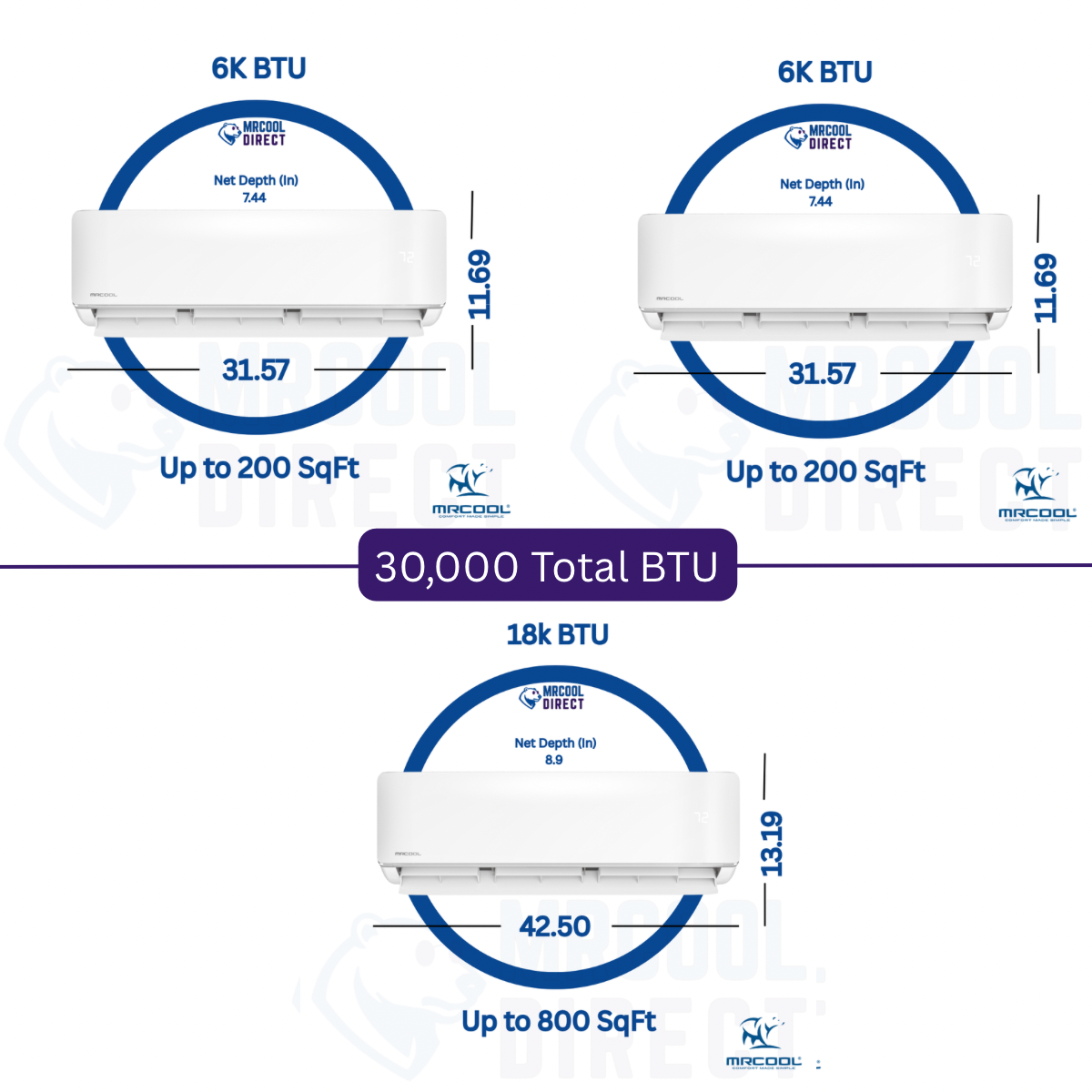

6K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Net Weight: ~24.5 lbs

18K Indoor Air Handler

• Width: 42.52 in
• Height: 13.19 in
• Depth: 8.9 in
• Net Weight: ~35.5 lbs

WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (with MRCOOL® Care Program registration)



WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 36,000 BTU Multi-Zone Outdoor Condenser
• ✔ (2) 6,000 BTU Wall-Mounted Indoor Air Handlers
• ✔ (1) 18,000 BTU Wall-Mounted Indoor Air Handler
• ✔ (3) 25-ft DIY® QuickConnect® Line Sets (pre-charged with R-454B)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each indoor unit
• ✔ Mounting hardware & installation manuals

Smart phone not included.



FREQUENTLY ASKED QUESTIONS (FAQ)

Can I upgrade line-set length beyond 25 ft?

Yes. Longer QuickConnect® line sets are available separately.



Does each room have its own thermostat?

Yes. Every indoor unit operates independently.



Is professional HVAC installation required?

No. This system is designed specifically for DIY installation.



Can I control this system from my phone?

Yes. Full control via the MRCOOL® Smart HVAC Controller® App.
