MRCOOL® DIY® 5th Gen Multi-Zone 4-Zone 36,000 BTU 23 SEER2 (6K + 6K + 6K + 6K)- 4x 16ft line sets-Ductless Mini-Split Air Conditioner & Heat Pump — DIYM436HPW00D00

Product Description

Model: DIYM436HPW00D00

The MRCOOL® DIYM436HPW00D00 is a perfectly balanced 4-zone ductless mini-split system designed for homes that need even comfort across multiple small rooms—such as bedrooms, offices, guest rooms, or additions—while still delivering high efficiency and true DIY installation.

This system pairs the MRCOOL® DIY® 36,000 BTU 5th Generation multi-zone condenser with four 6,000 BTU wall-mounted air handlers, allowing each room to maintain its own temperature independently. It’s an ideal solution for homeowners who want consistent comfort without oversizing individual spaces.

Installation is where this system truly separates itself from competitors. MRCOOL®’s patented DIY® QuickConnect® pre-charged line sets arrive sealed with R-454B refrigerant, eliminating vacuum pumps, gauges, and refrigerant handling. Combined with the DIYPRO® cable, installation is cleaner, faster, and far more affordable than traditional multi-zone systems.

With 23 SEER2 efficiency, DC inverter technology, and full MRCOOL® Smart HVAC Controller® integration, this system delivers quiet operation, lower energy bills, and total control from anywhere—exactly what modern homeowners expect.



KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 36,000 BTU total system capacity
• 4 independently controlled comfort zones
• 23 SEER2 high-efficiency rating
• DC inverter compressor technology
• DIY® QuickConnect® pre-charged line sets
• No vacuum pump or HVAC license required
• DIYPRO® cable (no electrical conduit needed)
• Gold Fin® corrosion-resistant coating
• Follow Me® temperature sensing
• MRCOOL® Smart HVAC Controller® App
• Amazon Alexa® & Google Home® compatible
• Ultra-quiet indoor operation
• ENERGY STAR® & AHRI certified



ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

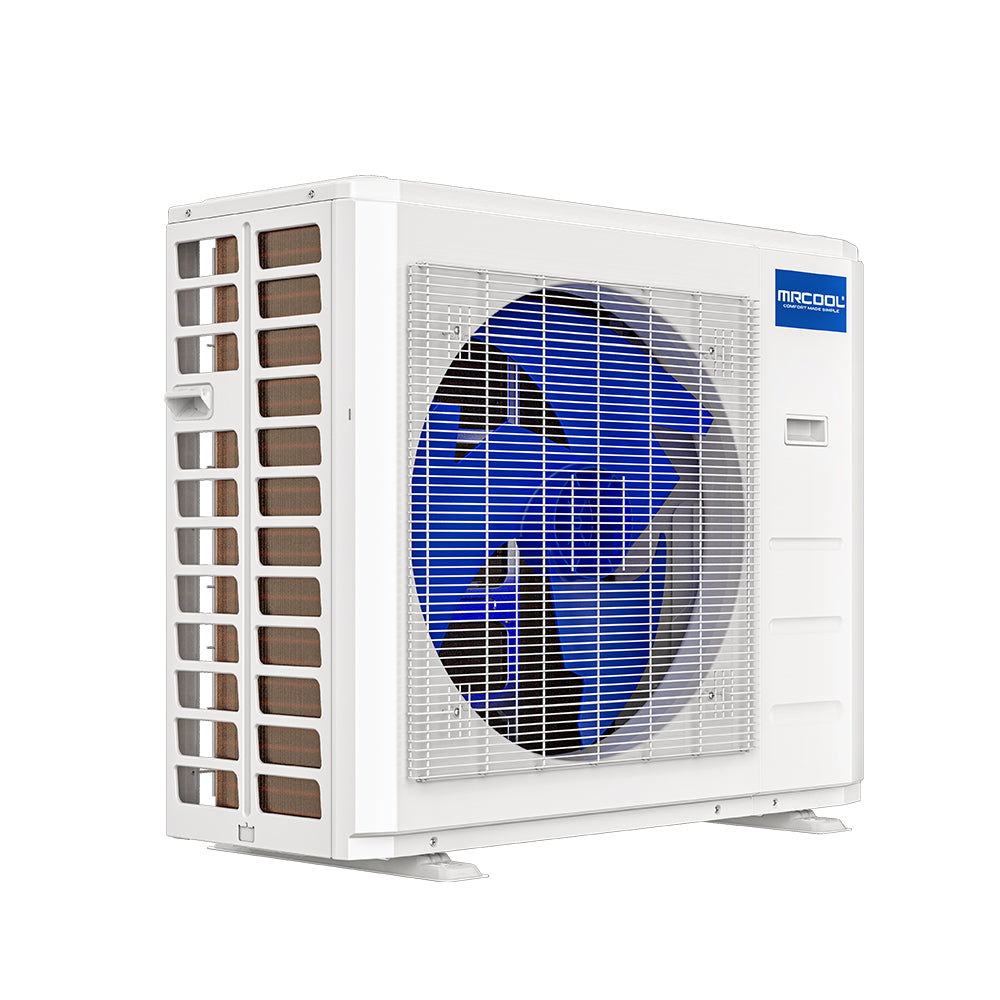

Outdoor Condenser — DIY-MULTI5-36HP230D-O

• Voltage: 208 / 230V
• Phase: Single-phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 30.5 amps
• Maximum Breaker Size: 35 amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

Outdoor Condenser

• Width: 37.24 in
• Height: 31.89 in
• Depth: 16.14 in
• Weight: ~169 lbs

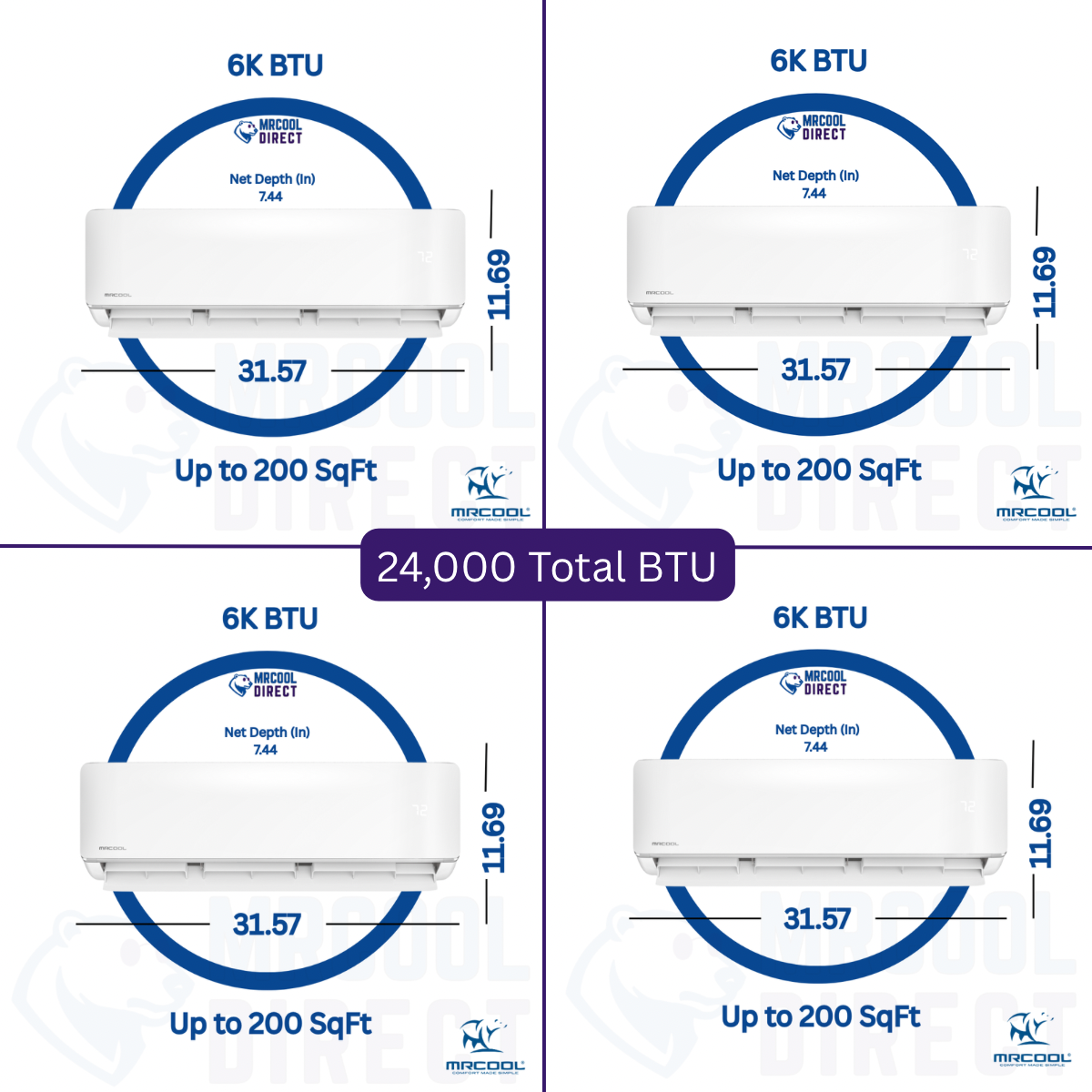

6K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~24.5 lbs



WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (with MRCOOL® Care Program registration)

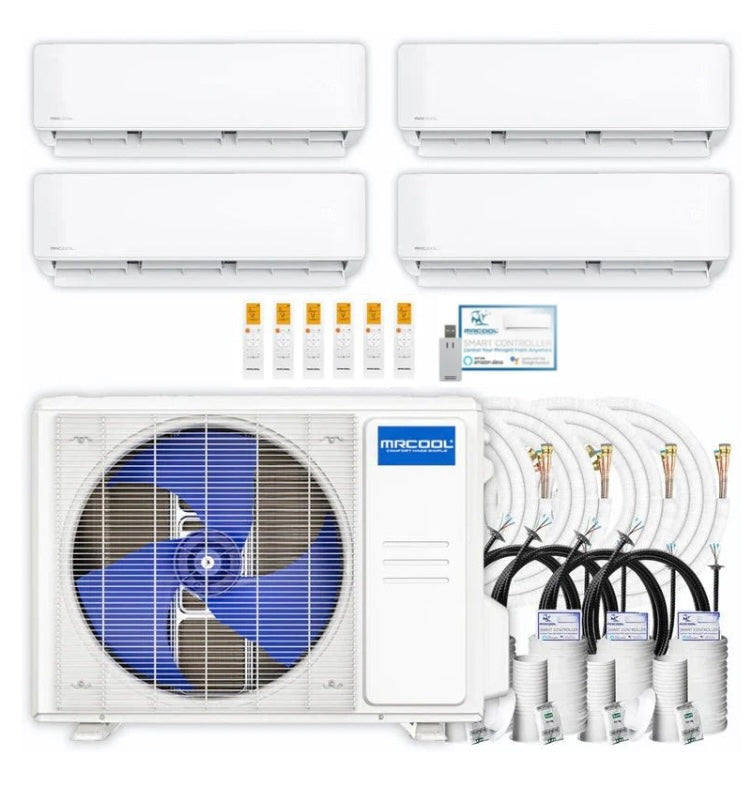

WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 36K BTU 5-Zone Outdoor Condenser
• ✔ (4) 6K BTU Wall-Mounted Indoor Air Handlers
• ✔ (4) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each indoor unit
• ✔ Installation manuals & mounting hardware

Smart phone not included.

FREQUENTLY ASKED QUESTIONS

Is this system truly DIY?

Yes. No vacuuming, gauges, or refrigerant handling required.



Can each room be controlled independently?

Yes. Each indoor unit has its own thermostat and remote.



Is this system efficient for long-term use?

Absolutely. The 23 SEER2 rating delivers real energy savings.



Does it support smart home control?

Yes. Works with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
