MRCOOL® DIY® 5th Gen Multi-Zone 4-Zone 48,000 BTU 21.8 SEER2 (6K + 6K + 6K + 24K)- 4x 16ft line sets-Ductless Mini-Split Air Conditioner & Heat Pump- DIYM448HPW01D00

Product Description

Model: DIYM448HPW01D00



The MRCOOL® DIYM448HPW01D00 is a powerful 4-zone ductless mini-split system designed for homeowners who want true room-by-room comfort, professional-grade efficiency, and the ability to install their system without paying contractor labor.

This configuration combines the MRCOOL® DIY® 5th Generation 48,000 BTU multi-zone condenser with three 6,000 BTU wall-mounted air handlers—ideal for bedrooms, offices, or smaller spaces—plus one 24,000 BTU air handler to deliver higher output for a large living area, open floor plan, or master suite.

Installation is simplified using MRCOOL® DIY® QuickConnect® line sets, which arrive factory-sealed and pre-charged with R-454B refrigerant, eliminating the need for vacuum pumps, gauges, or licensed HVAC labor. The included DIYPRO® cable removes the need for electrical conduit, reducing install time and complexity.

With DC inverter technology and an impressive 21.8 SEER2 efficiency rating, this system provides quiet operation, lower energy costs, and long-term reliability—making it an ideal upgrade from older HVAC systems or inefficient mini-splits.



KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 48,000 BTU total system capacity
• 4 independently controlled comfort zones

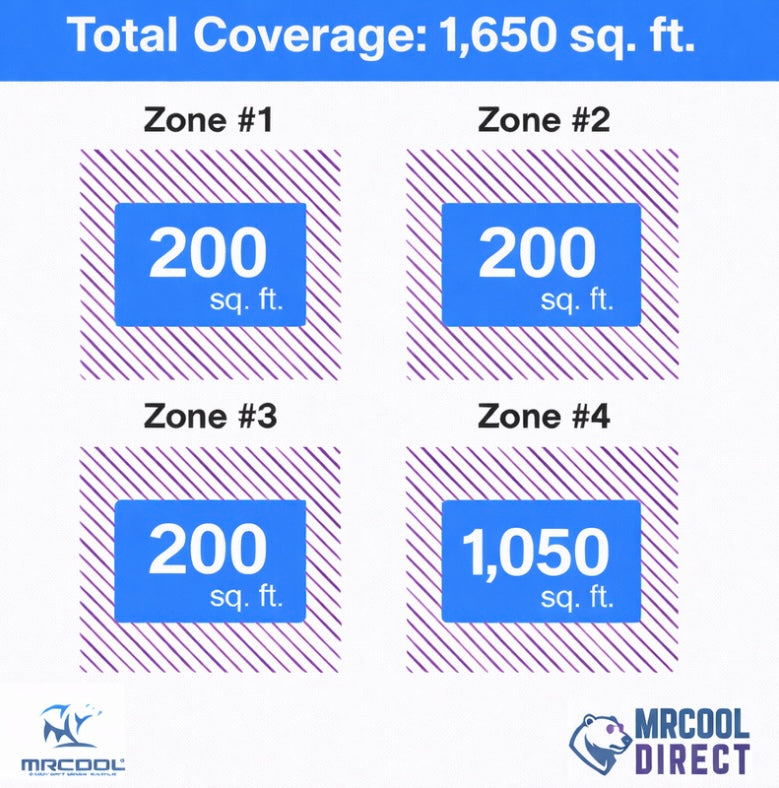

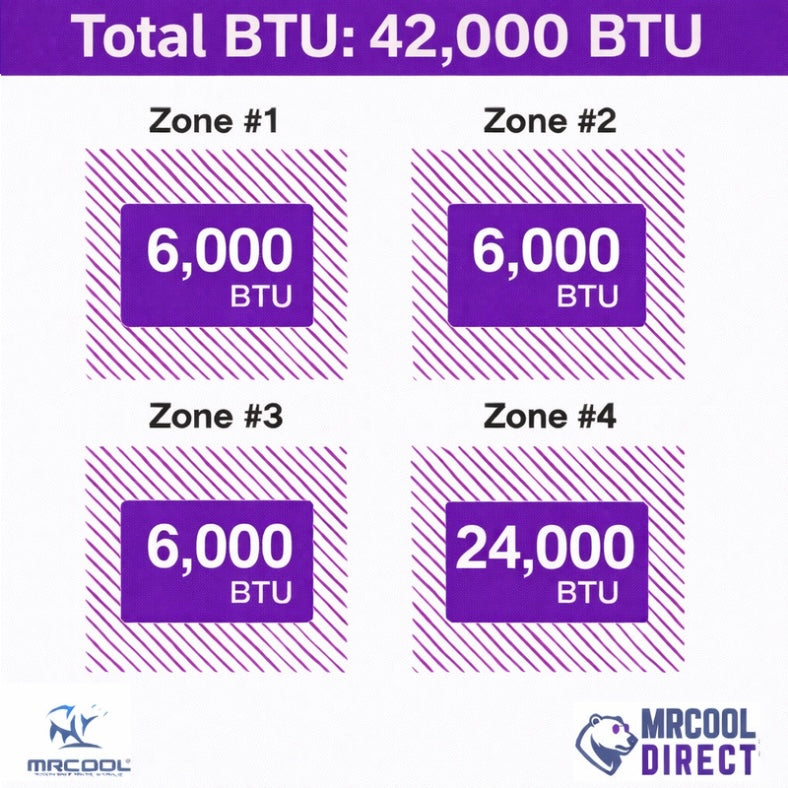

• Three 6,000 BTU zones + one 24,000 BTU zone
• 21.8 SEER2 high-efficiency performance
• DC inverter variable-speed compressor
• DIY® QuickConnect® pre-charged line sets
• No vacuum pump or HVAC license required
• DIYPRO® cable (no conduit needed)
• Gold Fin® anti-corrosion protection
• Follow Me® temperature sensing
• MRCOOL® Smart HVAC Controller® App
• Amazon Alexa® & Google Home® compatibility
• ENERGY STAR® & AHRI certified



ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

Outdoor Condenser — DIY-MULTI6-48HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 40 Amps
• Maximum Breaker Size: 45 Amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

Outdoor Condenser

• Width: 37.48 in
• Height: 52.48 in
• Depth: 16.34 in
• Net Weight: ~224 lbs

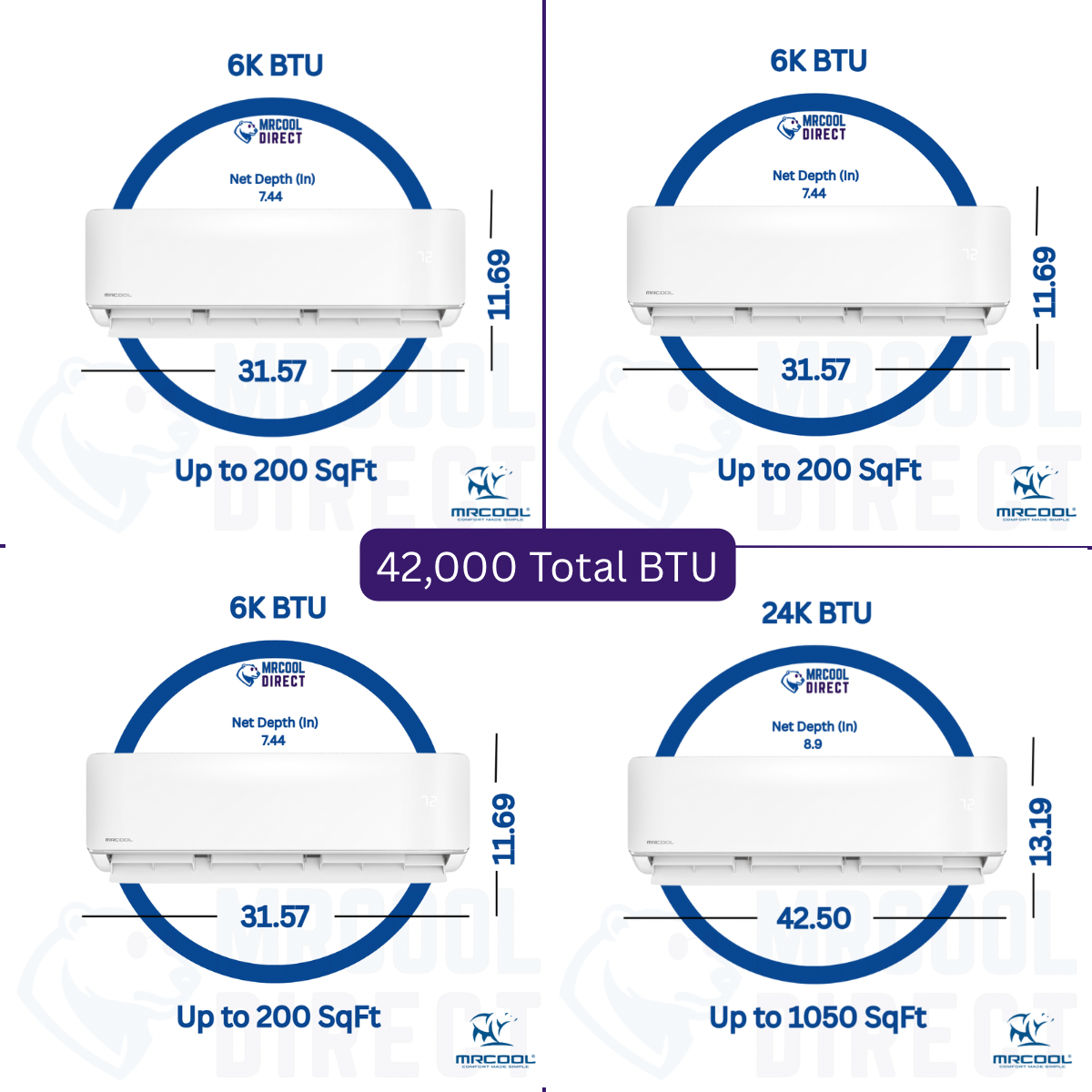

6K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~24.5 lbs

24K Indoor Air Handler

• Width: 42.52 in
• Height: 13.19 in
• Depth: 8.9 in
• Weight: ~35.9 lbs

WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (with MRCOOL® Care Program registration)



WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 48,000 BTU Multi-Zone Outdoor Condenser
• ✔ (3) 6,000 BTU Wall-Mounted Indoor Air Handlers
• ✔ (1) 24,000 BTU Wall-Mounted Indoor Air Handler
• ✔ (3) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8) — for 6K air handlers
• ✔ (1) 16-ft DIY® QuickConnect® Line Set (1/4 × 1/2) — for 24K air handler
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each zone
• ✔ Installation manuals & mounting hardware

Smart phone not included.



FREQUENTLY ASKED QUESTIONS (FAQ)

Is this system truly DIY?



Yes. MRCOOL® DIY® QuickConnect® technology eliminates refrigerant handling and vacuuming.



Can each room be controlled independently?

Yes. Every indoor unit operates on its own thermostat, remote, and schedule.



Why combine 6K and 24K air handlers?

This allows precise comfort in smaller rooms while delivering higher capacity where larger spaces demand it.



Is smart control included?

Yes. Control your system via the MRCOOL® Smart HVAC Controller® App, Alexa®, or Google Home®.
