MRCOOL® DIY® 5th Gen Multi-Zone 4-Zone 48,000 BTU 21.8 SEER2 (6K + 6K + 9K + 12K)- 4x 16ft line sets-Ductless Mini-Split Air Conditioner & Heat Pump- DIYM448HPW02D00

Product Description

Model: DIYM448HPW02D00

The MRCOOL® DIYM448HPW02D00 is a precision-balanced 4-zone ductless mini-split system engineered for homeowners who want room-by-room comfort control without paying for professional HVAC installation.

This configuration pairs the MRCOOL® DIY® 5th Generation 48,000 BTU multi-zone condenser with a carefully matched mix of two 6,000 BTU air handlers, one 9,000 BTU air handler, and one 12,000 BTU air handler. This layout is ideal for homes with varied room sizes, such as bedrooms, offices, nurseries, guest rooms, and medium-sized living spaces.

Installation is made dramatically easier through MRCOOL®’s patented DIY® QuickConnect® technology. Each line set arrives factory-sealed and pre-charged with R-454B refrigerant, eliminating vacuum pumps, gauges, refrigerant licensing, and contractor labor. The included DIYPRO® cable further simplifies installation by removing the need for electrical conduit.

With DC inverter technology, Gold Fin® corrosion resistance, and full MRCOOL® Smart HVAC Controller® support, this system delivers quiet operation, lower energy costs, and long-term reliability—all while remaining truly DIY-friendly.



KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 48,000 BTU total system capacity
• 4 independently controlled zones
• (2) 6K + (1) 9K + (1) 12K BTU air handlers
• 21.8 SEER2 high-efficiency rating
• DC inverter variable-speed compressor
• DIY® QuickConnect® pre-charged line sets
• No vacuum pump or refrigerant handling
• DIYPRO® cable (no conduit required)
• Gold Fin® anti-corrosion protection
• Follow Me® temperature sensing
• MRCOOL® Smart HVAC Controller® App
• Amazon Alexa® & Google Home® compatible
• ENERGY STAR® & AHRI certified



ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

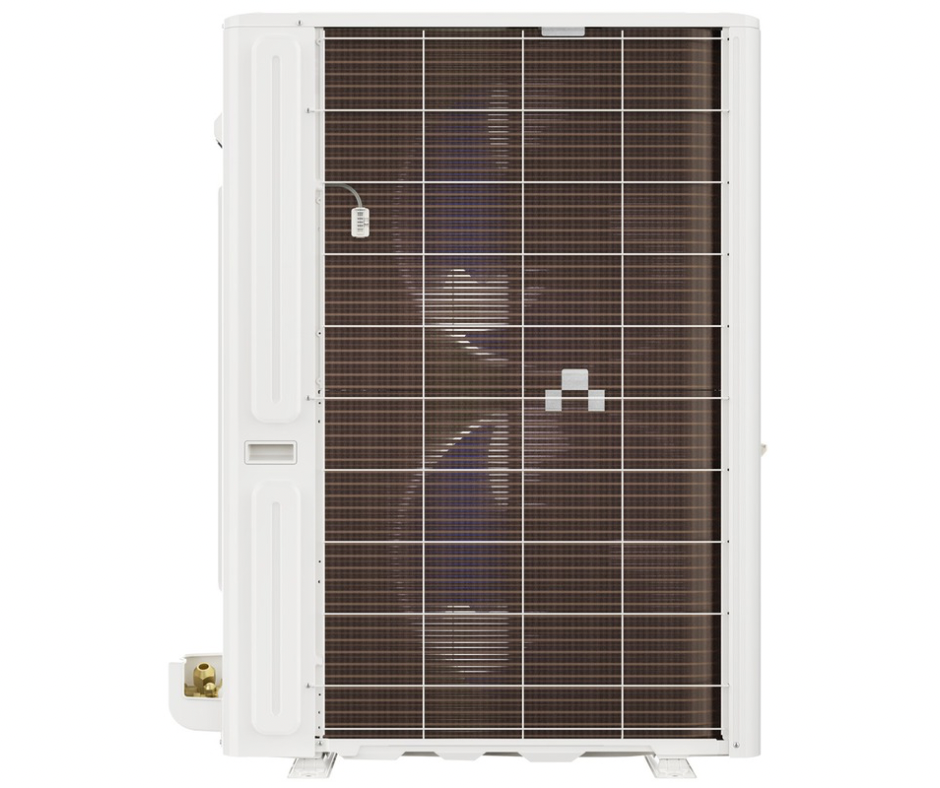

Outdoor Condenser — DIY-MULTI6-48HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 40 Amps
• Maximum Breaker Size: 45 Amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

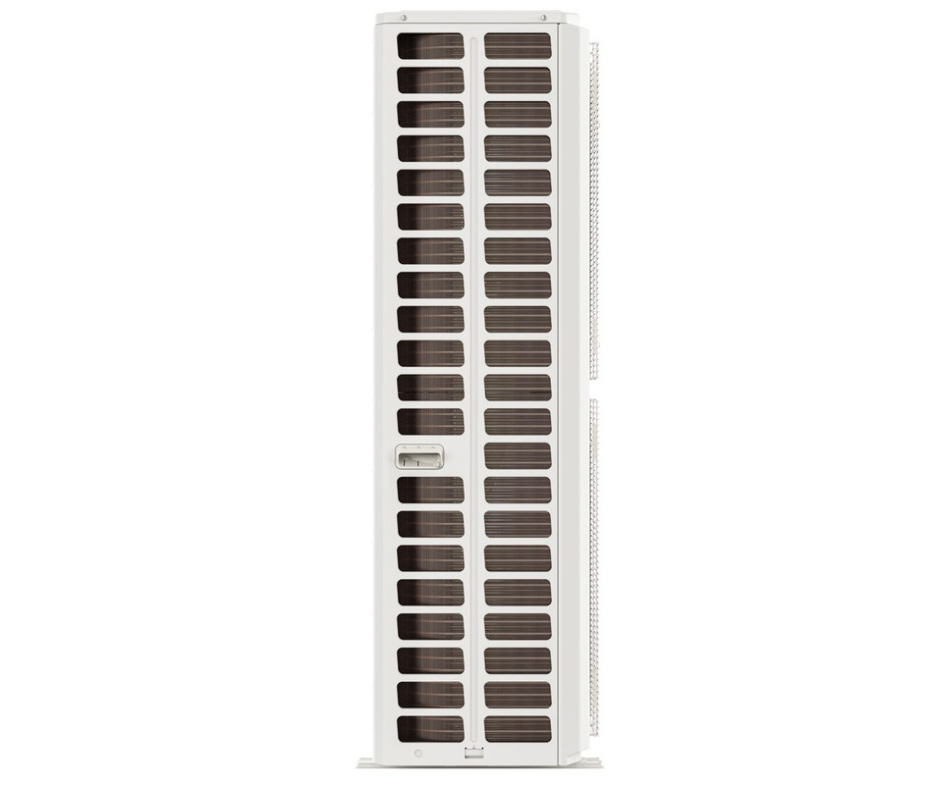

Outdoor Condenser

• Width: 37.48 in
• Height: 52.48 in
• Depth: 16.34 in
• Net Weight: ~224 lbs

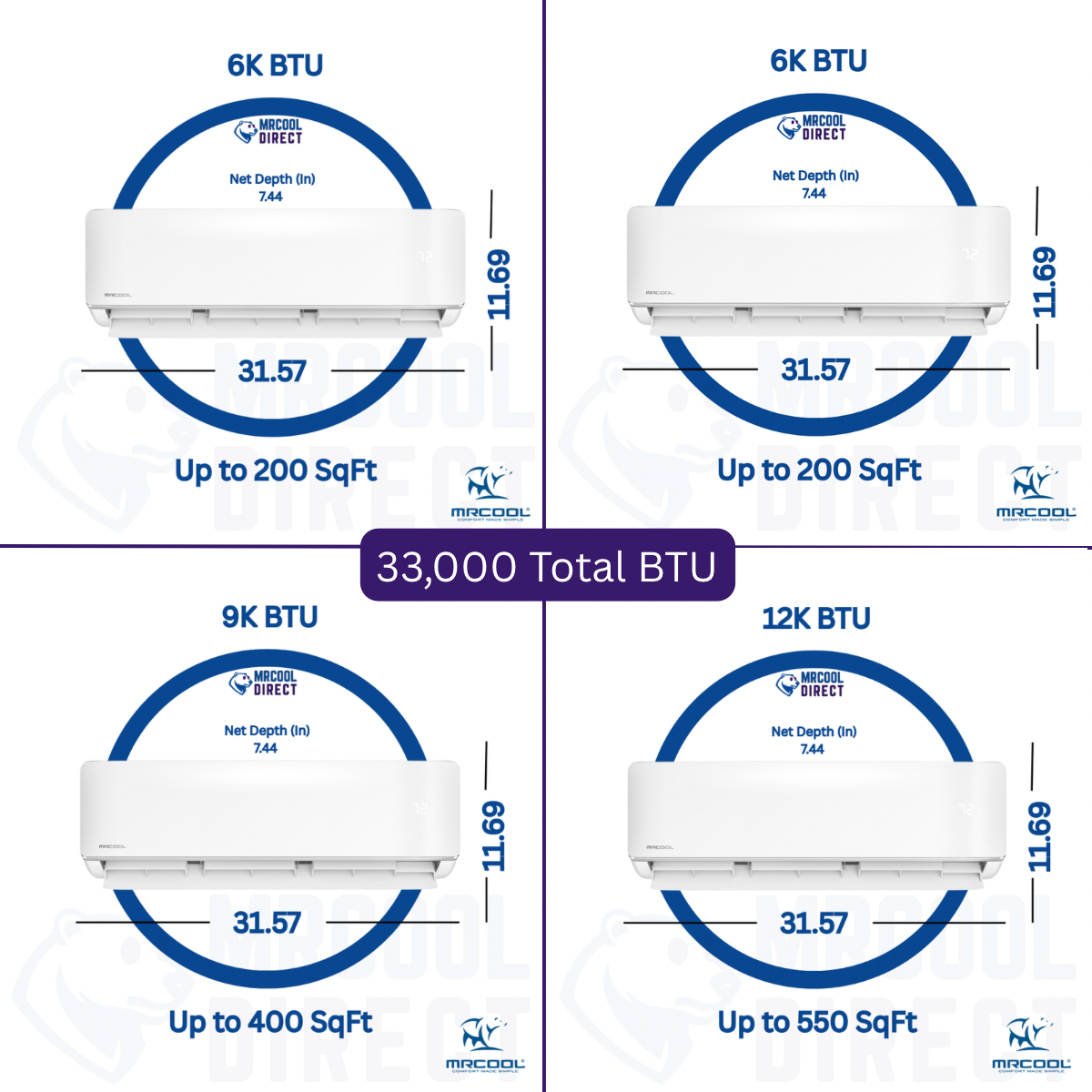

6K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~24.5 lbs

9K Indoor Air Handler

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~25 lbs

12K Indoor Air Handler

• Width: 31.57 in
• Height: 11.63 in
• Depth: 7.44 in
• Weight: ~24.5 lbs



WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (with MRCOOL® Care Program registration)



WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 48,000 BTU Multi-Zone Outdoor Condenser
• ✔ (2) 6,000 BTU Wall-Mounted Indoor Air Handlers
• ✔ (1) 9,000 BTU Wall-Mounted Indoor Air Handler
• ✔ (1) 12,000 BTU Wall-Mounted Indoor Air Handler
• ✔ (4) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each indoor unit
• ✔ Installation manuals & mounting hardware

Smart phone not included.



FREQUENTLY ASKED QUESTIONS (FAQ)

Why mix 6K, 9K, and 12K air handlers?

This allows proper load matching for rooms of different sizes, improving comfort and efficiency.



Is this system really DIY?

Yes. No vacuuming, gauges, or licensed HVAC labor required.



Can each room be controlled independently?

Absolutely. Each zone has its own thermostat and remote.



Does it support smart control?

Yes. Compatible with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
