Product Description
Model: DIYM448HPW02D122
The MRCOOL® DIYM448HPW02D122 is a high-efficiency, professionally balanced 4-zone ductless mini-split system engineered for homeowners who want room-by-room comfort control, strong energy savings, and true DIY installation—without the cost, scheduling delays, or labor requirements of traditional HVAC installs.
At the core of this system is the MRCOOL® DIY® 5th Generation 48,000 BTU multi-zone condenser, paired with a carefully matched indoor configuration of two 6,000 BTU air handlers, one 9,000 BTU air handler, and one 12,000 BTU air handler. This balanced layout allows you to correctly size each space based on real heat load, making it ideal for bedrooms, offices, nurseries, guest rooms, bonus rooms, and medium living areas—all from one outdoor unit.
Installation is simplified using MRCOOL®’s patented DIY® QuickConnect® technology. The included 25-foot pre-charged DIY® QuickConnect® line sets arrive factory sealed with R-454B refrigerant, eliminating the need for vacuum pumps, gauges, or licensed refrigerant handling. The included DIYPRO® cable removes the need for conduit, further reducing install time while improving long-term durability.
With DC inverter technology, Gold Fin® corrosion-resistant coils, Follow Me® temperature sensing, and full MRCOOL® Smart HVAC Controller® integration, this system delivers quiet performance, lower utility bills, and dependable year-round comfort—all with true DIY convenience.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
- 48,000 BTU total system capacity
- 4 independently controlled comfort zones

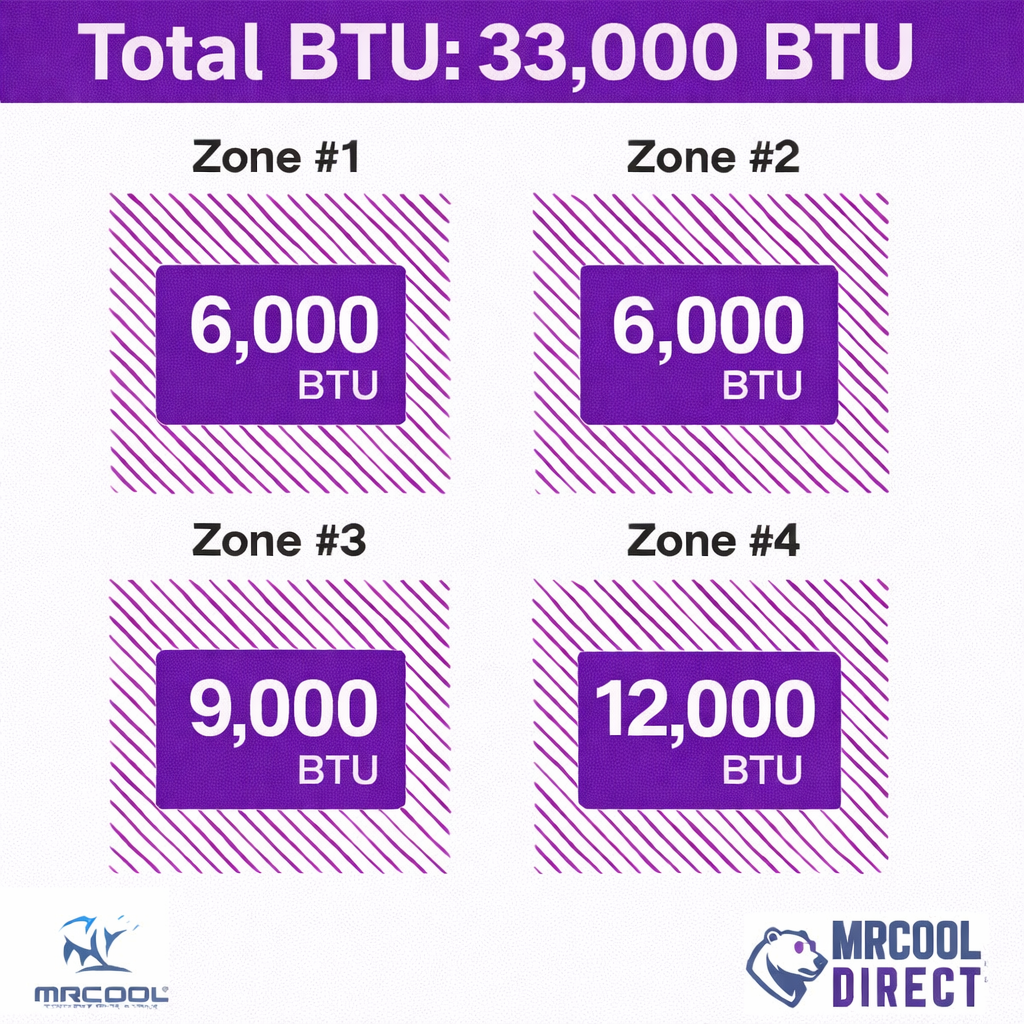

- (2) 6K + (1) 9K + (1) 12K BTU indoor air handlers
- Up to 21.8 SEER2 high-efficiency rating
- DC inverter variable-speed compressor
- DIY® QuickConnect® pre-charged line sets
- 25-ft line-set reach for flexible condenser placement
- DIYPRO® communication cable (no conduit required)
- Gold Fin® anti-corrosion protection
- Follow Me® temperature sensing
- MRCOOL® Smart HVAC Controller® App
- Amazon Alexa® & Google Home® compatibility
- AHRI certified
ELECTRICAL REQUIREMENTS & BREAKER INFORMATION
Outdoor Condenser — DIY-MULTI6-48HP230D-O
- Voltage: 208 / 230V
- Phase: Single-Phase
- Frequency: 60 Hz
- Minimum Circuit Ampacity (MCA): 40 Amps
- Maximum Breaker Size: 45 Amps
- Dedicated Circuit Required: Yes
DIMENSIONS & WEIGHT
Outdoor Condenser
- Width: 37.48 in
- Height: 52.48 in
- Depth: 16.34 in
- Net Weight: ~224 lbs
6K Indoor Air Handlers (each)
- Width: 31.57 in
- Height: 11.69 in
- Depth: 7.44 in
- Weight: ~24.5 lbs
9K Indoor Air Handler
- Width: 31.57 in
- Height: 11.69 in
- Depth: 7.44 in
- Weight: ~25 lbs
12K Indoor Air Handler
- Width: 31.57 in
- Height: 11.63 in
- Depth: 7.44 in
- Weight: ~24.5 lbs
WARRANTY COVERAGE
- 5-Year Parts Warranty
- 7-Year Compressor Warranty
-
Limited Lifetime Replacement Warranty
(with MRCOOL® Care Program registration)
WHAT’S INCLUDED IN THIS BUNDLE
- ✔ MRCOOL® DIY® 48,000 BTU Multi-Zone Outdoor Condenser
- ✔ (2) 6,000 BTU Wall-Mounted Indoor Air Handlers
- ✔ (1) 9,000 BTU Wall-Mounted Indoor Air Handler
- ✔ (1) 12,000 BTU Wall-Mounted Indoor Air Handler
- ✔ (4) 25-ft DIY® QuickConnect® Line Sets (¼″ × ⅜″)
- ✔ DIYPRO® communication cable
- ✔ Wireless remotes for each indoor unit
- ✔ Installation manuals & mounting hardware
Smart phone not included.
FREQUENTLY ASKED QUESTIONS (FAQ)
Why use 25-ft line sets instead of 16-ft?
They allow greater flexibility for condenser placement, especially in larger homes or multi-story installs.
Can each zone be controlled separately?
Yes. Each indoor unit has independent temperature control and fan settings.
Is professional HVAC installation required?
No. This system is designed for true DIY installation with no refrigerant handling.
Does it support smart home integration?
Yes. Works with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
Is this system efficient enough for long-term use?
Yes. The DC inverter compressor adjusts output automatically, reducing power consumption and wear.
