MRCOOL® DIY® 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 36K) 3 x 25ft line sets- Ductless Mini-Split Air Conditioner & Heat Pump — DIYM355HPW09D37

Product Description

Model: DIYM355HPW09D37



The MRCOOL® DIYM355HPW09D37 is a high-performance, large-capacity 5th Generation DIY® multi-zone system designed for homeowners who need serious cooling and heating power across multiple rooms and large open areas—without paying professional installation costs.

This bundle is built around the MRCOOL® DIY® 55,000 BTU 6-Zone condenser and pairs two 9K BTU air handlers for bedrooms, offices, or smaller living spaces with a massive 36K BTU wall-mounted unit for great rooms, basements, workshops, or open-concept main floors. The result is balanced zoning, independent comfort control, and maximum efficiency where it matters most.

Thanks to DIY® QuickConnect® pre-charged line sets, DIYPRO® cable, and MRCOOL’s no-vacuum installation design, homeowners can install this system themselves—saving thousands while still getting contractor-grade performance. With R-454B refrigerant, DC inverter technology, and full smart app control, this system is built to deliver quiet, efficient, year-round comfort for large homes and demanding layouts.



KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 55,000 BTU total system capacity
• Supports up to 6 indoor zones
• 22 SEER2 efficiency / 10.6 HSPF2-4
• DC inverter compressor for precise load control
• DIY® QuickConnect® pre-charged line sets
• Extended-reach 25-ft line sets included
• DIYPRO® cable — no conduit required
• Gold Fin® corrosion-resistant coating
• Follow Me® temperature sensing
• MRCOOL® Smart HVAC Controller® App
• Amazon Alexa® & Google Home® compatible
• Ultra-quiet indoor operation
• Independent temperature control by zone



ELECTRICAL REQUIREMENTS & BREAKER INFO

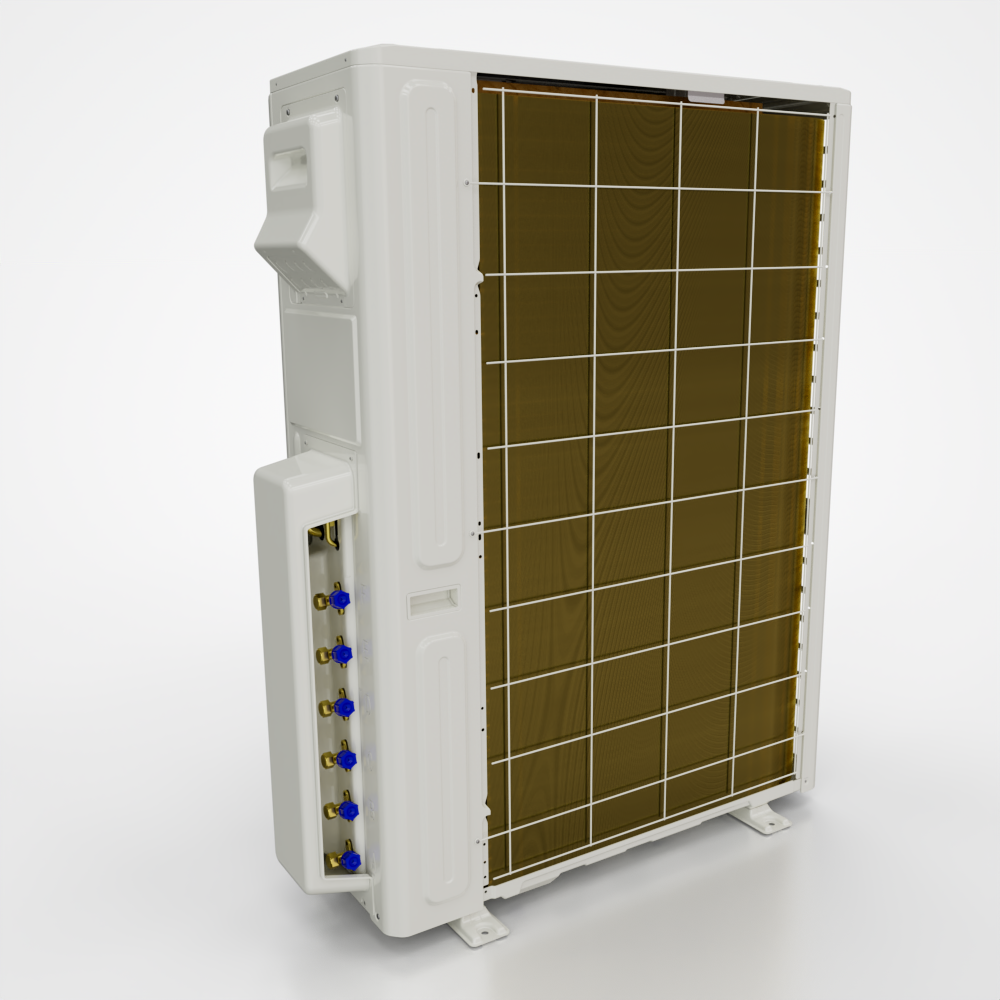

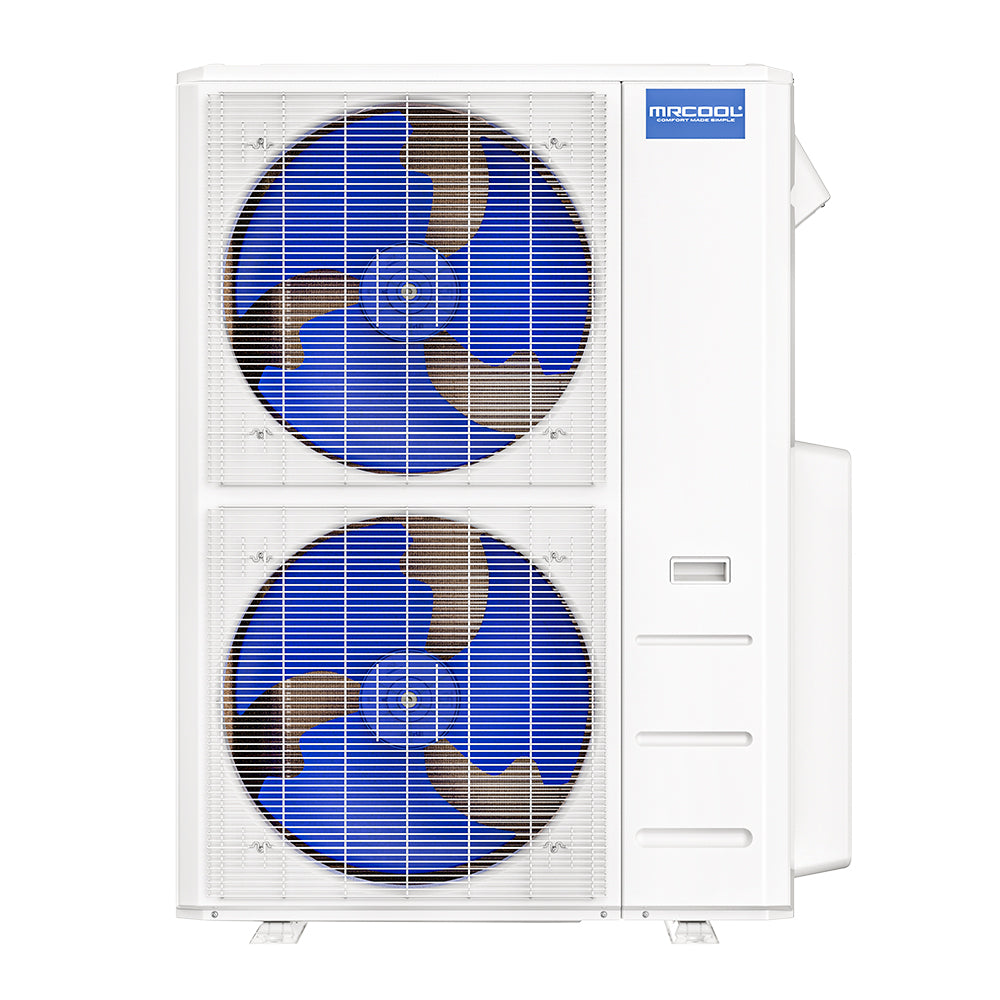

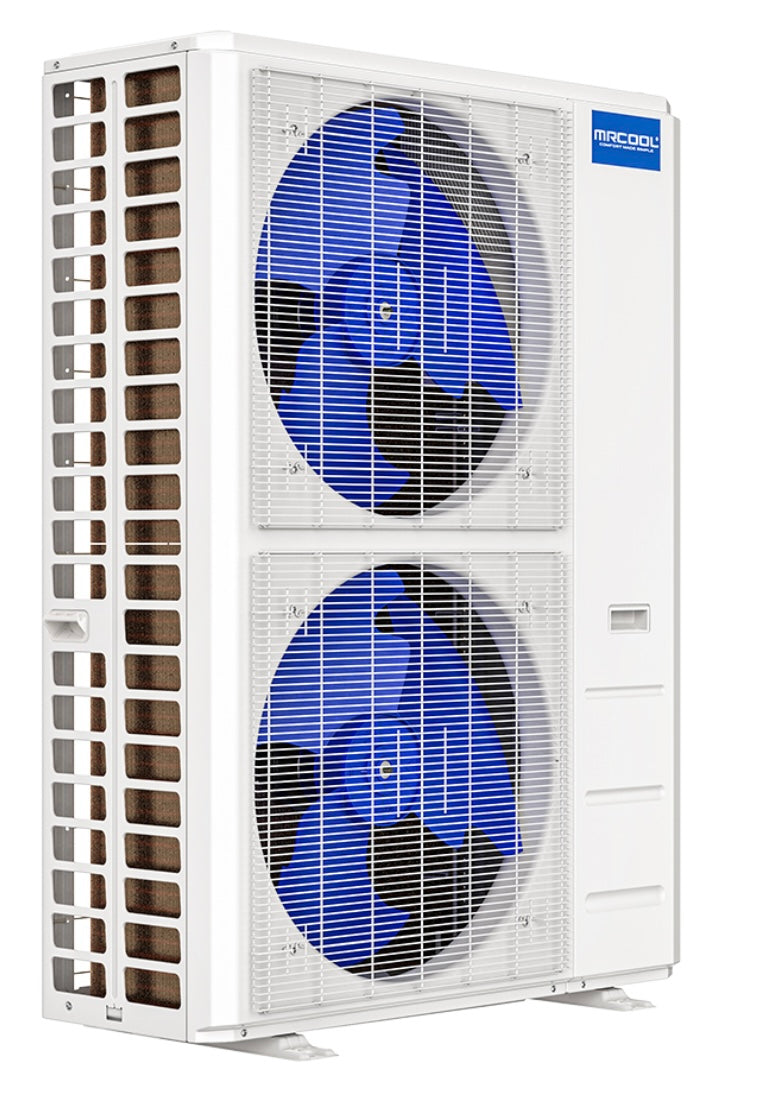

Outdoor Condenser – DIY-MULTI6-55HP230D-O

• Voltage: 208 / 230V
• Phase: Single-phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 43 amps
• Maximum Breaker Size: 45 amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

Outdoor Condenser

• Width: 37.48 in
• Height: 52.48 in
• Depth: 16.34 in
• Weight: 245.8 lbs

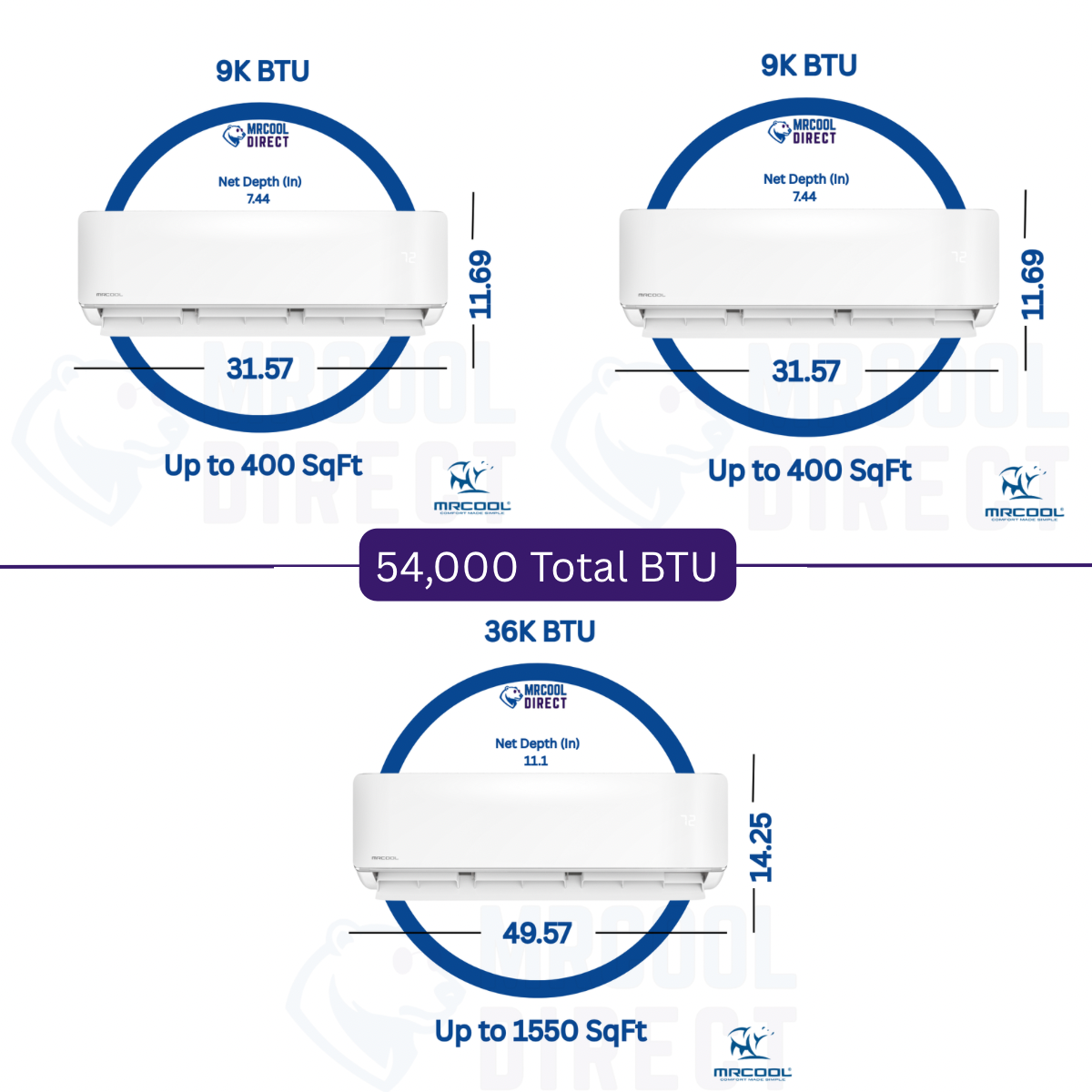

9K Indoor Air Handler (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~25 lbs

36K Indoor Air Handler

• Width: 49.57 in
• Height: 14.25 in
• Depth: 11.10 in
• Weight: ~49 lbs

 WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (with MRCOOL® Care Program registration)

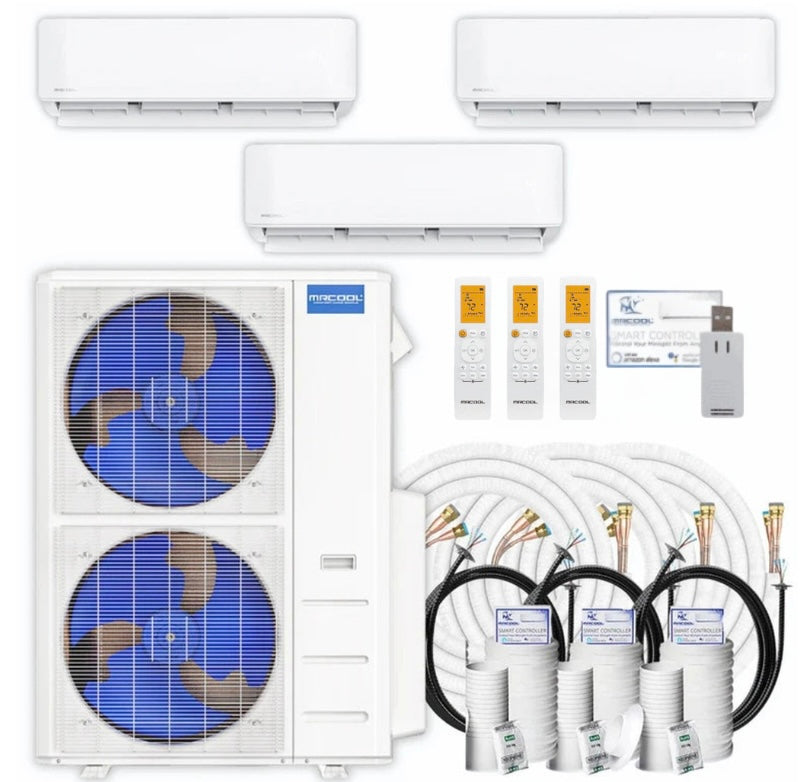

 WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 55K BTU 6-Zone Outdoor Condenser
• ✔ (2) 9K BTU Wall-Mounted Indoor Air Handlers
• ✔ (1) 36K BTU Wall-Mounted Indoor Air Handler
• ✔ (2) 25-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
• ✔ (1) 25-ft DIY® QuickConnect® Line Set (3/8 × 5/8)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each indoor unit
• ✔ Installation manuals & mounting hardware

Smart phone not included.



FREQUENTLY ASKED QUESTIONS

Is this system truly DIY?

Yes. No vacuum pump, gauges, or refrigerant handling is required.



Can I add more zones later?

Yes. This condenser supports up to six indoor units total.



Will it heat efficiently in winter?

Yes. The inverter heat pump delivers strong low-temperature heating performance.



Is this system certified?

Yes. ENERGY STAR® and AHRI certified.
