MRCOOL DIY 5th Gen Multi-Zone 2-Zone 18,000 BTU 24 SEER (9K + 12K) Ductless Mini-Split Air Conditioner and Heat Pump (Line Sets Not included)
MRCOOL DIY 5th Gen Multi-Zone 2-Zone 18,000 BTU 24 SEER (9K + 12K) Ductless Mini-Split Air Conditioner and Heat Pump (Line Sets Not included)
Available in stock (996)
Description
MRCOOL DIY Multi Zone 5th Gen 18K BTU Dual Zone Ductless Mini Split - A Heating and AC System You Can Install By Yourself!
DIYM218HP0912
Enjoy year-round comfort in two separate rooms with the MRCOOL DIY® 5th Gen 18,000 BTU 24 SEER 2-Zone Ductless Heat Pump Split System (9K + 12K). This powerful and energy-efficient mini split is part of the only true DIY ductless system, designed so homeowners can install it themselves without special tools, training, or HVAC certification.

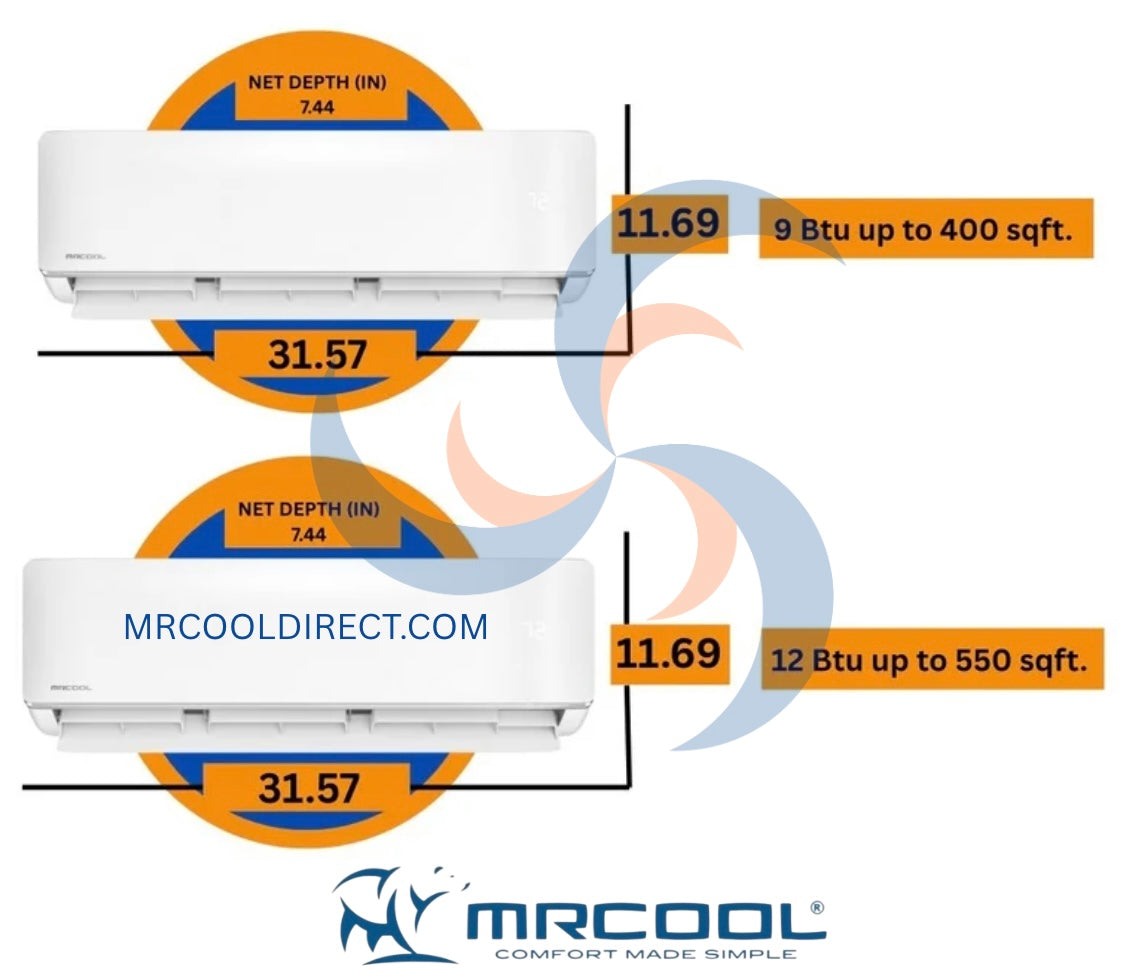

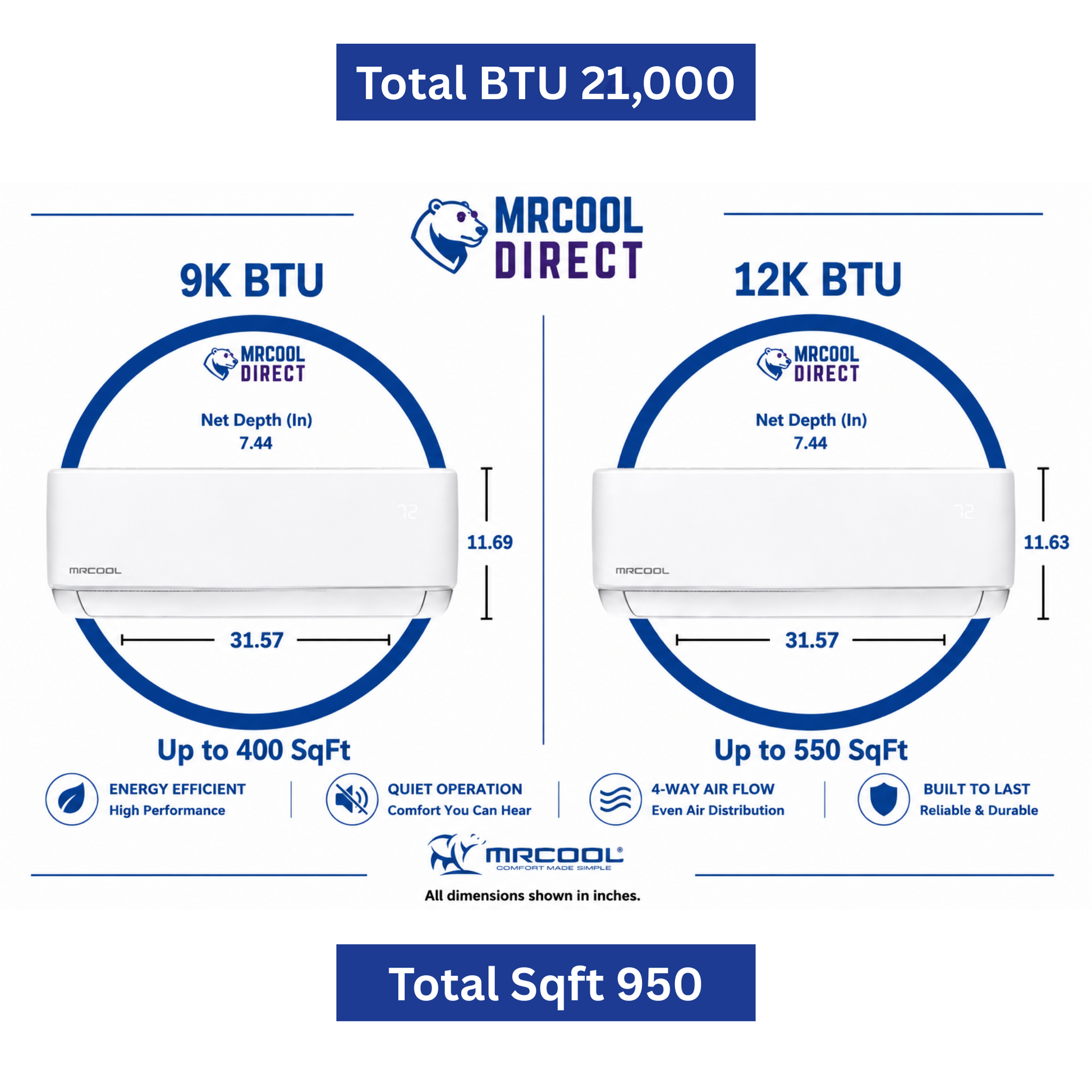

The system includes one 18,000 BTU condenser paired with two indoor air handlers—
-
9,000 BTU unit (ideal for spaces up to ~350 sq. ft.)
-
12,000 BTU unit (ideal for spaces up to ~550 sq. ft.)
Whether it’s cooling in summer, heating in winter, or dehumidifying during wet seasons, this dual-zone mini split has you covered. The advanced DC inverter technology delivers whisper-quiet performance while maximizing energy savings, earning a 24 SEER rating.
Why Choose MRCOOL DIY 5th Gen Multi-Zone?
-
Easy DIY® Installation – Pre-charged Quick Connect® line sets filled with eco-friendly R-454B refrigerant snap together with no vacuuming required.
-
Smart Controls – Control your comfort with the MRCOOL Smart Controller app, Amazon Alexa, or Google Assistant.
-
All-Season Performance – Heat pump technology allows efficient heating even in low outdoor temps.
-
Gold Fin® Condenser – Corrosion-resistant design for long-lasting durability.
-
Follow Me® Technology – Remote senses your location and adjusts airflow for personalized comfort.
-
Energy Saving Modes – Auto, Sleep, and Timer functions help reduce utility bills.
-
Low Ambient Cooling – Operates down to 5°F, ideal for server rooms or garages.
-
Lifetime Technical Support – Backed by MRCOOL’s 7-year compressor and 5-year parts warranty, plus optional lifetime compressor coverage.

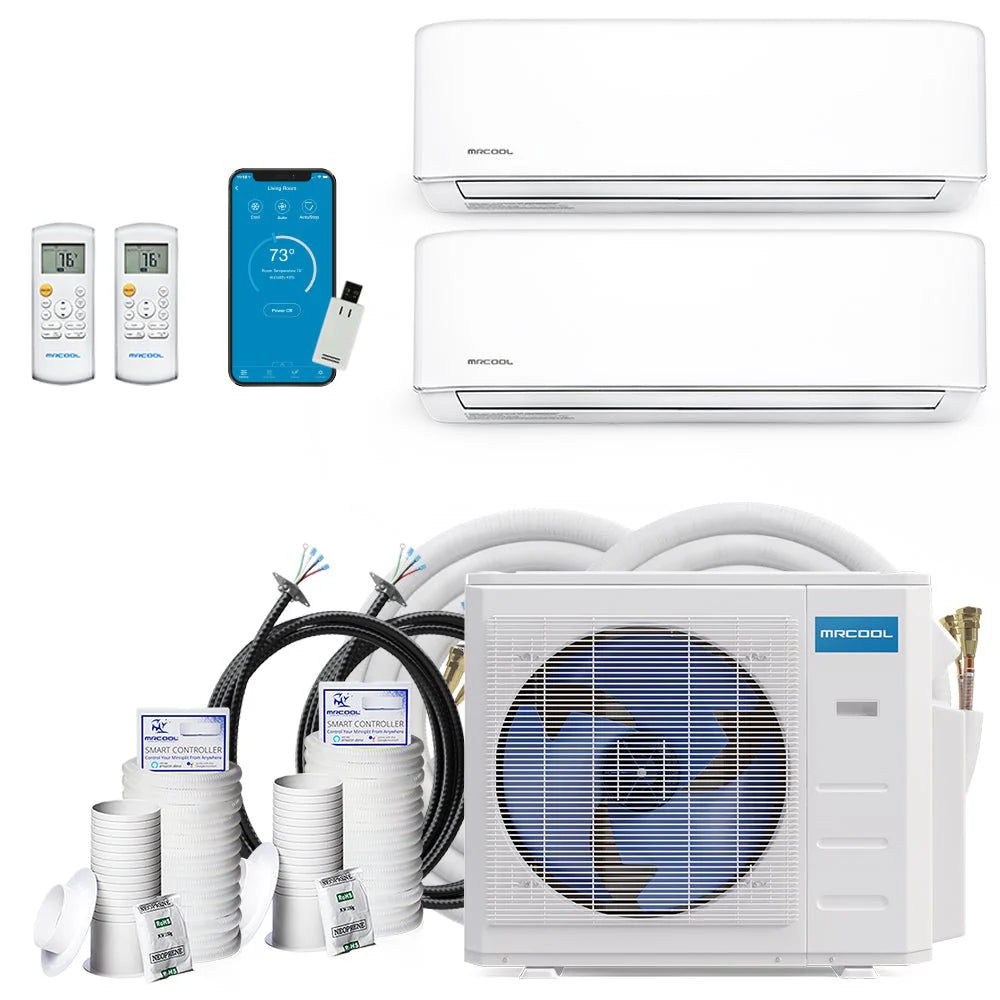

What’s Included
-
(1) 18,000 BTU DIY Multi-Zone Heat Pump Condenser (24 SEER)
-
(1) 9,000 BTU Indoor Air Handler
-
(1) 12,000 BTU Indoor Air Handler
-

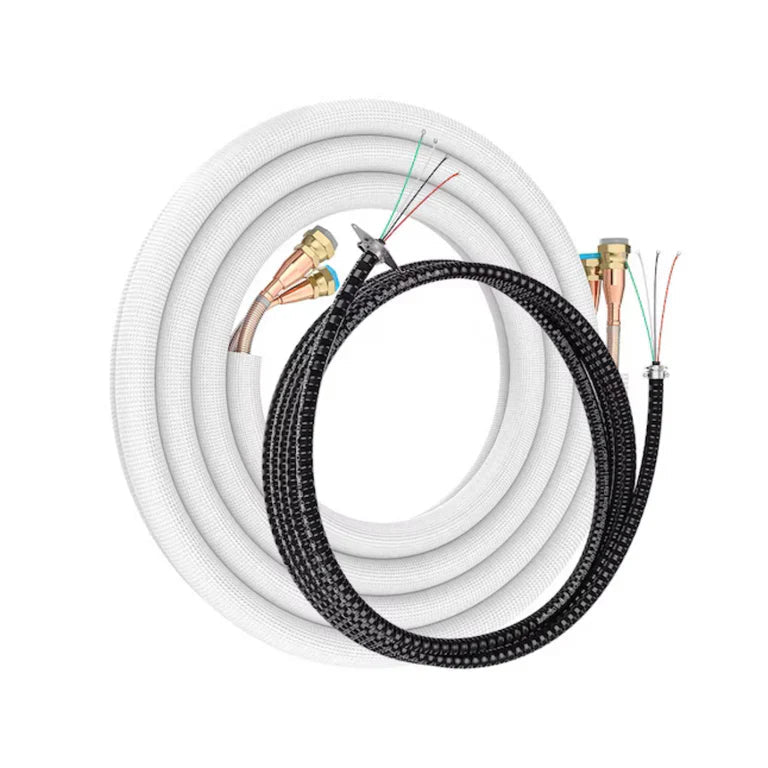

(2) Pre-Charged Quick Connect Line Sets (length optional)
-
(2) Wireless Remotes
-
(1) Smart Controller (WiFi compatible)
-
Installation accessories and documentation
✅ Perfect for homeowners, house flippers, remodels, and new builds, this system delivers professional-grade performance without the professional price tag.
Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
DIY Multi-Zone 5th Gen
|
| MODEL |
DIY-MULTI3-18HP230D-O
|
| GTIN | 840255587617 |
| UPC | 840255587617 |
| UNIT TYPE | Mini Split |
| SHORT DESCRIPTION |
MrCool DIY 5th Gen Multi-Zone 2-Zone Condenser
|
| LONG DESCRIPTION |
The 5th Generation MrCool DIY 18K BTU 2-Zone Ductless Heat Pump Condenser is the latest in heat pump technology. This 2-zone condenser, when paired with select MrCool air handlers, is capable of producing an impressive 21 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13°F. It features robust construction which includes a Gold Fin Condenser coating so it is sure to withstand exposure to the elements. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. As a MrCool DIY product, this heat pump is designed specifically to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with the precise amount of R-454B refrigerant. They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches. This means the installation process can be performed without retaining the services of a certified technician. Let the 5th Generation MrCool DIY 18K BTU 2-Zone Ductless Heat Pump Condenser be the solution to your home’s heating and cooling needs.
|
| BULLET 1 |
Up to 21 SEER
|
| BULLET 2 |
Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
|
| BULLET 3 |
Energy Efficient DC Inverter
|
| BULLET 4 |
R-454B environmentally friendly refrigerant
|
| BULLET 5 |
Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
|
| SEER | 21 |
| EER | 12.5 |
| HSPF |
hspf4/hspf5 : 10.6/8.6
|
| CFM | 1764.71 |
| COOLING CAPACITY | 18000 BTU |
| HEATING CAPACITY | 19000 BTU |
| VOLTAGE | 208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
| MAX FUSE BREAKER | 25 A |
| MIN CIRCUIT AMPACITY | 18 A |
| COLOR | White |
| COLOR FAMILY | White |
| ZONE CAPACITY | 2 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME | 65.26 oz |
| DECIBEL RATING | 59 dBA |
| INVERTER | Yes |
| MIN AMBIENT COOL | 5F ~ 122F |
| MIN AMBIENT HEAT | -13F ~ 75.2F |
| MAX LINESET LENGTH |
98.42 ft TOTAL
|
| LIQUID LINE SIZE | 1/4in |
| SUCTION LINE SIZE | 3/8in |
| COMPRESSOR MOTOR TYPE | Twin - Rotary |
| CONDENSER FAN MOTOR RPM | 750/600/500 |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REGISTERED WARRANTY |
Limited Lifetime Compressor
|
| BASE WARRANTY |
5-year Parts/7-year Compressor
|
| BASE PARTS WARRANTY | 5-year Parts |
| REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor
|
| BASE COMPRESSOR WARRANTY |
7-year Compressor
|
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH | 13.46 in |
| NET HEIGHT | 26.50 in |
| NET WIDTH | 35.04 in |
| NET WEIGHT | 100.53 lbs |
| GROSS DEPTH | 17.64 in |
| GROSS HEIGHT | 29.33 in |
| GROSS WIDTH | 40.94 in |
| GROSS WEIGHT | 111.11 lbs |
