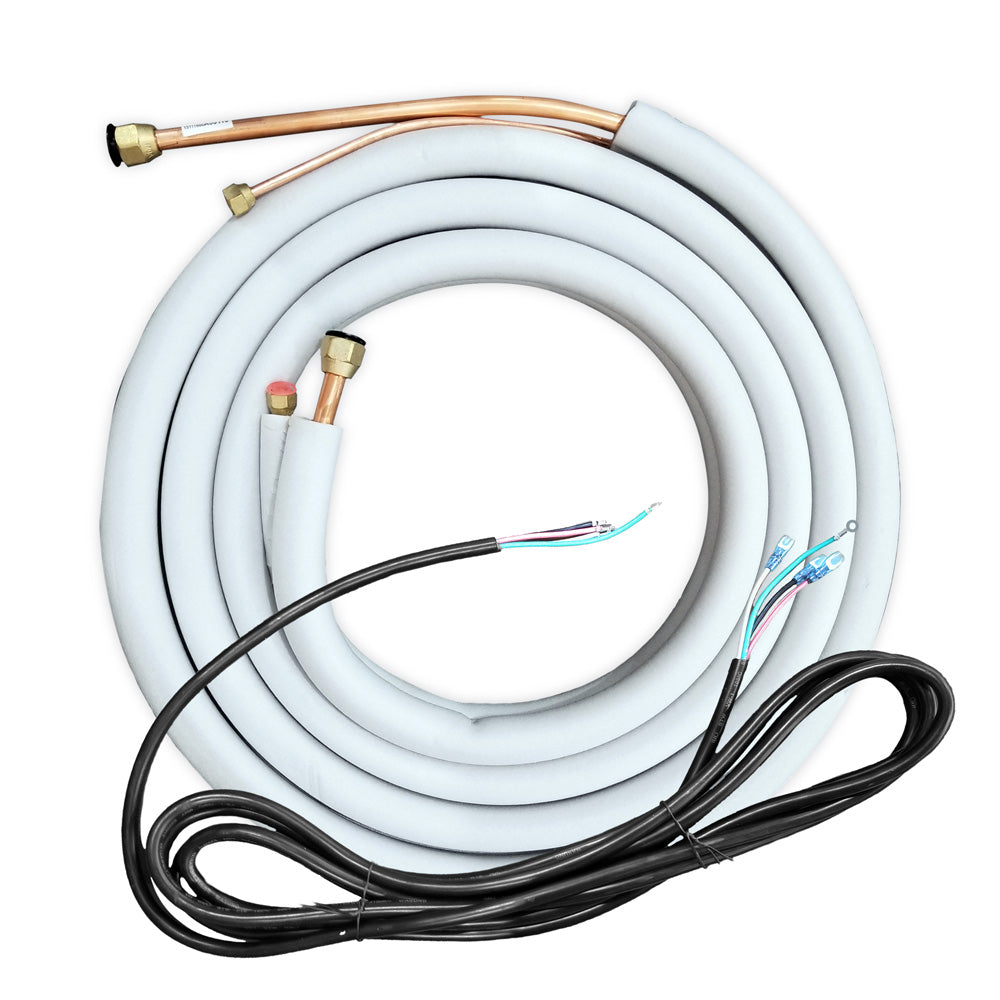

MRCOOL® DIY25-1412C-O — 25ft Pre-Charged Easy Pro Line Set with DIY-Pro Communication Cable (1/4 × 1/2, Compatible with 18K Easy Pro)
MRCOOL® DIY25-1412C-O — 25ft Pre-Charged Easy Pro Line Set with DIY-Pro Communication Cable (1/4 × 1/2, Compatible with 18K Easy Pro)
Available in stock (28)
Product Description
Upgrade Your MRCOOL Easy Pro System to the Full 25ft Reach
The MRCOOL DIY25-1412C-O is the official 25ft R-454B pre-charged line set designed exclusively for MRCOOL® DIY® Easy Pro mini split systems. The Easy Pro comes standard with a 16ft line set — but if you need a longer distance between your outdoor unit and indoor air handler, this is the exact 25ft upgrade kit you must use.
Unlike the regular MRCOOL® DIY® that comes pre boxed with a 25ft line set and DIY-PRO communication wire, this Easy Pro version includes the 16ft DIYPRO® Communication Cable built directly into the bundle. That means when you upgrade to 25ft, you also upgrade the 25ft communication wiring length to match — no splicing, no extensions, no cutting, and no electrician required.
What’s the Difference Between the MRCOOL® DIY® Series and the Easy Pro?
Both the MRCOOL® DIY® Series and the Easy Pro belong to the MRCOOL family of do-it-yourself mini-split systems, but they’re designed with slightly different features and installation needs in mind. Here’s a clear breakdown of how they compare:
MRCOOL® DIY® Series
The MRCOOL DIY Series includes a 25-ft Pre-Charged DIY® QuickConnect® line set and the DIYPRO® Cable communication wire.
- The communication wire is packaged with the indoor air handler.
-
The pre-charged QuickConnect® line set comes boxed with the condenser.
This series also carries a 5-year parts warranty and a 7-year compressor warranty, along with a slightly higher SEER rating for improved efficiency.
MRCOOL® Easy Pro DIY
The MRCOOL Easy Pro DIY model includes a 16-ft pre-charged Quick Connect line set, packaged with the condenser, and a 16-ft DIYPro communication wire included with the air handler.
This system features a 1-year parts warranty and a 2-year compressor warranty.
PRODUCT DETAILS
Model:
DIY25-1412C-O
Compatible With:
- MRCOOL Easy Pro 18k
- DIY Series 18k

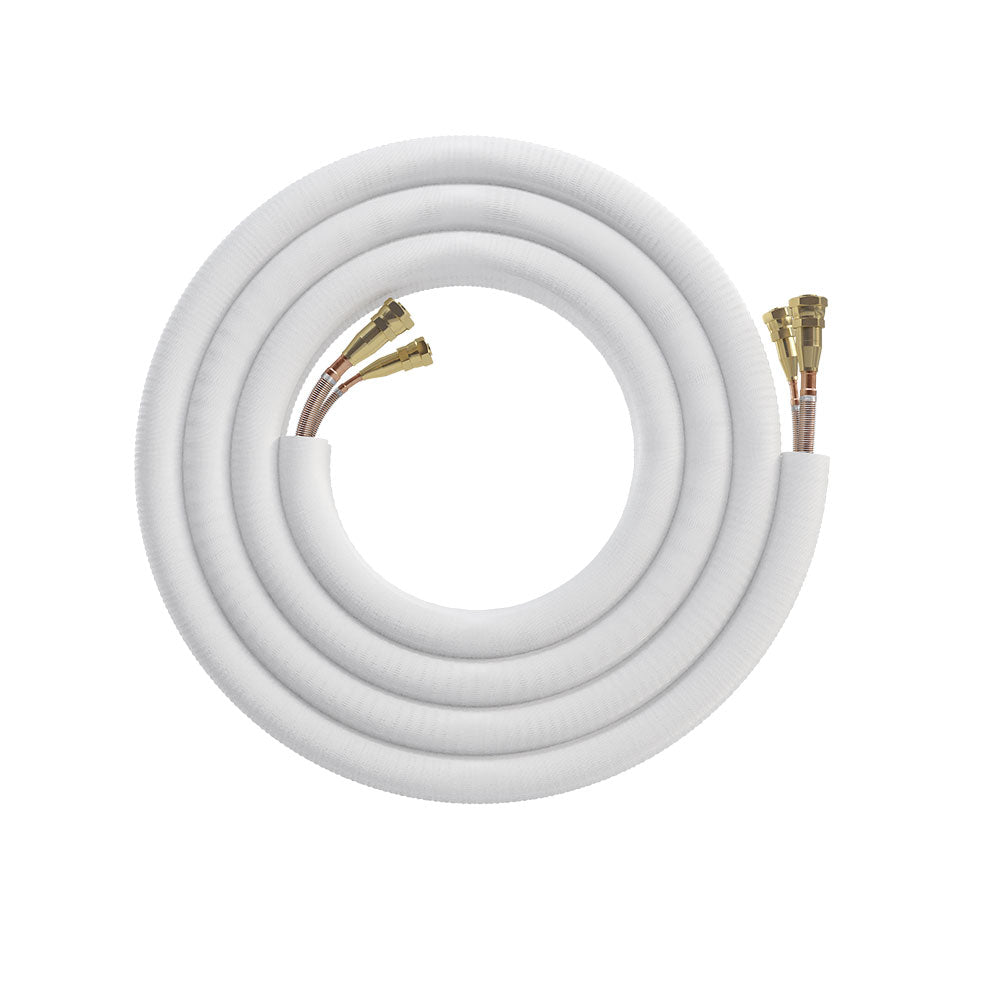

Line Set Specs:
- Length: 25 ft
- Liquid Line: 1/4”
- Suction Line: 1/2”
- Refrigerant: R-454B (pre-charged, sealed)
- Fitting Type: Quick-Connect leak-proof DIY fittings
- Color: White
- Weight: 17 lbs net / 21.4 lbs gross

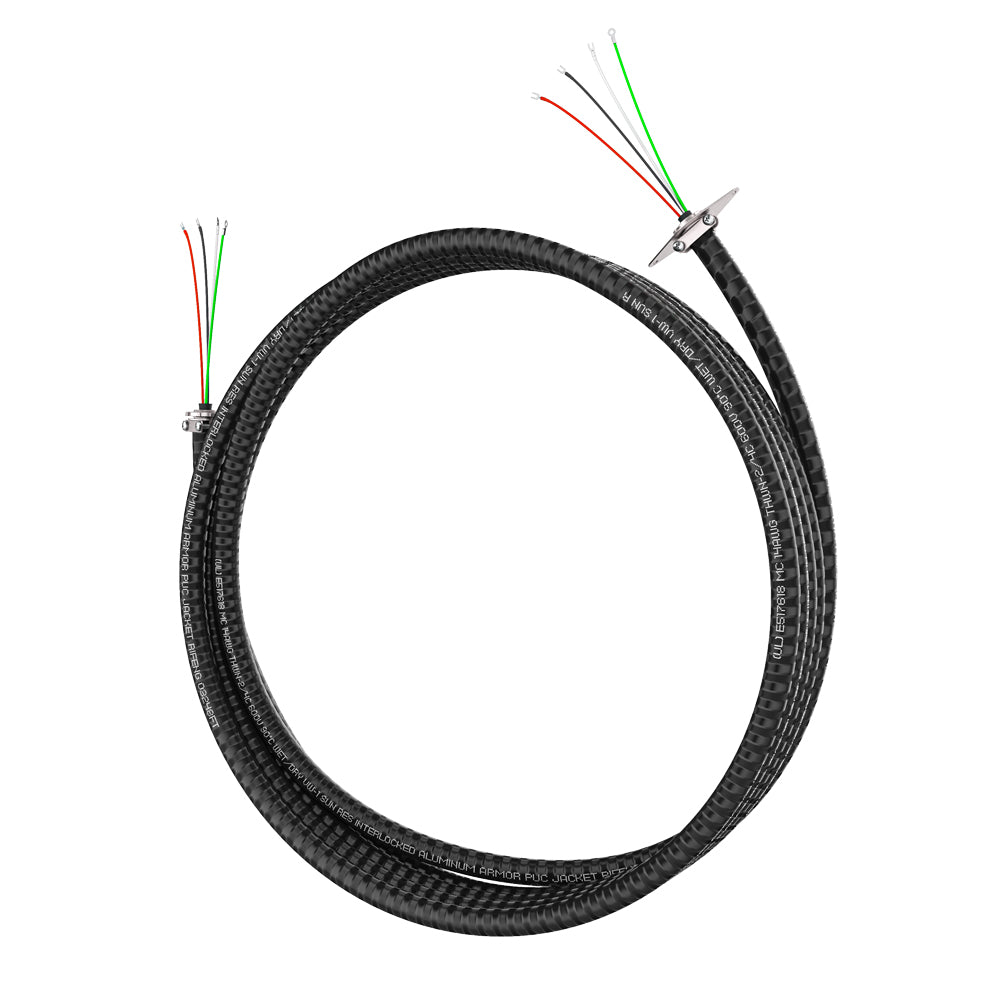

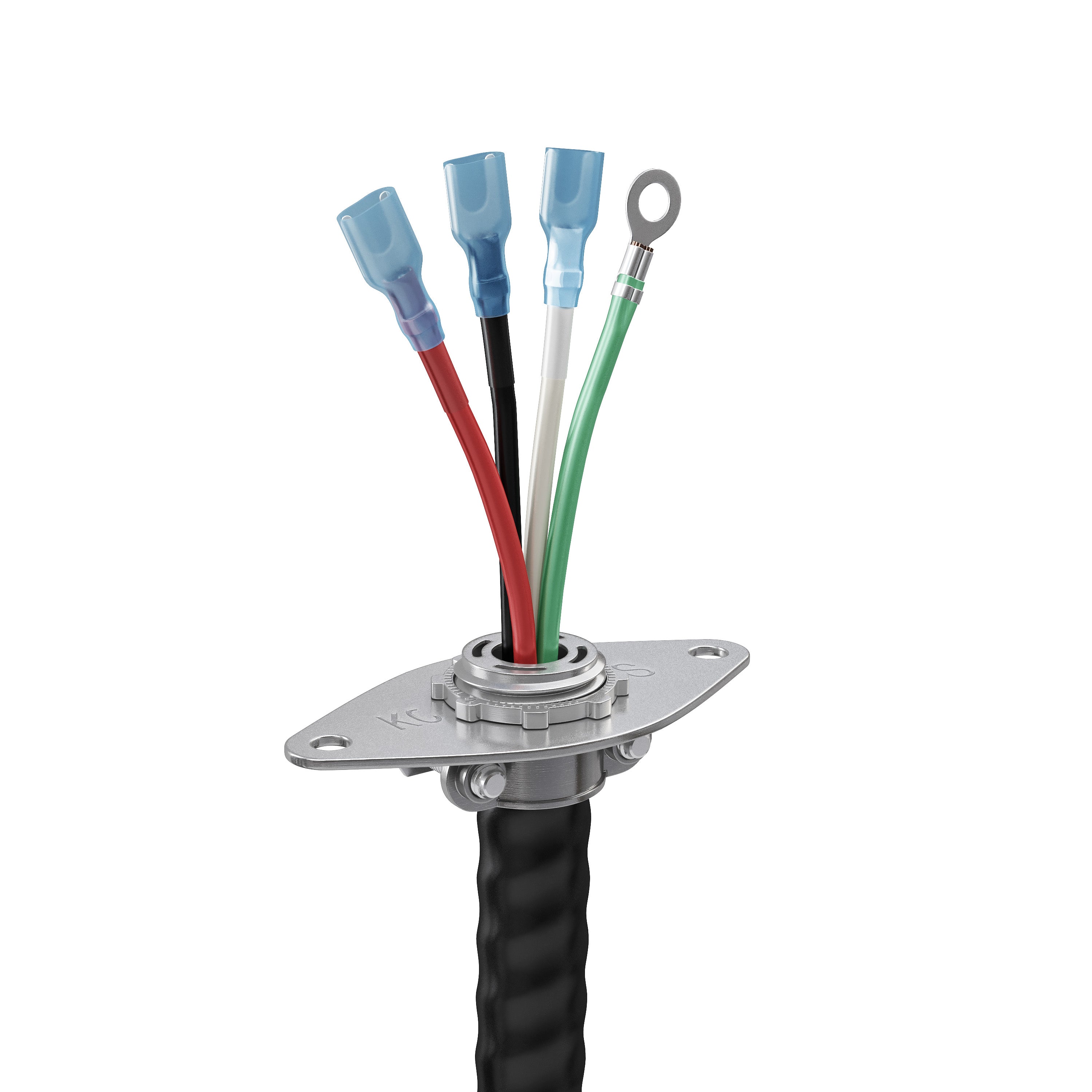

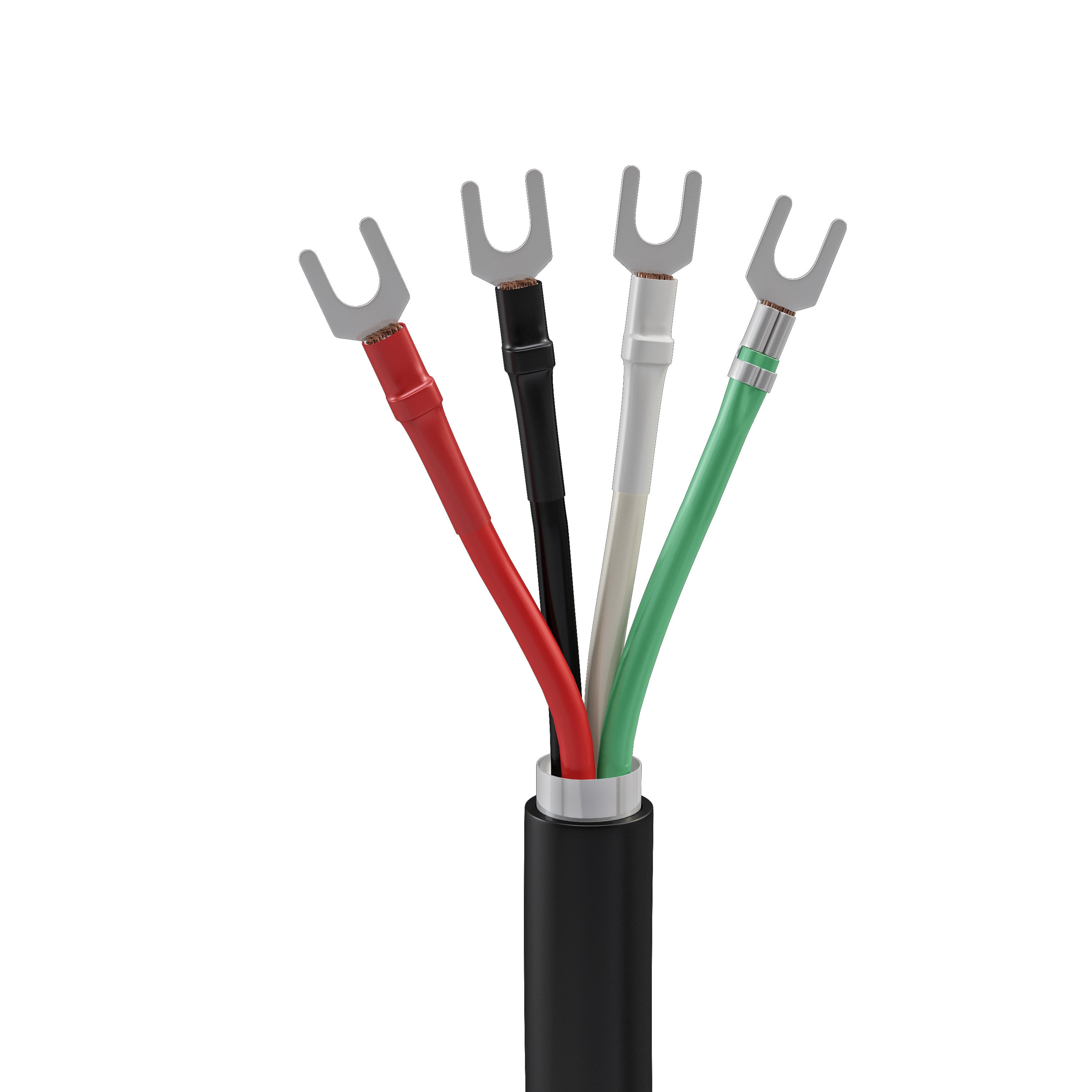

- Includes: DIY-PRO Communication Cable (25 ft)
WHY THIS VERSION HAS THE “C” IN THE MODEL NUMBER
The C = Communication Cable Included
This is the ONLY Easy Pro 25ft line set that includes the matching communication wiring.
No other 25ft MRCOOL line set should be used for an Easy Pro installation if it doesn’t come with a longer then 16ft communication wire. Easy Pro comes with a 16ft and you can’t splice the communication wire.
FREQUENTLY ASKED QUESTIONS
Does this replace my Easy Pro 16ft line set?
Yes — this is the official 25ft upgrade kit, but the Easy Pro condenser still comes pre boxed with a 16ft.
Does it include the communication wire?
Yes. The “C” model includes the full 25ft DIY-Pro cable.
Do I need any special tools?
No. This uses MRCOOL’s Quick-Connect system — no vacuum pump or gauges.
Is it compatible with the DIY 5th Gen systems?
Yes, but the DIY air handler come with 25ft communication wire.
Is the line set pre-charged?
Yes — fully charged with R-454B refrigerant.
