MRCOOL® 55K 6-Zone DIY® Mini Split System w/ 9k + 36K Air Handlers- two 25ft Pre- Charged Line Sets- DIYM255HPW01D07
MRCOOL® 55K 6-Zone DIY® Mini Split System w/ 9k + 36K Air Handlers- two 25ft Pre- Charged Line Sets- DIYM255HPW01D07
Available in stock (55)
Product Description
Model: DIYM255HPW01D07
The MRCOOL® DIYM255HPW01D07 is a premium 55,000 BTU 6-zone DIY® mini split system engineered for homeowners who want full-home comfort, smart control, and professional-grade performance — without paying for professional installation. Built around the powerful MRCOOL® DIY® 5th Generation 6-Zone condenser, this system efficiently heats and cools up to six separate areas using advanced inverter technology and environmentally friendly R-454B refrigerant.
This bundle combines the DIY-MULTI6-55HP230D-O double-stack condenser with a 9,000 BTU wall-mounted air handler for smaller rooms and a 36,000 BTU wall-mounted air handler for large open spaces. Installation is made simple with DIY® QuickConnect® pre-charged line sets, allowing you to skip vacuum pumps, gauges, and refrigerant handling entirely. The included DIYPRO® cable eliminates the need for conduit while adding extra protection against weather and pests.
Once installed, you’re in full control using the MRCOOL® Smart HVAC Controller®. Adjust temperatures, set schedules, and monitor energy use directly from your smartphone, or go hands-free with Amazon Alexa and Google Assistant. Features like Follow Me® temperature sensing, Gold Fin® corrosion protection, and industry-leading warranties make this system a long-term investment in comfort, efficiency, and peace of mind.
This is a true DIY® multi-zone solution designed to outperform traditional HVAC systems while keeping installation costs low and efficiency high.

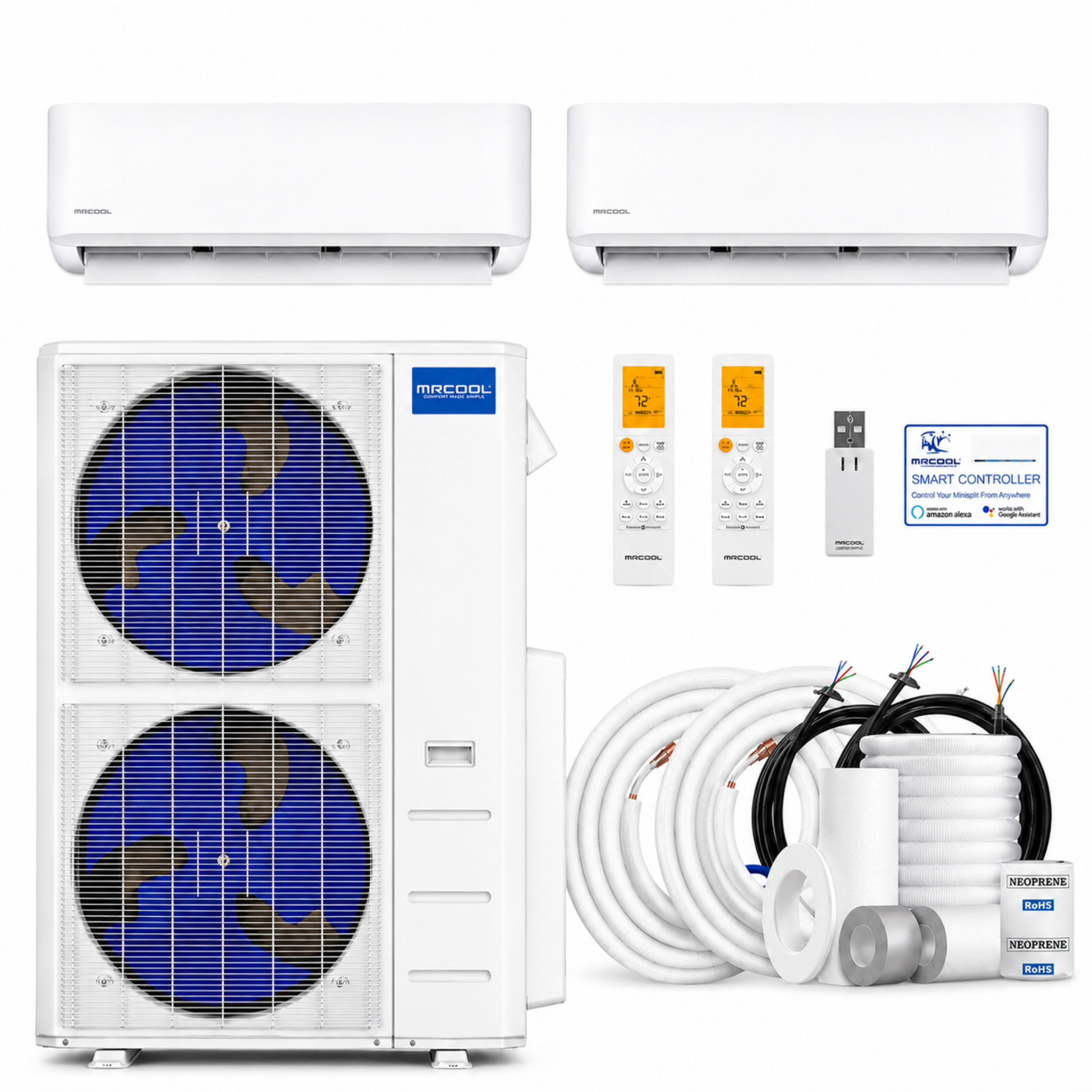

📦 WHAT’S INCLUDED IN THIS BUNDLE
-
✔ MRCOOL® DIY-MULTI6-55HP230D-O
55,000 BTU 6-Zone 5th Gen DIY® Multi-Zone Condenser (230V) -
✔ MRCOOL® DIY-09-HP-WMAH-230D25-O
9,000 BTU Wall-Mounted Air Handler (up to ~400 sq ft) -
✔ MRCOOL® DIY-36-HP-WMAH-230D25-O
36,000 BTU Wall-Mounted Air Handler (up to ~1,550 sq ft) -
✔ MRCOOL® DIY25-1438-O
25 ft DIY® QuickConnect® Line Set (1/4” x 3/8”) -
✔ MRCOOL® DIY25-3858-O
25 ft DIY® QuickConnect® Line Set (3/8” x 5/8”) - ✔ DIYPRO® communication cable
- ✔ Wireless remotes for each air handler
- ✔ Wall mounting hardware & installation accessories
📌 Smart phone not included
⚙️ KEY SYSTEM SPECS & PERFORMANCE
- Total Capacity: 55,000 BTU
- Zones Supported: Up to 6
- SEER2: 22
- HSPF2-4: 10.6
- Refrigerant: R-454B
- Voltage: 208/230V (Single Phase)
- Max Breaker: 45A
- Minimum Circuit Ampacity: 43A
- Inverter Driven Compressor: Yes
- ENERGY STAR® Certified: Yes
- AHRI Certified: Yes
❓FREQUENTLY ASKED QUESTIONS
Q: Is this a true DIY® system?
Yes. The DIY® QuickConnect® line sets are factory-charged, so no HVAC tools or refrigerant handling are required.
Q: Can I add more indoor units later?
Yes. This condenser supports up to 6 zones total, allowing future expansion.
Q: Does it work with smart home systems?
Yes. It integrates with the MRCOOL® Smart HVAC Controller®, Amazon Alexa, and Google Assistant.
Q: What warranty does this system include?
- 5-Year Parts Warranty
- 7-Year Compressor Warranty
- Limited Lifetime Replacement Warranty with MRCOOL® Care enrollment
