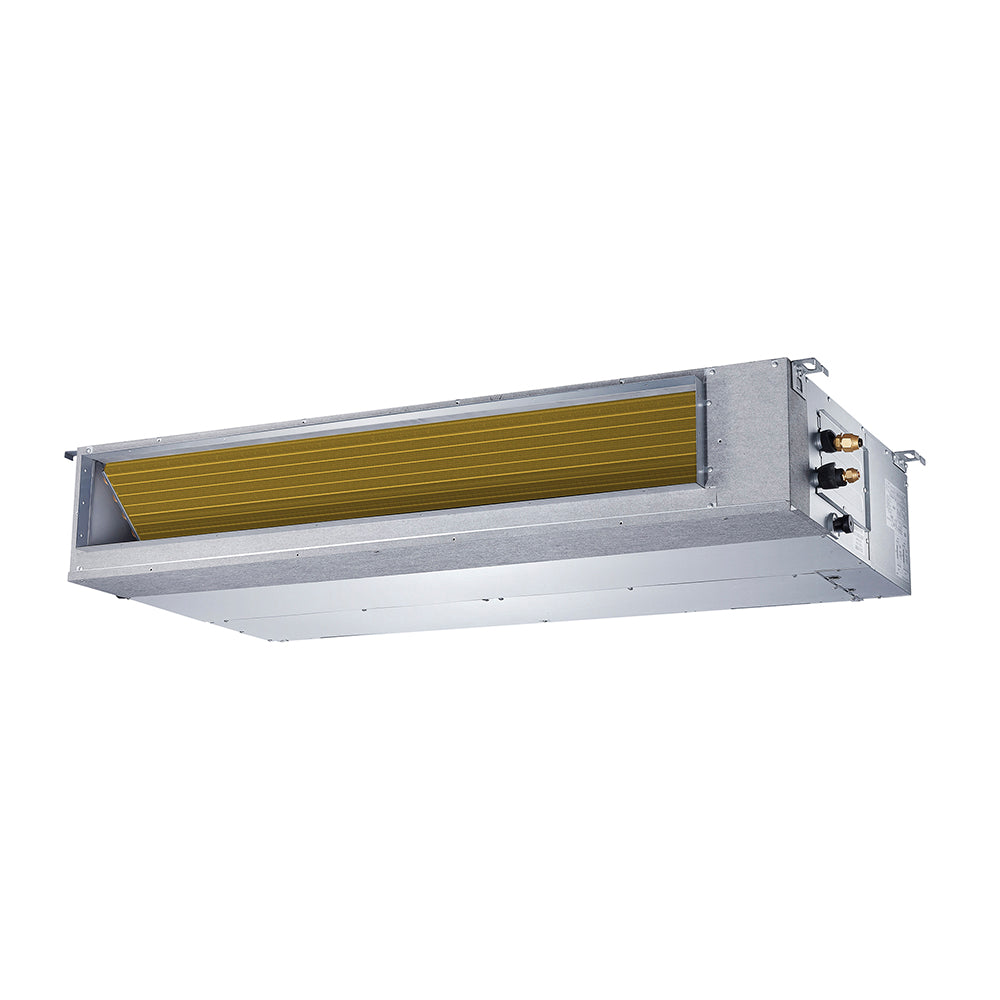

MRCOOL Olympus 9,000 BTU 3/4 Ton Ducted Mini Split Air Handler 230V/60Hz, DUCT-09HP-230B-O (NON-DIY)
MRCOOL Olympus 9,000 BTU 3/4 Ton Ducted Mini Split Air Handler 230V/60Hz, DUCT-09HP-230B-O (NON-DIY)
Available in stock (54)
DESCRIPTION
The MRCOOL® OLYMPUS 9K DUCT Air Handler is a compact and efficient heating and cooling solution designed for spaces up to 350 square feet. Its ceiling-integrated design ensures a seamless, modern look that fits effortlessly into both residential and light commercial spaces. With easy-to-use controls, eco-friendly refrigerant, and dependable performance, this unit offers a perfect balance of comfort, style, and sustainability.
- Discreet Design: Ceiling-integrated setup allows for a flush, modern installation that complements any interior space.
- Ideal Coverage: Designed to efficiently heat and cool rooms up to 350 sq. ft., making it perfect for bedrooms, offices, or small living areas.
- Convenient Controls: Includes both a wired wall-mounted controller and a handheld remote for flexible, easy operation.
- Eco-Friendly Refrigerant: Utilizes R-454B refrigerant with low global warming potential, combining environmental responsibility with strong performance.
- Quiet Operation: Engineered for minimal noise, maintaining a peaceful atmosphere while delivering consistent comfort.
- Reliable Warranty: Protected by a 5-year parts warranty for long-term peace of mind.
SPECIFICATIONS & DIMENSIONS
| DIMENSIONS | |
|---|---|
| Dimensions | 27.56" W x 19.92" D x 7.87" H |
| Mount Type | Ducted |
| Weight | 39.46 lbs |
| CAPACITY & PERFORMANCE | |
| Tonnage | 3/4 Ton |
| Capacity | 9,000 BTU |
| Coverage Area | 151 to 350 sq ft. |
| ELECTRICAL REQUIREMENTS | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 3A |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| FEATURES | |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works with IOS | No |
| Works with Android | No |
| Remote Control Included | Yes |
| CERTIFICATION & WARRANTY | |
| Certifications | UL Listed, ETL Listed, CSA Listed |
| Warranty | 5 Year Parts |
Professional Installation Required
The MRCOOL® Olympus Series is built for licensed HVAC installation. Before releasing the factory refrigerant from the outdoor condenser, the line set must be vacuumed, nitrogen-pressure tested, and verified leak-free. This process ensures maximum efficiency, system integrity, and valid warranty coverage.
MRCOOL® Olympus Series
The Olympus Series represents MRCOOL’s premium line of ducted mini split systems, offering superior build quality, quiet operation, and precise temperature control. Ideal for those seeking a professional-grade solution for smaller spaces without compromising on comfort or efficiency.
- High-performance design for residential or light commercial use
- Compatible with Olympus outdoor condensers
- Supports ducted zoning and multi-room comfort
- Ships nationwide from MRCOOLDIRECT.COM
Why Choose the Olympus 9K Ducted Air Handler?
If you want premium performance in a compact package, the Olympus 9,000 BTU model delivers. As part of the MRCOOL “Best” Series, it offers quiet operation, efficient R-454B refrigerant, and durable construction built for long-term use — perfect for professionally installed HVAC projects.
