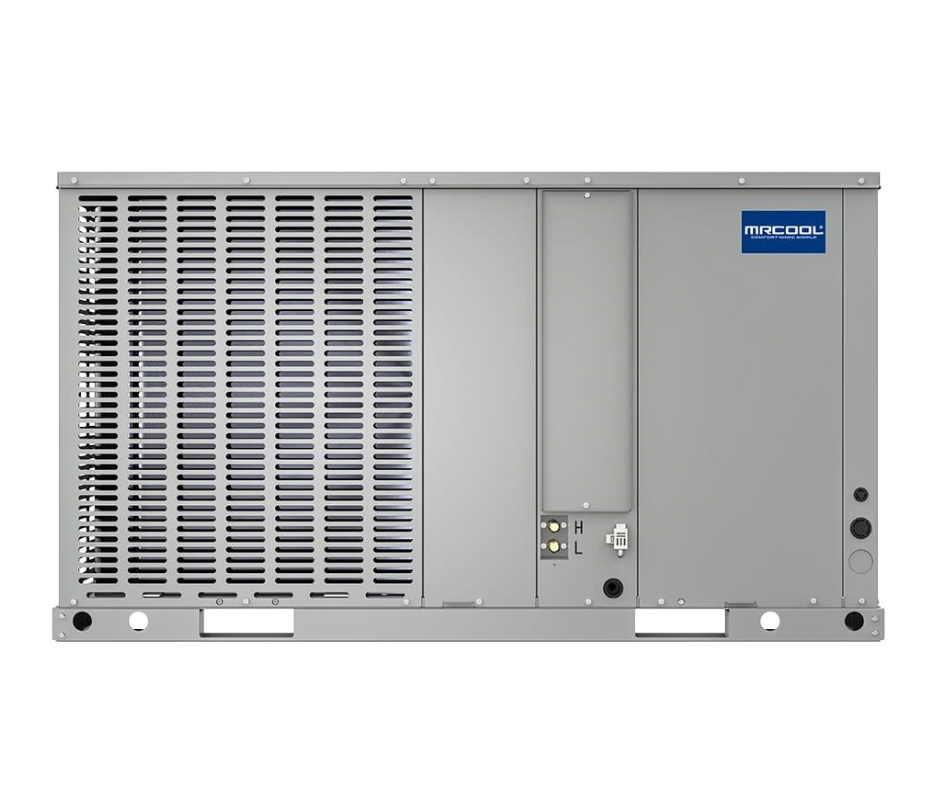

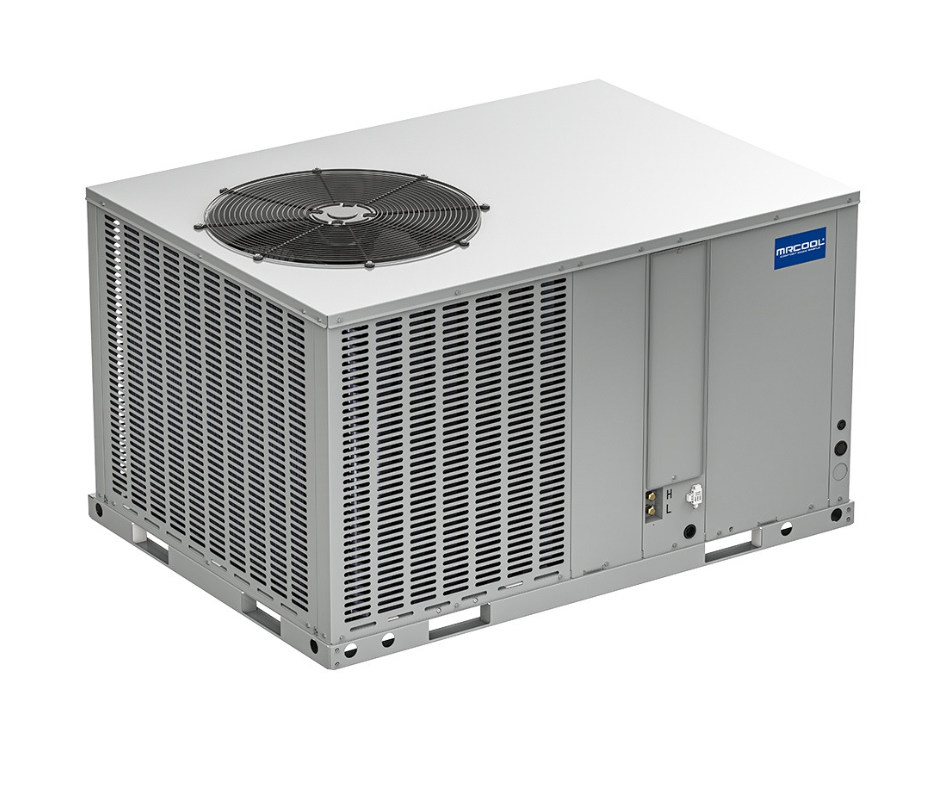

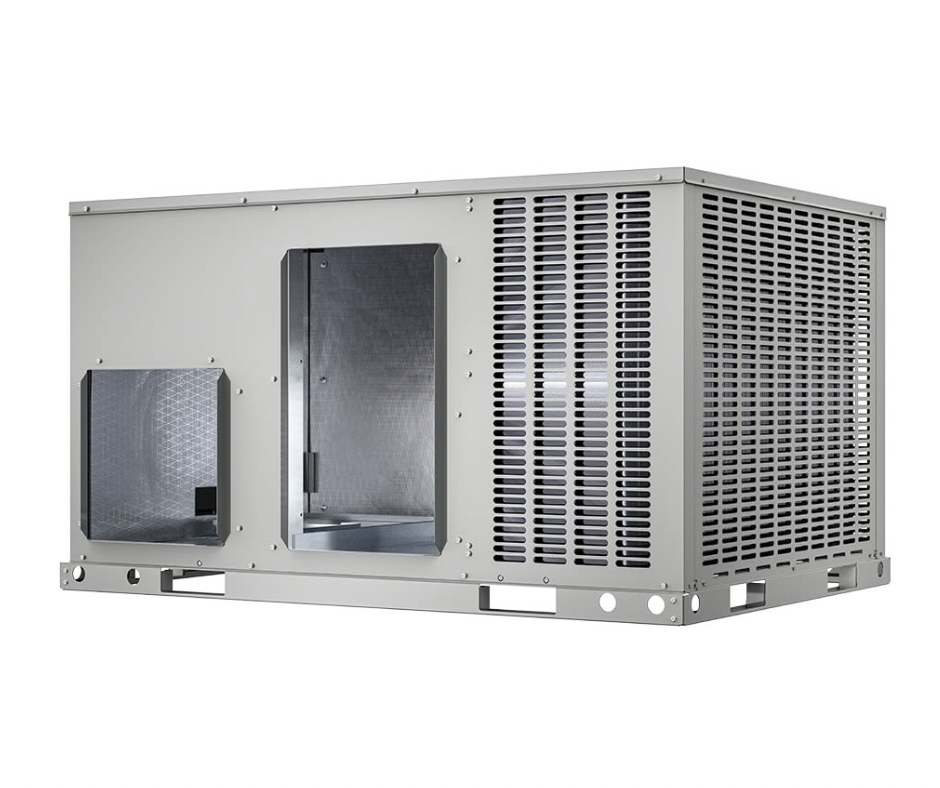

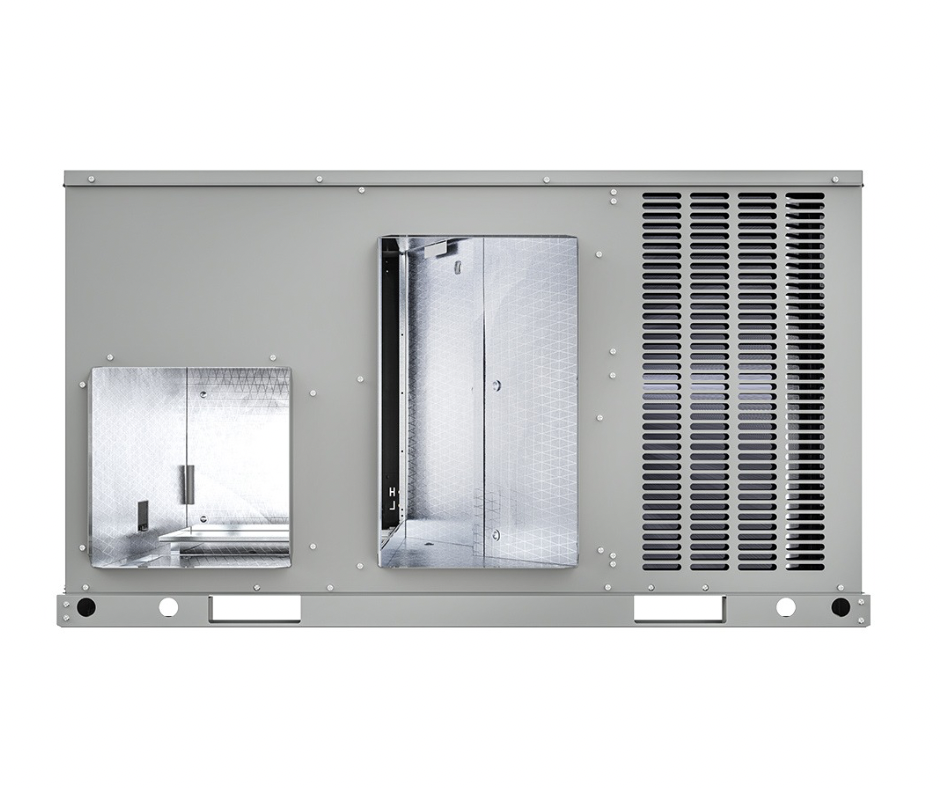

MRCOOL® VersaPro® 2-Ton Package Heat Pump 13.4 SEER2 (22,800 BTU Cooling / 22,400 BTU Heating) R-454B — MPH241HO13C

Product Description

The MRCOOL® VersaPro® MPH241HO13C Package Heat Pump is a 2-ton, all-in-one HVAC system engineered to deliver reliable year-round heating and cooling in a single, compact outdoor unit. Designed for homeowners who want efficiency, durability, and simplified installation, this packaged heat pump eliminates the need for separate indoor and outdoor components—making it an ideal solution for replacements, manufactured homes, tight mechanical spaces, and horizontal installations.

With a 13.4 SEER2 efficiency rating, the VersaPro® 24K provides dependable cooling during hot summer months while delivering consistent heat when temperatures drop, operating effectively down to -0.4°F in heating mode. The system utilizes R-454B refrigerant, a next-generation, low-GWP alternative that significantly reduces environmental impact compared to older refrigerants—future-proofing your investment while maintaining strong performance.

Built for longevity, the power-painted galvanized steel cabinet resists corrosion and harsh weather, while the horizontal discharge design helps minimize operational noise—an important advantage in residential settings. Inside the cabinet, aluminum tubing and fin coils improve heat transfer efficiency and resist corrosion better than copper, reducing maintenance needs and extending system life.

A high-efficiency rotary compressor, paired with a PSC blower motor and ECM condenser fan motor, delivers smooth airflow, stable temperature control, and dependable operation across seasons. Integrated safety controls protect the system from pressure extremes and coil temperature issues, ensuring reliable performance even during demanding conditions.

Backed by industry-leading warranties, including 10-year parts and 10-year compressor coverage with registration, the MRCOOL® VersaPro® MPH241HO13C is a smart, cost-effective, and environmentally responsible upgrade for homeowners who want comfort, simplicity, and long-term value.



KEY FEATURES & BENEFITS

• 2-Ton Packaged Heat Pump System – Heating & cooling in one outdoor unit
• 13.4 SEER2 Efficiency – Lower energy use & operating costs
• R-454B Refrigerant – Eco-friendly, low-GWP, future-ready
• 22,800 BTU Cooling / 22,400 BTU Heating – Balanced year-round comfort

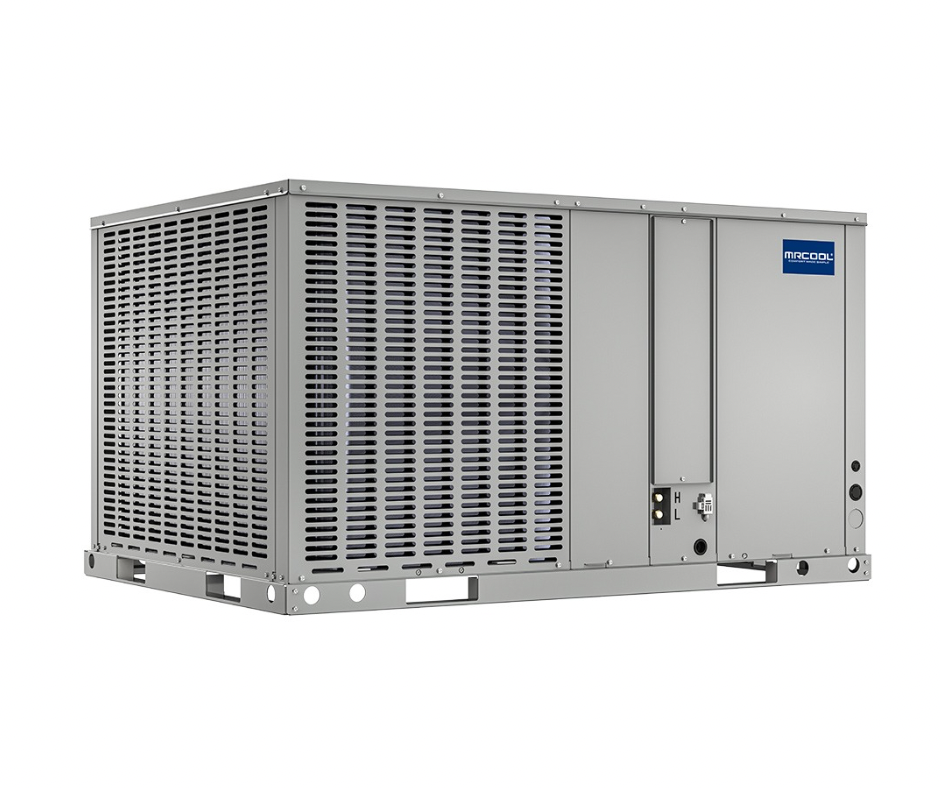

• Horizontal Discharge Design – Quieter residential operation
• All-in-One Package Unit – No separate indoor equipment required
• Durable Galvanized Steel Cabinet – Weather & corrosion resistant
• Aluminum Coil Technology – Improved heat transfer & longevity
• Auxiliary Heat Ready – Supports 5kW, 7.5kW, or 10kW heat kits
• AHRI, UL, ETL, CSA Certified – Verified performance & safety



ELECTRICAL & PERFORMANCE SPECS

• Voltage: 208 / 230V
• Phase: 1
• Frequency: 60 Hz
• Max Breaker: 25 Amps
• Minimum Circuit Ampacity (MCA): 17.9 Amps
• CFM: 840
• Min Ambient Cooling: 32°F
• Min Ambient Heating: -0.4°F



TECHNICAL SPECIFICATIONS

• Tonnage: 2 Ton
• SEER2: 13.4
• EER2: 11
• HSPF2-4: 6.7
• Cooling Capacity: 22,800 BTU
• Heating Capacity: 22,400 BTU
• Refrigerant: R-454B (62 oz)
• Compressor Type: Rotary
• Blower Motor: PSC (3-Speed)
• Condenser Fan Motor: ECM
• Control Type: 24V Thermostat
• Aux Heat Available: Yes

• 5kW         Model- MHK05PB
• 7.5kW      Moldel- MHK07PB
• 10kW       Model- MHK10PB



DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 37.75 in
• Height: 24.81 in
• Depth: 52 in

Weight

• Net Weight: 326 lbs
• Shipping Weight: 340 lbs

WARRANTY INFORMATION

• Registered Warranty:

• 10-Year Parts
• 10-Year Compressor
• Base Warranty:

• 5-Year Parts
• 5-Year Compressor



FREQUENTLY ASKED QUESTIONS

Q: What type of installation is this unit designed for?

A: This is a horizontal packaged heat pump, ideal for ground-level or rooftop installs where space is limited.



Q: Does this unit require an indoor air handler?

A: No. This is an all-in-one packaged system—everything is contained in a single outdoor cabinet.



Q: Can I add electric backup heat?

A: Yes. This system supports 5kW, 7.5kW, and 10kW auxiliary heat kits.



Q: Is R-454B better than R-410A?

A: Yes. R-454B has a much lower global warming potential and meets upcoming environmental regulations.



Q: Is this unit eligible for rebates?

A: Eligibility varies by location. Check local utility and state energy programs.
