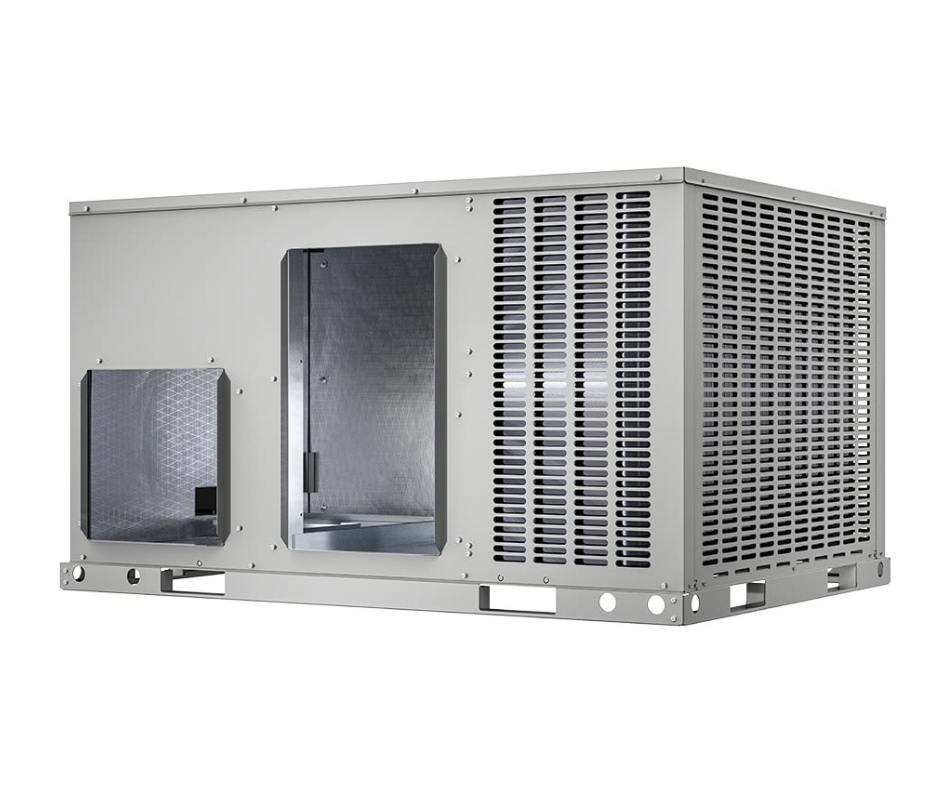

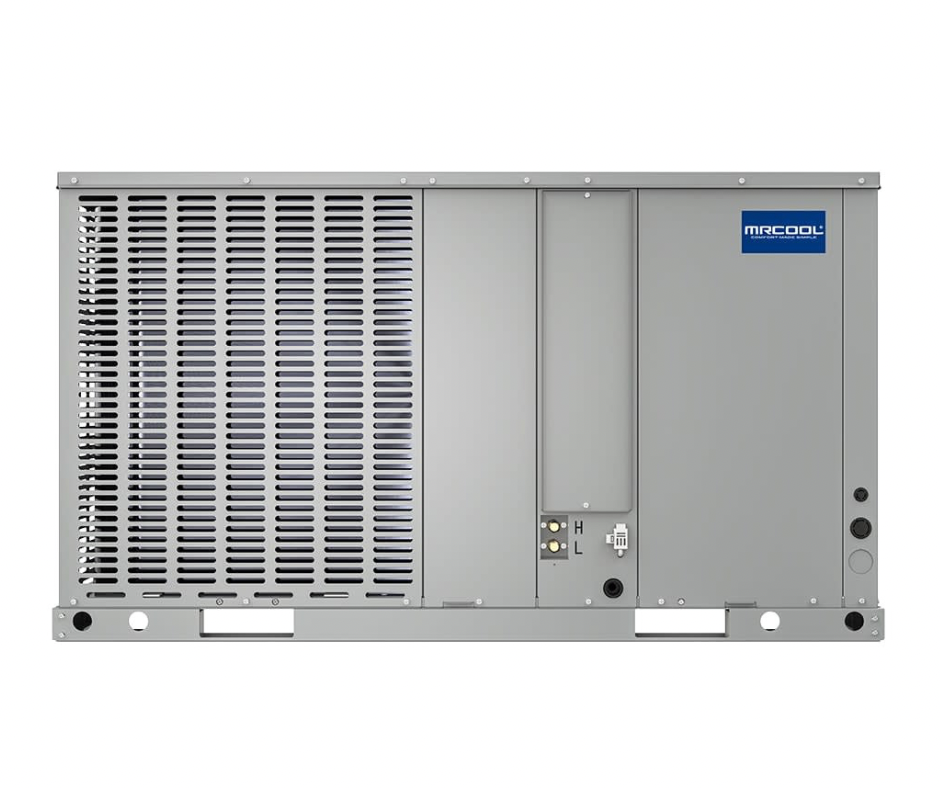

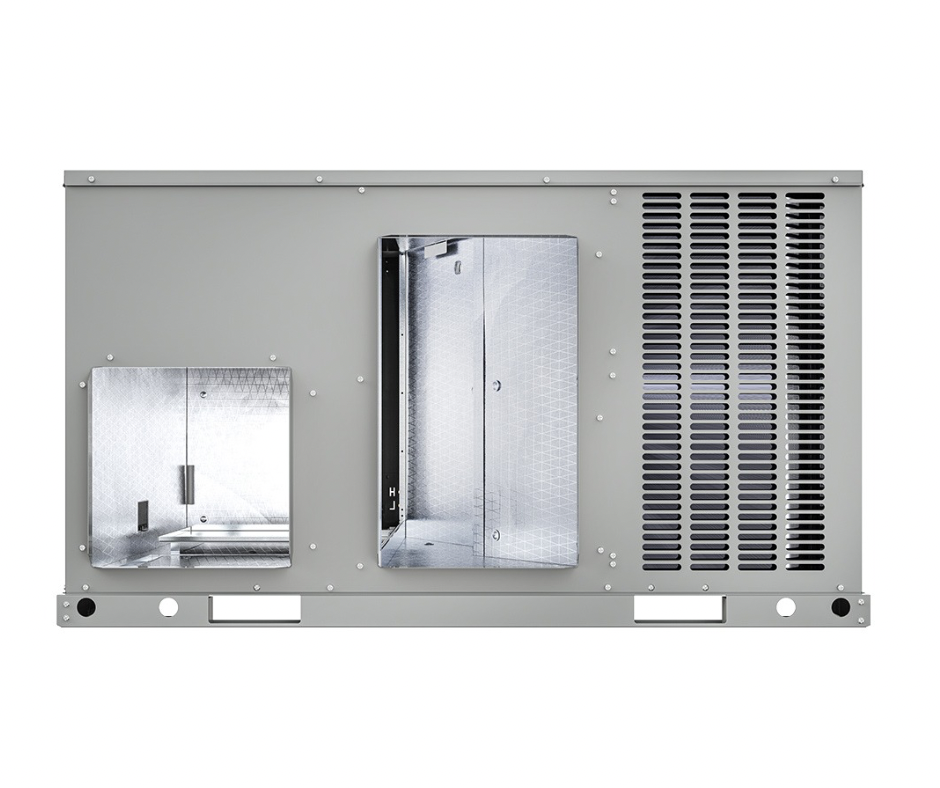

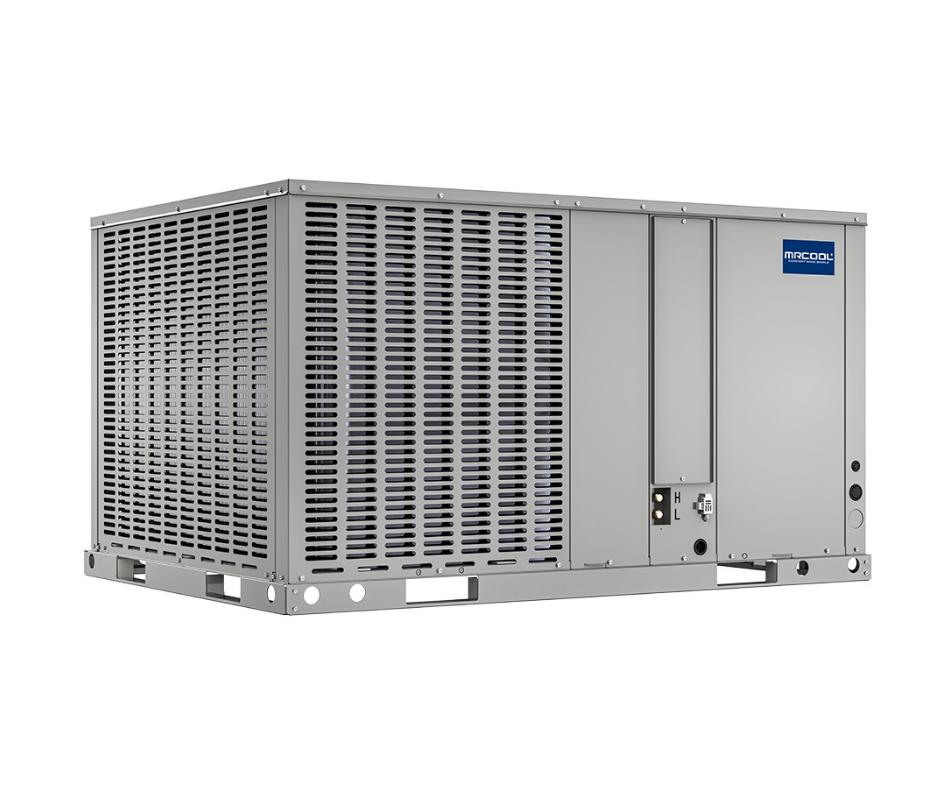

MRCOOL® VersaPro® 2.5-Ton Package Heat Pump 13.4 SEER2 (28,200 BTU Cooling / 27,600 BTU Heating) R-454B — MPH301HO13C

Product Description

The MRCOOL® VersaPro® MPH301HO13C Package Heat Pump is a 2.5-ton, all-in-one HVAC solution engineered for dependable, year-round comfort in a single compact outdoor unit. Designed for homeowners who want efficiency, durability, and simplified installation, this packaged heat pump eliminates the need for separate indoor equipment—making it an ideal choice for replacements, manufactured homes, horizontal installs, and tight mechanical spaces.

With a 13.4 SEER2 efficiency rating, the VersaPro® 30K delivers reliable cooling during peak summer heat while providing consistent heating performance down to -0.4°F, ensuring comfort across all seasons. The system operates using R-454B refrigerant, a next-generation, low-GWP alternative that meets new environmental standards while preserving strong heating and cooling output.

Built for long-term reliability, the power-painted galvanized steel cabinet resists corrosion, moisture, and harsh outdoor conditions. The horizontal discharge design helps reduce operating noise—an important advantage for residential installations. Inside the cabinet, aluminum tubing and fin coils enhance heat transfer efficiency and offer superior corrosion resistance compared to copper, lowering maintenance demands and extending service life.

At the core of the system, a high-efficiency rotary compressor, paired with ECM motors for both the condenser fan and blower, delivers smooth airflow, stable temperature control, and improved energy efficiency. Integrated safety controls protect the system from pressure extremes and coil temperature issues, helping ensure dependable operation even during extreme weather.

Backed by industry-leading warranties, including 10-year parts and 10-year compressor coverage with registration, the MRCOOL® VersaPro® MPH301HO13C is a future-ready, cost-effective investment designed to deliver comfort, efficiency, and peace of mind for years to come.



KEY FEATURES & BENEFITS

• 2.5-Ton Packaged Heat Pump System – Heating & cooling in one outdoor unit
• 13.4 SEER2 Efficiency – Reduced energy use & lower utility bills
• R-454B Refrigerant – Eco-friendly, low-GWP, future-compliant
• 28,200 BTU Cooling / 27,600 BTU Heating – Balanced all-season comfort

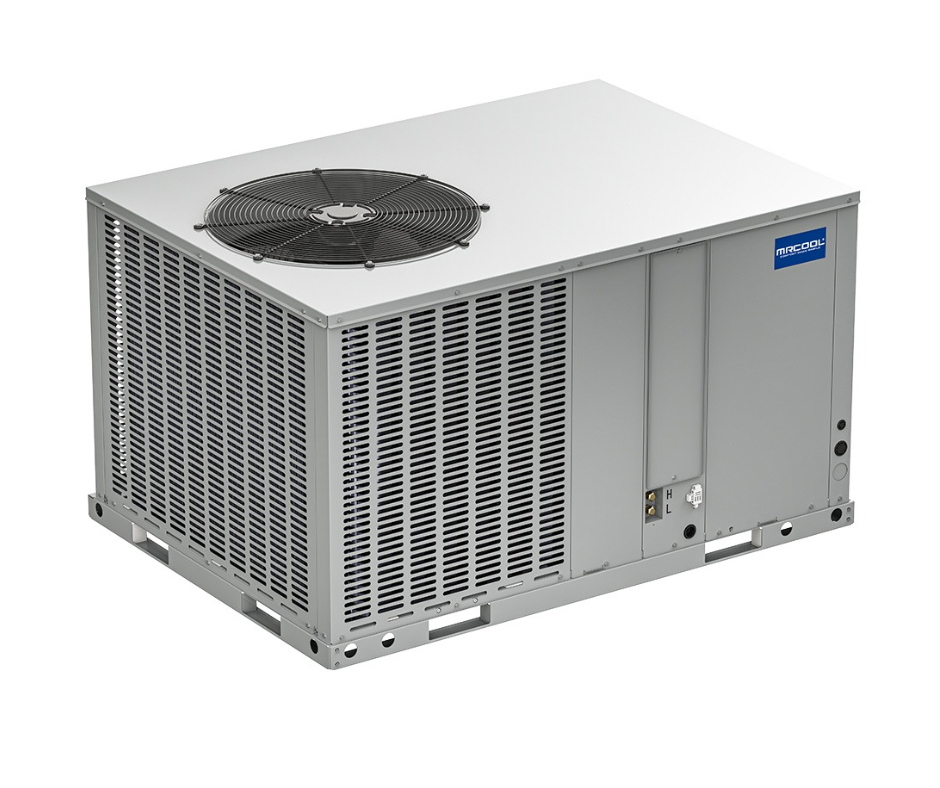

• Horizontal Discharge Design – Quieter residential operation
• All-in-One Package Unit – No indoor air handler required
• Galvanized Steel Cabinet – Weather-resistant & corrosion-protected
• Aluminum Coil Technology – Enhanced heat transfer & longevity
• Auxiliary Heat Ready – Supports 5kW, 7.5kW, 10kW, or 15kW heat kits
• AHRI, UL, ETL, CSA Certified – Verified performance & safety



ELECTRICAL & PERFORMANCE SPECS

• Voltage: 208 / 230V
• Phase: 1
• Frequency: 60 Hz
• Max Breaker: 30 Amps
• Minimum Circuit Ampacity (MCA): 24.4 Amps
• CFM: 1050
• Min Ambient Cooling: 32°F
• Min Ambient Heating: -0.4°F



TECHNICAL SPECIFICATIONS

• Tonnage: 2.5 Ton
• SEER2: 13.4
• EER2: 11
• HSPF2-4: 6.7
• Cooling Capacity: 28,200 BTU
• Heating Capacity: 27,600 BTU
• Refrigerant: R-454B (58 oz)
• Compressor Type: Rotary
• Blower Motor: ECM (3-Speed)
• Condenser Fan Motor: ECM
• Control Type: 24V Thermostat
• Aux Heat Available: Yes

• • 5kW         Model- MHK05PB
  • 7.5kW      Moldel- MHK07PB
  • 10kW       Model- MHK10PB



DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 37.75 in
• Height: 24.81 in
• Depth: 52 in

Weight

• Net Weight: 326 lbs
• Shipping Weight: 340 lbs



WARRANTY INFORMATION

• Registered Warranty:

• 10-Year Parts
• 10-Year Compressor
• Base Warranty:

• 5-Year Parts
• 5-Year Compressor



FREQUENTLY ASKED QUESTIONS

Q: Is this a complete HVAC system?

A: Yes. This is an all-in-one packaged heat pump—no separate indoor unit required.



Q: Can this system handle cold climates?

A: Yes. Heating operation is supported down to -0.4°F, with optional auxiliary heat kits available.



Q: What refrigerant does this system use?

A: R-454B, a low-GWP, next-generation refrigerant that meets future regulations.



Q: Does it support electric backup heat?

A: Yes. Compatible with 5kW, 7.5kW, 10kW, and 15kW auxiliary heat kits.



Q: Is professional installation required?

A: Installation should follow local codes and electrical requirements; professional installation is recommended.
