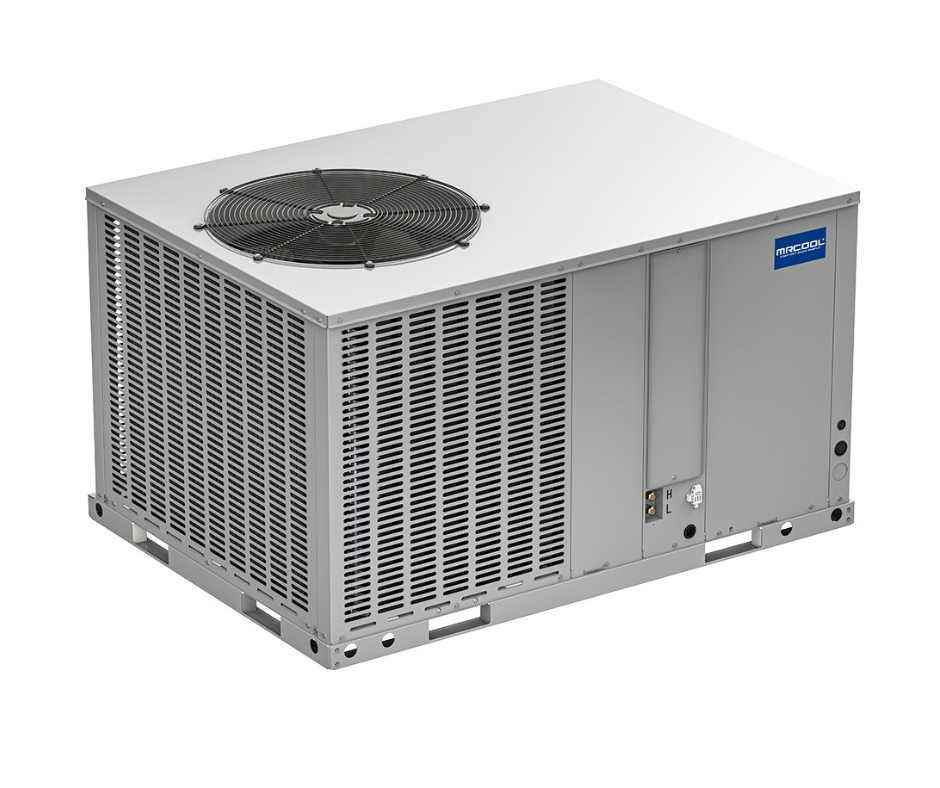

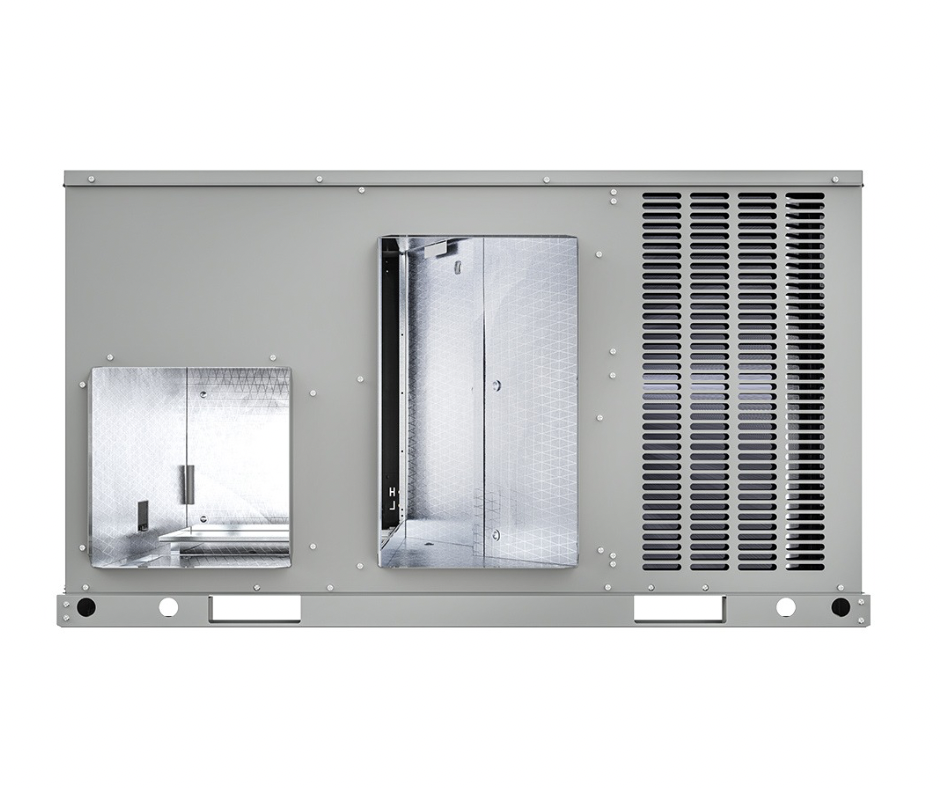

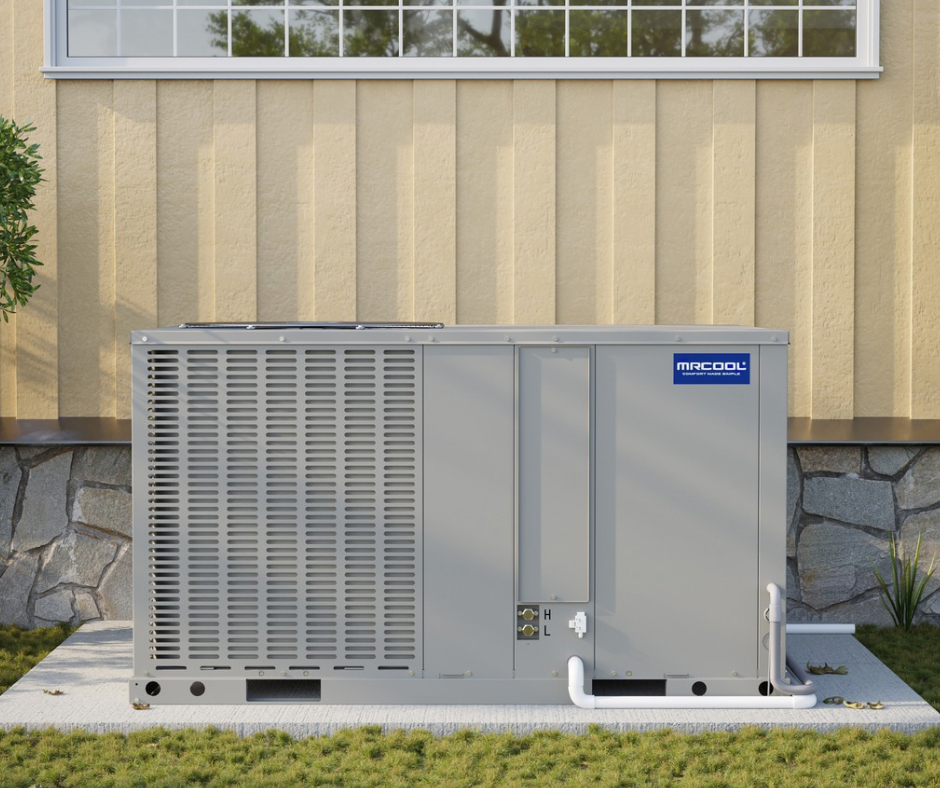

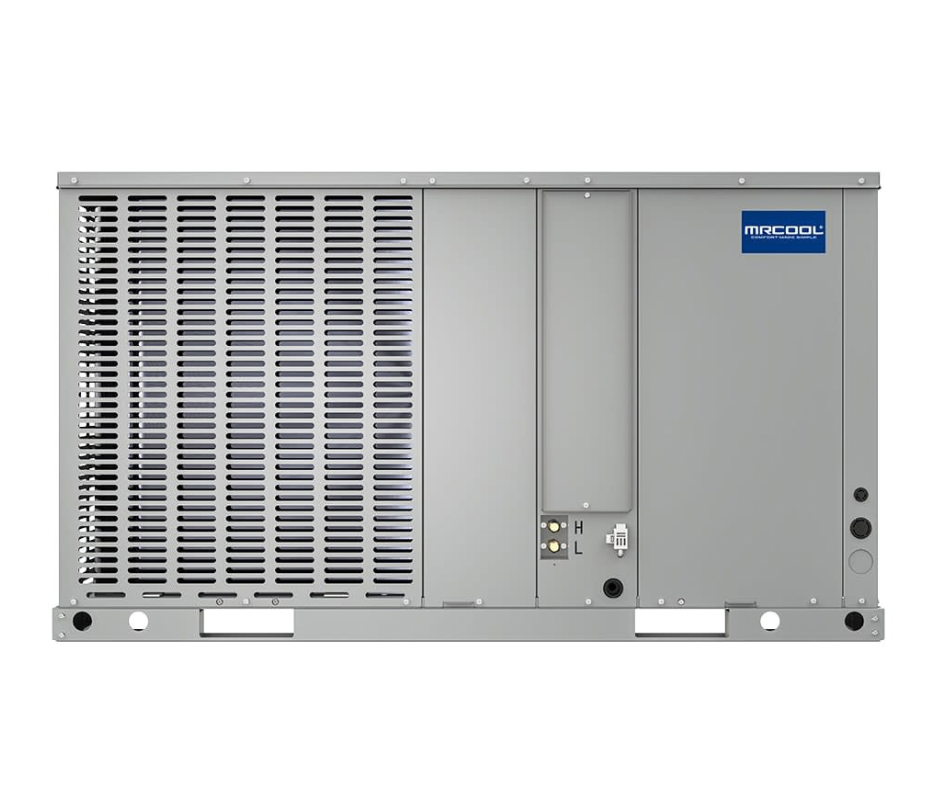

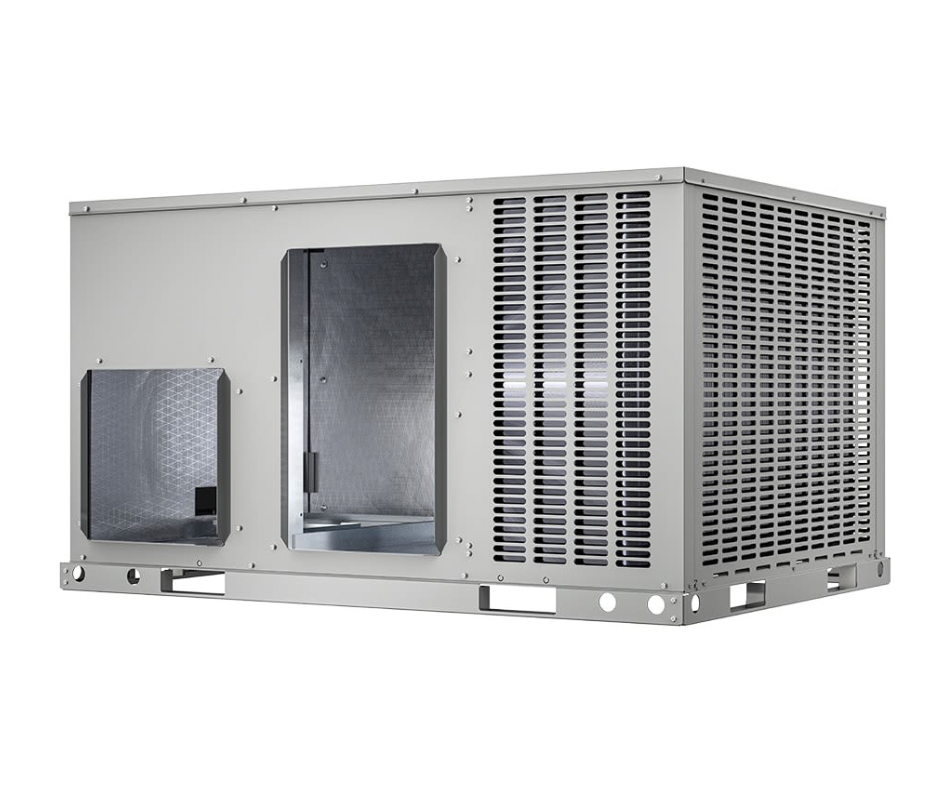

MRCOOL® VersaPro® 4-Ton Package Heat Pump 13.4 SEER2 (46,500 BTU Cooling & 46,000 BTU Heating) R-454B — MPH481HO13C

Product Description

The MRCOOL® VersaPro® MPH481HO13C Package Heat Pump is a 4-ton, high-capacity all-in-one HVAC solution designed to deliver powerful, dependable heating and cooling from a single outdoor unit. Built for homeowners upgrading from older systems or installers looking for a clean, efficient packaged replacement, this system provides strong performance in both extreme summer heat and cold winter conditions.



With a 13.4 SEER2 efficiency rating, the VersaPro® 48K is engineered to lower energy consumption without sacrificing comfort. The system operates using R-454B refrigerant, a next-generation, low-GWP refrigerant that meets current and future environmental standards—making it a smart, compliant choice for modern HVAC installations.



Durability is built into every component. A power-painted galvanized steel cabinet shields the system from corrosion, moisture, and outdoor wear, while the horizontal discharge design helps reduce operating noise—ideal for residential neighborhoods. Inside the cabinet, aluminum tubing and fin coils provide excellent heat transfer and superior corrosion resistance compared to copper, reducing long-term maintenance and extending service life.



At the core of the system, a high-efficiency scroll compressor works in conjunction with an ECM condenser fan motor and a PSC indoor blower motor to deliver smooth airflow, balanced temperature control, and reliable operation. Integrated safety controls continuously monitor pressure levels and coil temperatures to ensure stable performance under demanding conditions.



Backed by industry-leading warranties, the MRCOOL® VersaPro® MPH481HO13C is a long-term investment in comfort, efficiency, and peace of mind.



 KEY FEATURES & BENEFITS

• 4-Ton Packaged Heat Pump – Heating & cooling in one outdoor unit
• 13.4 SEER2 Efficiency – Lower energy bills & improved performance
• R-454B Refrigerant – Low global warming potential, EPA-compliant
• 46,500 BTU Cooling / 46,000 BTU Heating – High-capacity comfort
• Horizontal Discharge Design – Quieter residential operation
• All-In-One Package Unit – No indoor air handler required
• Galvanized Steel Cabinet – Weather-resistant & corrosion-protected
• Aluminum Coil Technology – Enhanced heat transfer & longevity
• Auxiliary Heat Ready – Supports 5kW, 7.5kW, 10kW, 15kW & 20kW kits
• AHRI, UL, ETL & CSA Certified – Verified safety & performance

 ELECTRICAL & PERFORMANCE

• Voltage: 208 / 230V
• Phase: 1
• Frequency: 60 Hz
• Max Breaker: 45 Amps
• Minimum Circuit Ampacity (MCA): 36 Amps
• CFM: 1,620
• Min Ambient Cooling: 32°F
• Min Ambient Heating: -0.4°F

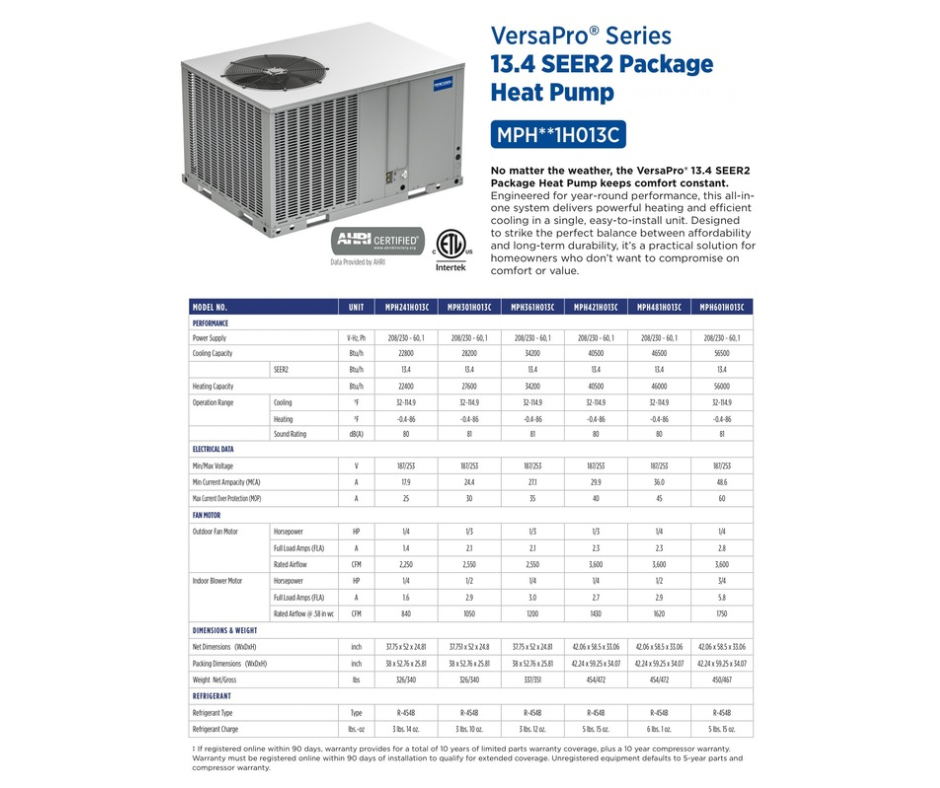

TECHNICAL SPECIFICATIONS

• Tonnage: 4 Ton
• SEER2: 13.4
• EER2: 11.4
• HSPF2-4: 6.7
• Cooling Capacity: 46,500 BTU
• Heating Capacity: 46,000 BTU
• Refrigerant: R-454B (97 oz)
• Compressor Type: Scroll
• Condenser Fan Motor: ECM
• Blower Motor: PSC (3-Speed)
• Control Type: 24V Thermostat



• Aux Heat Available: Yes  compatible listed below.
  • 5kW         Model- MHK05PB
  • 7.5kW      Moldel- MHK07PB
  • 10kW       Model- MHK10PB
  • 15kW       Model- MHK15PB
  • 20kW.      Model- MHK20PB



DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 42.06 in
• Height: 33.06 in
• Depth: 58.5 in

Weight

• Net Weight: 454 lbs
• Shipping Weight: 472 lbs



WARRANTY INFORMATION

Registered Warranty

• 10-Year Parts
• 10-Year Compressor

Base Warranty

• 5-Year Parts
• 5-Year Compressor



FREQUENTLY ASKED QUESTIONS

Q: Is this a complete HVAC system?

A: Yes. This is a self-contained packaged heat pump that does not require an indoor air handler.



Q: Does this unit support auxiliary electric heat?

A: Yes. Optional auxiliary heat kits from 5kW up to 20kW are supported for extreme cold conditions.



Q: What refrigerant does this system use?

A: R-454B, a modern low-GWP refrigerant designed to meet future efficiency regulations.



Q: Is this unit suitable for residential installation?

A: Absolutely. Its horizontal discharge and quiet operation make it ideal for residential applications.
