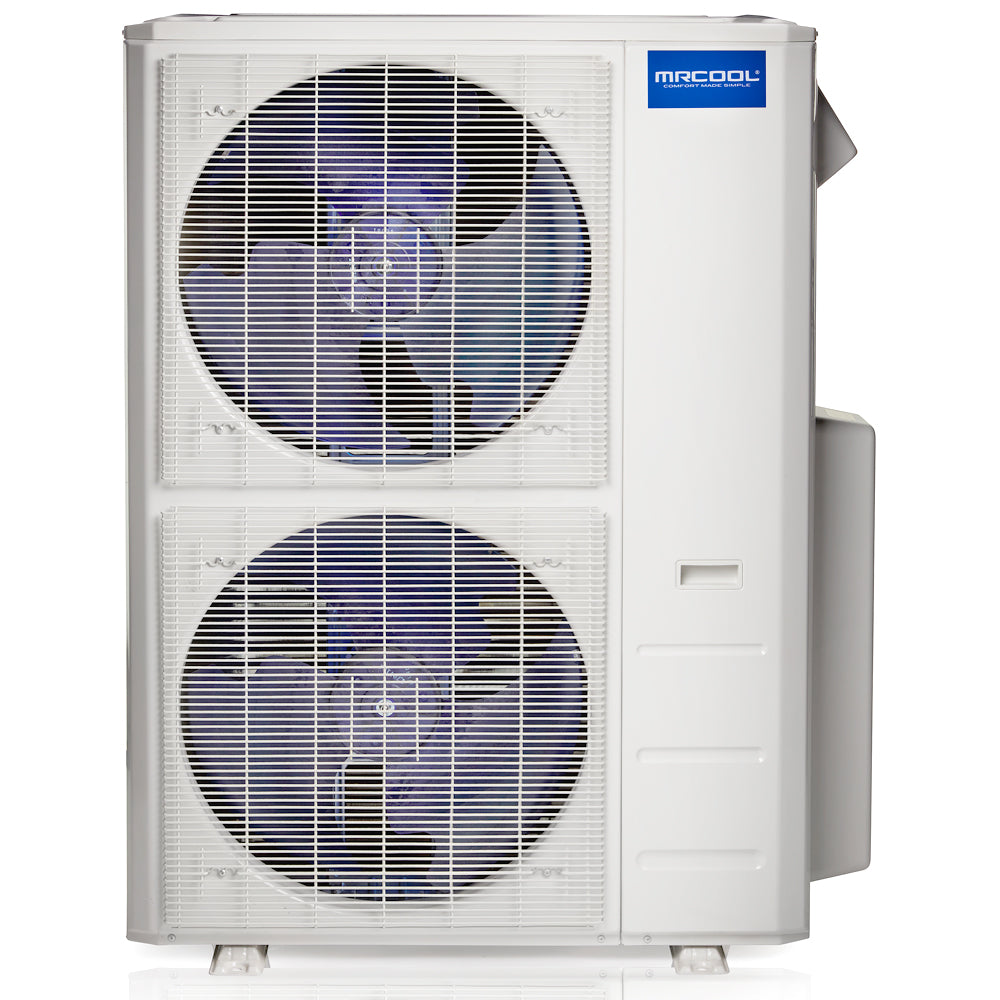

MRCOOL Olympus 48,000 BTU 4 Ton Mini Split Condenser 230V/60Hz, MULTI6-48HP230C-O (NON-DIY)
MRCOOL Olympus 48,000 BTU 4 Ton Mini Split Condenser 230V/60Hz, MULTI6-48HP230C-O (NON-DIY)
Available in stock (294)
DESCRIPTION
The MRCOOL® Olympus MULTI6-48HP230C-O is a high-performance 48,000 BTU multi-zone heat pump condenser built to power up to six indoor units simultaneously. Ideal for homeowners seeking efficient temperature management across multiple rooms, this ductless system provides individualized climate control for each zone. Its advanced inverter technology delivers excellent energy efficiency and dependable operation even in outdoor temperatures as low as 5°F. Compatible with various MRCOOL indoor unit types—including wall-mounted, ceiling cassette, and concealed duct options—this system offers flexibility, reliability, and comfort for year-round performance.
- Multi-Zone Capability: Supports up to six indoor units for customized temperature control in different rooms.
- High Efficiency: Advanced inverter technology provides SEER2 ratings up to 24 and HSPF2-4 up to 10.3 for superior energy savings.
- All-Weather Operation: Performs efficiently in outdoor temperatures as low as 5°F, ensuring reliable comfort year-round.
- Flexible Compatibility: Works with a wide range of MRCOOL indoor units, including wall-mounted, ceiling cassette, and ducted models.
- Smart Control Options: Manage your comfort via the MRCOOL SmartHVAC app, remote control, or voice commands through Amazon Alexa and Google Assistant.
- Enhanced Safety Features: Includes sleep mode, auto restart, and refrigerant leak detection for added convenience and peace of mind.
- Warranty Protection: Covered by a 7-year compressor warranty and 5-year parts warranty with professional installation.
Compatible Indoor Units
- Olympus Wall-Mounted Air Handlers (9K – 24K)
- Olympus Ceiling Cassette Air Handlers (9K – 24K)
- Olympus Ducted Air Handlers (9K – 36K)
Total connected BTUs must not exceed 48,000 when combining up to six zones.
Professional Installation Required
The Olympus 48K multi-zone condenser requires licensed HVAC installation. Proper nitrogen leak-testing, vacuuming, and charge balancing guarantee full efficiency and warranty protection. Only certified technicians should connect indoor units and commission the system.
Coverage depends on insulation, layout, and local climate conditions
SPECIFICATIONS & DIMENSIONS
| DIMENSIONS | |
|---|---|
| Dimensions | 37.48" W x 16.34" D x 52.48" H |
| Weight | 222 lbs |
| CAPACITY & PEFORMANCE | |
|---|---|
| Maximum Zones | 6 |
| Cooling Capacity | 47,000 BTU |
| SEER2 | 24 |
| EER2 | 12.5 |
| Heating Capacity | 48,000 BTU |
| HSPF2-4 | 10.3 |
| HSPF2-5 | 8 |
| Coverage Area | up to 2,000 sq. ft. |
| Outdoor Noise Level | 63 dB(A) |
| Outdoor Operating Temperature |
Cooling: -13°F to 12 |
| FEATURES | |
|---|---|
| Inverter | DC |
| Compressor Type | Rotary |
| CERTIFICATIONS & WARRANTY | |
| Certifications | Energy Star Certified, UL Listed, ETL Listed, AHRI Certified |
| Warranty | 7 Years Compressor 5 Years Parts |
| REFRIGERANT & PIPING | |
|---|---|
| Refrigerant Type | R-454B |
| Refrigerant Volume | 148.15 oz |
| Liquid Line Size | 6 x 1/4" |
| Suction Line Size | 4 x 3/8" + 2 x 1/2" |
| Max Line Set Length | 262.4 |
| ELECTRICAL REQUIREMENTS | |
|---|---|
| Voltage | 208-230V |
| Phase | 1 |
| Cycle |
60 Hz |
| Max Fuse Breaker | 40A |
| Min Circuit Ampacity | 34A |
