MRCOOL® VersaPro® 1.5 Ton Central Ducted DC Inverter Heat Pump Condenser — 18.8 SEER2, R-454B (MVP-18-HP-C-230A00-O)

Product Description

The MRCOOL® VersaPro® MVP-18-HP-C-230A00-O Central Ducted Heat Pump Condenser is a high-efficiency, variable-speed outdoor unit engineered to deliver quiet, reliable, and energy-saving comfort year-round. Designed specifically for ducted applications, this 1.5-ton condenser pairs seamlessly with the MRCOOL® VersaPro® Central Ducted Air Handler to create a complete, high-performance HVAC system ideal for residential installations.



Powered by advanced DC inverter technology, this condenser continuously modulates output instead of cycling on and off like traditional single-stage units. The result is more consistent indoor temperatures, lower energy consumption, reduced system wear, and whisper-quiet operation. With an impressive 18.8 SEER2 efficiency rating and HSPF-4 of 9.1, this system is designed to significantly reduce long-term operating costs while maintaining strong heating and cooling performance.



The side-discharge, compact cabinet design allows for flexible installation in tight outdoor spaces where standard top-discharge units may not fit. Built with painted galvanized steel, the cabinet resists corrosion and weather damage, ensuring long-term durability in a wide range of climates. Inside, integrated self-diagnostics simplify service and troubleshooting, helping technicians quickly identify issues and keep the system running efficiently.



This condenser utilizes R-454B refrigerant, a next-generation, environmentally responsible option with a lower global warming potential than older refrigerants. For modern comfort and convenience, the system includes Wi-Fi and app compatibility, allowing homeowners to control temperatures remotely using the included MRCOOL® Smart Thermostat.



Backed by a 10-year compressor warranty and 10-year parts warranty, the MRCOOL® VersaPro® 1.5 Ton Central Ducted Condenser is a smart, future-ready upgrade for homeowners looking to replace aging systems with a quieter, more efficient solution.



KEY FEATURES & BENEFITS

• DC Inverter Technology – Variable-speed operation for maximum efficiency and comfort
• 18.8 SEER2 / 9.1 HSPF-4 – High-efficiency heating and cooling performance
• Central Ducted Design – Ideal for whole-home HVAC systems

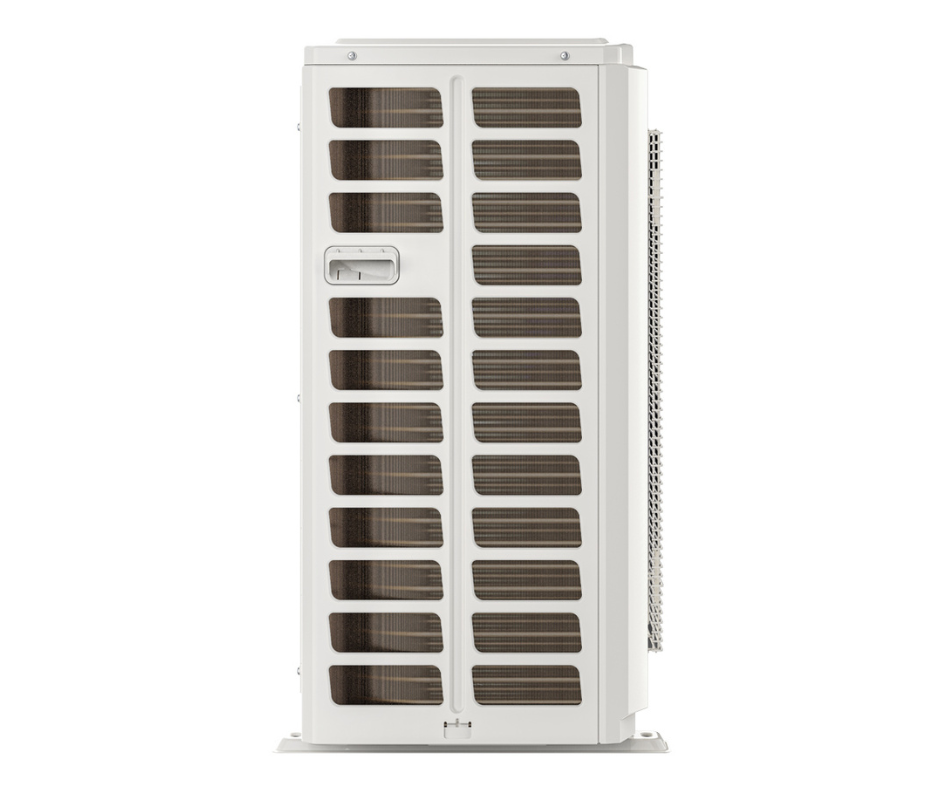

• Side-Discharge Cabinet – Compact footprint for tight installation spaces
• R-454B Refrigerant – Lower environmental impact, future-ready compliance
• Ultra-Quiet Operation – Only 55 dBA
• MRCOOL® Smart Thermostat Included – Wi-Fi & app-based temperature control
• Self-Diagnostics Built-In – Faster service and easier maintenance
• Durable Galvanized Steel Construction – Built to last



SYSTEM PERFORMANCE & ELECTRICAL

• Cooling Capacity: 18,000 BTU
• Heating Capacity: 18,000 BTU
• Tonnage: 1.5 Ton
• SEER2: 18.8
• EER2: 11
• HSPF-4: 9.1
• HSPF-5: 7
• Airflow: 1450.9 CFM
• Voltage: 208–230V
• Phase: Single
• Frequency: 60 Hz
• Max Breaker: 20A
• Min Circuit Ampacity: 16A



TECHNICAL SPECIFICATIONS

• Model: MVP-18-HP-C-230A00-O
• Series: MRCOOL® VersaPro® Central Ducted
• Unit Type: Split System Heat Pump
• Equipment Type: Condenser
• Refrigerant Type: R-454B
• Refrigerant Charge: 51.15 oz
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Sound Rating: 55 dBA
• Color: Gray
• Wi-Fi Compatible: Yes
• App Compatible: Yes
• AHRI Certified: Yes
• ETL Certified: Yes
• ENERGY STAR®: No



DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 31.69 in
• Height: 21.81 in
• Depth: 12.99 in
• Net Weight: 77 lbs

Shipping Dimensions

• Width: 36.02 in
• Height: 24.21 in
• Depth: 14.57 in
• Shipping Weight: 84 lbs

WARRANTY INFORMATION

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years



FREQUENTLY ASKED QUESTIONS

Q: What air handler does this condenser work with?

A: It is designed to pair with the MRCOOL® VersaPro® Central Ducted Air Handler.



Q: Is this a variable-speed condenser?

A: Yes. It uses DC inverter technology for variable-speed performance.



Q: Is this system quiet?

A: Extremely. It operates at only 55 dBA, making it ideal for residential use.
