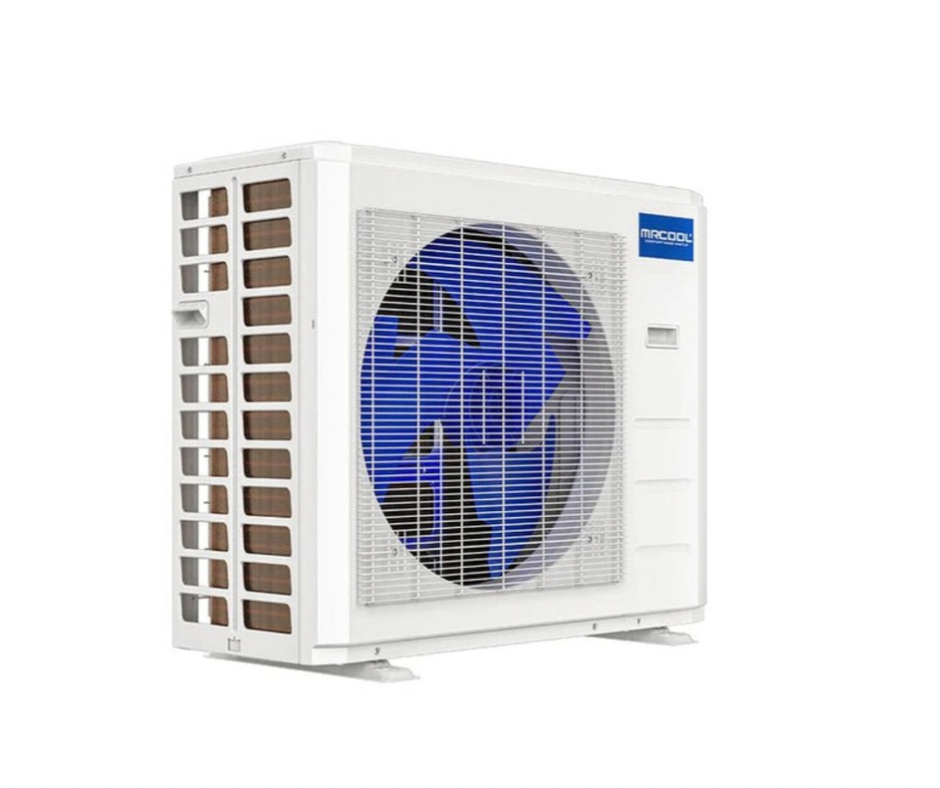

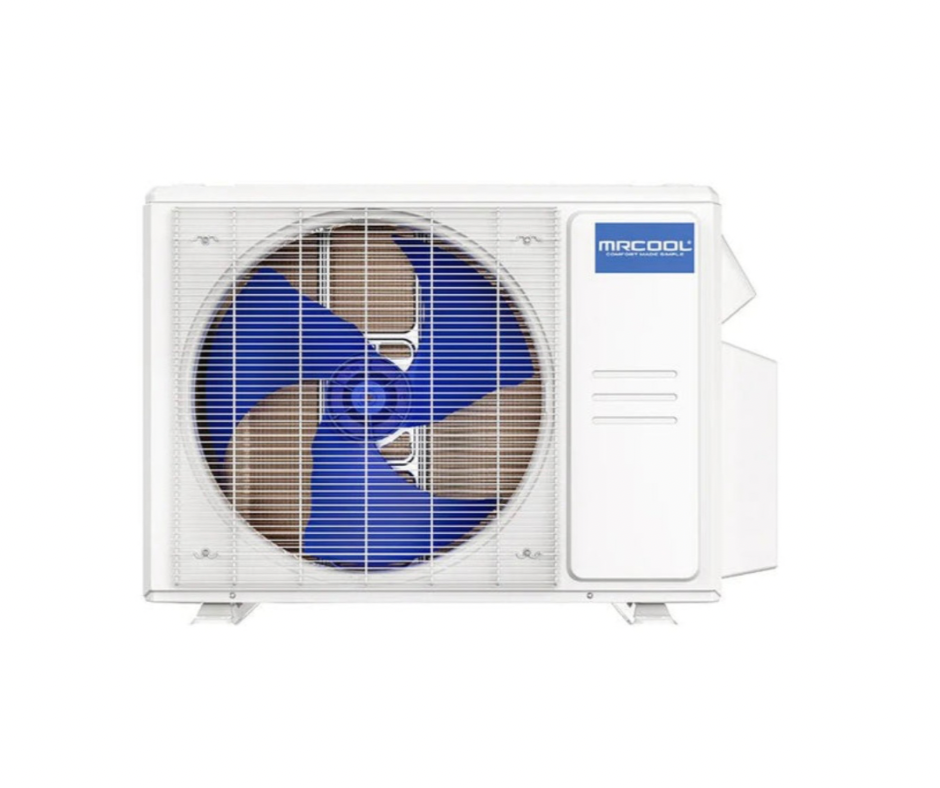

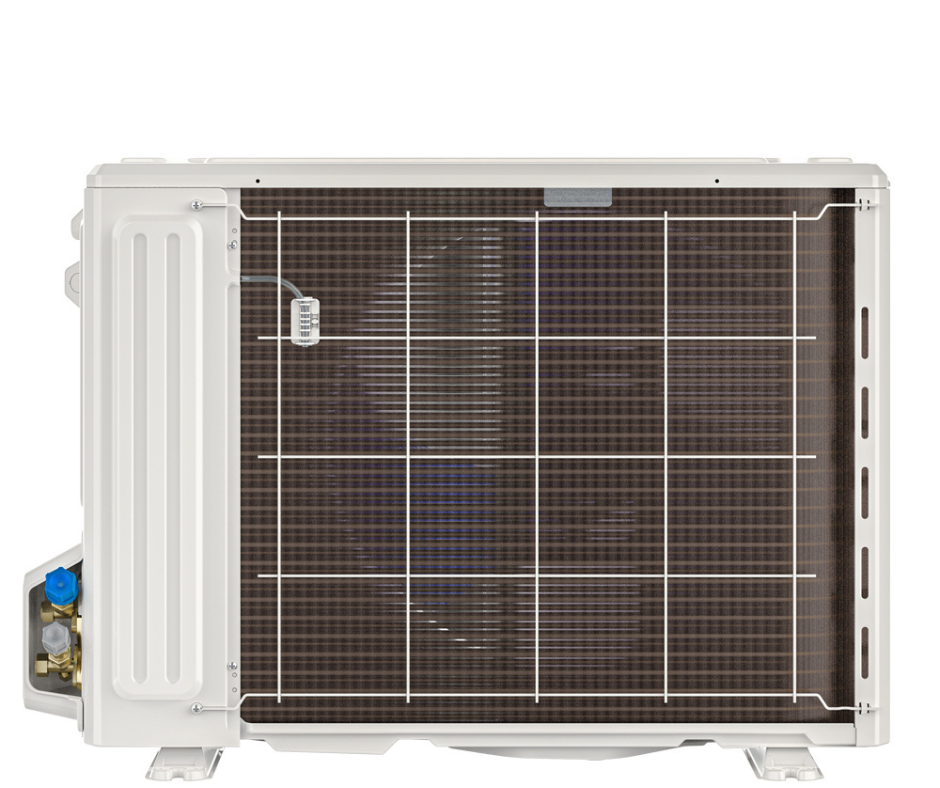

MRCOOL® VersaPro® 2 Ton Central Ducted DC Inverter Heat Pump Condenser — 18.1 SEER2, R-454B (MVP-24-HP-C-230A00-O)

Product Description



The MRCOOL® VersaPro® MVP-24-HP-C-230A00-O Central Ducted Heat Pump Condenser is a high-efficiency, variable-speed outdoor unit engineered to deliver quiet, reliable, and energy-saving comfort for whole-home ducted HVAC systems. Designed for seamless pairing with the MRCOOL® VersaPro® Central Ducted Air Handler, this 2-ton condenser provides dependable heating and cooling performance while reducing long-term operating costs.



At the heart of this system is advanced DC inverter technology, which continuously adjusts compressor speed to match real-time indoor demand. Unlike traditional single-stage condensers that cycle on and off, the VersaPro® maintains consistent indoor temperatures, improved humidity control, lower energy usage, and reduced system wear. With an 18.1 SEER2 efficiency rating and a strong 9.7 HSPF-4, this condenser is built to perform efficiently in both cooling and heating modes.

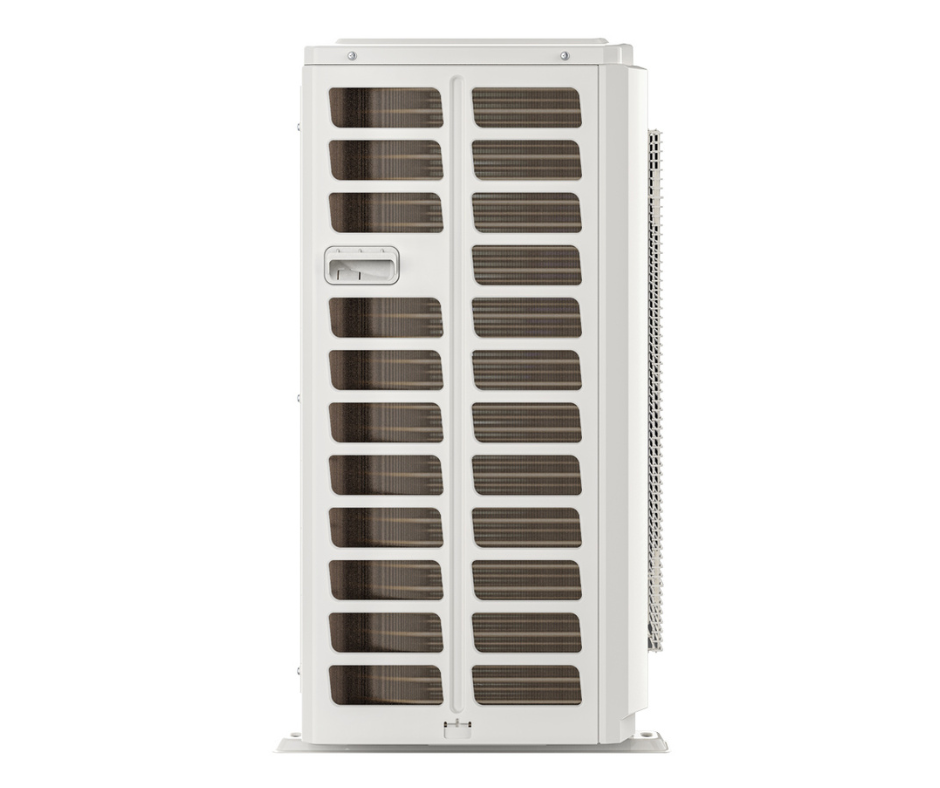

The compact side-discharge cabinet design allows installation in tighter outdoor spaces where traditional top-discharge units may not fit, making it ideal for residential homes with limited clearance. The painted galvanized steel cabinet protects against corrosion, harsh weather, and long-term wear, while built-in self-diagnostic capabilities simplify servicing and troubleshooting.



This system uses R-454B refrigerant, a next-generation, low-GWP refrigerant designed to meet modern environmental standards without sacrificing performance. For enhanced comfort and convenience, the condenser is Wi-Fi and app compatibility along with a MRCOOL® Smart Thermostat, (sold separately) giving homeowners full control from anywhere.



Backed by a 10-year compressor warranty and 10-year parts warranty, the MRCOOL® VersaPro® 2 Ton Central Ducted Condenser is a future-ready upgrade for homeowners looking to replace aging equipment with a quieter, more efficient HVAC solution.



KEY FEATURES & BENEFITS

• DC Inverter Technology – Variable-speed efficiency and smoother temperature control
• 18.1 SEER2 / 9.7 HSPF-4 – High-efficiency heating and cooling
• Central Ducted Design – Ideal for whole-home HVAC systems
• Side-Discharge Cabinet – Compact footprint for tight installation areas
• R-454B Refrigerant – Environmentally responsible, next-generation refrigerant
• Quiet Operation – Only 60 dBA
• Smart Thermostat – Wi-Fi & app-based control (sold separately)
• Self-Diagnostics – Faster service and easier maintenance
• Durable Galvanized Steel Cabinet – Built for long-term reliability



PERFORMANCE & ELECTRICAL DATA

• Cooling Capacity: 24,000 BTU
• Heating Capacity: 26,000 BTU
• Tonnage: 2 Ton
• SEER2: 18.1
• EER2: 11
• HSPF-4: 9.7
• HSPF-5: 7.7
• Airflow: 1765.7 CFM
• Voltage: 208–230V
• Phase: Single
• Frequency: 60 Hz
• Max Breaker: 20A
• Minimum Circuit Ampacity: 19A



TECHNICAL SPECIFICATIONS

• Model: MVP-24-HP-C-230A00-O
• Series: MRCOOL® VersaPro® Central Ducted
• Unit Type: Split System Heat Pump
• Equipment Type: Condenser
• Refrigerant Type: R-454B
• Refrigerant Charge: 74.08 oz
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Sound Rating: 60 dBA
• Color: Gray
• Wi-Fi Compatible: Yes
• App Compatible: Yes
• ETL Certified: Yes
• ENERGY STAR® Certified: Yes
• AHRI Certified: Yes



DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 35.04 in
• Height: 26.5 in
• Depth: 13.46 in
• Net Weight: 102 lbs

Shipping Dimensions

• Width: 39.17 in
• Height: 29.13 in
• Depth: 15.67 in
• Shipping Weight: 109 lbs



WARRANTY INFORMATION

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years



FREQUENTLY ASKED QUESTIONS

Q: What air handler pairs with this condenser?

A: It is designed to work with the MRCOOL® VersaPro® Central Ducted Air Handler.



Q: Is this a variable-speed condenser?

A: Yes. It uses DC inverter technology for precise, energy-efficient operation.



Q: Is it Energy Star certified?

A: Yes. This model is ENERGY STAR® certified.
