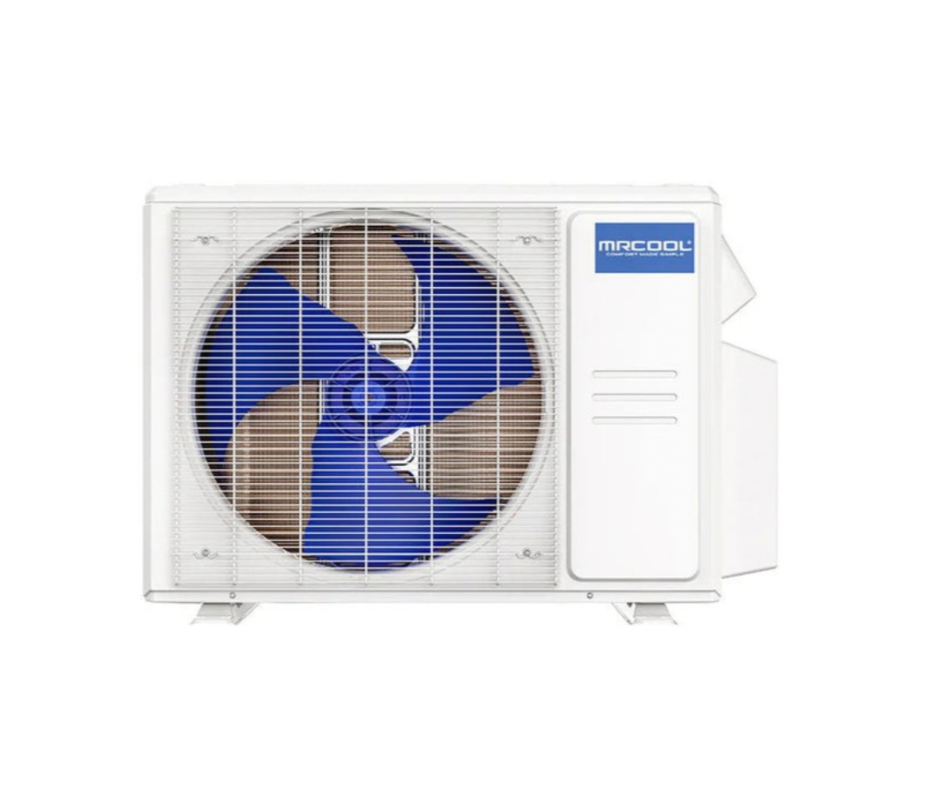

MRCOOL® VersaPro® 2.5 Ton Central Ducted DC Inverter Heat Pump Condenser — 17 SEER2, R-454B (MVP-30-HP-C-230A00-O)

Product Description

The MRCOOL® VersaPro® MVP-30-HP-C-230A00-O Central Ducted Heat Pump Condenser is a 2.5-ton variable-speed outdoor unit engineered to deliver dependable, energy-efficient heating and cooling for whole-home ducted HVAC systems. Designed to pair seamlessly with the MRCOOL® VersaPro® Central Ducted Air Handler, this condenser offers consistent comfort, reduced operating costs, and quiet performance—making it an excellent upgrade for homeowners replacing older, inefficient equipment.



Powered by advanced DC inverter technology, the VersaPro® continuously adjusts compressor output based on real-time indoor demand. This eliminates the constant on/off cycling found in traditional condensers, resulting in smoother temperature control, improved humidity management, quieter operation, and longer system life. With a 17 SEER2 efficiency rating and 8.5 HSPF-4, this system delivers reliable performance in both cooling and heating seasons.

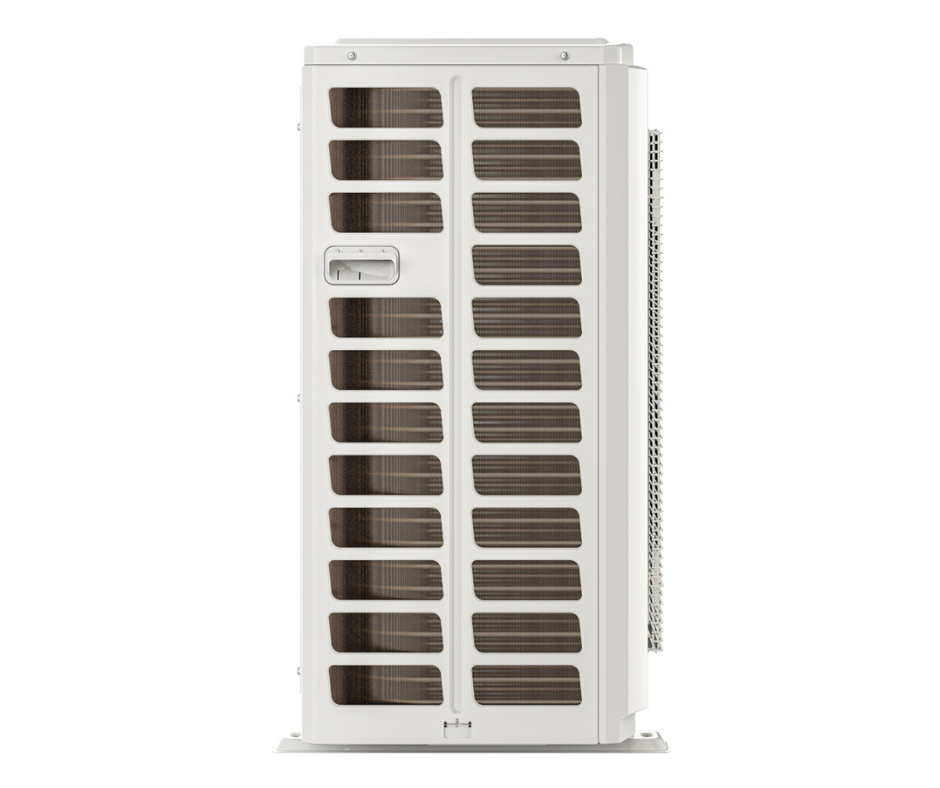

The compact side-discharge cabinet allows installation in tighter outdoor spaces where top-discharge units may not fit, making it ideal for residential applications with limited clearance. Built from painted galvanized steel, the cabinet resists corrosion and weather exposure, ensuring long-term durability. Integrated self-diagnostic capabilities simplify troubleshooting and service, helping reduce maintenance time and costs.



This condenser uses R-454B refrigerant, a next-generation, low-GWP refrigerant that meets modern environmental standards while maintaining excellent efficiency. For modern comfort and control, the system Wi-Fi and app compatibility along with a MRCOOL® Smart Thermostat (sold separately) giving homeowners full control from anywhere.



Backed by a 10-year compressor warranty and 10-year parts warranty, the MRCOOL® VersaPro® 2.5 Ton Central Ducted Condenser delivers peace of mind, long-term reliability, and high-value performance.



 KEY FEATURES & BENEFITS

• DC Inverter Technology – Variable-speed efficiency with smoother comfort
• 17 SEER2 / 8.5 HSPF-4 – Energy-efficient heating and cooling
• 2.5-Ton Central Ducted Design – Ideal for whole-home HVAC systems
• Side-Discharge Cabinet – Compact footprint for tight installations
• R-454B Refrigerant – Eco-friendly, future-ready refrigerant
• Quiet Operation – Only 60 dBA
• Smart Thermostat Included – Wi-Fi & app-based control
• Self-Diagnostics – Faster service and easier maintenance
• Durable Galvanized Steel Construction – Built for long-term use



PERFORMANCE & ELECTRICAL DATA

• Cooling Capacity: 30,000 BTU
• Heating Capacity: 31,000 BTU
• Tonnage: 2.5 Ton
• SEER2: 17
• EER2: 10.7
• HSPF-4: 8.5
• HSPF-5: 6.6
• Airflow: 3001.8 CFM
• Voltage: 208–230V
• Phase: Single
• Frequency: 60 Hz
• Max Breaker: 25A
• Minimum Circuit Ampacity: 22.5A



TECHNICAL SPECIFICATIONS

• Model: MVP-30-HP-C-230A00-O
• Series: MRCOOL® VersaPro® Central Ducted
• Unit Type: Split System Heat Pump
• Equipment Type: Condenser
• Refrigerant Type: R-454B
• Refrigerant Charge: 91.71 oz
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Sound Rating: 60 dBA
• Color: Gray
• Wi-Fi Compatible: Yes
• App Compatible: Yes
• ETL Certified: Yes
• ENERGY STAR® Certified: No
• AHRI Certified: Yes



DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 37.24 in
• Height: 31.89 in
• Depth: 16.14 in
• Net Weight: 141.76 lbs

Shipping Dimensions

• Width: 42.91 in
• Height: 34.84 in
• Depth: 19.68 in
• Shipping Weight: 152.34 lbs



WARRANTY INFORMATION

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years



FREQUENTLY ASKED QUESTIONS

Q: What air handler should be used with this condenser?

A: This condenser is designed to pair with the MRCOOL® VersaPro® Central Ducted Air Handler.



Q: Is this a variable-speed inverter condenser?

A: Yes. It uses DC inverter technology for higher efficiency and quieter operation.

Q: Is R-454B refrigerant future-compliant?

A: Yes. R-454B is a low-GWP refrigerant that meets current and future regulations.
