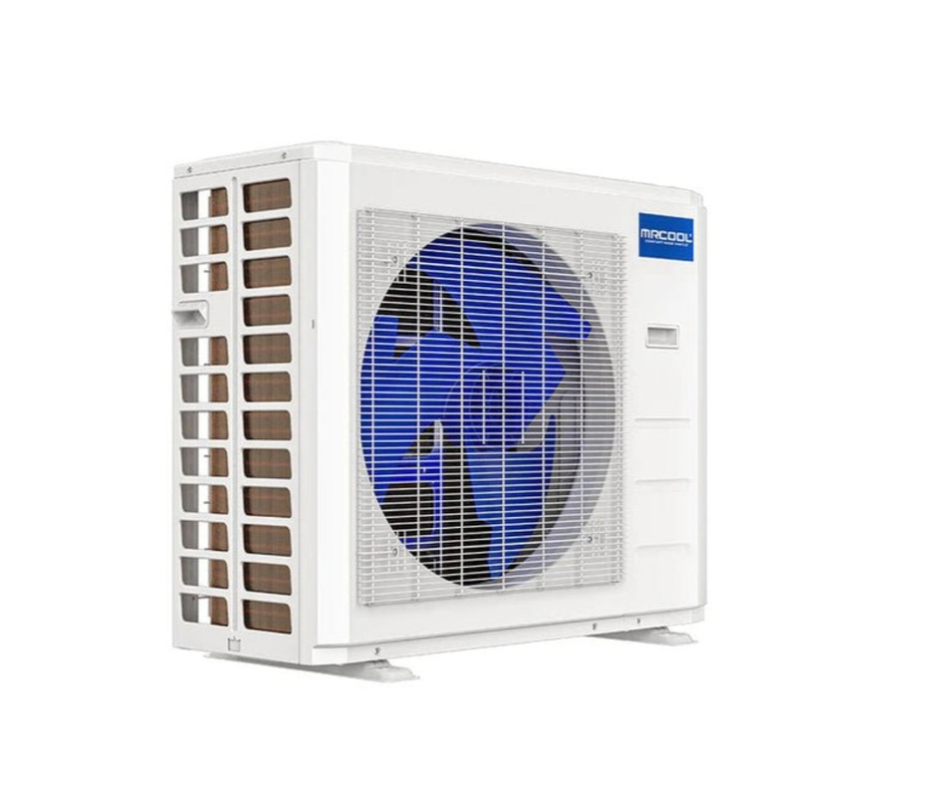

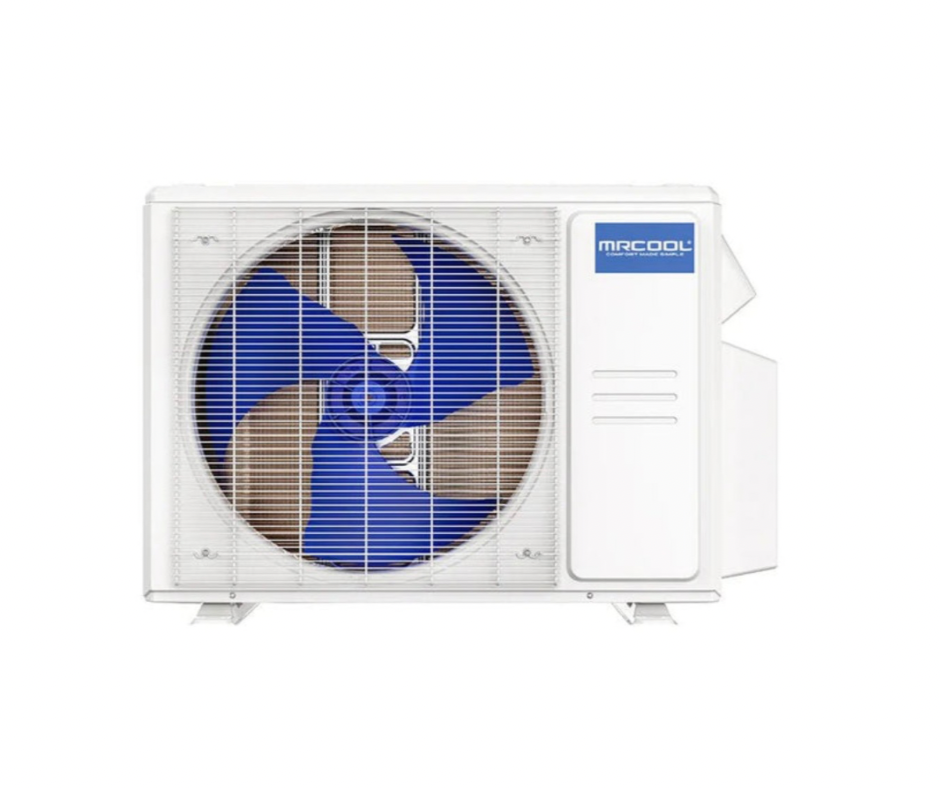

MRCOOL® VersaPro® 3 Ton Central Ducted DC Inverter Heat Pump Condenser — 16.1 SEER2, R-454B (MVP-36-HP-C-230A00-O)

Product Description

The MRCOOL® VersaPro® MVP-36-HP-C-230A00-O Central Ducted Heat Pump Condenser is a 3-ton variable-speed outdoor unit engineered to deliver dependable, energy-efficient heating and cooling for whole-home ducted HVAC systems. Designed to pair seamlessly with the MRCOOL® VersaPro® Central Ducted Air Handler, this condenser provides balanced comfort, quiet operation, and long-term efficiency—making it an ideal upgrade from older single-stage systems.



Built with advanced DC inverter technology, the VersaPro® continuously adjusts compressor output based on real-time indoor demand. This eliminates harsh on/off cycling, resulting in steadier temperatures, improved humidity control, reduced energy consumption, and quieter performance. With a 16.1 SEER2 rating and 8.7 HSPF-4, this unit delivers reliable performance in both cooling and heating seasons while keeping operating costs under control.

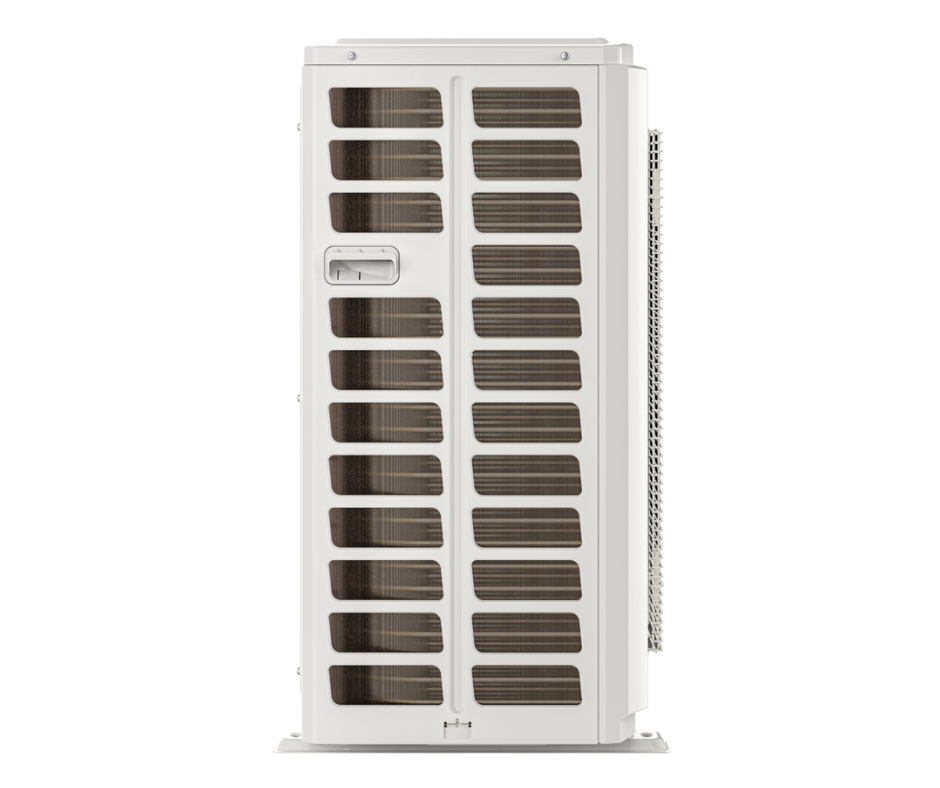

The compact side-discharge cabinet allows installation in tighter outdoor spaces where traditional top-discharge condensers may not fit. Its painted galvanized steel construction resists corrosion and harsh weather conditions, ensuring durability year after year. Integrated self-diagnostic technology simplifies troubleshooting and maintenance, helping reduce service time and costs.



This condenser operates on R-454B refrigerant, a next-generation, low-GWP refrigerant that meets modern environmental regulations while maintaining excellent efficiency. For modern comfort and control, the system  Wi-Fi and app compatibility along with a MRCOOL® Smart Thermostat (sold separately)allowing homeowners to manage temperatures from anywhere.



Backed by a 10-year compressor warranty and 10-year parts warranty, the MRCOOL® VersaPro® 3 Ton Central Ducted Condenser delivers peace of mind, long-term reliability, and strong value for homeowners looking to upgrade their HVAC system.



KEY FEATURES & BENEFITS

• DC Inverter Technology – Variable-speed efficiency with smoother comfort
• 16.1 SEER2 / 8.7 HSPF-4 – Energy-efficient heating and cooling
• 3-Ton Central Ducted Design – Ideal for whole-home HVAC systems
• Side-Discharge Cabinet – Compact footprint for tight installations
• R-454B Refrigerant – Eco-friendly, future-ready refrigerant
• Quiet Operation – Only 63 dBA
• Smart Thermostat Included – Wi-Fi & app-based control
• Self-Diagnostics – Faster service and easier maintenance
• Durable Galvanized Steel Cabinet – Built for long-term outdoor use



PERFORMANCE & ELECTRICAL

• Cooling Capacity: 36,000 BTU
• Heating Capacity: 36,000 BTU
• Tonnage: 3 Ton
• SEER2: 16.1
• EER2: 10
• HSPF-4: 8.7
• HSPF-5: 7
• Airflow: 2,413.2 CFM
• Voltage: 208–230V
• Phase: Single
• Frequency: 60 Hz
• Max Breaker: 30A
• Minimum Circuit Ampacity: 24A



TECHNICAL SPECIFICATIONS

• Model: MVP-36-HP-C-230A00-O
• Series: MRCOOL® VersaPro® Central Ducted
• Unit Type: Split System Heat Pump
• Equipment Type: Condenser
• Refrigerant Type: R-454B
• Refrigerant Charge: 116.4 oz
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Sound Rating: 63 dBA
• Color: Gray
• Wi-Fi Compatible: Yes
• App Compatible: Yes
• ETL Certified: Yes
• ENERGY STAR® Certified: Yes
• AHRI Certified: Yes



DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 37.24 in
• Height: 31.89 in
• Depth: 16.14 in
• Net Weight: 153.22 lbs

Shipping Dimensions

• Width: 42.91 in
• Height: 34.84 in
• Depth: 19.68 in
• Shipping Weight: 163.58 lbs



WARRANTY INFORMATION

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years



FREQUENTLY ASKED QUESTIONS

Q: What air handler is compatible with this condenser?

A: This condenser is designed to pair with the MRCOOL® VersaPro® Central Ducted Air Handler.



Q: Is this a variable-speed inverter condenser?

A: Yes. It uses DC inverter technology for higher efficiency and quieter operation.

Q: Is R-454B refrigerant future-compliant?

A: Yes. R-454B is a low-GWP refrigerant designed to meet current and future regulations.
