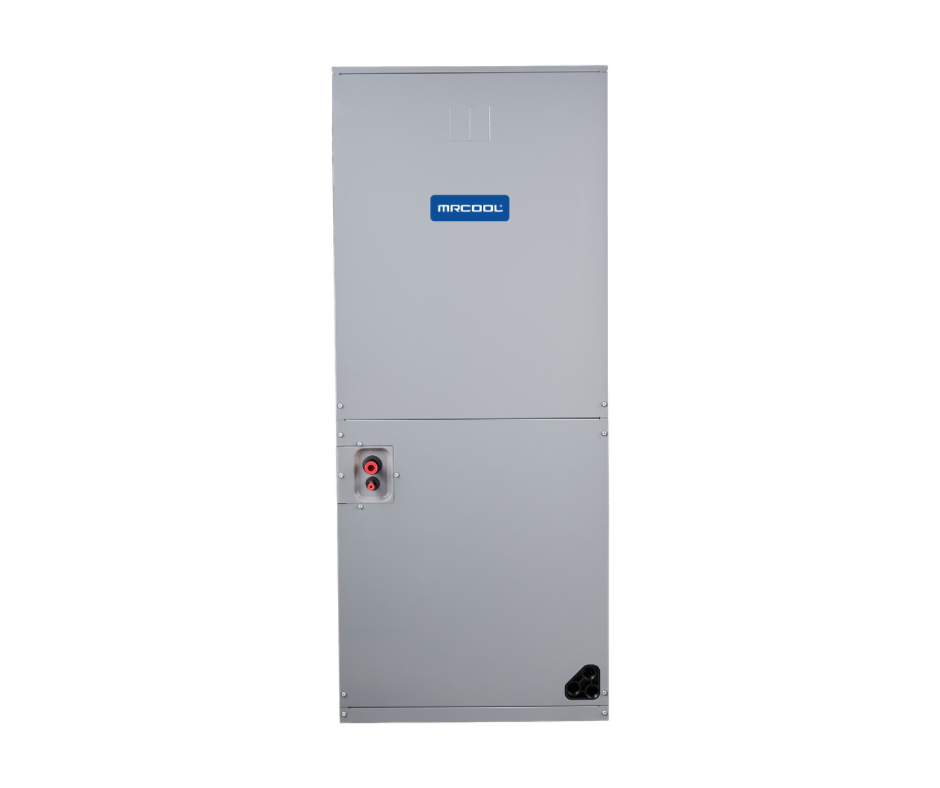

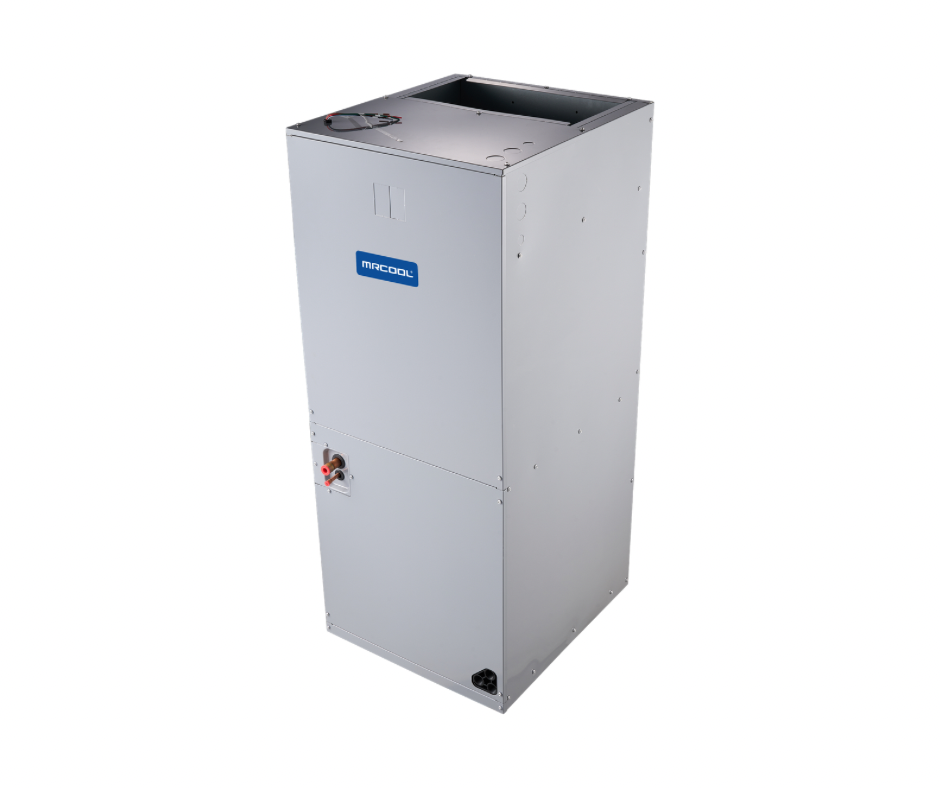

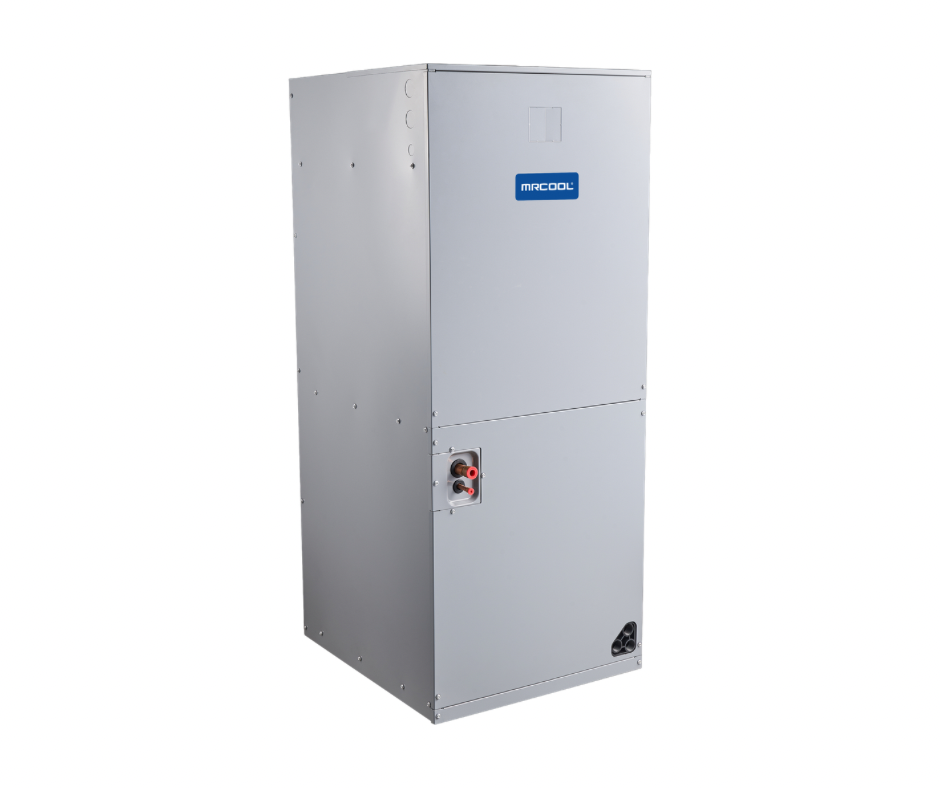

MRCOOL® Signature 2 Ton 24K BTU Split System Multi-Position Air Handler, MCAEAMPSF24C21AA

Product Description



MRCOOL® Signature Series 24,000 BTU Multi-Position Air Handler

The MRCOOL® Signature Series 24k Multi-Position Air Handler (MCAEAMPSF24C21AA) is designed to deliver dependable comfort, flexible installation, and long-term reliability for residential HVAC systems using modern R-454B refrigerant.

Built to support upflow, downflow, or horizontal installation, this air handler adapts easily to a wide range of home layouts, including closets, attics, and crawl spaces. Its compact footprint makes it an excellent option where space is limited, while still providing the airflow needed to properly support a 2-ton system when paired with a compatible MRCOOL® condenser or heat pump.

The durable galvanized steel cabinet protects internal components from corrosion and daily wear. Inside, copper “A” coils with enhanced aluminum fins promote efficient heat transfer and improved humidity control. Full internal insulation reduces condensation and energy loss, helping maintain consistent indoor comfort while keeping operating noise low.

This model uses a PSC blower motor, offering straightforward reliability and proven performance. A built-in filter rack allows for quick filter changes, and compatibility with optional electric heat kits (5kW, 7.5kW, or 10kW) makes it easy to add auxiliary heat for colder climates.

Smart-home ready and compatible with most third-party thermostats, the MRCOOL® Signature Series 24k Multi-Position Air Handler gives homeowners flexibility without being locked into proprietary controls. Backed by a 10-year limited parts warranty, it’s a practical, efficient solution for long-term home comfort.





COMPATIBILITY

✔ MRCOOL® Signature Series Top-Discharge Condensers

✔ Heat pumps and cooling-only condensers using R-454B

✔ Optional electric heat kits for auxiliary or emergency heat. Compatible heat kits listed below.
1. 5kw,     Model- MCAEHFD5X1AA

2. 7.5kw   Model- MCAEHFD7X1AA

3. 10kw    Model- MCAEHFD10X1AA



TECHNICAL SPECIFICATIONS

Brand: MRCOOL

Series: Signature Series

Model: MCAEAMPSF24C21AA

Unit Type: Air Handler



Capacity: 24,000 BTU

Tonnage: 2 Ton

CFM: 761



Installation Type: Multi-Position (Upflow / Downflow / Horizontal)

Voltage: 208/230V

Phase: 1

Frequency: 60 Hz



Blower Motor Type: PSC

Blower Motor HP: 1/3

Blower Speeds: 3



Refrigerant Type: R-454B

Metering Device: Orifice



Auxiliary Heat Compatible: Yes

Available Heat Kit Sizes: 5kW, 7.5kW, 10kW



Decibel Rating: 53 dBA

Color: Grey



DIMENSIONS & WEIGHT

Net Dimensions:

• Width: 19.625”

• Depth: 22”

• Height: 45.75”

• Weight: 128 lbs

Gross Dimensions:

• Width: 22.83”

• Depth: 25.6”

• Height: 47.625”

• Weight: 141 lbs



FREQUENTLY ASKED QUESTIONS

What makes this different from the ECM versions?

This model uses a PSC blower motor, offering proven reliability and simpler electrical requirements compared to ECM models.

Can this be installed horizontally?

Yes. It supports upflow, downflow, and horizontal installations.

Does it include a heat kit?

No. Heat kits are optional and sold separately.

Which condensers work with this air handler?

MRCOOL® Signature Series top-discharge condensers designed for R-454B systems.

Is professional installation required?

Yes. Installation should be performed by a licensed HVAC professional.
