MRCOOL® Signature 2.5 Ton up to 14.3 SEER2 30,000 BTU Split Air Conditioner, MCAESAS4T3021AA
MRCOOL® Signature 2.5 Ton up to 14.3 SEER2 30,000 BTU Split Air Conditioner, MCAESAS4T3021AA
Available in stock (11)
Product Description

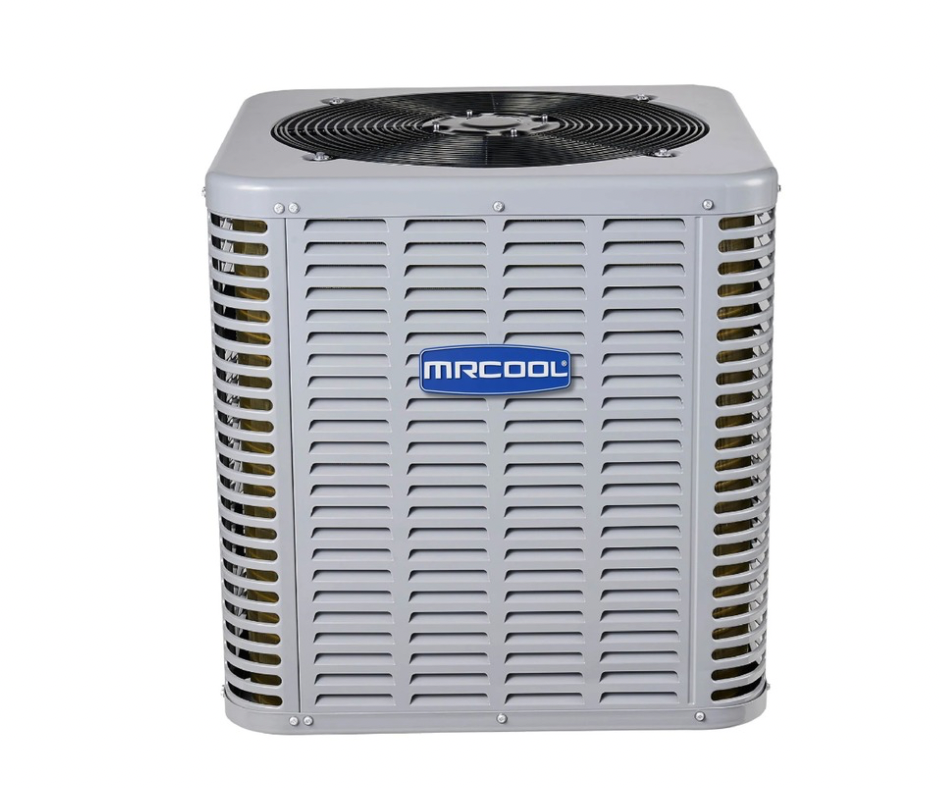

MRCOOL® Signature Series 30K 2.5-Ton Cooling-Only AC Condenser (230V)
The MRCOOL® Signature Series 30K (2.5-Ton) Air Conditioner Condenser is built for homeowners who need strong, reliable cooling during peak summer heat without unnecessary complexity or rising energy costs. It’s an excellent solution for replacing an older AC system or installing a new cooling-only setup in warm-weather climates.
With an efficiency rating of 14.3 SEER2 and 11.7 EER2, this condenser delivers consistent, cost-effective cooling while helping keep utility bills under control. The unit ships factory pre-charged with R-454B refrigerant, a next-generation, low-GWP refrigerant that meets modern environmental standards while maintaining dependable performance. The factory charge also helps reduce installation time and labor costs.
At the heart of the system is a durable single-speed scroll compressor, a proven design trusted for long service life, steady operation, and quiet performance. Inner-groove copper tubing improves heat transfer efficiency, allowing the system to cool more evenly and respond quickly to changing indoor temperatures.
Despite its higher capacity, the unit operates at just 63 dBA, making it well-suited for residential neighborhoods. A sound-dampening top, along with a steel louvered coil guard and wire fan discharge grille, helps protect internal components, reduce noise, and extend the life of the condenser.
Designed to pair with MRCOOL® Signature Series multi-position or stud-mount air handlers, this cooling-only condenser is backed by a 10-year limited parts warranty and a limited lifetime compressor warranty, giving homeowners long-term confidence in their investment.
If you’re looking for powerful cooling, quiet operation, and proven reliability, the MRCOOL Signature Series 30K AC condenser is a smart, dependable choice.
COMPATIBILITY & SYSTEM PAIRINGS
✔ MRCOOL® Signature Series Multi-Position Air Handler
✔ MRCOOL® Signature Series Stud-Mount Air Handler
✔ Cooling-only split-system applications
✔ Factory pre-charged R-454B refrigerant
✔ VersaPro Furnaces
TECHNICAL SPECIFICATIONS
Brand: MRCOOL
Series: Signature Series
Model: MCAESAS4T3021AA
Unit Type: Split System Air Conditioner Condenser
Cooling Capacity: 27,500 BTU
Tonnage: 2.5 Ton
SEER2: 14.3
EER2: 11.7
Voltage: 208/230V
Phase: 1
Frequency: 60 Hz
Max Breaker: 30A
Min Circuit Ampacity: 18A
Refrigerant Type: R-454B
Refrigerant Charge: 81.1 oz
Liquid Line: 3/8”
Suction Line: 3/4”
Max Lineset Length: 100 ft
Compressor Type: Single-Speed Scroll
Inverter Driven: No
Minimum Ambient Cooling: 59°F
Sound Rating: 63 dBA
Certifications: AHRI, UL, CSA, ETL
ENERGY STAR®: No
Warranty:
• 10-Year Parts Warranty
• Limited Lifetime Compressor Warranty
DIMENSIONS & WEIGHT
Net Dimensions:
• Width: 23.6”
• Depth: 23.6”
• Height: 25”
Net Weight: 134 lbs
Shipping Dimensions:
• Width: 24.8”
• Depth: 24.8”
• Height: 26.2”
Shipping Weight: 141 lbs
Frequently Asked Questions
Is this a heat pump or cooling-only unit?
This is a cooling-only air conditioner condenser. It does not provide heating.
What air handlers work with this condenser?
It pairs with MRCOOL Signature Series multi-position and stud-mount air handlers. Also VeraPro Furnace.
Is the refrigerant environmentally friendly?
Yes. The unit uses R-454B, a low-GWP refrigerant designed to reduce environmental impact.
How loud is this unit?
It operates at 63 dBA, quiet enough for most residential applications.
What warranty is included?
MRCOOL backs this condenser with a 10-year parts warranty and a limited lifetime compressor warranty.
