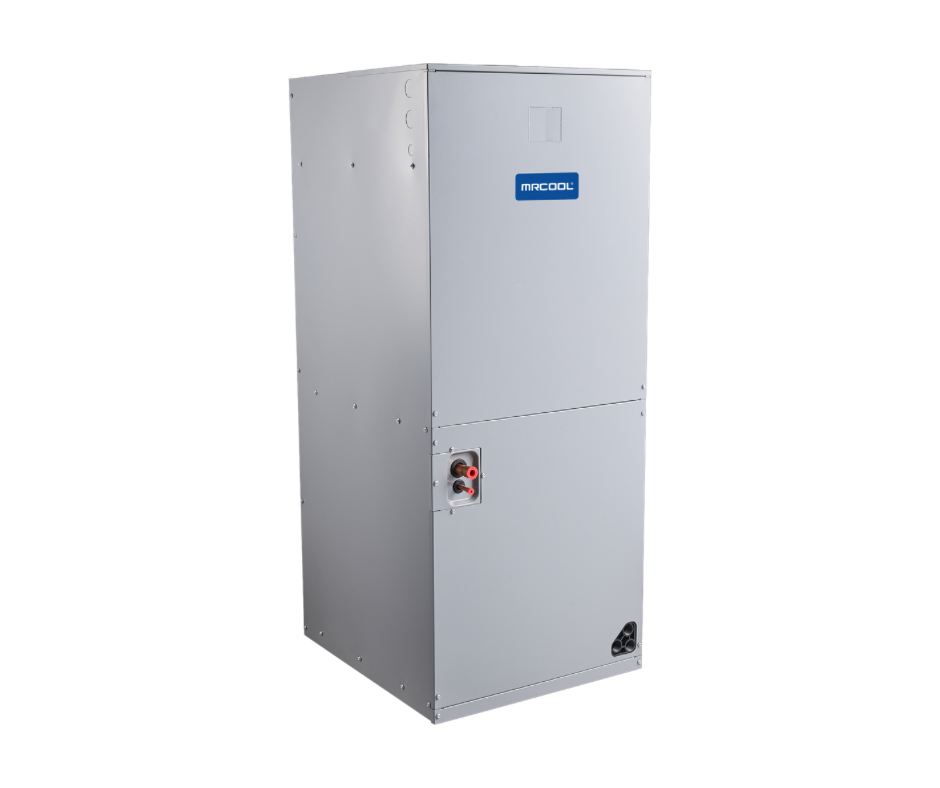

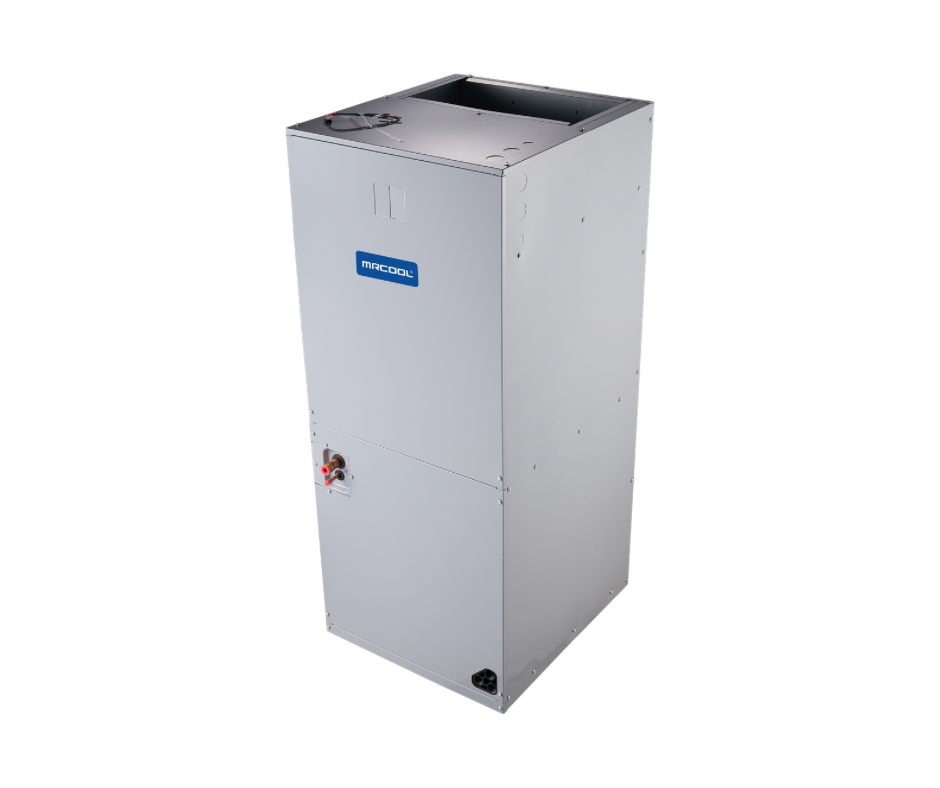

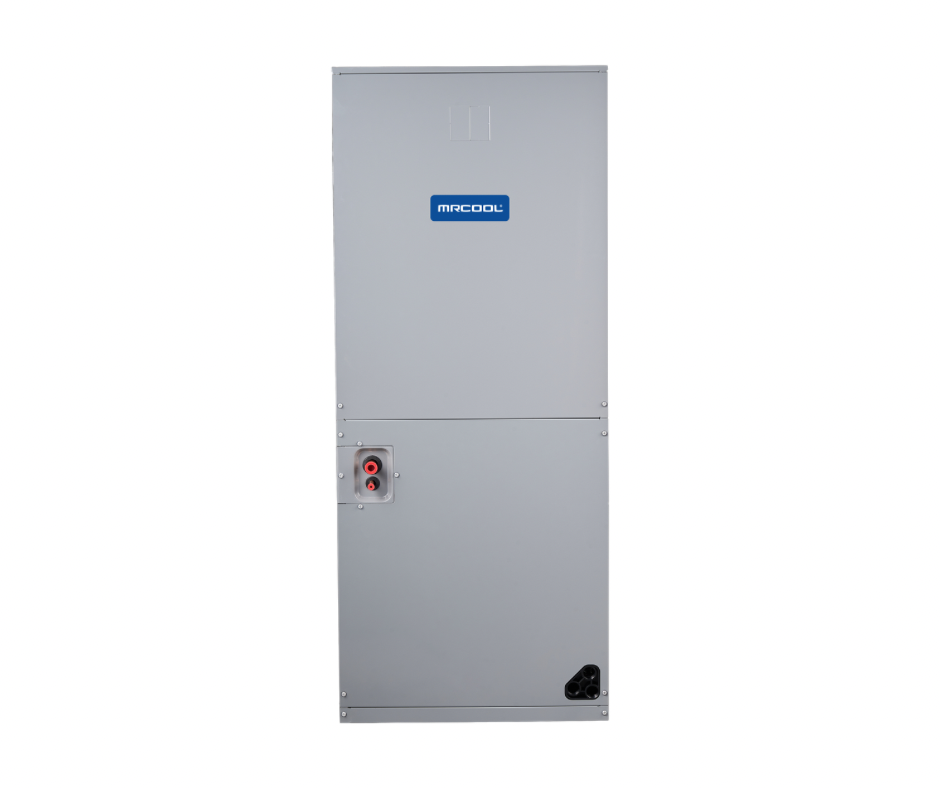

MRCOOL® Signature 3.5 Ton 42K BTU Split System Multi-Position Air Handler, MCAEAMPEF42C21AA

Product Description



MRCOOL® Signature Series 42K Multi-Position Air Handler (230V)

The MRCOOL® Signature Series 42K Multi-Position Air Handler is engineered for homeowners and installers who need strong airflow, quiet performance, and installation flexibility in a 3.5-ton split-system setup. Designed to pair perfectly with MRCOOL® Signature Series top-discharge condensers and heat pumps, this air handler supports upflow, downflow, and horizontal installations, making it a reliable choice for both new construction and retrofit projects.

At the heart of the system is a high-efficiency ECM blower motor, delivering smoother airflow, improved humidity control, and reduced electrical consumption compared to traditional blower designs. When paired with a compatible condenser or heat pump, the system provides consistent, year-round heating and cooling while helping homeowners keep long-term energy costs under control.

The cabinet is constructed from heavy-gauge galvanized steel to resist corrosion and wear over time. Inside, copper “A” coils with enhanced aluminum fins maximize heat transfer and moisture removal, improving system efficiency and indoor comfort. Internal thermal insulation minimizes condensation and reduces sound transmission, allowing the unit to operate quietly at just 54 dBA, ideal for residential environments where noise matters.

Installation is straightforward thanks to an installer-friendly design that reduces labor time and simplifies service access. A built-in filter rack allows for quick maintenance, while support for optional electric heat kits provides added heating capacity in colder climates. The system is also compatible with most third-party smart thermostats, giving homeowners flexibility without locking them into proprietary controls.

Backed by a 10-year limited parts warranty, the MRCOOL® Signature Series 42K Multi-Position Air Handler delivers dependable airflow, efficient performance, and flexible installation—making it an excellent indoor solution for 3.5-ton residential HVAC systems.



 SYSTEM COMPATIBILITY

✔ MRCOOL® Signature Series top-discharge AC condensers

✔ MRCOOL® Signature Series heat pump condensers

✔ Split-system HVAC applications

✔ Optional electric heat kits

1. 5kW,      Model- MCAEHFD5X1AA

2. 7.5kW,   Model- MCAEHFD7X1AA

3. 10kW,    Model- MCAEHFD10X1AA

✔ R-454B refrigerant systems



 TECHNICAL SPECIFICATIONS

Brand: MRCOOL

Series: Signature Series

Model: MCAEAMPEF42C21AA

Unit Type: Air Handler

Mount Type: Multi-Position



Capacity: 42,000 BTU

Tonnage: 3.5 Ton

Airflow: 1,254 CFM



Voltage: 208/230V

Phase: 1

Frequency: 60 Hz

Max Breaker: 10A

Min Circuit Ampacity: 7.2A



Refrigerant Type: R-454B

 Liquid Line: 3/8”

Suction Line: 3/4”

Drain Connection: 3/4”



Blower Motor Type: ECM

Blower Motor HP: 3/4 HP

Blower Speeds: 5

Blower RPM: 1,040

Sound Rating: 54 dBA



Filter Type: Replaceable

Filter Size: 18 × 21 × 1



Metering Device: Orifice

 Auxiliary Heat Included: No

Auxiliary Heat Available: Yes

Aux Heat Sizes: 5kW, 7.5kW, 10kW



Certifications: AHRI, UL, CSA, ETL

ENERGY STAR®: No

Warranty:

• 10-Year Limited Parts Warranty



 DIMENSIONS & WEIGHT

Net Dimensions:

• Width: 19.625”

• Depth: 22”

• Height: 45.75”

Net Weight: 131 lbs

Shipping Dimensions:

• Width: 22.83”

• Depth: 25.6”

• Height: 47.875”

Shipping Weight: 144 lbs



frequently Asked Questions

What systems work with this air handler?

This unit pairs with MRCOOL Signature Series top-discharge AC and heat pump condensers.



Does this air handler use a variable-speed blower?

Yes. It features a high-efficiency ECM blower motor with 5 speed settings.



Can this unit be installed horizontally?

Yes. It supports upflow, downflow, and horizontal installations.



Is it compatible with R-454B refrigerant?

Yes. The unit is fully designed for R-454B systems.



Can auxiliary heat be added?

Yes. Optional 5kW, 7.5kW, and 10kW electric heat kits are supported.
