MRCOOL® Signature 5 Ton 60K BTU Split System Multi-Position Air Handler, MCAEAMPEF60E21AA
MRCOOL® Signature 5 Ton 60K BTU Split System Multi-Position Air Handler, MCAEAMPEF60E21AA
Hurry up, only 10 items left in stock.
Product Description

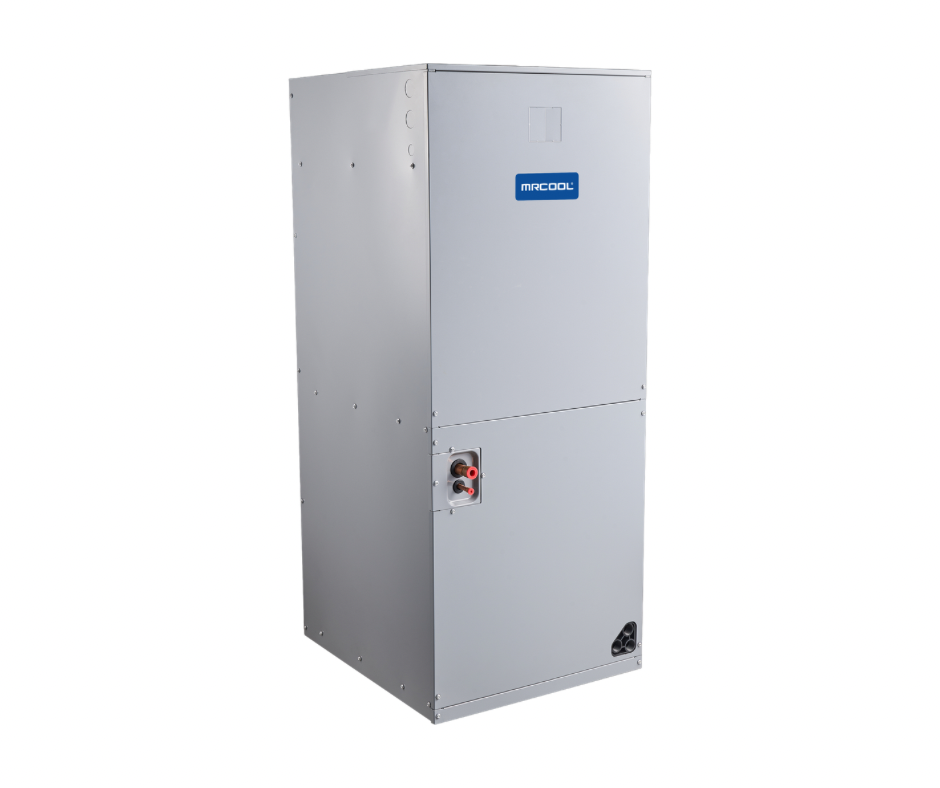

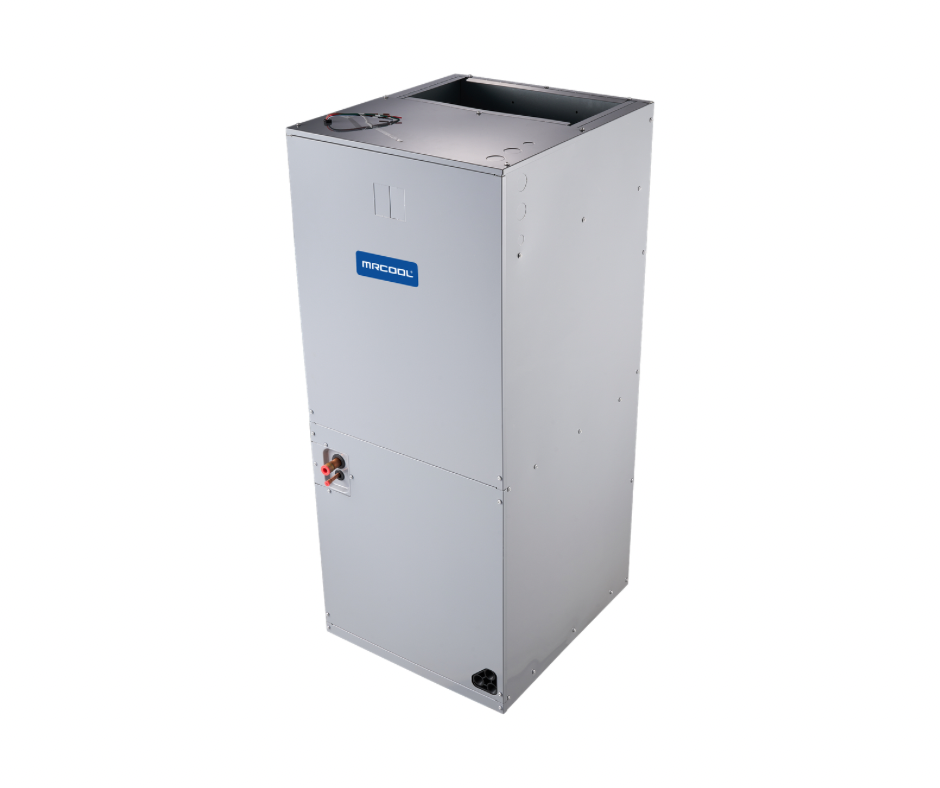

MRCOOL® Signature Series 60K Multi-Position Air Handler (230V)
The MRCOOL® Signature Series 60K Multi-Position Air Handler is built for homeowners and installers who need maximum airflow, quiet operation, and installation flexibility in a full 5-ton residential HVAC system. Designed to pair seamlessly with MRCOOL® Signature Series top-discharge air conditioners and heat pump condensers, this unit supports upflow, downflow, and horizontal installations, making it an excellent fit for new construction, system replacements, and space-restricted retrofits.
At the core of the system is a high-efficiency ECM blower motor, delivering steady airflow while reducing electrical consumption compared to traditional PSC motors. When matched with a compatible condenser or heat pump, the system provides consistent heating and cooling, improved humidity control, and quieter performance across the home.
The cabinet is constructed from heavy-gauge galvanized steel to resist corrosion, dents, and long-term wear. Inside, copper “A” coils with aluminum fins maximize heat transfer and moisture removal, helping maintain even temperatures and indoor comfort. Internal thermal insulation reduces condensation and dampens sound, keeping operation quiet at just 57 dBA, even under higher load conditions.
Installation is straightforward thanks to an installer-friendly layout that reduces labor time and simplifies service access. A built-in filter rack allows for quick maintenance, while support for optional electric heat kits adds supplemental heating capability in colder climates. The system is also compatible with most third-party smart thermostats, giving homeowners full control without proprietary restrictions.
Backed by a 10-year limited parts warranty, the MRCOOL® Signature Series 60K Multi-Position Air Handler delivers powerful performance, energy efficiency, and long-term reliability for large residential HVAC systems.
SYSTEM COMPATIBILITY
✔ MRCOOL® Signature Series top-discharge AC condensers
✔ MRCOOL® Signature Series heat pump condensers
✔ Split-system HVAC applications
✔ Optional electric heat kits. Compatible heat kits listed below.
1. 5kW Model- MCAEHFD5X1AA
2. 7.5kW Model- MCAEHFD7X1AA
3. 10kW Model- MCAEHFD10X1AA
✔ R-454B refrigerant systems
TECHNICAL SPECIFICATIONS
Brand: MRCOOL
Series: Signature Series
Model: MCAEAMPEF60E21AA
Unit Type: Air Handler
Mount Type: Multi-Position
Capacity: 60,000 BTU
Tonnage: 5 Ton
Airflow: 1,549 CFM
Voltage: 208/230V
Phase: 1
Frequency: 60 Hz
Max Breaker: 10A
Min Circuit Ampacity: 7.2A
Refrigerant Type: R-454B
Liquid Line: 3/8”
Suction Line: 7/8”
Drain Connection: 3/4”
Blower Motor Type: ECM
Blower Motor HP: 3/4 HP
Blower Speeds: 5
Blower RPM: 1,010
Sound Rating: 57 dBA
Filter Type: Replaceable
Filter Size: 20 × 24 × 1
Metering Device: Orifice
Auxiliary Heat Included: No
Auxiliary Heat Available: Yes
Aux Heat Sizes: 5kW, 7.5kW, 10kW
Certifications: AHRI, UL, CSA, ETL
ENERGY STAR®: No
Warranty:
• 10-Year Limited Parts Warranty
DIMENSIONS & WEIGHT
Net Dimensions:
• Width: 22”
• Depth: 24.5”
• Height: 53.125”
Net Weight: 170 lbs
Shipping Dimensions:
• Width: 27.75”
• Depth: 25.2”
• Height: 54.89”
Shipping Weight: 190 lbs
Frequently Asked Questions
What condensers pair with this air handler?
It pairs with MRCOOL Signature Series top-discharge AC and heat pump condensers.
Is this a variable-speed air handler?
Yes. It features a high-efficiency ECM blower motor with 5 speeds.
Can it be installed horizontally?
Yes. It supports upflow, downflow, and horizontal installations.
Is it compatible with R-454B refrigerant systems?
Yes. It is fully designed for R-454B systems.
Can auxiliary heat be added?
Yes. Optional 5kW, 7.5kW, and 10kW electric heat kits are supported.
