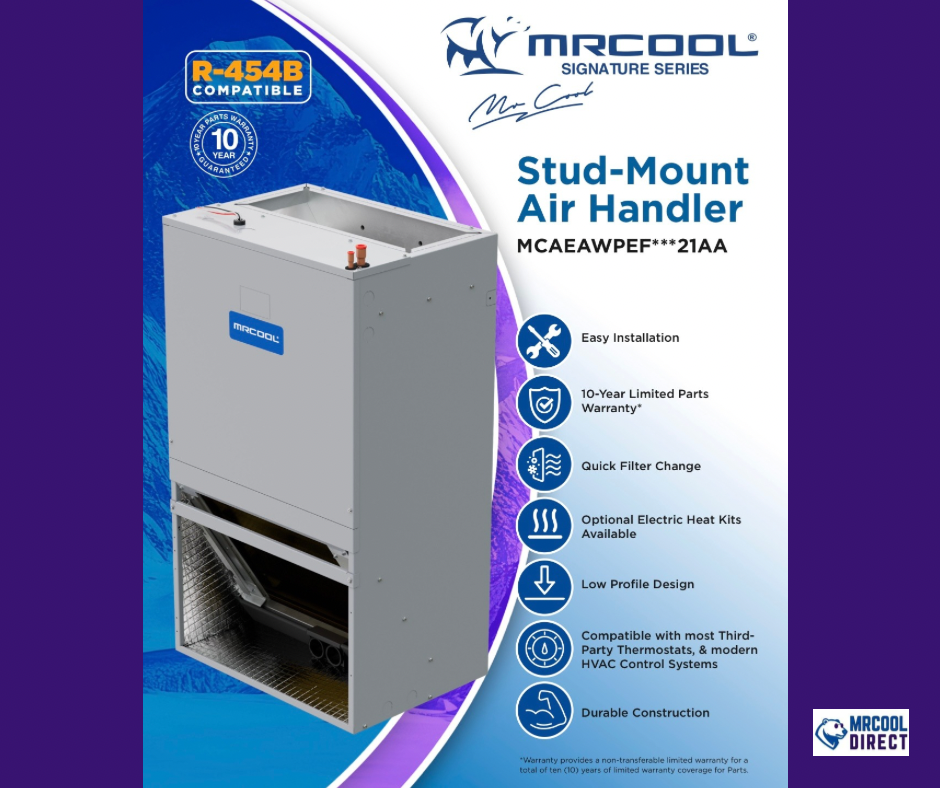

MRCOOL® Signature Series 24,000 BTU Stud-Mount Air Handler 2 Ton R-454B ECM — MCAEAWPEF24D21AA

Product Description

The MRCOOL® Signature Series MCAEAWPEF24D21AA is a 24,000 BTU (2-ton) stud-mount air handler engineered for installations where space is limited but performance cannot be compromised. Designed to fit cleanly between standard wall studs, this air handler is ideal for remodels, additions, apartments, multi-family housing, and modern homes where traditional air handlers simply won’t fit.

Despite its slim footprint, this unit delivers strong, balanced airflow (797 CFM) when paired with a compatible MRCOOL® Signature Series top-discharge condenser or heat pump. Flexible front or bottom return air options allow installers to adapt the system to the layout of the space, while the upflow configuration ensures efficient air delivery throughout the home.

Inside the rugged galvanized steel cabinet, a high-efficiency ECM blower motor provides quiet operation, precise airflow control, and improved energy efficiency compared to conventional blower motors. Full cabinet insulation minimizes condensation, reduces noise, and helps prevent energy loss. Maintenance is simple thanks to a built-in filter rack, allowing quick filter changes without removing the unit.

For colder climates or supplemental heating needs, this air handler supports optional electric heat kits (5kW, 7.5kW, or 10kW). Designed to work with R-454B refrigerant, the system meets modern environmental standards while remaining future-ready. Backed by a 10-year parts warranty, the MRCOOL® Signature Series 24K Stud Mount Air Handler delivers dependable comfort, efficiency, and smart design in a compact package.



 KEY FEATURES & BENEFITS

24,000 BTU / 2 Ton Capacity – Ideal for medium-size zones

• Stud-Mount Design – Fits between standard wall studs
• Slim, Space-Saving Cabinet – Perfect for tight installs
• 797 CFM Airflow – Strong, even performance
• High-Efficiency ECM Blower Motor (1/3 HP) – Quiet & energy-saving
• R-454B Refrigerant Compatible – Low-GWP, future-ready
• Front or Bottom Return Air Options – Installation flexibility
• Upflow Configuration – Efficient air delivery
• Galvanized Steel Cabinet – Long-term durability
• Fully Insulated Cabinet – Reduced noise & condensation
• Built-In Filter Rack – Easy maintenance



• Optional Electric Heat Kits – models below
• 1. 5kW,      Model- MCAEHWD5X1AA
• 2. 7.5kW,   Model- MCAEHWD7X1AA
• 3. 10kW,    Model- MCAEHWD10X1AA



• AHRI Certified / UL / CSA / ETL Listed – Verified performance & safety

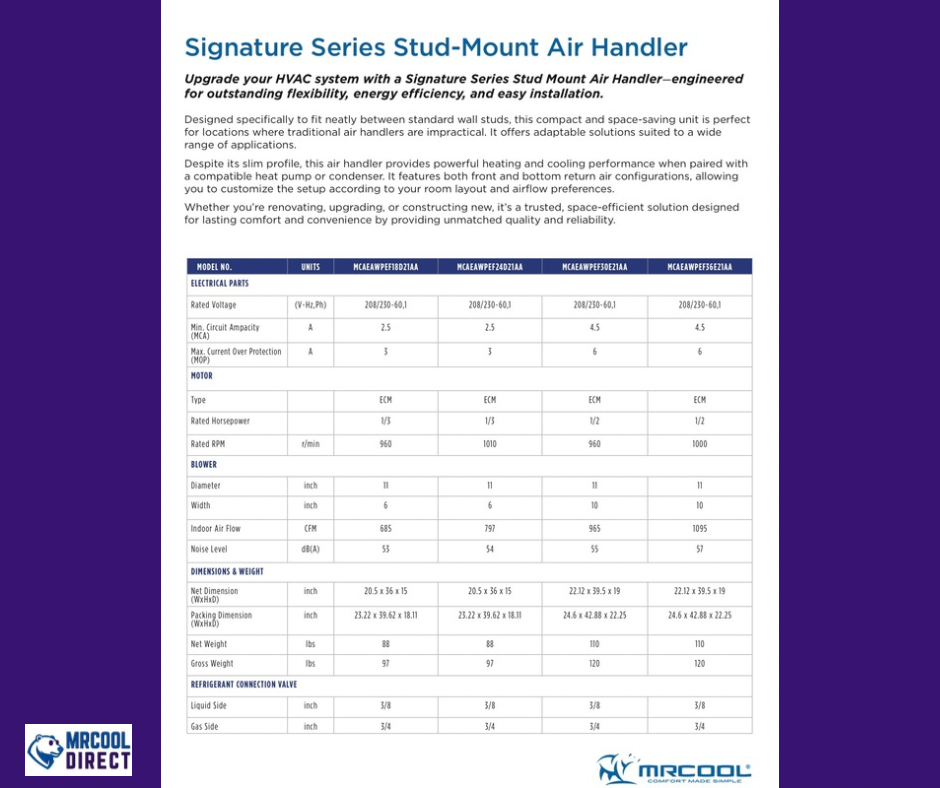

ELECTRICAL REQUIREMENTS

• Voltage: 208/230V
• Phase: Single
• Max Fuse / Breaker: 3 Amps
• Minimum Circuit Ampacity (MCA): 2.5 Amps



DIMENSIONS & WEIGHT

Installed Unit Dimensions

• Width: 20.5 in
• Height: 36 in
• Depth: 15 in

Weight

• Net Weight: 88 lbs
• Shipping Weight: 97 lbs

WARRANTY INFORMATION

• Base Warranty

• 10-Year Parts Warranty
• Limited Lifetime Compressor Warranty (when paired with compatible system)



FREQUENTLY ASKED QUESTIONS

Q: What systems does this air handler work with?

A: It is designed to pair with MRCOOL® Signature Series top-discharge condensers and heat pumps.



Q: Can this unit be installed in a wall cavity?

A: Yes. This model is specifically engineered to install between standard wall studs.



Q: Does this air handler include electric heat?

A: No, but optional electric heat kits (5kW, 7.5kW, or 10kW) are available.



Q: What refrigerant does it use?

A: R-454B refrigerant, which meets current environmental standards.



Q: Is professional installation recommended?

A: Yes. Professional installation is recommended to meet electrical, refrigerant, and local code requirements.
