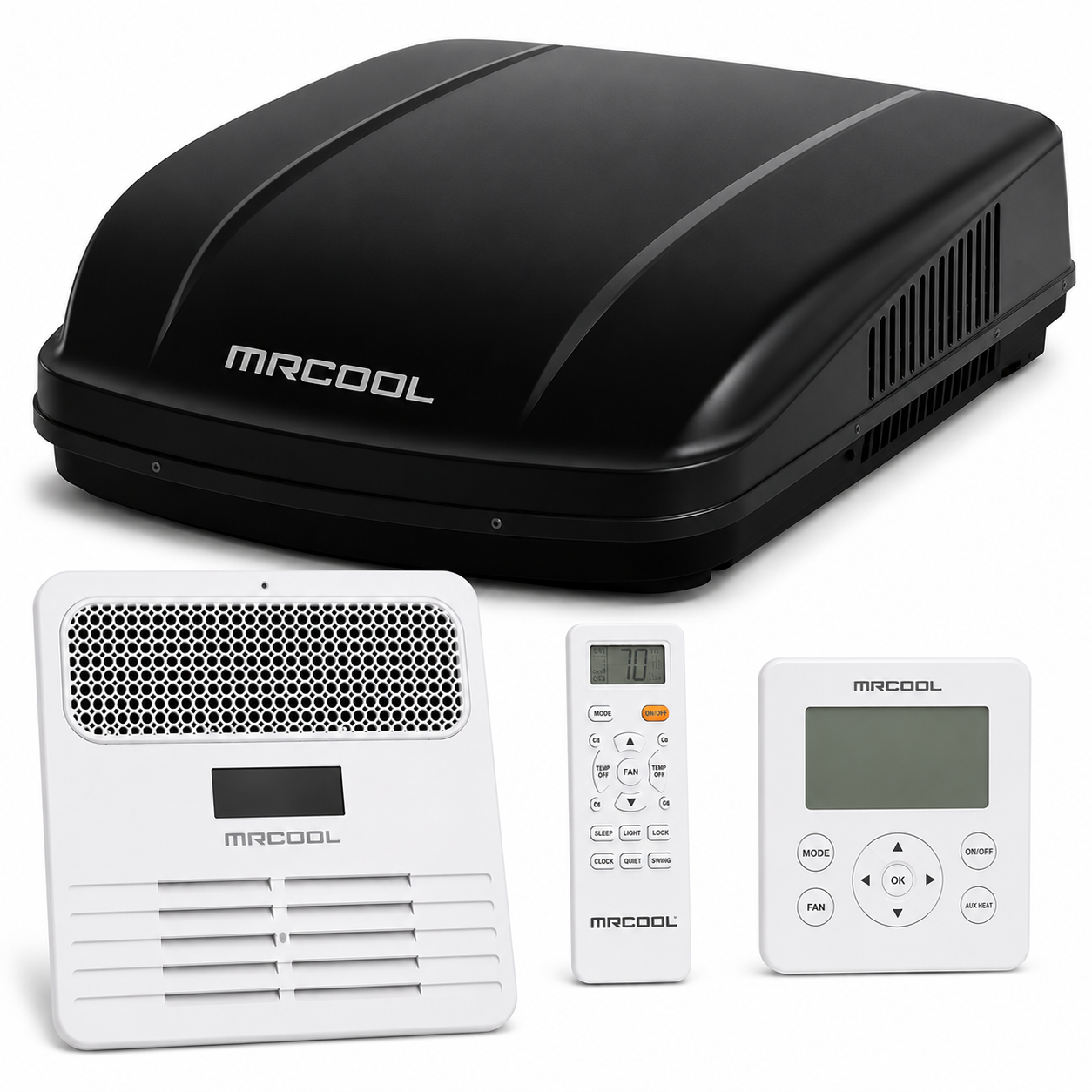

MRCOOL TravelCool Black Ductless RV Inverter Heat Pump Complete Bundle MRDHP15KD-LCW featuring a 15,000 BTU black rooftop unit, MLRDK ductless air distribution box, wireless remote, and wired wall controller for RVs, campers, motorhomes, fifth wheels, and travel trailers.

MRCOOL TravelCool RV ducted bundle specifications for 15,000 BTU inverter heat pump with black rooftop unit, MDRDK ducted ceiling assembly, wired wall controller, cooling and heating capacity, 115V power, 550 CFM airflow, R-32 refrigerant, roof opening dimensions, duct size, operating temperature range, weights, and 2-year parts warranty.

MRCOOL® TravelCool™ MDRDK RV Inverter Ducted Ceiling Kit dimensions and specifications infographic showing 17.08-inch width, 17.08-inch depth, 3.87-inch height, net and gross dimensions, weight, WiFi compatibility, remote compatibility, ducted air distribution, easy installation, and 2-year warranty for compatible TravelCool™ RV inverter heat pump systems.

A product dimensions and specifications diagram for the MRCOOL Rooftop Unit, showing the black rooftop unit with measurements, a roof opening diagram, and a ceiling assembly diagram on a white background.

MRCOOL® TravelCool™ RV air conditioner operating temperature range infographic showing cooling mode from 63°F to 109°F outdoors and 63°F to 90°F indoors, heating mode from 41°F to 75°F outdoors and 41°F to 81°F indoors, plus C2 low-temperature heating protection guidance.

An informational graphic showing a 14.17 x 14.

MRCOOL® TravelCool™ RV Inverter Ducted Ceiling Kit (MDRDK) front view. Genuine OEM ducted interior ceiling assembly for compatible TravelCool™ 15,000 BTU RV inverter heat pump systems. Designed for RV ceiling ductwork with hidden airflow, WiFi compatibility, and residential-style comfort.

Front view of the MRCOOL® TravelCool™ MDRDK RV Inverter Ducted Ceiling Kit showing overall dimensions of 17.08-inch width, 17.08-inch depth, and 3.87-inch height. Genuine OEM interior ducted ceiling assembly for compatible MRCOOL® TravelCool™ 15,000 BTU RV inverter heat pump systems, designed for RV ceiling ductwork in motorhomes, campers, fifth wheels, toy haulers, and travel trailers.

MRCOOL TravelCool MDRDK ducted RV airflow system infographic illustrating balanced whole-coach air distribution through existing RV ductwork. Features white and black 15,000 BTU inverter rooftop heat pump options, even airflow to multiple vents, consistent comfort throughout the RV, compatibility with existing duct systems, and maximum coverage for travel trailers, fifth wheels, toy haulers, motorhomes, and RV conversions.

MRCOOL TravelCool 15,000 BTU RV inverter heat pump demonstrating year-round heating and cooling with 15,000 BTU cooling and 10,236 BTU heat pump heating. White TravelCool rooftop RV air conditioner delivers quiet, energy-efficient comfort for motorhomes, campers, travel trailers, fifth wheels, and RVs with dual-season climate control.

An RV interior with a ceiling-mounted AC unit emitting blue airflow graphics, plus marketing text and feature icons for cooling, airflow, quiet operation, and all-season comfort. Branding visible: AIRCOOL on the unit and AIRCOOL DIRECT in the top-left corner.

MRCOOL TravelCool RV inverter heat pump featuring ultra-quiet inverter technology with sound levels as low as 55 dB on low speed. Variable-speed inverter compressor delivers whisper-quiet cooling and heating for peaceful sleep in RVs, campers, motorhomes, travel trailers, and fifth wheels while maintaining efficient four-season comfort.

MRCOOL® TravelCool™ operating modes infographic explaining Cool Mode, Heat Mode, Fan Mode, Dry Mode, and Auto Mode for RV air conditioner and heat pump operation.

MRCOOL® TravelCool™ Sleep Mode infographic explaining how the RV air conditioner automatically adjusts the set temperature over time during cooling to improve nighttime comfort and potentially reduce energy use.

MRCOOL® TravelCool™ timer function infographic explaining how to schedule the RV air conditioner to automatically turn on or off at a set time using the remote control for cooling comfort and nighttime operation.

MRCOOL® TravelCool™ fan speed guide showing Auto, Low, Medium, and High settings with airflow differences for quieter operation, balanced comfort, and faster RV cooling or heating.

MRCOOL® TravelCool™ temperature adjustment guide showing how to use the up and down buttons on the remote to set temperatures from 61°F to 86°F, or 16°C to 30°C, with inverter compressor control for efficient RV heating and cooling.

MRCOOL® TravelCool™ quick start guide showing how to power on the RV air conditioner, select Cool, Heat, Fan, Dry or Auto mode, adjust temperature, choose fan speed, set the timer, and use Sleep Mode for overnight comfort.

MRCOOL® TravelCool™ remote battery storage tip infographic showing how to remove weak batteries before long-term RV storage, keep the remote dry and away from moisture or extreme heat, install fresh batteries before spring startup, and help prevent battery leakage damage.

MRCOOL® TravelCool™ wireless remote control included with MRDHP15W-D and MRDHP15K-D 15,000 BTU RV rooftop inverter heat pump systems. Remote features cooling, heating, fan speed, turbo mode, sleep mode, timer, ECO mode, and temperature controls for compatible TravelCool™ rooftop air conditioner and heat pump units.

MRCOOL TravelCool RV inverter heat pump smart controls featuring the MRCOOL Connect WiFi app, wireless remote control, wired wall controller, and smartphone operation. Control temperature, fan speed, Eco Mode, Sleep Mode, timer functions, and cooling or heating remotely for convenient four-season RV comfort in campers, travel trailers, fifth wheels, and motorhomes.

Angled view of the MRCOOL® TravelCool™ wireless remote control included with MRDHP15W-D and MRDHP15K-D 15,000 BTU RV rooftop inverter heat pump systems. Features mode selection, cooling, heating, turbo mode, fan speed, sleep mode, ECO mode, timer, temperature adjustment, and wireless operation for compatible TravelCool™ rooftop air conditioners.

Perspective view of the MRCOOL® TravelCool™ wireless remote control included with MRDHP15W-D and MRDHP15K-D 15,000 BTU RV rooftop inverter heat pump systems. Remote features cooling, heating, turbo mode, fan speed, sleep mode, ECO mode, timer, temperature adjustment, and wireless operation for compatible TravelCool™ RV air conditioner and heat pump units.

MRCOOL TravelCool RV wired wall controller (MRDCW) for TravelCool inverter heat pump systems featuring an easy-to-read LCD display, dedicated heating and cooling controls, fan speed adjustment, mode selection, and precise temperature control. Compatible with MRCOOL TravelCool ducted and ductless RV air conditioner systems for motorhomes, travel trailers, fifth wheels, camper vans, toy haulers, and truck campers.

MRCOOL TravelCool inverter technology benefits for RV air conditioning, including greater efficiency, quieter operation, smoother heating and cooling, consistent temperatures, and lower power consumption.

What's included with the MRCOOL TravelCool 15,000 BTU ducted RV inverter heat pump bundle. Includes rooftop unit (black or white), MDRDK ducted ceiling assembly, wireless remote, wired wall controller, controller cable, mounting hardware, foam gasket, installation manual, WiFi-enabled R-32 RV air conditioner and heat pump.

MRCOOL® TravelCool™ MLRDK installation connection diagram showing how the rooftop inverter heat pump mounts through a standard 14.17 x 14.17 inch RV roof opening and connects to the MLRDK non-ducted interior ceiling air distribution kit. Exploded view illustrates the rooftop unit, mounting frame, roof thickness up to 5 inches, and interior assembly for compatible TravelCool™ RV systems.

MRCOOL TravelCool RV 15,000 BTU ducted inverter heat pump bundle 2-year parts warranty showing black or white rooftop unit, MDRDK ducted ceiling assembly, wired wall controller, wireless remote control, and manufacturer warranty coverage.

MRCOOL TravelCool MDRDK ducted RV airflow system illustration showing balanced whole-coach heating and cooling through existing ceiling ductwork. Air is distributed evenly to multiple vents for consistent comfort throughout RVs, campers, motorhomes, fifth wheels, and travel trailers using the MRCOOL TravelCool ducted inverter heat pump system.

MRCOOL® TravelCool™ 15,000 BTU RV Inverter Heat Pump rooftop system in black (Model MRDHP15K-D) featuring variable-speed inverter technology, R-32 refrigerant, built-in WiFi, quiet operation, and residential-style heating and cooling for campers, motorhomes, fifth wheels, travel trailers, van conversions, and RVs. TravelCool™ delivers powerful, energy-efficient comfort wherever the road takes you.

MRCOOL® TravelCool™ RV Inverter Heat Pump feature infographic comparing ducted and ductless installation options, black and white rooftop units, MRCOOL® Connect WiFi app, wireless remote, wired wall controller, and operating temperatures with cooling from 63°F to 109°F ambient and heat pump operation from 41°F to 81°F ambient. Designed for campers, motorhomes, fifth wheels, travel trailers, toy haulers, van conversions, and RVs.

MRCOOL® TravelCool™ RV Inverter System specification comparison chart showing the MRDHP15W-D (White) and MRDHP15K-D (Black) 15,000 BTU rooftop inverter heat pump models alongside the MLRDK ductless ceiling kit and MDRDK ducted ceiling kit. Includes cooling and heating capacities, operating temperature ranges, refrigerant type, roof opening dimensions, unit dimensions, package dimensions, weights, and compatibility information for campers, motorhomes, fifth wheels, travel trailers, toy haulers, and RV conver

MRCOOL TravelCool RV ducted inverter heat pump DIY installation guide showing the four-step installation process including securing the rooftop unit, installing the ducted ceiling assembly (MDRDK), connecting power, and powering on the system. Designed for simple installation in compatible RVs, campers, travel trailers, fifth wheels, and motorhomes with a standard 14.17-inch roof opening.

MRCOOL® TravelCool™ RV air conditioner Wi-Fi connection troubleshooting infographic showing how to enter pairing mode, wait for the Wi-Fi icon to flash, open the MRCOOL Connect app, verify network access, enter the correct password, stay close to the display panel, restart pairing, and power cycle the system if needed.

MRCOOL® TravelCool™ winter storage quick reference infographic covering before-storage preparation, winter snow and ice precautions, 41°F to 75°F heating range, C2 cold-weather protection, R-32 refrigerant notes, and spring startup checks for an RV rooftop heat pump.

MRCOOL® TravelCool™ spring startup checklist after winter storage showing how to remove covers and obstructions, inspect the rooftop unit, clear airflow openings, install a clean dry filter and fresh remote batteries, check the roof seal, restore power, and test cooling and heating operation.

MRCOOL® TravelCool™ winter storage filter cleaning infographic showing how to turn the unit off, remove the filter, rinse it with clean water, allow it to dry completely, and reinstall the dry filter before RV off-season storage.

MRCOOL® TravelCool™ rooftop inspection before winter storage infographic showing checks for leaves and debris, clear airflow openings, housing cracks or damage, roof seal and mounting area, loose hardware, visible wiring, and when to schedule service before spring startup.

MRCOOL® TravelCool™ C2 cold-weather protection infographic explaining outdoor low-temperature heating protection, temporary heating shutdown, automatic restart when conditions return to an acceptable range, and that C2 may indicate protective operation rather than a system failure.

MRCOOL® TravelCool™ RV rooftop heat pump heating operating range infographic showing the recommended 41°F to 75°F outdoor range, 5°C to 24°C equivalent, and C2 cold-weather protection that may activate below 41°F.

MRCOOL® TravelCool™ R-32 refrigerant storage and safety infographic covering ignition-source precautions, refrigerant circuit protection, proper ventilation, and qualified professional service for RV rooftop heat pump winter storage.

MRCOOL® TravelCool™ winter storage infographic showing what not to do, including storing the unit with a dirty or wet filter, blocking ventilation openings, leaving rooftop debris, operating with a cover installed, chipping ice against the housing, and attempting refrigerant repairs without a qualified professional.

MRCOOL® TravelCool™ winter storage checklist for RV rooftop heat pump care including turning the unit off, cleaning and drying the filter, removing rooftop debris, inspecting housing and airflow openings, checking the roof seal and wiring, protecting against snow, removing weak remote batteries, and recording error codes before storage.

MRCOOL® TravelCool™ complete troubleshooting quick reference chart covering not cooling, not heating, no power, weak airflow, and repeated shutdown issues with possible causes, first checks, next steps, error code reminders, and when to call a qualified professional.

MRCOOL® TravelCool™ RV air conditioner remote not working troubleshooting checklist showing battery replacement, battery polarity, 26-foot signal range, pointing the remote at the receiver, removing signal obstructions, checking supported functions, using the control panel, and when remote service or replacement may be needed.

MRCOOL® TravelCool™ RV air conditioner complete error code chart showing E1, E2, E5, E6, E7, E8, E9, F0, F2–F8, H1–H4, and C2 fault and protection codes with meanings, unit responses, troubleshooting steps, and service guidance.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

MRCOOL® TravelCool™ 15,000 BTU RV Inverter Heat Pump Ducted Bundle – Black – 115V WiFi, R-32- MRDHP15KD-DCW

Name: MRCOOL® TravelCool™ 15,000 BTU RV Inverter Heat Pump Ducted Bundle – Black – 115V WiFi, R-32- MRDHP15KD-DCW
Brand: MRCOOL®
SKU: MRDHP15WD-DCW
Price: 1237.00 USD
Availability: InStock

Type: RV Inverter Heat Pump Ducted 15k BTU Complete

SKU: MRDHP15WD-DCW

$1,237.00

$1,237.00 ~~$1,519.00~~

Shipping calculated at checkout.

Modern
Eco-certified
Warranty

Available in stock (50)

Product Description

MRCOOL® TravelCool™ 15,000 BTU RV Inverter Heat Pump Ducted Bundle – Black (MRDHP15KD-DCW)

Upgrade your RV with residential-style comfort using the MRCOOL® TravelCool™ MRDHP15KD-DCW, a complete 15,000 BTU ducted RV inverter heat pump system engineered for campers, fifth wheels, motorhomes, travel trailers, toy haulers, and luxury RVs with ceiling ductwork.

This complete system combines the MRCOOL® MRDHP15K-D Black Rooftop Inverter Heat Pump with the MDRDK TravelCool™ Ducted Interior Kit, providing quiet, efficient heating and cooling throughout your RV while maintaining a clean, factory-installed appearance.

Unlike conventional rooftop air conditioners that constantly cycle on and off, the TravelCool™ inverter compressor continuously adjusts its speed to maintain your desired temperature. This results in quieter operation, lower power consumption, improved efficiency, and significantly more consistent comfort whether you’re connected to campground power, running a properly sized generator, or using a compatible battery and inverter system.

The sleek black rooftop housing complements today’s modern RVs while the hidden ducted airflow distributes conditioned air evenly throughout the coach for superior comfort.

MRCOOL® TravelCool™ Install Manual

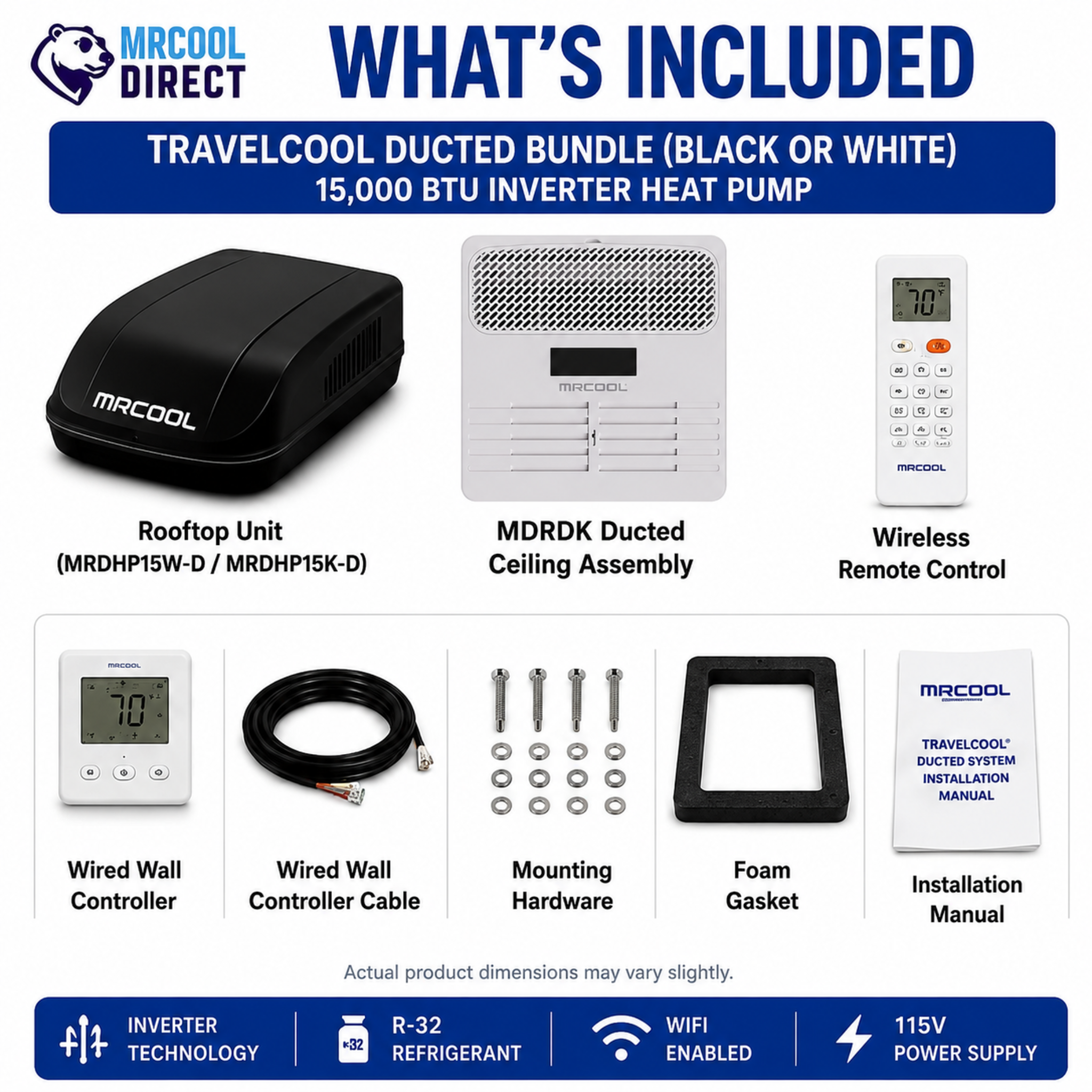

What’s Included

✔ MRCOOL® TravelCool™ Black Rooftop Inverter Heat Pump (MRDHP15K-D)

✔ MRCOOL® TravelCool™ Ducted Interior Kit (MDRDK)

✔ Wireless Remote Control

✔ Mounting Hardware

✔ Washable Reusable Filter

✔ Installation Components

✔ Installation Instructions

Why You’ll Love TravelCool™

Unlike traditional RV rooftop air conditioners, TravelCool™ uses variable-speed inverter technology that automatically adjusts compressor output instead of repeatedly turning on and off.

Benefits include:

Whisper-quiet operation
More consistent cabin temperatures
Lower power consumption
Reduced startup amperage
Improved generator compatibility
Better battery efficiency
Longer compressor life
Improved humidity control
More comfortable sleeping
Residential-style performance

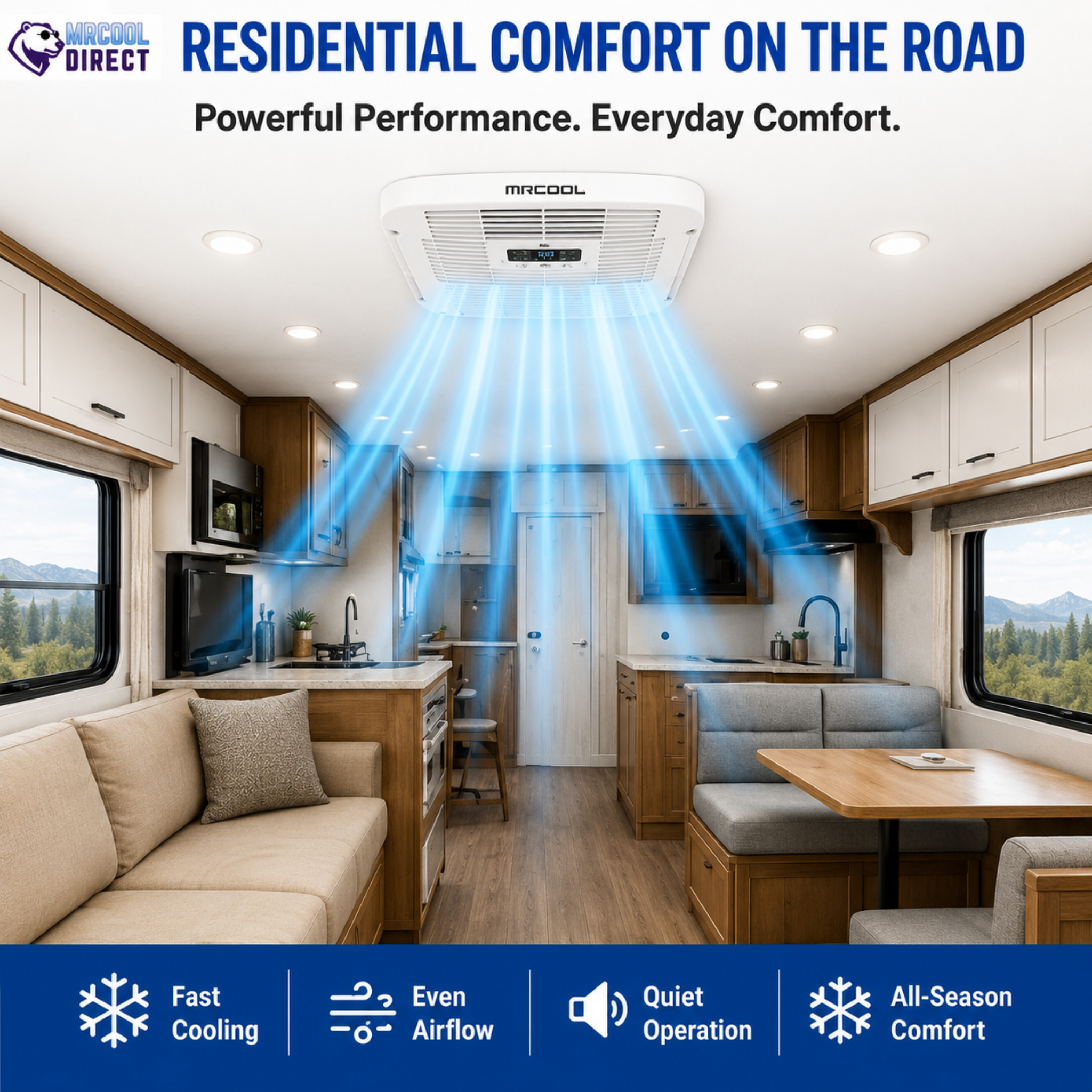

Residential Comfort for Your RV

The included MDRDK ducted ceiling assembly connects directly to compatible RV ceiling duct systems, allowing conditioned air to reach every room instead of only the area beneath the rooftop unit.

Perfect for:

Class A Motorhomes
Fifth Wheels
Luxury Travel Trailers
Toy Haulers
Destination Trailers
Horse Trailers
Camper Renovations
Premium Van Conversions

Smart WiFi Climate Control

Every TravelCool™ system includes built-in WiFi.

Using the MRCOOL® Connect App, you can:

Change temperature
Select heating or cooling mode
Adjust fan speed
Enable Sleep Mode
Monitor system performance
Receive alerts
Operate remotely

Compatible with:

iPhone
iPad
Android Phones
Android Tablets

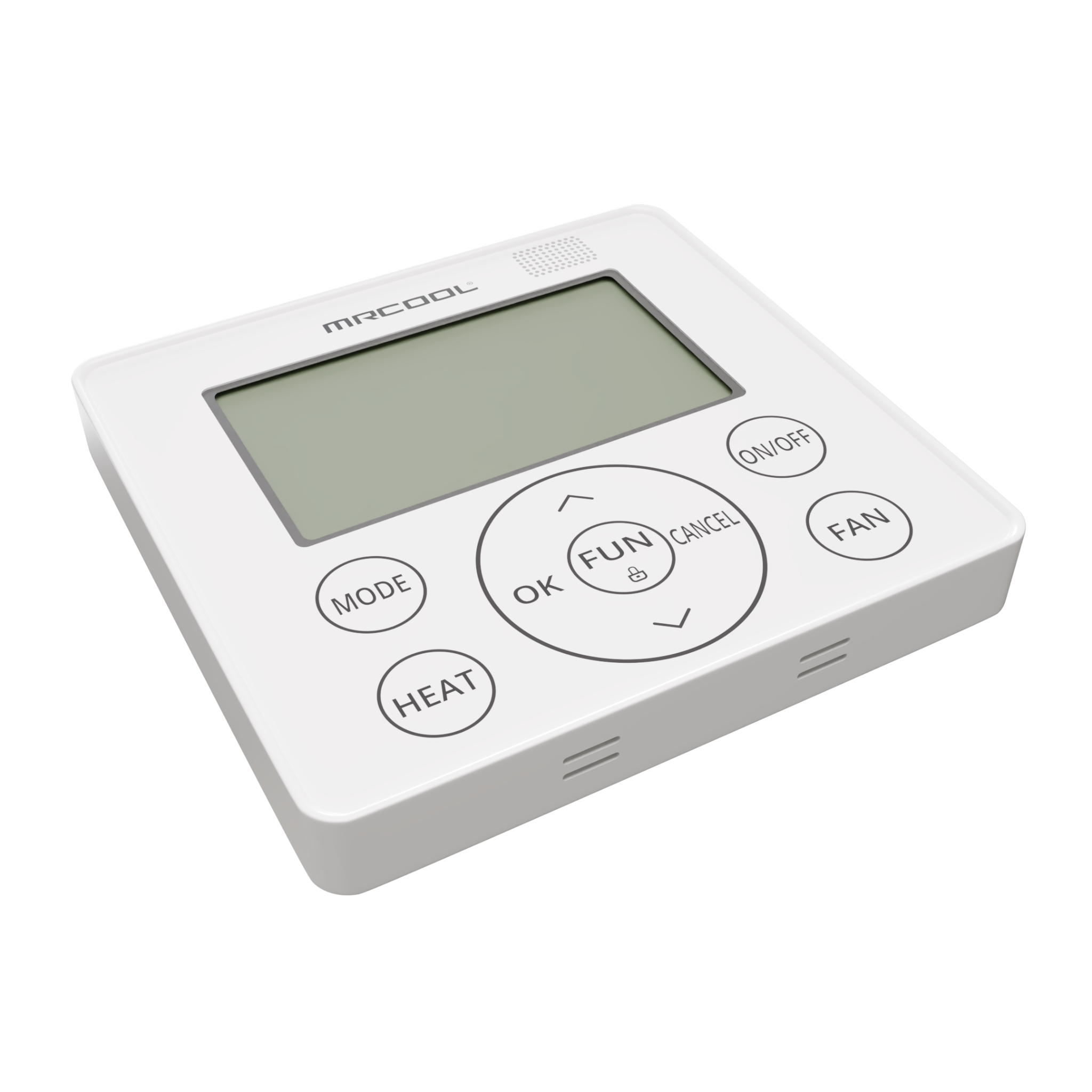

A wireless remote is included, and the optional MRDCW wired wall controller is available for permanent control.

Heating & Cooling Performance

Cooling Capacity

15,000 BTU

Heating Capacity

10,236 BTU

Airflow

323.72 CFM

Features

Variable-Speed DC Inverter Compressor
Heat Pump Heating
Cooling Mode
Fan Only Mode
Auto Mode
Sleep Mode
Adjustable Thermostat
Brushless DC Fan Motors
Washable Reusable Filter
Built-In WiFi
MRCOOL® Connect App
Wireless Remote Included
Optional Wired Wall Controller
Hidden Ducted Air Distribution

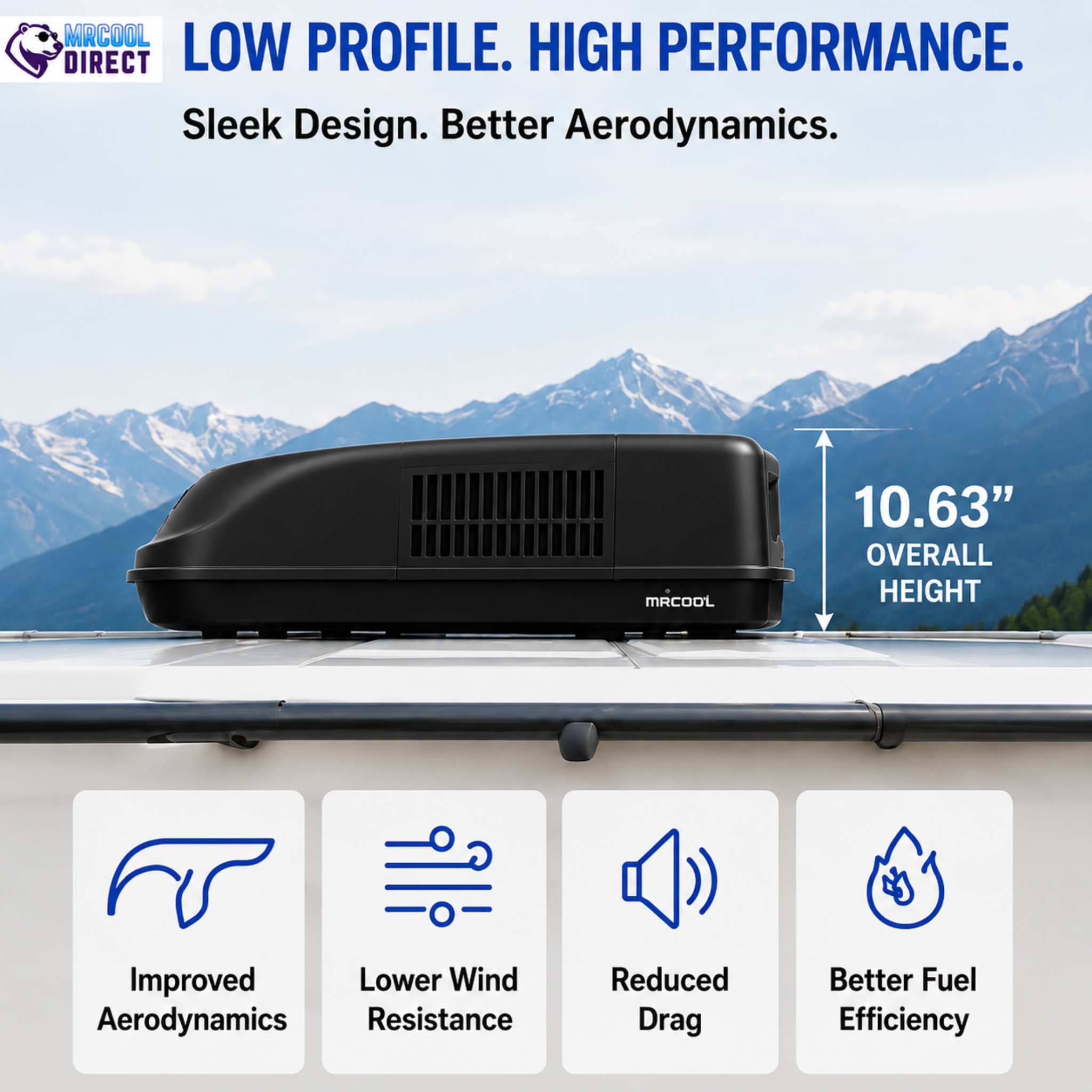

Low-Profile Aerodynamic Housing
Black Finish

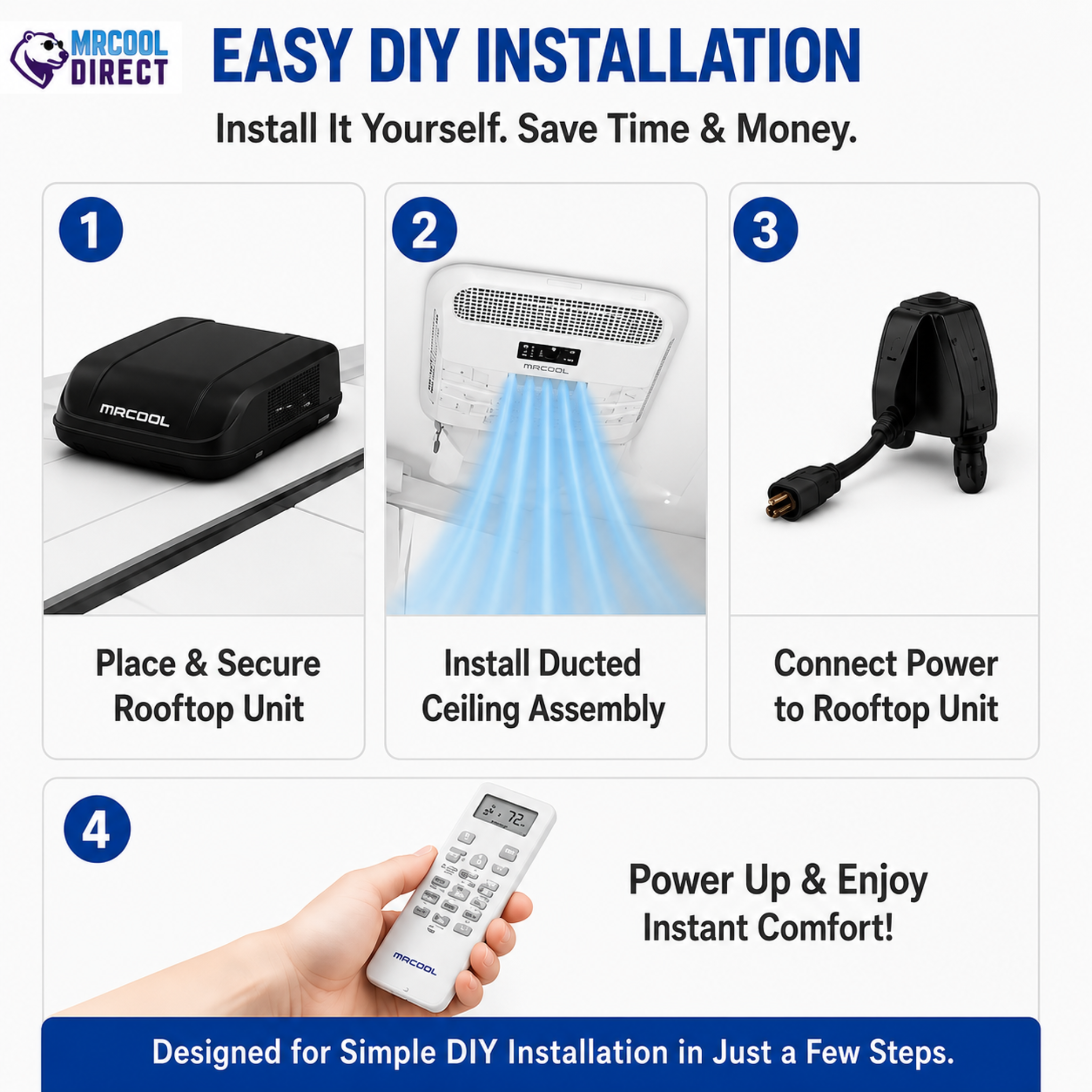

Installation Information

Designed exclusively for:

RVs
Campers
Fifth Wheels
Motorhomes
Toy Haulers
Horse Trailers
Travel Trailers

Not designed for residential homes.

Electrical Requirements

115 Volt

Single Phase

60 Hz

Breaker Requirements

Maximum Fuse Breaker: 25 Amps

Minimum Circuit Ampacity (MCA): 16 Amps

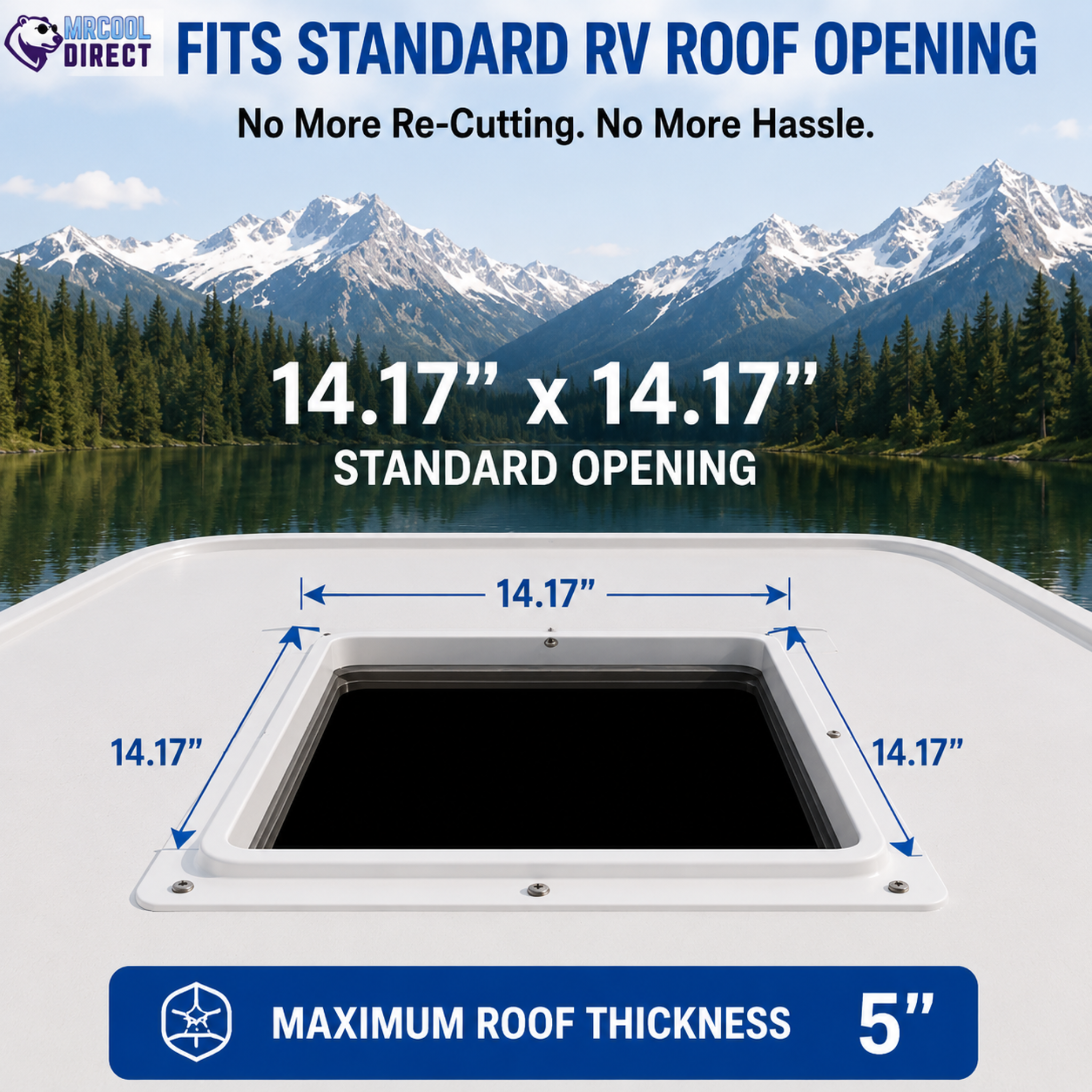

Roof Opening

14.17” × 14.17”

Maximum Roof Thickness

5 inches

MRCOOL TravelCool Heat Pump Inverter Install Manual

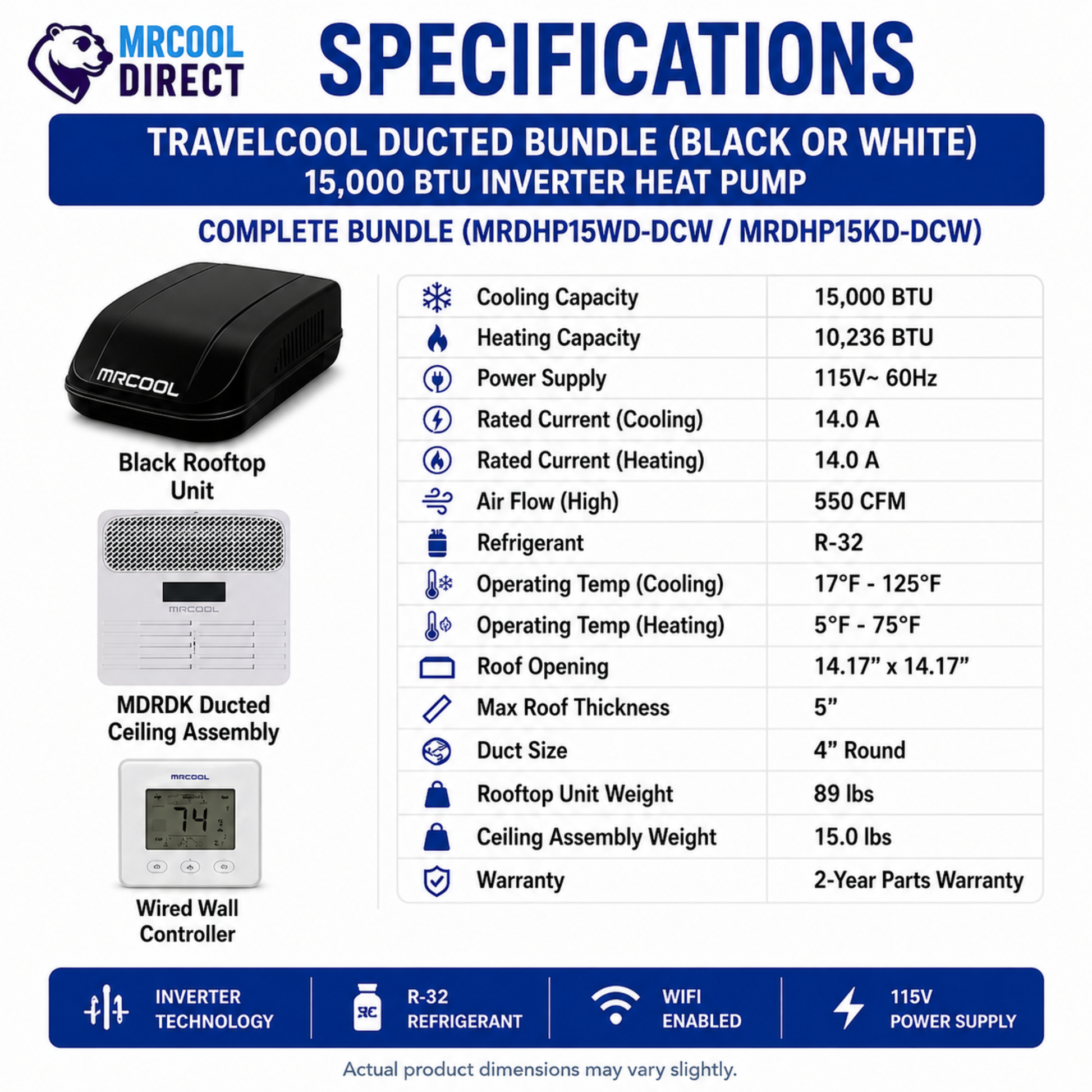

Technical Specifications

Rooftop Unit

Model

MRDHP15K-D

Color

Black

Cooling Capacity

15,000 BTU

Heating Capacity

10,236 BTU

Airflow

323.72 CFM

Voltage

115V

Phase

Single Phase

Maximum Breaker

25A

Minimum Circuit Ampacity

16A

Refrigerant

R-32

Refrigerant Charge

25.39 oz

Noise Level

Less than 60 dBA

WiFi

Yes

Remote Included

Yes

Inverter Compressor

Yes

Ducted Interior Kit

Model

MDRDK

Width

17.08”

Depth

17.08”

Height

3.87”

Weight

6.61 lbs

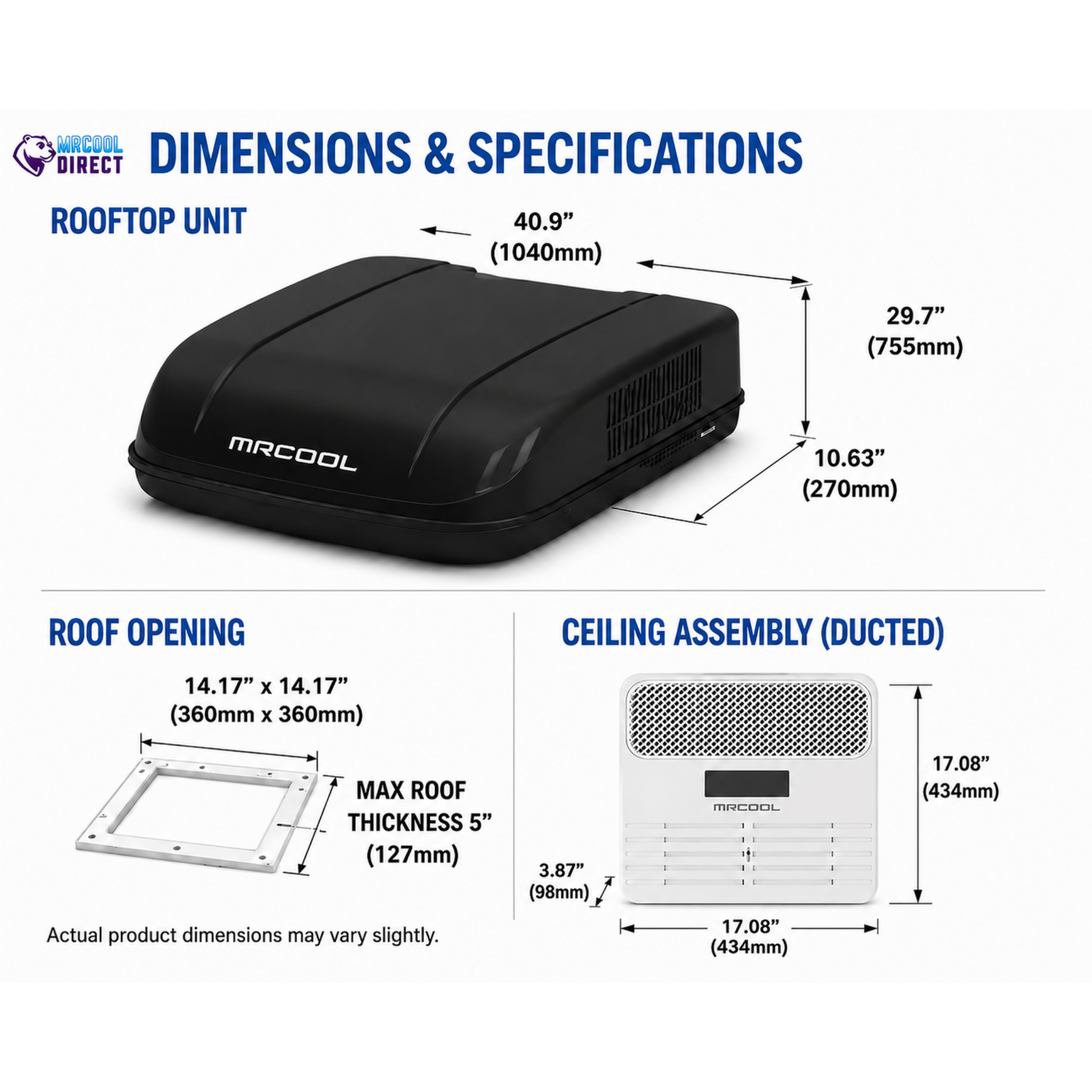

Dimensions

Rooftop Unit

Width

29.72”

Depth

40.95”

Height

10.63”

Weight

95.24 lbs

Shipping Weight

101.4 lbs

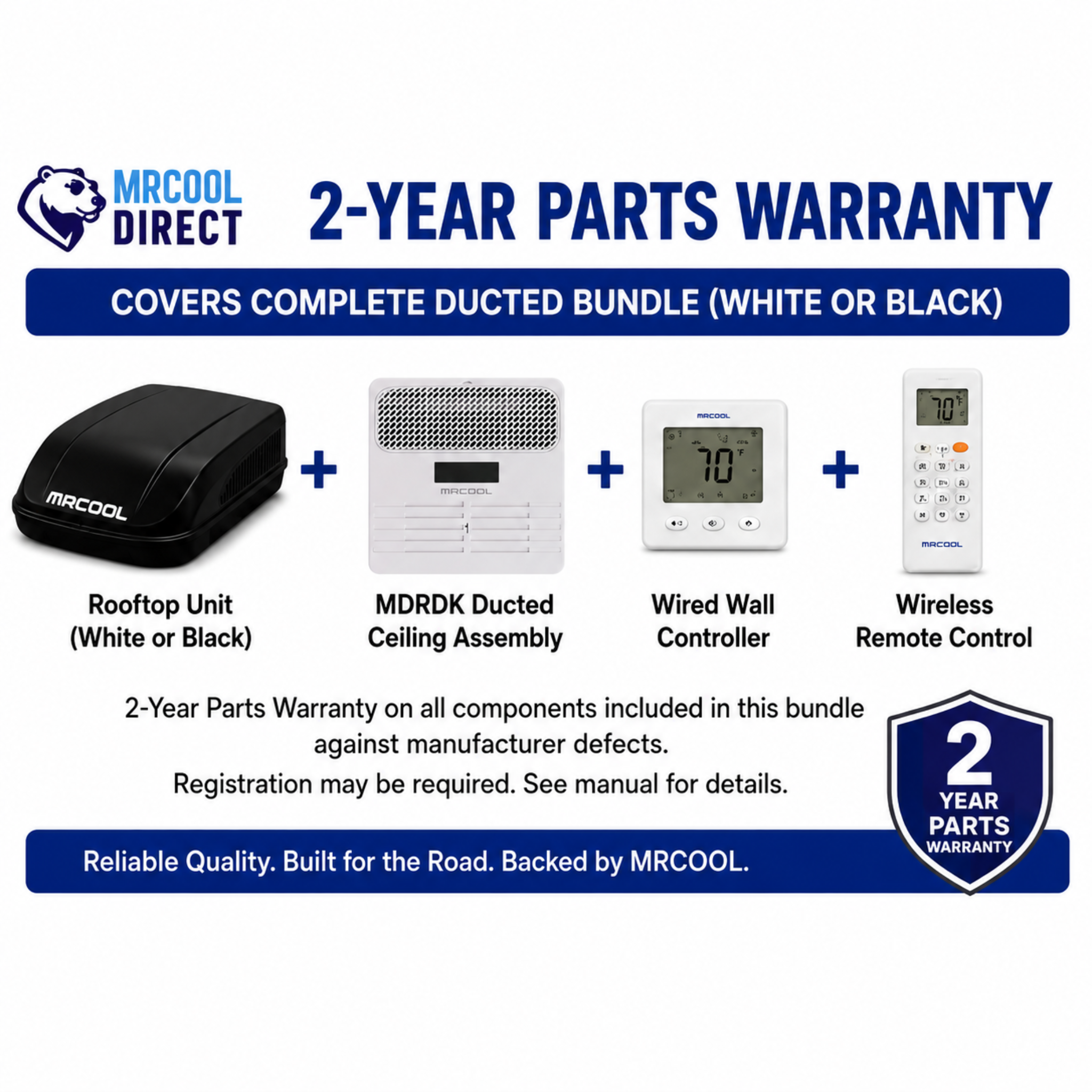

Warranty

MRCOOL Manufacturer Warranty

2-Year Parts Warranty
2-Year Compressor Warranty
2-Year Remote Warranty

Refer to the official MRCOOL warranty documentation for complete terms and exclusions.

Why Buy From MRCOOL DIRECT?

MRCOOL DIRECT is #1 Moat Trusted Authorized MRCOOL Retailer specializing exclusively in MRCOOL heating and cooling products.

When you order from MRCOOL DIRECT, you’ll receive:

Genuine MRCOOL Products
Expert Product Support
Friendly U.S.-Based Customer Service
Fast Shipping
Installation Assistance
Competitive Pricing
Support Before & After the Sale

Whether you’re replacing an existing RV rooftop air conditioner or upgrading to inverter technology, our team is here to help you choose the right TravelCool™ system for your RV.

Frequently Asked Questions about the MRCOOL® TravelCool™ 15,000 BTU RV Inverter Heat Pump Ducted Bundle – Black (MRDHP15KD-DCW)

Is this a complete RV HVAC system?

Yes. This bundle includes the black rooftop inverter heat pump, the ducted interior kit, wireless remote control, and installation components needed for a complete ducted TravelCool™ system.

Does this connect to existing RV ductwork?

Yes. The MDRDK is specifically designed to integrate with compatible RV ceiling duct systems for even airflow throughout the coach.

Does this provide both heating and cooling?

Yes. It delivers 15,000 BTU of cooling and 10,236 BTU of heat pump heating.

What electrical service does it require?

115V, 60Hz, single-phase power.

What breaker size is required?

The manufacturer specifies a 25-amp maximum fuse breaker with a 16-amp minimum circuit ampacity (MCA).

Can I control it with my phone?

Yes. Built-in WiFi allows full control through the MRCOOL® Connect App on iOS and Android devices.

Is this quieter than a traditional RV rooftop air conditioner?

Yes. The inverter compressor continuously adjusts its output instead of repeatedly cycling on and off, helping reduce operating noise while maintaining a more consistent cabin temperature.
