MRCOOL® TravelCool™ 15,000 BTU RV Inverter Heat Pump Ducted Bundle – White – 115V WiFi, R-32 - MRDHP15WD-DCW

Product Description

MRCOOL® TravelCool™ 15,000 BTU RV Inverter Heat Pump Ducted Bundle – White (MRDHP15WD-DCW)

Experience residential-style comfort throughout your RV with the MRCOOL® TravelCool™ MRDHP15WD-DCW. This complete ducted RV inverter heat pump system combines the MRDHP15W-D White Rooftop Inverter Heat Pump with the MDRDK Ducted Interior Kit, delivering quiet, energy-efficient heating and cooling through your RV’s existing ceiling ductwork.

Unlike traditional rooftop RV air conditioners that repeatedly cycle on and off, the TravelCool™ system uses variable-speed inverter technology that automatically adjusts compressor speed to maintain your desired temperature. The result is smoother operation, quieter performance, fewer temperature swings, and greater efficiency whether you’re plugged into campground power, using a properly sized generator, or operating from a compatible battery and inverter setup.

Designed for RV owners who want discreet airflow without a visible ceiling discharge, the ducted configuration distributes conditioned air evenly throughout your coach while preserving a clean factory-installed appearance.

MRCOOL® TravelCool™ Install Manual

Why Choose the TravelCool™ Ducted Bundle?

• Complete White Rooftop & Ducted Interior System
• 15,000 BTU Cooling Capacity
• 10,236 BTU Heat Pump Heating
• Variable-Speed DC Inverter Compressor
• Existing RV Ductwork Compatible
• Built-In WiFi
• MRCOOL® Connect App Compatible
• Wireless Remote Included
• Optional Wired Wall Controller Compatible
• Whisper-Quiet Operation

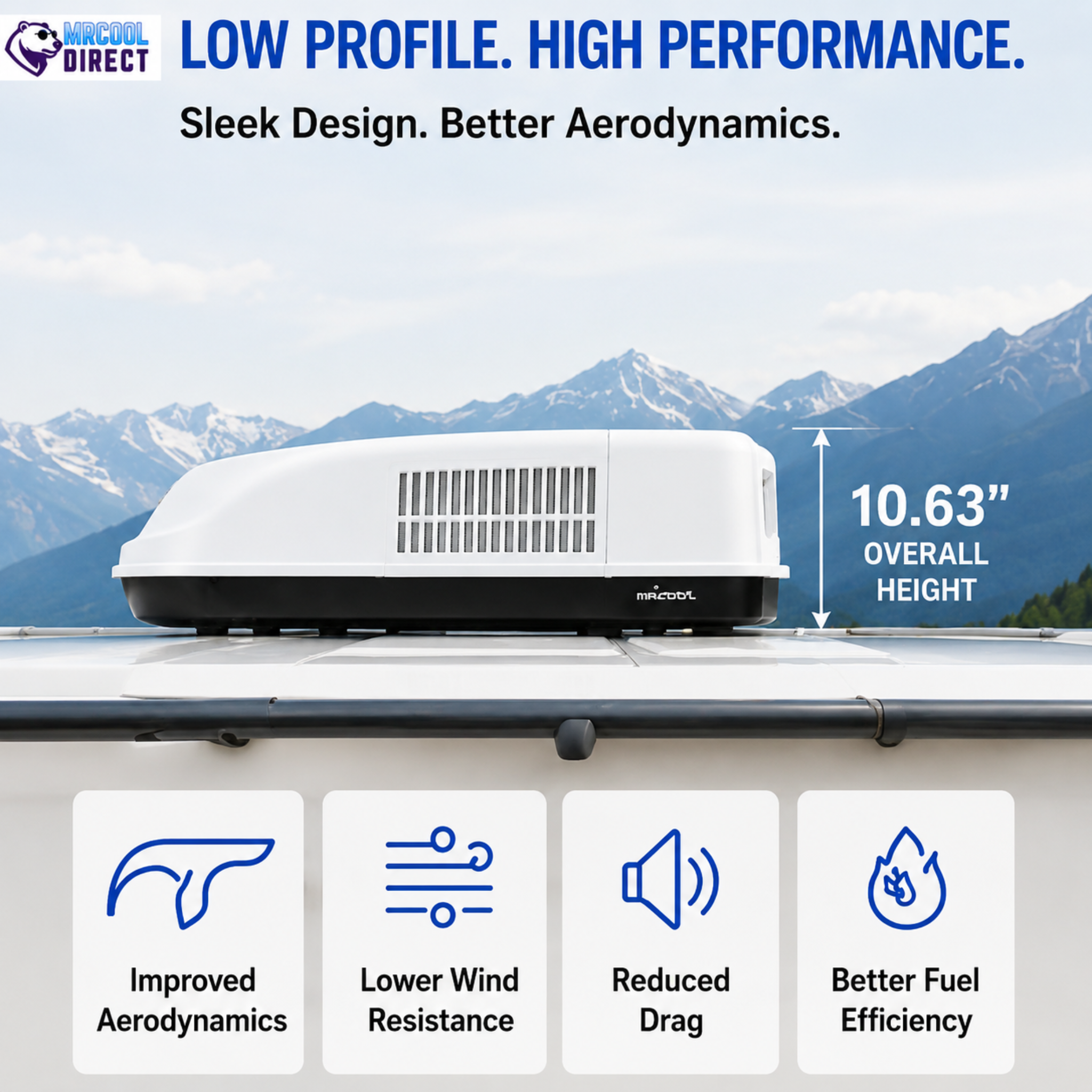

• Low-Profile Rooftop Design
• Brushless DC Motors

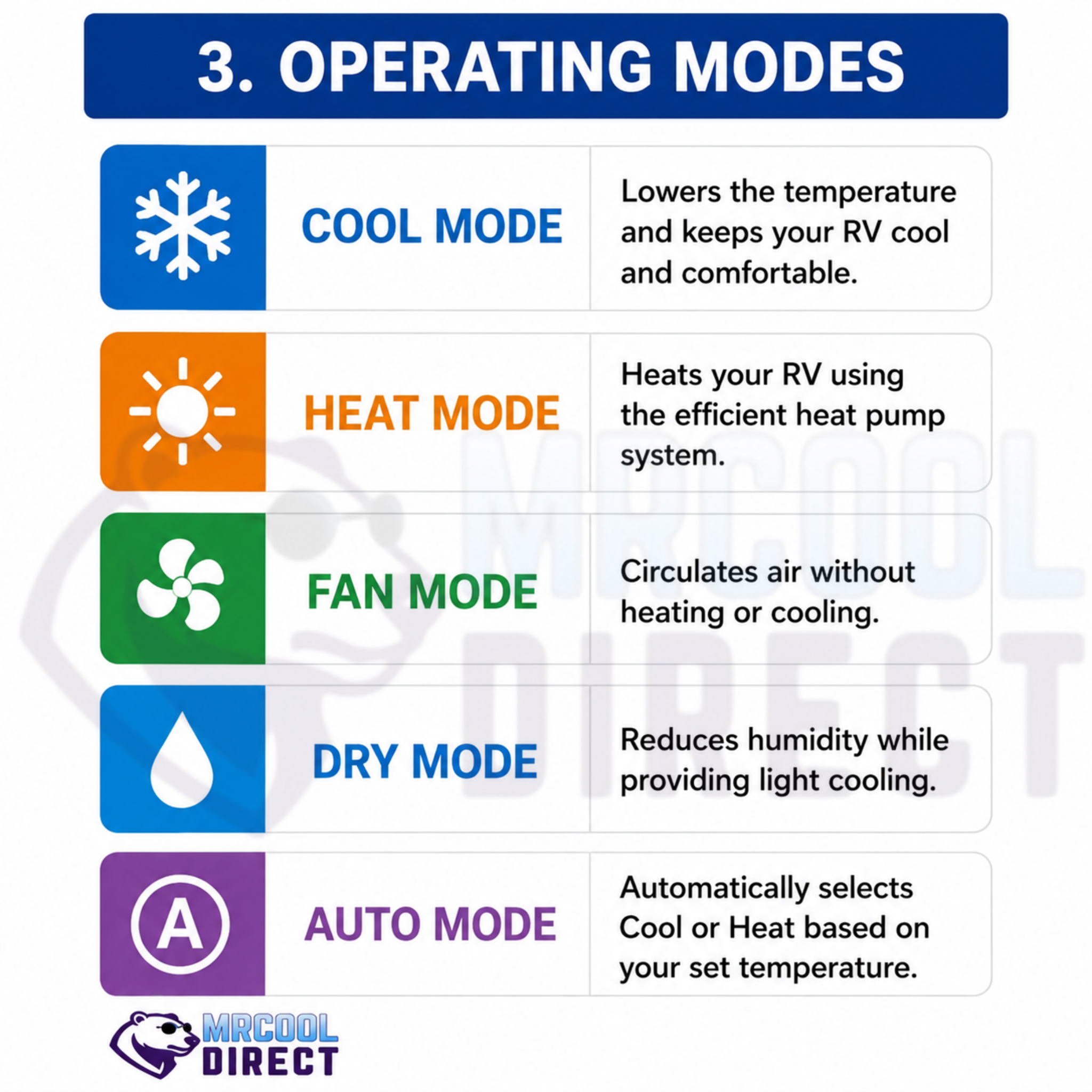

• Auto Mode

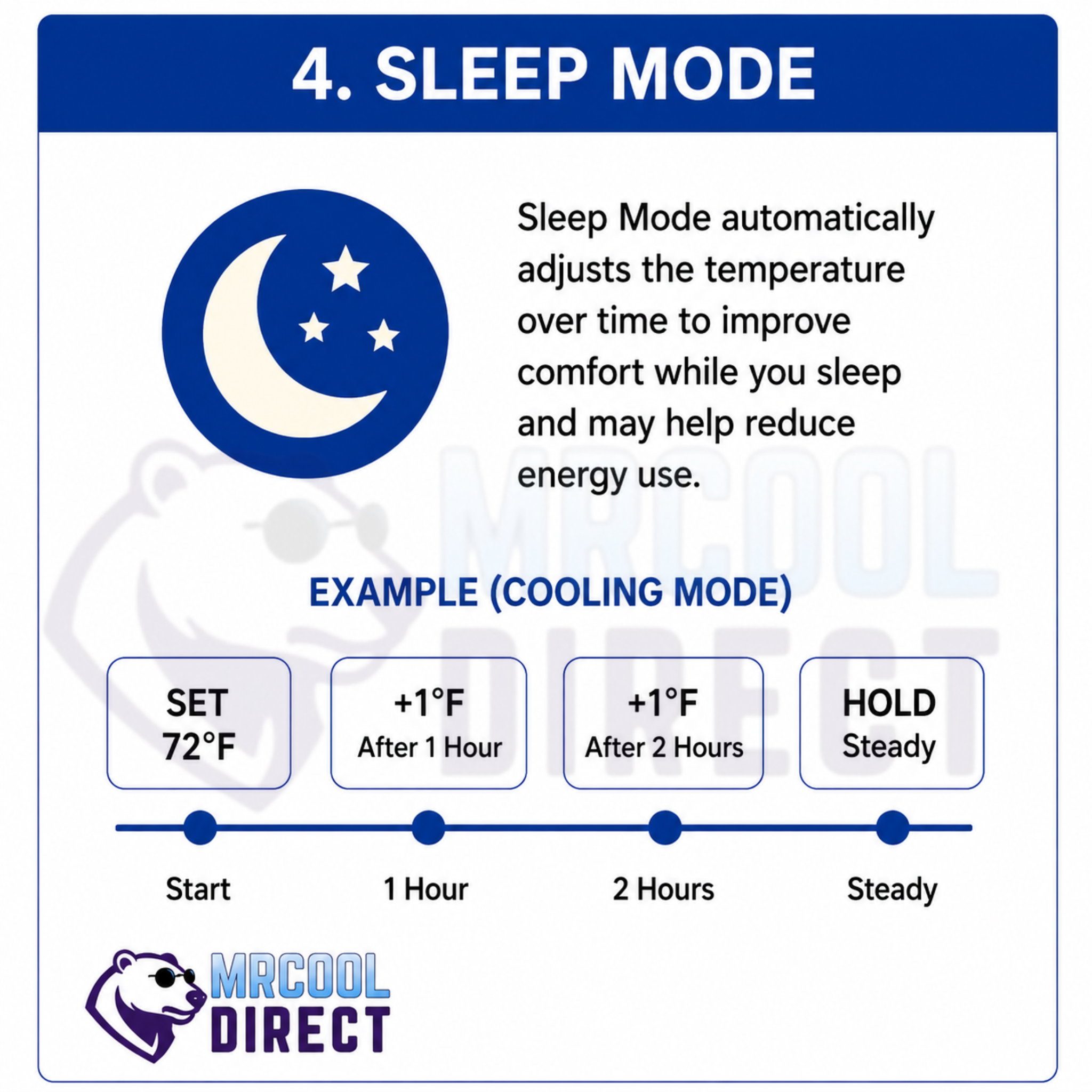

• Sleep Mode
• Fan Only Mode

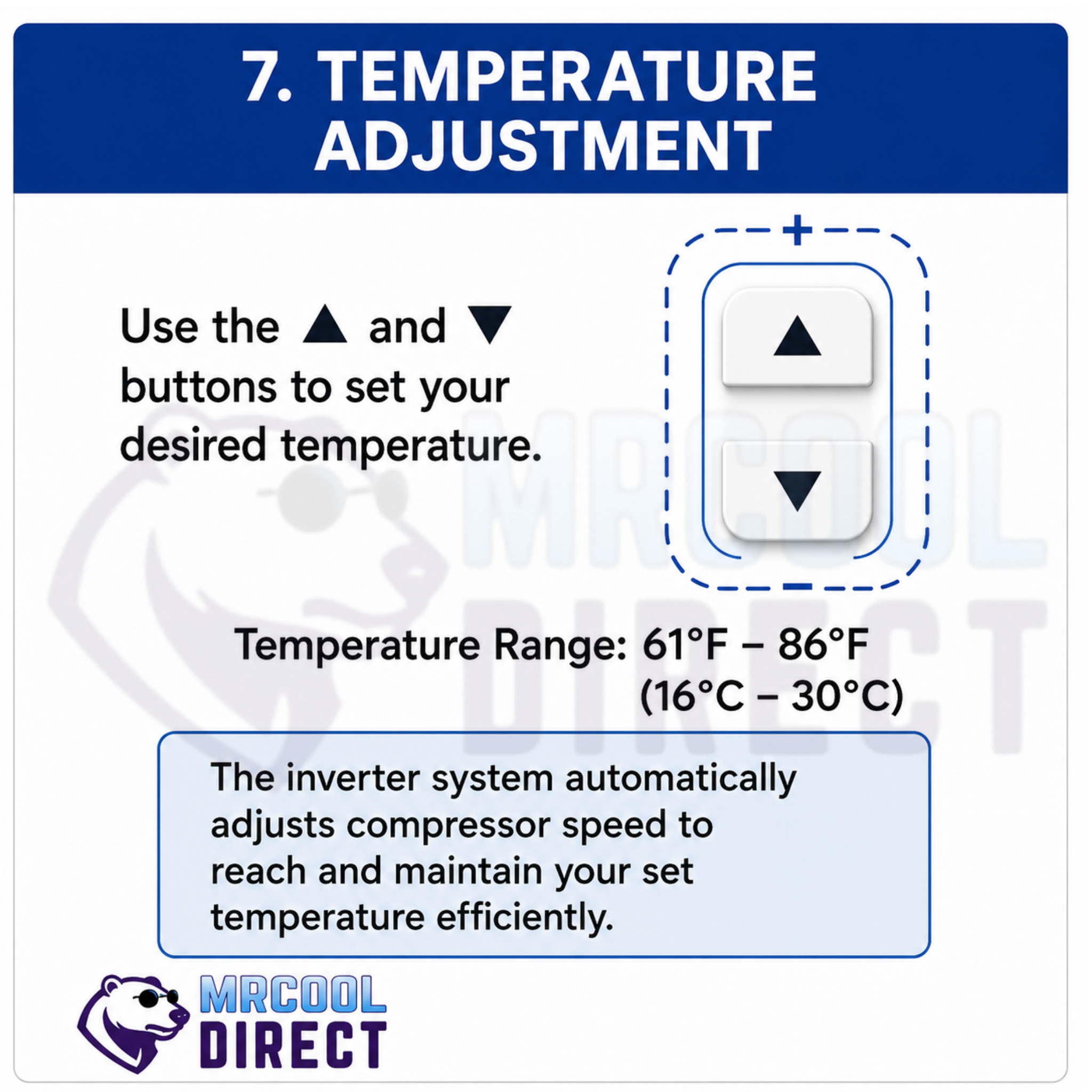

• Adjustable Thermostat

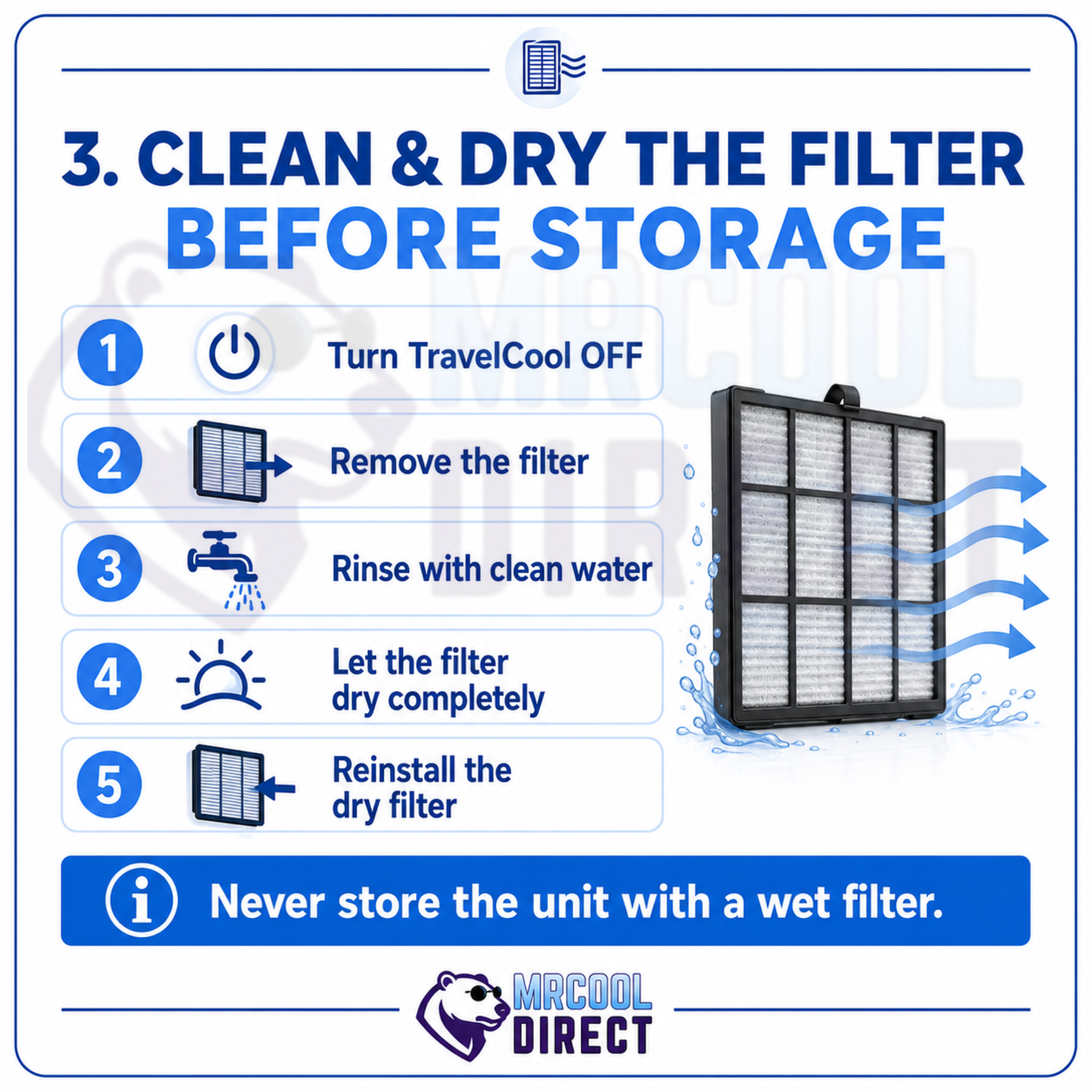

• Washable Reusable Filter
• Designed for Ducted RV Systems
• 2-Year Manufacturer Warranty

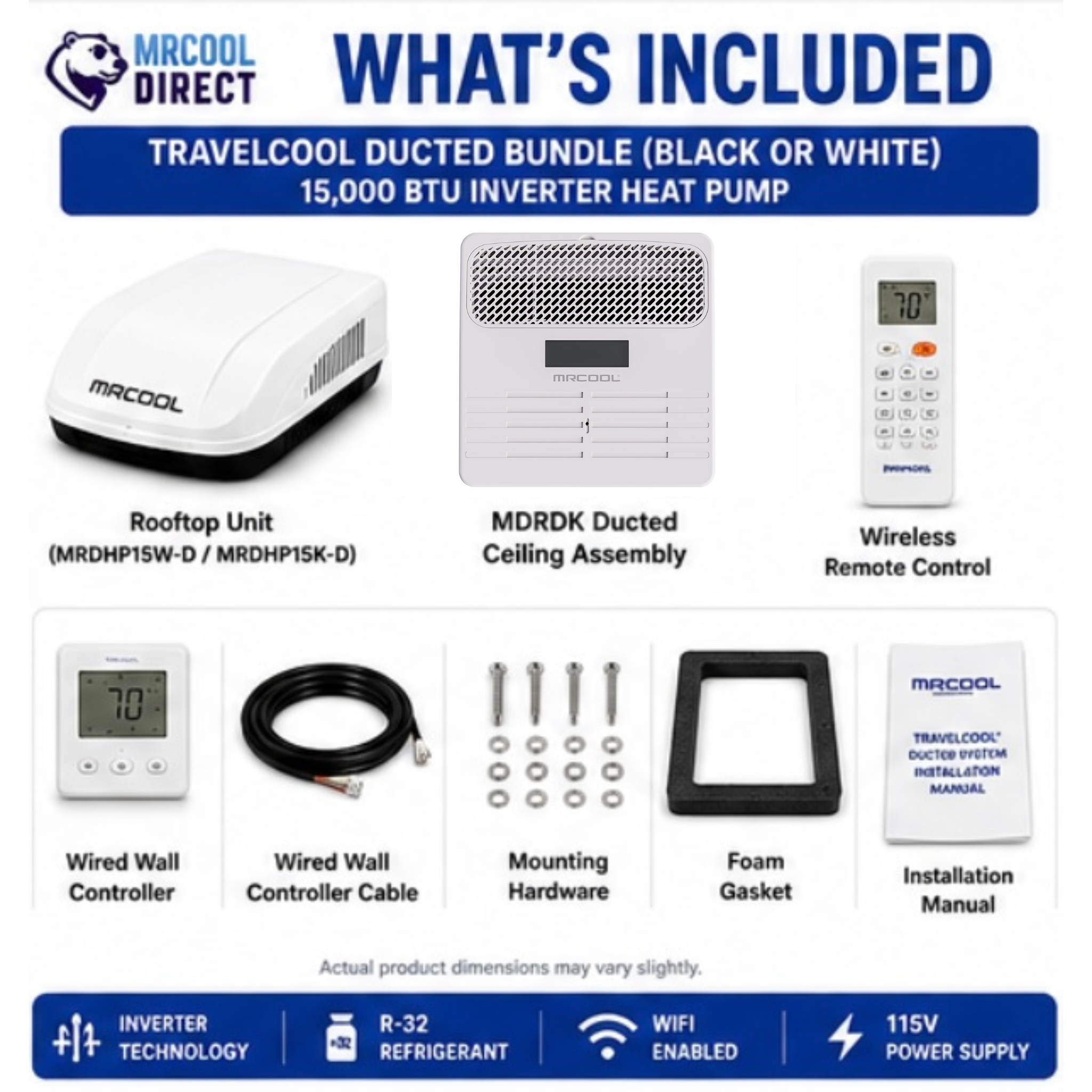

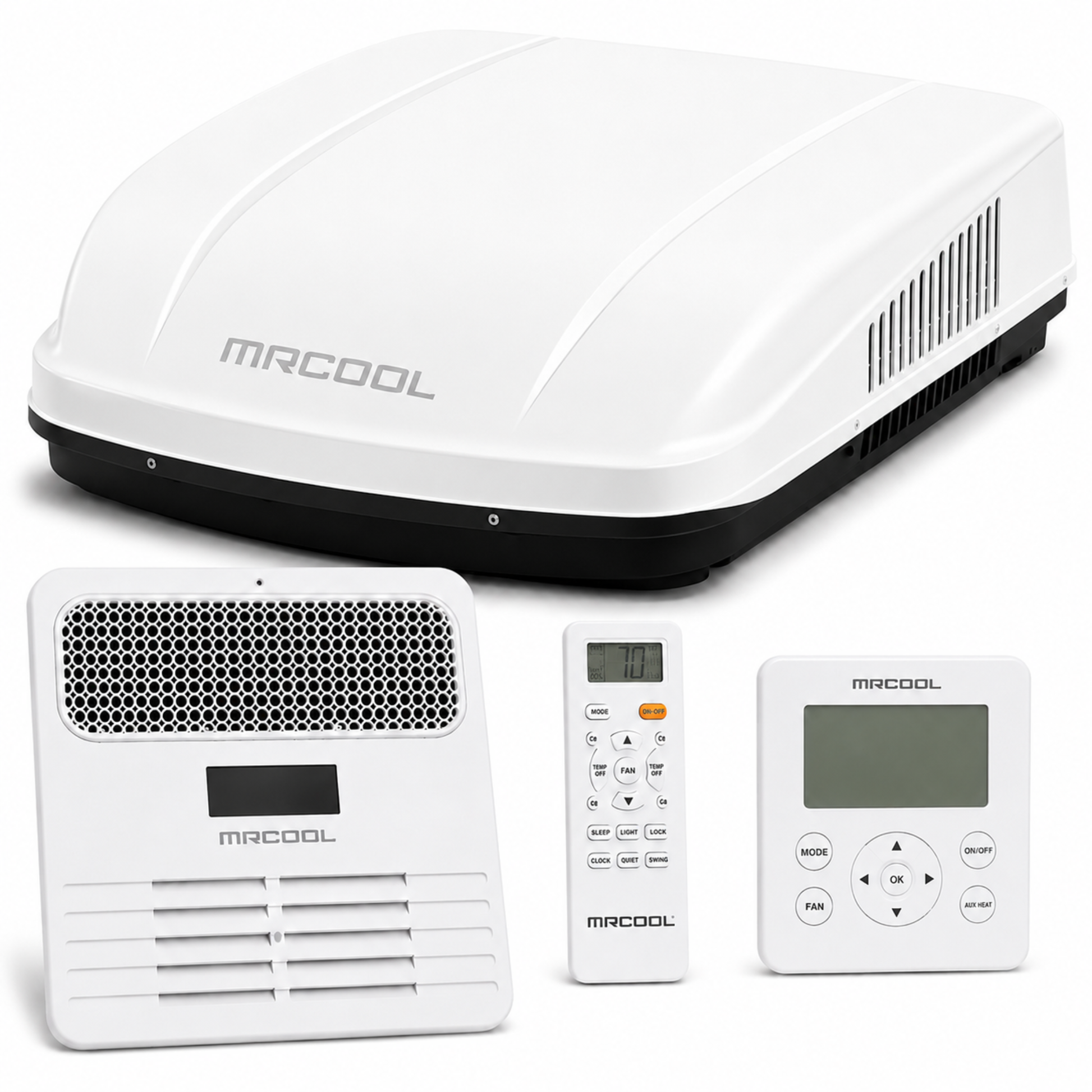

What’s Included

• MRCOOL® TravelCool™ White Rooftop Inverter Heat Pump (MRDHP15W-D)
• MRCOOL® TravelCool™ Ducted Interior Kit (MDRDK)
• Wireless Remote Control
• Installation Hardware
• Mounting Components
• Communication Components
• Washable Air Filter
• Installation Instructions

Everything required for a complete ducted TravelCool™ installation.

Whole-Coach Comfort Through Existing Ductwork

The included MDRDK Ducted Interior Kit is designed to connect directly to compatible RV ceiling duct systems, allowing conditioned air to be distributed evenly throughout your living space.

Benefits include:

• Balanced airflow throughout multiple rooms
• Cleaner ceiling appearance
• Hidden air distribution
• Better comfort from front to back
• Reduced hot and cold spots
• Residential-style comfort
• Efficient use of existing ductwork

Perfect for larger travel trailers, fifth wheels, luxury coaches, and motorhomes.

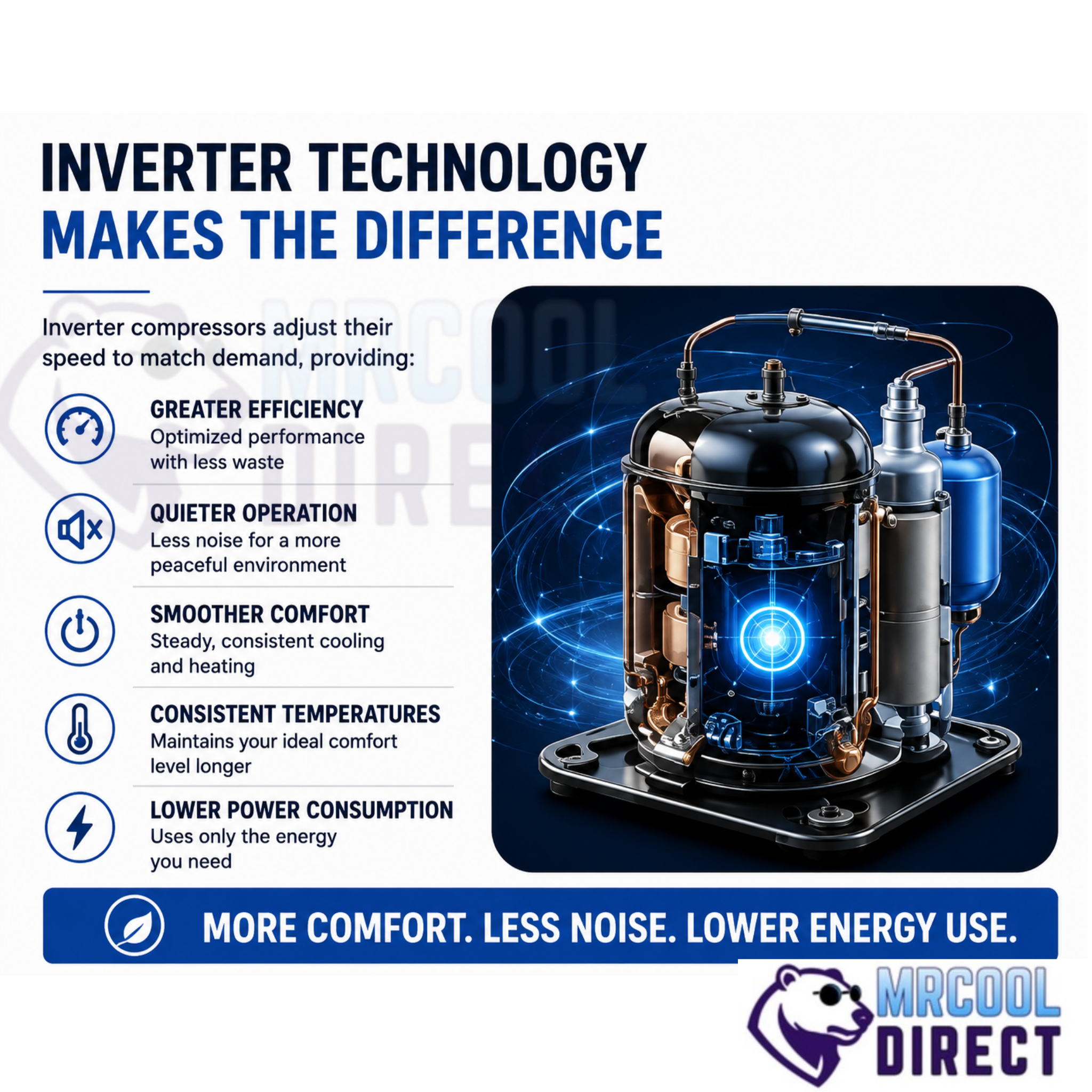

Advanced Inverter Technology

TravelCool™ uses a variable-speed inverter compressor instead of the traditional fixed-speed design found in many RV rooftop air conditioners.

Benefits include:

• Quieter operation
• Better humidity control
• Lower startup current
• Reduced power consumption
• More consistent temperatures
• Longer compressor life
• Improved comfort

Heating & Cooling in One System

Cooling Capacity

15,000 BTU

Heating Capacity

10,236 BTU

Enjoy dependable heating during cool mornings and powerful cooling during hot summer afternoons—all from one efficient rooftop system.

Smart WiFi Climate Control

TravelCool™ comes equipped with built-in WiFi for convenient remote operation using the MRCOOL® Connect App.

Control your system from your smartphone to:

• Adjust temperature
• Change operating mode
• Select fan speeds
• Monitor system performance
• Receive notifications
• Operate your system remotely

Compatible with:

• Apple iPhone
• Apple iPad
• Android Phones
• Android Tablets

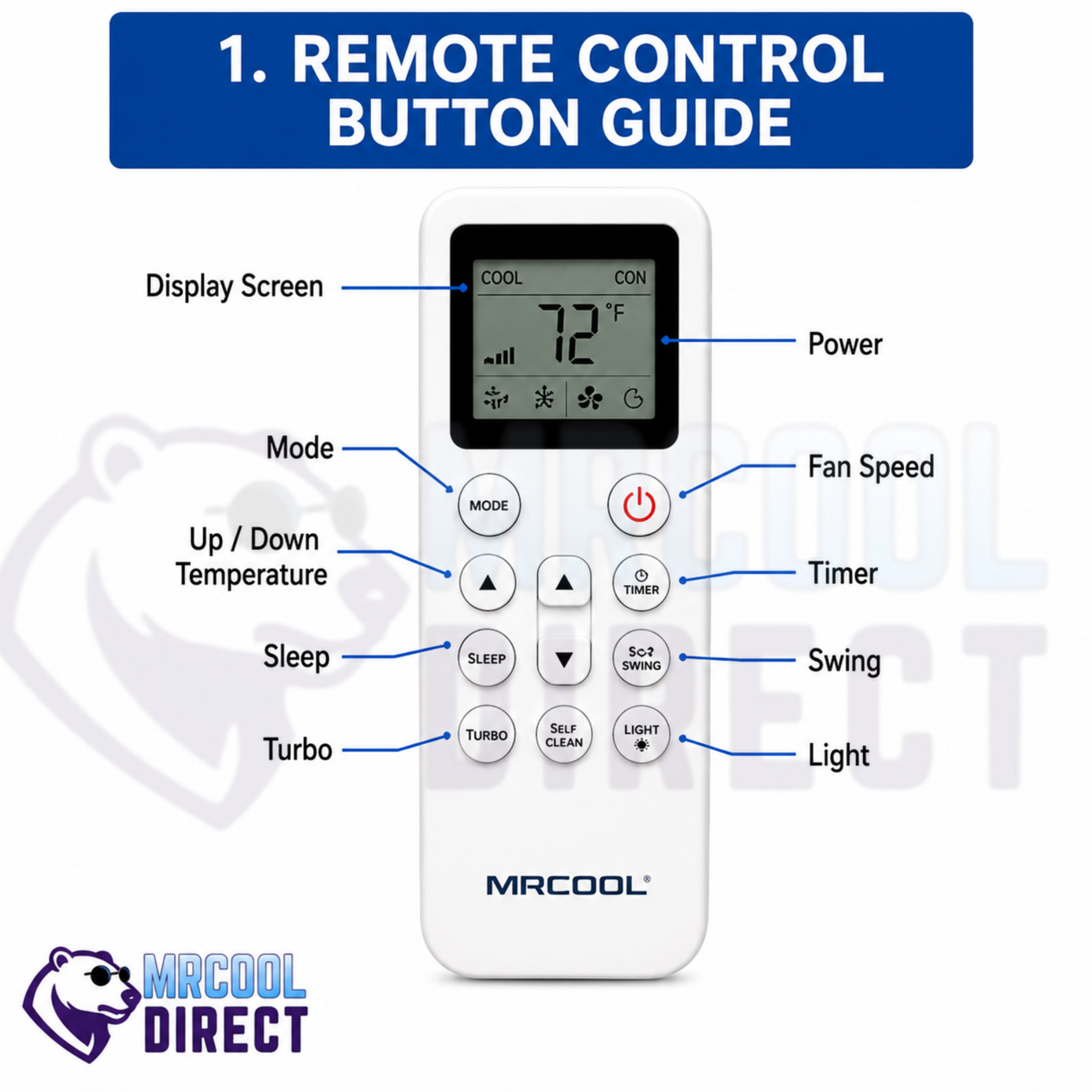

A wireless handheld remote is included, and an optional wired wall controller is available for permanent installation.

Perfect For

The ducted TravelCool™ system is ideal for:

• Class A Motorhomes
• Luxury Fifth Wheels
• Large Travel Trailers
• Toy Haulers
• Motor Coaches
• Camper Conversions with Ductwork
• Horse Trailers
• RV Renovations
• New RV Builds
• Multi-Room RVs

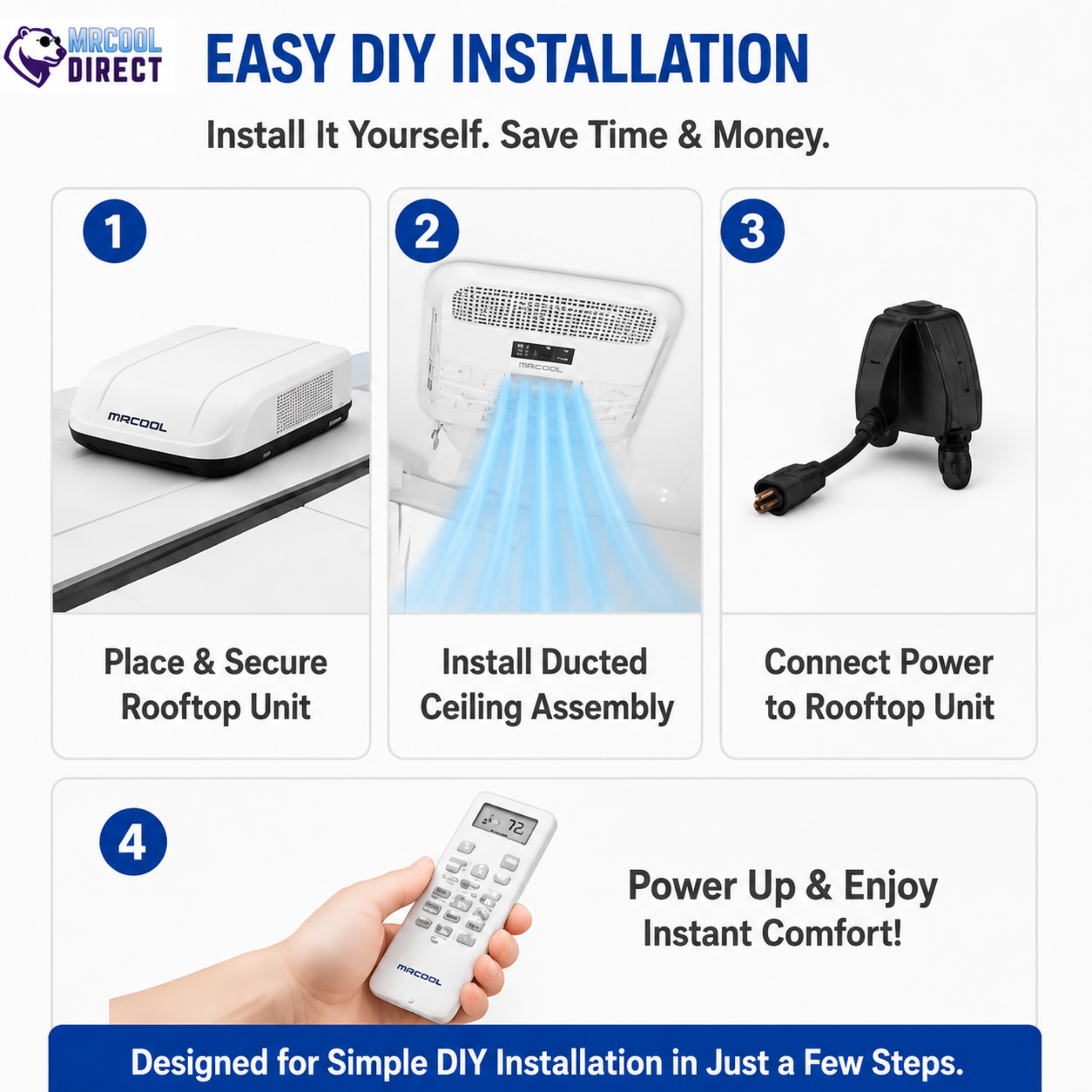

Installation Information

Designed specifically for:

• RVs
• Campers
• Motorhomes
• Fifth Wheels
• Travel Trailers
• Horse Trailers

Not intended for residential home installation.

MRCOOL TravelCool Heat Pump Inverter Install Manual

Electrical Requirements

• Power Supply: 115V
• Phase: Single Phase
• Frequency: 60Hz

Breaker Requirements

Maximum Fuse Breaker: 25 Amps

Minimum Circuit Ampacity (MCA): 16 Amps

Roof Opening

14.17” × 14.17”

Maximum Roof Thickness

Up to 5”

MRCOOL TravelCool Heat Pump Inverter Install Manual

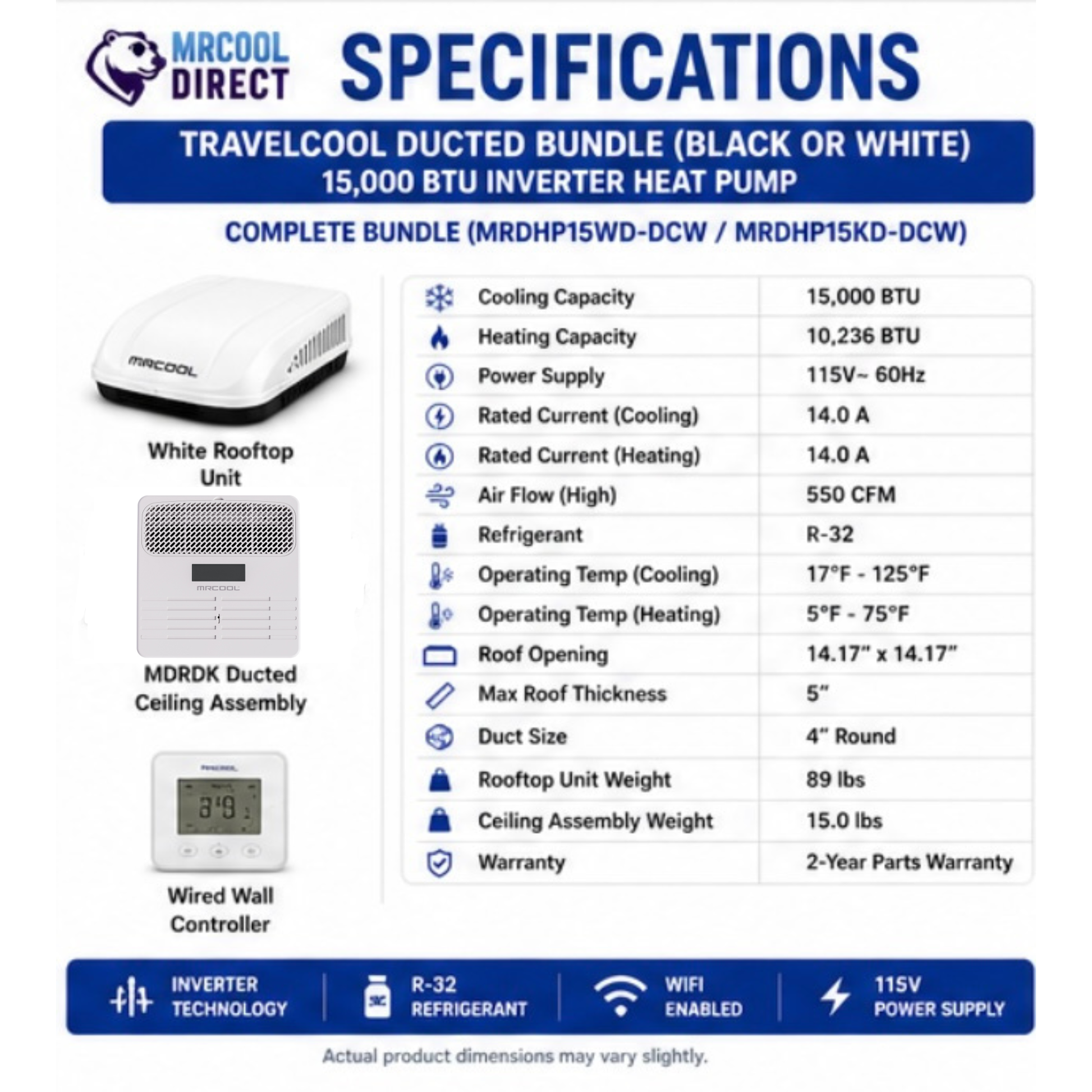

Technical Specifications

Rooftop Unit

Model: MRDHP15W-D

Cooling Capacity: 15,000 BTU

Heating Capacity: 10,236 BTU

Voltage: 115V

Airflow: 323.72 CFM

Maximum Breaker: 25A

Minimum Circuit Ampacity: 16A

Noise Level: Less than 60 dBA

Refrigerant: R-32

WiFi: Yes

Remote Included: Yes

Variable-Speed Inverter: Yes

Ducted Interior Kit

Model: MDRDK

Width: 17.08”

Depth: 17.08”

Height: 3.87”

Weight: 6.61 lbs

Built-In Electronics: Yes

Parts Warranty: 2 Years

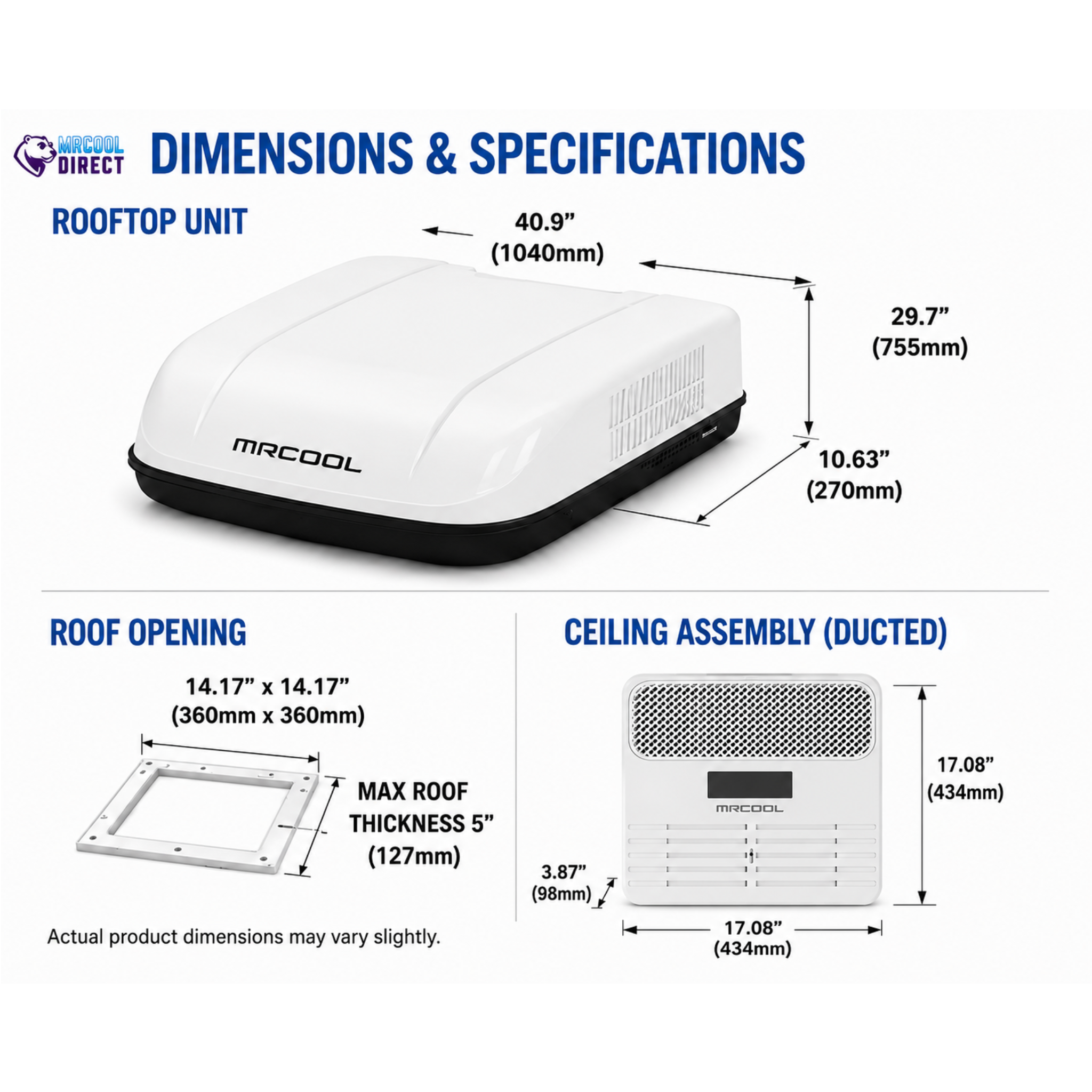

Dimensions

Rooftop Unit

Width: 29.72”

Depth: 40.95”

Height: 10.63”

Weight: 95.24 lbs

Shipping Weight: 101.4 lbs

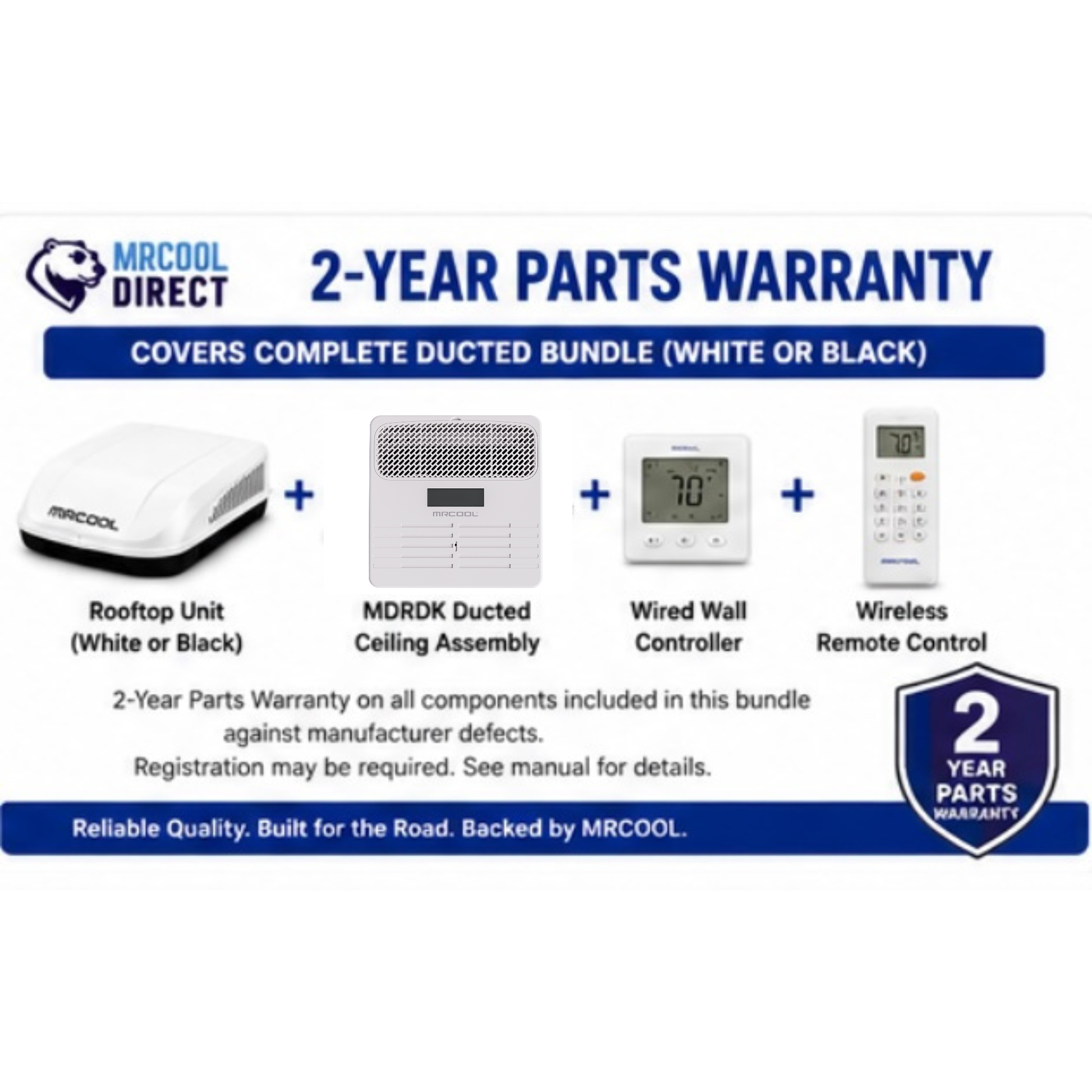

Warranty

Manufacturer Warranty Includes:

• 2-Year Parts Warranty
• 2-Year Compressor Warranty
• 2-Year Remote Warranty

Refer to the manufacturer’s warranty documentation for complete coverage details and exclusions.

Why Buy from MRCOOL DIRECT?

MRCOOL DIRECT is an authorized MRCOOL retailer specializing exclusively in MRCOOL heating and cooling products.

When you order from MRCOOL DIRECT, you’ll receive:

• Genuine MRCOOL products
• Expert product recommendations
• Friendly U.S.-based customer support
• Installation assistance
• Fast shipping
• Competitive pricing
• Support before and after your purchase

Whether you’re upgrading a factory-installed RV air conditioner or building a custom luxury coach, our team is here to help.

Frequently Asked Questions about the MRCOOL® TravelCool™ 15,000 BTU RV Inverter Heat Pump Ducted Bundle – White (MRDHP15WD-DCW)

Is this a complete system?

Yes. This bundle includes both the MRDHP15W-D rooftop heat pump and the MDRDK ducted interior kit.

Does this work with RV ceiling ductwork?

Yes. The MDRDK is specifically designed to connect to compatible RV duct systems for whole-coach airflow.

Does it provide heating and cooling?

Yes. It provides 15,000 BTU of cooling and 10,236 BTU of heat pump heating.

What electrical service does it require?

115V, 60Hz, single-phase power.

What breaker should I use?

The manufacturer specifies a 25-amp maximum fuse breaker and a 16-amp minimum circuit ampacity (MCA).

Can I control it from my smartphone?

Yes. Built-in WiFi works with the MRCOOL® Connect App for iOS and Android devices.

Is it quieter than traditional RV rooftop air conditioners?

Yes. The inverter compressor continuously adjusts its output instead of repeatedly cycling on and off, reducing operating noise while maintaining a more consistent indoor temperature.

Is this designed for residential homes?

No. TravelCool™ systems are designed specifically for RVs, campers, travel trailers, fifth wheels, motorhomes, horse trailers, and other mobile applications.
